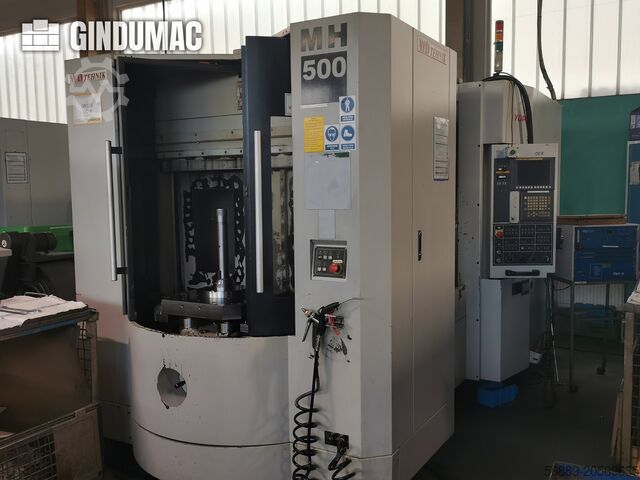

Condition: ready for operation (used), Year of construction: 2009, operating hours: 18,098 h, Movement X-Axis Movement 610 mm Z-Axis Movement 610 mm Y-Axis Movement 510 mm Itedpsxx Dvdefx Aaaop This 4-axis Yida MH-500 horizontal machining center was manufactured in 2009. It features a spindle speed of up to 10,000 rpm, a pallet size of 500 × 500 mm, and a tool magazine with a 40-tool capacity. Ideal for high-precision machining with its LM linear guideways and rapid traverse rates. If you are looking to get high-quality milling capabilities, consider the Yida MH-500 machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 18515, travel distance X-axis: 650 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 650 mm, controller model: Siemens 840 D, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS Travel X-axis: 650 mm Travel Y-axis: 650 mm Travel Z-axis: 650 mm Workpiece weight (max.): 400 kg Table load capacity: 400 kg Spindle speed (max.): 15,000 rpm Number of tool magazine slots: 240 MACHINE DETAILS Ijdpoxxxi Ssfx Aaastp Control model: Siemens 840 D Coolant supply: 50 bar Temperature range: 5–35°C Weight: 12,000 kg EQUIPMENT Stepless speed adjustment Chip conveyor Dual pallet changer Through-spindle coolant (IKZ) NC rotary table 0.001 degree

Condition: ready for operation (used), Year of construction: 2000, operating hours: 48,804 h, General Data Measurements width 7000 Measurements depth 5000 mm Machine weight 3400 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 8000 Number of axis 4 Movement X-Axis Working Feed 60000 mm/min X-Axis Rapid Traverse 60 m/min Y-Axis Working Feed 60000 mm/min Y-Axis Rapid Traverse 60 m/min Z-Axis Working Feed 60000 mm/min Z-Axis Rapid Traverse 60 m/min X-Axis Movement 600 mm Y-Axis Movement 560 mm Z-Axis Movement 560 mm Table Table load 350 kg Tools Slots in storage 90 Max weight 10 kg Max tool diameter 80 mm Max tool length 350 mm Type of tool holder DIN 69871-SK40 Media Chip conveyor Yes Additional Equipment Coolant Type/Content: Emulsion (internal & external) / approx. 1100L Iodpsxxnfpofx Aaajtp Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command Machine Accuracy: VDI / DGQ 3441 Renishaw Measuring Probe Tool Breakage Detection Drum filter Pallet Sequential Operation Enclosed Work Area Enclosure Network Connection Technical Documents and Layout Plan available This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2005, General Data Measurements width 4800 mm Measurements depth 5800 mm Machine weight 12800 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 10000 Spindle motor power 24 kW Number of axis 4 Movement X-Axis Movement 625 mm X-Axis Rapid Traverse 40 m/min Y-Axis Movement 650 mm Y-Axis Rapid Traverse 40 m/min Z-Axis Movement 650 mm Z-Axis Rapid Traverse 40 m/min Table Table load 4000 kg Tools Max weight 10 kg Max tool diameter 80 mm Max tool length 350 mm Type of tool holder DIN 69893-HSK-A63 Media Chip conveyor Yes Additional Equipment Renichaw measuring probe Ijdpfx Asxxnfveaastp Tool breakage detection: Yes, in tool magazine Flushing gun at the setup station Waterfall shower Paper belt filter Pallet sequential operation Enclosed work area enclosure according to UW Computer connection via Ethernet interface Network connection This 4-axis Starrag Heckert Dynamic CWK 400D was manufactured in 2005. It features a Siemens Sinumerik 840D control system, spindle speeds up to 10,000 rpm, and a dual pallet system with rapid 8-second pallet changes. The machine includes a tool magazine with 60 positions and a high-capacity coolant system. Ideal for complex machining tasks. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2008, Technical details: x-travel: 800 mm y-travel: 840 mm z-travel: 865 mm control: Siemens 840 D spindle speeds:: 10.000 rpm spindle drive motor: 20 kW weight of the machine ca.: 16 t dimensions of the machine ca.: 4 x 3 m 4 axes, 1 spindle A axis 360 x 0.001 Ijdpjxxl R Njfx Aaaotp Axis speeds: X= 65 mm/min; Y= 55mm/min; Z= 60mm/min Spindle torque = 262 Nm Spindle 20KW / 10,000 rpm Tool HSK-A100 57 places in the magazine *

Condition: as good as new (ex-display), Year of construction: 2022, functionality: fully functional, rapid traverse X-axis: 63 m/min, rapid traverse Y-axis: 63 m/min, rapid traverse Z-axis: 63 m/min, feed length X-axis: 760 mm, feed length Y-axis: 760 mm, feed length Z-axis: 800 mm, torque: 275 Nm, controller manufacturer: Fanuc, controller model: Fanuc 31i-B, workpiece height (max.): 1,150 mm, workpiece diameter (max.): 800 mm, workpiece weight (max.): 700 kg, rotary table diameter: 500 mm, rotational speed (max.): 40 rpm, spindle speed (min.): 100 rpm, spindle speed (max.): 15,000 rpm, spindle motor power: 37,000 W, number of slots in tool magazine: 60, tool length: 550 mm, tool weight: 12,000 g, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, 4-axis pallet machining center, unused display unit. Machine equipment: - Pallets sized 500 x 500 mm, 60-position tool magazine – BT40 taper with tool breakage monitoring in the machine magazine, - 15,000 rpm and spindle power 37/26/18[kW], Isdjxxktvjpfx Aaastp - BIG PLUS spindle specification, - High-pressure pump 70 bar with flushing – cooling through the spindle and a shower gun for working area flushing, - Axis and spindle load monitoring – SOFT AC and drum-type chip conveyor.

Condition: ready for operation (used), Year of construction: 2004, General Data Measurements width 5585 mm Measurements depth 3080 mm Measurements height 3280 mm Machine weight 21000 kg Control Unit Model OSP-E100M Brand OKUMA Main Drive Spindle speed range 20000 rpm Number of axis 4 Itodpjxxdrlofx Aaaop Movement X-Axis Movement 700 mm Y-Axis Movement 900 mm Z-Axis Movement 980 mm Media Internal cooling Yes This Okuma MA-500HA was manufactured in 2004. A robust horizontal machining centre, it features a spacious X-axis travel of 700mm, Y-axis of 900mm, and Z-axis of 980mm. It includes a high-speed spindle capable of 20000 RPM and an efficient through coolant pump. For more information about this horizontal machining centre, please reach out to us. Application Types Milling

Condition: good (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 1,050 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 880 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, table width: 630 mm, table length: 630 mm, rotational speed (max.): 7,000 rpm, spindle speed (min.): 7,000 rpm, coolant supply: 20 bar, number of slots in tool magazine: 40, tool length: 500 mm, tool diameter: 260 mm, tool weight: 30,000 g, The machine is available for immediate delivery. Iedoxw Hzmepfx Aaastp

Condition: good (used), Year of construction: 2004, Hüller Hille Bluestar 5, year of manufacture 2004, Fanuc 21 Ti - MB control, travel X/Y/Z 700/630/700 mm, 2-pallet changer, pallet size 500 x 500 mm, rotary table C-axis 0.001°, 40-position tool changer, BT 40 spindle taper, spindle speed up to 10,000 rpm, feed rates X/Y/Z up to 50 m/min, internal coolant 40 bar, chip conveyor, max. table load 500 kg. Itedpsxwvg Sofx Aaaep

Condition: used, Year of construction: 1998, x-travel 650 mm y-travel 560 mm z-travel 650 mm table surface area 400 x 400 mm control Fanuc 18i-M spindle turning speed range 120-12000 U/min ja/yes hand wheel type of pallet-changer 2 Cooling through the spindle 10 bar chip conveyor ja/yes feed 670 mm/min distance work spindle /surface of the table 800 mm table load 400 kg toolpiece magazine: chain magazine 80 BT 40 b-axis 360 1° rapid traverse: 40 m/min feed 1-40.000 mm/min tool changing time 1,3 sec tool/tool tool changing time 3,8 sec chip/chip total power requirement 22,4 kW weight of the machine ca. 10,5 t dimensions of the machine ca. 5 x 3,3 x 3 m (LBH) Machining centre - Horizontal Mitsubishi M-H4B, year of construction 1998, good ondition, regularly maintained. Itedexwp Hlepfx Aaasp

Condition: ready for operation (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 760 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 760 mm, table load: 500 kg, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS X-axis travel: 760 mm Y-axis travel: 760 mm Z-axis travel: 760 mm Spindle center to table surface: 50 to 810 mm Spindle end to table center: 135 to 895 mm Table size: 500 x 500 mm Max. load capacity: 500 kg Index positions: 360 Itsdpsxvq Hdsfx Aaajp Speed range: 50 to 15,000 rpm Number of speed ranges: stepless Taper: NT No. 40 Spindle diameter: 70 mm Feed Rapid traverse (X/Y/Z): 60,000 mm/min Manual feed (X/Y/Z): 1 to 60,000 mm/min Tool changer Tool holder: Standard MAS BT40 Magazine capacity: 48 stations Max. tool diameter (adjacent positions occupied): 70 mm Max. tool diameter (adjacent positions free): 150 mm Max. tool length: 300 mm Max. tool weight: 10 kg MACHINE DETAILS Total power requirement: 43 kW Dimensions & Weight Space requirement: 2.7 x 4.73 x 2.87 m Machine weight: 11.5 t

Condition: as good as new (ex-display), Year of construction: 2024, travel distance X-axis: 1,050 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 1,030 mm, OKK Horizontal Machining Center, 1 unit Isdpfsxuhzpex Aaastp HM6300 FANUC 31-B BT50 12,000rpm (MS), 45/30/26kW, 60-tool magazine (MG) 2APC Rapid traverse: X & Z at 75 m/min, Y at 54 m/min CTS (Through-Spindle Coolant) preparation High-pressure unit (70 bar) Tool breakage detection in MG, contact type Lift-up chip conveyor – hinge type for steel (Type A) SOFT AC adaptive control function FASTEMS interface (excludes front door) Automatic restart upon tool damage Custom macro interrupt 116-tool magazine (60 tools x 2 lines) BIG PLUS spindle Manual Guide i: milling animation Oil skimmer Memory: total 1,280 MB (512KB) per program, up to 1,000 programs Extended parts program editing Run hour & parts counter display Tool life management (256 sets) Work coordinate system (48 sets) Custom macro B, 82 variables Helical interpolation Tool offset (200 sets)

Condition: used, Year of construction: 2006, functionality: fully functional, machine/vehicle number: 186770, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 800 mm, rapid traverse X-axis: 60,000 m/min, rapid traverse Y-axis: 60,000 m/min, rapid traverse Z-axis: 60,000 m/min, controller manufacturer: MAZAK, controller model: FUSION, overall weight: 1,320 kg, spindle speed (min.): 18,000 rpm, number of slots in tool magazine: 80, tool weight: 1,200 g, Equipment: chip conveyor, documentation/manual, Mazak HCN 5000 Fusion horizontal machining center. Continuous 4th axis table, Tecnoforme 20 Bar system with side-mounted coonsep rotofilter. Used machine in good condition, can be inspected under power. Condition: Used Location: Italy Itjdpfx Aexugv Eeaajp

Condition: used, Year of construction: 2021, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, controller manufacturer: SIEMENS, controller model: 840 D CELOS, CONTROLS .. CNC controls SIEMENS 840 D CELOS WORKING RANGE -CUBIC- .. number of processing axes (excl parallel axes): 4 .. X-axis travel: 730 mm .. Y-axis travel: 730 mm .. Z-axis travel: 880 mm .. rotating range B-axis from: 0 ° .. rotating range B-axis up to: 90 ° TABLE .. table surface (left-right): 500 mm .. table surface (front-back): 500 mm .. workpiece load (max): 500 kg SPINDLE / HEAD .. spindle revolutions (max): 15000 /min .. tool fixture: ISO BT 40 .. drive power: 37.7 kW AXIS DRIVES .. traverse velocity X (max): 5000 mm/min .. traverse velocity Y (max): 5000 mm/min .. traverse velocity Z (max): 5000 mm/min .. rapid traverse X: 60000 mm/min .. rapid traverse Y: 60000 mm/min .. rapid traverse Z: 60000 mm/min Iedpfxextuf Ej Aaajtp TOOL MAGAZINE .. magazin type: disc magazine .. number of positions: 40 .. tool diameter max.: 70 mm .. - with free neighbour positions: 170 mm .. tool length max.: 550 mm .. tool weight max.: 12 kg .. tool changing time: 2.5 s AUTOMATIC WORKLOAD EQUIPMENT .. number of store positions: 2 .. Workpiece diameter max.: 800 mm .. workpiece height (max): 1000 mm .. pallet length: 500 mm .. pallet width: 500 mm .. number of pallets: 2 ELECTRICAL SPECIFICATIONS .. mains power supply: 37.3 kVA .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 4784 mm .. space requirements -front/back-: 3078 mm .. total height: 2852 mm .. total weight approx.: 12000 kg ATTACHMENTS .. chip conveyor: yes .. coolant unit: yes .. closed cabin: yes .. European CE standards: yes Accessories - Chip conveyor

Condition: used, Year of construction: 2014, Technical details: x-travel: 760 mm Isdpfx Aexrwpdsaastp y-travel: 760 mm z-travel: 760 mm total power requirement: 43 kW weight of the machine ca.: 11,5 t dimensions of the machine ca.: 2,7 x 4,73 x 2,87 m max. table loading capacity: 500 kg

Condition: good (used), Year of construction: 2005, MACHINE SPECIFICATIONS CNC controller: MSX-501 Axes X-axis travel mm: 630 Y-axis travel mm: 600 Z-axis travel mm: 670 B-axis degrees: 360º (0.001º index) Feed rates m/min: 50 Rapid traverse m/min: 50 Worktable Number of pallets: 2 Table dimensions mm: 500x500 Iedoxq Hcwepfx Aaaotp Maximum workpiece size (D x H) mm: ø800x1,000 Max. workpiece weight kg: 500 Spindle Spindle speed rpm: 8,000 Spindle drive power kW: 18.5/22 Tool system Tool holder: ISO-50 Tool magazine slots: SK50 Equipment Chip conveyor Signal lamp High-pressure pump Internal coolant supply

Condition: good (used), Year of construction: 2000, MORI SEIKI SH-503/40 TWIN PALLET CNC HORIZONTAL MILLING MACHINE WITH MORI SEIKI MSX-502III CONTROL UKUK Pallet Dimension 500 x 500mm. Maximum Table Load 1,000kg. Axis Travel X'=630mm, 'Y'=600mm, 'Z'=650mm, 'B'=1° Increment. Rapid Traverse 'X,Y,Z'=32m/min. Spindle Taper BT40. Maximum Spindle Speed 12,000rpm (22kW Motor). 120 Position ATC. Maximum Tool Ø150mm (Without Adjacent Tools), Maximum Length 360mm, Maximum Tool Weight 12kg. S/No. 1212 (2000). DESCRIPTION With Renishaw OMP 600 Spindle Probe, Blum Laser Tool Setting/Breakage Unit, Dual Auger To FSE Chip Conveyor, Through Coolant Filtration System, Oil Chiller, Filtermist Mist Extraction Unit, Handwheel & Signal Tower. Overall Dimensions L4,500 x W2,725 x H3,267mm. Weight 14,900kg. Note: Tooling & Tombstones Not Included. Itodpexqt Tiefx Aaasp

Condition: ready for operation (used), Year of construction: 2008, Control Unit Brand FANUC Itsdpfoxqtcqjx Aaaep Model 16 i MB Movement X-Axis Rapid Traverse 50 m/min Y-Axis Rapid Traverse 50 m/min Z-Axis Rapid Traverse 50 m/min X-Axis Movement 735 mm Y-Axis Movement 610 mm Z-Axis Movement 610 mm This Kitamura HX500 ia was manufactured in 2008. It features X-Y-Z Axis Travels of 735, 610, and 610 mm, a table size of 500x500 mm, and a spindle speed of 13,000 rpm. The machine includes a BT40 spindle mount, a 50-position tool changer, and a FANUC 16 i MB control system with a 10.4" color LCD. Consider the opportunity to buy this Kitamura HX500 ia horizontal machining centre. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2008, machine/vehicle number: 1160821, BA 600-2 CNC, Horizontal Milling and Drilling Center SW Schwäbische Werkzeugmaschinen GmbH Machine No.: 166 0821 Year of manufacture: 2008 Used, ready for operation Travel axes: X-axis 600 mm Y-axis (alternate position) 600 (975) mm Z-axis 500 mm Control: Siemens 840D control, side-mounted Feed / rapid traverse speed: X, Y, Z 1 – 45,000 mm/min Max. feed force X, Y, Z 15,000 N Average acceleration: X, Y, Z 2.5 m/s² Measuring system: Absolute linear measuring system X, Y, Z Spindles: Spindle speed (stepless) 20-10,000 rpm Torque 2 x 363 Nm (S6/40%ED) Power 2 x 38 kW (S6/40%ED) HSK-A 100, horizontally arranged side by side Spindle center distance 600 mm Spindle bearing diameter 100 mm Motor spindles, liquid-cooled, AC technology Working area: Swing-arm carrier with straight-toothed gearing, max. workpiece weight 2,000 kg Swivel time 0/180 degrees approx. 6.0 sec Partition wall between machining and loading area Iedpfxoxqrvve Aaajtp Tool magazine: 2 x 40 tool HSK-A 100 chain magazines, position-coded Automatic pickup Tool change time (chip-to-chip): 4.9 sec Max. tool diameter 100 mm 250 mm if adjacent pocket is empty Max. tool length 350 mm Max. tool weight 20 kg Equipment: Central lubrication Minimum quantity oil lubrication (spindle lubrication) Chip conveyor Connection for central coolant system Hydraulic system Service unit Water recooler Fully enclosed; crane loading possible Dimensions with paper band filter: approx. 5.15 x 8.50 x 4.20 m Weight approx. 20,000 kg Dimensions without paper band filter: approx. 5.15 x 6.60 x 4.20 m Other details: - Condition appropriate for its age - Annual maintenance was regularly performed by the previous owner --- Machine is sold without clamping devices --- --- without foundation parts --- Immediately available, timing by arrangement EXW 72793 Pfullingen Dismantled into main components Transport to site by the customer/buyer! Dimensions/transport dimensions of main machine components: 1 pc. machine unit (X, Y, Z) mm 3800 x 3350 x 3400 approx. 13,000 kg 1 pc. table unit mm 4400 x 2400 x 3400 approx. 10,000 kg Additionally, peripheral equipment such as chip conveyor, small parts, sheet metal, etc. Short delivery time possible! Schedule by arrangement.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 12,976 h, functionality: fully functional, machine/vehicle number: NSO997, travel distance X-axis: 750 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 850 mm, controller model: FANUC Series 30i, spindle speed (max.): 15,000 rpm, TECHNICAL DETAILS Travel (X-axis): 750 mm Travel (Z-axis): 800 mm Travel (Y-axis): 850 mm Magazine Positions: 120 Spindle Speed Range: 50–15,000 rpm Spindle Diameter (Front Bearing I.D.): 80 mm Spindle Taper: ISO R297 / Taper No. 40 Tool Holder: MAS I Type P40T Table Pallet Size: 550 × 550 mm Max. Rotary Table Swivel Range: 360° Pallet Height: 750 mm Distances Distance Between Spindle Nose and Table Center: 150–1,000 mm Distance Between Spindle Nose and Table Surface: 50–850 mm Feed Rates Rapid Traverse X-, Y-, Z-Axis: 60,000 mm/min Cutting Feed Rate (X-, Y-, Z-Axis): 0.001–30 mm/min Tool Changer (ATC) Number of Tools: 40 Tool Size (Ø × Length): Ø75 × 470 mm Tool Weight: 8.0 kg Tool Change Time (Tool to Tool): 1.3 s Performance Data Positioning Accuracy (X-, Y-, Z-Axis): ±0.003 mm Repeatability (X-, Y-, Z-Axis): ±0.0015 mm Pallet Load Capacity: 800 kg Thrust Force: 9,800 N MACHINE DETAILS Control: FANUC Series 30i Iedjxqmbgspfx Aaaetp Space Requirements & Weight Footprint: 2,750 × 5,700 mm Machine Weight: 16,000 kg Motors Spindle Drive Motor (15 min rated power): 22 / 18.5 kW Hydraulic Pump Motor: 3.7 (4) kW Operating Hours Machine Running Hours: 12,976 h Control Powered Hours: 112,997 h

Condition: used, Year of construction: 2014, operating hours: 30,000 h, functionality: fully functional, machine/vehicle number: 15425059064, travel distance X-axis: 1,035 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 510 mm, 3-axis vertical machining center - HEIDENHAIN iTNC 530 - 20-position tool changer - Tool holder SK40 - Chip conveyor on the left - Direct measuring system on X, Y, Z axes Isdjxp N Dujpfx Aaaotp

Condition: ready for operation (used), Year of construction: 1997, General Data Measurements width 4500 mm Measurements depth 2900 mm Measurements height 3428 mm Machine weight 14000 kg Main Drive Number of axis 4 Movement X-Axis Movement 630 Y-Axis Movement 600 Z-Axis Movement 650 Additional Equipment Tool Storage: 40 pcs Isdpfxsxpyuks Aaastp This 4-axis MORI SEIKI SH-50 was manufactured in 1997. A reliable horizontal machining centre, it offers robust construction and precision engineering. Ideal for complex machining tasks, this unit has maintained consistent performance over the years. Consider the opportunity to buy this MORI SEIKI SH-50 horizontal machining centre. Contact us for more information. Application Types Milling

Condition: used, OKK HM 40 , 400mm HMC, (8) Pallets, serial number 378 MA74294, 16 i M Fanuc Control, BT 40 Spindle, 20,000 RPM, 120 ATC, B axis, Through Spindle Coolant, Coolant & Chiller, NEW 2001. Itjdpfx Ajxpxp Heaaop

Condition: used, BASIC DATA Condition: Very good Availability: 01/2025 Machine model: DMG NHX 4000 Year of manufacture: 2017 Operating hours: 41,220 h Spindle hours: 21,663 h Working area: X-axis travel: 560 mm Y-axis travel: 560 mm Z-axis travel: 660 mm TRANSPORT WEIGHT AND DIMENSIONS Transport weight Machine incl. tool magazine and chip conveyor: 9,300 kg Coolant unit KF 110/700: 1,500 kg Chiller unit: approx. 82 kg Sheet metal parts: 125 kg Documentation and accessories: 60 kg Transport dimensions of the machine incl. tool magazine: Length x Width x Height: 4.20 m x 3.20 m x 2.80 m SPINDLE INFORMATION Spindle specification Spindle type: SK004 motor spindle speedMASTER® HSK-A63 Spindle speed: 20–20,000 rpm Power: 35 kW (40% duty cycle), 25 kW (100% duty cycle) Torque: 130 Nm (40%), 86 Nm (100%) Workpiece weight per pallet: max. 400 kg Pallet size: 400 x 400 mm Max. workpiece diameter: 630 mm Max. workpiece height: 900 mm TOOL CLAMPING SYSTEM AND TOOL CHANGER Tool holder: HSK-A63 Standard: DIN 69893 Form A Clamping mechanism: Clamping: Mechanically by spring force Unclamping: Hydraulically Tool changer: Capacity: 40 tools (ring magazine system) Max. tool diameter: 70 mm (adjacent pockets free), 170 mm (adjacent pockets occupied) Max. tool length: 450 mm Max. tool weight: 12 kg Optional tool changer: Ring tool magazine with 60 pockets (HSK-A63) POWER SUPPLY Voltage: TN-S system, 400 V Power consumption (at 100% duty cycle): Base machine: 45 kVA Coolant unit: 48 kVA Band filter unit: 55 kVA Mains connection rating for Siemens Sinamics S120 16 kW: 0.48 MVA 36 kW: 1.08 MVA 55 kW: 1.65 MVA 80 kW: 2.40 MVA Iedpfx Ajxn Adlsaaotp 120 kW: 3.60 MVA COOLING SYSTEM AND CHIP DISPOSAL Coolant: Water-soluble coolant Interface for high-pressure coolant system: Up to 70 bar, compatible with Knoll systems Coolant flushing system: Includes cleaning guns Additional components: Rotating inspection window on the work area door Coolant flushing system for cleaning the machine interior Upgraded cooling system: Larger Bürner filter unit (DMG upgrade, see attachment) MEASUREMENT AND MONITORING SYSTEMS Tool breakage control system in tool magazine Spindle sensor measurement system with Renishaw OMP60 for automatic measurement and centering CONTROL SYSTEM CNC: CELOS® with Siemens 840D sl Operate Control panel: 21.5" ERGOline® Control with multi-touch display Functions: Apps for simplified machine operation as well as for comprehensive management, documentation, and visualization of order, process, and machine data. Networking with CAD/CAM and compatibility with PPS/ERP systems. WORKTABLE NC table: With direct drive technology Minimum indexing: 0.001° Max. rotational speed: 100 rpm DOCUMENTATION AND ADDITIONAL FEATURES Electrical schematics and user manuals in German Languages: Screen texts available in German and English CELOS products DMG MORI NETSERVICE for remote diagnosis SERVICE AGENT for maintenance monitoring MESSENGER for real-time machine status

Condition: ready for operation (used), Year of construction: 2008, operating hours: 15,289 h, functionality: fully functional, travel distance X-axis: 750 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 850 mm, spindle speed (max.): 15,000 rpm, number of slots in tool magazine: 121, TECHNICAL DETAILS Travel Paths X-axis travel: 750 mm Y-axis travel: 800 mm Z-axis travel: 850 mm Work Table (axis operated by AC servo motor) Pallet size: 550 x 550 mm Smallest indexing increment: 0.001 degrees Spindle Tool taper: #50 Drive power: 30/22 kW Spindle speed: 15,000 rpm Tool Magazine Tool stations: 121 tools Magazine type: Chain magazine Specification: BT-50 MACHINE DETAILS Control: FANUC 31i Installation dimensions (L × W × H): approx. 2,780 × 1,500 × 2,300 mm Operating Hours Running time: 15,289 h Control On-Time: 106,856 h EQUIPMENT Coolant system Iodpfjxnwq Hex Aaaetp Renishaw infrared tool probe OMP 60 BT 50
