Condition: repair required (used), Year of construction: 1999, Spinner TC82MC Siemens 810D C-axis and live tooling Iiedsxx Da Aspfx Ac Eoi Monitor needs repair!!

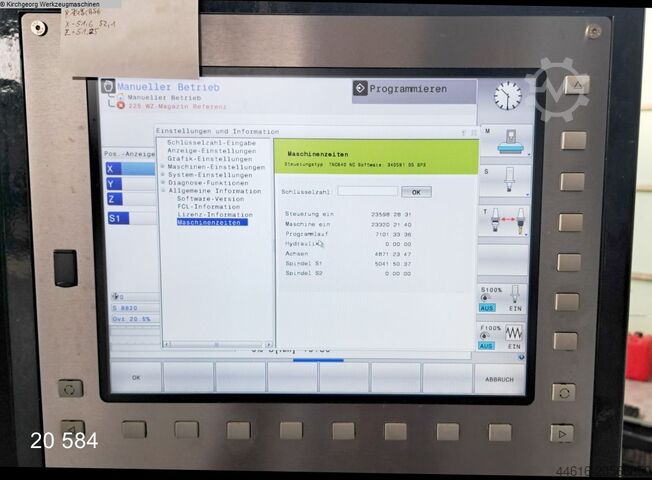

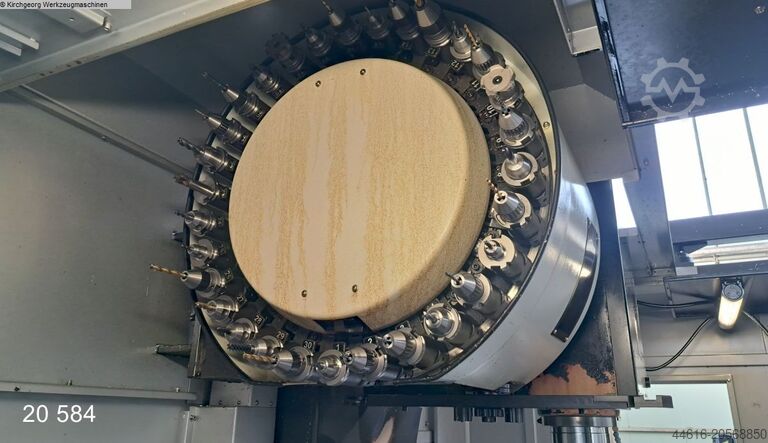

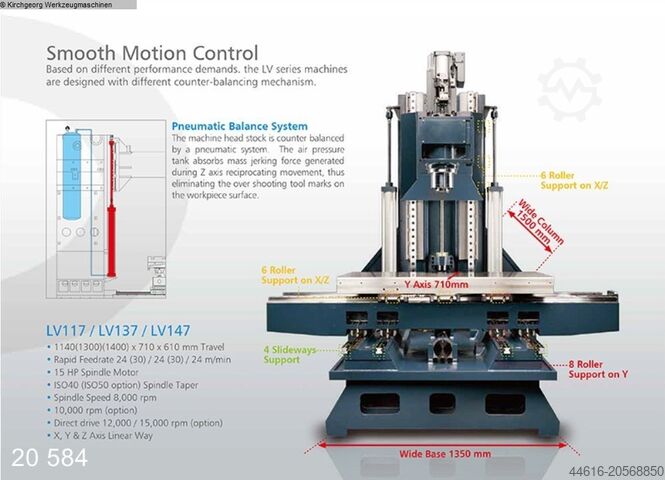

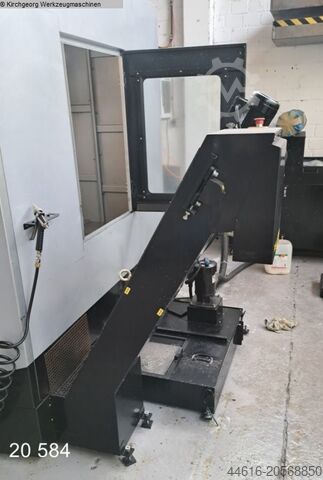

Condition: used, Year of construction: 2015, x-travel 1140 mm y-travel 710 mm z-travel 610 mm Iijdpsxx A Ewjfx Ac Eji CNC-control Heidenhain TNC640 table-size 1300 x 700 mm max. table load 1000 kg spindle taper ISO ISO 40 spindle turning speed range 8.000 U/min feed stepless max. 10.000 mm/min rapid traverse 24/24/24 m/min drive capacity - spindle motor 7,5 / 11 kW tool change unit 30 Pos. coolant IKZ 40 bar voltage 400 V total power requirement 25 kVA weight of the machine ca. 9,0 t dimensions of the machine ca. 3,25 x 3,08 x 3,00 m - Serial No.: 4P11152J1 - TSC 40 bar incl. 600 liter coolant tank with paper band filter unit - Y-Axis with 4 liear guide rails! - X- and Z-Axis with 6 roller supports for each axis!

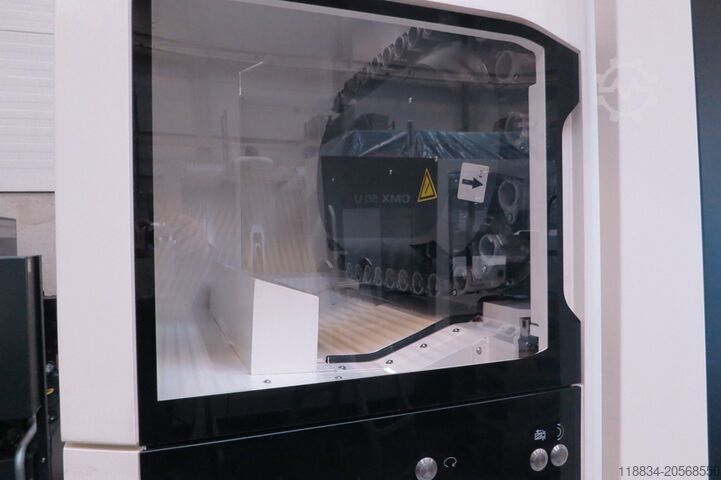

Condition: good (used), Year of construction: 2020, spindle speed (min.): 12,000 rpm, Machine type: CNC Vertical Machining Center Model: CMX1100V Manufacturer: DMG MORI Control: DMG MORI HEIDENHAIN TNC 620 Year of manufacture: 2020 Location: Germany Travel Range X-axis: 1100 mm Y-axis: 560 mm Z-axis: 510 mm Iodpfexx Athex Ac Eoii Table size approx. 1400 x 560 mm Max. workpiece weight approx. 1000 kg Max. spindle speed approx. 12,000 rpm 13/9 kW Number of tool pockets: 30 Rapid traverse X / Y / Z: 30 m/min Tool holder: SK40 Footprint (L x W x H): approx. 4.04 x 2.8 x 2.95 m Equipment - Main spindle 12,000 rpm 13/9 kW SK40 - Direct absolute measuring system X-Y-Z - Separate electronic handwheel - 30-position chain-type tool magazine - Bed flushing via M-function - Coolant tank 600 liters - Internal coolant supply (IKZ) pump 20 bar - Coolant spray gun - Enclosure roof (M-function) - Touch probe set for Heidenhain - 4th axis interface (Subject to errors in technical data and specifications)

Condition: not inspected (used), Year of construction: 2000, operating hours: 6,191 h, functionality: unexamined, machine/vehicle number: 7158, travel distance X-axis: 1,000 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 600 mm, spindle speed (max.): 15,000 rpm, number of slots in tool magazine: 46, No reserve price – guaranteed sale to the highest bidder! Bidding obligates buyers to collect the machine within the specified period: between 01.12.2025 and 05.12.2025! TECHNICAL DETAILS Spindle Spindle speed: max. 15,000 rpm Tool Data Tool magazine: 46 stations Tool holder: ISO-B40 Travel Paths X-axis travel: 1,000 mm Y-axis travel: 600 mm Z-axis travel: 600 mm Table NC rotary tilting table diameter: 800 mm Rotary Axis Nominal speed: 3,000 rpm Static torque (100K): 27 Nm Permissible transport load (with clamped tilting axis): 10,000 N Rotary axis speed: 12 rpm Tilting Axis Nominal speed: 3,000 rpm Static torque (100K): 27 Nm Permissible transport load (5-axis operation): 5,000 N Maximum rotary axis speed: 4 rpm Ijdpfsxxzpuex Ac Ejii Control: HEIDENHAIN TNC 426 MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 5,200 x 2,900 x 3,000 mm Weight: 7,500 kg Spindle hours: 6,191 h Machine on-time hours: 26,997 h EQUIPMENT Technical documentation SK 40 holders ATORN 3D probe Note: The tool holders visible in the images are included in the scope of sale and delivery. The tools clamped in these holders, such as drills, reamers, milling cutters etc., are not included in the scope of sale or delivery. The drive for the head tilting axis is missing.

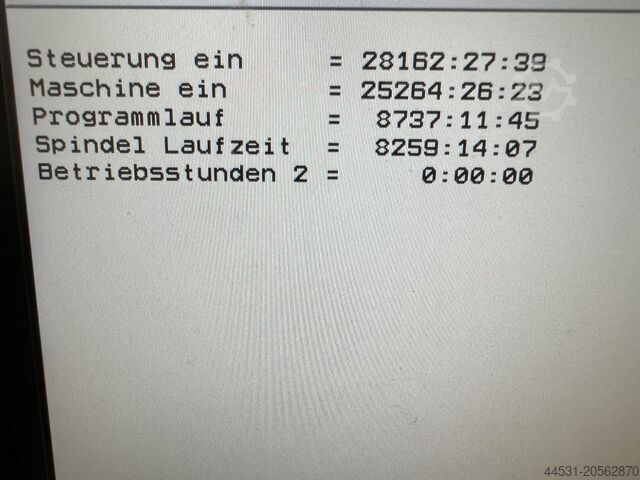

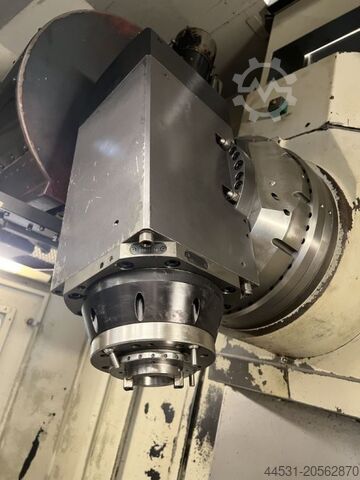

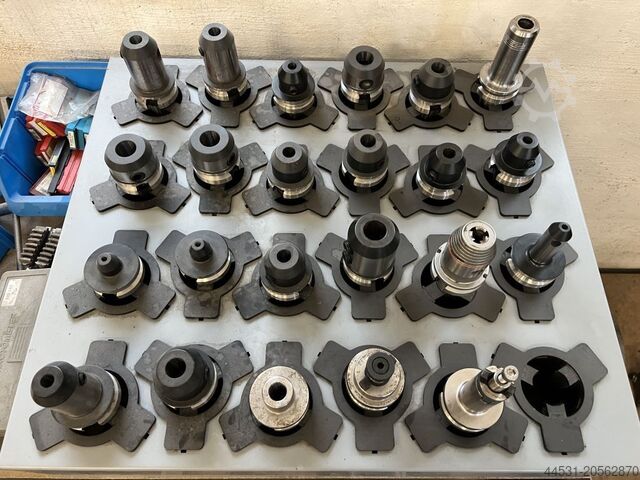

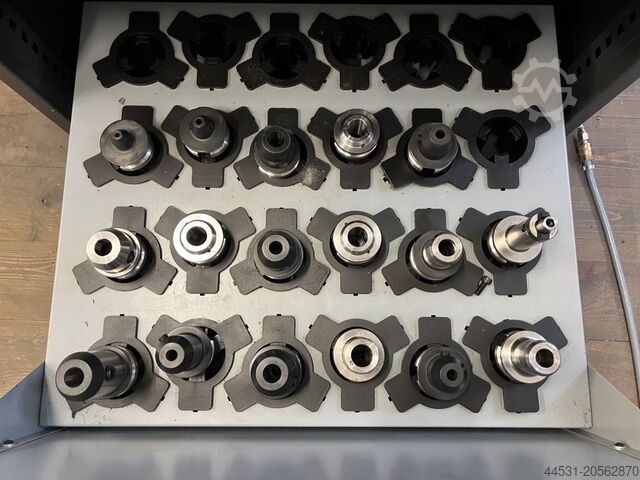

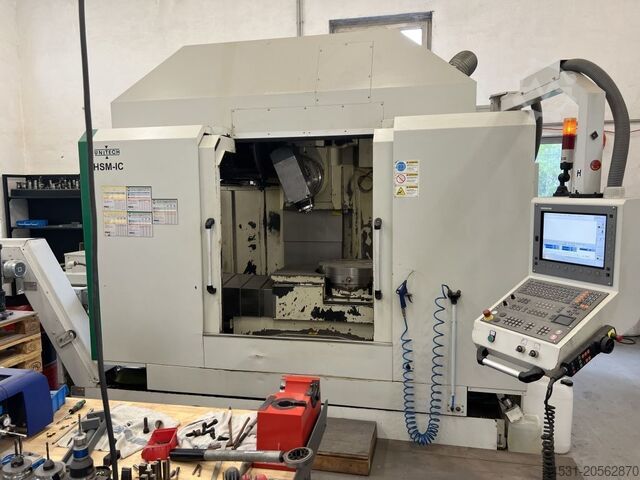

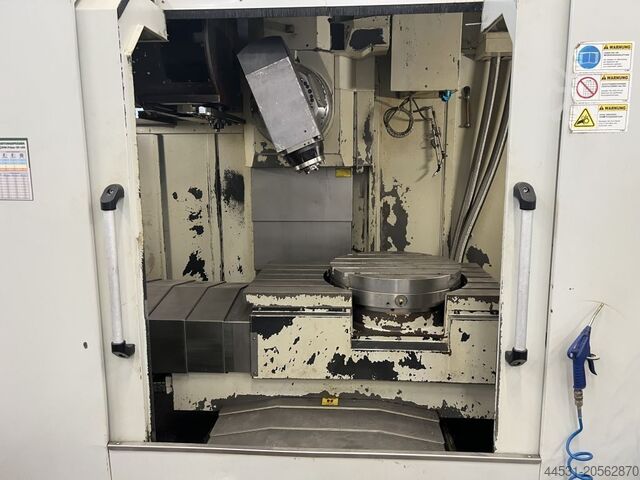

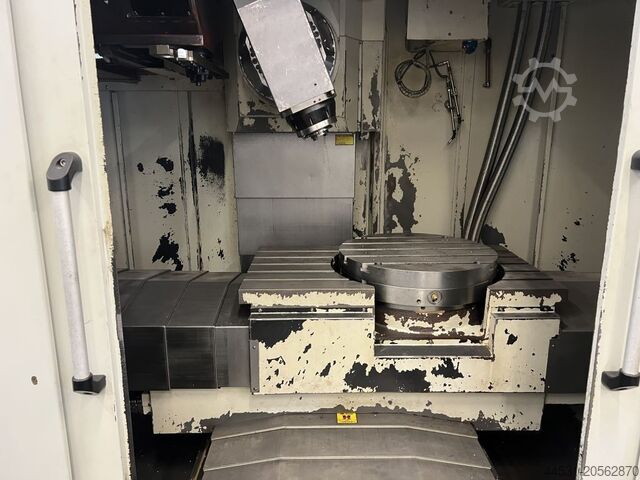

Condition: ready for operation (used), Year of construction: 2012, Immediately available ex toolmaking shop in Switzerland: Vertical 5-axis simultaneous machining center Unitech Model HSM – IC 5 Axis Year of manufacture: 2012 Heidenhain iTNC 530 Table: 1100 x 600 mm Travel (X/Y/Z): 1080/610/810 mm Rotary table diameter: 600 mm Spindle speeds up to 15,000 rpm Feeds up to 30,000 mm/min Table load: 500 kg Tool holder: BT 40 Magazine: 40 tools Through-spindle coolant (IKZ) 60 bar Chip conveyor Compressed air through spindle Spindle hours: 8,200 / Spindle will be completely overhauled in 2025 – hours reset to 0 Glass scales on X and Y axes Zero-point measurement system in rotary table Infrared measuring system Iiodpfjxxu S Asx Ac Eei Zero-point clamping system in rotary table with 10 clamping pots by Schunk Weight: 10 tons Offered at €19,500 plus VAT ex works

Condition: used, Year of construction: 2021, controller manufacturer: Heidenhain, controller model: TNC 640, _____ Description: Year of manuf. : 2021 Control : Heidenhain TNC 640 Speed : 10000 rpm Movement X/Y/Z : 1000/600/600 mm Tool holder : SK 40 In General: Year of manufacture:2021 Control system:Heidenhain TNC 640 Traverse paths X/Y/Z:1 mm Speed:10,000 rpm Spindle: Technology:Belt drive Speed:10,000 rpm Tool holder:SK 40 Media feed-through:Blown air + cooling lubricant Working table: Clamping surface:1,200 x 600 mm Max. table load:750 kg Tool magazin: Technology:Drum magazine Tool changer:Double gripper Number of stations:30 Maximum tool length:340 mm Maximum tool diameter:120 mm Equipment: Measuring systems:Directly in X/Y/Z (glass scales) Chip removal:Chip conveyor Coolant supply:Internal coolant system, 20 bar Workpiece measurement:Touch probe Tool measurement:Tool setter Iiedpfx Acsxxny Te Esi Set-up mode:Electronic handwheel Oil separator:Mechanical skimmer Media feed-through Spindle:Coolant + blast air

Condition: ready for operation (used), Year of construction: 2018, General Data Machine weight 6850 kg Main Drive Iedpfxsxxni Ue Ac Ejii Number of axis 3 Spindle Speed 12000 RPM Tool taper SK 40 Movement X-Axis Movement 1067 mm Z-Axis Movement 610 mm Y-Axis Movement 610 mm Tools Slots in storage 30 This 3-axis Hurco VMX 42i was manufactured in 2018 and features X, Y, and Z travels of 1067 mm, 610 mm, and 610 mm respectively. It boasts a maximum spindle speed of 12000 rpm and a machine mass of 6450 KG. If you are looking to get high-quality milling capabilities consider the Hurco VMX 42i machine we have for sale. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2013, General Data Machine weight 6850 kg Main Drive Number of axis 3 Tool taper SK 40 Movement X-Axis Movement 1067 mm Z-Axis Movement 610 mm Y-Axis Movement 610 mm Tools Slots in storage 24 This 3-axis Hurco VMX 42i was manufactured in 2013 and features X-Travel of 1067 mm, Y-Travel of 610 mm, and Z-Travel of 610 mm, with a tool holder SK40. If you are looking to get high quality milling capabilities consider the Hurco VMX 42i machine we have for sale. Contact us for more information. Application Types Iodpfx Asxxnizec Esii Milling

Condition: ready for operation (used), Year of construction: 2008, Control Unit Brand FANUC Model 18i-MB5 Main Drive Number of axis 3 Spindle Speed 12000 RPM Spindle motor power 21 kW Tool taper HSK 63 Movement Isdsxxnkrepfx Ac Ejii X-Axis Movement 1000 mm Z-Axis Movement 360 mm Y-Axis Movement 400 mm This 3-axis STAMA MC 526 vertical machining center was manufactured in 2008. It features a Fanuc 18i-MB5 CNC, twin-spindle with double tool changer, and a high-pressure coolant system. The machine offers a spindle speed of 12,000 rpm, spindle power of 21 kW, and a tool capacity of 60. X/Y/Z travels are 1000/400/360 mm respectively. If you are looking to get high-quality milling capabilities consider the STAMA MC 526 machine we have for tact us for more information. Application Types Milling

Condition: good (used), Year of construction: 2015, operating hours: 50,871 h, functionality: fully functional, The machine is in good technical condition, fully functional, and still in operation. A test run is possible. Spindle replaced in 2021. Technical specifications: X axis 1,020 mm, Y axis 610 mm, Z axis 720 mm. Spindle speed: 12,000 rpm. Clamping area of the table: 1,200 × 600 mm. Max. table load approx. 1,000 kg. Spindle speed range: 40 – 10,000 rpm. Spindle power approx. 15 / 22 kW (short-term operation). Spindle taper ISO 40 / DIN 69871. Tool magazine: 30 positions. Rapid traverse (X/Y/Z): approx. 30 m/min. Control: HEIDENHAIN iTNC 530, electric motor with planetary gearbox. Machine weight approx. 8,000–9,000 kg. Machine dimensions (LxWxH): approx. 3,700 × 2,800 × 2,800 mm. Ijdpfx Acsxxmtfe Eeii

Condition: refurbished (used), Year of construction: 2006, travel distance X-axis: 1,020 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 625 mm, rapid traverse X-axis: 36,000 m/min, rapid traverse Y-axis: 36,000 m/min, rapid traverse Z-axis: 32,000 m/min, controller manufacturer: FANUC, controller model: Series 0i-MC, spindle speed (max.): 12,000 rpm, spindle motor power: 18 W, BRAND: DOOSAN-DAEWOO MODEL: MYNX NM-510 CATEGORY: VERTICAL MACHINING CENTERS YEAR OF MANUFACTURE: 2006 CNC CONTROL: FANUC Series 0i-MC MACHINE WEIGHT: 7,500 kg MACHINE DIMENSIONS: - Length: 4,165 mm - Width: 2,600 mm - Height: 3,043 mm Spindle Spindle taper: ISO 40 Spindle speed: 12,000 rpm Spindle motor power (cont./30 min): 15 / 18.5 kW Working Capacity X axis: 1,020 mm Y axis: 510 mm Z axis: 625 mm Distance spindle nose – table surface: 150 – 775 mm Distance spindle center – column: 557 mm Table Table dimensions: 1,200 x 500 mm Table load capacity: 800 kg Feed Rates Rapid traverse (X/Y/Z axes): 36,000 / 36,000 / 32,000 mm/min Cutting feed rate (X/Y/Z axes, linear interpolation, max): 8,000 mm/min Tool Changer Tool holder taper: DIN 69871-A40 Shank: DIN 69872-A40 Tool magazine capacity: 30 stations Maximum tool diameter (adjacent tools full/empty): Ø 90 / Ø 150 mm Maximum tool length: 300 mm Maximum tool weight: 8 kg Accessories Coolant tray + high pressure pump (15 bar) with through-spindle coolant Chip conveyor Spindle line air conditioner + transformer Manuals, electrical diagrams, and CE Declaration Iisdpfexxlmwex Ac Eoi

Condition: ready for operation (used), Year of construction: 2017, operating hours: 5,300 h, Control Unit Brand HAAS Model NGC Main Drive Spindle Speed 8100 RPM Number of axis 3 Tool taper ISO 40 Movement X-Axis Movement 1016 mm Z-Axis Movement 635 mm Y-Axis Movement 508 mm Table Table load 1588 kg Tools Max tool diameter 89 mm Iisdpfx Ajxxdr Eoc Eei Slots in storage 20 Media Internal cooling yes This HAAS VF-3 vertical machining center was manufactured in 2017. It features a large table of 1219 x 457 mm with a load capacity of 1588 kg, and a spindle motor power of 22 kW. The machine includes a chip conveyor and cooling through the spindle option. If you are looking to get high-quality milling capabilities consider the HAAS VF-3 machine we have for sale. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2011, General Data Machine weight 6500 kg Control Unit Brand FANUC Main Drive Number of axis 3 Movement X-Axis Movement 1020 mm Y-Axis Movement 540 mm Z-Axis Movement 510 mm Additional Equipment Through-spindle cooling Preparation for 4th axis Iedpfx Acjxxdwzs Eeii External cooling unit This 3-axis DOOSAN DNM 500 was manufactured in 2011. It features a robust table size of 1200 × 540 mm and axis travels of 1020 × 540 × 510 mm. Equipped with through-spindle cooling and preparation for a 4th axis, it offers enhanced machining capabilities. Consider the opportunity to buy this DOOSAN DNM 500 vertical machining centre. Contact us for more information. Application Types Milling

Condition: like new (used), Year of construction: 2010, operating hours: 4,800 h, functionality: fully functional, The used QUASER MV 184 E 3-axis vertical machining center is a medium-sized CNC vertical machining center with a cast iron structure and roller guideways for the table movement. Travel: X 1020, Y 610, Z 610 mm; table size: 1200×600 mm with a maximum load of 500kg. Isdpfxexxb Dlj Ac Ejii Spindle: ISO-40 (DIN 69871) at 12,000 rpm (up to 18KW), cooled by a dedicated chiller, high-pressure coolant through the spindle, RANDOM tool changer with a 30-position swing arm, and belt chip conveyor. Year of construction: June 2010 (installed 2012), equipped with FANUC 0i-MD CNC with color LCD, Manual Guide i, remote handwheel, RS 232 serial port, and memory card. Machine in PERFECT condition with only 4,800 cutting hours, various additional tooling available.

Condition: used, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, table width: 500 mm, table length: 1,200 mm, rotational speed (min.): 70 rpm, rotational speed (max.): 10,000 rpm, FADAL VMC 4020 MACHINING CENTER MOD. 906-1 CNC 88 HS TABLE DIMENSIONS 1200 x 500 BALL SCREW DIMENSION 40 mm X AXIS: 1000 Y AXIS : 500 Z AXIS : 500 spindle speed 70-10,000 rpm Iodpfx Aexxa E Uoc Esii NUMBER OF TOOLS : 21. USED MACHINE INTERNAL CODE : CS 274

Condition: ready for operation (used), Year of construction: 1994, General Data Machine weight 9100 kg Measurements height 3000 mm Dimensions Machine Length 3700 mm Main Drive Number of axis 3 Spindle Speed 8000 RPM Tool taper SK 40 Ijdpfsxwzyksx Ac Eeii Movement X-Axis Movement 1000 mm Z-Axis Movement 500 mm Y-Axis Movement 800 mm This 3-axis DECKEL DC 100V vertical machining centre was manufactured in 1994. It features a Dialog 112 control, a worktable of 1,250 x 800 mm, and a tool magazine with an automatic changer holding approximately 30 positions. The spindle operates at up to 8,000 rpm. Consider the opportunity to buy this DECKEL DC 100V vertical machining centre. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 2016, x-travel 1.100 mm Iisdpfxjxwzhns Ac Eei y-travel 610 mm z-travel 610 mm table dimensions 1.250 x 610 mm Control Heidenhain turning speeds 15.000 U/min rapid traverse 32 m/min feed 20.000 m/min number of tool places 60 Pos. spindle hours ca. 3108 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice. Prior sale is reserved.

Condition: excellent (used), Year of construction: 2003, X travel 1020 mm Y travel 510 mm Z travel 500 mm Spindle speed 6000 rpm Table load capacity 800 kp Iodpfx Acoxwvv To Eoii Table size 1150 x 580 mm Motor power 18.5 kW Weight 4,400 kg Dimensions: 2200 x 3200 x 2800 mm

Condition: used, Year of construction: 2016, Milling machines Travel distance X: 1020 mm Travel distance Y :700 mm Travel distance Z: 500 mm Number of axis: 3 milling machine / machining center Control: Siemens 828D spindle chuck: BBT-40 spindle revolutions: 15000 rpm Iodpoxwvfujfx Ac Esii table size X: 1050 mm table size Y: 700 mm Main Spindle Arm-Type Tool Changer

Condition: used, Year of construction: 2017, Milling machines Travel distance X: 1020 mm Travel distance Y :700 mm Travel distance Z: 500 mm Number of axis: 3 milling machine / machining center Control: Siemens 828D spindle chuck: HSK-A63 spindle revolutions: 20000 rpm table size X: 1050 mm Iisdpfsxwvfnox Ac Eji table size Y: 700 mm Motor Spindle Umbrella-Type Tool Changer

Condition: good (used), Year of construction: 2005, functionality: fully functional, Technical details x-travel 1040 mm y-travel 600 mm z-travel 500 mm Control Heidenhain iTNC 530 table surface area 1250 x 600 mm table load 600 kg tool taper SK 40 spindle turning speed range 1 - 8000 U/min max. torque on the spindle (S1/S6) 140/200 Nm feed range 40000 mm/min Iedpfx Acoxwuu Is Eoii rapid power traverse in X-and Z direction 70 m/min rapid motion - y-axis 40 m/min spindle drive (100/40 % ED) 13/19 kW total power requirement 39 kVA weight of the machine ca. 8,9 t Additional information Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: like new (used), Year of construction: 2022, operating hours: 1,260 h, functionality: fully functional, travel distance X-axis: 1,300 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, rapid traverse X-axis: 32 m/min, rapid traverse Y-axis: 32 m/min, rapid traverse Z-axis: 32 m/min, controller manufacturer: Siemens, controller model: 828D ShopMill, table width: 610 mm, table length: 1,400 mm, overall weight: 8,500 kg, spindle speed (max.): 12,000 rpm, Equipment: chip conveyor, rotational speed infinitely variable, Inspection possible near Bonn - 12,000 rpm - Separate spindle cooling for constant temperature - Tool holder DIN ISO SK40 with blow-out function - 30-position tool changer with double-arm gripper – tool change time 1.8 sec - Thread cutting without compensation chuck - Roller guides Isdpfxexwufas Ac Eoii - Coolant and compressed air gun - Screw chip conveyor - Coolant unit - Compressed air cooling for dry machining - Electronic handwheel - Work area lamp

Condition: used, Year of construction: 2002, functionality: fully functional, HURCO - VMX 42 Offer Details Stock number: 1039-9402 Machine type: Vertical Machining Center Manufacturer: HURCO Model: VMX 42 Year of manufacture: 2002 Control: Winmax 9 (Upgraded) Location: D-59302 Oelde Country of origin: USA Delivery time: By arrangement Shipping terms: Ex location Additional information: Vertical Machining Center HURCO VMX 42 Technical Specifications X travel: 1,060 mm Y travel: 610 mm Z travel: 610 mm Control: Winmax 9 (Upgraded) Table size: 1,270 x 610 mm Max. table load: 1,100 kg Number of T-slots: 5 T-slot width: 18 mm T-slot spacing: 100 mm Spindle speed range - milling: approx. 10,000 rpm Spindle drive power: 18 / 11 kW Tool holder: SK 40 Tool changer: 24 positions Max. tool diameter: 80 mm Max. tool diameter with adjacent pocket empty: 120 mm Max. tool length: 300 mm Max. tool weight: 7 kg Feed rate: approx. 15.4 m/min Rapid traverse X-axis: 30 m/min Rapid traverse Y-axis: 30 m/min Rapid traverse Z-axis: 20 m/min Machine weight approx.: 7.0 t Space requirement approx.: 3.5 x 3.2 x 3 m Equipment Iijdpfxjxwua Dj Ac Eoi Chip conveyor Coolant system High-pressure coolant Internal coolant supply Signal lamp Electronic handwheel

Condition: ready for operation (used), Year of construction: 2011, General Data Machine weight 7000 kg Control Unit Brand FANUC Model 0i-MD Movement X-Axis Movement 1020 mm Z-Axis Movement 550 mm Y-Axis Movement 610 mm Main Drive Number of axis 4 Spindle Speed 8000 RPM Spindle motor power 15 kW Tool taper ISO 40 Table Table load 600 kg Table Width 1200 mm Table Length 600 mm Tools Slots in storage 24 Max weight 7 kg Media Internal cooling yes Isdpfxsxwqqre Ac Esii This Dugard 1000Y Plus was manufactured in 2011. It features a table size of 1200 × 600 mm, a maximum table load of 600 kg, and a tool magazine capacity of 24 tools. The machine includes a fourth rotary axis and is equipped with a FANUC 0i-MD control. If you are looking to get high quality milling capabilities consider the Dugard 1000Y Plus machine we have for sale. Contact us for more information. Application Types Milling

Condition: ready for operation (used), Year of construction: 2007, operating hours: 34,200 h, General Data Machine weight 7100 kg Control Unit Brand MAZATROL Model MATRIX NEXUS Main Drive Number of axis 4 Movement X-Axis Movement 1050 mm Y-Axis Movement 510 mm Z-Axis Movement 510 mm Table Table load 1200 kg Tools Number of index 30 Iiodpsxwqwfefx Ac Esi This 4-axis Mazak NEXUS VCN 510C-II was manufactured in 2007. It features a Mazatrol Matrix NEXUS CNC control, X-axis travel of 1050 mm, Y-axis travel of 510 mm, Z-axis travel of 510 mm, and a 4th axis KITAGAWA rotary table. The machine has a table size of 1300 × 550 mm and can handle a maximum load of 1200 kg. Consider the opportunity to buy this Mazak NEXUS VCN 510C-II vertical machining centre. Contact us for more information. Application Types Milling
