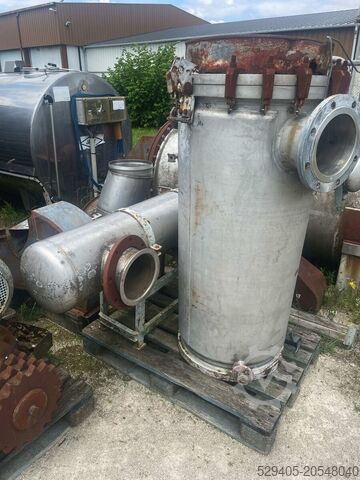

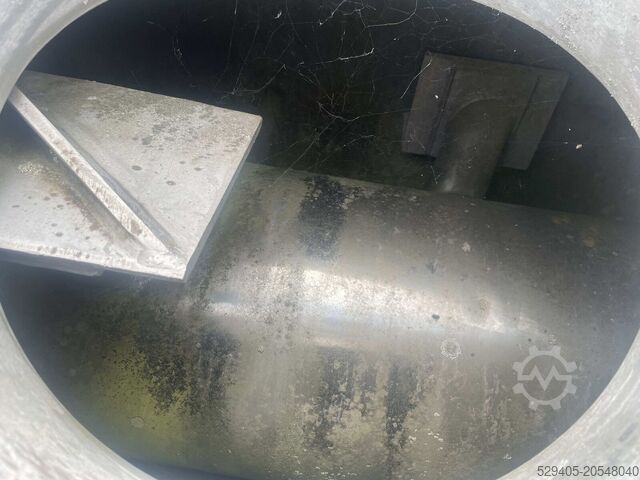

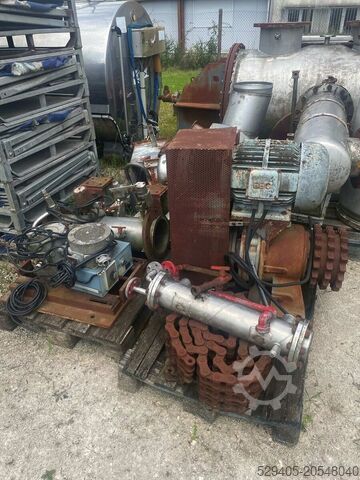

Condition: used, Power: 15 kW (20 HP) Vacuum paddle mixer dryer Used for powder/powder products. 316 stainless steel tank Tank diameter 1000 x 2000 Volume: 1100 liters Double jacket 86 litres / 1 bar – 120 ° c Heated agitator 235 liters / 1 bar – 120 ° c Agitation by 8 scraping blades Loading via diameter 400 Drain diameter 350 with knife gate valves Hnedpsxxcrkofx Ad Djw Motorisation ADF 15 kw Cleaning filter Material visible in Osertech’s facilities.

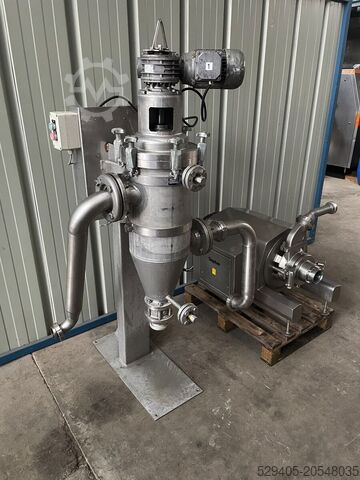

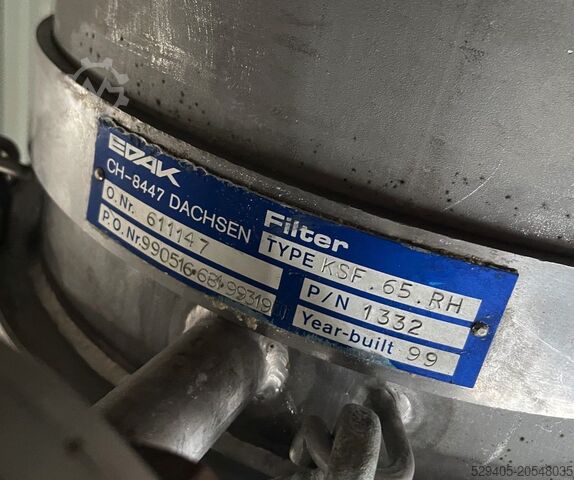

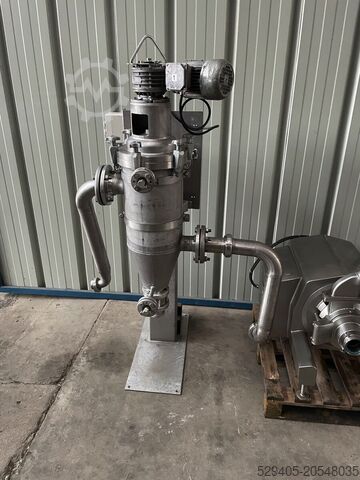

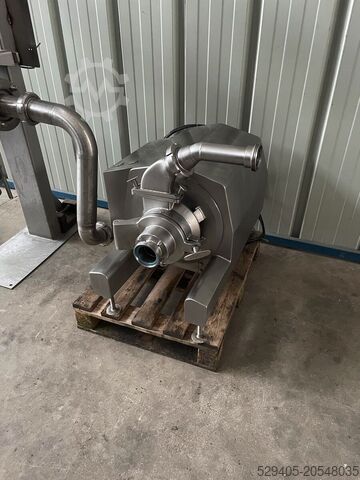

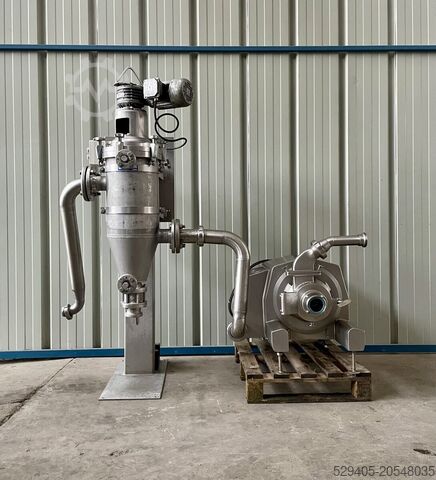

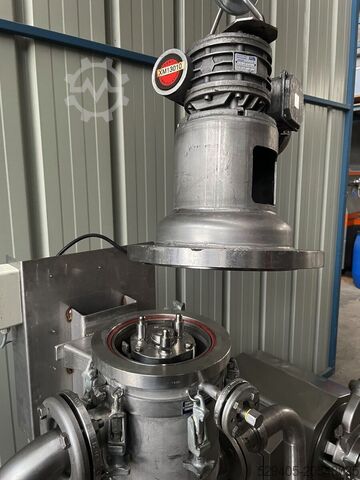

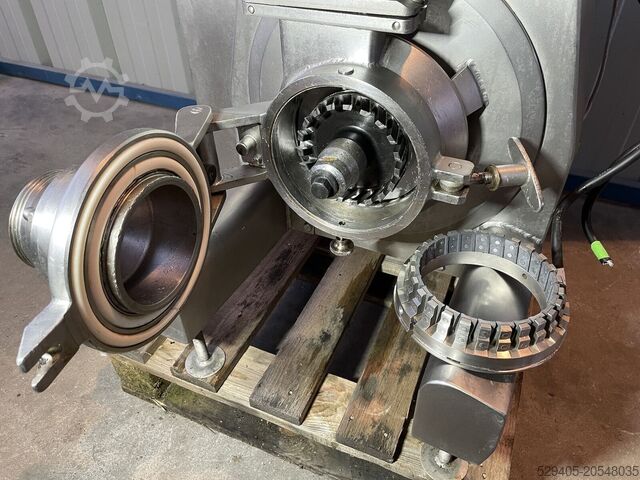

Year of construction: 1999, condition: used, Applicable material: Food Power: 15 kW (20 HP) In-line Stephan Microcutter unit with Edak centrifugal pre-filter.   Manufacturer: Stephan Mikrocut Model: MCH 20 P Type : In-line Cutter / emulsifier Year : 1992 Power : 15 KW Intensity : 23 A Hodpjxxcrdjfx Ad Djnw Speed : 2925 rpm Production : 3000 l/h Rotor stator : single stage   Manufacturer: EDAK Model KSF 65 RH Type: centrifugal filter Year: 1999 Material: Stainless steel Double jacket Rotor Ø 150 x 350 mm

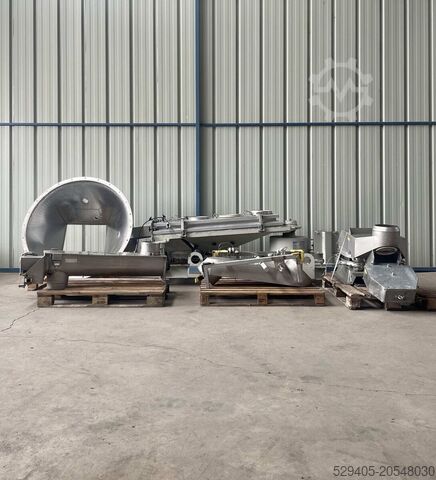

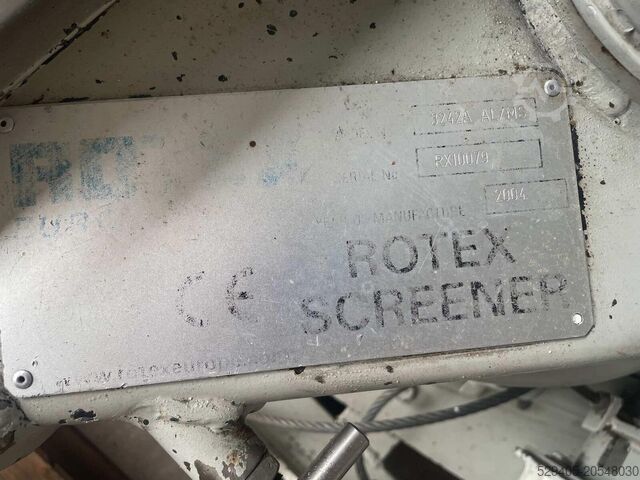

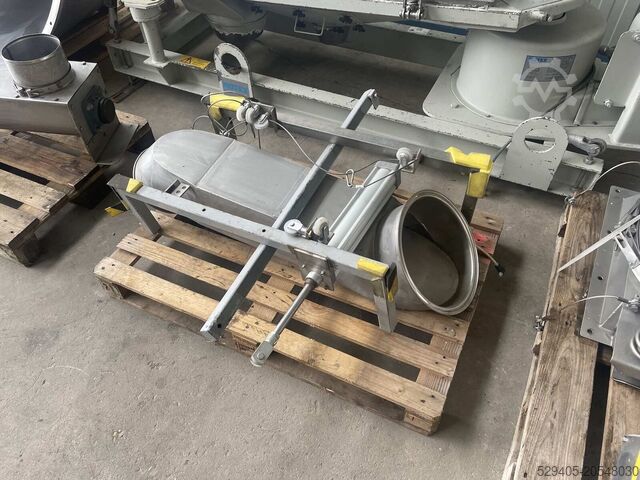

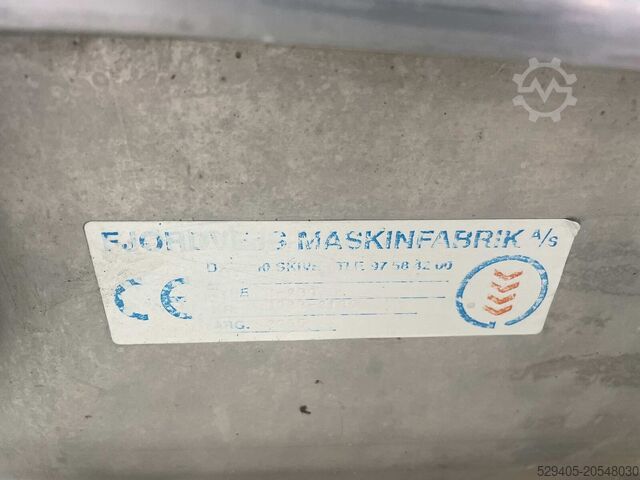

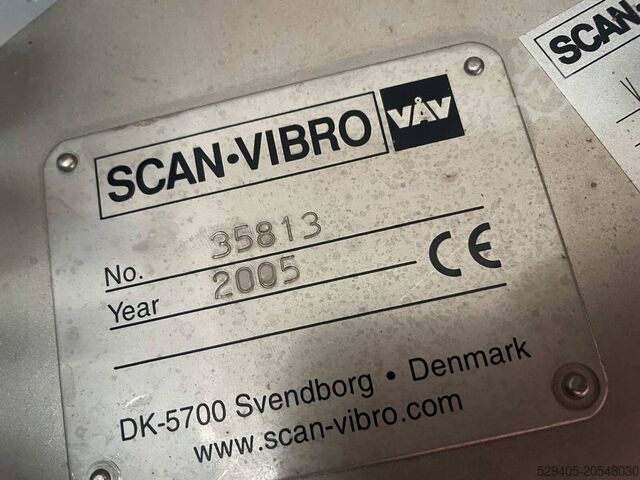

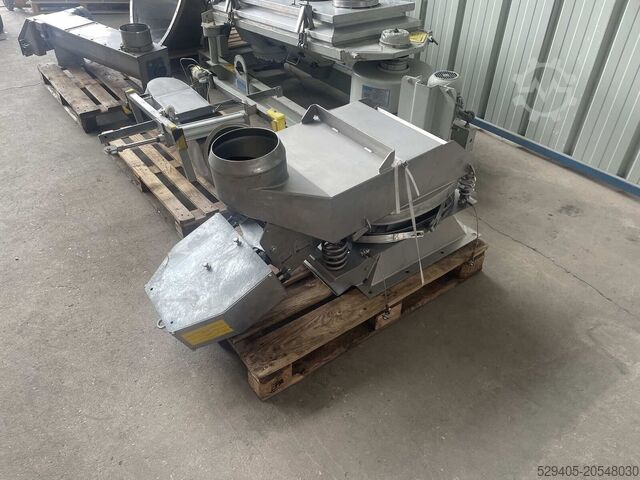

Year of construction: 2004, condition: used, Dimensions (LxBxH): 150 x 65 x 40 cm Manufacturer : Rotex Europe Model: 3242A AL/MS Year : 2004 Type : Rectangular gyratory screener Screen: 5 mm and 30 mm Overall dimensions: 2700 mm x 900 mm Unclogging ball Composite unit : Feed hopper Hnjdpfxjxxcq Ts Ad Dew Dimensions: Ø 1300 mm x 700 mm Vibrating conveyor Manufacturer: Scan-Vibro Year of construction: 2005 Outlet diameter: Ø 200 mm Screw conveyor Manufacturer: Fjordvess Maskinfabrik A/S Type : B-200 Year of manufacture : 2005 Screw diameter : 200 mm Overall dimensions : 1500 mm x 650 mm x 400 mm,

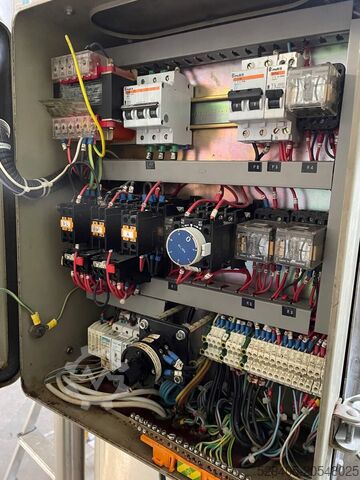

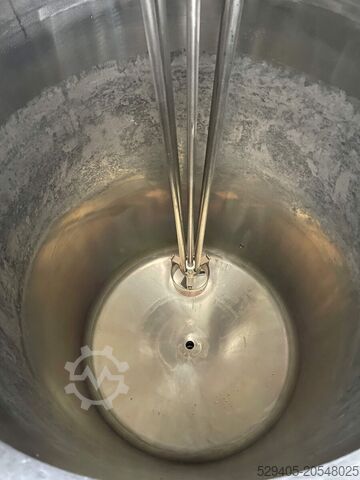

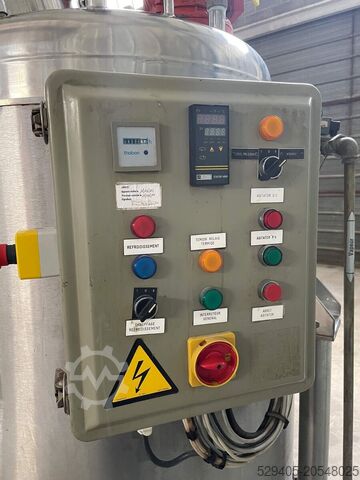

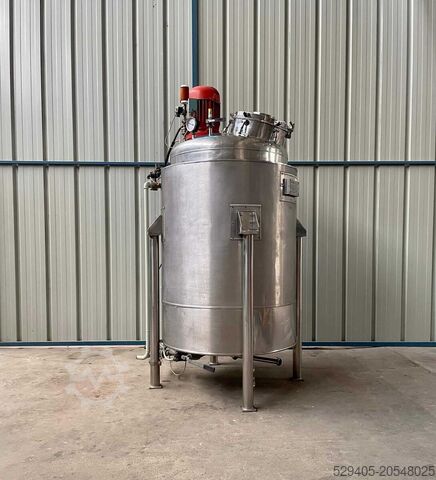

Condition: used, Power: 5 kW (7 HP) Cargo space capacity: 10.000 l Manufacturer: Olsa Model: – Year: – Quality: stainless steel Capacity: 1000 litres Stirring: 4,5 KW Motor speed : 710 – 1440 rpm Internal pressure (bar): unknown, pressure possible. Air input Pressure gauge and inside pressure holding valve Double jacket: yes Heat insulation: yes T°C control hot / cold: solenoid valves Note: cleaning of interior marks possible in case of sale Hedjxxcq Hepfx Ad Dsnw

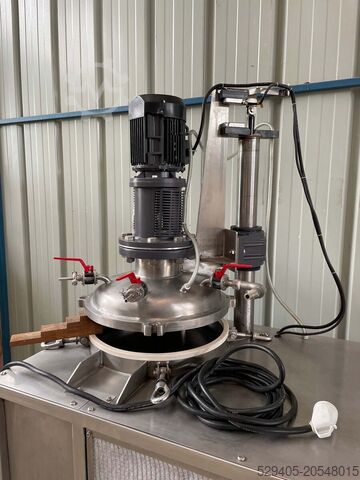

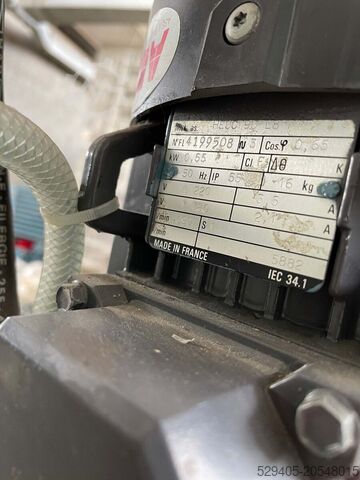

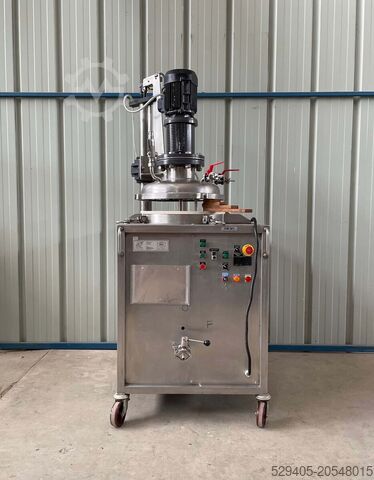

Condition: used, Dimensions (LxBxH): 130 x 80 x 210 cm Cargo space capacity: 100 l Polished stainless steel tank Hedpfx Adjxxcqts Donw Capacity 100 litres Variable speed agitation: double propeller Dimension d.480 x df 580 Full opening Lid with counterweight Stainless steel valve 1 bar Double jacket with cooling unit. Mobile frame on wheels Dimensions 1300 x 800 x 2100

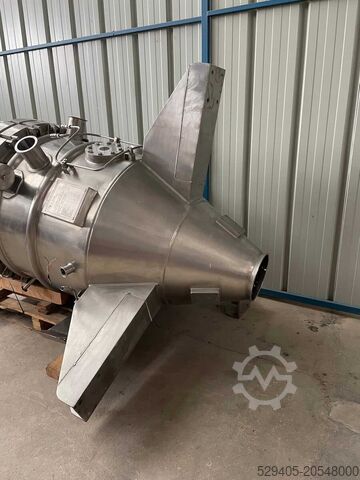

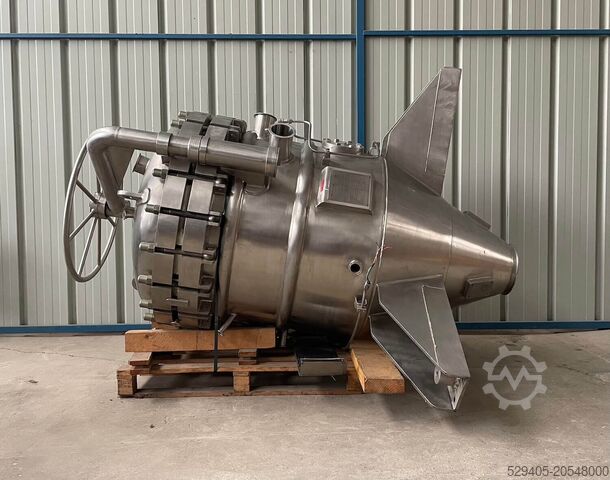

Condition: used, Colour: Grey metallic Related document g Technical description 316L stainless steel Closed cartridge filter Working pressure : -1 / +6 Bar. Working temperature : -10 / +140 °C Capacity : 1130 L Atex unit : Ex II 2G IIB Equipments on the equipment : Input for level indicator Hsdoxxcqaopfx Ad Denw Wash nozzles x 16 Wash balls x 2 Top air wash nozzles with Novaseptic Valve Membrane X3 Window x 2 Filter Cartridges  5 μm  x 12

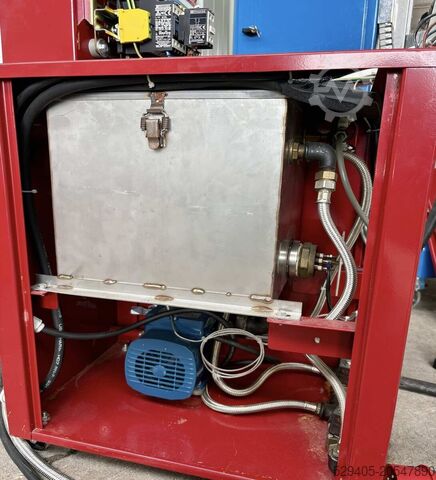

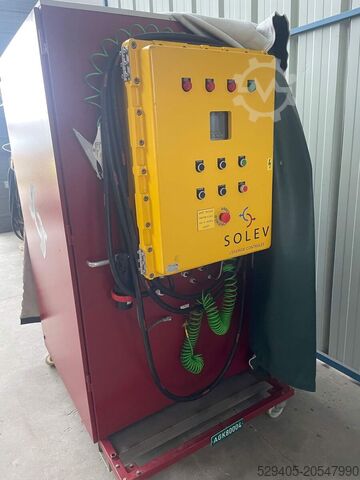

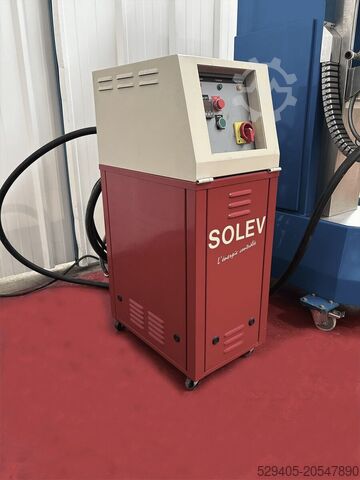

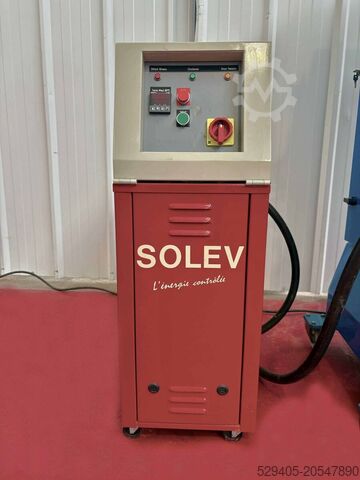

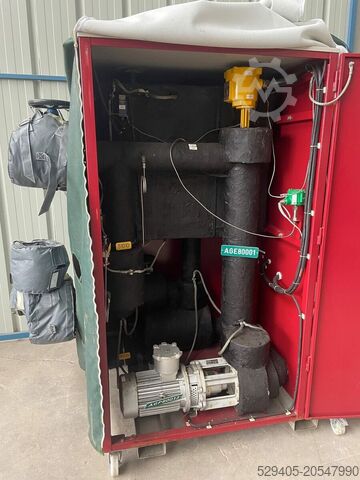

Year of construction: 2007, condition: used, Power: 4 kW (5 HP) Manufacturer: Solev (Clauger) Model: RH 550/230-25U-0-RS-SP-2G/1F Year : 2007 Type : glycol water heat controller / Thermal skid Class : ATEX – EX II 3 G – EEx b,c,d,e II B T2 Hjdjxxcp Ajpfx Ad Djnw Minimum / maximum temperature : +20°C / +230°C Intensity: 51 A. Heating: 25 kW immersion heater Heating control by thyristors. Cooling: No cooling system. Heat transfer fluid: Therminol 66 Regulator type 2704 single loop from EUROTHERM Centrifugal electric pump unit giving a flow rate of 26 m3/H Motor: 4 KW. ALWEILLER NBT32-160/01/149 pump Filling volume : 69 L – 246 L Documentation available Sold with protective cover.

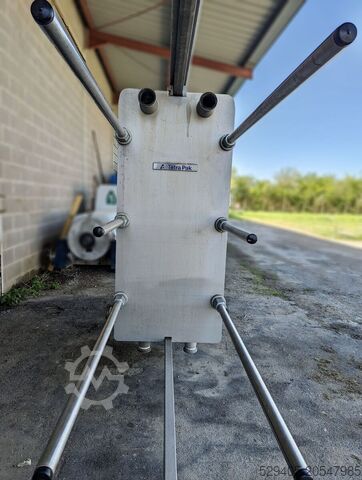

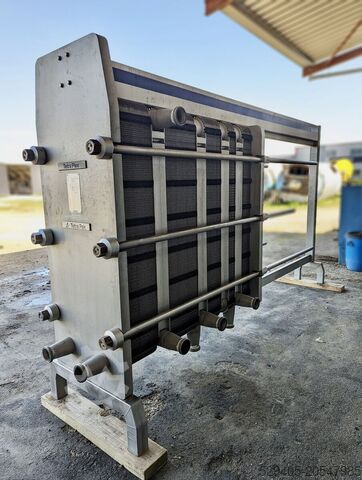

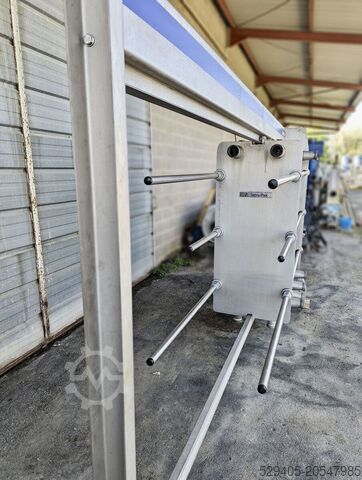

Year of construction: 2005, condition: used, Manufacturer : Alfa Laval Model: Tetra pak C10-SM Year : 05 Type: Plate heat exchanger Hodsxxcpvjpfx Ad Dsnw Application: pasteurizer Fluid group: 2 Volume: 533 L Pressure: 0/16.0 bar Temperature: 0 / 110°C Sections: 5 Plates: 64 units

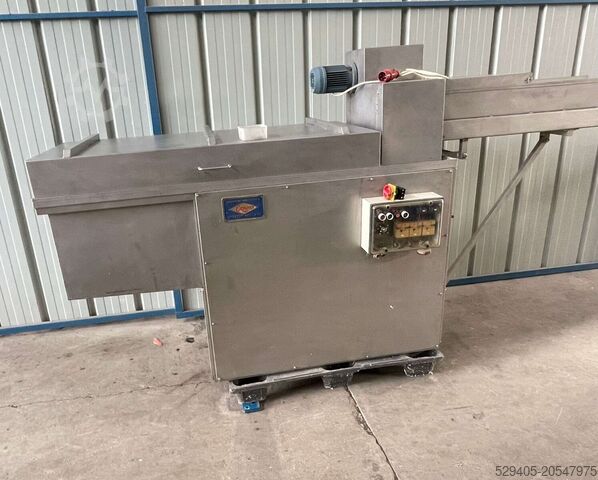

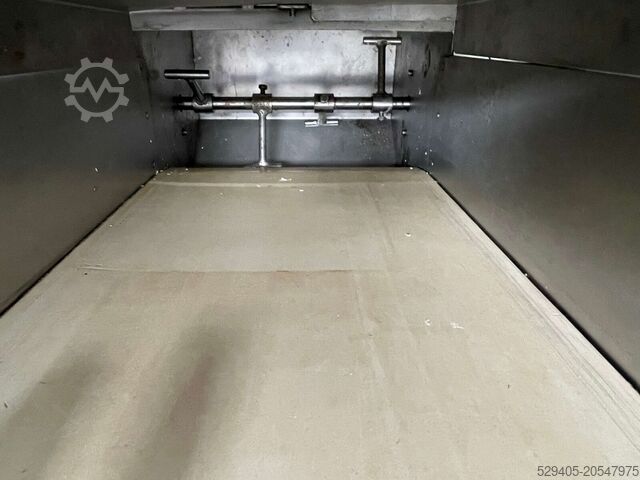

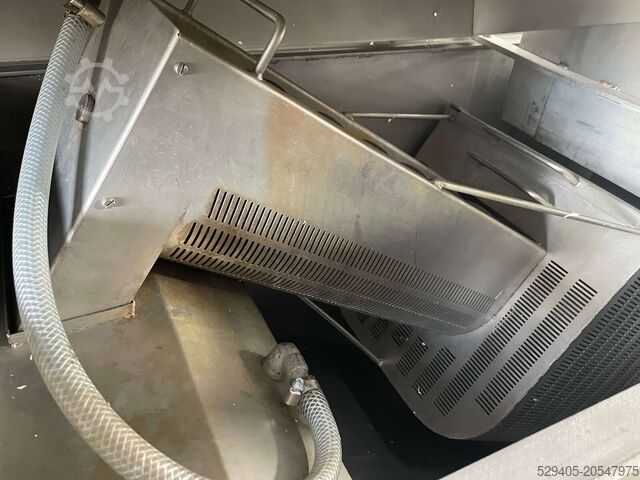

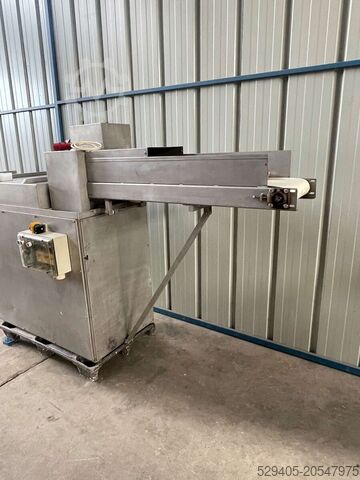

Condition: used, Manufacturer: Ernens Materials: Stainless steel. Nature of the cleaning fluid: liquid / water – Capacity: example with sultanas 600 to 800 kg/h – Feeding belt: 350 cm x 1500 mm Hnsdpfxoxxcpio Ad Dew – 2 compartment bowl 600 x 900 x 600 mm including : 1 inclined screw for product recovery d.150 mm 1 screw + horizontal draining drum d.300 mm – Heating by external recycling of the fluid

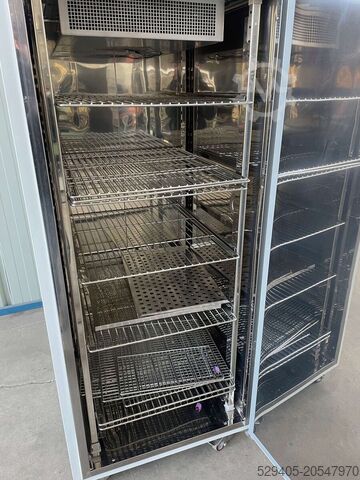

Year of construction: 2010, condition: used, Colour: White metallic Power: 1 kW (2 HP) perature: 15 Volume: 600 l Manufacturer: Eratis Model: ICH 600 T Year : 2010 Hodpfxjxxcpco Ad Djnw Type : climatic chamber Cooling unit – refrigerant : R134A Power : 1,5 KW Useful volume : 600 L ( 65 x 65 x 140 cm) Temperature : +15°C to 55°C

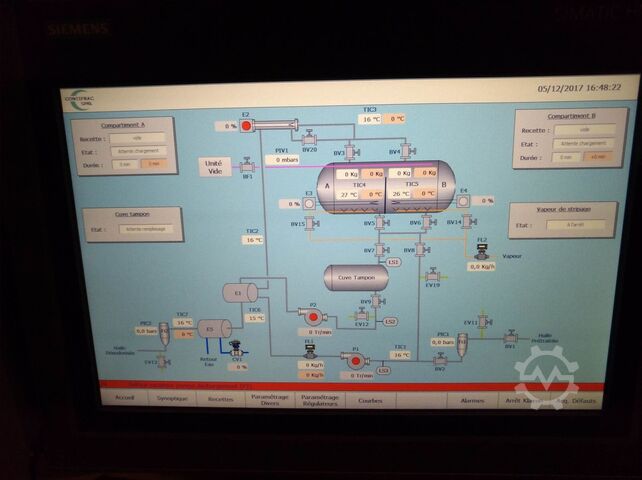

Year of construction: 2017, condition: used, New: Yes Applicable material: Food Empty weight: 250 kg Volume: 304 l Manufacturer : Confitrac sprl Model: CDS-161205 Year : 2017 Type: Deodoriser Condition: new, never used. Document : CDS-P& Installation consisting of : – A horizontal cylindrical shallow bed deodoriser divided into two horizontal compartments, supported by two supports and offering the possibility to treat either 250 kg in one compartment or 500 kg in two compartments. – A horizontal buffer tank equipped with a product inlet/outlet, vacuum outlet and sight glass. Volume: +/- 460 litres. – 2 shell and tube heat exchangers – 1 electric heater – 2 electric heating resistances Hnedpfx Adexxcn Ej Djw – Other equipment: control and dosing valves, flow meter, steam drying ramp, etc. – Electrical cabinet Materials: all parts in contact with the product are made of stainless steel 304L and 316L. Insulation: 100 mm rock wool. Documentation and drawings available. Capacity: deodorising temperature 180°C (200°C max.) Batch: 250 Kg or 500 Kg (2 x 250) Process: heating of the product under vacuum + steam injection.

Year of construction: 1993, condition: used, Power: 12 kW (16 HP) Tank pressure: 4 bar Volume: 406 l // currently being renovated in our workshops // Manufacturer : Haagen & Rinau Model : Unimix SRM 200 Year: 1993 Type : Vacuum mixer   Materials: stainless steel Vessel capacity: 406 L Hjdpfx Asxxcnxed Denw Maximum temperature: 143°C Pressure: – 1 / 3 bars   Double jacket capacity: 34 L Maximum temperature: 151°C Pressure: 4 bars   Slow mixing : Central stirring + scrapers. Fixed counter action. Power: 7,5 KW Fast mixing: emulsifier at the bottom of the tank. Suction and recirculation of the product. Power : 8 / 12 KW Integrated electrical cabinet. Siemens S5 controller   Hydraulic unit: – Up and down of the cover with its mixing tool – Rotation of the cover with its mixing tool – Tilting of the tank – Up and down of the homogeniser at the bottom of the tank.

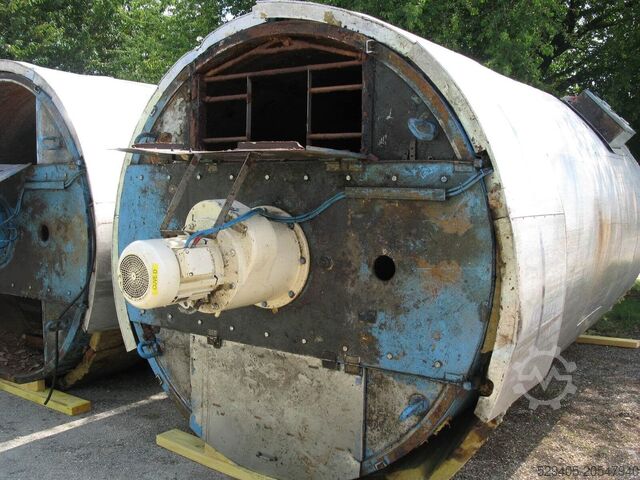

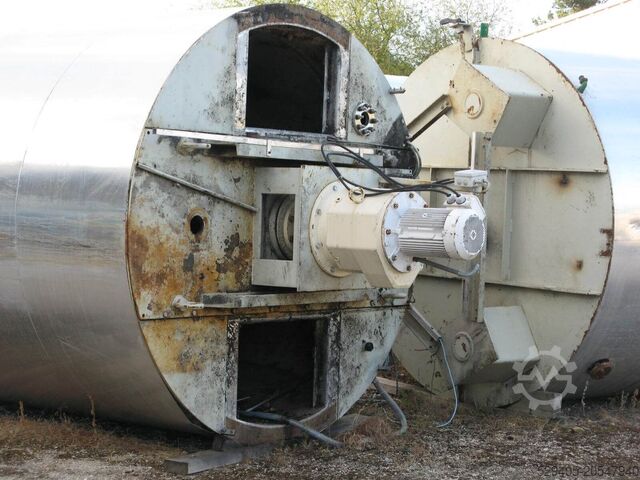

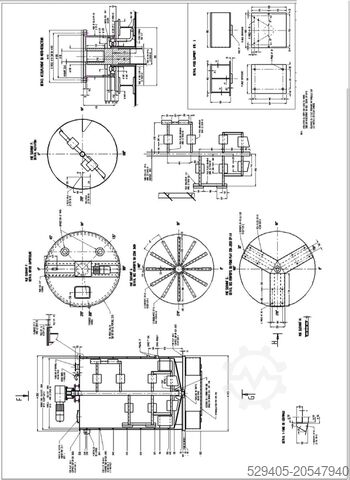

Condition: used, Empty weight: 17.000 kg Cargo space capacity: 15.000 l 17 tons 15 m3 Hodpsxxcnfofx Ad Dsnw Stainless steel Agitated tank

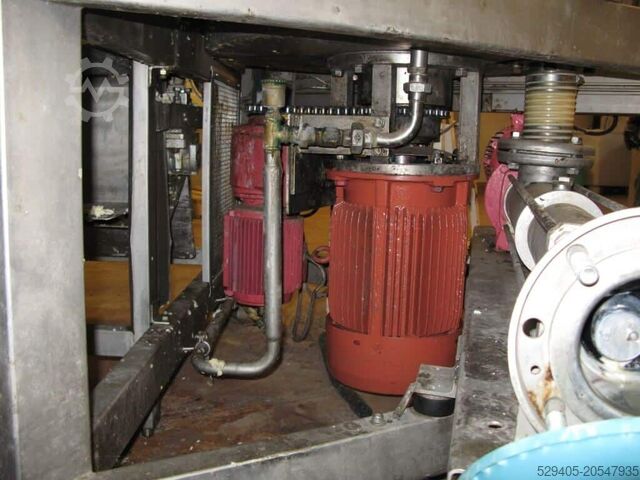

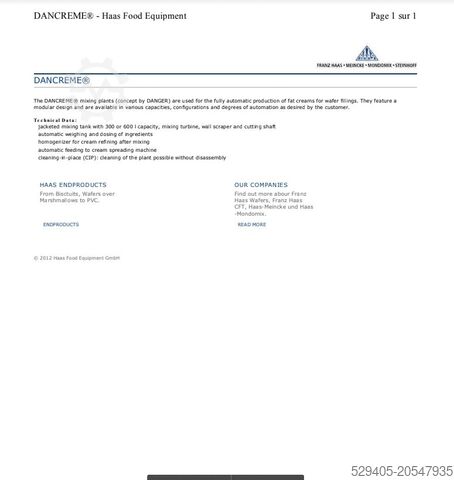

Condition: used, Cargo space capacity: 3.000 l Haas food equipment 300 L D. 800 X 600 Hnjdpfx Adoxxcm Ue Dsw Double sided Chip shredder Mixer + turbo PCM type extraction pump Used in the food/dairy sector: butter production.

Year of construction: 2015, condition: used, Applicable material: Food Empty weight: 180 kg Volume: 50 l Documents Technical information Physico-chemical separation / distillation unit. Year: 2015 Installation ATEX 3G IIBT4, inside the installation: zone 1G Operating mode: continuous – batch – semi-batch. Pressure: Vacuum – 3 barg max Hsdpfexxcmnox Ad Denw Boiler size: 50 Litres (Possible 200 Litres) Flow rates: Approximately 180 Kg/hr feeding a water/ethanol mixture (90/10) at atmospheric pressure with a reflux rate of 5. Theoretical number of trays: 20 –> Possible feeding in 3 points: 4 structured packing beds, 4 liquid redistributors (3 with recenters) Dimensions: Unit made as a skid, in hot-dip galvanised steel frame with dimensions 2400 x2400 x 4000MM high. Utilities / sources : Steam: 3 bar eff 143°C 30 to 80kg/h Cold water 25-30°C : 2-5m3/h Chilled water 5-10°C : 0.5m3/h Compressed air : 6bar eff Nitrogen inerting : 4.5 bar eff Electricity : 400V tri 50 Hz IT : 5kw

Condition: used, Rotation speed: 1380 rpm Motor : SEW RF 32 Power : 0,25 KW Speed : 1380 Trs / min Hsdpfx Adsxxcl Rs Donw

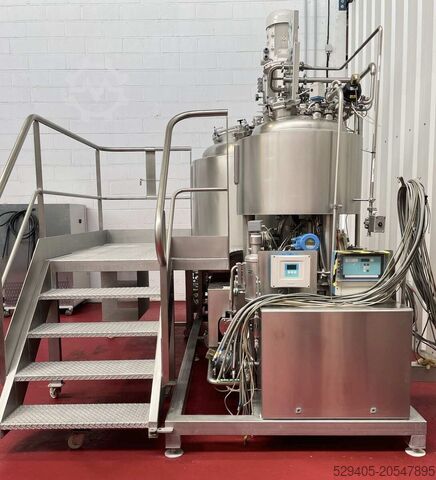

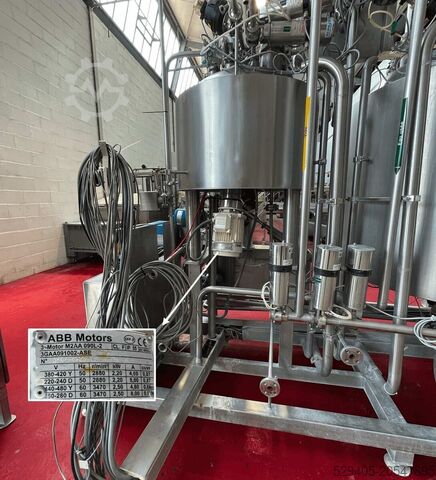

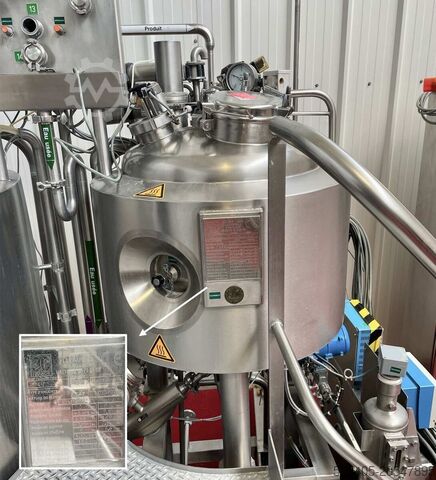

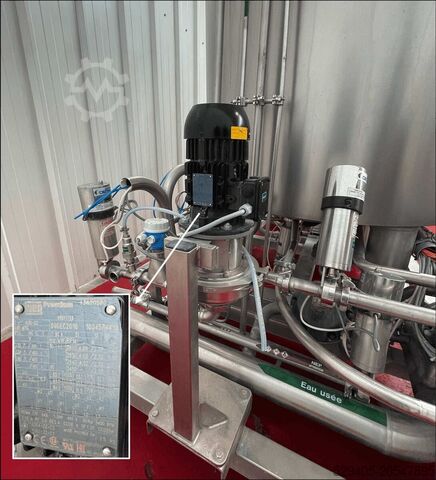

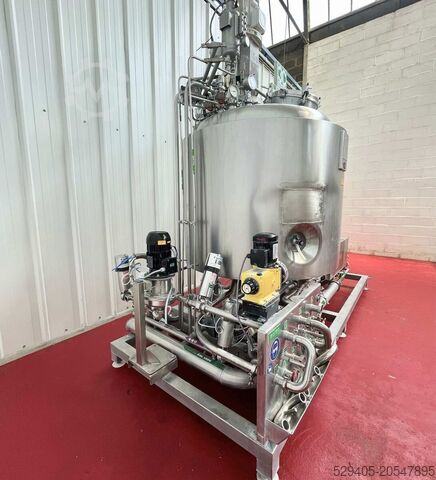

Year of construction: 1998, condition: used, Tank pressure: 2.5 bar Manufacturer: 3C France Year : 1998 Type : Process skid with 1 reactor / vacuum mixer and 1 melting tank Previous application: pharmaceutical (coating solution)   Hjdpfx Adoxxcl De Djnw A – Reactor / Main vessel Total volume: 1142 litres Pressure: – 1 / 2.4 bars Temperature: 144 °C Jacketed volume: 98 litres Pressure: 2.5 bars Temperature: 142°C Mixel agitation: 2 deflocculators Ø260 mm Motor: 11 KW (1500 rpm) Sample intake Washing ball Level probe Inspection hatch, porthole, light   B – Melter Total volume: 152 litres Pressure: – 1 / 2.1 bars Temperature: 114°C Jacketed volume: 24 litres Pressure: 2.5 bars Temperature: 148 °C Agitation: 1 tank bottom deflocculator Ø125 mm Motor: 2.2 KW (3000 rpm) Washing ball Level probe Sample socket Inspection hatch, porthole, light   Additional accessories : – Dosing pumps – Circulation pump – Flow meters – Controllers – Electrical cabinet with PLC and speed drives   Access footbridge Batch of spare parts available (gaskets, seals, etc.) Full documentation in digital format

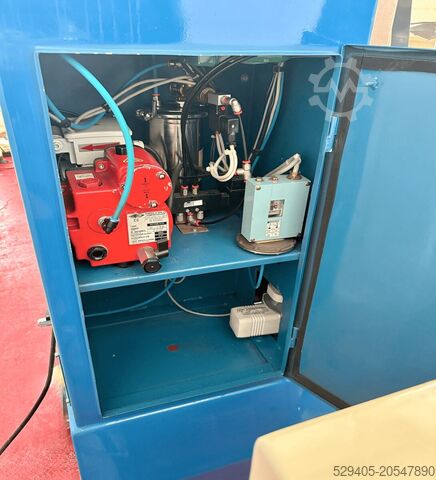

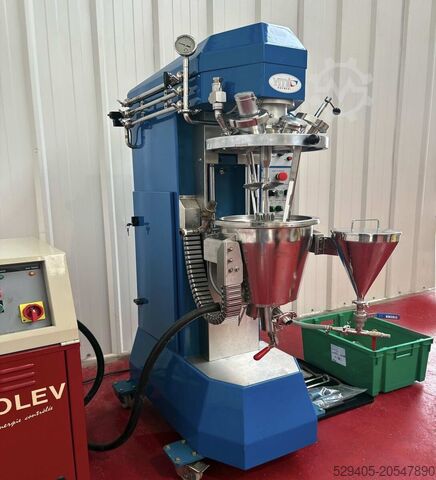

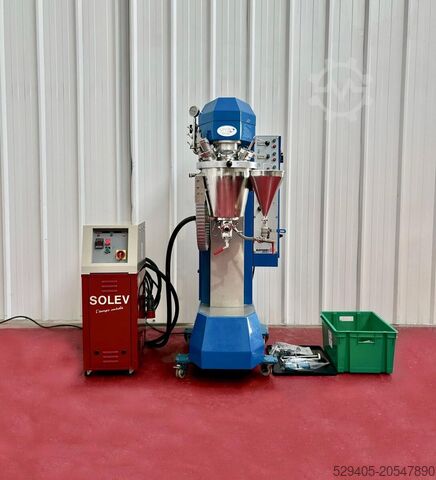

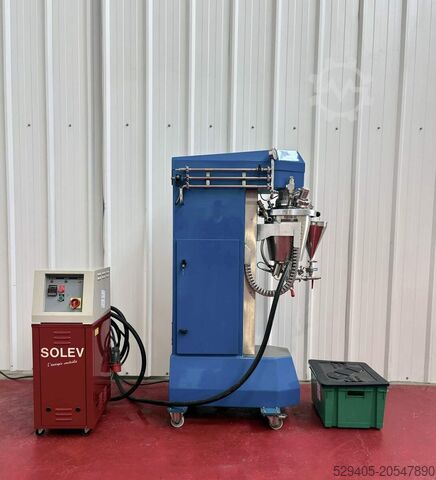

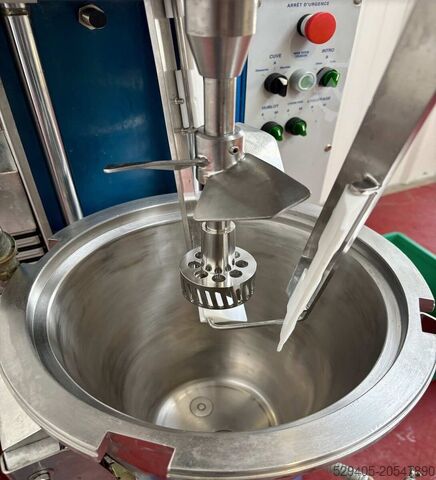

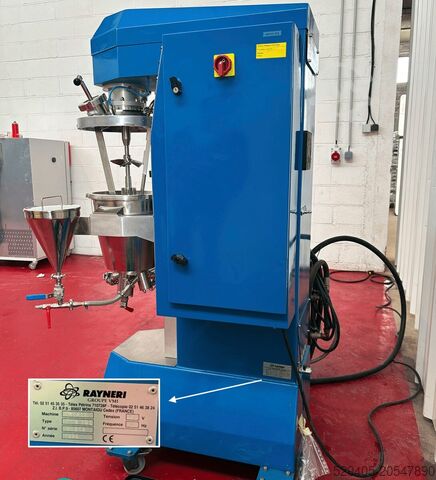

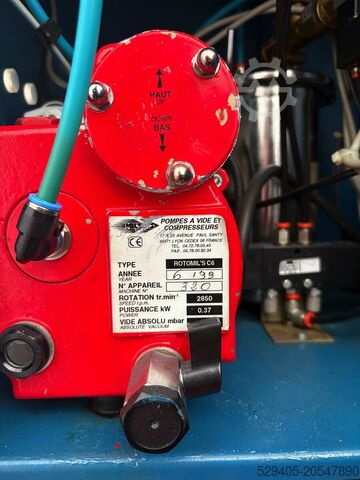

Year of construction: 1998, condition: used, Power: 4 kW (5 HP) Empty weight: 300 kg Manufacturer : VMI Rayneri Model Trimix (TXR) 10 litres Year : 1998 Type : Vacuum mixer Application : Dispersion, dissolution, homogenisation, deaeration, heat exchange -> gels, creams, pomades, …   Total volume : 10 Litres Empty weight : 300 kg Power : 3.5 KW Electrical supply : 230 V Pressure : 2 bars Temperature : 120°C Jacket + insulation Mixing : Hjdpexxclwefx Ad Donw – Anchor blade with scrapers: 0 – 60 rpm – Counter agitation: 0 – 180 rpm – Dispersion/emulsion turbine: 200 – 3000 rpm   Sold with water temperature controller : Manufacturer : SOLEV Model : RE 50-3-SC-R-20-2D Year : 1998 Heating capacity : 3 KW   Documentation available

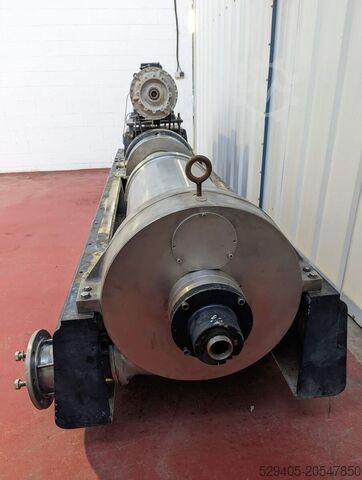

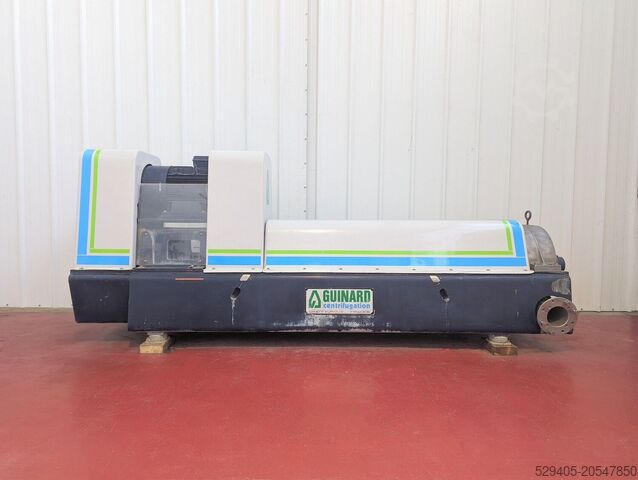

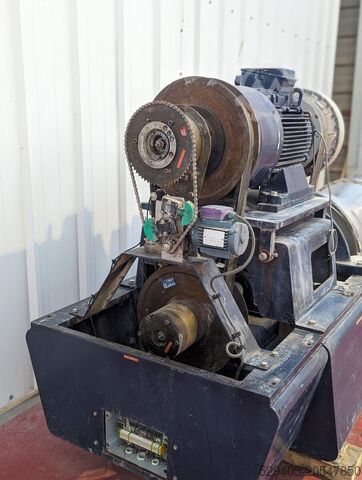

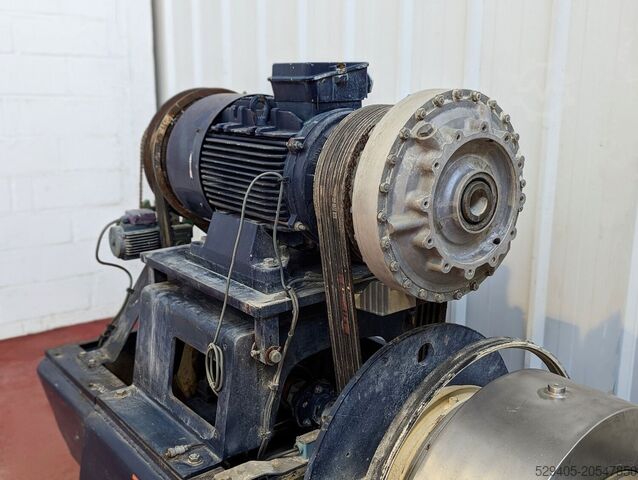

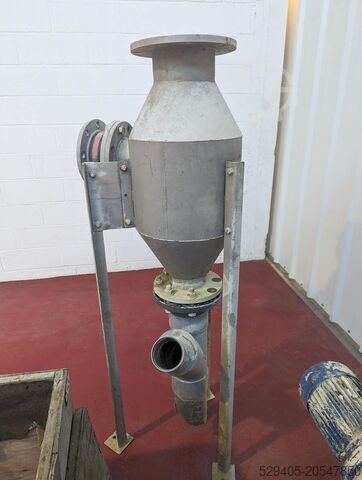

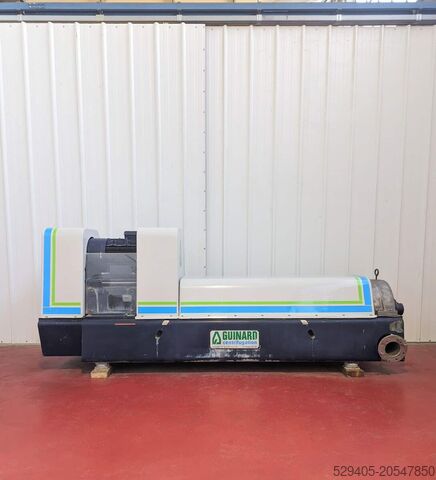

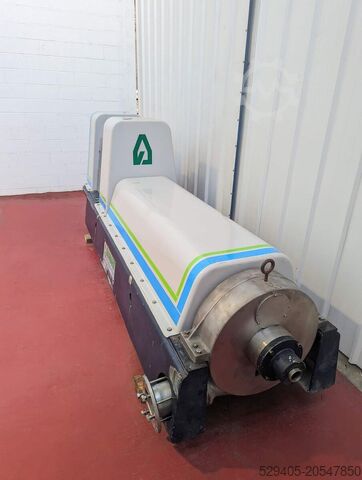

Year of construction: 1993, condition: used, Power: 45 kW (61 HP) Manufacturer: Guinard Centrifugation (Andritz) Model: D5LP50HBIL Year: 1993 Hnodexxckmopfx Ad Dow Type: Decanter / centrifugal separator   Previous use: sludge Nominal speed: 2700 rpm – Maximum: 3200 rpm Nominal diameter : 520 :mm Power : 45 KW   Output extraction / pumping system Inspection report 12,000 H : available (29/01/2021)

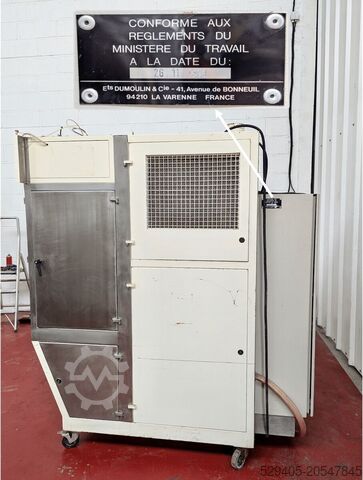

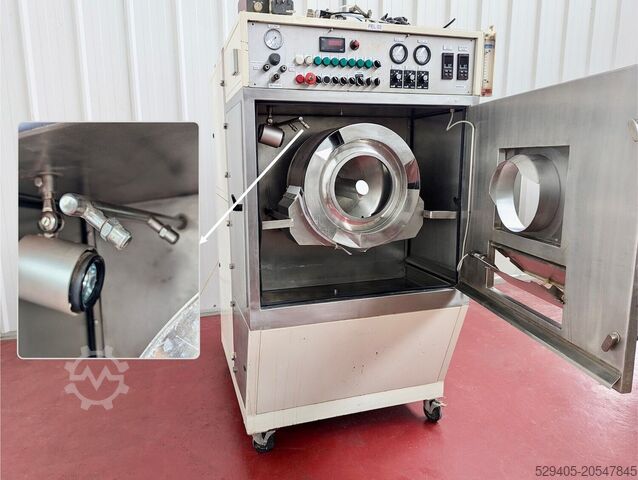

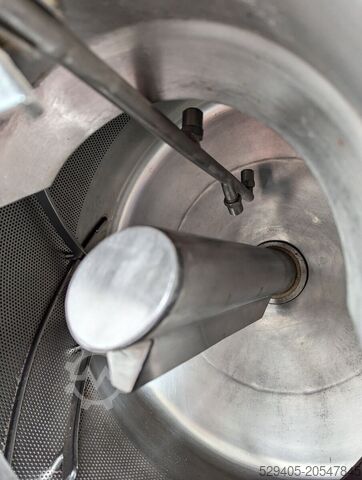

Year of construction: 1990, condition: used, Manufacturer : Dumoulin Hnsdpfjxxckgsx Ad Dsw Model: 5X Year : 1990 Type : Tablet coater / Drum coater Drum diameter : Ø 50 cm Total volume : 65 L Emptying / removal : frontal Spraying and cleaning nozzles Interior lighting Temperature sensor Watson Marlow 313S peristaltic pump Gerbhardt and Ebmpapst ventilation and suction Mobile chasis: 4 wheels

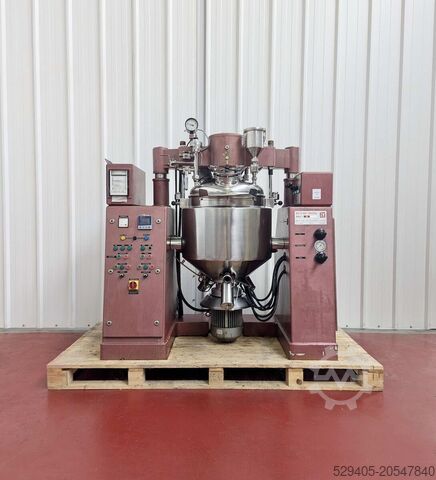

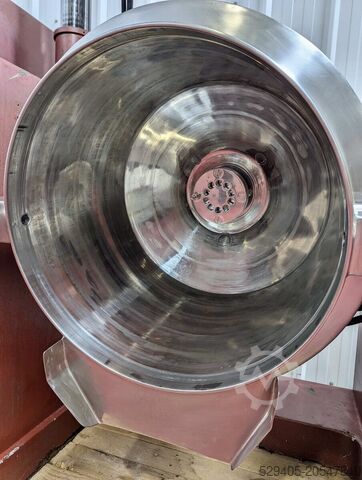

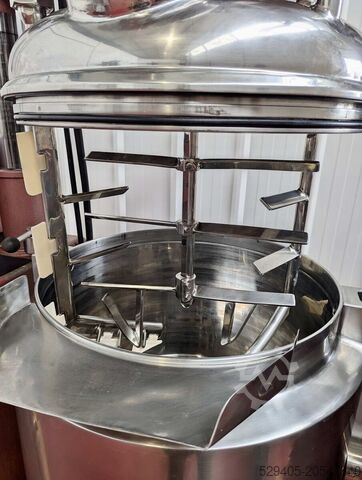

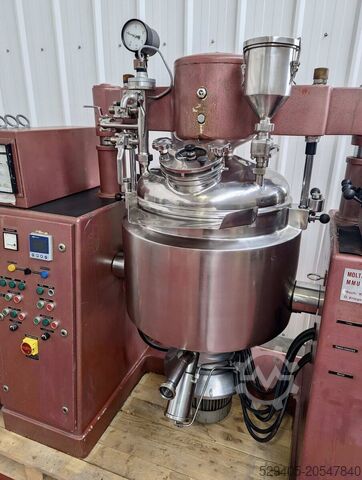

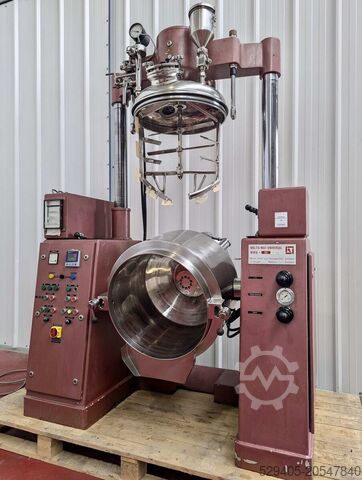

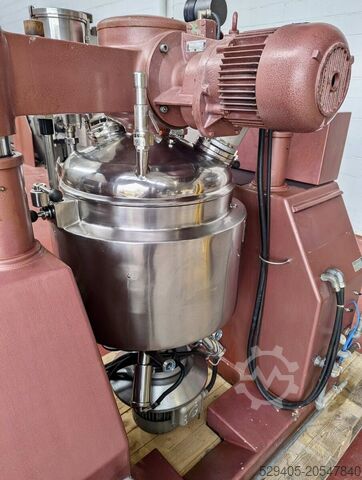

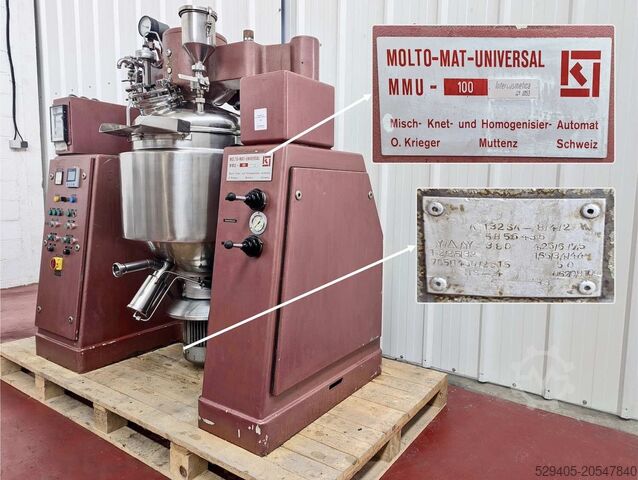

Year of construction: 1980, condition: used, Empty weight: 1.280 kg GVW: 1.280 kg Tank pressure: 2 bar Volume: 100 l Manufacturer: Krieger Model: Molto Mat Universal 100 (MMU 100) Year : 1980 Type: vacuum mixer   Main tank: Total tank volume: 144 L / useful volume: 100 L Working pressure: -1/+2 bars Maximum operating temperature: 120°C Minimum load capacity: 33 L   Jacket : Capacity: 26 L Maximum operating temperature: 150°C Working overpressure: 4 bars Insulation thickness: 35 mm   Counter-rotating mixer Slow agitation – two speeds : external mixer (anchor) /min: 9/18 – 18/36 inner mixer /min : 17/34 – 34/68 Hsdpfx Adoxxckae Djnw   Homogeniser speed three speeds rpm: 1150 / 2300 / 4500 Up / Down : hydraulic Tilting: hydraulic   Technical documentation available. Weight : 1280 kg

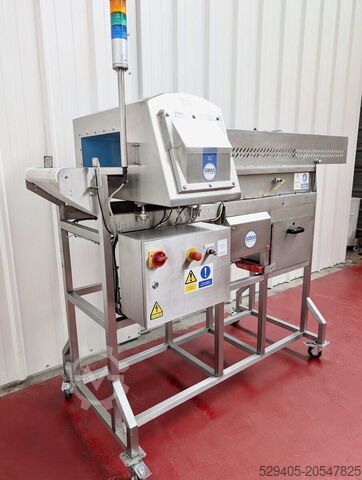

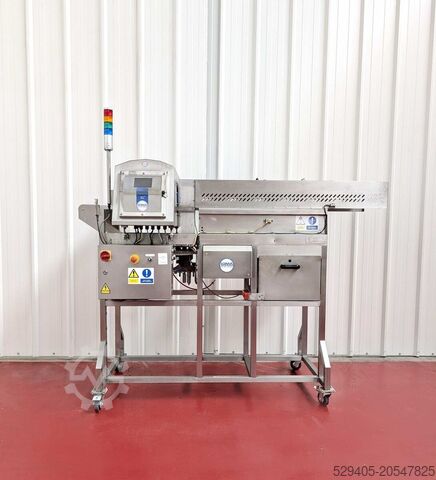

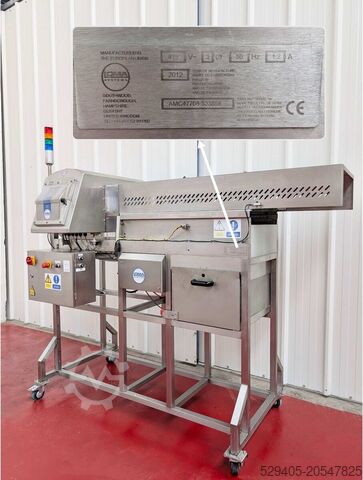

Year of construction: 2012, condition: used, Manufacturer : Loma Systems Year : 2012 Model : IQ3+ Type : Metal detector Hnjdpfx Aexxcivjd Dsw Motor power : 0,25 kW Conveyor belt width : 40 cm Max product height : 14 cm Machine dimensions : 260 x 100 x 205 cm Ejection: belt retraction via turnbuckles

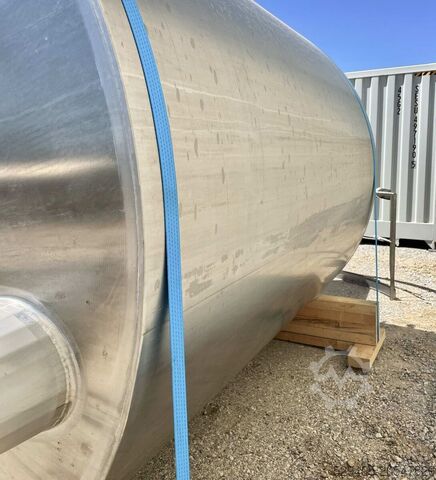

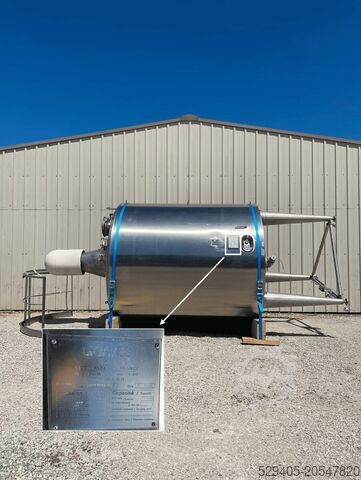

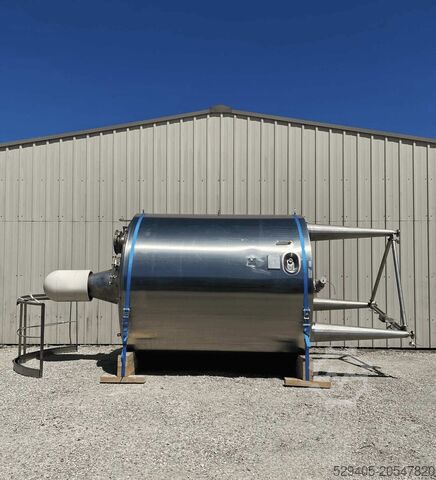

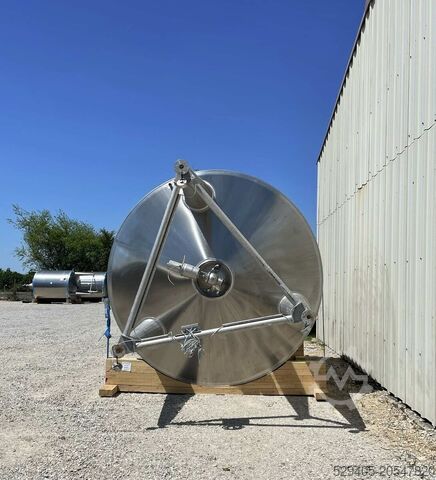

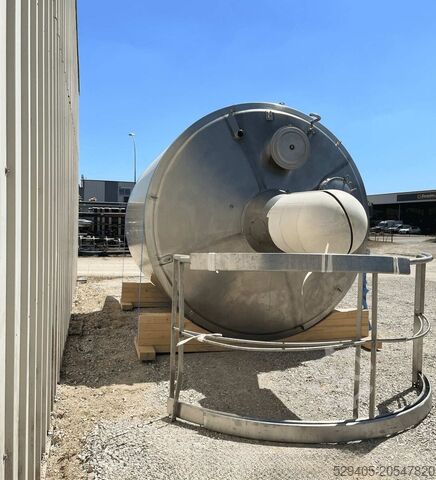

Year of construction: 1988, condition: used, Power: 2 kW (3 HP) Rotation speed: 32 rpm Hodpfx Adsxxcipo Djnw Volume: 10000 l Manufacturer: Goavec SA Year : 1988 Previous application : Cream tank (fluid/thick) Volume : 10000 Litres Material : 304 stainless steel (Thickness : 25/10) Insulation : yes Tank pressure : atmospheric Agitation : 2.4 KW – 32 rpm 1 fixed paddle: counter-stirring Wash balls : 3 units Inspection hatch: manhole Removable guardrail Plan available (digital version)

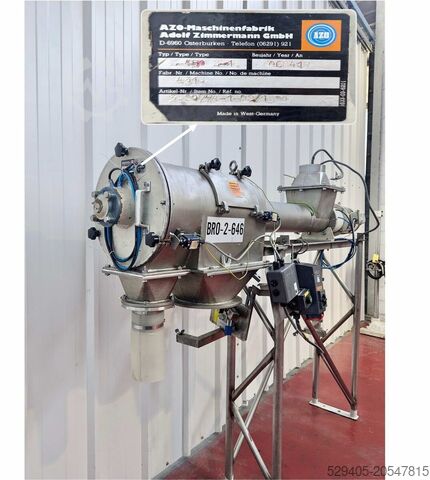

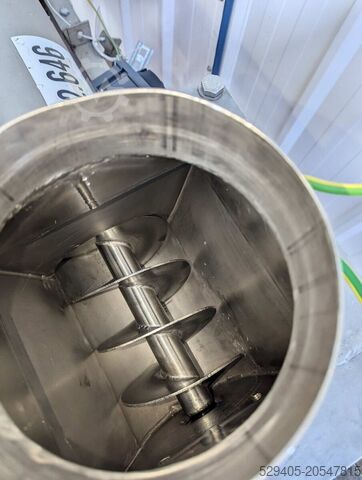

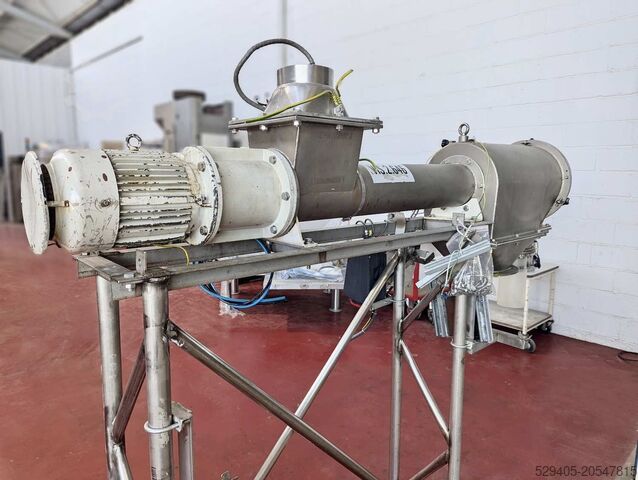

Condition: used, Power: 1 kW (2 HP) Current frequency: 50 Hz Voltage: 220/380 Rotation speed: 700 rpm Manufacturer : AZO Model: E450 B1 Hjdpfxsxxciij Ad Denw Type : Rotary sieve Application : Control and safety screening Stainless steel Motor power : 1,3 kW ATEX classification: Exe G1-3 Te 30 Capacity: max 6000 KG / H depending on screen size Documentation available

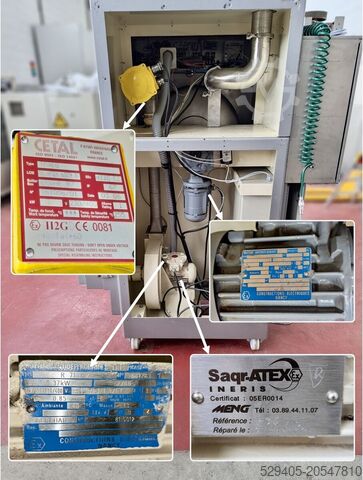

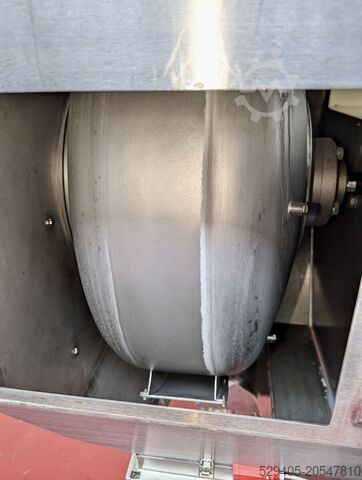

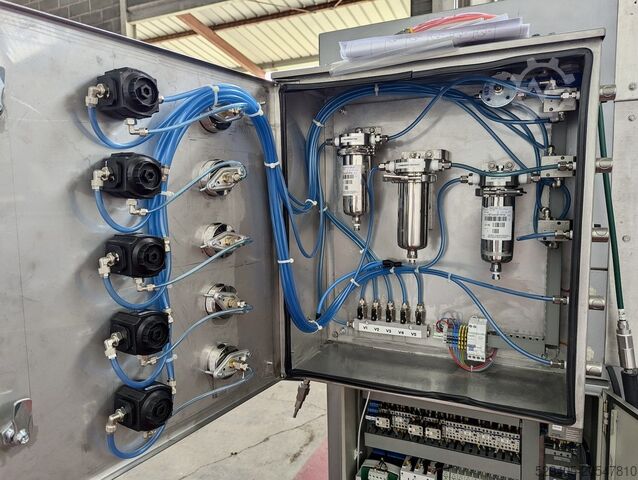

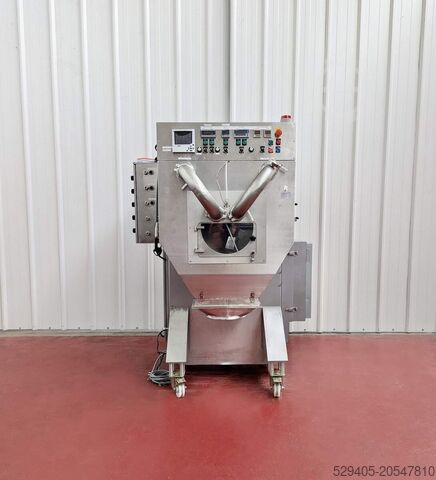

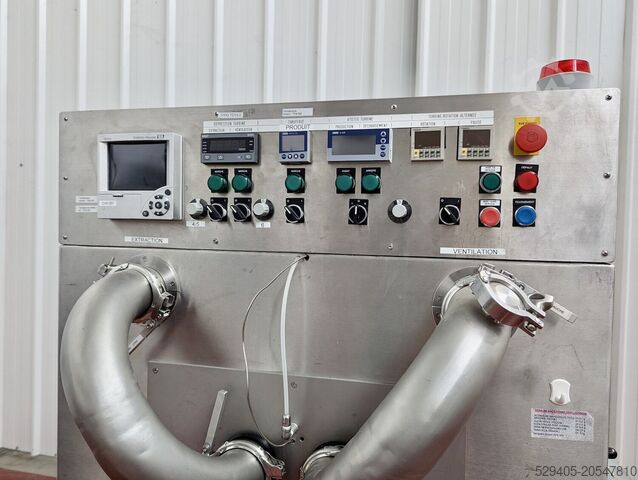

Year of construction: 2000, condition: used, Volume: 304 l Manufacturer : Dumoulin Model: TD 1500 Year : 2000 Type: coating machine Classification: ATEX motorisation and sensors Operating unit: from 4 to 15 kg of mass to be impregnated. Turbine type: plain drum for impregnation Turbine diameter: Ø 600 mm Turbine depth: 400 mm Removable mixing blades Materials: 304 L stainless steel Unloading: automatic by reversing cylinder rotation Driven by 0.37 kW geared motor, electronic variable speed drive from 2 to 25 rpm. T°C recorder Hjdpsxxcicjfx Ad Denw Timer Rotor speed indicator Ventilation unit integrated into the frame : 1 x EU 13 air filter (absolute filter) 1 x 0.37 kW electric fan 1 x ADF electric heater (heating element) 1500 W with temperature regulator (sensor) 1 x stainless steel nozzle and blower in the drum
