Used roll benders (motor-driven) for 3 - 6mm sheet thickness for sale (146)

Condition: new, sheet width 2050 mm plate thickness 4,5 mm max. plate thickness 4,0 mm anbiegen roll length 2050 mm min. dia. 210 mm roll diam. toproll 140 mm weight 1530 kg range L-W-H 3220 x 1200 x 900 mm Fpsdpfx Aexaawgsh Usp Furnishing: - Robust electro-mechanical bending machine - 2x central rollers driven by an electric motor (top and bottom roller) - Top roller can be swiveled out manually, with folding bearing - including conical bending device - freely movable control panel - Lower roller manually adjustable, by hand wheel - asymmetrical roller arrangement - self-braking main motor - Safety device (safety line with switch unit) - CE mark/Declaration of Conformity Special equipment included in the price: - hardened rollers - Motorized side roller adjustment - Digital position display for motor-driven adjustable side roller

Condition: good (used), functionality: fully functional, Year of construction: 2004, Max. sheet width: 1,030 mm Max. sheet thickness: 3 mm Fpsdsxvpngjpfx Ah Uop Roll diameter: 90 mm

Condition: used, total length: 5,250 mm, total width: 1,400 mm, total height: 1,600 mm, Empty weight: 6.000 kg Fjdpsw Elvhefx Ah Uopp - Documentation available: No - Serial number: 1011268 - Max. sheet thickness: 6mm - Top roll diameter: 220mm - Max. working width: 3040mm - Drive: raulisch - Number of rolls: 4 - Bottom roll diameter: 220mm - Motor power: 5.5kW - Transport dimensions: 5250mm x 1400mm x 1600mm (l x w x h) - Transport weight [kg]: 6000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

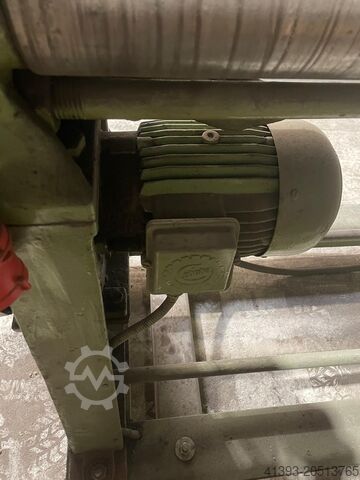

Condition: good (used), functionality: fully functional, total length: 2,500 mm, Three-roll plate bending machine Fsdpfsxwa Ugsx Ah Uepp Motor-driven Max. sheet width: 2500 mm Max. sheet thickness: 4 mm Length of bending rolls: 2550 mm Upper roll diameter: 134 mm Lower roll diameter (each): 125 mm Sturdy design, good condition Ready for immediate use

Condition: new, sheet thickness steel (max.): 3 mm, - Capacity 1070 x 3 mm Fpjdpfei E Tzqjx Ah Usp - Roll diameter 90 mm - Electrically adjustable trailing roller - Digital display - Hardened rollers - Possibility for conical rolling - Rotatable upper roller - Brake motor - Foot control - Emergency stop - Documentation - 400V

Condition: new, Very robust motorized 3-roll roller Weight 670 kg Executed with hardened rolls Hardness is HRC 28-32 Min. Sheet thickness ----- 0.5 mm Max. Plate thickness ----- 3 mm Max. Working width ----- 1000 mm Pre-bending ----- 2.5 mm Roller diameter ----- 95 mm Fedpfx Asga Tz Ajh Uepp Motor power ----- 1.5 KW INCLUDED * Hardened rollers * SCHNEIDER electrical components

Condition: as good as new (ex-display), Year of construction: 2025, sheet width 1550 mm plate thickness 6.5 mm pre-bending 4.5 mm diameter of upper rolls 150 mm side roll diameter 130 mm diameter of lower rolls 150 mm distance max. OW zu UW 20,0 mm total power requirement 2.2 + 1.5 kW weight of the machine ca. 2370 kg. range L-W-H 3300 x 1150 x 1110 mm Exhibition machine - NEW not yet in use (!!) Special price on request Fjdpoxabkbefx Ah Ujpp Equipment: - electro-hydraulic 4-roller round bending machine * with driven top roller + bottom roller * stable welded construction - Area of application: * light to heavy sheet metal processing (steel/aluminum/stainless steel) - electro-hydraulic adjustment of the bottom + side rollers - linear guidance of the side rollers - top roller driven by robust electric motor + planetary gear - freely movable, separate control panel - hardened rollers SAE 1050 (CK 45) - conical bending device - 3x axis digital display for precise roller positions - electro-hydraulic folding bearing - operating instructions (PDF)

Condition: good (used), functionality: fully functional, Asymmetric 3-roll bending machine Plate roll-flanging machine BOMBLED - Model: 317 S Year: 1971 Fpodpfx Aoxn Tgweh Uep Maximum rolling thickness: 4 mm Maximum working length: 2050 mm Maximum flanging thickness: 3 mm Roll diameter: 153 mm Control: motorized Motor: 3 kW / 4 HP Approximate weight: 2100 kg Dimensions: 3100x1100x1400 mm

Condition: good (used), Year of construction: 2007, machine/vehicle number: 139737, Offer 25389 Technical Data: - With asymmetrical roller arrangement, lower roller with inclined positioning - Drop-end bearing for sheet removal - Max. working width: 1050 mm - Max. sheet thickness approx.: 5.0 mm - Roller diameter: 130 mm Fpjdpfx Ahsxu Ezgo Uep - Min. bending diameter: 190 mm - Working speed right & left: 6 m/min - Manual adjustment of the rear roller - Wire insertion groove in the lower roller - Foot pedal right-left operation with emergency stop button - Drive: 400 V / 2.2 kW - Space requirement approx.: W 2100 x H 1200 x D 900 mm - Weight approx.: 1.3 t

Condition: excellent (used), functionality: fully functional, Year of construction: 2003, Sahinler round bending machine type IRM 2050x110 working width 2050 mm max sheet thickness 3.0 mm Fsdjxnc N Uepfx Ah Uopp roller diameter 110 mm motor driven

Condition: new, - Capacity 1570 x 4.5 mm - Electrically adjustable rear roller - Electrically adjustable bottom roller (material clamping) - Digital display for the movement of the rear roller - Digital display for bottom roller movement (material clamping) - Hardened rollers - Conical roller - Brake motor - Emergency stop - Documentation - 400V Fpsdpfsgg Nv Isx Ah Uop

Condition: used, functionality: fully functional, Type: 3-roll plate rolling machine Maximum rolling length: 1500 mm Estimated rolling thickness (S235) over the entire length: 5 mm Exact value not known as the nameplate is missing Top roll diameter: 125 mm Lower roll diameter: 110 mm Lower rolls: driven Fodexrv S Djpfx Ah Uepp Drive: electric Side: Foldable side for removal of closed cylinders. Machine dimensions: length 2200 mm x width 850 mm x height 1250 mm Weight approx. 1100 kg Note: The information on this page has been obtained and compiled to the best of our knowledge, but accuracy cannot be guaranteed. Accordingly, it does not constitute representation or contract and we advise you to check all relevant details. Financial Information VAT/margin: VAT: The displayed price is excluding VAT (VAT deductible for businesses).

Condition: new, sheet width 1050 mm plate thickness 3.3 mm pre-bending 3.0 mm roll length 1050 mm roll diameter 90.0 mm min. dia. 130 mm engine output 1.10 kW weight 570 kg Fjdpfx Ajw U U Udeh Ujpp range L-W-H 1.800 x 800 x 1.130 mm Furnishing: - Robust electro-mechanical bending machine - 2x central rollers driven by an electric motor (top and bottom roller) - Top roller can be swiveled out manually, with folding bearing - including conical bending device - freely movable control panel - Lower roller manually adjustable, by hand wheel - asymmetrical roller arrangement - self-braking main motor - Safety device (safety line with switch unit) - CE mark/Declaration of Conformity Special equipment included in the price: - hardened rollers - Motorized side roller adjustment - Digital position display for motor-driven adjustable side roller

Condition: new, Ostas 4-Roller Plate Bending Machine 4R OHS 1570 x 150 Hydraulic side roller adjustment 3 digital displays Fsdpfx Aoxrc Dteh Uspp Hydraulic drop-end Hardened rollers Device for conical bending Separate control panel Roll length: 1570 mm Top roller diameter: 150 mm Side roller diameter: 130 mm Total motor power: 4+3 kW Weight: 2,470 kg Dimensions (mm): 3350 x 1200 x 1210 (L x W x H) Bending performance data 6 mm at minimum internal diameter (5 x top roller) 4 mm at minimum internal diameter (1.5 x top roller) Pre-bending performance data 4 mm at minimum internal diameter (5 x top roller) 3 mm at minimum internal diameter (1.5 x top roller) All bending capacities are calculated on the basis of 250 N/mm² yield strength Material (ST 37 - ST 42 structural steel)

Condition: new, The KRM ST 20/6, a robust Plate Rolling Machine from KNUTH, is designed for exceptional performance in the category of 3-Roll Motor Plate Rollers. This heavy-duty machine is capable of bending workpieces up to 3000 mm in length, making it ideal for a variety of applications in metalworking, including steel and metal construction. With features like a solid, closed machine frame, a motorized rear roller, and an asymmetrical roll arrangement, the KRM ST 20/6 can handle even the heaviest plates with precision. The crowned and hardened rollers are suitable for processing stainless steel, while the machine boasts a motorized drive powered by a 4 kW electric motor. Control is simplified with a foot switch, and the emergency stop safety rope ensures safe operation. You can trust the central lubrication system for reliable maintenance and operation. For those looking for quality Plate Rolling Machines, the KRM ST 20/6 stands out as a solid investment. Request a quote today to enhance your sheet metal processing capabilities with this exceptional 3-Roll Motor Plate Roller. Fpedpfxeqagtij Ah Uop

Condition: new, functionality: fully functional, machine/vehicle number: SME130-0108, roller (top) diameter: 130 mm, working width: 1,550 mm, overall weight: 1,360 kg, total length: 2,320 mm, total width: 850 mm, total height: 1,200 mm, power: 2.2 kW (2.99 HP), Equipment: documentation/manual, emergency stop, The following special equipment is included in the price: - hardened rollers (suitable for stainless steel bends) - Motorized rear roller adjustment - Digital display Fedpjvxu Hwefx Ah Ujpp Max. working length (sheet width) 1550 mm Max. sheet thickness 4.5 mm (material in St-37 quality; yield strength 240 N/mm2) Max. sheet thickness 4.0 mm when bending (material in St-37 quality; yield strength 240 N/mm2) Upper roller diameter 130 mm Min. bending diameter 195 mm Motor power 2.2 kW Machine dimensions (L/W/H): 2320 mm / 850 mm / 1200 mm Machine weight: 1,360 kg Bending speed: 5.3 m/min Upper and lower rollers electrically driven Cast iron housing Upper roller can be swiveled for easier removal of the Materials Conical bending device Asymmetrical roller arrangement Main rotor self-braking Separate, portable control and operating panel with digital display and foot pedals for control Safety line CE marking

Condition: new, roller diameter: 140 mm, sheet thickness steel (max.): 4 mm, - Capacity 2070 x 4 - Electrically adjustable rear roller - Electrically adjustable bottom roller (material clamp) - Digital display for rear roller movement Fodpfxshvr Nls Ah Ujpp - Digital display for bottom roller movement (material clamp) - Continuously adjustable speed - Hardened rollers - Tapered rollers - Removable top roller - Brake motor - Emergency stop - Documentation - 400V

Condition: new, ROGI PR-1300 ELECTRIC ROLLER Heavy and robust execution Weight 800 KG Executed with hardened rolls Hardness is HRC 28-32 Min. Sheet thickness ----- 0.5 mm Max. Plate thickness ----- 3 mm Max. Working width ----- 1300 mm Pre-bending ----- 2.5 mm Roller diameter ----- 95 mm Motor power ----- 2.2 KW INCLUDED Fpsdjga Tvwspfx Ah Usp * Hardened rollers * SCHNEIDER electrical components

Year of construction: 2024, condition: new, 1050 mm 5,5 mm 5,0 mm roll diameter 130 / 195 mm 2,2 kW 1050 kg 2150 x 900 x 1200 mm - 2 central rollers driven by an electric motor - Swing-out upper beam - Conical bending device Fsdpsq Sz Ahefx Ah Uepp - separate control panel - self-braking main motor - CE mark/Declaration of Conformity Special equipment included in the price: - hardened rollers - Motorized rear roller adjustment

Condition: new, The KRM ST 30/5, a robust Plate Rolling Machine from KNUTH, is designed for exceptional performance in the category of 3-Roll Motor Plate Rollers. This heavy-duty machine is capable of bending workpieces up to 3000 mm in length, making it ideal for a variety of applications in metalworking, steel, and metal construction. With features like a solid, closed machine frame, a motorized rear roller, and hardened rollers, it provides reliable and precise results. The asymmetrical roll arrangement accommodates heavy plates, and its conical bending capabilities are enhanced by an adjustable rear roller. Moreover, it includes a user-friendly separate control panel with a foot switch for easy operation. Maintenance is simplified through central lubrication, ensuring long-lasting functionality. You can take advantage of the KRM ST 30/5 for your plate rolling needs; request a quote now and enhance your sheet metal processing capabilities. Fpedpfx Ahoihvtge Uop

Condition: new, roller diameter: 95 mm, working width: 1,070 mm, - Capacity 1070 x 3 mm - Conical rollers - Pivoting top roller - Foot pedal control - Brake motor - Emergency stop Fpodpfxjwhgm Te Ah Uop - Documentation - 400V

Condition: new, roller diameter: 140 mm, – Capacity 1270 x 4.5 m – Electrically adjustable rear roller – Digital display for rear roller movement – Hardened rollers – Conical rollers – Pivoting top roller – Brake motor Fjdpfx Aewbug Uoh Ujpp – Emergency stop – Documentation – 400 V

Condition: new, Year of construction: 2025, - Capacity 1050 x 3 mm - Roll diameter 90 mm - Conical roller - Swivel top roller - Brake motor - Foot control - Emergency stop Fsdpfx Ajq H D S Reh Ujpp - Documentation - 400V

Condition: new, - Capacity 700 x 4 mm - Conical rollers - Removable top roller - Brake motor - Foot control - Emergency stop - Documentation - 400V Fpedpfx Ajh Rayteh Uep

Condition: new, Year of construction: 2025, roller (bottom) diameter: 95 mm, roller (top) diameter: 95 mm, roller diameter: 95 mm, - Capacity 1270 x 3 mm - Conical rolling Fedexn Rrqopfx Ah Uopp - Swing-out top roll - Foot pedal operation - Brake motor - Emergency stop - Documentation - 400V
