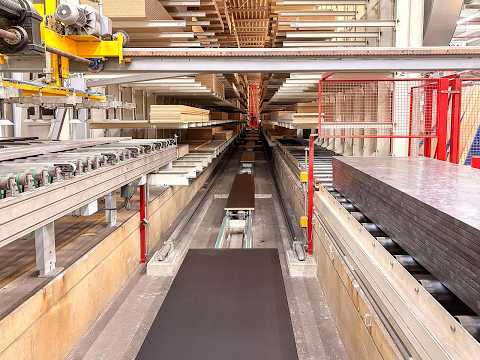

High-bay warehouse

SYSTRAPLAN Vertical Storage System

Condition: used, Year of construction: 2012, total length: 15,000 mm, total width: 12,000 mm, workpiece length (max.): 5,600 mm, workpiece width (max.): 1,250 mm, The machine originates from a business closure. Inspections under power are possible! TECHNICAL DETAILS Max. panel width: 1,250 mm Max. panel length: 5,600 mm Min. panel length: 500 mm Min. panel width: 300 mm Gsdpfxey R Sire Amyebl Max. feed speed: 60 m/min MACHINE DETAILS Control system: SIMATIC PANEL Dimensions (L x W): 15,000 x 12,000 mm The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial descriptive documents. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the destination. External reference: 8465

Condition: used, Year of construction: 2007, workpiece height (max.): 60 mm, edge thickness (max.): 35 mm, feed rate X-axis: 40 m/min, controller model: POWER CONTROL PC22", The machine comes from a company closure. Inspections under power are possible! TECHNICAL DETAILS Number of working units: 11 Maximum feed speed: 40 m/min Maximum panel thickness: 60 mm Minimum panel height: 16 mm Minimum panel width: 85 mm Minimum edge thickness: 0.3 mm Maximum edge thickness: 35 mm Pressure system: Rubber belt Workpiece support guides NC-controlled positioning Panel infeed alignment system The machine is configured as follows: PRE-MILLING / MILLING UNITS Number of pre-milling / milling units: 2 Unit 1: Pre-milling unit Motor power: 4.5 kW Speed: 5,860 rpm Automatic, time-controlled engagement Unit 2: End trimming unit Motor power: 1.8 kW Automatic tool change GLUING AND EDGE FEEDING Number of edge rollers: 68 Number of pressure rollers: 14 (1 x 7 + 1 x 7) Lamps for pre-heating the panel edge Pre-melter for PUR adhesive Gluing system Adhesive pot for PUR glue NC-controlled positioning EDGE PROCESSING UNITS Number of edge processing units: 8 Unit 1: End trimming unit Number of motors: 2 Motor power: 0.22 kW Speed: 10,350 rpm NC-controlled positioning Unit 2: Top and bottom flush trimming unit Number of motors: 2 Motor power: 0.55 kW Speed: 11,400 rpm Unit 3: Corner rounding unit Number of motors: 2 Motor power: 0.4 kW Speed: 10,980 rpm Automatic tool change Gbjdpfx Amey R R T Neyjl NC-controlled positioning Automatic, time-controlled engagement Unit 4: Scraper unit NC-controlled positioning Unit 5: Glue joint scraper unit Unit 6: Buffing unit Number of motors: 4 Motor power: 0.25 kW Speed: 1,390 rpm Automatic, time-controlled engagement Unit 7: Buffing unit Number of motors: 1 Motor power: 0.30 kW Speed: 3,000 rpm Unit 8: Buffing unit Number of motors: 2 Motor power: 0.18 kW Speed: 1,370 rpm MACHINE DETAILS Control system: WINDOWS XP Machine programming software: POWER CONTROL PC22 The machine is sold and delivered in its actual and legal condition (“as seen and agreed”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and is responsible for the installation, securing, and use of the machine at the destination. External reference: 8453

Year of construction: 2007, condition: used, controller model: POWER CONTROL PC21, workpiece weight (max.): 100 kg, feed rate X-axis: 50 m/min, plate length: 1,200 mm, plate width: 5,600 mm, The machine comes from a business closure. Inspections under power are possible! TECHNICAL SPECIFICATIONS Max. panel width: 1,200 mm Max. panel length: 5,600 mm Min. panel length: 500 mm Min. panel width: 250 mm Max. travel speed: 50 m/min Working capacity: 5 / 7 cycles/min Max. lifting capacity: 100 kg Individual output: 90 m³/h Gsdpfx Asy R R Tpjmyjbl MACHINE DETAILS Control system: WINDOWS Machine programming software: POWER CONTROL PC21 Motion system: Suction cups Total connected load: 28 kW Storage length: 12,000 mm Storage width: 7,000 mm EQUIPMENT Automatic panel rotation system Vacuum pump The machine is sold and delivered in its actual and legal condition (“as seen and approved”), based on photographic documentation and technical/commercial information of a descriptive nature. The buyer has the right to inspect the goods prior to collection and is responsible for installation, securing, and utilization of the machine at the destination. External reference: 8456

Condition: used, Year of construction: 2007, travel distance X-axis: 6,000 mm, travel distance Y-axis: 3,000 mm, number of slots in tool magazine: 10, controller model: POWER CONTROL PC85, spindle speed (max.): 24,000 rpm, The machine originates from a business closure. Inspections under power are possible! TECHNICAL DETAILS Travel range X-axis: 6,000 mm Travel range Y-axis: 3,000 mm Working area X-axis: 5,600 mm Working area Y-axis: 1,200 mm Rapid traverse X-axis: 80 m/min Rapid traverse Y-axis: 80 m/min Rapid traverse Z-axis: 30 m/min Milling spindles: 2 Main electrospindle power: 11 kW Spindle speed: 24,000 rpm Total number of tool changer positions: 10 Gbedpfjy R Swisx Amyjl MACHINE DETAILS Type of operation: Milling Control system: POWER CONTROL PC85 Machine programming software: WOODWOP 5.0 Number of controlled axes: 4 Vacuum cups: 32 Individual vacuum pump capacity: 120 + 80 m³/h Number of pumps: 2 Total installed power: 27 kW EQUIPMENT Vacuum loading Motorized transfer system Automatic panel loading system Automatic panel stacking system Liquid cooling system CE marking Protective structure for operating units with safety sensors Protective netting on the machine Chip conveyor for waste removal The machine is being sold and delivered in its actual and legal condition ("as seen and approved") based on the photographic documentation and technical/commercial documents of descriptive character. The buyer has the right to inspect the goods before collection and assumes responsibility for installation, securing, and use of the machine at the destination. External reference: 8457

Year of construction: 2007, condition: used, controller model: POWER CONTROL PC21, workpiece length (max.): 5,000 mm, workpiece width (max.): 1,200 mm, The machine comes from a business closure. Inspections under power are possible! Godpfx Amoy R Sydoyjbl TECHNICAL DETAILS Max. panel width: 1,200 mm Max. panel length: 5,000 mm Min. panel length: 500 mm Max. feed speed: 50 m/min Lifting capacity: 100 kg MACHINE DETAILS Control: POWER CONTROL PC21 Control system: WINDOWS Dimensions (L x W): 30,000 x 12,000 mm The machine is sold and delivered in its actual and legal condition ('as seen and agreed') on the basis of photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the equipment prior to collection and assumes responsibility for installation, securing, and use of the machine at the destination. External reference: 8451

Year of construction: 2007, condition: used, workpiece length (max.): 5,600 mm, workpiece width (max.): 1,200 mm, The machine comes from a company liquidation. Inspections under power are possible! TECHNICAL DETAILS Max. panel width: 1,200 mm Max. panel length: 5,600 mm Min. panel length: 500 mm Min. panel width: 250 mm Max. feed speed: 30 m/min MACHINE DETAILS Conveyor dimensions (L x W): 10,000 x 5,200 mm Total installed power: 15 kW Gbsdpjy R S Sasfx Amysl EQUIPMENT Motorized roller table The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photo documentation and descriptive technical/commercial documentation. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the destination. External reference: 8447

Year of construction: 2007, condition: used, controller model: POWER CONTROL PC21, workpiece weight (max.): 100 kg, feed rate X-axis: 50 m/min, plate length: 5,600 mm, plate width: 1,200 mm, Machine comes from a company liquidation. Inspections under power are possible! TECHNICAL DETAILS Maximum panel width: 1,200 mm Maximum panel length: 5,600 mm Minimum panel length: 500 mm Minimum panel width: 250 mm Maximum panel weight: 100 kg Production capacity: 5/7 cycles/min Maximum feed speed: 50 m/min Number of pumps: 1 Individual capacity: 90 m³/h MACHINE DETAILS Control system: WINDOWS Programming software: POWER CONTROL PC21 Drive system: Suction cups Total connected load: 24 kW Storage dimensions – Length: 12,500 mm Storage dimensions – Width: 6,200 mm EQUIPMENT Gjdpfxoy R Slys Amyobl Vacuum pump Automatic panel rotation system The machine is sold and delivered in its actual and legal condition (“as seen and approved”), based on photographic documentation and descriptive technical/commercial documentation. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and operation of the machine at the destination. External reference: 8452

Year of construction: 2007, condition: used, power: 20 kW (27.19 HP), feed rate X-axis: 30 m/min, plate length: 5,600 mm, plate width: 1,200 mm, The machine comes from a business liquidation. Inspections under power are possible! TECHNICAL DETAILS Maximum panel width: 1,200 mm Maximum panel length: 5,600 mm Minimum panel width: 250 mm Minimum panel length: 500 mm Gsdpfoy R Szzsx Amysbl Maximum feed speed: 30 m/min MACHINE DETAILS Total connected load: 20 kW The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the destination site. External reference: 8449

Condition: used, Year of construction: 2000, workpiece length (max.): 3,000 mm, workpiece width (max.): 1,200 mm, The machine comes from a company closure. Inspections under power are possible! TECHNICAL DETAILS Max. panel width: 1,200 mm Max. panel length: 3,000 mm Lifting capacity: 50 kg Gedpjy R S Afefx Amyjbl MACHINE DETAILS Storage dimensions (L x W): 30,000 x 5,000 mm The machine is sold and delivered in its actual and legal condition (‘as seen and approved’) on the basis of photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8450

Condition: used, Year of construction: 2007, workpiece length (max.): 5,600 mm, workpiece width (max.): 1,600 mm, tool diameter: 450 mm, Equipment: scorer, The machine comes from a business liquidation. Inspections under power are possible! TECHNICAL DETAILS Maximum panel width: 1,600 mm Maximum panel length: 5,600 mm Main saw blade protrusion: 125 mm Maximum saw blade protrusion: 125 mm Saw unit motor power: 13.5 kW Max. scorer unit blade diameter: 180 mm Scorer unit motor power: 2.2 kW Maximum feed speed: 150 m/min Maximum tool diameter: 450 mm MACHINE DETAILS Gbsdpfx Amsy R S N Soyel Control system: WINDOWS XP Machine programming software: CADMATIC 4 Number of grippers: 5 Total installed power: 27 kW EQUIPMENT Saw unit Saw carriage Scorer unit Preloading roller table Preloading roller table TFW 510 left Preloading roller table TFW 510 rear Automatic panel loading Automatic panel loading TF1 Gripper on pusher fence Barcode label printer Automatic waste ejection system The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for the installation, security, and use of the machine at the place of destination. External reference: 8446

Condition: used, Year of construction: 2007, power: 43 kW (58.46 HP), cutting height (max.): 90 mm, cutting width (max.): 1,200 mm, cutting length (max.): 5,600 mm, feed rate X-axis: 40 m/min, The machine comes from a business liquidation. Inspection under power is possible! TECHNICAL DETAILS Maximum panel width: 1,200 mm Maximum panel length: 5,600 mm Minimum panel width: 150 mm Minimum panel length: 250 mm Minimum panel height: 8 mm Maximum panel height: 90 mm Maximum feed speed: 40 m/min The machine is configured as follows: Number of processing units: 4 Unit 1: Double cutter, top and bottom Motor power: 11 kW Speed: 7,090 rpm Unit 2: Scoring unit Motor power: 2.2 kW Speed: 6,920 rpm Unit 3: Milling unit Motor power: 8 kW Speed: 7,090 rpm Unit 4: Milling unit Design type: on rear table Motor power: 2.2 kW Speed: 6,920 rpm MACHINE DETAILS Control system: WINDOWS Machine programming software: POWER CONTROL PC22 Total connected load: 43 kW EQUIPMENT Top pressure unit Additional guide for workpieces Rubber conveyor belt Gbjdpfx Ajy R S I Uomyol NC positioning system The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and operation of the machine at the destination. External reference: 8448

Condition: used, Year of construction: 2002, travel distance X-axis: 10,500 mm, travel distance Y-axis: 2,700 mm, number of slots in tool magazine: 24, controller model: POWER CONTROL PC83, milling spindle speed (max.): 18,000 rpm, The machine comes from a business closure. Inspection under power is possible! TECHNICAL DETAILS Travel path X-axis: 10,500 mm Travel path Y-axis: 2,700 mm Working area X-axis: 5,600 mm Working area Y-axis: 1,200 mm Speed X-axis: 80 m/min Speed Y-axis: 80 m/min Speed Z-axis: 30 m/min Main electrospindle power: 12 kW Number of milling spindles: 2 Spindle motor output: 12 kW Spindle speed: 18,000 rpm Number of controlled axes: 4 Number of tools in the changer: 24 Number of tool magazine positions: 12 (2 magazines) Maximum panel thickness: 40 mm Minimum panel thickness: 10 mm MACHINE DETAILS Type of machining: Edge processing, Milling Control system: POWER CONTROL PC83 Programming software: WOODWOP 5.0 Godpfoy R Si Sex Amyjbl Total installed power: 51 kW Number of work zones: 1 Number of rails: 5 Number of vacuum cups: 10 Number of vacuum pumps: 2 Capacity per pump: 120 m³/h EQUIPMENT Worktable: Pod and rail Positioning via NC Automatic panel loading system: vacuum loading system Automatic panel stacking system Vacuum pump Liquid cooling system Gluing unit with hot melt pre-melter Edgeband magazine Tool magazine at rear of machine Protective structure for operating units with safety sensors Protective net attached to the machine Safety system: front safety mats Waste chip conveyor The machine is sold and delivered in its current technical and legal condition ("as seen and approved"), based on photographic documentation and technical/commercial documents of descriptive character. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and operating the machine at the destination. External reference: 8458
