Uralstankoimport

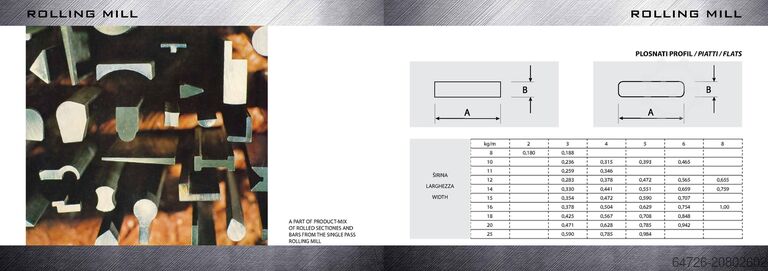

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1974, power: 450 kW (611.83 HP), workpiece diameter (max.): 21 mm, total length: 30,000 mm, ROLLING MILL - 2 rolling pass - power 450 KW - raw material: wire road low carbon dimensions from fi 5.00 to fi 21.00 mm - capacity depending on the size of 1200 kg/h - finished products: flat bars from 8x2 to 30x3 mm round bars from fi 5 to fi 16 mm square bars from 5x5 to 14x14 mm triangle bars from 10x10 to 20x20 mm Itjdpfx Agox I Nbmozor angle bars from 10x10x2 to 20x20x3 mm equal angle bars from 15x10x2 to 20x12x4 mm If you have additional questions or need more information, feel free to send us a message or call us.

Condition: ready for operation (used), Year of construction: 2007, Immediately available ex-location: Hydraulic Horizontal Broaching Machine Hahndorf Itodpfxex Iqwpo Agzer Model HRH 1200/4 Year of manufacture: 2007 Pulling force: 4 t Broach length: 1200 mm Maximum keyway width up to 22 mm Broaching speed: 0 – 6.5 m/min Rapid return: 10 m/min Automatic tool clamping Drive: 5.5 kW Mounting plate: 350 x 350 mm Numerous holders and broaching tools included Weight: 750 kg Price: EUR 4,750 plus VAT, ex-site

Condition: ready for operation (used), Year of construction: 2007, A Hahndorf keyway slotting and broaching machine is available. Stroke range slotting: 60mm-300mm, max. slot width slotting: 34mm, max. slotting length: 300mm, max. slot width broaching: 14mm, max. broaching tool length: 640mm, max. cutting speed forward/return: 3m/3m/min, weight: approx. 300kg. Documentation available. On-site inspection is possible. Iodpfxex Ih Dao Agzetr

Condition: used, functionality: fully functional, Year of construction: 1989, machine/vehicle number: 2882, Broaching machine See data in the attachment. Iodpfx Aox Ey Uljgzjtr

Condition: used, Vertical Slotting Machine GSP type MORT 730 3-jaws chuck Ø 250 mm Slide travel: 170 mm Ijdpfx Aex Ei Rcegzotr Throat heigth: 300 mm Throat depth: 450 mm Swivel head +/- 30° Axes: X auto / Y manual Table Ø 500 mm Table: Manual Rotation Feeds: from 0 to 1,2 mm/stroke Strokes/min.: 31, 50 or 79 strokes/min. Vernier Graduation: 1 division = 0,1 mm Voltage: 380 V Width: 1400 mm Depth: 2100 mm Total height: 2100 mm Weight: approx 1,5 T

Condition: used, Year of construction: 1957, overall weight: 2,200 kg, RWI15x1400 Year of manufacture: 1957 Weight: approx. 2.2 t Including accessories Iedpfx Agjx D Uxaszstr

Condition: good (used), Keyway broaching machine RAUSCH RS 6-1300 with extensive accessories - Ram stroke / Maximum stroke length: 1300 mm - Pulling force: 6000 kg - Operating voltage: 380 Volt - Including 38 x broaching needles - Including 95 x guide bushings - Spacer shims - Crane - Workbench - Platform Itodex A Edqopfx Agzor - 2 x tool cabinets Dimensions: LxWxH 1.6x1.7x2.3 meters / Weight: 2000 kg Errors and omissions excepted

Condition: good (used), SLOTTER MACHINE – Vertical VS 600 – Rotary table – diameter 600 mm – Rotary table – indexable – Stroke approx. 360 mm – Three-jaw chuck 325 mm – Cross table Isdox A A Umjpfx Agzjtr Dimensions: LxWxH 1.9x1.2x2.3 meters / Weight 1700 kg Errors and omissions excepted.

Condition: like new (used), Paddle mixer Karl Schnell Itsdex Ax Naspfx Agzjr Complete out of stainless steel

Condition: like new (used), Paddle mixer Karl Schnell Dimensions: 260x215x230cm Complete out of stainless steel Iodpfx Agjx Ax A Hezetr

Condition: excellent (used), functionality: fully functional, Year of construction: 1968, machine/vehicle number: AKK38631, For sale is a robust and proven keyseating/broach cutting machine from the renowned brand FRÖMAG. Type: KZM 32/300. Year of manufacture: 1968. Condition: very good, well-maintained, fully functional, and immediately ready for operation. Itodpfex Abxdsx Agzjr

Condition: excellent (used), functionality: fully functional, German slotting machine Klopp model SK 260, with table featuring integrated divider and automatic feed on the table's main axis. Strokes per minute: 30-55-80, adjustable distance from table to ram, maximum distance between tool and column body: 430 mm, table surface: 300x450 mm, rotary table divider diameter: 350 mm, table longitudinal travel: 420 mm, cross travel: 320 mm, tiltable head, motor power: 2.5 hp, estimated weight: 1400 kg, with coolant pump, machine equipped with tools, in very good condition. Isdpfsxz Rxwjx Agzjtr

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, machine/vehicle number: 1028, Thread Rolling Machine LEISTRITZ RT 400-CCA Year of manufacture: 2004 / Control system retrofit in 2019 Connection voltage: 3x400 V Itodpfx Asxytmhogzjr Frequency: 50 Hz Rated power: 65 kW Main fuse: 125 A Operating pressure: Air: 6 bar, Oil: 270 bar Control voltage: 24 VDC Maximum shaft length: 275 mm Minimum shaft length: 125 mm Maximum roll set diameter: Tool Ø69.85: 215 mm, Tool Ø80: 210 mm Minimum roll set diameter: Tool Ø69.85: 176-178 mm, Tool Ø80: 176 mm Maximum rolling force: 40 t Space requirement: 3.4 m x 2.9 m x 2.2 m Weight: 4900 kg Accessories: - Coolant filtration system - Second spindle pair (1x for tools Ø69.85 mm, 1x for tools Ø80 mm)

Condition: good (used), Hello, For sale: Slotting Machine type HOV-2S. The machine is operational and in continuous use; inspection and testing are possible. Itedpexyi Saefx Agzer The price listed in the advertisement is net and VAT must be added. The machine can be viewed in Starachowice at 13 Kwiatkowskiego Street. Telephone contact from 7:00 to 16:00.

Condition: used, Year of construction: 2000, machine/vehicle number: 6126, Comau CNC Crankshaft Turn Broaching Machine max crankshaft dimensions, ca.: dia 250 x 800 mm, Twin-Station Crankshaft Turn Broaching Machine for Main and Pin Bearings, internal part transfer, two twin-cutting-head stations, one CNC SIEMENS SINUMERIK 840D per station with X1/X2 and Z1/Z2 Axes and C1/C2/C3/C4 rotating spindle Axes for each station, LxWxH, ca. 8x3x3m, weight, ca. 30to Iodpfx Aexxx E Hjgzotr

Condition: good (used), BEHR ST 150 / Vertical Slotting Machine with Swiveling Head - Stroke: 150 - 175 mm Ijdpfxjxwm Ugs Agzetr - Head tilt adjustable 5-8 degrees in both directions - Table height / Distance table to lower edge of ram guide: 260 mm - Rotary table diameter: 340 mm - Table longitudinal travel: 320 mm - 3 stroke speeds: 17-54-108 strokes per minute - Maximum slot width: 16-26 mm - Feed in X + Y axes / speed adjustable - Rotary table adjustment manual - 3-jaw chuck Dimensions: LxWxH 1.5 x 1 x 2 meters / Weight: 1600 kg Subject to errors and omissions

Condition: ready for operation (used), Year of construction: 2012, A vertical internal broaching machine (broaching tower) Karl Klink with lift table and loading portal is available. Broaching force: 63kN, broaching stroke: 1000mm, spindle stroke: 400mm, broaching speed: 7.5m/min, return speed: 24m/min, stations: 1, table width: 500mm. Machine dimensions X/Y/Z: approx. 3700mm/3000mm/3200mm, weight: approx. 3500kg. Documentation available. An on-site inspection is possible. Ijdpfxjxwcvms Agzjtr

Condition: used, Year of construction: 1970, max. ram stroke 250 mm throat 250 mm table diameter 350 mm long. travel of table 200 mm cross travel of table 500 mm Iodjxu Nq Sspfx Agzotr distance table - lower edge of ram 300 mm double strokes/min. 15 - 160 /min total power requirement 1,7 kW weight of the machine ca. 1,7 t

Condition: ready for operation (used), Year of construction: 1998, overall weight: 2,900 kg, power: 8 kW (10.88 HP), input voltage: 380 V, number of broaching positions: 1, total width: 6,100 mm, total height: 1,900 mm, Manufacturer: Karl Klink Model: RW 10 Iodpfjxtcz Isx Agzstr Year of manufacture: 1959 / 1998 Weight: 2,900 kg Machine No.: 1194 General Information / Technical Data: Hydraulic internal broaching machine in operational condition Broaching stroke: 1,420 mm Tensile force: 10,000 kg Diameter of drawhead mount in the draw bridge: 85 mm Broaching tool clamping: universal drawhead for flat shanks up to 25 mm width Through-hole in the clamping table: Ø 100 mm Workpiece diameter: max. approx. 360 mm (limited by the machine body of the tool feeder) Cutting speed: hydraulically infinitely variable from 1 m/min to 7 m/min Return speed: hydraulically infinitely variable from 7 m/min to 25 m/min Machine dimensions (W x D x H): approx. 4,100 (6,100) mm x 800 mm x 1,900 mm (excluding work area) Power supply / connected load: 380 Volt 50 Hz / 8.0 kW Accessories / Special Features: • The machine is equipped with manual-hydraulic control for the broaching stroke movement • The machine has an integrated coolant/lubricant system • The machine features a basic oil drip tray fitted to the machine bed, without tool feeder Remarks: The machine is ideal for the production of keyways and profiles. Broaching needles, arbors, and drawheads can be supplied on request.

Condition: good (used), Year of construction: 1980, Info: Machine was embedded in a pit! - Tractive force: max. 25,000 kg - Clearing stroke: max. 630 mm - Clearing speed: 1 - 10 m/min - Return speed: 7 - 25 m/min Iodexr Aw Tspfx Agzetr - Total connection requirement: 45 kW - Machine weight: 5,500 kg

Condition: good (used), Year of construction: 2004, - Tractive force: max. 160 kN - Clearing stroke: max. 1000 mm - Truck feed stroke: max. 630 mm - Table top width: 630 mm - Broaching speed: 10 m/min - Return speed: 23 m/min - Installed power: max. 88 kW Ijdpfx Ajxr Aw Hjgzstr - Machine weight: 12,410 kg

Condition: ready for operation (used), Year of construction: 1965, A vertical gear shaping machine Lorenz is available. Module: 6.5, stroke: 120mm, max. gear diameter: 900mm, max. workpiece weight: 180kg, min. concentricity: 0.1mm, min. squareness: 0.05mm, roundness: 0.1mm. An on-site inspection is possible. Iedpfx Agjxq Eyhozjtr

Condition: used, Table diameter: 800 mm, 3-jaw chuck, diameter: 400 mm, machine lamp, stroke: approx. 600 mm Itodpfexpy Hgjx Agzjr

Condition: ready for operation (used), Year of construction: 2008, A vertical internal broaching machine Frömag is available. Broaching tools: 3, stroke: 800mm, pulling force: 60kN, connected load: 15kW. Machine dimensions X/Y/Z: approx. 1050mm/900mm/3800mm, control: Frömag Commander PP-10. An on-site inspection is possible. Ijdpfx Asxph Sdogzetr

Condition: repair required (used), functionality: limited functionality, Year of construction: 1981, broaching length: 400 mm, For sale is a Leistritz Polymat keyseating machine. This is an upgraded Stuhlmann machine. Ijdpfx Aoxmg Acsgzotr The machine is functional but occasionally has an intermittent electrical contact. Available accessories: guide bar for cutters WC2 / WC3 / WC4, various feed bars, and 2 tool holders WC7 – see images.
