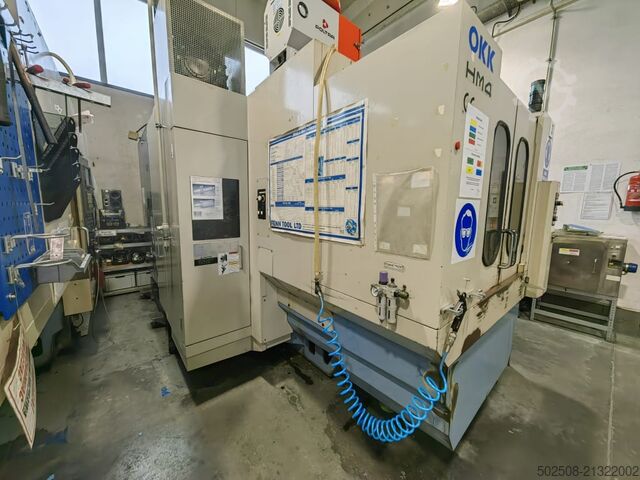

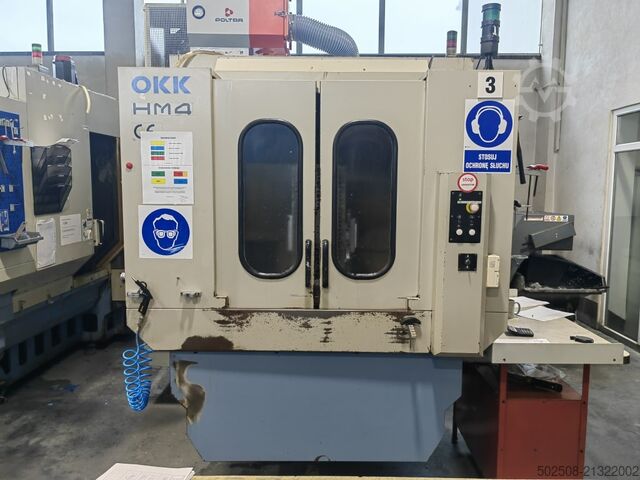

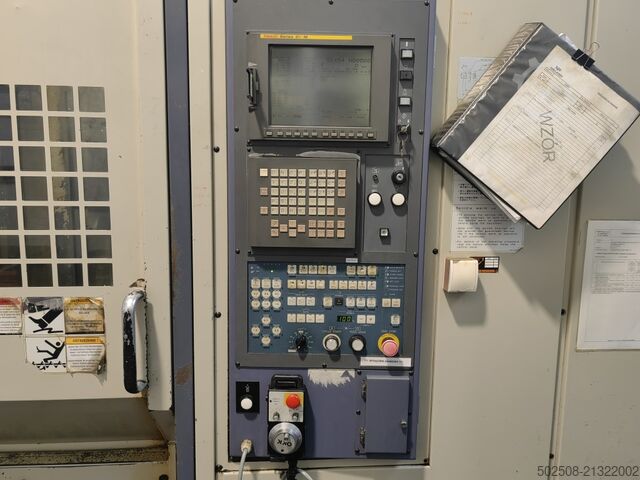

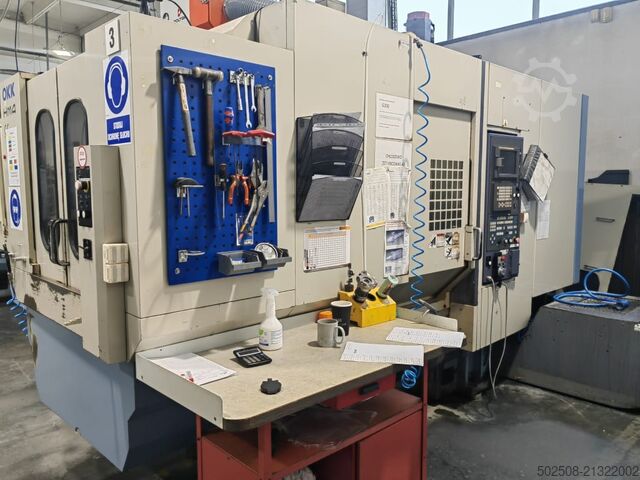

Condition: used, Year of construction: 2000, (2000) OKK HM-4 4-Axis CNC Horizontal Machining Centre Control: Fanuc 21i-M, Pallet size: 400x400mm. Number of pallets: 2. Chuck type: BT40. Maximum spindle speed: 12,000 rpm. Rapid travel in X, Y, and Z axes: 30 m/min. Axis travel: X, Y, Z: 560x510x560. Maximum workspace: Ø 600 x 650mm. Maximum pallet load: 450kg. Number of tools in magazine: 60. Maximum tool diameter: 82/140mm. Maximum tool length: 300mm. Maximum tool weight: 8kg. Machine weight: 9000kg. Approx dimensions: 4,2 x 2,2 x 2,35 m, additional items: a) 1,4 x 3,7 x 1,5 m, b) 0,5 x 0,7 x 0,8 m, c) 0,8 x 1,0 x 1,3 m. Note: tool cube mounted on table and tool blue tool board are not included . S/No.152. Nsdsym Akwspfx Ab Tecn

Condition: excellent (used), Year of construction: 2013, CNC Control: M730BM X mm: 1,050 Y mm: 530 Z mm: 510 Worktable dimensions mm: 1,350 x 600 Table load capacity kg: 1,200 Distance spindle nose to table mm: - Cutting feed mm/min X,Y,Z: - Max. rapid traverse m/min X, Y, Z: 30,30,30 Spindle speed rpm: 12,000 Ncsdpfx Ajymxbfeb Ten Spindle power HP: - Taper type: BT-40 Torque Nm: - Tool changer type: - Tool changer positions: 30 Max. tool diameter mm: 80 Max. tool diameter with adjacent positions empty: 150 Max. tool length mm: 300 Max. tool weight kg: 8 Coolant tank capacity l: - Through-spindle coolant bar: - EQUIPMENT Chip conveyor Work light Electronic handwheel BT-40 taper

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 650 mm, controller model: Siemens 840 D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Travel X-axis: 650 mm Travel Y-axis: 500 mm Travel Z-axis: 650 mm B-axis: 360,000 x 0.001 mm Pallet size: 400 x 500 mm Spindle speed: 50 – 10,000 rpm Tool holding system: SK 40 Number of tools in magazine: 60 Rapid traverse: 40 m/min Feed rate: 1 – 20,000 mm/min MACHINE DETAILS Control system: Siemens 840 D Nedsymw S Aspfx Ab Tocn Power requirement: 65 kW

Condition: used, Year of construction: 2021, controller manufacturer: Sonstige, controller model: Professional 6, _____ Description: Year of manuf. : 2021 Control : Sonstige Professional 6 Speed : 14000 rpm Movement X/Y/Z : 730/650/800 mm Tool holder : HSK-A63 Spindle: Speed:14.000 U/min Torque (max.):303 Nm Taper:HSK-A63 NC-Roundtable: B-Axis:0,0001° Palletsize:500 x 500 mm Tableloading (max.):500 kg Workpiecedimensions (max.):ø800 x 1.000 mm In general: Toolmagazine:60 Stations Rapid travers in X/Y/Z:60 m/min Ausstattung/Zubehör: Ncjdoymhx Hspfx Ab Tsn Positionsensor:Direct Scales in X/Y/Z Chipmanagement:Chip conveyor Coolingmanagement:Internal cooling unit with paperbeltfitler and High-pressure, 70 bar Automation:Palletchanger, 2 Stations Workpiececlamping:Hydraulic, 6+3 Contactcontrol:Penumatic Oilmistseparation:Mechanical extraction, SARA UC1 SD III Setup operations:Electronic Handwheel Further Equipment:Trafo

Condition: used, Year of construction: 2003, MORI SEIKI - NH5000-40 - 2003 - used machine, condition as on photos Ncjdpfx Abjyl Sq Rs Ten - can be tested under power upon agreement

Condition: excellent (used), Year of construction: 2007, BA 600-2 CNC, Horizontal Milling and Drilling Center SW Schwäbische Werkzeugmaschinen GmbH Travel: X axis: 600 mm Y axis (changeover position): 600 (975) mm Z axis: 500 mm Control: Siemens 840D control, side-mounted Feed/Rapid traverse speeds: X, Y, Z: 1 – 45,000 mm/min Max. feed force X, Y, Z: 15,000 N Average acceleration: X, Y, Z: 2.5 m/s² Measuring system: Direct measuring system X, Y, Z Spindles: Spindle speed (infinitely variable): 20–10,000 rpm Torque: 2 x 363 Nm (S6/40% duty cycle) Power: 2 x 38 kW (S6/40% duty cycle) HSK-A 100, horizontal tandem arrangement Spindle distance: 600 mm Spindle bearing diameter: 100 mm Motor spindles, liquid-cooled, AC technology Working area: Swing carrier with spur gearing, max. workpiece weight 2,000 kg Swivel time 0/180 degrees approx. 6.0 sec 2 NC rotary tables, hydraulically clamped, max. workpiece weight 700 kg, table speed 25 rpm Partition between machining and loading area Tool magazine: Ncedpfx Aoyl Sctjb Ten 2 x 50 tools HSK-A 100 chain-type magazine Tool change time (chip-to-chip): 4.48 sec Max. tool diameter: 100 mm 250 mm with adjacent slot free Max. tool length: 420 mm Max. tool weight: 20 kg Equipment: Central lubrication Oil minimum quantity lubrication (spindle lubrication) Chip conveyor (hinged belt conveyor) Coolant purification with compact band filter Hydraulic unit Maintenance unit Water recooler Full enclosure, crane loading possible Dimensions: approx. 5.15 x 8.50 x 4.20 m Weight: approx. 20,000 kg Year of manufacture: 2007 Other features: Very good condition Setup parallel to main time Available from December 2023/January 2024

Condition: excellent (used), Year of construction: 2011, operating hours: 11,000 h, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 565 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, total height: 2,700 mm, total length: 4,000 mm, total width: 2,400 mm, table width: 400 mm, table length: 400 mm, spindle speed (max.): 8,000 rpm, operating hours of spindle: 6,383 h, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, Offered here is a horizontal machining center from the manufacturer Doosan. Operating hours: 11,320 h Spindle hours: 6,383 h The machine is in very good condition and can be inspected under power in our facility. Both clamping towers are included in the scope of delivery. Manufacturer: Doosan Model: HC 400 Year of manufacture: 2011 Control: Fanuc Series 32i-MODEL A Technical data: Travel X-Y-Z: 600x560x565 mm B-axis: 1° increment (indexing table) Ncsdpfx Absyl Iu Es Tjn Rapid traverse X-Y-Z: 40 m/min Feed rates: 20,000 mm/min Pallet size: 400x400 mm Spindle speed: 8,000 rpm Tool holder: SK40 Machine weight: 11,000 kg

Condition: excellent (used), Year of construction: 2009, Horizontal Machining Center DMG Deckel Maho DMC65 H duoBlock Control: Heidenhain iTNC 530 Year of manufacture: 2009 Nodsylihtepfx Ab Tecn Travel ranges: X-axis: 650 mm Y-axis: 700 mm Z-axis: 700 mm B-axis: 360° Spindle taper: ISO 40 Tool magazine: 120 positions Spindle speed: 12,000 rpm Chip conveyor Coolant system with 600 l filter and 40 bar 2-station pallet changer 3D touch probe (Renishaw) Blum laser New Weiss spindle in 2022

Condition: not inspected (used), Year of construction: 1997, functionality: unexamined, machine/vehicle number: 323, travel distance X-axis: 600 mm, travel distance Y-axis: 560 mm, travel distance Z-axis: 560 mm, controller model: SIEMENS SINUMERIK 840 D, overall weight: 12,000 kg, No minimum price – guaranteed sale to the highest bidder! Submitting a bid obligates timely collection between 08.04.2026 and 16.04.2026! TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 560 mm Travel Z-axis: 560 mm Travel B-axis: 360° Pallet dimensions: 2 units, 500 x 400 mm MACHINE DETAILS Ncodpeyk Ulnsfx Ab Ten Control unit: SIEMENS SINUMERIK 840 D Connected load: 60 kVA Operating voltage: 400 V Frequency: 50 Hz Rated current: 90 A Dimensions & weight Dimensions (L x W x H): 5,000 x 5,000 x 3,000 mm Weight: 12,000 kg

Condition: used, Year of construction: 2017, operating hours: 34,000 h, functionality: fully functional, travel distance X-axis: 710 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 710 mm, torque: 100 Nm, controller manufacturer: Siemens, controller model: 840D SL, table width: 500 mm, table length: 400 mm, rotational speed (max.): 18,000 rpm, spindle speed (max.): 18,000 rpm, coolant supply: 50 bar, spindle motor power: 47,000 W, number of spindles: 1, number of slots in tool magazine: 54, mount diameter: 63 mm, Equipment: chip conveyor, rotational speed infinitely variable, Year of construction: 2018 Control unit: Siemens 840 D SL Spindle: SC63 (18000 1/min, 47kW ,100 Nm Tool clamping system: HSK 63 Tool magazine / places (Options): Chain / 54 Rotary table: 3+2, 360.000° X 0,001° Coolant unit: Interlit TMF 300; IKZ 50 bar, (work area flushing) Positioning range XYZ (mm): 710 / 750 / 710 Pallet size (mm): 400 X 500 Workpiece clamping: Hydraulic 200 bar Njdpfx Aboyk Eb To Tscn Additonal options, Specifics: Receiver for measuring probe (Renishaw); Interface for exhaust system; exhaust system; 3 color status lamp; work area flush; Scraping conveyor for wet machining; Thermal growth compensation; Fast drill fracture sensing (SBBK); IPM, 2 line Pneumatic location check at workpiece loading station ; pneumatic unclamp check at loading station; Balluff tool ident Format HL 06; automatic setting-station-door; MSK; suction unit , Window blow devise at operator door; interface robot loading

Condition: used, Year of construction: 2017, functionality: fully functional, travel distance X-axis: 710 mm, travel distance Y-axis: 750 mm, travel distance Z-axis: 710 mm, torque: 201 Nm, controller manufacturer: Siemens, controller model: 840D SL, table width: 500 mm, table length: 400 mm, rotational speed (max.): 12,000 rpm, spindle speed (max.): 12,000 rpm, coolant supply: 50 bar, spindle motor power: 46,000 W, number of spindles: 1, number of slots in tool magazine: 50, mount diameter: 100 mm, Equipment: chip conveyor, rotational speed infinitely variable, Year of construction: 2017 Control unit Siemens: 840 D SL Spindle: SC 100 12000 1/min, 46kW, 201 Nm Tool clamping system: HSK 100 Njdpfxeyk D U Sj Ab Tocn Tool magazine / places: Chain / 50 Rotary table: 3+2 (360.000° X 0,001°) Coolant unit: Interlit TMF 300; IKZ 50 bar, (work area flushing) Positioning range XYZ (mm): 710 / 750 / 710 Pallet size (mm): 400 X 500 Workpiece clamping: Hydraulic 200 bar Additonal options, Specifics: Receiver for wireless measuring probe (RENISHAW); Pneumatic unclamp check at workpiece loading station; location check at workpiece loading station; Screen blow-off device for operator door; Fast drill fracture sensing (SBBK); status lamp; Integrated process monitoring (IPM) + Monitoring function to minimise machine damage in case of collision; Interface for exhaust system; exhaust system; Scraping conveyor for wet machining; interface robot loading; MSK multi spindle head; Balluff tool ident Format HL 06;

Condition: good (used), Year of construction: 2006, functionality: fully functional, Travels and Working Area X-axis (longitudinal): 610 mm Y-axis (vertical): 610 mm Z-axis (transverse): 610 mm B-axis (rotary table): 360,000 positions (full 4th axis, 0.001° resolution) Distance from spindle nose to table center: 100 – 710 mm Pallet System Pallet dimensions: 400×400 mm (2 pallets standard; changeover time approx. 7–9 seconds) Maximum pallet load: 400 kg Maximum workpiece diameter: ∅610 mm Maximum workpiece height: 800 mm Spindle and Drive Spindle speed: 13,000 rpm (standard, gearbox for high torque) Spindle taper: BT 40 (or Big Plus) Spindle motor power: 15 / 22 kW (continuous / 30 min) Ncsdeyk Ad Sspfx Ab Ton Rapid traverse (X, Y, Z): 50 m/min (very fast for a box-way machine) Tool Magazine (ATC) Tool capacity: 50 positions (often expanded to 100 or 150) Max. tool diameter: 95 mm (with adjacent positions occupied) / 150 mm (with adjacent positions empty) Max. tool length: 360 mm Max. tool weight: 10 kg Tool change time (tool-to-tool): approx. 1.3 seconds Other Parameters CNC control: Fanuc 16i-M or 18i-M Machine weight: approx. 10,500 kg Footprint: approx. 2.5×4.5 meters (excluding chip conveyor)

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, Siemens Sinumerik 840D control system Two spindles Nodpfx Aoykumxeb Tjcn Number of controlled axes: 4 Maximum spindle speed: 17,500 rpm Spindle power: 18 kW X-axis travel: 400 mm Y-axis travel: 700 mm Z-axis travel: 400 mm Power consumption: 68 kVA

Condition: ready for operation (used), Year of construction: 2006, travel distance X-axis: 710 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, controller manufacturer: FANUC, controller model: Series 0i-MC, table width: 500 mm, table length: 500 mm, spindle speed (max.): 10,000 rpm, spindle motor power: 18,500 W, number of axes: 3, This Leadwell LCH-500 Horizontal Machine Center was built in the year 2006. It is equipped with a Fanuc Series 0i-MC control unit and has 3 axis. The machine has a spindle speed of 10000 rpm and is in good condition. Additional equipment • Chip conveyor Machine Benefits Qualitative Machine Benefits • Good condition Nsdpoyi Elvjfx Ab Tscn Technical Machine Benefits • Distance table-spindle nose 50-660 mm • Iso 40 spindle connection • Tool magazine 40 positions • Coolant pressure 20 bar

Condition: ready for operation (used), Year of construction: 2013, travel distance X-axis: 630 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 850 mm, controller manufacturer: SIEMENS, controller model: 840 D, table width: 500 mm, table length: 500 mm, spindle speed (max.): 18,000 rpm, spindle motor power: 20,000 W, number of slots in tool magazine: 303, number of axes: 4, This DMG DMC 60H Linear Horizontal Machining center was manufactured in the year 2013 and has 46048 production hours. It is equipped with a Siemens 840 D control unit and has 4 axis. The machine has a spindle speed of 18000 rpm. See original delivery note as PDF (German) attached to see all technical positions. Ncedpsyi Ekfefx Ab Ten Additional equipment • Scraper belt chip conveyor with coolant system 980 liter, paper belt filter, discharge height 950 mm, width 380 mm, IKZ 80 bar / 14 l/min through spindle center (AD), pressure infinitely programmable, selectable via NC program, Roof flushing of the working area 180 l/min via flushing nozzles with a ripple valve • Rotating viewing window / work area door • Flushing gun with pump • Double gripper • Wheel magazine • NC rotary table Ø 630 mm • 3D path control Machine Benefits Qualitative Machine Benefits • Mcis tdi tool management (module tdi machine) - overview , tool handling, planning • Extraction mechanical and electrical preparation for oil mist extraction • Tool breakage check mechanical design Technical Machine Benefits • Number of pallets: 12 // round pallet storage: rs 12 • Rotary pallet changer // work table with pallet support // permissible load: 600 kg // 2 pallets 500 x 500 mm with t-slots // pallet management // pallet changer cladding // claw flushing pallet • Cooling through the spindle center: 80 bar • Tool magazine: wheel magazine (5 wheels) with 303 magazine slots hsk a63 • Infrared measuring probe renishaw pp60 optical (omp60) hsk-a 63 • Mpc machine protection control (machine protection through rapid shutdown) • Laminated glass safety pane for right-hand cabin door window Extra Information Documentation and Electrical circuit diagram (German) available

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 610 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 610 mm, spindle speed (max.): 15,000 rpm, number of axes: 4, This 4s Kitamura Hx400ig horizontal machining centre was manufactured in 2018. It features impressive X, Y, and Z axis travels of 610 mm, a spindle speed range of 40 – 15,000 rpm, and rapid traverse speeds of 60 m/min. The machine is equipped with box ways for maximum rigidity and offers optional features such as a continuous 4th axis and automatic door opening. Consider the opportunity to buy this Kitamura Hx400ig horizontal machining centre. Contact us for further details. Ncedpfx Abjyh N Dwj Ten • Tool magazine capacity: 62 positions (optional) • High-pressure coolant pump 70 bar with through-spindle coolant (optional) • Tool change time: 1.3 s / 2.5 s minimum • Rapid traverse (X/Y/Z): 60 m/min (2,362 ipm) • B-axis rapid speed: 125 min⁻¹ (45,000 deg/min) • Machine equipped with box ways for maximum rigidity • Continuous 4th axis (B-axis) (optional) • Automatic door opening/closing for automation (optional) Additional equipment • External hydraulic clamping pump for automatic workpiece clamping (never used) (optional)

Condition: like new (used), Year of construction: 2013, operating hours: 46,048 h, travel distance X-axis: 630 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 850 mm, controller manufacturer: SIEMENS 840D, workpiece weight (max.): 600 kg, table height: 500 mm, table length: 500 mm, rotational speed (min.): 18,000 rpm, CNC controller: SIEMENS 840D solutionline Operate Axes X-axis travel mm: 630 Y-axis travel mm: 800 Z-axis travel mm: 850 Worktable Number of pallets: 12 Table dimensions mm: 500x500 Max. workpiece weight kg: 600 Spindle Spindle speed rpm: 18000 Tool system Tool holder: HSK-A63 Tool magazine slots: 303 Equipment Chip conveyor Rotating inspection windows Rinsing gun Blowing air through spindle center selectable via M-function High pressure pump Tool breakage probe Coolant gun MPC – Machine Protection Control Infrared probe CE Round pallet storage Cooling Cooling through the Spindle Center bar: 80 Tank capacity: 980 Machine running times Nodpfx Asyh Niaeb Tecn Under power: 46048 Spindle Working: 29258

Condition: ready for operation (used), Year of construction: 2011, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, table load: 500 kg, spindle speed (max.): 12,000 rpm, spindle motor power: 22,000 W, number of axes: 4, This 4s MORI SEIKI NHX 5000 was manufactured in 2011. It features a dual pallet system with a pallet size of 500 × 500 mm and a maximum pallet load of approximately 500 kg. The spindle speed reaches up to 12,000 rpm, with a tool magazine capacity of 40 tools. If you are looking to get high-quality machining capabilities, consider the MORI SEIKI NHX 5000 horizontal machining center we have for sale. Contact us for further details. Njdpfx Aoyh Hzyeb Tocn • Pallet system: Dual pallet; size 500 × 500 mm; max load ≈ 500 kg • Tool system: Magazine 40 tools (optional 60 / 120); tool-to-tool ≈ 0.9 s; chip-to-chip ≈ 2.8 s • B-axis: Continuous 360°; indexing resolution 0.001° • Rapid traverse (X/Y/Z): ≈ 60 m/min • Accuracy/Construction: High-precision linear guides; thermal displacement control system; glass scales (depending on configuration) Technical Specification Taper Size BT 40

Condition: excellent (used), Year of construction: 2014, operating hours: 67,011 h, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, For sale: HELLER H2000 Horizontal Machining Centre (2014) Nedpoyh Ea Iefx Ab Tecn 🔹 Manufacturer: HELLER 🔹 Type / Model: H2000 🔹 Serial Number: 53711 🔹 Year of Manufacture: 2014 🔹 Machine Type: Horizontal Machining Centre 🔹 CNC Control: Siemens 840D sl Operating Hours Connection time: 67,011 h Spindle operating hours: not available Basic Technical Data Table size: 500 × 400 mm X-axis travel: 630 mm Y-axis travel: 630 mm Z-axis travel: 630 mm Max. workpiece height: 850 mm Max. workpiece weight: 600 kg Rapid traverse (X/Y/Z): 65,000 mm/min Max. spindle speed: not available Equipment ✅ Rotary table – 2 × 500 × 400 mm ✅ Tool magazine – 54 stations ✅ Siemens 840D sl control Dimensions and Weight Machine dimensions (approx.): 6,300 × 2,750 × 3,400 mm Weight (approx.): 9,400 kg Power supply: 400 V Description The HELLER H2000 Horizontal Machining Centre, manufactured in 2014, is a robust and efficient machine designed for precise machining of medium and larger-sized components. The HELLER construction ensures high rigidity, accuracy, and reliability in both series and single-part production. This machine is ideally suited for manufacturing plants, toolshops, and companies in the automotive and industrial sectors.

Condition: used, Year of construction: 2006, Palet size 500 x 500 mm X/Y/Z - 710/610/600 mm Spindle speeds 12000 rpm Spindle taper ISO 40 Tool changer w/80 stations Control: Mazatrol 640 M Njdjyhzb Uopfx Ab Tecn Equipped with: 2 extra pallets 500 x 500 mm

Condition: used, Year of construction: 2007, Mori Seiki NH5000/40 DCG Twin Pallet Horizontal Machining Centre with Mori Seiki CNC Control, Table Size 500mm x 500mm (500kg), 60 Tool ATC, BT40 Spindle Taper, Travels X Axis 730mm, Y Axis 730mm, Z Axis 850mm, Max Work Piece Size 800mm Diameter x 1000mm High, Spindle Speed Max 14,000rpm, Hydra-Jet G10-1000 High Pressure, Coolant Filtration System, Filtermist Oil Mist Extractor, Machine Weight 12400kg. S/No. NH502GE0400 (2007). Country of Origin: Japan Ncsdpfx Aboyhdrxs Tsn Location: These lots are located in Dundee, Scotland, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described.

Condition: used, Year of construction: 2015, Mazak HCN-6000 Smooth Twin Pallet Horizontal Machining Centre with Mazak Touch Screen CNC Control, Pallet Size 600mm x 600mm, Travels X Axis 800mm, Y Axis 800mm, Z Axis 800mm, Spindle Speed Max 7000rpm, CAT 50 Spindle Taper, 43 Tool ATC, Filtermist FX5002 Oil Mist Filter, Machine Weight 13700kg. S/No. 269190 (2015). Country of Origin: Japan Location: These lots are located in Dundee, Scotland, UK. Unfortunately there are no loading facilities on-site, dismantling and loading will be at the cost of the Purchaser. All/Any tooling is being offered as specifically described. Ncsdpfx Asyhdqzjb Tjn

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 700 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 800 mm, controller manufacturer: FANUC, controller model: 16i, spindle speed (max.): 20,000 rpm, number of axes: 4, This 4-axis MCM CLOCK 800 MP4 was manufactured in 2000. It features a Fanuc 16 I control, X-axis travel of 700 mm, Y-axis travel of 700 mm, Z-axis travel of 800 mm, and a B-axis rotation of 366°. Equipped with a high-speed spindle at 20,000 rpm and a high-pressure system at 65 Bar. It includes a chip evacuator and a tool magazine with 72 positions. Contact us for more information about this machine. Ncodpfxeyguqvo Ab Tjn • B-axis rotation: 366° (to be confirmed; source listed 3,660,000) • Number of pallets: 4 • High pressure: 65 bar • Table size: 630 x 630 mm • Tool magazine: 72 positions Additional equipment • Chip evacuator Technical Specification Taper Size HSK 63

Condition: used, Year of construction: 2016, operating hours: 60,546 h, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, nominal power (apparent): 40 kVA, torque: 96 Nm, controller manufacturer: Siemens, controller model: 840D SL, workpiece width (max.): 850 mm, workpiece height (max.): 850 mm, workpiece diameter (max.): 720 mm, workpiece weight (max.): 800 kg, total height: 3,400 mm, total length: 6,300 mm, total width: 2,750 mm, table width: 500 mm, table length: 400 mm, rotational speed (max.): 16,000 rpm, overall weight: 10,000 kg, Machine make / model: HELLER H2000 Operating hours: 60,546 Year of manufacture: 2016 Control: Siemens 840D SL Spindle: SC63, 16,000 rpm, 40 kW, 96 Nm Tool clamping system: HSK63 Magazine / positions: Chain magazine / 240 positions Comfort operator terminal, main-time parallel setup Rotary table: 360,000° x 0.001° Coolant system: Knoll KF 400/50 bar Working area XYZ (mm): 630 / 630 / 630 Pallet size (mm): 500 x 400 Workpiece clamping: Mechanical Additional options / special features: Drill breakage monitoring (SBBK); FMS interface, infrared receiver touch probe (Renishaw), extraction interface; Coolant chiller Nedoyglrqopfx Ab Tscn

Condition: used, Year of construction: 2016, operating hours: 59,654 h, functionality: fully functional, travel distance X-axis: 630 mm, travel distance Y-axis: 630 mm, travel distance Z-axis: 630 mm, nominal power (apparent): 38 kVA, torque: 242 Nm, controller manufacturer: Siemens, controller model: 840D SL, workpiece width (max.): 850 mm, workpiece height (max.): 850 mm, workpiece diameter (max.): 720 mm, workpiece weight (max.): 800 kg, total height: 3,400 mm, total length: 6,300 mm, total width: 2,750 mm, table width: 500 mm, table length: 400 mm, rotational speed (max.): 10,000 rpm, overall weight: 10,000 kg, Operating hours: 59,654 Year of manufacture: 2016 Control: Siemens 840D SL Spindle: PC63 10,000 rpm, 38kW, 242 Nm Tool clamping system: SK40 Magazine / stations: Chain magazine / 160 stations Comfort operator terminal, main-time parallel setup Rotary table: 360.000° X 0.001° Coolant system: Knoll KF 400/50 bar Working area XYZ (mm): 630 / 630 / 630 Pallet size (mm): 500 x 400 Workpiece clamping: Mechanical Ncsdpfx Aoygln Seb Tjn Additional options, features: Drill breakage control (SBBK); FMS interface, infrared receiver touch probe (Renishaw), extraction interface, coolant chiller
