Condition: used, Morbidelli line boring machine, price Ex Works. Lodpexp Hxcefx Agzjru

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, workpiece weight (max.): 54 kg, total width: 950 mm, total length: 900 mm, total height: 1,700 mm, UNIHOLZ Star Hinge Drilling Machine Specification: • Condition – used, inspected • Manufacturer – UNIHOLZ • Model – Star • Total power – 0.75 kW • Power supply – 380V (3-phase) • Worktable size: 80 x 55 cm, extendable to 160 cm • Drilling head for furniture hinges (3 mounts) • Pneumatic head movement and workpiece hold-down • Year of manufacture – 2004 • Weight – 54 kg • Manufacturer's documentation included • Machine overall dimensions – 95 x 90 x 170 cm (W x L x H) Additional information: • The machine is in excellent technical condition, ready for immediate use • The attached photos show the actual condition of the item for sale Lrodpfx Agoxphyzezeu • The device can be started and tested on site

Condition: excellent (used), DETEL M9 Pneumatic Drilling Machine Pneumatic feed of the unit Adjustable drilling depth Pneumatic material clamping Capable of vertical and horizontal operation Head with 9 spindles Spindle pitch: 32 mm Spindle motor: 1.1 kW Lodexnzxbepfx Agzjru

Condition: good (used), Year of construction: 1992, functionality: fully functional, double-row line boring machine GANNER with 21 spindles each Lredpfx Ajxlt T Sogzeu

Condition: good (used), functionality: fully functional, Row drilling machine SCHEER, 21 spindles, non-swiveling Lsdpfx Agsxlt R Rozeru

Condition: used, Year of construction: 1984, Row and fitting boring machine, used machine, year of manufacture: 1984, condition: function-tested. Technical data: fully automatic pneumatic control with foot valve, boring unit 1.1 kW, speed 2800 rpm, boring stroke 0 – 55 mm, cross adjustable stop ruler 0 – 140 mm, working height 850 mm, required space without extension rail 1000 x 750 mm, compressed air connection 6 bar, weight approx. 70 kg. Includes various stops, boring heads, and drill bits. Location: Röllbach. Availability: Immediately. Ljdpfx Agsxdpkdjzeru

Condition: used, Year of construction: 1987, Scheer DB5 Line Boring Machine – used, year of manufacture 1987 For sale is a Scheer DB5 line boring machine. The machine is pre-owned but in working condition and ready for immediate use. Technical data: • Year of manufacture: 1987 • Power supply: 380 V • Power: 2.2 kW • 21 spindles, 32 mm pitch • Stop ruler included • Various dowel drills included • Portal clearance: 1056 mm Condition: • Used, age-related with normal signs of wear • Machine is running and can be inspected and tested on site by appointment Lrjdpfx Agsxc Twlezou • Note: A few pneumatic hoses should be replaced (currently slight hissing noise). Additionally, a fuse needs to be replaced as it trips when switched on (currently bypassed as a temporary fix).

Condition: used, Used machine Used row drilling machine of the company Ganner type RB 107 serial no.: 121627 Motor power: 1,5 kW Motor speed: 2800 rpm 1 drill beam with 26 spindles, center distance 32 mm 3 hold-down devices 1 foot switch Availability: short term Lredpfx Aow I Unwsgzou Location: Röllbach

Condition: used, Used machine Drilling unit with 21 spindles Drilling distance 32 mm, max. 640 mm, by moving the workpieces max. 2656 mm with oil brake cylinder Lredpjw I Um Hefx Agzju Stroke max. 130 mm Motor 2.5 HP Machine dimensions approx. 1450 x 1100 x 1600 mm Weight approx. 240 kg Availability: approx. 2 weeks after receipt of order Location: Hochheim Hochheim

Condition: excellent (used), Year of construction: 1993, Catalogue number 7718 TECHNICAL DATA - Number of spindles: 23 pcs - Head prepared for threaded (screw-on) drill bits - Distance between outermost spindles: 704mm - Distance between spindles: 32mm - Pneumatic clamps: 2 pcs - Table surface dimensions: 1200x850mm - Height to table surface: 930mm - Feed cylinder stroke: 70mm - Max drilling diameter: 12mm - Drilling adjustment: vertical/horizontal and at an angle - Drilling unit adjustment: pneumatic - Main motor power: 2×0.75kW - Dimensions (LxWxH): 1270x1330x1350mm - Weight: approx. 700kg ADVANTAGES – Made in Poland – 23 spindles – Head ready for threaded (screw-on) drill bits – Unpainted – DTR technical documentation – Used drilling machine, very good condition Lrsdpjw I R Tiofx Agzou Net price: 8,900 PLN Net price: 2,094 EUR (based on 4.25 PLN/EUR exchange rate) (Prices may vary according to exchange rate fluctuations)

Condition: like new (used), Year of construction: 1978, operating hours: 160 h, functionality: fully functional, machine/vehicle number: 705514, workpiece weight (max.): 50 kg, drill spindle length: 700 mm, feed length X-axis: 3,000 mm, feed length Y-axis: 730 mm, AYEN Vertical Drilling Machine - 21 drill bits - 32 mm spacing - Drilling head length: 70 cm - 3 quick drilling distance adjustments - Drilling depth range up to 70 cm (adjustable front/rear) Ljdjw Hm S Hepfx Agzoru - 2.2 kW motor - Pneumatic connection: 6 bar - Head activation via foot pedal - Automatic material clamping - Very precise and fast operation - Stable construction, weight: 480 kg - Perfect condition Net price, VAT invoice issued.

Condition: new, Year of construction: 2025, functionality: fully functional, CORMAK BH40M Hinge Drilling Machine – Precise Machining of Furniture Fittings The CORMAK BH40M hinge drilling machine is a compact, efficient, and easy-to-use horizontal wood drilling machine designed for precise drilling of holes for furniture hinges. Ideal for carpentry and furniture manufacturing, the machine offers consistent drilling and stable tool guidance. Thanks to its intuitive design and robust components, the BH40M ensures high-quality work while maintaining ease of operation. Main Advantages of the Machine Without a Compressed Air System: Precise drilling for furniture hinges – an adjustable depth stop allows for drilling with full parameter control, minimizing the risk of material damage. Compact and stable construction – a rigid base with a large work table (790 x 390 mm) ensures comfort and safety. Compressed air-free – the lack of a pneumatic system translates into reliability and low operating and maintenance costs. A 0.75 kW motor – the head drive provides sufficient torque for working with Blum hinges and other hardware systems. Three working spindles – allow for simultaneous drilling of holes for the main hinge and side guides. Design and Technology The CORMAK BH40M model is designed with ease of use and durability in mind. A mechanical working head travel of 110 mm and manual control ensure full control over the work cycle. The 10 mm tool shank diameter allows for the use of standard hardware drills. Compact overall dimensions (800 x 630 x 780 mm) and a weight of 45 kg make this furniture hardware drill ideal for field assembly work. Precision and Efficiency Thanks to the optimally selected spindle speed (2800 rpm) and the ability to manually adjust settings, the operator can quickly and accurately drill holes for any standard hinge type. Adjustable drilling depth (up to 20 mm) allows for easy adaptation to various front thicknesses and hinge types. Stable workpiece clamping and parameter control minimize assembly errors and increase the efficiency of the entire process. Lsdpow Hbwqefx Agzsru The CORMAK BH40M hinge drilling machine is suitable for: kitchen, bathroom, and office furniture production, carpentry workshops and maintenance departments, service companies specializing in hardware installation, woodworking schools and training centers. Standard Equipment Three-spindle drilling head for hinges, mechanical guide travel (110 mm), adjustable depth stop, work table 790 x 390 mm, 0.75 kW (230 V) motor, manual control and workpiece clamping. Optional Equipment drill bits for Blum hinges and other systems, positioning templates for various types of fittings, sets of mounting plates and side stops. Technical Data Table Dimensions 790 x 390 mm Guide Travel 110 mm Space Between Spindle and Table 155 mm Tool Shank Diameter 10 mm Number of Spindles 3 Max. Drilling depth: 20 mm Speed: 2800 rpm Workpiece clamping: manual Manual control Motor: 0.75 kW Power supply: 230 V Overall dimensions: 800 x 630 x 780 mm Weight: 45 kg

Condition: used, Year of construction: 2016, General technical data: Panel width min. 250 mm, max. 3000 mm Panel depth min. 100 mm, max. 900 mm Panel thickness min. 12 mm, max. 60 mm Max. weight per panel 50 kg Work surface height 1060 mm Linear speed of panel conveyor with inverter 20 - 95 m/min For panels weighing more than 50 kg, the speed must not exceed 50 m/min Line production capacity up to 25 pieces/minute MORBIDELLI POWERFLEX flexible drilling machine - 5 split lower vertical drilling heads automatic flexible drilling heads with NC control - with 26 independent spindles for each drilling head - 5 split lower vertical drilling heads 3 automatic, flexible, split upper vertical drilling heads with NC control - with 26 independent spindles per drilling head - 2 horizontal drilling heads with split heads and 28 + 28 spindles (per side), each independent (arranged on two levels) code MMA004.03 TECHNICAL DETAILS TO BE VERIFIED Lrsdpew Dbbqsfx Agzou

Condition: used, Year of construction: 2016, General technical data: Panel width min. 250 mm, max. 3000 mm Panel depth min. 100 mm, max. 900 mm Panel thickness min. 12 mm, max. 60 mm Max. weight per panel 50 kg Work surface height 1060 mm Linear speed of panel conveyor with inverter 20 - 95 m/min For panels weighing more than 50 kg, the speed must not exceed 50 m/min Line production capacity up to 25 pieces/minute MORBIDELLI POWERFLEX flexible drilling machine - 5 split lower vertical drilling heads automatic flexible drilling heads with NC control - with 26 independent spindles for each drilling head - 5 split lower vertical drilling heads 3 automatic, flexible, split upper vertical drilling heads with NC control - with 26 independent spindles per drilling head - 2 horizontal drilling heads with split heads and 28 + 28 spindles (per side), each independent (arranged on two levels) code MMA004.03 TECHNICAL DETAILS TO BE VERIFIED Ledpfx Agsw Dba Hozjru

Condition: excellent (used), pneumatic clamps automatic material feeding unit angle regulation Lsdpfxow Ady Ho Agzjru pneumatic movement of spindles regulation of oscillation range

Condition: good (used), heads set: right/left/top/top spindles span 32mm motors 1,1kW heads with 5 spindles max heads span 2,5m pneumatic clamps regulation of drilling speed Lodpsw Adyyofx Agzsru

Condition: used, functionality: fully functional, Scheer DB 22 double-sided line boring machine, 2 drilling motors of 1.8 kW each, 32 mm pitch, 21 spindles per beam, good condition, dimensions 3100 x 1100 x 1800 mm, portal passage 850 mm, weight 345 kg Lsdpsw Adrcsfx Agzeru

Condition: used, Year of construction: 1985, Scheer DB5 row drilling machine Year of manufacture: 1985 - 380 Volt Lrsdpfx Ajwv Uy Djgzou - 21 spindles; 32 mm spacing - stop ruler - various dowel drills - portal opening 1056 mm - 2.2 kW

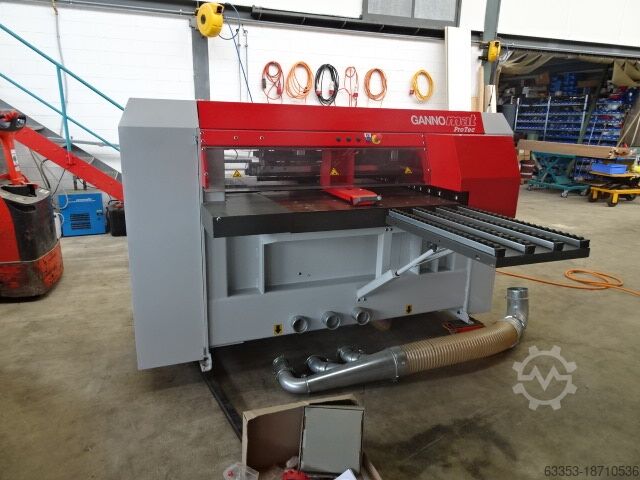

Condition: used, GANNOMAT Compact 30 hole drilling machine - used - pneumatic clamps, foot control, 2 drilling beams with 15 spindles each Ledpfswmmt Rsx Agzjru ----- Technical specifications ----- Number of spindles: 30, Drill spindle spacing: 32 mm, Motor power: 2 x 0.75 kW, Voltage: 400 volts, Pneumatic connection: 6 bar, Dimensions without stop ruler: 850 x 1,100 mm, Weight: 240

Condition: used, Used Machine Double-Sided In-Line Drilling Machine Lsdpfx Aowlwpgjgzjru 2 1.8 kW Drill Motors with Oil Brake Cylinder Max. Stroke 130 mm With Pneumatic Reversing Valve 21 Spindles, Spindle Pitch 32 mm Max. Drilling Distance 640 mm (max. 2656 mm by moving the workpiece) Gantry Clearance 850 mm Air Consumption at 5 atm: Approx. 11 l per cycle Extraction Port 160 mm Machine Dimensions Approx. 3100 x 1100 x 1800 mm Weight: Approx. 350 kg Availability: Short-term Storage Location: Röllbach

Condition: used, Used machine Used Ganner Compact 30 line boring machine Equipment and technical data: 2 drilling beams with 15 spindles each Pitch 32 mm Position adjustment drilling unit 0 - 650 mm Distance between the rows of drill holes at least 190 mm Spindle speed 2800 rpm Motor power 2 x 0.75 kW Clamping height of the workpieces max. 70 mm Working height 850 mm Compressed air connection 6 bar Ledpfx Agjwhuh Sszoru Availability: by arrangement Location: Solingen

Condition: used, Complete high productivity flexible drilling line with automatic loading and unloading system General technical data: Panel width min 250 mm, max 3000 mm Panel depth min 100 mm, max 900 mm Panel thickness min 12 mm, max 60 mm Max weight per panel 50 kg Worktop height mm 1060 Linear speed of panel conveyor with inverter m/min 20 -95 With panels weighing more than 50 kg the speed must not exceed 50 m/min Production capacity of the line up to 25 pieces \ minute Technical data of numerical control and line management: Numerical Control TPA - Albatros - CNC 2000 EASYTOOL software for creating and modifying machine equipment. It allows you to define within a single file the arrangement of the tools mounted on each drilling machine. The files created by Easytool will be reworked from the machine plant optimizer in order to divide the workloads along the production line. Line composed of the following machines: * MAHROS brand double cell automatic loader, BRUSH model - with motorized pre-loading rollers * MARHOS brand panel turner * MORBIDELLI brand flexible drilling machine, POWERFLEX model - no. 5 split lower vertical drilling heads automatic flexible with NC control - with 26 independent spindles each drilling head - n. 3 drilling heads automatic flexible split upper vertical drilling with NC control - with 26 independent spindles each drilling head - n 2 horizontal drilling heads with split heads and 28 + 28 spindles (for each side) each independent (arranged on two levels) * MORBIDELLI brand flexible drilling machine, POWERFLEX model - no. 5 split lower vertical drilling heads automatic flexible with NC control - with 26 independent spindles each drilling head - n. 3 drilling heads automatic flexible split upper vertical drilling with NC control - with 26 independent spindles each drilling head - n 2 horizontal drilling heads with split heads and 28 + 28 spindles (for each side) each independent (arranged on two levels) * Automatic thorning machine brand MORBIDELLI * MARHOS brand panel turner * MAHROS brand double cell automatic unloader, model BRUSH - with motorised unloading rollers and system for the management of martyr panels Lrsdpsv N Hifjfx Agzsu

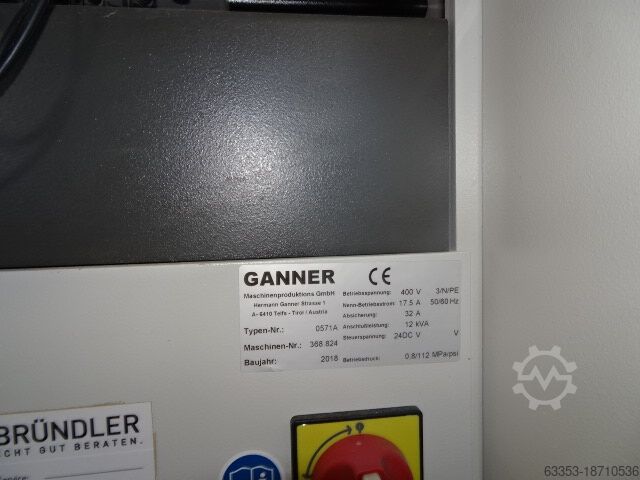

Condition: excellent (used), Year of construction: 2018, Machine No. 368,824 Type: 0571A Year of construction: 2018 Current: 3/400V/50/60Hz/12 Kw/32Amp Control voltage: 24DC V Lrodjv Naakjpfx Agzeu

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 2700x2500x1760 mm Weight 1500 kg Total power requirement 4,5 kw Lsdpfx Asvz E Dxogzsru

Condition: new, Year of construction: 2025, Dimensions (L/W/H) 3900x2500x1760 mm Lredpfovz E Dfex Agzsu Weight 1800 kg Total power requirement 6 kw
