Used Deber Milling Machine for sale (83,440)

Condition: excellent (used), functionality: fully functional, feed length X-axis: 4,000 mm, feed length Y-axis: 1,000 mm, feed length Z-axis: 1,500 mm, feed rate X-axis: 15,000 m/min, feed rate Y-axis: 15,000 m/min, feed rate Z-axis: 15,000 m/min, spindle speed (max.): 3,000 rpm, table length: 4,000 mm, table width: 1,000 mm, CNC ECS 2301 (with the possibility of retrofitting) SPINDLE ISO 50 DIN 2080 taper AC motor: 28 kW (S1/100%) Constant torque from 0 to 250 rpm Constant power from 250 to 3.000 rpm Two automatic ranges Iijdpfxjw Axmnj Ad Dei TABLE (X-axis) Length 4.000 mm Width 1.000 mm Travel 4.000 mm Number of T-slots: 7 Width of slots: 18 mm Working feed rate 0 – 8.000 mm/1' Rapid feed rate 15.000 mm/1' HEAD (Y-axis RAM) Y-axis travel 1.000 mm Working feed rate 0 – 8.000 mm/1' Rapid feed rate 15.000 mm/1' VERTICAL CARRIAGE (Z-axis) Z-axis travel 1.500 mm Working feed rate 0 – 8.000 mm/1' Rapid feed rate 15.000 mm/1' COLUMN (W-axis) W-axis travel mm 1.300 Working feed mm/1' 0 – 8.000 Rapid feed mm/1' - 15.000 ACCESSORIES: 40-position tool magazine

Year of construction: 1974, condition: good (used), machine/vehicle number: 630, with (away-)swivelling vertical head table size 300 x 1.430 mm table travel: longitudinal (X-axis) 1.000 mm vertical (Z-axis) 520 mm crosswise (Y-axis) 360 mm Iijdpfx Adsbq Ruge Dji Installation height under milling spindle approx. 500 mm overhang of the milling spindle min./max. 350 mm Spindle mounting SK 40 spindle speed 25 - 1.200 rpm feed/rapid feed 12-900 mm/min spindle drive approx. 3 kW total drive 3,4 kW - 380 V - 50 Hz Weight 2.400 kg

Condition: excellent (used), Year of construction: 2017, XYZ 2000 Turret Milling Machine (2017) (Ex College) 3 Axis Newhall DRO (X, Y & Knee) Spindle Taper R8 Spindle speeds to 500 – 4200 rev/min Table Size 1270 x 254mm Table Travel: X - 812mm Y - 406mm Knee Travel: Z - 406mm Iiedpfx Adsxxb Rre Dsi Quill Travel Z - 127mm For sale with Jet Machinery Ltd Jet Machinery Stock No: #79003 Machine Serial Number: 12907 Cost: £9,950.00 + VAT Whilst every effort has been made to ensure that the above information is accurate it is not guaranteed. We advise prospective purchasers to check any vital details. Health and Safety At Work Act 1974: It is not reasonably practical for ourselves as suppliers to ensure that for your application the goods comply with requirements of the Act with respect to guarding etc. Prospective purchasers should ensure that a guarding specialist inspect the goods prior to use.

Condition: good (used), Year of construction: 2018, Table 1473 x 305mm, Traverses XYZ: 1000 x 410mm x 400mm (knee), quill travel 127mm, Spindle Taper ISO40, Iisdexftqdopfx Ad Dji Power Drawbar, Spindle Motor 5HP, Spindle Speeds 70 - 3600rpm, Prototrak SMX CNC Control,

Condition: new, functionality: fully functional, machine/vehicle number: RM310119, feed length X-axis: 787 mm, feed length Y-axis: 508 mm, feed length Z-axis: 584 mm, quill diameter: 105 mm, table width: 355 mm, table length: 1,372 mm, type of input current: three-phase, rotational speed (max.): 5,000 rpm, rotational speed (min.): 40 rpm, table load: 600 kg, overall weight: 2,390 kg, input voltage: 400 V, workpiece weight (max.): 600 kg, warranty duration: 12 months, input current: 22 A, input frequency: 50 Hz, Built-in programming cycles: Position: Spindle positioning Drilling: Simple holes, holes on a circle Milled holes: Holes made by milling cutter – straight and circular Arcs: Arcs in XY, XZ, and YZ plane Pockets: Rectangular, circular, irregular Iedpfx Aswtnxnjd Dsii Island: Milling rectangular, circular, and irregular islands Profile: Rectangular, circular, irregular Helix: Spiral ramping Milling: Straight lines along X, Y, or Z axis or any combination Engraving: Text engraving Thread cutting: Thread cutting with tap Thread milling: Thread milling with form cutters Copying: Copying a series of cycles Mirror: Mirror image Rotation: Rotation around an axis Repetition: Repetition of a series of cycles G-code editor Clipboard

Condition: ready for operation (used), Fanuc 6-assige robotfreescentrum voor aluminium en staal X-beweging van de robot: 10 500 mm Uitgebreid armbereik van de robot (links en rechts): 3045 mm maximale werkstuklengte als het een profiel is: 15 meter max. werkstukgrootte zonder verlengde armbereik: 10 500 x 3045 mm max. werkstukhoogte: 3500 mm Gereedschapswisselaar met 13 posities: - 12 aangedreven gereedschappen - 1 meetsonde Freeskop: -SK40 Iedpfx Asv Sfk Hed Dsii - 12 kW op spindel / 16 000 tpm - automatische smering Er zijn veel configuraties mogelijk, afhankelijk van het type werkstuk. Momenteel zijn er twee aparte werkgebieden, maar u kunt dit aanpassen naar één werkgebied (voor een groot werkstuk) of opsplitsen in meerdere aparte werkgebieden voor kleinere werkstukken.

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 3,400 mm, travel distance Z-axis: 1,000 mm, distance between stands: 2,000 mm, controller model: Siemens 840D SL, TECHNICAL DETAILS Axes: 5 controlled X travel: 4,000 mm Y travel: 3,400 mm Column clearance: 2,000 mm Z travel: 1,000 mm Control: Siemens 840D SL Spindle power: 37 kW Ijdpfx Aextb Sxjd Djii Speed range: 12–2,800 rpm Distance spindle to clamping surface: 280–1,280 mm Taper: ISO SK-50 Table size (longitudinal): 3,000 mm Table size (cross): 1,500 mm C-axis swivel range: 0–360° (in 1° increments) Swivel range: 90°–0°–90° (in 1° increments) MACHINE DETAILS Total power requirement: 70 kVA Machine weight: approx. 82 t Footprint: approx. 10,200 mm x 7,200 mm x 5,925 mm EQUIPMENT Automatic tool changer for 60 tools 1 universal milling head, 1,750 Nm

Condition: ready for operation (used), Year of construction: 2015, operating hours: 7,100 h, functionality: fully functional, travel distance X-axis: 1,270 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 635 mm, spindle speed (max.): 12,000 rpm, table load: 794 kg, TECHNICAL DETAILS Travel X: 1,270 mm Travel Y: 508 mm Travel Z: 635 mm Rapid traverse speed X/Y/Z: 35.6 m/min Distance spindle nose to table max.: 742 mm Distance spindle nose to table min.: 107 mm Max. spindle speed: 12,000 rpm Spindle drive power: 22.4 kW Table dimensions: 1,321 x 495 mm Max. table load: 794 kg Tool changer positions: 24+1 Max. tool weight: 5.4 kg Tool change time: 1.8 s MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): approx. 3,000 x 2,500 x 2,600 mm Weight: approx. 6,800 kg Cycle start time: approx. 10,100 h Feed time: approx. 7,100 h EQUIPMENT Ijdpfxextbtio Ad Dsii Haas control with synchronous tapping Wireless probing system Coolant system with programmable coolant nozzle Spiral chip conveyor

Condition: used, Year of construction: 1988, x-travel 870 mm y-travel 370 mm z-travel 400 mm table-size 310 x 1370 mm distance vertical spindle / table 50 - 450 mm feed - longitudinal/cross 20 - 800 mm/min 9 - 355 mm/min rapid traverse longitudinal and cross 3000 / 1375 mm/min spindle taper SK 50 spindle turning speed range 40 - 1750 U/min spindle speed: 12 Stück total power requirement 5,5 kW weight of the machine ca. 2,4 t dimensions of the machine ca. 1,9 x 2,0 x 1,5 m - Powerful CNC universal milling machine Ijdpfx Aoxlkw Uod Deii - Includes Fanuc control system - Kneading milling head - Automatic feeds on X/Z/Y axes - Central lubrication system - Coolant system - Pivoting machine light - Splash guard tray - Separate transformer

Condition: used, Year of construction: 1971, hobbing length 1750 mm milling width 260 mm max. module 10 table size incl. water gutter 460 x 2100 mm table clamping surface: 250 x 1850 mm cutter width - max. 100 mm feed of the milling slide, stepless 0 - 500 mm/min. rapid traverse feeds 3000 mm/min milling head -swivable +/- 30 ° Rotation speed range of milling head, in 9 steps 29 - 178 rpm Milling head swivable 2 sides helical gearcutting 30 ° total power requirement 4 kW weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,85 x 1,85 m Milling length 1750 mm Iodpowhquujfx Ad Dsii Milling width 260 mm Module - max. 10 Table dimensions incl. water channel 460 x 2100 mm Table clamping surface: 250 x 1850 mm Milling cutter width - max. 100 mm Feed of the milling carriage, infinitely variable 0 - 500 mm/min. Rapid traverse 3000 mm/min Milling head - tiltable + / - 30 ° Speed range of the milling spindle, in 9 steps 29 - 178 rpm Bcfed2Md7M Milling head swivels on both sides for helical gearing 30 ° Machine weight approx. 4 t Space requirement approx. 4 x 1.85 x 1.85 m Equipment/accessories - 7 vices - change wheels - Clamping devices - documentation

Condition: used, Year of construction: 2013, operating hours: 3,064 h, Field of application: Construction Applicable material: Asphalt Serial number: 10188210xxxx Please contact ATS Norway for more information Please provide reference number upon request: 20327 Specifications: - 2013 model - 3064 hours - Deutz engine - Hydraulic lift and lower - Milling width of 60 cm - Lower and raise function on the roof - Ready for delivery Description: We have a 2013 Bomag BM600/15 Asphalt milling machine for sale. Everything works as it should according to the owner. Services have been carried out at our own workshop. The milling width is 60 cm. Errors and defects may occur. Ready for delivery Isdpfx Ajwi Rc Usd Deii Hours: 3064 Own weight: 6800 Model: BM600/15

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 150 mm, travel distance Z-axis: 340 mm, spindle speed (max.): 2,000 rpm, table length: 600 mm, table width: 200 mm, rotational speed (max.): 2,000 rpm, overall weight: 650 kg, input voltage: 400 V, Manufacturer: Deckel Model: FP-1 Condition: Used Stock number: 00213 Table size (LxW): 600x200 mm X-axis travel: 300 mm Y-axis travel: 150 mm Z-axis travel: 340 mm Max. spindle speed: 2000 rpm Iodpsxw Ua Dsfx Ad Deii Spindle taper: ISO40 Automatic feed: X-Z Machine dimensions (LxWxH): 1100x1100x1600 mm Weight: 650 kg

Condition: used, Year of construction: 1978, x-travel 820/850 mm y-travel 300/330 mm Ijdpfx Ajxxb Htjd Dsii z-travel 485/505 mm weight of the machine ca. 1,8 t dimensions of the machine ca. 1670 x 1620 x 2500 m Further techniscal detals please consider pictures

Year of construction: 2011, condition: like new (used), Retrofitted: 2026 Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 12500 x 2250 mmNumber of T slots: 9T slots dimensions: 22 mm Traverses of axis X axis traverse: 11500 mmY axis traverse: 1500 mmZ axis traverse: 2000 mmVertical capacity (VC): 150 / 2150 mm (adjustable) Milling head Head type: Universal Auto-indexing UDG (2.5º)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 3000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y-Z): 30000 mm/min Weight and dimensions Maximum weight on table: 15 T/m2Machine weight approx.: 62000 kgMachine dimensions approx.: 18494 x 8412 x 5290 mm Accesories Guarding: front doors and new edge wire safety mesh fenceAutomatic tool changer: ATC40Chip conveyor: 1 longitudinal rear hinge typeExternal coolant high-pressure coolant through spindleElectronic handwheel: HR-410 Sales conditions Warranty: 6 months mechanical partsSale conditions: On request View all technical features Iedpfx Adjxwzxtj Dsii

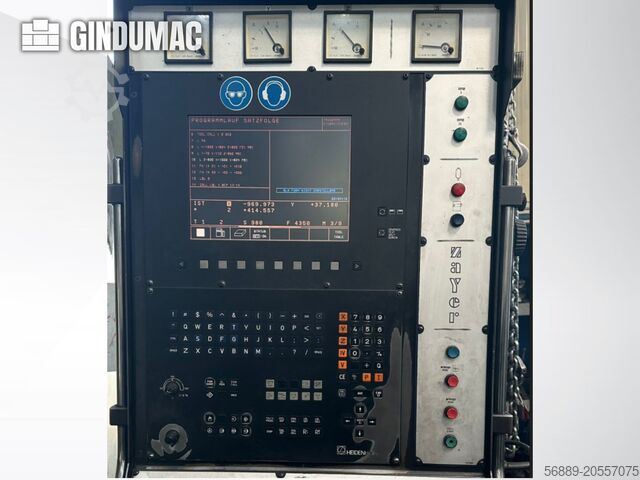

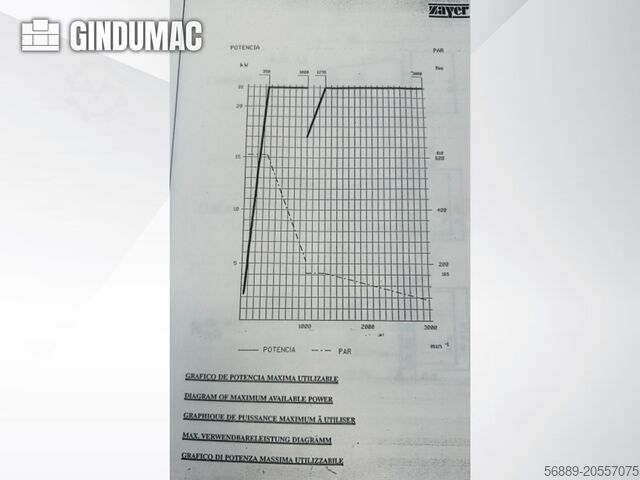

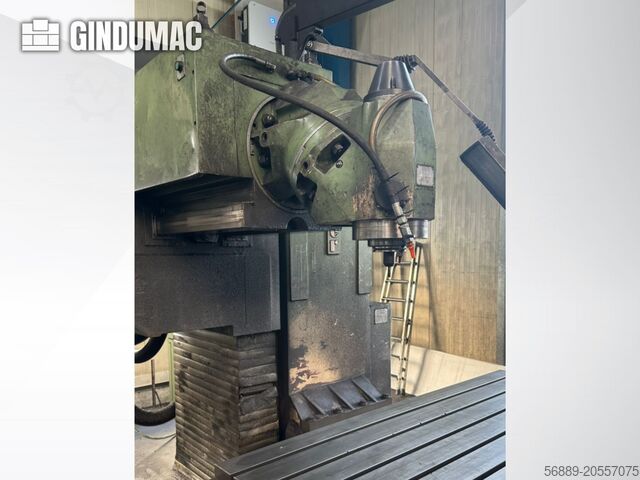

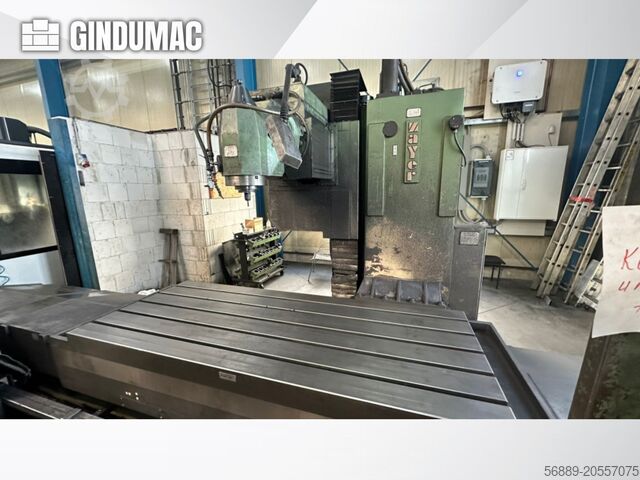

Year of construction: 1994, condition: ready for operation (used), General Data Machine weight 12000 kg Control Unit Brand HEIDENHAIN Model TNC415 This 3-axis Zayer ZF 2000 gantry milling machine was manufactured in 1994. It features a robust table clamping surface of 2000 × 800 mm, with longitudinal, transverse, and vertical travels of 1703 mm, 803 mm, and 863 mm respectively. It supports a maximum table load of 6000 kg and offers rapid traverse rates up to 15,000 mm/min. If you are looking to get high-quality milling capabilities, consider the Zayer ZF 2000 machine we have for sale. Contact us for more information. Application Types Iisdpfjxxnkxjx Ad Dei Milling

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 25,000 m/min, rapid traverse Y-axis: 25,000 m/min, year of last overhaul: 2025, RepairFIT by Dornhöfer The Difference. Including installation and commissioning! Technical details of the machine: Year of manufacture: 2008 Control: Heidenhain iTNC 530 Travel range: X-axis (mm) 2,500 Y-axis (mm) 1,250 Z-axis (mm) 1,000 Rotary table size: Length (mm) 1,000 Width (mm) 1,000 Spindle speed range: 15,000 rpm Feed rates: X, Y & Z axes (mm/min): 10 - 10,000 Max. rapid traverse speed X, Y & Z axes (mm/min): 25,000 Milling head: Automatic milling head, vertical Tool holder: HSK 63 A Main spindle drive power: 100% duty cycle KW25 - Chip conveyor - Cooling lubricant system - 3D thermal expansion compensation - Portable electronic handwheel Heidenhain HR 410 with 3m spiral cable - INA RUE 45 linear guideway system on all linear axes with central lubrication - Complete splash guard enclosure RepairFIT is our proven offering for a profitable entry into our product lines. Iodpsv Rw Uujfx Ad Djii The machines available in this line are procured by us following a rigorous selection process and subjected to a thorough inspection (deep dive check). After intensive cleaning, any obvious defects and faults identified are professionally repaired by our expert service team.

Condition: used, Year of construction: 1999, x-travel 600 mm y-travel 525 mm z-travel 500 mm table surface area 1000 x 543 mm spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - 12.000 U/min feed X/Y/Z-axis 20 - 10.000 mm/min rapid traverse X/Y/Z axis 18 / 18 / 15 m/min Iodotqqmhjpfx Ad Djii table load max. 350 kg control HEIDENHAIN MillPlus milling-head swivable +/- 90 ° total power requirement 26 kVA weight of the machine ca. 4,2 t dimensions of machine L x W x H 2,95 x 2,1 x 2,26 m Accessories: various tool fixtures, coolant

Condition: ready for operation (used), Year of construction: 1985, functionality: fully functional, Hermle UWF 600 H Milling Machine | SK40 | 3-Axis Automatic | Precision Machine Hermle UWF 600 H Year of manufacture: 1985 CNC Control: SIEMENS 810 — Work Area (Travel and Distances) • Vertical distance spindle head to worktable, upright: 180 / 530 mm • Vertical distance spindle head to column plate, upright: 49 / 370 mm • Distance spindle head to spindle saddle front: 36 mm • Distance table center to lower edge of tailstock: 74 mm • Vertical distance spindle head to counter bearing: 190 / 265 mm • Distance cutter to conversion and tailstock: 160 mm • Distance table center to spindle saddle front: 155 mm • Distance vertical spindle head to center of milling table: 165 mm • Vertical distance vertical spindle head to clamping surface table: 114 / 464 mm • Swivel range of spindle head bearing: ± 90° • Quill stroke: 85 mm – extendable — Axis Movements • Longitudinal travel: 400 mm • Cross travel of spindle saddle: 330 mm • Vertical travel: 400 mm • Axis movements: automatic — Spindle & Taper • Milling spindle in front bearing: 50 mm • Clamping system: SK40 DIN 69871, compatible with DIN 69872 Also usable with drawbar ANSI B5.50 (ISO 7388/28) — Table & Clamping Elements • Vertical clamping table: 410 × 265 mm • Clamping surface of angle table: 630 × 330 mm • T-slots: 5 pcs, width 14H7 mm • Distance vertical clamping table to T-slot bottom: 47 mm Ijdpfsxxk Rzsx Ad Doii • Distance vertical clamping table to column plate: 160 mm • Universal clamping table (option): Order No. 356 or 606039 • NC rotary table, 4th axis, manually tiltable and swiveling (option): Ø 350 mm — Additional / Special Equipment (marked 'X' if present) • Splash guard enclosure with safety doors • Measuring probe system Optionally listed: • Tailstock with counter bearing • High-frequency spindle • Intermediate gearbox for operation of horizontal and vertical spindle — Application Range (as per documentation) • Single-part production and toolmaking • Complex CNC milling operations The Hermle UWF 600 H is a robust, precise, and universally applicable production and toolroom milling machine, ideal for demanding single parts as well as tool and fixture construction. With SK40 tool taper, automatic axis feeds, and versatile adjustment options, this machine offers high flexibility for both horizontal and vertical milling tasks. Thanks to the swiveling spindle head, large clamping surfaces, and optional equipment such as rotary and angle tables, the UWF 600 H is perfectly suited for complex milling tasks, model making, repair work, as well as precise small batch production. The machine impresses with its solid construction, reliable mechanics, and a proven machine design – ideal for workshops, engineering companies, training facilities, repair shops, or prototype development.

Condition: good (used), Year of construction: 2009, Technical details x-travel 4000 mm y-travel 1350 mm z-travel (Vert.) 1600 mm Control Heidenhain iTNC 530 table surface area 4200 x 1150 mm table load 13 t tool taper ISO 50 spindle turning speed - stepless 0 - 3000 U/min transmission ratio 2 spindle motor 28/38 kW feed range 5000 mm/min rapid traverse (X/Y) 12 m/min rapid traverse (Z) 10 m/min weight of the machine ca. 37 t dimensions of the machine ca. 12,9 x 6,53 x 3,79 m Additional information In January and October 2025 the milling head was overhauled (new bevel gears and bearings). Total costs 51.000,- Euro. Working hours (dated 31. July 2025): Machine on: 38.483 h Auto cycle: 12.798 h Spindle hours: 11.645 h * CNC-control HEIDENHAIN iTNC 530 * Electronic handwheel * 50-position tool changer * Controlled universal milling head, indexable 2.5 / 2.5 deg. * Coolant device * Cooling through the spindle Isdpjxwupfjfx Ad Deii * 2 chip conveyors * Oil cooler * Measuring probe * Machine documentation

Condition: like new (used), Year of construction: 2004, Retrofitted: 2025 Numerical control: HEIDENHAIN TNC-i530 Technical features Dimensions Table dimensions: 2000 x 900 mmNumber of T slots: 5T slots dimensions: 22 mm Traverses of axis X axis traverse: 2000 mmY axis traverse: 1000 mmZ axis traverse: 1000 mm Milling head Head type: Manual milling head (U22)Tool clamping system: HydraulicTaper nose: ISO 50 (DIN 69871) / Pull stud: DIN 69872Speed range: 3000 r.p.m.Spindle power: 22 kW Feedrates Working feedrate: 12000 mm/minRapid feedrate (X-Y-Z): 20000 mm/min Weight and dimensions Maximum weight on table: 3500 kgMachine weight approx.: 14000 kgMachine dimensions approx : 6637 x 5070 x 2803 mm Accesories External coolantElectronic handwheel: HR-410New foot clamping tool pedalGuarding and new perimetral safety fence installation Sales conditions Warranty: 6 months mechanical partsSale conditions and price: On request View all technical features Iiedpfx Adexwfkmo Dji

Year of construction: 2007, condition: ready for operation (used), This Datron M35 was manufactured in 2007. It features a Renishaw 3D probe and direct shank clamping with an additional replacement spindle. A clamping device in the front area enhances its functionality. The spindle is a water-cooled Jäger model, complete with a cooling unit. For more information about this machine, please reach out to us. Iiedpfx Adsxxdwbj Dsi Application Types Milling

Condition: reconditioned (used), Year of construction: 2002, travel distance X-axis: 16,000 mm, travel distance Y-axis: 3,200 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 15,000 m/min, rapid traverse Y-axis: 15,000 m/min, rapid traverse Z-axis: 15,000 m/min, spindle speed (max.): 4,000 rpm, spindle speed (min.): 20 rpm, 100% Retrofit by Dornhöfer The Difference. Including installation and commissioning! Year of manufacture: 2002 Control: Heidenhain TNC 640 / TNC 7 Travel: X-axis (mm) 16,000* (see below) Iiedpsv S Upfsfx Ad Doi Y-axis (mm) 3,200 Z-axis (mm) 1,500 Spindle speed range: 20–4,000 rpm Feed rates: X, Y & Z axes (mm/min): 2–12,000 Max. rapid traverse speed X, Y & Z axes (mm/min): 15,000 Milling head: Automatic milling head, orthogonal H10, 1° pitch Tool holder: ISO 50, DIN 69871 AD Main spindle drive power: 100% duty cycle KW37 - Automatic tool changer with 60 magazine positions - Coolant system with 20 bar & (IKZ) - Chip conveyor, floor ejection - Ergonomic operator platform - Hazardous area protection - 3D thermal expansion compensation - INA linear guides *Adaptive X-axis length: We supply the machine bed in the length you require, up to a maximum of 16,000 mm. 100% RetroFIT – our core business! For us, it means offering a machine that can only be compared to a new product, but also offers you many other advantages: Latest CNC control technology with proven machine stability Significant CO₂ savings compared to a new machine Shorter delivery times Often savings on complex foundation costs Significantly lower investment costs All mechanical components (e.g., ball screws, guides, rolling bearings, etc.) have been renewed. Our designers designed the entire electrical peripherals (such as the most modern drive, control, and regulation technology) using the most efficient technologies. This was implemented using new cabling and a completely new control cabinet, as well as the latest Heidenhain control system with a wide range of innovative options. The completely new and innovative hydraulic concept meets the most modern requirements and achieves maximum efficiency. The machine's visual appearance is in no way inferior to a new machine thanks to its refurbishment: The entire machine was first disassembled down to every screw, sanded, primed, and then painted with a robust 2K EP paint. We equipped the machine with a safety concept that is individually tailored to the needs of the operator. We offer the highest level of safety, flexibility, and ergonomics. You receive a state-of-the-art machine combined with significant CO₂ savings.

Condition: refurbished (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 2,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,200 mm, rapid traverse X-axis: 25 m/min, rapid traverse Y-axis: 25 m/min, rapid traverse Z-axis: 25 m/min, feed rate X-axis: 10 m/min, feed rate Y-axis: 10 m/min, feed rate Z-axis: 10 m/min, spindle speed (max.): 4,000 rpm, spindle speed (min.): 20 rpm, table width: 850 mm, table load: 5,000 kg, table length: 2,700 mm, overall weight: 15,500 kg, year of last overhaul: 2024, RefurbishmentPLUS by Dornhöfer The difference. Including installation and commissioning! MAIN TECHNICAL DATA Year of manufacture: 2007 Capacities / Travel: Longitudinal (X): 2,500 mm Vertical (Y): 1,250 mm Cross (Z): 1,200 mm Table size: Length: 2,700 mm Width: 850 mm Number of T-slots on the table surface: 6 T-slot width: 22H12 mm Reference slot: 22H8 mm Distance between slots: 140 mm Max. table load: 5 t/m² Paint finish: RAL 5011 (steel blue) and RAL 7035 (light gray) Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 form A Main drive: Drive power: 100% duty cycle KW24 Spindle speed range: Spindle speed: 20-4,000 rpm Torque: 479 Nm Feed rates: X, Y, and Z axes mm/min 10-10,000 Max. rapid traverse speed: X, Y, and Z axes mm/min 25,000 Weight: approx. 15,500 kg BASIC MACHINE EQUIPMENT: Heidenhain iTNC 530 HSCI Automatic milling head, diagonal H200 Chip conveyor Coolant system Iisdpfx Adjun Nnqj Dsi STANDARD EQUIPMENT: - Portable electronic handwheel HR 510 with 3m spiral cable - Hydraulic counterbalance acting directly on the vertical slide - 3D thermal expansion compensation for Heidenhain CNC contouring controls - Complete splash guard enclosure consisting of two front doors and one rear door for operating the machine from the front and rear. All doors are equipped with viewing windows. - Heidenhain AC drive motors in all axes with diagonal drive technology - INA RUE 45 linear guideway system in all axes with central lubrication - Ball screws (IT5) in all axes - Heidenhain direct linear measuring system in all axes - Telescopic covers for the X-axis guideways - Automatic cyclic lubrication for all axes and motion components - Work area lighting Refurbishment+ – what does that mean? The RefurbishmentPLUS line offers you a machine that has been uncompromisingly restored to its original technical and visual condition. All assemblies have been completely disassembled, repainted, and rebuilt with new, original spare parts. Cables, hydraulics, guides, spindles, rolling bearings – everything new!

Condition: reconditioned (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 3,500 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, feed rate X-axis: 25,000 m/min, feed rate Y-axis: 25,000 m/min, feed rate Z-axis: 25,000 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 20 rpm, table width: 850 mm, table length: 3,700 mm, overall weight: 18,500 kg, RepairFIT by Dornhöfer The Difference. Including installation & commissioning! Year of manufacture: 2007 Travel / Stroke Capacities: Longitudinal (X): 3,500 mm Vertical (Y): 1,250 mm Cross (Z): 1,000 mm Table dimensions: Length: 3,700 mm Width: 850 mm T-slots: 5 x 22 H12 Reference slot: 1 x 22 H8 T-slot spacing: 140 mm Paintwork: RAL 5011 (steel blue) RAL 7035 (light grey) Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 Form A Main drive: Drive power: 100% duty cycle 24 kW Spindle speed range: Spindle speed: 20-3,000 rpm Torque: 479 Nm Max. feed rate: X, Y, and Z axes 25,000 mm/min Mean acceleration: 2 m/s² Weight: approx. 18,500 kg HEIDENHAIN iTNC 530 HSCI Swiveling control pendant including Heidenhain iTNC 530 control (1 processor / 4 axes) with software options 1 and 2. Automatic Milling Head, Diagonal H4 Automatic indexing Soraluce “Diagonal” milling head, Type H4 / 2 planes with 2.5° x 2.5° indexing, 479 Nm, tool clamping force 18,000 N. Automatic tool changer: Automatic tool changer (random carousel) with 20 magazine positions: The automatic tool change is carried out in the vertical position of the tool spindle. Maximum tool diameter: 125 mm Maximum tool length: 250 mm Maximum tool weight: 15 kg Number of magazine positions: 20 Chip conveyor package: Three chip conveyors, two longitudinal screw conveyors and one cross hinge belt conveyor with integrated coolant tank, discharge height: 1,000 mm Coolant System 2: Coolant/lubricant system 2 with discharge via shower ring and internal coolant supply according to DIN 69871 Form AD, tank capacity 500 l + 150 l lift tank with pump, delivery rate 50 l/min, delivery pressure 5/8 bar. Increased delivery pressure of high-pressure pump from 15 bar. RepairFIT is our proven offer for a profitable entry into our product lines. Isdpfx Aoxgn Efod Djii The machines available in this line are sourced by us following a strict selection process and undergo a thorough inspection (deep-dive check). After intensive cleaning, all identified visible defects and faults are professionally repaired by our expert service team.

Condition: reconditioned (used), Year of construction: 2015, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 3,000 mm, travel distance Z-axis: 1,500 mm, rapid traverse X-axis: 25,000 m/min, rapid traverse Y-axis: 25,000 m/min, rapid traverse Z-axis: 25,000 m/min, spindle speed (max.): 4,000 rpm, RepaitFIT+ by Dornhöfer The difference. Including installation and commissioning! MAIN TECHNICAL DATA Year of manufacture: 2015 Capacities / Travel: Longitudinal (X): 10,000 mm Vertical (Y): 3,000 mm Transverse (Z): 1,500 mm Paint finish: Graphite gray RAL 7024 / Agate gray RAL 7038 Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 Form A Taper: DIN 69871 Iiedpfov R Hwrex Ad Dei Main drive: Motor / Make: Siemens Main spindle drive Tap: 1PH7 Maximum drive power: From 198 rpm 100% duty cycle KW41 Maximum torque: Constant up to 198 rpm 100% duty cycle 1920 Nm Speed control / Gearbox: 3-stage (oil-cooled) With automatic Switching Spindle speeds 4000 rpm: low range rpm 0 - 516 medium range rpm 460 - 1,288 high range rpm 1,200 - 4,000 Axis drives/axis feeds: Axis drive motors: Maximum rapid traverse: (X/Y/Z axis) 25,000 mm/min Maximum working feed: (X/Y/Z axis) 15,000 mm/min Maximum feed force: (X-axis) 35,000 N (Y/Z axis) 32,000 N Axis drive systems: X-axis (longitudinal) pinion/rack (Atlanta brand) Y-axis (vertical) ball screw (preloaded) Ø 63 x 20 Z-axis (transverse) Ball screw (preloaded) Ø 50 x 20 Weight: (without clamping table/plate area) approx. 49,500 kg Connection cable: approx. 60 kVA Innotrol HBG wireless handwheel Automatic tool changer with 60 magazine positions BIG Plus tool spindle Operator platform with height adjustment of 1800 mm and transverse adjustment of 800 mm Interface for adapter milling heads RepairFIT+ – what does it mean? With RepairFIT+, we offer you a profitable and safe entry into our product lines. Our machines undergo a rigorous selection process, undergo a comprehensive deep-dive inspection, and are thoroughly cleaned by our experts. All identified defects, both technical and cosmetic, are professionally repaired so that the machine is presented in perfect condition.
