Used Amada Hfp 80-25S for sale (224)

Condition: used, Year of construction: 2005, AMADA - HFT 80-25 - 2005 - 80 t capacity - 2500 mm table - stroke 200 mm Fgsdpjytrwtofx Akvjb - weight 5750 kg - under power - used machine, good condition

Condition: used, Year of construction: 2001, Amada HFE 80-25 SL Hydraulic Press Brake. S/No. VO11137 (2001), Remanufactured JTES 2018 Fgsdpfx Akoy D Rhyjvsb Location: These lots are located in Yeovil, UK. Please Note: There are no loading facilities on site, dismantling and loading will be at the cost of the purchaser.

Condition: used, Year of construction: 2004, pressure 80 t chamfer lenght 2550 mm distance between columns 2050 mm Stroke beam 350 mm max. opening beam/table 620 mm C-recess 420 mm traveldistance X1+X2 cnc programmable 700 mm Z1+Z2 axes controlled by cnc 0-2000 mm max. distance R-axes 200 mm Quick speed,inspeed 100 mm/sec bendingspeed 0-10 mm/sec opening speed 100 mm/sec Number of working hours 24000 h Fgedpfx Aoxyzzaskvob length 3380 mm width 1800 mm height 2750 mm weight 6100 kg total power requirement 9 kW dimensions of the machine ca. 3x2x2,5 m All machines can be viewed under power at all times. Demonstrations of the machines possible at any time.

Condition: good (used), functionality: fully functional, Press Brake Brand: AMADA Model: HFT 80/25 Capacity: 2500 x 80T 4 axes Fgsdpfx Akewivddovsb Distance between uprights: 1800 mm Dimensions: 3500 x 1500 x 2100 mm Weight: 6,500 kg Equipped with new and used tooling

Condition: good (used), Year of construction: 2003, Amada HFP 100-3L (long stroke) 8-axis press brake Year: 2003 Fgjdpovn S I Defx Akveb Tonnage: 100 tons Max. Bending length: 3110 mm Standard stroke: 350 mm Approach speed: 100 mm/sec Bending speed: 10 mm/sec Return speed: 100 mm/sec Weight: 7100 kg Dimensions Machine length: 4498 mm Machine width: 2450 mm Beam width: 60 mm Distance between side frames: 2705 mm Machine height: 2860 mm Open height: 620 mm CNC control type: AMNC Display: Touchscreen Akas laser protection Controlled axes: 8 axes, Y1, Y2, X1, X2, R1, R2, Z1, Z2 Documentation available Digipro angle measuring system Supplied with 1 set of tools

Condition: used, Year of construction: 2001, pressure 70 -800 kN chamfer lenght 2505 mm distance between columns 2125 mm Control OP 2000 controlled axis 7 throat 420 mm stroke 200 mm dayligth 470 mm Fjdpfxsyz Dgws Akvjgb table width 60 mm table height 960 mm ajustment speed 100 mm/sec working feed 10 mm/sec return speed 100 mm/sec weight of the machine ca. 6,3 t Patented Amada technology ensures absolutely correct bending results without bombing device

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, operating hours: 70,104 h, pressing force: 81 t, total length: 3,100 mm, total width: 2,180 mm, total height: 2,540 mm, overall weight: 5,750 kg, working width: 2,550 mm, Equipment: emergency stop, We offer this ready-to-use Amada HFBO 80-25 press brake, year of manufacture 1999. If you have any questions or need further information, please feel free to send us a message or give us a call. Fgsdpfx Akjy H Eqbeveb The seller accepts no liability for typographical or data transmission errors. The machine's appearance, technical condition, and wear are consistent with its age; used machines are sold without any warranty.

Condition: good (used), Year of construction: 2002, functionality: fully functional, controller manufacturer: Amada, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, FOR SALE: Amada HPF 100-3 CNC Hydraulic Press Brake Amada HPF 100-3 – Reliable CNC Press Brake for Heavy-Duty Sheet Metal Work We are offering a used Amada HPF 100-3 CNC hydraulic press brake in [good / fully operational] condition. This is a well-established machine from one of the world’s leading manufacturers of sheet metal machinery, ideal for a wide range of industrial bending operations. Fgedpfx Akoy Hf Tpevjb Key Specifications - Pressing force: 100 tonnes (1,000 kN) - Maximum bending length: 3,100 mm - Distance between frames: 2,700 mm - Stroke length: 200 mm - Throat depth: 420 mm - Open height: 470 mm - CNC control: Amada Operateur / OP 2000 - Number of axes: 7 (Y1, Y2, X, R, Z1, Z2 + crowning) - Motor power: 9–11 kW - Approximate machine weight: 6,750 kg Machine Details - Year of manufacture: 2002 - Condition: Good! - Tooling included Why Buy This Machine? The Amada HPF 100-3 is a robust and precise hydraulic press brake engineered for demanding, high-volume production environments. The Amada CNC control simplifies the programming and storage of complex bending sequences, making it ideal for both batch and repeat production. With a bending length of 3,100 mm and a capacity of 100 tonnes, it covers the majority of industrial sheet metal forming requirements.

Condition: ready for operation (used), Year of construction: 1999, pressure 80.0 t chamfer lenght 2570 mm distance between columns 2125 mm column arm 420 mm table width 60.0 mm ajustment speed 100 mm/sec working feed 10.0 mm/sec return speed 100 mm/sec stroke 200 mm dayligth 470 mm table height 960 mm Number of working hours ~ 33.100 h oil volume 90.0 l total power requirement 9.0 KW weight of the machine ca. 5750 kg. range L-W-H 3630 x 2450 x 2550 mm - in checked conditions - machinevideo - ?v=SskqZJdQxsQ Fgedpfx Aeyyc Dfokvob Equipment: - AMADA CNC control, model OPERATEUR II * Manual control for fine adjustment of the axes - CNC control OPERATEUR 2 in 8 axes (X1 X2,Y1 Y2,R1 R2,Z1 Z2) - CNC-controlled backgauge adjustment (X1 X2) - CNC-controlled vertical adjustment of the fence fingers (R1 R2) - CNC-controlled adjustment of the stop fingers left-right (Z1 Z2) - Swivel operation, front left - 1x freely movable foot switch - Top tool holder with top wedge crowning (AMADA system) - Rear safety guard (safety grid) - Side safety guard (safety doors) - CE marking - Original operating instructions * Further technical data : Adjustment range : X axis ... 700 mm X axis with workpiece in place ... 1020 mm R axis .. 250 mm Adjustment speed : X axis .. 500 mm/sec R axis ... 160 mm/sec Z1 Z2 axis .. 1000 mm/sec Positioning accuracy ± in mm : X axis .. 0.1 R axis .. 0.1 Z axis .. 1.0

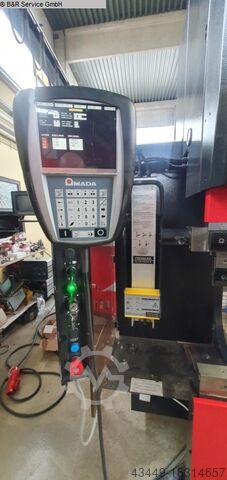

Condition: like new (used), Year of construction: 2004, AMADA MODEL HFT 8025 80 tons capacity x 2500 bending length hydraulic downstroking press brake complete with CD 2000 4 AXIS colour graphic cnc control, ERWIN SICK machine mounted electronic guards , side and rear interlocked fencing Model Amada HFT 8025 downstoke CNC Press brake Year 2004 Tonnage 100 KN Fgedpsu A Dgrjfx Akvob Type CD 2000 CNC Controlled Axis Y1, Y2, X, R Max. Bend Length 2500 mm Open height 470 mm Stroke Length 350 mm Approach Speed 100 mm/sec Bending Speed 1 - 10 mm/sec Return Speed 1-100 mm/sec Oil Capacity Motor Power 7.5kw Weight 6100 kg Bed Length 2500 mm Bed Width 60 mm Open Height 470 mm Throat Depth 420 mm CNC Control Backguage Stoke (X axis) 700 mm/s Max gauge 1000mm R axis 250mm can be demonstrated under power BROCHURE AND FURTHER INFORATION AVAILABLE UPON REQUEST

Condition: excellent (used), Year of construction: 2008, Technical Data: Working length: 2550 mm Distance between uprights: 2050 mm Press force: 80 tons CNC control: OPERATOR II Graphic TFT color monitor 14” Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Fodpfx Asy D T Rwokvegb automatic crowning Stroke: 350 mm Throat depth: 420 mm Working height: 960 mm Motor power: 9 kW CE marking Dimensions (L x W x H): approx. 3400 x 2050 x 2550 mm Weight: approx. 6 tons Accessories: 1 set of tools: 1 upper punch: 120 mm 1 segmented die: V50, V35, V22, V16 Condition: Very good condition, little used, only approx. 14,000 operating hours. The seller accepts no liability for typographical or data transmission errors. The machine is in optical, technical and wear condition appropriate to its age; used machines are sold without any warranty.

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, pressing force: 80 t, control type: CNC control, Equipment: safety light barrier, 1 Used Very Clean Amada 8025 cnc down stroke hydraulic pressbrake for sale The Amada HFT 8025 is a CNC hydraulic down-stroking press brake designed for precise sheet metal bending with an 80-ton pressing capacity. It is often equipped with the CD 2000 CNC control system, providing 4-axis control (typically Y1, Y2, X, and R) for high accuracy in industrial applications. Key Technical Specifications Year 2010 Fodpfxjyzy D Ee Akvogb Feature Standard HFT 8025 Press Force 80 Tons (800 kN) Bending Length 2,500 mm Stroke Length 200 mm Open Height 470 mm Throat Depth 420 mm Motor Power 7.5 kW

Condition: ready for operation (used), Year of construction: 2005, machine/vehicle number: HFP 130-3 N050242, functionality: fully functional, operating hours: 4,970 h, stroke length: 200 mm, overall weight: 8,170 kg, bending force (max.): 132 t, working length: 3,100 mm, TECHNICAL DETAILS Pressing force: 1,300 kN Max stroke: 200 mm Working length: 3,100 mm MACHINE DETAILS 8-axis configuration: Y1, Y2, X1, X2, R1, R2, Z1, Z2 Weight: 8,170 kg Voltage: 400 V Fgodpfx Asylv Rhekvob Frequency: 50 Hz Rated current: 213 A Operating hours: 4,970 h EQUIPMENT Automatic Fiessler Alas laser system Euro-style tool clamping with quick-change adapters

Condition: excellent (used), Year of construction: 2005, Technical specifications: Working length: 3100 mm Column width: 2650 mm Press force: 100 tons CNC control: AMADA AMNC PC 3D-graphic 15-inch TFT color screen Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Fgjdpfx Ajv I Sp Iskvsb Dual speed of the X, R, and Z axes Automatic crowning Motorized adjustable backgauge Thrust: 550 mm Stroke: 350 mm Working height: 960 mm Laser monitoring: FIESSLER Motor power: 9 kW Dimensions (length x width x height): approx. 4300 x 2300 x 2950 mm Weight: approx. 8 tons Accessories: 1 set of segmented AMADA tools The seller is not liable for typing or data transmission errors. The machine's appearance, technology, and wear are commensurate with its age; used machines are sold without any warranty.

Condition: used, Year of construction: 2006, pressure 80 t chamfer lenght 2550 mm distance between columns 2050 mm Stroke beam 200 mm max. opening beam/table 470 mm C-recess 350 mm max travel X-axes 700 mm Z1+Z2 axes controlled by cnc nein, manuell 4 finger mm max. distance R-axes 200 mm Quick speed,inspeed 100 mm/sec bendingspeed 0-10 mm/sec opening speed 100 mm/sec Number of working hours 43000 h length 3100 mm width 1600 mm height 2550 mm weight 5750 kg total power requirement 9 kW dimensions of the machine ca. 3x2x2,5 m Control Amada OP2002 All machines can be viewed under power at all times. Fgodpfx Astv Rlbekveb Demonstrations of the machines possible at any time.

Condition: ready for operation (used), Year of construction: 1996, pressure 80.0 t chamfer lenght 2550 mm distance between columns 2130 mm column arm 420 mm ajustment speed 100 mm/sec working feed 10.0 mm/sec return speed 80.0 mm/sec stroke 200 mm dayligth 470 mm table width 60.0 mm table height 910 mm Number of working hours ca. 37.102 h total power requirement 9.0 KW weight of the machine ca. 5750 kg range L-W-H 3100 x 2180 x 2540 mm good / well-maintained condition (!!) - Inspected condition - Machine video - ?v=fwdjSiQYq_A Equipment: - CNC electro-hydraulic press brake - OPERATEUR CNC control for 8 axes X1 + X2, Y1 + Y2, R1 + R2, Z1 + Z2 - CNC-controlled backgauge adjustment (X-axes) - CNC-controlled vertical adjustment of the stop fingers (R-axes) - CNC-controlled left-right adjustment of the stop fingers (Z-axes) - Freely movable two-hand control & foot switch Fodpfx Akoxabnysvjgb - Tool crowning - AMADA type - Various tools - CE marking - Side guards (hinged doors) - Rear guards (hinged door) - 2x emergency stop buttons at the front - Operating instructions

Condition: good (used), Year of construction: 2005, Gebruikte 3 meter Amada CNC kantbank Type: HFP 130 3 Capaciteit: 3100 x 130 ton 8-assig (Y1, Y2, X1, X2, R1, R2, Z1 en Z2) Fedpfx Akswz I Irevogb Bouwjaar: 12-2005 Automatisch Fiessler Alas lasersysteem Euro-stijl gereedschapsklemming met laswisseladapters

Condition: ready for operation (used), Year of construction: 1994, functionality: fully functional, pressing force: 80 t, table width: 60 mm, working width: 2,500 mm, TECHNICAL DETAILS Pressure: 80 t Bending length: 2,500 mm Table width: 60 mm Working height: 960 mm Dimensions and clearances Fedpfjwmdf Djx Akvogb Clearance between columns: 2,160 mm Clearance between press beams: 370 mm Thrust: 400 mm Weight Machine weight approx.: 5,000 kg

Condition: excellent (used), Year of construction: 1994, functionality: fully functional, pressing force: 80 t, Equipment: safety light barrier, Brand: Amada Type: ITS 80-25 Year of manufacture: 1994 Pressing force: 80t Bending length: 2500mm Throughput: 400mm Stroke: 100mm Power: 9.5kW Overall dimensions: 3010*2230*2230mm Weight: 4950kg Fgjdpfxovncifj Akvob

Condition: excellent (used), Year of construction: 1999, Technical data: Working length: 2550 mm Stand width: 2125 mm Pressing force: 80 tons CNC control: AMADA OPERATOR II graphic Controlled axes: Y1/Y2; X1/X2; R1/R2; Z1/Z2 Motor-adjustable back stop Stroke: 200 mm Thrust: 420 mm Crafter Working height: 960 mm Motor power: 7.5 kW CE mark Dimensions (length x width x height): approx. 3000 x 2250 x 2250 mm Weight: approx. 6 tons Accessories: 1 set of AMADA standard tools Condition: The machine is in very good condition You can find more machines on our homepage. Fsdpfovrh Rcsx Akvsgb The seller is not liable for typing or data transmission errors. The machine's appearance, technology and wear and tear are in keeping with its age; used machines are sold without any warranty.

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, operating hours: 99,800 h, overall weight: 6,800 kg, working width: 3,000 mm, bending force (max.): 100 t, control type: CNC control, degree of automation: automatic, Amada HFE 100-3 – 100 Ton CNC Press Brake Discover precision and reliability with this Amada HFE 100-3 press brake, perfect for demanding sheet metal work. Built by Amada, a leader in press brake technology, this machine delivers consistent, high-quality bends with excellent repeatability. Key Specifications: Tonnage: 100 tons – ideal for medium to heavy sheet metal work Working Length: 3000 mm – accommodates large panels Stroke: 200 mm – precise forming capabilities Fedpfx Aoxp Nqzokvsgb CNC Control: 6-axis Y1, Y2, Z1, Z2, R1, R2 Back Gauge Travel (X-axis): 500 mm, Y-axis: 200 mm – accurate positioning Speed: Fast approach and return (100 mm/s) with precise working speed (10 mm/s) Highlights & Features: Energy-efficient hydraulic system designed by Amada Servo-controlled back gauge for fast, accurate bends Compatible with all standard Amada tooling Original electrical cabinet and hydraulics in perfect condition Robust, durable design built to last This Amada HFE 100-3 is a reliable workhorse that combines precision, speed, and flexibility – perfect for workshops looking to expand their production capabilities Please verify all technical specifications with the seller.

Condition: good (used), Year of construction: 2010, functionality: fully functional, operating hours: 15,996 h, input voltage: 400 V, overall weight: 6,750 kg, 1000 KN Max. stroke: 200 Weight: 6750 Noise level: 74 dB Fedpfx Aketwliwjvjgb Year of manufacture: 07/2010 Voltage: 400 V / 50Hz Rated current: Current operating hours: 15,996 hours with manual angle measurement and correction system with safety laser UVV inspection on a regular basis / maintenance always carried out by Amada on a regular basis Accessories: Tool die: 2 pieces UKB 20.478 V8/12 30° 835mm 3 pieces UKB 20.344 V4/V7 88° 835mm Tool holder: 4 pieces UKB substructure for double V die 20.287 + 60.919 835mm Bending swords: 5 pieces UKB 10.261 H100 R0.6/90° 2 pieces UKB 11.158 H80 R0.6/30° 2 pieces UKB 11.200 H66 R0.8/90° Other: Light barrier in need of repair (new price approx. €4500) – separately as a replacement as an attachment (has been renewed) The machine can be inspected under power in DE84051 Mettenbach by appointment. Sale only to commercial customers and with exclusion of any warranty!

Condition: ready for operation (used), functionality: fully functional, Year of construction: 1996, control type: CNC control, degree of automation: automatic, actuation type: hydraulic, controller manufacturer: TASK, controller model: MASTER 3 AX, working width: 2,500 mm, input voltage: 380 V, input frequency: 50 Hz, type of input current: three-phase, control voltage: 380 V, oil tank capacity: 70 l, overall weight: 5,000 kg, total length: 2,800 mm, total width: 1,800 mm, total height: 2,200 mm, year of last overhaul: 2026, Equipment: CE marking, documentation/manual, finger protection, type plate available, Press brake SCHIAVI - AMADA RG 50-25 Press force 50 tons Table length 2550 mm MASTER TASK 3-axis CNC control Complete with upper and lower dies Fully functional and connected for tests and video Fedpfx Aeygu Alokvogb

Condition: good (used), functionality: fully functional, Press brake AMADA HFP220-4S Type: HFP Number of axes: 8 Touchscreen CNC: AMNC Backgauge stroke: 680 mm Working speed: 200 mm/sec Safety light barrier Sold without tooling Fgsdpoytb Rcsfx Akvob Machine is fully functional

Condition: good (used), Year of construction: 2012, functionality: fully functional, Hydraulic Press Brake Manufacturer: AMADA Model: HFE M2 8025 Year: 2012 Technical Details Manufacturer: AMADA Model: HFE M2 8025, 4 AXES Year of manufacture: 2012 Pressing force: 80 t Bending length: 2,570 mm Stroke: 200 mm Distance between uprights: 2,125 mm Installation height: 470 mm Throat depth: 420 mm Table width: 60 mm Table height: 960 mm Approach speed: 1 – 100 mm/s Working speed: 1 – 10 mm/s Return speed: 1 – 100 mm/s Motor power: 9 kW Oil capacity: 90 L Max. pressure: 300 bar Dimensions: approx. L 3.70 x W 1.75 x H 2.55 m + 2x tool cabinets Weight: approx. 6.4 t + 2x tool cabinets with tools Features • Controlled axes: Y1, Y2, X, R • AB-PAD numerical control with touchscreen • Fissler safety laser light barrier at the front • Sheet supports at the front • 2 x tool cabinets • Large package of tools as shown in the photos • Service manuals • Documentation All information provided without guarantee. Fsdpfx Aeyyykcokvjgb A powered demonstration at our showroom is possible at any time.
