Used Deckel Dialog 11 for sale (674)

Condition: used, Year of construction: 1984, max. grinding diameter 238 - 620 mm grinding length 190 mm workpiece length 380 - 940 mm spindle turning speed - stepless 2 - 10000 U/min current capacity 380 kVA power capacity - grinding motor 1,1 kW total power requirement 2,2 kW DECKEL S 11 TOOL GRINDING MACHINE - UNIVERSAL 465 / 84 Iedpfxow U Eg Ds Ac Eeii 380 V, 50 Hz Colour: green !!! Original paint !!! ! Machine is in conditon from seller ! motorised height adjustment, axial grinding spindle adjustment Accessories: * Dividing head Sk 40 with dividing disc 24 R with mounting points for optics * Dust extraction device without suction cup * Protective cover * 3 pcs. transport lugs * 1 set of technical sanding instructions * Operating key, operating instructions, spare parts list, wiring diagram

Condition: new, Year of construction: 2024, functionality: fully functional, feed length X-axis: 300 mm, feed length Y-axis: 300 mm, feed length Z-axis: 400 mm, travel distance X-axis: 300 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 400 mm, feed rate X-axis: 3,600 m/min, feed rate Y-axis: 3,600 m/min, feed rate Z-axis: 3,600 m/min, quill stroke: 80 mm, spindle speed (max.): 6,300 rpm, spindle speed (min.): 31 rpm, rapid traverse X-axis: 4,000 m/min, rapid traverse Y-axis: 4,000 m/min, rapid traverse Z-axis: 4,000 m/min, table length: 390 mm, table width: 620 mm, total length: 3,000 mm, total width: 2,930 mm, overall weight: 1,900 kg, table load: 250 kg, warranty duration: 12 months, input frequency: 50 Hz, input current: 35 A, Equipment: documentation/manual, Completely overhauled, as-new machine. Operation: Universal CNC milling machine with manual mechanical handwheels. Control System: Siemens 840Dsl path control Iiodpfxoxfbk Se Ac Esi Electrical Cabinet: Installation of a new CE electrical cabinet in accordance with the latest statutory regulations of the German Employers’ Liability Insurance Association (BGVA 3 / DIN-EN 60204-1 new machine standard). Speed range: 31.5 - 6300 rpm Feed: 2 - 3600 mm/min, steplessly adjustable Rapid traverse: 4000 mm/min Power: 1.6/2.0 kW Quill: Vertically extendable quill 80 mm, horizontally 65 mm SK40 tool holder with clamping system DIN 2080 or DIN 69872 Axes: X/Y/Z 300/300/400 mm Angle Table: Rigid angle table 620 x 390 mm, max. load 250 kg FPS Standard: Machine completely overhauled both mechanically and electronically, as new. Control, drive package, and drive motors were completely renewed and upgraded to the latest technology during the overhaul. Equipment: Hydromechanical SK40 clamping system with pull stud DIN 69872 Vertical milling head as swivel head Vertical and horizontal spindle Milling head manually swivels +/- 90° Machine features mechanical handwheels on all axes. Programming: Siemens 840D SL – user interface Siemens ShopMill and DIN / ISO programming. Electronic handwheel Splash guard enclosure Special paint finish Options: NC rotary table NC dividing attachment Universal table etc.

Condition: used, Electric motor, three-phase motor, brake motor -Manufacturer: Siemens, electric motor type 1LC3113-4BB23 Z from milling machine Deckel FP4L -Power: 4.0 kW -Speed: 1435 rpm -Design: B14 Iiedpfsul H Dwex Ac Eoi -Protection class: IP 44 -Brake: multi-disc brake type EK5dB24 -Dimensions: 575/270/H225mm -Weight: 64 kg

Condition: like new (used), Universal milling table is in very good condition. Iiodpfshtyxwsx Ac Esi

Condition: used, DECKEL S11 universal tool & cutter grinder Iodpfx Asphvlajc Ejii under power in our warehouse Mimu machine-tools (Italy)

Condition: good (used), Year of construction: 1985, grinding wheel diameter: 200 mm, rotational speed (min.): 2,000 rpm, rotational speed (max.): 10,000 rpm, grinding spindle speed: 10,000 rpm, Year of manufacture: 1985 Ijdpfx Ajrwnqmoc Eeii Clamping range of the tool slide: 500 x 180 mm (table size). M12 T-slot. Grinding stroke: 190 mm Cross adjustment of the tool slide: 100 mm Stepless spindle speed: 2000 to 10000 rpm. Max. Grinding wheel diameter: 125 mm Max. Cutting wheel diameter: 200 mm Z-axis can be operated electrically.

Condition: good (used), functionality: fully functional, machine/vehicle number: S11-016, We are selling our Deckel S11. The machine is operational, and a digital readout can optionally be purchased as well. Ijdsw A Rrvspfx Ac Esii

Condition: used, Year of construction: 1985, functionality: fully functional, table length: 680 mm, table width: 380 mm, table height: 345 mm, For sale is a Deckel milling table, which was installed on an FP2 milling machine. The angle and rotation functions are fully functional, unfortunately there is no longer a crank. Ijdpouuh Susfx Ac Eeii Signs of use on surface recognizable on pictures Dimensions: 38*68 cm Height: 25 cm

Condition: excellent (used), Year of construction: 2011, Very good condition! Control: Siemens 810D Shopmill Spindle speed: max. 8,000 rpm Spindle mount: SK40 tool magazine: 16 seats Travel: X-500 mm, Y-450 mm, Z-400 mm Swivel rotary table : -5 / +110 Iiedjxdfgnopfx Ac Eji

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 710 mm, travel distance Z-axis: 710 mm, controller model: MILLPLUS iT HEIDENHAIN, table load: 800 kg, 5-axis simultaneous machining center! TECHNICAL DETAILS X travel: 1,250 mm Y travel: 710 mm Z travel: 710 mm Table size: 1,500 x 800 mm Table load capacity: 800 kg Spindle speed: 12,000 rpm Spindle motor: 15 / 10 kW Spindle taper: SK 40 Tool changer: 60 positions MACHINE DETAILS Ijdpfx Asxwlgzsc Esii CNC control: MILLPLUS iT HEIDENHAIN Total power consumption: 44 kVA Dimensions & Weight Footprint: approx. 3.5 x 2.65 x 2.65 m Machine weight: approx. 10.5 t EQUIPMENT B-axis (-120 / +30) NC rotary table integrated into fixed table Direct measuring system 3D probe infrared HEIDENHAIN TS 640 Coolant system 40 bar, 600 l Rinsing gun Chip conveyor 3D Quickset software Note: The machine is fully functional. The rotary table and X-axis produce noise.

Condition: ready for operation (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 1153 000006 3, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller model: Siemens 840 D Solutionline (PCU 50), spindle speed (max.): 8,000 rpm, TECHNICAL DETAILS Travel X-axis: 1,250 mm Travel Y-axis: 1,000 mm Travel Z-axis: 1,000 mm Feed rate X, Y, Z-axis: 20 - 60,000 mm/min Rapid traverse X, Y, Z-axis: 60 m/min B-axis travel: 360 x 0.001° B-axis feed rate: 10,800 /min Max. table rotation: 30 rpm Iijdpfx Asxvz Edec Eji Max. workpiece diameter: 1,250 mm Max. workpiece height: 1,580 mm Max. workpiece weight: 1,500 kg Clamping area: 800 x 800 mm Pallet weight: 570 kg Spindle speed: 20 - 8,000 rpm Max. permissible weight difference for pallet loading: 1,000 kg Tool holder: SK 50 according to DIN 69871 Maximum tool length: 650 mm Tool magazine: 120 positions MACHINE DETAILS Control: Siemens 840 D Solutionline (PCU 50) Dimensions & Weight Transport dimensions: 6,500 x 3,000 x 3,200 mm Transport weight of the machine (without magazine or other accessories): approx. 20,000 kg Required space: approx. 7,000 x 6,000 mm Total machine weight: 24,000 kg Operating hours "Counter external 2 (read off)": 60,197 h EQUIPMENT Chip conveyor with coolant tank Coolant/lubrication system 4x machine pallets Tool magazine Oil mist extraction unit Length measuring system Y-axis (new spare part) Lubrication unit 230V 0.12 30bar (new spare part) Gear unit ZAHNRADP-AGG*MKF1-KW2-20036 (new spare part) Cyclo gearbox*F1C-A25 (new spare part) Retrofit kit for power module (new spare part) Lifting devices for the machine

Condition: used, Motor output 3 kW total power requirement 3 kw Ijdjv Nq Skopfx Ac Ejii Weight 1.400 kg

Condition: used, Year of construction: 2007, Suitable for regrinding and remaking all types of woodworking and metalworking tools Accessories: Full enclosure, Pickup loader, disc magazine Ø approx. 350 mm, workpiece Ø max. 50 mm 8-position grinding wheel changer Direct measuring system with glass scales on all linear axes A-axis with torque drive for cylindrical grinding NUMROTO 3D simulation NUMROTO 3D collision monitoring NUMROTOplus simple milling cutters NUMROTOplus extension for complex milling cutters NUMROTOplus standard drills, step drills NUMROTOplus extension for complex drills, step drills NUMROTOplus extension for differential helix NUMROTOplus form milling cutters NUMROTOplus extension for cylindrical grinding Fast TCP/IP data interface Electrostatic fume separator LTA, Automatic fire extinguishing system Fixed coolant ring on the grinding head with up to 12 adjustable nozzles Additional Coolant supply at the dividing head Oil drip tray 2 grinding wheel holders X-axis grinding stroke: 400 mm Y-axis grinding stroke: 310 mm Z-axis grinding stroke: 305 mm C-axis swivel range: 224° A-axis speed: max. 850 rpm Maximum workpiece diameter: about 250 mm workpiece length max.: approx. 900 mm Maximum workpiece length during face grinding.: about 400 mm grinding length max.: 400 mm Workpiece holder: ISO 50 Iijdpfx Acjxxquyj Esi Grinding spindle speed infinitely variable: 1000 to 8000 rpm Drive power grinding spindle: 15 kW Connected load approx.: 400 V / 50 Hz / 22 kVA Dimensions W x D x H approx.: 2350 x 3300 x 2150 mm Weight approx: 4000 kg colour: Gray

Condition: good (used), Year of construction: 1984, Ref. -No.: 10594 Manufacturer: DECKEL GILDEMEISTER Type: MD 3S Ijdpfjxxpciex Ac Eeii Year of construction: 1984 Type of control: CNC Control: ELTRO MPULS Storage location: Halberstadt Country of origin: Germany Turning Diameter: 400 mm Turning Length: 600 mm Swing Diameter: 600 mm Spindle Bore: 73 mm

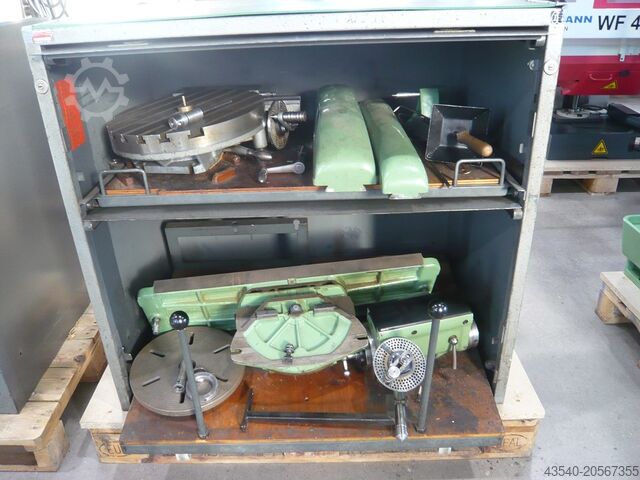

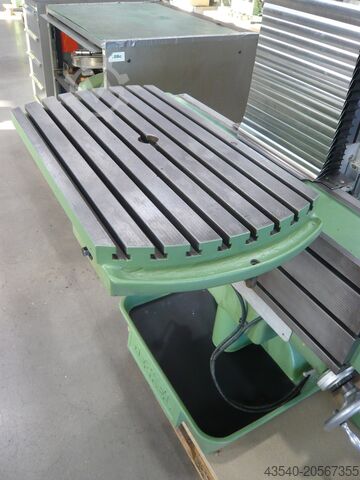

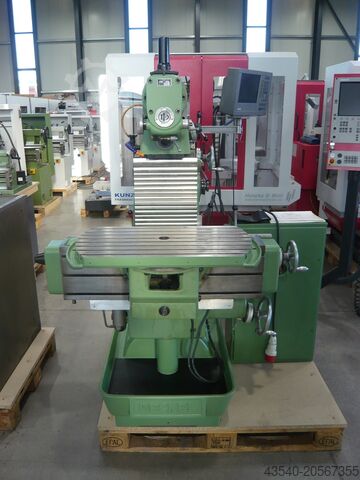

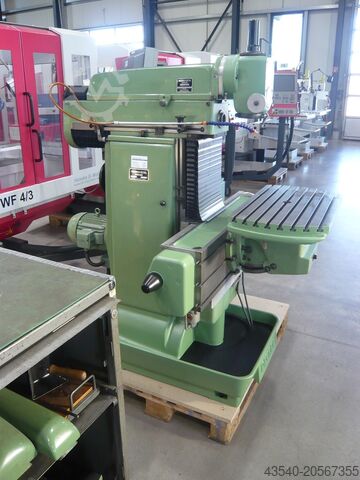

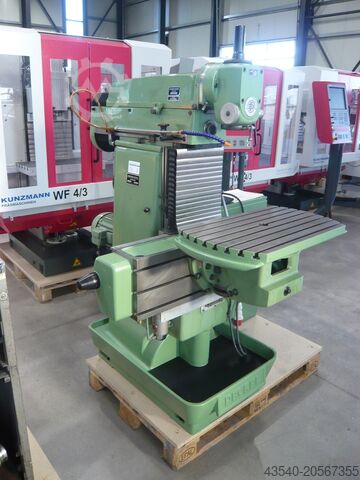

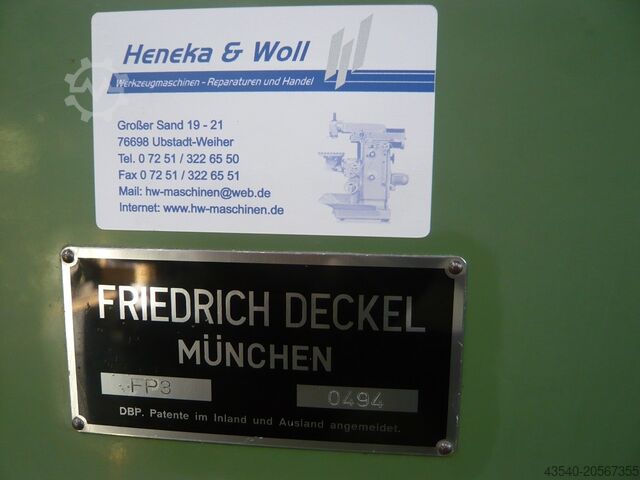

Condition: excellent (used), functionality: fully functional, Universal Milling Machine Deckel FP3 with 3-Axis Digital Readout AXESTA and 2 Accessory Cabinets from University Ownership, Excellent Condition Technical Data: >> Machine No.: 0494 >> 3-axis digital readout AXESTA >> Swiveling, tilting, and rotating table >> Spindle speed: 40 - 2000 rpm >> Feed and rapid traverse in 3 axes Iedpfx Acjxxzl Ne Eeii >> Drive power: 3 kW >> Travel X/Y/Z: 500/300/400 mm >> Equipment: vertical & horizontal spindle >> Extendable vertical and horizontal quill - SK-40 >> Drawbar system S20x2 >> Weight approx. 1,300 kg Accessories and Equipment: >> 3-axis digital readout AXESTA >> Coolant system >> Central lubrication system 2 accessory cabinets with tooling: collets, horizontal and vertical tool holders, clamping tools, dividing head with 3-jaw chuck, vise, tailstock, faceplate, additional small swiveling, tilting and rotating table, rotary table, tailstock, vise, and much more About the Machine: Offered here is a Deckel FP3 universal milling machine in excellent condition. All spindles move easily. The machine comes with 2 tool cabinets filled with accessories. Previously owned by a university. An oil change has been carried out. Mechanically and electrically tested. The digital display makes operation easier and even more precise. Take the opportunity to view and test the Deckel FP3 under power on site.

Condition: ready for operation (used), Year of construction: 2000, operating hours: 48,804 h, General Data Measurements width 7000 Measurements depth 5000 mm Machine weight 3400 kg Control Unit Brand SIEMENS Model Sinumerik 840D Main Drive Spindle speed range 8000 Number of axis 4 Movement X-Axis Working Feed 60000 mm/min X-Axis Rapid Traverse 60 m/min Y-Axis Working Feed 60000 mm/min Y-Axis Rapid Traverse 60 m/min Z-Axis Working Feed 60000 mm/min Z-Axis Rapid Traverse 60 m/min X-Axis Movement 600 mm Y-Axis Movement 560 mm Z-Axis Movement 560 mm Table Table load 350 kg Tools Slots in storage 90 Max weight 10 kg Max tool diameter 80 mm Max tool length 350 mm Type of tool holder DIN 69871-SK40 Media Chip conveyor Yes Additional Equipment Coolant Type/Content: Emulsion (internal & external) / approx. 1100L Coolant Unit: Knoll with drum filter 30, 40, 50 bar via M-command Iiedpfxjxxnfpj Ac Eei Machine Accuracy: VDI / DGQ 3441 Renishaw Measuring Probe Tool Breakage Detection Drum filter Pallet Sequential Operation Enclosed Work Area Enclosure Network Connection Technical Documents and Layout Plan available This 4-axis DECKEL MAHO DMC 60H hi-dyn was manufactured in 2000. It features a Siemens Sinumerik 840D control, a spindle speed up to 8000 rpm, and a 90-position tool magazine. The machine includes a pallet changer with 4 storage locations and a rapid traverse rate of 60 m/min. Ideal for high precision horizontal machining. Contact us for more information about this machine. Application Types Milling

Condition: used, Year of construction: 1999, x-travel 800 mm y-travel 700 mm z-travel 600 mm NC-rotary table ø 900 x 630 mm spindle taper SK 40 spindle turning speed - stepless 20 - 12.000 U/min feeds x/y/z -stepless 20 - 10.000 mm/min rapid travel x/y/z 24 m/min control HEIDENHAIN, TNC 426 NC-rotary table - speed - max. 10,7 U/min NC-rotary table - feed - 3600 °/min table load capacity max. 800 kg Isdpjw Eyhfefx Ac Eoii no. of tools in magazin 30 tool diameter if 2 vacant positions 160 mm tool diametre at full load 100 mm tool length - max. 315 mm weight of tools max. 10 kg total power requirement 44 kVA = 5 axis (simultan) machining center - NC rotary table = C-axis - univ. milling head = B-axis Accessories: 30 tool fixtures, electron. hand panel, chip conveyor, coolant with filtration

Condition: good (used), Year of construction: 2005, functionality: fully functional, Technical details x-travel 1040 mm y-travel 600 mm z-travel 500 mm Control Heidenhain iTNC 530 table surface area 1250 x 600 mm table load 600 kg Isdpfexwuu Isx Ac Ejii tool taper SK 40 spindle turning speed range 1 - 8000 U/min max. torque on the spindle (S1/S6) 140/200 Nm feed range 40000 mm/min rapid power traverse in X-and Z direction 70 m/min rapid motion - y-axis 40 m/min spindle drive (100/40 % ED) 13/19 kW total power requirement 39 kVA weight of the machine ca. 8,9 t Additional information Operating hours 70278 Spindle hours 23335 Please note the enclosed geometry measurement report with the tool pull-in force measurement. Equipment: CNC control Heidenhain iTNC 530 Electronic handwheel Heidenhain HR 410 Motor spindle with increased torque Direct path measuring system in Y-Z axis Preparation for measuring probe 30-station tool changer, tool diameter 100/140 mm, length 300, weight 7 kg ROTOCLEAR Production package 2 Internal coolant supply through the spindle 20 bar Coolant system with paper belt filter Cooling device blown air through the spindle center selectable via M function Chip conveyor Bed flushing Linear drive in the X-axis Operating mode 4 Program check with extended manual intervention Machine documentation Transport dimensions: 4100 x 2500 x 3000 mm

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, Universal Milling and Turning Machining Center DECKEL MAHO DMC 80 FD Hi DYN Year of manufacture: 2004 CNC Control: HEIDENHAIN Mill Plus IT Operating hours: 44,401.55 h Spindle hours: 55,476.48 h Iedpfxoxxivvj Ac Ejii Technical Data: - Travel: 800 mm x 700 mm x 600 mm - Motor spindle: 12,000 rpm - Tool holder: HSK-A 63 - Magazine capacity: 120 tool positions - Universal milling head with controlled B-axis - 2x Pallets: D800 mm x 630 mm - Pallet changer - Rotating viewing window - Operating mode 4 - Tool breakage monitoring Accessories: - 1x measuring probe - 2x ZeroClamp zero-point clamping systems - Hoffmann zero-point clamping system on both pallets Short Description / Highlights • Universal 5-axis mill-turn center with FD technology • Complete machining in a single setup • High dynamics thanks to Hi-DYN design • Motor spindle with 12,000 rpm and HSK-A63 interface • Large tool magazine with 120 positions • Controlled B-axis with universal milling head • 2-pallet system for high productivity • Rotating viewing window & Operating mode 4 for safe operation • Integrated tool breakage monitoring The DECKEL MAHO DMC 80 FD Hi DYN is a high-performance 5-axis machining center with integrated turning function (FD technology). It is designed for combined milling and turning of complex workpieces in a single setup, thereby offering maximum precision, process reliability, and cost-effectiveness.

Condition: good (used), Control system Grundig Dialog 112 x-way 700 mm y-way 550 mm z-way 500 mm Mounting SK 40 Motor brushless AC Servo Drive type stepless 0-8000 min/l feed speed stepless 10000 mm/min table size 900*550 mm table load 0,8 t Iiedsghbxiepfx Ac Eoi machine weight approx. 7,2 t Knoll scraper conveyor internal cooling rapid traverse x/y 30000 mm/min rapid traverse z 20000 mm/min Price plus value added tax

Condition: good (used), Internal item no.: 25094 Universal milling machine Iedpfsxxkwnox Ac Ejii Deckel FP1 + Accessories (machine vice / dividing head / SK40 tool holders / tailstock) The milling head is equipped with an M16 drawbar + Additionally, S20x2 drawbar The machine can be inspected under power.

Condition: reconditioned (used), Year of construction: 2004, With MILL PLUS iT CNC control Year of manufacture: 2004 Travel distances: X 1000 Y 1000 Z 1000 mm Speed range: 0 – 8,000 rpm stepless (SK 50) Including the following accessories: - NC rotary table 900 mm x 700 mm clamping surface (table load max. 1.4 t) - Universal milling head with controlled B-axis - Universal tool changer with 40 magazine slots, double gripper (SK 50) - Fully enclosed safety cabin with sliding doors and interior lighting - Coolant high-pressure system – 40 bar - Chip conveyor Iisdsxn Aibopfx Ac Eei - Rotoclear - 3D probing system Heidenhain TS 641 - Operating modes 3 + 4 - Electronic handwheel - Chip-blowing pistol - 50 tool holders SK 50 - 3 height-adjustable machine mounts - Transport device - Operating manuals

Condition: used, Year of construction: 1999, x-travel 600 mm y-travel 525 mm z-travel 500 mm table surface area 1000 x 543 mm spindle taper SK 40 spindle taper DIN 69871 spindle turning speed - stepless 20 - 12.000 U/min feed X/Y/Z-axis 20 - 10.000 mm/min rapid traverse X/Y/Z axis 18 / 18 / 15 m/min table load max. 350 kg control HEIDENHAIN MillPlus milling-head swivable +/- 90 ° total power requirement 26 kVA Iiedpfx Aotqqmhec Esi weight of the machine ca. 4,2 t dimensions of machine L x W x H 2,95 x 2,1 x 2,26 m Accessories: various tool fixtures, coolant

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details x-travel 1150 mm y-travel 710 mm z-travel 710 mm table surface area 1500 x 800 mm table load 800 kg tool taper SK 40 spindle turning speed - stepless 20 - 12000 U/min feeds -stepless- 0 - 30000 mm/min main drive motor 15 / 10 kW weight of the machine ca. 10,5 t Additional information 5-Axis Universal Machining Center Iijdpjxwutdsfx Ac Eji Equipment: CNC-control HEIDENHAIN iTNC 530 (5-axis simultaneous) NC rotary table (4th-axis), diameter 800 mm, integrated into the fixed table Controlled milling head (B-axis), swivel range -120/+30 deg. ATC 32-positions (2 x 16) Chip conveyor Coolant system for external cooling, no internal cooling

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, The machine is in very good condition and comes from a research centre. Technical details x-travel 300 mm y-travel 160 mm z-travel 290 mm table surface area 210 x 600 mm Iedpfx Acexwui Se Eoii table load max. 200 kg tool taper SK 40 spindle turning speed range (16) 40 - 2000 rpm feeds -stepless- 5 - 500 mm/min rapid traverse 1,2 m/min spindle motor 1,5 / 1,9 kW total power requirement 9,5 kVA weight of the machine ca. 730 kg dimensions of the machine ca. 2000 x 2200 x 1655 mm Equipment: 3-axis active digital readout made by Heidenhain TNC 113 Fixed angle table Coolant equipment Kelch mounting block Machine vise Counterholding device for the horizontal spindle
