Listing
Hessisch Lichtenau
7,826 km
Servo press brake, die bending machine with 4-axis CNC control, press brake
SAFANSMK-P 50-2550 TS1
Call
Condition: used, Servo press brake SAFAN Type SMK-P 50-2550 TS1
Serial No. MK 285 Year of manufacture 1998
CNC Control SAFAN Software Version 5.07 TS1
Pressing force 500 kN (50 tons)
Working length 2550 mm
Stroke 215 mm
Clearance between side frames 2700 mm
Tool installation height max. 414 mm
Table width 55 mm
Table height above floor 950 mm
Approach speed approx. 75 mm/s
Return speed approx. 75 mm/s
Working speed approx. 1.6 to 15 mm/s
Motor power 9 kW
Power supply 400 Volt, 50 Hz, 9 kW
- 4-axis CNC control SAFAN Software Version 5.07 TS1, Y1 and Y2 axis for press beam
Pjdpsxpqy Djfx Agzorf
- 2-axis back gauge: X-axis (depth adjustment), R-axis (height adjustment)
- 2 back gauge fingers, lateral manual adjustment (Z1, Z2)
- Press beam driven by 2 servomotors and belt drive
- Infinitely variable working speed
- Operation via electric foot switch and/or two-hand control panel
- 13 clamping holders for upper tool UKB system, Type 50.571 (UKB System A)
- Tool mount for lower tool: 55 mm wide with 13 mm slot, slot depth 21 mm (Trumpf system or UKB System B)
- Without press brake tools (new tool set from UKB costs approx. EUR 3,600 net)
- Total recorded operating hours = 8,120 h
- Work strokes 1,049,789
Space requirement (L x W x H): 3450 x 1850 x 2650 mm
Weight 5,000 kg
Good condition
Listing
Laakirchen
8,278 km
Briquette press BP-70F Holzprofi demonstration machine
HolzprofiBP-70F
Call
Condition: as good as new (ex-display), Demonstration Machine
The new 70F briquetting press from Holzprofi impresses with its sophisticated, simple, and robust design. The press is designed for commercial and industrial applications. Made in the EU!
Technical data:
Motor output (continuous duty): 7.5 kW
Briquette diameter: 70 mm
Power consumption approx.: 4900 W/h
Output capacity: 60–80 kg/h
Chip hopper: 0.75 m³
Weight: 810 kg
Briquette density approx.: 900–1100 kg/m³
Sound pressure level: less than 70 dB
Dimensions: 2220 x 1200 x 1510 mm
Standard special equipment:
Automatic shaft rotation direction reversal
Automatic shutdown
Podpfx Agjvr I N Sozerf
Sample image!
Price subject to change. Errors and omissions excepted.
Listing
Sierakowska Huta
8,052 km
Briquette press, briquetting machine, press
COMAFER DINAMIC 70-60DINAMIC 70-60
Call
Condition: excellent (used), Catalogue number 7732
TECHNICAL DATA
Predpfoxa Ephsx Agzsf
- pressing force: hydraulic
- briquette shape: round
- briquette diameter: 70mm
- tank diameter: 1200mm
- output: approx. 70kg/h
- fully automatic machine operation
- motor: 7.5kW
- max working pressure: 150 bar
- suction outlet diameter: 90mm
- filter bag opening diameter: 500mm
- max bag height: 900mm
- dimensions (LxWxH): 1950x1400x2700mm
- weight: 1130kg
ADVANTAGES
- Italian-made
- direct connection to sawdust extraction possible
- used briquetting press
- operating & maintenance documentation (DTR)
- condition: very good
Net price: 29,900 PLN
Net price: 7,120 EUR (based on 4.2 EUR exchange rate)
(Prices may vary with significant exchange rate fluctuations)

Get information now
+44 20 806 810 84
+44 20 806 810 84
List now
*per listing / month
Listing
Radom
8,431 km
Book binding machine
Schmedt PraForm HHS 2100book press with joint forming
Call
Condition: good (used), Schmedt PraForm HHS 2100 book press with joint forming
Perfect condition, purchased from a warehouse, used as a backup.
Book press with groove burner.
Manufactured by Schmedt, Germany.
Technical data:
max format: 400x 520x 100 mm
Weight 250 kg
Prsdpfx Agewud Tkozof
Power supply 380 V + compressed air.
Listing
Άγιος Ιωάννης Ρέντης
9,620 km

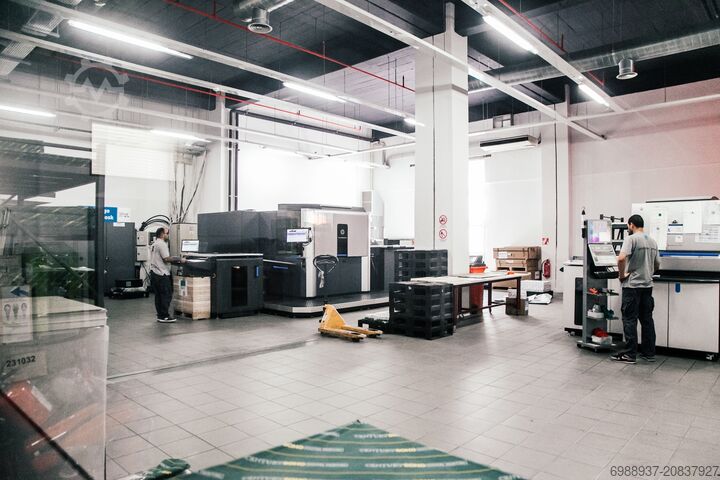

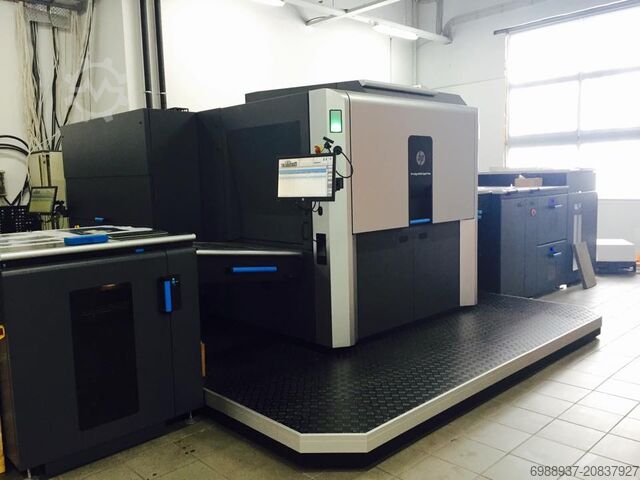

Digital print machine
HP IndigoHP Indigo 10000 Digital Press
Call
Condition: used, Year of construction: 2014, functionality: fully functional, machine/vehicle number: 50000257, number of ink cartridges: 5, color channels: 6, number of print heads: 6, resolution (max.): 812 dpi, paper weight (min.): 70 g/m², paper weight (max.): 400 g/m², paper width (min.): 510 mm, paper width (max.): 750 mm, paper height (min.): 297 mm, paper height (max.): 530 mm, number of feeding trays: 2, total length: 8,000 mm, total width: 4,700 mm, total height: 2,400 mm, counter reading (black): 1,200,000, counter reading (color): 27,300,000, type of input current: three-phase, input current: 80 A, input voltage: 400 V, Equipment: auto duplex, We offer this used HP Indigo HP Indigo 10000 Digital Press digital print machine, year of construction 2014.

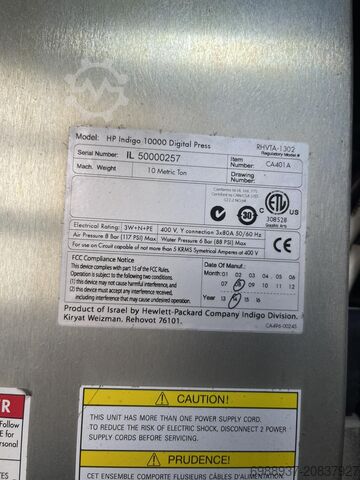

Serial Number: IL 50000257
Machine Weight: 10 Metric Ton
Regulatory Model Number: RHVTA-1302
Item Number: CA401A
Drawing Number:
Electrical Phases: 3W+N+PE
Voltage: 400 V
Connection Type: Y
Current per Phase: 80 A
Pjdpfx Aex N Svijgzjrf
Frequency: 50/60 Hz
Air Pressure: 8 bar
Air Pressure: 117 psi
Water Pressure: 6 bar
Water Pressure: 88 psi
Maximum Symmetrical RMS Current: 5 kA
Manufacture Date: 08/2014
Country of Manufacture: Israel
If you have any questions or need more information, feel free to send us a message or give us a call.
Listing
Turkey
9,663 km
H TYPE 600 TONS ECCENTRIC PRESS MACHINE
CRONOSSTECHCEHP 600
Call
Condition: new, Year of construction: 2025, table width: 1,200 mm, table length: 2,200 mm, pressing force: 600 t, warranty duration: 24 months, stroke length: 200 mm, Equipment: safety light barrier, Eccentric presses are a type of mechanical press driven by force generated via an eccentric mechanism, and are commonly used for cold forming operations such as punching, cutting, and forming. H type (straight-side) eccentric presses provide high stability and process safety in applications requiring large die tables and heavy-duty tooling, thanks to their rigid frame design.
Prodpfxjx N R A Uo Agzsf
The CRONOSSTECH CEHP 600 – H Type Eccentric Press 600 Ton is engineered for stable operation in high-volume production, prioritizing die protection and operator safety. With its monoblock frame, 8-point guided ram system, hydraulic overload protection, and automatic lubrication infrastructure, it ensures reliable performance under continuous production conditions.
Key Advantages
- Stable operation with large dies thanks to a 2200×1200 mm table size
- Die/tooling protection provided by hydraulic overload protection system
- Precise guidance with 8-point ram and balancer piston
- Controlled and user-friendly operation with PLC and touchscreen interface
- High operator safety via light curtain protection system
Application Areas
- Punching/cutting/forming applications requiring large tables
- Mass production with automated feed lines
- Heavy die and high tonnage production processes
✅ STANDARD FEATURES
• Steel construction frame
• Pneumatic clutch and brake
• Additional T-slotted plate
• 8-point guided ram
• Adjustable stroke on single connecting rod
• Balancer piston on the ram
• Fully automatic fine lubrication system
• PLC control system
• Piano-type control panel
• Touchscreen LCD display
• Motorized reverse operation
• Hydraulic overload protection
• Motorized ram adjustment mechanism
• Light curtain (photoelectric safety guard)
• Enclosed oil reservoir with gear unit
• Double-coil safety valve
• CE conformity
✅ OPTIONAL FEATURES
• Press feeding systems
• Scrap discharge systems
• Sliding safety cover at table front
• Custom-specification dies
✅ TECHNICAL SPECIFICATIONS (CEHP 600)
Capacity: 600 Ton
Table–Ram Distance: 500 mm
Housing Width: 2350 mm
Ram Adjustment: 120 mm
Press Width: 3100 mm
Press Depth: 3500 mm
Press Height: 5200 mm
Table Size: 2200×1200 mm
Ram Face Size: 2200×1200 mm
Stroke (fixed): 200 mm
Motor Power: 90 kW
Weight: 77,000 kg
✅ PRODUCTION / PROCUREMENT NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
Listing
Hessisch Lichtenau
7,826 km
Pneumatic single-column press, compressed air press, pneumatic punching machine, pneumatic press
RECTUS - FRIEDMANN & MAIERK3000 / 50 / 6A
Call
Condition: used, Pneumatic C-frame press RECTUS - FRIEDMANN & MAIER Type K3000 / 50 / 6A
Pneumatic press
Serial No. 3437 Year approx. 1990
Pressing force 3.0 tons at 6 bar
Pressing force 2.6 tons at 5 bar
Pressing force 2.2 tons at 4 bar
Pressing force 1.6 tons at 3 bar
Pressing force 1.0 tons at 2 bar
Throat depth 150 mm
Power stroke 6 mm
Approach stroke 50 mm
Total stroke 56 mm
Ram surface Ø 100 mm
Tool holder Ø 12 mm
Maximum installation height 180 mm
Table size 200 x 200 mm
Compressed air requirement max. 6 bar
Prodow A Srwspfx Agzof
- Pneumatic power cylinder with mechanical force amplifier (wedge-lever principle)
- Press cylinder height-adjustable on column via threaded spindle (50 mm)
- Without pneumatic control system
- Throttle valve for stroke speed adjustment
Space requirement (L x W x H) 440 x 230 x 750 mm
Weight 127 kg
Good condition
Listing
Laakirchen
8,278 km
Briquette press BP-35F Holzprofi demonstration machine
HolzprofiBP-35F
Call
Condition: as good as new (ex-display), Demonstration machine
The new briquetting press 35F from Holzprofi impresses with its
sophisticated, simple and solid construction.
The press is designed for trade and industry.
Made in EU!
Technical data:
Total motor output 6.0 kW (5.1 kW S1)
Briquette diameter 50 mm
Power consumption approx. 2200 W/h
Capacity 25 - 40 kg/hr
Chip bunker 0.33 m³
Weight 400 kg
Weight of briquettes approx. 900 kg/m³
Sound pressure level less than 70 dB
Dimensions: 1860 x 890 x 1100 mm
Podpfovrvp Hsx Agzjrf
Special equipment as standard:
Automatic change of direction of rotation of the shaft
Automatic switch-off
Symbolic photo!
Prices subject to change, errors, printing and typesetting errors reserved
Listing
Bargły
8,377 km
Platen die cutter (platen die-cutting machine, platen press).
SIMPLACUTTER VA (CAUHE)SIMPLACUTTER VA – 1860x1440
Call
Condition: excellent (used), functionality: fully functional, SIMPLACUTTER VA (CAUHE) – 1860x1440
Machine with low usage, in very good condition
Pedpfx Asx I Acqsgzerf
Equipment:
– Pneumatic clutch and brake
– Control console
– 3 operating modes: single, continuous, time-delay on opening
– Centralized lubrication
– Additional safety guards
– Working tools
– Hardened pressure plate
Listing
Borken
7,623 km
TOX-C-frame press press-in machine
TOX PressotechnikEMB 030.068.A.001
Call
Condition: excellent (used), Here we offer you a TOX press-in machine TOX-C-frame press.
TOX Pressotechnik Press-in machine TOX-C-frame press
Pneumohydraulic manual workstation with process monitoring for pressing in functional elements.
Technical data:
Press type EMB 030.068.Α.001
Drive KWE3O.0O.17O.10H
Pneumatic connection G3/4''
Compressed air preparation filtered and dried compressed air max. particle size 40 µm
Air pressure working process Pmin. = 3,0 bar Рmах. = 6,0 bar
Pressing force 170 kN
Total stroke / scraper stroke 170 mm/ 10 mm
Control STE 326-366-3/4"-90-230٧/АС special cpl.
Electrical connection 90-230V/AC
Ambient temperature operation Тmiп. = 10°C Tmax. = 60°C
Tox press-in monitoring EPW 500FP Force / displacement measurement
Holding-up device ZHE for Tox press
Insertion dimensions: Width 1917.5 mm Height 2506 mm Depth 1917.5 mm
Protective grid circuit Leuze B20/B21 Light curtain
Press-in tool see (pictures 15 to 18)
Press-in sleeve (Fig. 17) 24.5 ∅ mm
Podpfshhil Tex Agzsrf
Range of application, use Press-fit
Weight: 2200 kg
Type: EMB 030.068.A.001
Condition: used / used
Scope of delivery: (See picture)
(Changes and errors in the technical data, data are reserved!)
Further questions we can answer on the phone for you.
Listing
Norderstedt
7,681 km
Digital printing machine
FujifilmRevoria Press SC285S
Call
Condition: new, Year of construction: 2025, Equipment: auto duplex, Demo System Revoria Press SC285S
Low usage, as it was only used for demonstrations.
Meter reading available upon request.
Configuration can be customized as required.
Pictured configuration:
Psdpfx Agoxgqvmjzjrf
SC285S with Fiery SC21
Pink Toner Enabling Kit
Air Suction Feeder C1-DSXL
Banner Unit for Air Suction Feeder C1-DSXL
Post Card Kit for Air Suction Feeder
Envelope Kit for Air Suction Feeder
Interface Decurler Module D1
Static Eliminator D1
Charge Corotron Assembly for Static Eliminator
Smart Monitoring Gate D1
Finisher D6 with Booklet Maker
Banner Print Extension Kit Extra
Sale/Rental exclusively within Germany!
Price on request!
Unfortunately, we regret to inform you that we do not process sales outside of Germany. We kindly ask for your understanding and request that you refrain from making further inquiries regarding this matter.
Listing
Turkey
9,663 km
H-type 500 ton eccentric press machine
CRONOSSTECHCEHP 500
Call
Condition: new, Year of construction: 2025, table width: 1,200 mm, table length: 2,200 mm, pressing force: 500 t, warranty duration: 24 months, stroke length: 200 mm, Equipment: safety light barrier, An eccentric press is a type of mechanical press that operates with a force generated through an eccentric mechanism and is used in cold forming operations such as punching, cutting, and forming with dies. H type (straight-side) eccentric presses provide high stability and process safety for large bed and heavy die applications, thanks to their rigid frame constructions.
The CRONOSSTECH CEHP 500 – H Type Eccentric Press 500 Ton is designed for stable operation, die protection, and operator safety in high-volume production. Featuring a monoblock frame, 8-guide ram system, hydraulic overload safety device, and automatic lubrication infrastructure, it delivers reliable performance suitable for continuous production conditions.
Key Advantages
- Stable operation with large dies thanks to a 2200×1200 mm table size
- Die/equipment protection with hydraulic overload safety device
- Precise guidance with 8-guided ram and balancer piston
Prjdpfex N R Ahjx Agzef
- Controlled, user-friendly operation with PLC & touchscreen interface
- High operator safety with light curtain protection
Areas of Use
- Punching/cutting/forming applications that require a large table
- Serial production with automated feeding lines
- Heavy die and high-tonnage production processes
✅ STANDARD FEATURES
• Steel construction frame
• Pneumatic clutch-brake
• T-slotted additional sub-plate
• 8-guide ram
• Adjustable stroke on single connecting rod
• Balancer piston on ram
• Fully automatic thin oil lubrication system
• PLC control system
• Piano-type control panel
• Touchscreen LCD display
• Motorized reverse movement
• Hydraulic overload safety device
• Motorized ram adjustment system
• Light curtain safety guard
• Enclosed gear group in oil sump
• Dual-coil safety valve
• CE conformity
✅ OPTIONAL FEATURES
• Press feeding systems
• Scrap ejection systems
• Sliding safety guard in front of the table
• Custom die specifications as required
✅ TECHNICAL SPECIFICATIONS (CEHP 500)
Capacity: 500 Tons
Table-Ram Distance: 500 mm
Housing Width: 2330 mm
Ram Adjustment: 120 mm
Press Width: 2900 mm
Press Depth: 3350 mm
Press Height: 5000 mm
Table Size: 2200×1200 mm
Ram Face Size: 2200×1200 mm
Stroke (Fixed): 200 mm
Motor Power: 75 kW
Weight: 68,000 kg
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
Listing
Taufkirchen
8,145 km
Digital printing machine
CanonImage Press C710
Call
Condition: used, Year of construction: 2019, functionality: fully functional, resolution (max.): 2,400 dpi, paper weight (min.): 52 g/m², paper weight (max.): 350 g/m², counter reading (black): 14,185, counter reading (color): 274,915, Machine is in perfect condition, maintained exclusively by the official Canon representative. Installed in 2019. Only 290,000 prints! Reason for sale: replacement with a newer model.
Print speed:
• B/W: 70 A4 pages per minute (35 A3)
• Colour: 70 A4 pages per minute (35 A3)
Resolution: Up to 2400 x 2400 dpi
Paper weight: 52 to 350 g/m²
Psdpfx Agjx Edgcszsrf
Paper types: Thin, plain, heavy, recycled, coloured, pre-punched, bond, transparency, labels, tabs, coated, textured, vellum
Maximum monthly duty cycle: 350,000
Configuration:
• Multi-Drawer Paper Deck-C1 (largest blower feeder)
• EFI imagePRESS Server G250
• Staple Finisher-AC1
Listing
Turkey
9,663 km
H-type 250 ton eccentric press machine
CRONOSSTECHCEHP 250
Call
Condition: new, Year of construction: 2025, table width: 1,100 mm, table length: 2,000 mm, pressing force: 250 t, warranty duration: 24 months, stroke length: 200 mm, Equipment: safety light barrier, An eccentric press is a type of mechanical press powered by an eccentric mechanism, used for cold forming operations such as punching, cutting, and die forming. H-type (straight-side) eccentric presses provide high stability and process reliability in large table and heavy die applications thanks to their rigid body structures.
The CRONOSSTECH CEHP 250 – H Type Eccentric Press 250 Ton is designed for stable operation, die protection, and operator safety in high-volume production. With its monoblock body, 8-point guided ram system, hydraulic overload protection, and automatic lubrication infrastructure, it delivers reliable performance suitable for continuous production conditions.
Key Advantages:
- Stable operation with large dies thanks to a 2000×1100 mm table size
- Die/equipment protection with hydraulic overload protection
- Precise guidance with 8-point guided ram + counterbalance piston
- Controlled and user-friendly operation via PLC + touchscreen interface
- High operator safety with photoelectric safety curtain
Applications:
- Punching/cutting/forming operations requiring a large table
- Series production with automated feeding lines
- Heavy die and high-tonnage production processes
Prjdpfsx N Rwrsx Agzjf
✅ STANDARD FEATURES
• Steel construction body
• Pneumatic clutch brake
• Additional T-slotted bolster plate
• 8-point guided ram
• Adjustable stroke on single connecting rod
• Counterbalance piston on ram
• Fully automatic fine lubrication system
• PLC control system
• Piano-type control panel
• Touch LCD display
• Motor reverse operation
• Hydraulic overload protection
• Motorized ram adjustment mechanism
• Photoelectric safety curtain
• Sealed oil tank with gear set
• Double-coil safety valve
• Compliance with CE standards
✅ OPTIONAL FEATURES
• Press feeding systems
• Scrap material discharge systems
• Sliding safety cover in front of the table
• Custom-designed dies as requested
✅ TECHNICAL SPECIFICATIONS (CEHP 250)
Capacity: 250 Ton
Table–Ram Distance: 500 mm
Housing Width: 2130 mm
Ram Adjustment: 120 mm
Press Width: 2900 mm
Press Depth: 2650 mm
Press Height: 4600 mm
Table Dimension: 2000×1100 mm
Ram Face Size: 2000×1100 mm
Stroke (Fixed): 200 mm
Motor Power: 37 kW
Weight: 38,000 kg
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
H-type 150-ton eccentric press machine
CRONOSSTECHCEHP 150
Call
Condition: new, Year of construction: 2025, table width: 900 mm, table length: 1,800 mm, pressing force: 150 t, warranty duration: 24 months, stroke length: 200 mm, Equipment: safety light barrier, The eccentric press is a type of mechanical press, powered by a force generated via an eccentric mechanism, used in cold forming operations such as punching, cutting, and die forming. H-type (straight-side) eccentric presses, thanks to their rigid frames, provide high stability and process security, especially in applications requiring large tables and heavy dies.
The CRONOSSTECH H-Type Eccentric Press 150 Ton is designed with a focus on stable operation in high-volume production, die protection, and operator safety. The monoblock frame, 8-way guided slide system, hydraulic overload safety, and automatic lubrication infrastructure ensure reliable performance suitable for continuous production conditions.
Key Advantages
- Stable operation with large table dimensions for oversized dies
- Die/equipment protection with hydraulic overload safety
- Precise guidance via 8-way slide + counterbalance piston
- Controlled, user-friendly operation via PLC and touch screen
- High operator safety with light curtain protection system
Areas of Application
- Punching/cutting/forming processes requiring large tables
Prjdpfxex N Ru Dj Agzjf
- Serial production with automatic feeding lines
- Heavy die and high tonnage production processes
✅ STANDARD FEATURES
• Steel construction frame
• Pneumatic clutch-brake
• Additional T-slotted bolster plate
• 8-way guided slide
• Adjustable stroke on single connecting rod
• Counterbalance piston on slide
• Full automatic fine lubrication system
• PLC control system
• Piano-type control panel
• Touch LCD screen
• Motor reverse function
• Hydraulic overload safety
• Motorized slide adjustment mechanism
• Light curtain protection system
• Enclosed oil gear unit
• Dual-coil safety valve
• CE conformity
✅ OPTIONAL FEATURES
• Press feeding systems
• Scrap removal systems
• Sliding safety cover in front of the table
• Dies custom-built to specifications
✅ TECHNICAL SPECIFICATIONS (H-TYPE – 150 TON)
Capacity: 150 Ton
Usable area of lower table: 900×1800 mm
Usable area of upper table: 900×1800 mm
Stroke: 200 mm (fixed)
Nominal material thickness: 7 mm
Speed (SPM): 60
Max. closed die height: 500 mm
Min. closed die height: 380 mm
Adjustment (slide): 120 mm
Number of connecting rods: 2
Number of eccentric (crank) shafts: 2
Safety system: Hydraulic
Electrical components (control panel): Siemens – Schneider
Lubrication system: Automatic
Screen / PLC / Inverter: Siemens – Pilz
Safety barrier: Leuze
Operation mode: 4-position
Die memory: 99 sets
Mounting: Floor standing
Frame type: Monoblock
Motor power: 22 kW
Motor speed (RPM): 1450
Approximate machine dimensions (L×W×D): 4500×3000×2000 mm
Approximate weight: 20 Ton
Note: Please contact us if you require changes to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured in Turkey by CRONOSSTECH. Sales, commissioning, and after-sales services are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
H-type 200 ton eccentric press machine
CRONOSSTECHCEHP 200
Call
Condition: new, Year of construction: 2025, table width: 1,000 mm, table length: 2,000 mm, pressing force: 200 t, warranty duration: 24 months, stroke length: 200 mm, Equipment: safety light barrier, Eccentric presses are mechanical press types operated by force generated through an eccentric mechanism, used for cold forming operations such as punching, cutting, and stamping. H-type (straight-side) eccentric presses provide high stability and process safety for large table and heavy die applications, thanks to their rigid frame construction.
CRONOSSTECH CEHP 200 – H-Type Eccentric Press 200 Ton is designed for stable operation in high-volume production, focusing on die protection and operator safety. Featuring a monoblock frame, 8-guided ram system, hydraulic overload safety, and automatic lubrication infrastructure, it delivers reliable performance suitable for continuous production conditions.
Key Advantages
- Stable operation with large dies thanks to a 1000×2000 mm large table
- Die/equipment protection with hydraulic overload safety
- Controlled and user-friendly operation via PLC + touchscreen
- High operator safety with light curtain protection (LEUZE)
- Fast production change-over with 99 die memory settings
Areas of Application
- Punching/cutting/forming applications requiring a large table
- Serial production with automated feeding lines
- Heavy-duty dies and high-tonnage production processes
✅ STANDARD FEATURES
• Steel construction frame
• Pneumatic clutch–brake
• Additional bolted T-slotted plate
• 8-guided ram
• Adjustable stroke on single connecting rod
• Balancer piston on ram
• Fully automatic fine lubrication system
• PLC control system
• Piano-type control panel
• Touchscreen LCD display
• Motor reverse motion
• Hydraulic overload safety device
• Motorized ram adjustment mechanism
• Light curtain protection
• Enclosed oil reservoir with gear set
• Double-coil safety valve
• Compliance with CE standards
✅ OPTIONAL FEATURES
• Press feeding systems
• Scrap material discharge systems
• Sliding safety door at table front
• Dies with custom specifications
✅ TECHNICAL SPECIFICATIONS (CEHP 200 – 200 TON)
Capacity: 200 Ton (CEHP 200)
Lower table usable area: 1000×2000 mm
Upper table usable area: 1000×2000 mm
Stroke length (fixed): 200 mm
Nominal material thickness: 7 mm
Strokes per minute (SPM): 25–45
Max. shut height: 600 mm
Min. shut height: 480 mm
Side window dimensions: 600×600 mm
Adjustment (ram adjustment): 120 mm
Number of connecting rods: 2 pcs
Number of eccentric shafts (cranks): 2 pcs
Safety device: Hydraulic
Switchgear brands: Siemens – Schneider
Lubrication system: Automatic
Display / PLC / Inverter: Siemens – Pilz
Safety barrier: Leuze
Operation mode: 4-position
Die memory: 99 settings
Mounting type: Floor standing
Prsdpfex N Ruqsx Agzef
Body type: Monoblock
Motor power: 22 kW (IE3)
Motor speed (RPM): 1450
Approx. machine dimensions (L×W×D): 4600×3000×2000 mm
Approximate weight: 28,000 kg
Note: Please let us know if you require changes to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and aftersales processes are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C Type 300 Ton Eccentric Press Machine
CRONOSSTECHCECP 300
Call
Condition: new, Year of construction: 2025, throat depth: 370 mm, table width: 700 mm, table length: 1,200 mm, stroke adjustment: 150 mm, pressing force: 300 t, stroke length: 200 mm, power: 30 kW (40.79 HP), Equipment: documentation/manual, safety light barrier, An eccentric press is a type of mechanical press used in cold forming operations such as punching, cutting, and die forming, utilizing force generated through an eccentric mechanism. Thanks to its high production speed and repeatability, it is an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 300 Ton is designed for stable operation in cold forming applications. Its rigid steel construction frame, pneumatic clutch-brake system, and CE-compliant safety infrastructure provide reliable performance suitable for series production.
Key advantages
Stable stroke performance and high repeatability in mass production
Operator safety-focused design (light curtain + safety systems)
Low maintenance requirement with centralized automatic lubrication
Production-ready operation with PLC control + two-hand/foot pedal control
Areas of application
Cold cutting and punching operations
Cold forming applications
Metal die forming
High-volume production lines
✅ STANDARD FEATURES
• Steel construction frame
Pedpfox N Nfhox Agzjrf
• Four-way guided slide system
• Spheroidal graphite cast iron connecting rod and gear seats
• Crankshaft and drive shafts made of 4140 tempered steel
• Centralized, fully automatic grease lubrication system
• Pneumatic clutch and brake combination
• CE safety directives compliant
• Dual-coil safety valve
• Manually adjustable stroke
• Ray barrier finger–hand protection safety system
• PLC control system
• Dual hand/foot pedal control system
• Mechanical safety system
• Emergency reverse motor function
• Compliant with occupational safety regulations
• CE standards compliant
✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD display (standard for 150–300 ton)
• Hydraulic safety system (standard for 200–300 ton)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One set of dies manufactured to required specifications
• Eight-way guided slide system
✅ TECHNICAL SPECIFICATIONS (300 TON)
Capacity: 300 Ton
Throat depth: 370 mm
Distance table–ram: 530 mm
Slide–table distance: 650 mm
Distance between uprights: 470 mm
Ram adjustment (stroke setting): 150 mm
Approximate press width: 2000 mm
Approximate press depth: 2700 mm
Approximate press height: 3200 mm
Front anchoring dimension: 940 mm
Side anchoring dimension: 1440 mm
Table bore diameter: Ø260 mm
Table size: 700×1200 mm
Die mounting hole diameter: Ø60 mm
Ram size: 780×400 mm
Table height from floor: 810 mm
Stroke adjustment: 20–200 mm
Strokes per minute: 38 SPM
Motor power: 30 + 2.2 kW
Motor speed: 1450 rpm
Approximate weight: 13,200 kg
Note: Please inform us if you require changes to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C Type 250 Ton Eccentric Press Machine
CRONOSSTECHCECP 250
Call
Condition: new, Year of construction: 2025, throat depth: 350 mm, table width: 700 mm, table length: 1,100 mm, stroke adjustment: 150 mm, pressing force: 250 t, stroke length: 160 mm, power: 22 kW (29.91 HP), Equipment: documentation/manual, safety light barrier, An eccentric press is a type of mechanical press powered by force generated through an eccentric mechanism, used for cold forming operations such as punching, cutting, and die forming. Its high production speed and repeatability make it an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 250 Ton is engineered for stable operation in cold forming applications. Its rigid steel frame, pneumatic clutch–brake system, and CE-compliant safety infrastructure deliver reliable performance suited for serial production.
Key Advantages:
- Stable stroke performance and high repeatability for mass production
- Operator safety-focused design (light curtain + safety systems)
- Low maintenance requirement with centralized automatic lubrication
- Production-ready use with PLC control and dual hand/foot operation
Applications:
- Cold cutting and punching operations
- Cold forging applications
- Metal die forming
- High-volume production lines
✅ STANDARD FEATURES
• Steel structure frame
• Four-sided guided slideways
• Spheroidal cast iron connecting rod and gear seats
• Crankshaft and driven shafts made of 4140 quenched and tempered steel
• Central fully automatic grease lubrication system
• Pneumatic clutch and brake combination
• Compliant with CE safety directives
• Dual solenoid safety valve
• Manually adjustable stroke
• Light curtain finger-hand protection safety system
• PLC control system
• Dual hand/foot control system
• Mechanical safety system
• Emergency reverse motor operation
• Compliant with occupational safety regulations
• In accordance with CE standards
✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD display (standard for 150–300 ton models)
• Hydraulic safety system (standard for 200–300 ton models)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One set of die configured to your specifications
• Eight-sided slide guidance
✅ TECHNICAL SPECIFICATIONS (250 TON)
Capacity: 250 Ton
Throat depth: 350 mm
Predpfex N Nfbex Agzsf
Table–ram distance: 520 mm
Ram–table clearance: 630 mm
Distance between side frames: 520 mm
Ram adjustment (regulation): 150 mm
Approximate press width: 2000 mm
Approximate press depth: 2500 mm
Approximate press height: 3100 mm
Front anchorage dimension: 930 mm
Side anchorage dimension: 1430 mm
Table bore diameter: Ø250 mm
Table size: 700×1100 mm
Die mounting hole diameter: Ø60 mm
Ram size: 670×380 mm
Table height from floor: 810 mm
Stroke adjustment: 20–160 mm
Strokes per minute: 40 spm
Motor power: 22 + 2.2 kW
Motor speed: 1450 rpm
Approximate weight: 12,000 kg
Note: If you require changes to the technical specifications, please inform us.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured in Turkey by CRONOSSTECH. Sales, commissioning, and after-sales support are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C-Type 35 Ton Eccentric Press Machine
CRONOSSTECHCECP 35
Call
Condition: new, Year of construction: 2025, table width: 400 mm, table length: 600 mm, stroke adjustment: 45 mm, overall weight: 1,500 kg, pressing force: 35 t, stroke length: 70 mm, power: 3 kW (4.08 HP), punching force: 35 t, warranty duration: 24 months, Equipment: safety light barrier, An eccentric press is a type of mechanical press powered by force generated via an eccentric mechanism, used for cold forming operations such as punching, cutting, and die forming. Thanks to its high production speed and repeatability, it offers an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 35 Ton is designed for stable performance in cold forming applications. Its rigid steel frame, pneumatic clutch-brake system, and CE-compliant safety infrastructure provide reliable performance suitable for serial production.
Key Advantages
- Consistent stroke performance and high repeatability in mass production
- Operator safety-focused design (light curtain + safety systems)
- Low maintenance requirement thanks to centralized automatic lubrication
- Production-ready operation with PLC control and dual-hand/foot pedal controls
Applications
- Cold cutting and punching operations
- Cold cropping applications
- Metal die forming
- High-volume production lines
✅ STANDARD FEATURES
• Steel construction frame
• Four-sided guideways
• Spheroidal cast iron connecting rods and gear bearings
• Crankshaft and transmission shafts made from 4140 tempered steel
• Fully automatic central grease lubrication system
• Pneumatic clutch and brake combination
• Conforms to CE safety directives
• Dual-coil safety valve
• Manually adjustable stroke
• Light curtain finger–hand safety system
• PLC control system
• Dual-hand/foot pedal control system
• Mechanical safety lock system
• Emergency reverse motor operation
• Compliant with occupational safety regulations
• CE compliant
✅ OPTIONAL FEATURES
• Anti-vibration mounts
Pedpfex N Nd Rsx Agzorf
• Touchscreen LCD (standard for 150–300 ton)
• Hydraulic safety system (standard for 200–300 ton)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One set of dies tailored to your specifications
• 8-sided slide guide
✅ TECHNICAL SPECIFICATIONS (35 TON)
Capacity: 35 Ton
Usable bolster size: 400×600 mm
Stroke length: 0–70 mm
Nominal material thickness: 2.5 mm
SPM (strokes per minute): 120
Bolster–ram distance: 330 mm
Adjustment (ram adjustment): 45 mm
Bolster hole diameter: Ø130 mm
Ram die shank diameter: Ø35 mm
Safety lock: Mechanical safety lock
Lubrication system: Automatic lubrication
PLC: Included
Safety barrier: Included
Operation system: Pneumatic clutch–brake system
Mounting type: Floor-standing
Frame type: C-type steel construction
Motor power: 3 kW
Motor speed (RPM): 1450
Approximate machine dimensions (L×W×H): 1100×1400×1800 mm
Approximate weight: 1500 kg
Note: Please contact us for any modifications required in technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales services are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C-type 200 ton eccentric press machine
CRONOSSTECHCECP 200
Call
Condition: new, Year of construction: 2025, drop-through hole in table: 220 mm, table width: 800 mm, table length: 1,100 mm, stroke adjustment: 180 mm, pressing force: 200 t, ram bore: 60 mm, power: 15 kW (20.39 HP), punching force: 200 t, warranty duration: 24 months, Equipment: safety light barrier, An eccentric press is a type of mechanical press that operates by force generated through an eccentric mechanism in cold forming operations such as punching, cutting, and die forming. Thanks to its high production speed and repeatability, it offers an efficient and reliable solution for mass production lines.
Psdsvtyx Ispfx Agzorf
The CRONOSSTECH C-Type 200 Ton Eccentric Press is engineered for stable operation in cold forming applications. Its rigid steel frame construction, pneumatic clutch-brake system, and CE-compliant safety infrastructure ensure reliable performance suitable for high-volume production.
Key Advantages:
- Consistent stroke performance and high repeatability in mass production
- Operator-focused safety design (light curtain + safety systems)
- Low maintenance requirement with central automatic lubrication
- Production-ready operation with PLC control + dual-hand/foot control
Application Areas:
- Cold cutting and punching operations
- Cold shearing applications
- Metal forming with dies
- High-volume production lines
✅ STANDARD FEATURES
• Steel frame construction
• Four-way guided slide
• Spheroidal cast iron connecting rod and gear bearings
• Crankshaft and drive shafts made of 4140 tempered steel
• Central fully automatic grease lubrication system
• Pneumatic clutch and brake combination
• CE safety directives compliant
• Dual-coil safety valve
• Manually adjustable stroke
• Light curtain finger–hand protection safety system
• PLC control system
• Dual-hand/foot control system
• Mechanical safety system
• Emergency reverse motor operation
• Complies with occupational safety regulations
• CE standards compliant
✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD control panel (standard on 150–300 ton models)
• Hydraulic safety system (standard on 200–300 ton models)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One die set in requested specifications
• Eight-sided slide guidance
✅ TECHNICAL SPECIFICATIONS (200 TON)
Capacity: 200 Tons
Throat depth: 340 mm
Distance between table and slide: 500 mm
Distance between slide and table: 600 mm
Width between uprights: 510 mm
Slide adjustment (shut height adjustment): 130 mm
Approx. press width: 1900 mm
Approx. press depth: 2400 mm
Approx. press height: 3000 mm
Front anchoring dimension: 920 mm
Side anchoring dimension: 1420 mm
Table hole diameter: Ø240 mm
Table dimensions: 680×1000 mm
Die clamping hole diameter: Ø60 mm
Slide dimensions: 620×350 mm
Table height from floor: 805 mm
Stroke adjustment: 20–140 mm
Strokes per minute: 50 spm
Motor power: 18.5 + 0.75 kW
Motor speed: 1450 rpm
Approximate weight: 9200 kg
Note: Please inform us if you require changes to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE:
This machine is manufactured in Turkey by CRONOSSTECH. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C type 100 ton eccentric press machine
CRONOSSTECHCECP 100
Call
Condition: new, Year of construction: 2025, pressing force: 100 t, table width: 670 mm, table length: 950 mm, drop-through hole in table: 180 mm, power: 7.5 kW (10.20 HP), punching force: 100 t, ram bore: 45 mm, stroke adjustment: 120 mm, warranty duration: 24 months, Equipment: safety light barrier, An eccentric press is a type of mechanical press powered by an eccentric mechanism, designed for cold forming operations such as punching, cutting, and die forming. Thanks to its high production speed and repeatability, it provides an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 100 Ton is engineered for stable operation in cold forming applications. Its rigid steel construction, pneumatic clutch-brake system, and CE-compliant safety infrastructure deliver dependable performance suitable for serial production.
Key Advantages
- Stable stroke performance and high repeatability in mass production
- Operator safety-focused design (light barrier + safety systems)
- Low maintenance requirement with centralized automatic lubrication
- Production-ready operation with PLC control + dual-hand/foot pedal control
Application Areas
- Cold cutting and punching operations
- Cold forging applications
- Metal die forming
- High-volume production lines
✅ STANDARD FEATURES
• Steel construction frame
• 4-sided slide guiding
• Spheroidal cast iron connecting rod and gear housings
• Crankshaft and transmission shafts made of 4140 tempered steel
• Centralized fully automatic grease lubrication
• Pneumatic clutch and brake combination
Predpfx Ajvtx Injgzjf
• CE safety compliant
• Dual-coil safety valve
• Manually adjustable stroke
• Light barrier hand and finger safety protection system
• PLC control system
• Dual-hand/foot pedal control system
• Mechanical safety system
• Emergency reverse motor operation
• Compliant with occupational safety regulations
• CE standards compliant
✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD panel (standard for 150–300 ton)
• Hydraulic safety system (standard for 200–300 ton)
• Spare table
• Uncoiler, feeder, and straightener
• One set of custom die as requested
• 8-sided slide guiding
✅ TECHNICAL SPECIFICATIONS (100 TON)
Capacity: 100 Ton
Throat depth: 300 mm
Bolster–ram distance: 400 mm
Slide–table distance: 465 mm
Distance between side frames: 420 mm
Ram adjustment (stroke setting): 85 mm
Approx. press width: 1400 mm
Approx. press depth: 1900 mm
Approx. press height: 2450 mm
Front anchoring dimension: 710 mm
Side anchoring dimension: 1135 mm
Bolster hole diameter: Ø200 mm
Bolster size: 600×780 mm
Die mounting slot diameter: Ø50 mm
Ram size: 405×240 mm
Table height from floor: 775 mm
Stroke adjustment: 10–110 mm
Strokes per minute: 50 spm
Motor power: 11 kW
Motor speed: 1450 rpm
Approximate weight: 4650 kg
Note: Please inform us if you require changes to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are handled directly by CRONOSSTECH.
Trust Seal
Dealers certified through Machineseeker

Listing
Turkey
9,663 km
C Type 80 Ton Eccentric Press Machine
CRONOSSTECHCECP 80
Call
Condition: new, Year of construction: 2025, drop-through hole in table: 180 mm, table width: 660 mm, table length: 860 mm, stroke adjustment: 110 mm, pressing force: 80 t, power: 5.5 kW (7.48 HP), punching force: 80 t, warranty duration: 24 months, Equipment: safety light barrier, An eccentric press is a type of mechanical press that operates via a force generated by an eccentric mechanism and is used in cold forming operations such as punching, cutting, and die forming. Thanks to its high production speed and repeatability, it is an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 80 Ton is engineered for stable operation in cold forming applications. Its rigid steel frame, pneumatic clutch-brake system, and CE-compliant safety infrastructure ensure reliable performance suitable for mass production.
Key Advantages:
- Stable stroke performance and high repeatability in serial production
- Operator safety-focused design (light curtain + safety systems)
- Low maintenance requirement with centralized automatic lubrication
- Production-ready operation with PLC control + dual-hand/foot control
Typical Applications:
- Cold shearing and punching operations
- Cold forging applications
- Metal die forming
Podpfx Agovtx H Rjzorf
- High-volume production lines
✅ STANDARD FEATURES
• Steel construction frame
• Four-sided guided slide
• Spheroidal graphite cast iron connecting rod and gear bushings
• Crankshaft and transmission shafts made of 4140 tempered steel
• Centralized, fully automatic grease lubrication system
• Pneumatic clutch and brake combination
• Compliant with CE safety directives
• Double-coil safety valve
• Manually adjustable stroke
• Finger–hand protection light curtain safety system
• PLC control system
• Dual-hand/foot control system
• Mechanical locking system
• Emergency reverse motor operation
• Occupational safety regulation compliant
• Conforms to CE standards
✅ OPTIONAL FEATURES
• Anti-vibration mounting pads
• Touchscreen LCD panel (standard between 150–300 tons)
• Hydraulic safety system (standard between 200–300 tons)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One die set to requested specifications
• Eight-way slide guides
✅ TECHNICAL SPECIFICATIONS (80 TON)
Capacity: 80 Ton
Throat depth: 280 mm
Bed–ram distance: 400 mm
Slide–table distance: 420 mm
Distance between side frames: 400 mm
Ram adjustment (slide adjustment): 85 mm
Approx. press width: 1400 mm
Approx. press depth: 1735 mm
Approx. press height: 2220 mm
Front anchor dimension: 670 mm
Side anchor dimension: 1040 mm
Table hole diameter: Ø190 mm
Table size: 540×740 mm
Die clamping hole diameter: Ø40 mm
Ram size: 370×230 mm
Bed height from floor: 755 mm
Stroke adjustment: 10–100 mm
Strokes per minute: 45–75 spm
Motor power: 7.5 kW
Motor speed: 1450 rpm
Approximate weight: 4000 kg
Note: Please inform us if you require modifications in the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. All sales, commissioning, and after-sales processes are directly managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C TYPE 60 TONS ECCENTRIC PRESS MACHINE
CRONOSSTECHCECP 60
Call
Condition: new, Year of construction: 2025, drop-through hole in table: 140 mm, table width: 590 mm, table length: 800 mm, stroke adjustment: 100 mm, pressing force: 60 t, ram bore: 40 mm, power: 5.5 kW (7.48 HP), punching force: 60 t, warranty duration: 24 months, Equipment: safety light barrier, An eccentric press is a type of mechanical press powered by force generated through an eccentric mechanism, used for cold forming operations such as punching, cutting, and die forming. Thanks to its high production speed and repeatability, it offers an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 60 Ton is engineered for stable operation in cold forming applications. Its rigid steel frame, pneumatic clutch-brake system, and CE-compliant safety infrastructure deliver reliable performance suitable for serial production.
Key advantages:
Pedovtx D Njpfx Agzerf
- Stable stroke performance and high repeatability in mass production
- Operator safety-focused design (light curtain + safety systems)
- Low maintenance requirement through centralized automatic lubrication
- Production-ready operation with PLC control + dual hand/foot control
Areas of application:
- Cold cutting and punching operations
- Cold blanking applications
- Metal die forming
- High volume production lines
✅ STANDARD FEATURES
• Steel frame construction
• Four-way guided slide
• Spheroidal cast connecting rod and gear housings
• Crankshaft and drive shafts in 4140 tempered steel
• Centralized fully automatic grease lubrication system
• Pneumatic clutch and brake combination
• CE safety directive compliant
• Dual coil safety valve
• Manually adjustable stroke
• Finger/hand protection safety system with light curtain
• PLC control system
• Dual hand/foot control system
• Mechanical locking system
• Emergency reverse motor function
• Conforms to occupational safety regulations
• Compatible with CE standards
✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touch screen LCD display (standard for 150–300 tons)
• Hydraulic locking system (standard for 200–300 tons)
• Spare bolster plate
• Decoiler, feeder and straightener
• One custom die set as requested
• 8-point slide guide
✅ TECHNICAL SPECIFICATIONS (60 TON)
Capacity: 60 Ton
Throat depth: 260 mm
Table-to-ram distance: 360 mm
Slide-to-table distance: 395 mm
Distance between uprights: 380 mm
Ram adjustment (stroke adjustment): 70 mm
Approx. press width: 1340 mm
Approx. press depth: 1450 mm
Approx. press height: 2200 mm
Front anchor dimension: 630 mm
Side anchor dimension: 875 mm
Table hole diameter: Ø150 mm
Table size: 520×720 mm
Die mounting slot diameter: Ø40 mm
Ram size: 340×220 mm
Table height from floor: 730 mm
Stroke adjustment: 0–95 mm
Strokes per minute: 50 spm
Motor power: 4 kW
Motor speed: 1450 rpm
Approx. weight: 2750 kg
Note: Please contact us if you need modifications to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are managed directly by CRONOSSTECH.
Listing
Turkey
9,663 km
C-type 25 ton eccentric press machine
CRONOSSTECHCECP 25
Call
Condition: new, Year of construction: 2025, throat depth: 175 mm, table width: 375 mm, table length: 570 mm, stroke adjustment: 60 mm, pressing force: 25 t, An eccentric press is a type of mechanical press driven by a force generated through an eccentric mechanism, used in cold forming operations such as punching, shearing, and die forming. Thanks to its high production speed and repeatability, it provides an efficient and reliable solution for mass production lines.
CRONOSSTECH C-Type Eccentric Press 25 Ton is designed for stable operation in cold forming applications. Its rigid steel frame, pneumatic clutch-brake system, and CE-compliant safety infrastructure deliver reliable performance suited for mass production.
Key advantages:
- Stable stroke performance and high repeatability in series production
- Operator safety-focused design (light curtain + safety systems)
- Low maintenance requirement with centralized automatic lubrication
- Production-ready usage with PLC control + dual hand/foot operation
Areas of use:
- Cold shearing and punching operations
- Cold blanking applications
- Metal die forming
- High-volume production lines
Pedpfjxg R Ucsx Agzerf
STANDARD FEATURES
• Steel fabricated body
• Four-sided guided ram
• Spheroidal cast iron connecting rod and gearboxes
• Crankshaft and transmission shafts made of 4140 normalized steel
• Centralized fully automatic grease lubrication system
• Pneumatic clutch and brake combination
• Compliant with CE safety directives
• Dual coil safety valve
• Manually adjustable stroke
• Light curtain finger–hand protection safety system
• PLC control system
• Dual hand/foot operation system
• Mechanical safety system
• Emergency reverse motor function
• Conforms to occupational safety regulations
• Meets CE standards
OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD panel (standard for 150–300 tons)
• Hydraulic safety system (standard for 200–300 tons)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One die set customized to requirements
• Eight-sided slide guidance
TECHNICAL SPECIFICATIONS (25 TON)
Capacity: 25 Ton
Throat depth: 175 mm
Bed-to-ram distance: 300 mm
Slide-to-table distance: 310 mm
Distance between uprights: 290 mm
Ram adjustment (stroke regulation): 50 mm
Approx. press width: 870 mm
Approx. press depth: 1380 mm
Approx. press height: 1870 mm
Front anchorage dimension: 490 mm
Side anchorage dimension: 670 mm
Table hole diameter: Ø145 mm
Table size: 375×570 mm
Die mounting slot diameter: Ø35 mm
Ram size: 260×170 mm
Floor to table height: 710 mm
Stroke adjustment: 10–60 mm
Strokes per minute: 120 spm
Motor power: 3 kW
Motor speed: 1000 rpm
Approx. weight: 1300 kg
Note: Please inform us if you require any modifications to the technical specifications.
PRODUCTION / SUPPLY NOTE
This machine is manufactured by CRONOSSTECH in Turkey. Sales, commissioning, and after-sales processes are managed by CRONOSSTECH.
Listing
Turkey
9,663 km
C TYPE 40 TON ECCENTRIC PRESS MACHINE
CRONOSSTECHCECP 40
Call
Condition: new, Year of construction: 2025, drop-through hole in table: 140 mm, table width: 440 mm, table length: 700 mm, stroke adjustment: 80 mm, pressing force: 40 t, ram bore: 35 mm, power: 4 kW (5.44 HP), punching force: 40 t, warranty duration: 24 months, Equipment: safety light barrier, An eccentric press is a type of mechanical press driven by force generated through an eccentric mechanism, used in cold forming operations such as punching, cutting, and die forming. With its high production speed and repeatability, it offers an efficient and reliable solution for mass production lines.
The CRONOSSTECH C-Type Eccentric Press 40 Ton is designed for stable operation in cold forming applications. Its rigid steel construction frame, pneumatic clutch-brake system, and CE-compliant safety infrastructure provide reliable performance suitable for series production.
Key Advantages:
- Stable stroke performance and high repeatability in mass production
- Operator safety-focused design (light curtain + safety systems)
- Low maintenance requirement with central automatic lubrication
- Ready-to-use operation with PLC control + dual-hand/pedal control
Areas of Use:
- Cold cutting and punching operations
- Cold shearing applications
- Metal die forming
- High-volume production lines
✅ STANDARD FEATURES
• Steel construction body
• Four-sided slideway guide
• Spheroidal cast iron connecting rod and gear housings
• Crankshaft and transmission shafts made from 4140 alloyed steel
• Central system fully automatic grease lubrication
• Pneumatic clutch and brake combination
• Compliant with CE safety directives
• Double solenoid safety valve
• Manually adjustable stroke
• Finger-hand protection safety system with light curtain
• PLC control system
• Dual-hand/pedal operation system
• Mechanical lock system
• Emergency reverse motor function
• Compliant with occupational safety regulations
• CE standards compliant
✅ OPTIONAL FEATURES
• Anti-vibration pads
• Touchscreen LCD display (standard for 150–300 tons)
• Hydraulic protection system (standard for 200–300 tons)
• Spare bolster plate
• Decoiler, feeder, and straightener
• One set of die made to required specifications
• Eight-sided slide guidance
✅ TECHNICAL SPECIFICATIONS (40 TON)
Capacity: 40 Ton
Throat depth: 220 mm
Table–ram distance: 340 mm
Distance between uprights: 330 mm
Ram adjustment: 60 mm
Approx. press width: 1050 mm
Approx. press depth: 1280 mm
Approx. press height: 2100 mm
Front anchorage size: 575 mm
Side anchorage size: 740 mm
Table hole diameter: Ø150 mm
Table size: 440×630 mm
Die clamp slot diameter: Ø40 mm
Ram size: 290×180 mm
Floor-to-table height: 720 mm
Stroke adjustment: 10-70 mm
Strokes per minute: 55 spm
Motor power: 4 kW
Motor speed: 1450 rpm
Predpfxovtx Axs Agzsf
Approx. weight: 2100 kg
Note: Please notify us if you require any modifications to the technical specifications.
✅ PRODUCTION / SUPPLY NOTE
This machine is manufactured in Turkey by CRONOSSTECH. Sale, commissioning, and aftersales processes are handled by CRONOSSTECH.
We make it easier for you to find: "letter press machine"
You will receive new offers immediately and free of charge via e-mail
You can easily terminate the search request at any time
Used Letter Press Machine (92,000)
Search Machineseeker now with more than 200,000 used machines:Browse through the most popular machine descriptions:
- Belt Press Machine
- Book Press Machine
- Construction Machine
- Envelope Printing Machine
- Feed Press
- Hand Machine
- Label Printing Machine
- Label Printing Press
- Letter Press
This may be of interest to you

Get information now
+44 20 806 810 84
+44 20 806 810 84
List now
*per listing / month
