Used Maho Mh 800 for sale (431)

Condition: used, Universal Milling Machine MAHO MH 800 Travel X: 700 mm Travel Y: 450 mm Dwodpfez Nx Ibsx Ap Ioc Travel Z: 450 mm Spindle SA 40 Spindle exit : 125 mm Spindle speed: from 32 to 1600 RPM Table size: Length 1050 mm x Width 620 mm Manual table travel: 225 mm Table rotation at 360° Swivel table at +/- 30° Scale 3 axes ACU-RITE Sensory drilling Feeds spindle not working Clutch speed used Lubricant pump Voltage: 380 V Width: 2000 mm Depth: 2100 mm Height: 2500 mm Weight: 3 T

Condition: excellent (used), Year of construction: 1980, functionality: fully functional, machine/vehicle number: 80753, total height: 2,300 mm, total width: 1,750 mm, total length: 2,500 mm, overall weight: 4,700 kg, Equipment: documentation/manual, Offered for sale is a universal tool milling machine, MAHO Type MH 800 P, with digital display and linear control system HEIDENHAIN TNC 121. Year of manufacture: 1980 Travel distances X: 700 mm, Y: 450 mm, Z: 500 mm Table size: 1050 x 627 mm Spindle taper: ISO 40 Spindle speed: 40-2000 rpm, 18 steps Feed rate X, Z-axis: 10-500 mm/min, infinitely variable Feed rate Y-axis: 5-250 mm/min, infinitely variable Rapid traverse X, Z-axis: 1.4 m/min Rapid traverse Y-axis: 0.7 m/min Arbor displacement, vertical: 100 mm Dsdpfx Ajztkbcjp Iswc Arbor feed, vertical: 0.02 / 0.03 / 0.05 / 0.08 / 0.12 / 0.2 mm/rev Arbor displacement, horizontal: 100 mm Spindle drive: 5.5 kW Power connection: 380 volts, 50 Hz, 10 kW - Swiveling control panel - Central lubrication - Operating manual Machine dimensions L x W x H: 2.5 x 1.75 x 2.3 m Weight: approx. 4,700 kg

Condition: ready for operation (used), Maho turntable for MH 800 C without motor and encoder - Height: 59cm / Width: 61cm / Length: 90cm, used, normal signs of wear, 100% functional, scope of delivery according to photos ATTENTION: Please inquire for charges for packing and transport separately! ATTENTION: Please enquire for charges for packing and transport separately! Dodpfetvct Hox Ap Iewc

Condition: good (used), machine/vehicle number: 85382, UNIVERSAL MACHINING CENTER MAHO MH 800 C, series: 85382 X axis stroke 800 mm Y axis stroke 500 mm Z axis stroke 600 mm Work table dimensions: 900x625 mm Maximum weight allowed on the table: 600 kg Spindle rotation speed: from 20 to 5.000 rpm, 15 kW Tool taper: ISO 40 cone Tool shop with 30 positions MAHO numerical command Machine dimensions: 3,350mm x 2,520mm X 2,500mm; Car weight: 6,200 kg Good technical condition Price EURO 7.000 + VAT Dodeldgf Hepfx Ap Ijwc Irrtum, Anderungen und Zwischenverkauf vorbehalten / Subject to errors, changes and prior sale / Ne rezervăm dreptul la greșeli, modificări și vânzare We speak English. /Wir sprechen Deutsch./ Beszélünk magyarul. /Nous parlons français/Vorbim romana

Condition: used, Machine was regularly serviced, was in operation until recently, with documentation and accessories, an on-site inspection is possible. Dwjdjz Ibycepfx Ap Isc

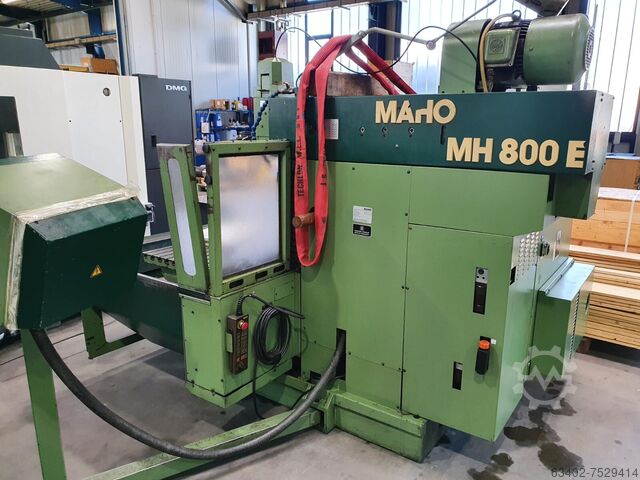

Condition: used, Year of construction: 1986, functionality: fully functional, Deckel Maho 800E, manufactured in 1986: - Table surface area: 600 x 1100 mm - Travel distance in the x-axis: 800 mm Dsdpfx Aez I Iiqsp Iowc - Travel distance in the y-axis: 450 mm - Travel distance in the z-axis: 500 mm - Weight: approx. 4000 kg

Condition: used, Technical details: x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm control: Heidenhain TNC 121 spindle taper ISO: SK 40 quill stroke vertical: 120 mm spindle head swivable left - right: je 90° ° turning speed range: 40 - 1.600 U/min throat of the milling spindle: 200 mm table surface area: 1.050 x 627 mm table swivable approx.: +45/ -45 Grad table rotating: 360 Grad table movement - horizontal: 200 mm Dwjdszibabspfx Ap Ioc table feed: X/Z 5 - 5.000 mm/min table feed: Y 2,5 - 250 mm/min total power requirement: 8 kW weight approx.: 3,2 kg dimension machine approx.LxWxH: 2,3 x 2,0 x 1,850 m The MAHO MH 800 is a high-quality conventional universal tool milling machine designed for precise milling, drilling, and machining operations. It is ideally suited for toolmaking, mechanical engineering, fixture construction, as well as the production of individual components and small production batches. With Heidenhain 3-axis digital readout (DRO) Universal swivelling table Vertical milling head *

Condition: used, Universal Tool Milling Machine MAHO Type MH 800 P with digital readout and HEIDENHAIN TNC 121 contouring control . 80983 Year of manufacture: 1982 Dedpfx Apsv Amryo Ijwc Machine overhauled by MMD in 2008, subsequently used only occasionally in the workshop of an electronics company. Travel X: 700 mm, Y: 450 mm, Z: 500 mm Table size: 1050 x 627 mm Spindle taper: ISO 40 Spindle speed: 40–2000 rpm, 18 steps Feed X, Z-axis: 10–500 mm/min, stepless Feed Y-axis: 5–250 mm/min, stepless Rapid traverse X, Z-axis: 1.4 m/min Rapid traverse Y-axis: 0.7 m/min Quill vertical travel: 100 mm Quill feed, vertical: 0.02 / 0.03 / 0.05 / 0.08 / 0.12 / 0.2 mm/rev Quill horizontal travel: 100 mm Spindle drive: 5.5 kW Power supply: 380 Volt, 50 Hz, 10 kW - NC contouring control HEIDENHAIN TNC 121 - Vertical milling head with automatic quill feed 0.02–0.2 mm/rev (6 steps) - Hydro-mechanical tool clamping - Coolant system integrated in the machine base - Universal rotary table, 360° rotatable, tilts and swivels 30°, 225 mm cross adjustment - Rotary table with direct indexing 72 x 5° and indirect indexing via index plate 1:120 = 1 rev = 3° - Swiveling control panel - Central lubrication - Operating manual - Machine mounted on steel plate L x W x H 1400 x 1000 x 50 mm = 550 kg Space requirements L x W x H 2650 x 2000 x 2450 mm Weight: 3700 kg + 550 kg steel plate Total weight: 4250 kg (actual) Very good condition

Condition: used, Year of construction: 1965, x-travel 700 mm y-travel 350 mm z-travel 450 mm table surface area 940 x 510 mm spindle taper SK 40 spindle turning speed range 32 - 1600 U/min Dedpfxjvzhh Ts Ap Iowc feed - longitudinal/cross 8 - 400 mm/min feeds vertical 4 - 200 mm/min total power requirement 4,5 kW dimensions of machine L x W x H 1,85 x 1,62 x 1,83 m Accessories: vertical head with quill retraction, univ. table, counter bearing, coolant

Condition: used, Year of construction: 1989, Universal CNC Milling Machine MAHO MH 600 E2 Travel X: 600 mm Travel Y: 400 mm Travel Z: 450 mm Numerical Command CNC PHILIPS 432 Cone SA40 Spindle speed: from 20 to 4000 RPM Djdpfsz Nx Hqex Ap Ijwc Table size: 900 x 480 mm TravelSpindle sleeve travel: 80 mm Year of construction: 1989 1 lubricant tank Voltage: 380 V Width: 2500 mm Depth: 2400 mm Total height: 2000 mm Weight: approx 3,5 T

Condition: used, Year of construction: 1987, Universal CNC Milling Machine CNC MAHO MH 400 E Travel X: 400 mm Travel Y: 375 mm Travel Z: 250 mm Numerical Command CNC PHILIPS 432 Table: 700 x 270 mm Cone: SA40 Dwedpfez Nx Hwjx Ap Isc Spindle speed: from 80 to 4000 RPM Year of construction: 1987 Central lubrication Manually swivel head Supplied with doc + machine parameters Voltage: 380 V Width: 2200 mm Depth: 2000 mm Total height: 2000 mm Weight: approx 1,5 T

Condition: used, Year of construction: 1992, Technical details: Dwedpfxsu Nda Eo Ap Iec x-travel: 800 mm y-travel: 550 mm z-travel: 500 mm spindle taper ISO: SK 40 control: Philips 532 quill stroke vertical: 80 mm turning speed range: 0-600 und 600-4000 steples U/min feed:: 1 - 3000 mm/min. rapid traverse: 6 m/min table surface area: 1100 x 600 mm table feed: 1 - 3000 /stufenlos mm/min switched on hours: 82194 h total power requirement: 9,6 (12 kVA) kW weight approx.: 4200 kg dimension machine xH: 2,9 x 2,2 x 2,5 m The machine is located in the technical department. further technical data: - vertical adjustment table (z-axis) 500mm - Headstock throat depth: min./max.: 200 / 750 mm Equipment: -coolant tank with pump -Manual control unit (hand operated) -linear measuring system Heidenhain *

Condition: used, Technical details: x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm spindle cone ISO: 40 (SK 40) table surface area: 760 x 420 mm table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min spindle turning speed - continuous: 32 - 1600 / 18 step U/min spindle head swivable left - right: 10 ° links / rechts ° quill stroke vertical: 125 mm feed continuous: 10 - 500 / 8 step mm/min rapid traverse: 1,4 m/min Total power requirement: 6,5 kW weight of the machine ca.: 3,0 t dimension machine xH: 2,3 x 2,0 x 1,85 m Further features: Headstock projection min./max.: 2094 / 2544 mm Dwedjvc Avhopfx Ap Iec Equipment: -cooling water pump with feed -Linear path measuring system - Heidenhain ND750 Accessories: -Machine vice *

Condition: ready for operation (used), Year of construction: 1989, Available immediately ex-works: Tool milling machine MAHO Type MH 500 M Year of manufacture 1989 Heidenhain digital display Table 800 x 360 mm SK 40 Spindle speeds 63 – 4000 rpm Quill travel 50 mm Travel distances X/Y/Z 500/380/350 mm Drive 3 kW Feeds 10 – 1000 mm/min Coolant system Dsdpjz Ixlcofx Ap Iewc Weight 1600 kg Accessories: Hydraulic vice Price: Euro 2,500.00 plus VAT, ex-works.

Condition: excellent (used), Year of construction: 1996, Maho MH 700 M Tool milling machine Deckel Maho MH 700 M with Heidenhain TNC 116 control, built in 1996, in SUPER condition. From the testing department of Castwerk Technologies. CE compliant!! Technical data: Year of construction: 1996 Universal table Speed: stepless up to 5000 RPM Feed rate: stepless in 3 axes from 0 to 3000 mm/min Travel ranges X/Y/Z: 700/450/450 mm Rapid traverse rates x/y/z: 5 / 5 / 4 m/min Table surface: 750 x 450 mm Table load: 450 kg Vertical quill stroke: 80 mm Vertical quill and horizontal quill - SK40 Hydraulic clamping system Weight approx. 3400 kg Space requirement approx.: 2.5 x 2 x 3 m Drive power: 12 KVA Accessories and equipment: Heidenhain TNC 116 control Hydraulic clamping, vertical and horizontal Djdpfxjz Indns Ap Iewc Automatic central lubrication Spindle brake Technical documentation, spare parts diagrams, operating manual for the control system and programming examples Handwheels Coolant system About the machine: Offered is a tool milling machine Deckel Maho MH 700 M with a Heidenhain TNC 116 control. This universal milling machine is in very good original condition. It comes from a company where it was only used to a limited extent for training purposes. A very easy-to-use control system. Furthermore, the machine has hydraulic clamping in both vertical and horizontal positions. Converting from vertical to horizontal is very easy by folding down the vertical head. The guides are regularly lubricated by the central lubrication system. The Deckel Maho has been mechanically and electrically inspected by us. Take advantage of the opportunity to inspect and test the Deckel Maho on site under power. You can find more milling machines from renowned manufacturers on our website.

Year of construction: 1987, condition: excellent (used), Manufacturer MAHO Type MH 800 T year of construction 1987 control Heidenhain TNC 355 technical data Working range X way 800 mm Y path 450 mm Z path 500 mm Table rigid angular table 900x600 mm Workpiece weight max 800 kg working spindle 63-3150 u/min Machine dimensions length 3817 mm width 3937mm height 2047 mm Dwjdpfslzkdlsx Ap Ioc Weight 4100 kg

Condition: ready for operation (used), Year of construction: 1984, Immediately available from training center: MAHO Tool Milling Machine Model MH 600 Year of manufacture: 1984 Table: 700 x 400 mm Travel X/Y/Z: 500/400/400 mm Dedpfx Ajz Ixk Sop Iowc Speeds: 40 – 2500 rpm SK 40 Spindle stroke: 80 mm Coolant system Drive: 4 kW Feeds: 8 – 400 mm/rev Head swivels 90/90 degrees Weight: 1900 kg Price: EUR 2,250.-- plus VAT, ex location.

Year of construction: 1988, condition: used, machine/vehicle number: 82053, table mounting size: 600 x 1100 mm movement x: 800 mm movement y: 450 mm movement z: 500 mm tailstock stroke: von Hand ca. 50 mm spindle turning speed range: 63 - 3150 rpm carriages continuously adjustable: 0,1 - 1500 mm/min Dedpfsxnp Dox Ap Iswc rapid move: x/y/z 4,5/2,6/3 m/min electrical connection: 380 V, 5,5 kW space needed: 3000 x 2500 x 2030 mm weight: ca. 4000 kg control 432 with graphic

Condition: ready for operation (used), Maho milling table for Maho milling machine MH 700 S, milling table for interchangeable pallets 500x630 mm, used, normal signs of wear, 100% functional, scope of delivery as shown in photos. ATTENTION: Please enquire separately for costs of packing and shipping! Dwedpfxox Dw Iwj Ap Isc

Condition: used, Control panel, touch screen, control panel, display, operator panel, PLC, Simatic Panel PC, touch screen, touch panel, Simatic Multi Panel, Touch Multi Panel, Touch Panel -Manufacturer: NFI Electronics, touch panel from CNC milling machine MAHO MH 800C -Type: 1435-18-22 -Total dimensions: 340/310/H30 mm -Weight: 0.8 kg Djdpfxoq T T Nwe Ap Ijwc

Condition: good (used), CNC control, card slot, control cards, plug-in cards, circuit boards, control rack -Manufacturer: Philips, control rack from CNC milling machine MAHO MH 800C -PCB: 4022 224 7062 -Card: 4022 224 3433 -Graphic Modem: 4022 224 3451 Dwodpsq T T Nhofx Ap Iec -Cent Proc: 4022 226 2331 -Drive Mod.: 4022 226 3645 / 4022 226 3690 -LS/LS board: 4022 226 3680 -Inp Outp Mod: 4022 226 3531 2 pieces -Power supply: 4022 226 2270 PE 1870/03 -Individual components: see photos -Price/sale: complete -Dimensions: 375/310/H340 mm -Weight: 13.4 kg

Condition: used, Year of construction: 1985, For sale: MAHO MH 1000C milling machine Factory number 11429 BKW GmbH model S.05ES Year of manufacture: 1985 18 bar, Vol. 1.6 m3/h; 3000 1/min; kW 0.36; 50/60 Hz; V 190-240; A 2.85 Dwodpfx Aozzw Tbep Isc Net price: 7000 Euro

Year of construction: 1990, condition: used, Travels X/Y/Z: 500mm/400mm/350mm, rotary table diameter: 400mm, spindle taper: SK40, spindle speed: 5000rpm, additional quill travel: 50mm, tool positions: 16, control: Philips 432, machine operating hours: 13400h. Including electronic handwheel and retrofitted LED monitor. The machine was used in single-shift operation. Documentation available. Inspection possible by appointment. Dodpfez Nwcqox Ap Ijwc

Condition: ready for operation (used), Maho double gripper for MAHO MH 600 E including accessories, see photos, used, normal signs of wear, 100% functional, scope of delivery as per photos Djdsrv Ta Repfx Ap Ijwc

Condition: ready for operation (used), Maho milling head (Maho milling machine MH 700 S), used, normal signs of wear, 100% fully functional, scope of delivery as per photos. NOTE: Please enquire separately for costs of packing and shipping! Djdpfx Aox Dw Iqsp Ijwc
