Used Spot Welding for sale (6,859)

Condition: used, functionality: fully functional, Spot Welding Machine Fab. Dalex Type SF 8 Technical Data Manufacturer: Dalex Type: SF 8 Rated power at 50% duty cycle: 8 kVA Rated primary voltage: 380 V / 50 Hz Max. welding power: 23.7 kVA Max. short-circuit current: 8.8 kA Cooling water flow rate: 4 l/min Electrode force: 17 to 390 daN Open circuit voltage: 2 to 3.2 V Stages: 4 Throat depth: 235 mm Dimensions: L 750 x W 350 x H 1100 mm Weight: 77.5 kg Itjdpfxox Ic T As Ab Tsc All information without guarantee. A demonstration can be arranged at any time in our exhibition hall.

Condition: not inspected (used), Year of construction: 1991, functionality: unexamined, machine/vehicle number: 14098/91, short-circuit current: 1,200 A, overall weight: 3,000 kg, total width: 2,400 mm, total height: 2,700 mm, total length: 2,500 mm, No reserve price – guaranteed sale to the highest bidder! Bidding requires timely collection between 08/04/26 and 16/04/26! Itedeyk Up Tspfx Ab Tec MACHINE DETAILS Electrical Data Electrode force: 26,550 N Operating voltage: 380 V Connected load: 474 kVA Rated power: 3 x 50 kVA Rated current: 228 A Secondary voltage: 3.5 - 6.3 V Rated secondary current: 17,400 A Short-circuit current: 1,200 A Secondary short-circuit current: 92,000 A Mains frequency: 50 Hz Dimensions & Weight Dimensions (L x W x H): 2,500 x 2,400 x 2,700 mm Weight: 3,000 kg

Condition: ready for operation (used), throat depth: 550 mm, Output: 25 kVA Design size: 550 mm Itjdeyk S Utopfx Ab Tsc

Condition: used, Micro welding head unit, spot welding system with welding head, inverter power source, I/O module, welding inverter MIYACHI PECO / AMADA WELD TECH GmbH Type ISQ20 Kompakt ISQ-AC/DC-AWS-EXT-250A 22KVA + PECO F160S Year of manufacture: 2011 The system consists of the following components: - Welding inverter MIYACHI PECO Type ISQ20 Kompakt ISQ-AC/DC-AWS-EXT-250A 22KVA with MFT1 control panel - External welding transformer MIYACHI PECO (mounted on the welding head frame) - External interface module MIYACHI PECO Type ISQ-MG - Spot welding head MIYACHI PECO Type F160S – 25 mm stroke with Heidenhain measurement system - Connection cables Mains voltage: 3x 400 V AC Itsdpfx Abspy Uzys Toc Mains frequency: 50 / 60 Hz Connected load: 22 KVA Welding current types: AC / DC Output current: max. 10 kA Output frequency: 1 - 10 kHz Welding time: max. 640 ms/pulse Current measurement: external toroidal coil Control panel: MFT1 (independent removable control unit) Analog input: pressure sensor for proportional valve Analog output: proportional valve control Interface: RS232 Protection class: IP30 - Error monitoring and process control - Monitoring of current, voltage, power, energy - Test pulse for part recognition - Program memory for 99 programs Inverter dimensions (W x H x D): 216 x 420 x 560 mm Inverter weight: approx. 21 kg Spot welding head MIYACHI PECO F160S Rated current: max. 5 kA Electrode stroke: 25 mm Closing stroke: pneumatic - Adjustable force ignition from 1.2 to 550 N - Heidenhain distance measuring system Welding unit with 5 pneumatic cylinders and Festo valve terminal Type CPX Welding head mounted on horizontal guide rail and can be moved 20 mm via pneumatic cylinder. 3 pneumatic cylinders available for workpiece clamping (2 units with 46 mm stroke, 1 unit with 20 mm stroke). Throat depth (distance from welding tip to frame): 300 mm Welding tip height above floor: 315 mm Welding unit dimensions (W x H x D): 410 x 760 x 700 mm Welding unit weight: 75 kg Total weight: 100 kg 2 nearly identical units available, price per complete unit.

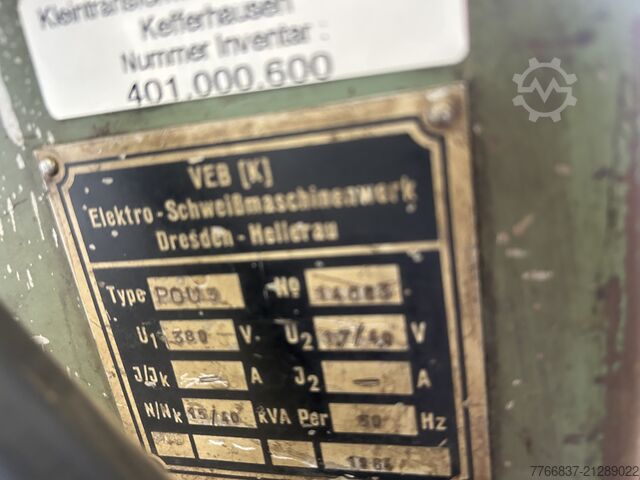

Condition: used, Spot welding machine type POU 33, connected load 40 kVA, no. 445 Iedpfx Aoyl Ab Teb Totc

Condition: excellent (used), Hand-operated, water-cooled spot welding tongs Brand: DALEX Type: 3218 Rated power at 50% duty cycle: 16 kVA Secondary short-circuit current: 13.5 kA Electrode force: 270 daN Arm spacing: 130 mm Arm reach: 500 mm With double-stroke mechanism Cardan suspension and suspension bracket Ijdpeykvd Eefx Ab Tjtc 10 m connection cable Asynchronous welding control RB 11 With 8-step switch Current time: 3-100 cycles

Condition: used, Technical details: current capacity: 100 kVA Itsdpfou Nv Easx Ab Tsc throat: 600 mm arm distance: 600 mm control: Bosch Programmier-Feldbusse pincer opening adjustable: 240 - 540 interface: RS 485 voltage: 500 V connection voltage: 380 V air pressure: 6 bar cooling water consumption: 14 l/min weight of the machine approx.: 770 kg space requirements of the machine approx.: 1,5 x 0,95 x 2,1 m SPOT WELDING MACHINE - WELDING TRANSFORMER Application: Spot, projection and series spot welding 1 - 1000 Hz Lifting cylinder electrode force 11 daN PSI 6000 medium frequency inverter with integrated control function (50/60 Hz AC mains voltage) Electrode arm Ø 35mm Electrode holder adjustment 200mm (manual) Arm distance min. 240mm max.: 540mm Manual adjustment Operation via Rexroth IntraControl VCP05 control panel and foot switch incl. replacement electrodes (water-cooled) external Rittal water recooling unit SK3320.609 *

Condition: good (used), - Capacity 100 kVA - Pneumatic - Throat depth 570 mm - 380 V Iodpfx Aeykcnqsb Tetc

Condition: excellent (used), functionality: fully functional, WMA WMP 08 Spot Welders in TOP Condition, The unit shows barely any signs of use and has only been operated very occasionally. Air-cooled one-handed spot welding unit for vehicle manufacturing, tank construction, steel cabinet fabrication, sheet metal processing, and the wire industry. - Trouble-free welding of all sheet metals - Galvanized sheets can be welded perfectly thanks to controlled current rise and fall - Air-cooled, equipped for external water cooling - Tools can be easily changed using standardized rotating connectors - Only one plug required for welding current, control cable, and water cooling - Always reproducible welding results thanks to built-in automatic energy control Microprocessor Thyristor Control Iodpexrb Tgjfx Ab Tjtc - Constant current regulation - Continuous process monitoring - Simple and ergonomic operation - All set parameters and process values are visible at a glance - Changes to welding parameters allowed only for authorized personnel - Management of configuration and program settings possible via a central PC WMA WMS 108 Microprocessor Thyristor Control - 7 time settings - 8 program slots - Built-in controller - Automatic mains frequency detection 50/60 Hz - Power outage-proof parameter storage - 'with/without current' toggle at the press of a button Additional configuration parameters (locked for user): - Program selection - Advance contact - Advance contact time - Two-hand lock (check) - Locking start signal - Current flow control - Response threshold - Current flow monitoring - Monitoring time - Current flow control - Power factor adjustment - Delay first half wave External inputs (24V, DC stabilized and switching): - Thermal switch - Thyristor temperature - EMERGENCY STOP - Start 1 - Start 2* - Pressure contact - Program 1* - Program 2* - Pre-stroke ON - Program interruption after hold time (only force) - Two-hand lock (check)* * These functions can be activated or locked via configuration parameters. External outputs (24V, DC unstable ± 20%; + switching, max. 5 W): - Solenoid valve pre-stroke - Solenoid valve welding - Relay advance contact - Relay ready for operation Dispatch via freight carrier possible upon prior arrangement. #8407

Condition: good (used), Year of construction: 2014, Tecna 3484 Universal Spot Welding Station 8 kVA Universal welding station 8 kVA, manually operated gun, double program. Simultaneous connection of two tools with automatic recall of the corresponding welding program, saving time and avoiding errors in terms of simple and safe work flow. Body repairs: resistance spot welding of sheet metal, smoothing with dent spotter (nails and washers), local heating (carbon electrode), screw and rivet welding, dent removal of stainless steel sheet. Synchronous SCR welding control, setting of welding time in cycles and pulses, setting of welding current and compensation function. Mains supply: 400V Mains frequency: 50 / 60 Hz Fuse: 25 A Rated power at 50 %ED: 8 kVA Max. Welding power: 35 kVA Max. Secondary current: 6,4 kA Heat current 100 %: 0,88 kA Year: 2014 Weight: 85 kg Financing through our bank is also possible. komplett-konzept.leasingo.de Further articles - new and used - you will find in our store! International shipping costs on request! Ijdpfx Aol Smn Ssb Tetc

Condition: used, total width: 800 mm, total height: 1,600 mm, total length: 1,200 mm, Empty weight: 500 kg - Documentation available: No - CE certificate present: No - Serial number: 4234 - Configuration: Pneumatic - Power [A]: 450 - Power [kVa]: 50 - Transport dimensions: 1200mm x 800mm x 1600mm (l x w x h) - Transport weight [kg]: 500kg - Transport packages [pcs.]: 1 Financial information Itodpfx Abewyktnj Toc VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Dalex Works Pms 10-2 380V 50Hz Itsdpog Rcpxefx Ab Tjc rated power at 50 duty cycle: 63 kVA secondary short circuit current: 45 kA rated primary voltage 380 V - 50 Hz open circuit voltage of 5,6 V electrode force: 65-390 daN Machine weight 341 kg

Condition: good (used), WMA WMP 08 One-Hand Spot Welder Air-cooled one-hand spot welder for vehicle manufacturing, tank construction, steel cabinet manufacturing, sheet metal processing, and the wire industry - Effortless welding of all sheet metals - Galvanized sheets can be welded perfectly thanks to controlled current rise and fall - Air-cooled, equipped for external water cooling - Tools are easy to change thanks to standardized rotary connectors - Only one connector each for welding current cable, control cable, and water cooling - Reproducible welding results at any time thanks to built-in, automatic energy control Microprocessor Thyristor Control - Constant current control - Seamless process monitoring - Simple and user-friendly operation - All set parameters and process variables can be read at a glance - Changes to welding parameters only by authorized personnel - Configuration and program settings can be managed via a central PC WMA WMS 108 Microprocessor Thyristor Control - 7 welding times - 8 programs - Built-in unit - Automatic Mains frequency detection 50/60 Hz - Power failure-proof parameter storage - "On/Off" switching via button Iedpfxeq H Aqxj Ab Totc Additional configuration parameters (user-locked): - Program selection - Advance contact - Advance contact time - Two-hand interlock (Check) - Start signal interlock - Current flow control - Response threshold - Current flow control - Monitoring time - Current flow control - Power factor adjustment - First half-wave delay External inputs (24V, DC stabilized and switching) - Thermal switch - Thyristor temperature - Emergency stop - Start 1 - Start 2* - Pressure contact - Program 1* - Program 2* - Pre-stroke on - Program interruption after hold time (force only) - Two-hand interlock (Check)* * These functions can be enabled or disabled via configuration parameters. External inputs (24V, DC stabilized and switching) - Thermal switch - Thyristor temperature - Emergency stop - Start 1 - Start 2* - Pressure contact - Program 1* - Program 2* - Pre-stroke on - Program interruption after hold time (force only) - Two-hand interlock (Check)* * These functions can be enabled or disabled via configuration parameters. ``` External outputs (24V, DC unstable ± 20%; + switching, max. 5 W): - Solenoid valve pre-stroke - Solenoid valve welding - Relay progress contact - Relay ready Manufacturer: WMA Type: WMP 08-01 Rated voltage: 400 V Mains frequency: 50 Hz Rated power (at 50% duty cycle): 22.5 kVA Control cabinet with PLC logo PDF files available under the Documents tab Financing through our bank is also possible. komplett-konzept.leasingo.de Further items – new and used – can be found in our shop! International shipping costs on request!

Condition: used, Year of construction: 1987, functionality: fully functional, machine/vehicle number: 118210287, type of input current: three-phase, nominal power at 50% duty cycle: 80 kVA, short-circuit current: 35,000 A, input voltage: 380 V, overall weight: 480 kg, Technical Data Machine Dimensions (L x W x H): 0.73 x 1.22 x 1.57 m Machine Performance Rated Power at 50% Duty Cycle: 80 kVA Continuous Power: 56.6 kVA Maximum Short-Circuit Power: 306 kVA Maximum Welding Power: 245 kVA Machine Voltage Secondary Open-Circuit Voltage: 8.44 V Power Supply Rated Primary Voltage: 380 V Rated Frequency: 50 Hz Short-Circuit Current: 35 kA Maximum Welding Current: 28 kA Permissible Duty Cycle at Maximum Welding Current: 55% Cylinder Electrode Stroke Max. Electrode Stroke (EH): 90 mm Electrode Force: max. 60 N / min. 10 N Spot-Welding Armature Arm Spacing: max. 360 mm / min. 160 mm Electrode Arm: 60 mm upper / 70 mm lower Electrode Holder: 33 mm Electrode Holder Adjustability: 110 mm upper / 170 mm lower Itjdpfjyk Rn Sex Ab Tsc Height Adjustment for Electrodes: 100 mm adjustable Throat Depth: 500 mm Materials / Sheet Thickness: S 235JO+N / 0.5–6 mm Stainless Steel / 0.5–4 mm Light Alloy / 0.5–3 mm

Condition: used, Spot welding machine, projection welding machine DALEX type PL 63 Serial No. N-0051390 Year of manufacture 2018 Itedsycv Saopfx Ab Tec Output at 50% duty cycle: 63 kVA Output at 100% duty cycle: 44.5 kVA Maximum welding power: 182 kVA Rated welding current: 8.77 kA Throat depth: 250 - 550 mm Maximum arm spacing: 150 to (310 mm) Upper electrode arm diameter: 50 mm Lower electrode arm diameter: 60 mm Electrode holder diameter: 25 mm Electrode stroke max.: 65 mm Electrode force: 100 - 600 daN Operating air pressure: 1 to 6 bar Power supply: 400 Volt, 50 Hz Rated current: 158 A Connected load: 137 kVA - Thyristor power stage - Welding control HARMS+WENDE - HWH MPS 10β - 5-stage control, single spot, series spot, 8 programs - Electrode force infinitely adjustable via air pressure - Parallel electrode guidance - Single-stroke welding cylinder - Water-cooled via external water cooling system (recirculating water cooler not included) - Electric foot switch - Control cabinet with controller fixed to machine - Operating manual Required space (L x W x H): 1150 x 700 x 1600 mm Weight: 335 kg As-new condition

Condition: excellent (used), Pneumatically operated, water-cooled spot welding gun Hand-operated control valve Manufacturer: DALEX Type: 3238 Rated power at 50% duty cycle: 16 kVA Secondary short-circuit current: 13.5 kA Electrode force: 270 daN Arm spacing: 130 mm Arm reach: 170 mm Equipped with double-stroke cylinder: long stroke 75 mm, pre-stroke 50 mm, working stroke with adjustable range 0-25 mm Cardan suspension and suspension bracket 10 m connection cable Iodpfeyh Rf Nox Ab Totc Including separate synchronous welding controller 1/01 TT

Condition: excellent (used), Pneumatically operated, parallel-guided spot welding machine Brand: DALEX Type: PMS 10-4 Throat Depth: 550 mm with double-stroke cylinder and approach stroke Rated power at 50% duty cycle: 50 kVA Itodpfxsyh Hlxj Ab Tjc Secondary short-circuit current: 24 kA Secondary open-circuit voltage: 5 V Electrode force: 65-390 daN Weight: 425 kg with mounted control cabinet according to VDE 0100 Main switch Synchronous welding control 8033 Sample photo Machine is currently being refurbished.

Condition: excellent (used), Pneumatically operated, water-cooled spot welding tongs Iodsyh Hi Depfx Ab Tetc Make: DALEX Model: 3326-3 with 5/2-way solenoid valve Double stroke cylinder – long stroke 60 mm, pre-stroke 40 mm, working stroke adjustable from 0–20 mm Rated output at 50% duty cycle: 22 kVA Secondary short-circuit current: 14 kA Secondary open-circuit voltage: 3.8 V Electrode force: 280 daN With cardan suspension and suspension bracket 10 m connection cable and control line Arm reach: 350 mm Including: Remote welding controller type 1033

Year of construction: 2013, condition: ready for operation (used), A resistance spot welding machine Pei is available. Rated power at 50%: 35kVA, secondary short-circuit current: 19kA, max. welding current: 15.2kA, secondary continuous current: 4.8kA, secondary voltage: 5.3V, electrode force: 180daN, arm spacing range: 140mm-350mm, arm reach: 430mm, arm diameter: 50mm, electrode stroke: 60mm, weight: approx. 280kg. Documentation vorhanden. An on-site inspection is possible. Itsdpfx Asx A Hhkob Tec

Year of construction: 2011, condition: ready for operation (used), System includes (1) Industrial Robot KUKA KR 150-2 2000 (2) Spot Welding System SPATZ (3) Camera Inspection OMRON (4) Light Barrier SICK, operational hours counter: 2602h. Iedpfegqkpmox Ab Totc

Year of construction: 2000, condition: ready for operation (used), Arm length: 550mm, max. welding power: 136kVA, length: 640mm, width: 930mm, height: 1550mm, weight: 290kg. Itedpfx Aek N Dmvob Tec

Condition: excellent (used), Year of construction: 2019, We are selling a PCB spot welding system from AMADA, mounted on a workbench. The welding head is type FD 120-A/So, year of manufacture 2019. Iedpfx Abjyhwdue Totc

Condition: good (used), Year of construction: 1992, machine/vehicle number: 1192166605, Offer 26006 Technical Data: - Rated output at 50% duty cycle: 80 kVA - Maximum welding output: 211 kVA - Throat depth: 350 mm - Welding capacity: - Steel sheet: 8 + 8 mm - Brass sheet: 4 + 4 mm Itodpfxoyhnl Ne Ab Toc - Aluminium sheet: 4 + 4 mm - Adjustable electrode force: 120 – 720 daN - Required air pressure: 6 – 10 bar - Cooling water flow rate: 12 l/min - Control system: DALEX - Power supply: 400 V - Installation dimensions (approx.): W 950 x H 2100 x D 1500 mm - Weight (approx.): 600 kg - Including: complete electrical and pneumatic equipment - Separate recirculating cooling water unit

Condition: used, Year of construction: 1990, functionality: fully functional, input voltage: 380 V, overall weight: 1,100 kg, warranty duration: 2 months, welding power (max.): 149 kVA, total width: 750 mm, open-circuit voltage: 7 V, air pressure: 5.5 bar, working range: 220 mm, Equipment: documentation/manual, type plate available, We are offering this used Schlatter P 3.372.53.32 spot welding machine, year of manufacture 1990. Input voltage U1: 380 V Short-circuit power Sc: 160 kVA Reactance X: 50% Mains frequency f1: 50 Hz No-load voltage U20: 7.1 V Secondary voltage U2: 5.0 V Welding current I2c: 22.6 kA Welding current I2cc: 28 kA Primary current I1: 300 A Secondary current I2: 640 A Maximum apparent power Smax: 149 kVA Coolant flow rate p: 14 - 22 l/min Distance e: 220 mm Dimension A: 480 mm Dimension B: 750 mm Maximum force Fmax: 30.0 kN Operating pressure p: 5.5 bar Coolant pressure Pa: 3 - 4 bar Must be collected with an appropriate vehicle. Isdpfxjyhgvts Ab Tjtc If you have any questions or require further information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 2001, - Rated power 100 kVA - Connected power 275 kVA - Incl. HELLER cooling unit - Weight approx. 800 kg Iedpowgb I Aefx Ab Tstc
