Used Tool Measurement for sale (40,766)

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, total width: 916 mm, total length: 852 mm, total height: 593 mm, type of input current: AC, input voltage: 220 V, tool diameter: 350 mm, travel distance X-axis: 400 mm, travel distance Z-axis: 400 mm, Equipment: documentation/manual, For sale is a Speronis brand presetting device of the type STP Magis 400 The device is in very good condition, fully functional and ready for immediate use Technical data: Fpjdjvtcu Sjpfx Al Uon Year of manufacture: 2013 Z-axis: 400 mm X-axis: 400 mm Max Ø: 350 mm Connection: 220 V Compressed air: 5-7 Mpa System weight (machine only): approx. 200 kg Dimensions: 916*852*593 mm Additional reducing sleeves are not included in the offer Transport and loading can be organized throughout Europe on request for an additional charge. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machine purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, visit us on our website

Year of construction: 2021, condition: excellent (used), functionality: fully functional, machine/vehicle number: 4104064175, KITOTEC CT-12000-D high-precision cutting tool measuring machine (2021) KITOTEC CT-12000-D is universal high-precision measuring device for all cases: suitable for directly measuring of the special angles of drill, tap, end mill, reamer, inserts or saw, such as orthogonal rake, relief, helix, tool cutting edge angle, end cutting edge angle, pitch, core diameter, chisel edge, chisel edge angle relief, angle axial, radius centre measurement, crosshairs, simple and rotatable, chip angle and radial clearance angle. Measuring length 250 mm . Swivelling around 280 degrees with 300 mm sliding mounting plate. Dowel system can be repositioned. Measurement software Metric MT 9.02. The pixel resolution in the highest zoom level with conversion lens 0.5x is 2 microns. Included is Rollomatic Concentricity Pro with adapter plate. - Zoom system 12x with adapter 0,67x with angled optical system - attachment lense 0,5x - double guide rail system in Z and Y axis - Z axis 170 mm – pitch 1 mm with resolution, resolution 0.001 mm - X axis 100 mm – pitch 1 mm - Y axis 250 mm – pitch 5 mm (ball screw spindle) with measuring system resolution 0.001 mm - turning axis 280° with 150 mm with V-bloc, Fedpsvi Enaefx Al Uepn and rear stop, small V-bloc for smaller tools - LED cold light source with slot ring light and diffuser – movable - double LED spot light with goose neck arms - back light, parallel with holder movable blue for automatic measuring functions - measuring software Metric MT 9.02 - interface to read out XZ axis to software - incl. NUC-PC 4K WIN 10 GB

Condition: used, Year of construction: 2008, WEINIG OptiControl 970090 tool measuring station, net price €7,650 Specifications: Tool diameter min. 90 Tool diameter max. 300 mm Tool length 0 - 240 mm Fedpfx Alszvpw Is Uepn Radial measuring range (radius) 150 mm Non-contact measurement of tool dimensions, radius (R) and height (H), with display on electronic digital displays. Electronic digital displays providing information on tool radius and height. HSK63 tool holder for PowerLock tools. NEW: PowerLock adapter HSK63, shank D=50 x 260 mm.

Condition: excellent (used), Precision CNC tool presetting and measuring device from renowned manufacturer KELCH – model Trabant 271-2/M. Equipped with a length and diameter measuring system featuring optics and a KELCH Pico LCD A23 monitor, as well as Heidenhain ND1202T Tool-Chek electronics. Very good condition, complete and fully operational unit. Technical specifications and features: • Manufacturer: KELCH GmbH + Co. Werkzeugmaschinenfabrik, Germany • Model: Trabant 271-2/M • Year of manufacture: 2000 • Measuring unit: KELCH Pico LCD (Version A23) • Display system: Heidenhain ND1202T Tool-Chek • Power supply: 230V / 50–60Hz / 1000 VA • Optical system with measuring camera and LCD screen • Rotary table with holders and two-axis adjustment system • X/Z axis measuring range: up to approx. 400 mm • Axis control from KELCH control panel (joystick + function keypad) • Digital readout, menu in German and English • Complete with original documentation and all connectors Condition: • Used, fully functional • Very clean example from a German toolmaking shop • All axes move smoothly, screen responds correctly • Ready for work Functional description: The KELCH Trabant 271-2/M is designed for fast and precise presetting of cutting tools prior to mounting in CNC machines. The optical system with Pico LCD display allows for measurement of tool length, diameter, and geometry in visual mode. Ideal for inspection and presetting of milling cutters, turning tools, drills, and special tools. Fpedpoxn Ax Ajfx Al Uon

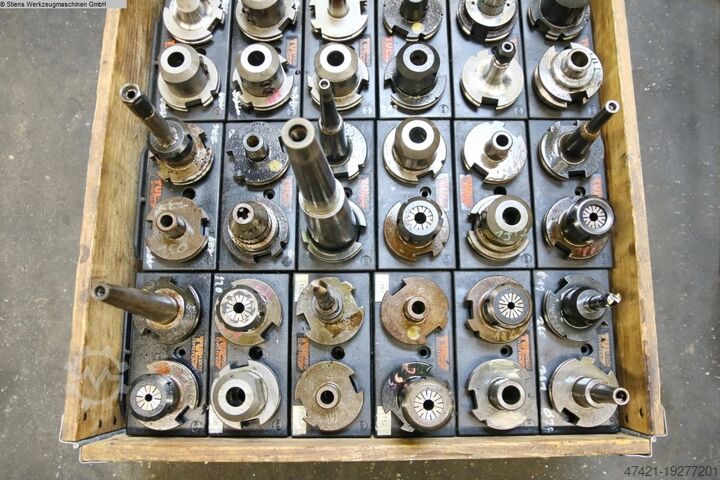

Condition: used, 1 Posten Wesswerkzeug siehe Bilder The technical data is provided by the manufacturer or operator and is therefore non-binding. We reserve the right to sell the machine prior to purchase; our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity Fsdpfjyycyaox Al Uopn More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit.

Condition: like new (used), Tool measuring stand for measuring tool radius and height. Measurements can be read of digital read-outs. Technical details Tool diameter min - 100mm Tool diameter max - 300mm Tool length maximum - 330mm Fsdpfx Alsyl Rnbo Uepn 220v - 50hz Weight - 180 kg Supplied with operating instructions.

Condition: used, Display: microset DPS, an on-site inspection is possible, without power. Fodoz Ea Slopfx Al Uopn

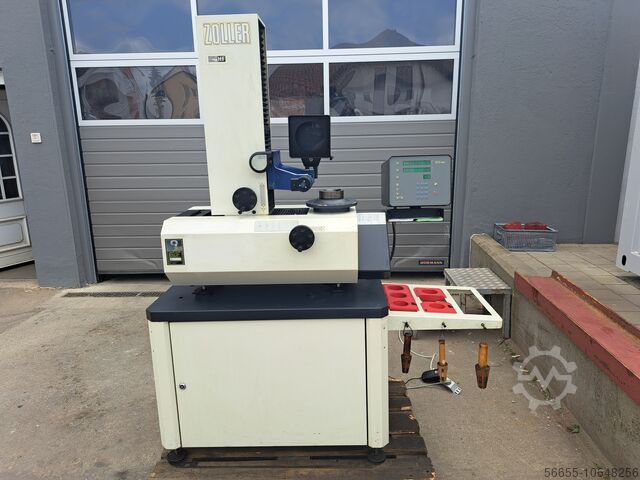

Condition: like new (used), Year of construction: 2019, functionality: fully functional, Zoller Titan tool measuring machine: Fsdpfxszd Acao Al Uspn - Year of manufacture: 2019 - Software: titan/pilot 3.0 - Max. tool length (Z-axis) = 550 mm - Max. tool diameter = 260 mm - Tool holder: SK40, KSK63, etc., as required

Condition: used, Tool measuring device Manufacturer: Mitutoyo Type: Quickset R Fjdpfxjddtuye Al Uepn

Condition: new, New BLUM LaserControl Micro Compact tool measuring system. The original packaging was opened solely for the purpose of taking photographs. Fpsdpfozcgzfox Al Ujn Manufacturer: BLUM-Novotest Product series: LaserControl Micro Compact NT Type: 87.0634-014-NT-A6365/32-5/S1,6 Device type: Laser tool measuring system Design: Micro Compact NT Available quantity: 3 units

Condition: good (used), functionality: fully functional, Year of construction: 2007, including Sheetmaster, Gripmaster, and Toolmaster Fpjdpfx Alszr Ha Ej Ujn Year of manufacture: 2007

Condition: used, The offered set is a complete tool kit for the repair, disassembly, and commissioning of machine tools. It includes various electrical devices (angle grinders, reciprocating saws, rotary hammers, etc.) as well as measuring and testing devices. The tools are packaged in Einhell transport cases with integrated carrying devices. For mobile use, all tools, including measuring devices and electrical devices, are stored in tool cases (see images). All tools are in working condition and have been regularly replaced when worn. Fpodpsz Riv Sofx Al Uon This tool kit has been used to disassemble, repair, and commission a wide variety of machine tools, drilling machines, and welding systems.

Condition: ready for operation (used), Year of construction: 1990, Immediately available from prototype construction: Coordinate measuring machine, Zett Mess Plates and 4 measuring beams, manufactured in 1990 Electronics and measuring system newly installed in 2020 Plate dimensions: 12,000 x 3,100 mm Measuring range X/Y/Z: 12,000 / 3,100 / 2,500 mm Service from the successor company, Zett Mess, is available Fjdpfx Alsz Ixius Uspn All accessories included Price: EUR 23,000.00 plus VAT, ex works

Condition: excellent (used), Year of construction: 2010, Diebold Tool Presetter VEG 400 For measuring the lengths and radii of milling, turning, and boring tools - Easy to use - Robust design for use directly at the machine - Universally adjustable - Rotatable spindle made of stainless steel - Reference values for diameter and length on the spindle - Outstanding concentricity accuracy - Measurement accuracy less than 0.02 mm - Digital display with a resolution of 0.01 mm - Data output ports - Includes a shipping box for self-adhesive labels for tool marking - Lockable fine adjustment for precise positioning of measurement values - Adaptable to all taper sizes and cylindrical holders Technical data: - Dimensions (L x W x H): 350 x 175 x 730 mm - Measuring range: Length: 410 mm, Diameter: 240 mm - Weight: 22 kg - Color: Red RAL 3003 Fpsdpfxex Nq Hto Al Uon - Spindle run-out: less than 0.005 mm - Measuring accuracy: less than 0.02 mm Top condition - from a school setting Location: available from stock 54634 Bitburg - Immediately available -

Condition: used, Year of construction: 2006, Measuring range: 500x400x400 mm, max. workpiece weight: 180 kg, with measuring probe, manufacturer: RENISHAW, type: MH20I, various ruby replacement measuring probes in a case, and evaluation hardware. Fpodsz Nht Hspfx Al Uon

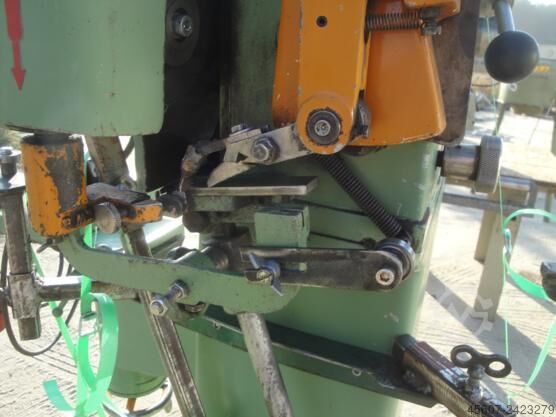

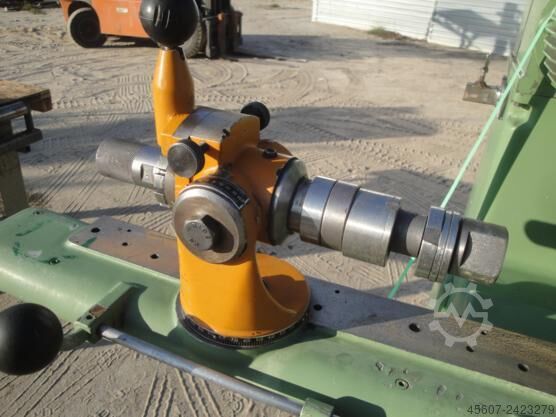

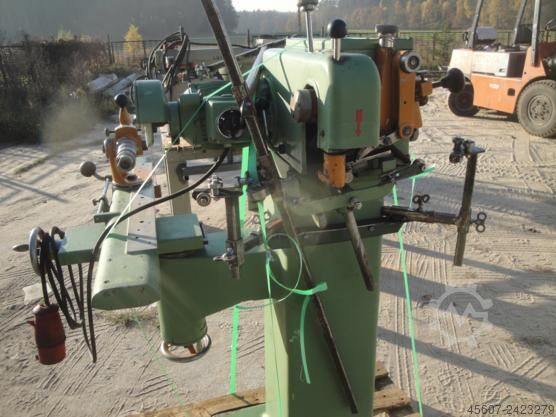

Condition: good (used), functionality: fully functional, type of input current: three-phase, input voltage: 400 V, Tool grinding machine EWAG WS 11 INCLUDED EQUIPMENT: x1 infeed Z-axis : Infeed operation, metric 4 C x1 Cross feed X-axis 4 Q-M x1 grinding stroke 3H : operation of the grinding stroke either by lever or by hand wheel - ref : 111-2-15167 (WS11) x1 grinding spindle Q 36-12, complete 9 JKP x1 workhead spindle with W25 collet reception x1 foot switch 9 M - operation of infeed Z-axis by foot peadal. Infeed stroke steplessly adjustable x1 ISOMA microscope - optic from the front x1 measuring table for microscope x1 ISOMA microscope - optic from the top x1 SIEGFRIED STTV acoustic touch control (grinding wheel to workpiece) in is case x7 grinding wheel flanges Various CBN grinding wheels Machine visible under power in our premises by appointment. Price on request, loading on truck included. Possibility of shipping Worldwide. The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed. Fpedpfx Alez I Tbxe Usn Machine for sharpening tools, milling cutters, taps and drills. Machine similar to brands Blohm, Elb, Ewag, Favretto, Fenix, Ger, Jones & Shipman, Jung, Karstens, NUMAFFUT, Okamoto, Okuma, Saacke, SMP, Studer, Vollmer, Walter; also consider cylindrical or surface grinding machines, lathes, machining centres and milling machines.

Condition: used, Year of construction: 2004, DMG Prima 225/465 microset high precision tool presetter Fpedpfxjz Hz Auj Al Uon with PC, dual screens, printer, keyboard, mouse, Dymo label printer & assorted location pots. Maximum tool ø450mm (based On A 225mm measuring radius). Maximum measuring length (Z-axis) 465mm.

Condition: used, Year of construction: 2017, Measuring range Z 420 mm Measuring range D 420 mm tool taper SK 50 weight approx. 215 kg Condition: used Technical specifications & accessories: - SK 50 to SK 40 adapter - Pilot 1.0 Software Accessories, tools, and clamping devices shown are only included if specifically stated in the additional information. Technical data and specifications are subject to change without notice. Fedpfx Alez Ek D Eo Ujpn Prior sale is reserved.

Condition: like new (used), Year of construction: 2003, Type VSM400-00185 Voltage 230 V Tolerance -10% - +6% Frequency 50/60 Hz Performance < 1000 VA DIN EN 61010-1 Standard Pneumatic 4 - 6 bar Weight 900 N Year 2003 Fpodjixqwqopfx Al Usn Good working condition. Please check out our other listings as well.

Year of construction: 2005, condition: used, measuring range X-axis 650 mm Fpsdpoz Hqknofx Al Usn measuring range Y-axis 700 mm measuring range Z-axis 500 mm Usable surface area of the granite slab 819 x 1.330 mm Max. workpiece weight 650 kg machine weight ab. 775 kg Machine dimensions approx. 1.380 x 1.160 x 2.429 mm Condition: Used Accessories, tools, and clamping devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale.

Condition: used, Year of construction: 1990, Technical details: total power requirement: 125 VA / 50Hz machine weight approx.: 0,3 t Fsdpeu N Ap Esfx Al Ujpn dimension machine xH: 0,8 x 0,7 x 1,6 (mit Tisch) m This is a tabletop device according to the optical measuring method. - incl. under table Application: - setting of tools of NC lathes other features: - coordinate of the bridge adjustment=200mm - coordinate of the slide adjustment=350mm - enlargement of the projector 20x - accuracy of cutting adjustment on projector=0,005mm - smallest measuring length=0,002mm - lower edge of measuring holder up to table=150 - 170mm - reading the tool coordinates opt. -4 - table WxDxH: 545 x700 x 110mm - base frame with drawer: WxDxH: 586 x 700 x 730mm *

Condition: used, Year of construction: 2011, Technical details: measuring range X-axis: Länge: 0 - 160 mm measuring range Y-axis: Höhe: 0 - 425 mm Tool table: Auflage: Ø 95 mm tool taper: SK 50 tool taper: drehbar 360° weight: 12 kg dimension L-W-H: 420 x 165 x 775 mm This is a bench top unit. Application: Alignment of rotary milling tools. Measuring method: manual alignment with/via digital display Measuring bar manually movable Measuring beam transverse (X) 160mm and vertical (Y) 425mm movable with measuring sensor Measuring display: both axes digital, voltage 1.5 V (AA battery) Fpsdpfx Alsu N Arts Usn *

Condition: new, EPS LINEAR – Automatic length stop system for fast and accurate operation The EPS LINEAR automatic length stop system makes it easy to quickly and accurately position materials to the desired length. The system is suitable for mounting on both new and existing machining equipment and is widely used in the wood, plastics, aluminum, and light steel industries. Fpjdjtd Tndjpfx Al Ujn Simple operation, flexible application Use the clear touchscreen to enter the desired dimension, in millimeters or tenths of a millimeter. The current and set positions are clearly visible thanks to the large indicators and the clear screen layout. EPS LINEAR can be placed on either the left or right side of the machining equipment. The system is available from 1 meter and can be extended up to 14 meters. For working with short pieces, a simple attachment can be easily installed and removed. Technical specifications - Positioning speed: up to 40 meters per minute. - Holding force: 1,800 N. - Accuracy: ± 0.10 mm. - Supply voltage: 230 V, with 24 V control voltage. - Operation: start, stop, reference, measuring probe on/off, and access to parameter settings. - Position display: current and desired position. - Emergency stop: for immediately stopping the system. - Touchscreen: large indicators and a clear key layout. - Attachment for short pieces: easy to install and remove. - Software: fully developed and owned in-house, with continuous updates. - Components: industrial, maintenance-free components. - Cabling: including cable track, available up to a maximum of 14 meters. Want to know more about EPS LINEAR for your machine? Contact TM-Tools B.V. We will be happy to advise you on the options for your application. This advertisement has been prepared with the utmost care. Typographical errors and inaccuracies in the specifications are subject to change.

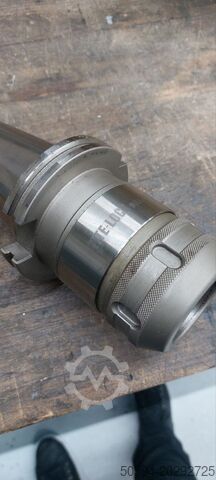

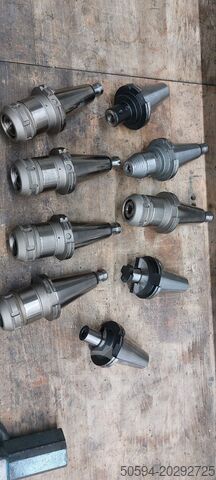

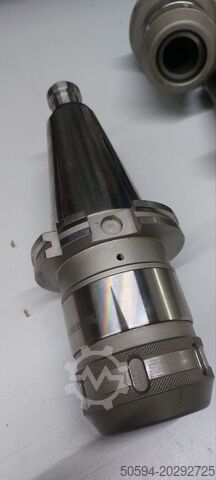

Condition: like new (used), Year of construction: 2001, Set of clamping cones SK 50 - like new. Hardly used. Fodpfx Ajxnldzel Uopn

Condition: excellent (used), For sale: a complete set of professional measuring stations from the renowned German brand ULTRA Germany, models: • ART. 27484-032 – POS. 12 • ART. 27484-033 – POS. 10 • ART. 27484-030 – POS. 8. The devices are designed for precise positioning, inspection, and calibration of mechanical and measuring components in production and quality control processes. An ideal solution for measurement laboratories, quality departments, research centers, or tool shops requiring high repeatability and accuracy. • Construction made of high-quality steel and aluminum – robust, stable, and durable • Precision linear guides ensure smooth movement and high measurement accuracy • Height adjustment and holder locking for quick adaptation to the tested component • Capability to mount dial indicators, holders, and other measuring accessories • A reliable solution for series measurements and part positioning in production processes. Condition: used, in very good technical and visual condition – devices are fully functional, sourced from a quality control department. Price refers to Fjdpfxoxltn Ao Al Ujpn
