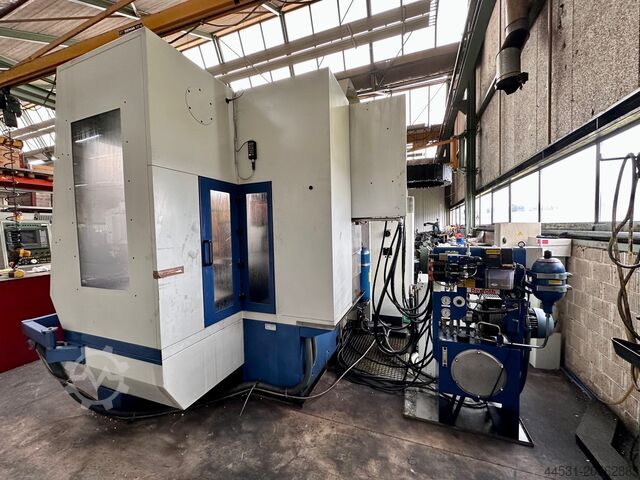

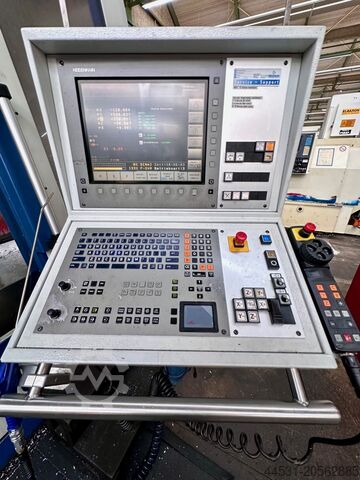

Condition: ready for operation (used), Year of construction: 2005, Available immediately from CH location : 5 axes machining center Reiden Type Reiden BRF 1 Year of construction 2005 Spindle renewed in 2022 ( 28.000.-Euro ) CNC control Heidenhain iTNC 530 Electronic handwheel Table diameter 800 mm Table load 800 kg X axis 1200 mm Y axis 600 mm Z axis 700 A axis minus 180 pkus 180 degrees B axis minus 90 plus 90 degrees SK 40 Magazine 72 places Isdpfxoxxu Tgo Ac Eoii IKZ 20 Bar Number of controlled axles 5 Power on the spindle 25 kw Spindle speeds 0 - 6300 rpm Feed x axis 20000 mm / min Feed Y axis 20000 mm / min Feed Z axis 20000 mm / min Coolant device Chip conveyor Weight 9 to At a price of Euro 36.500.---plus VAT ex location

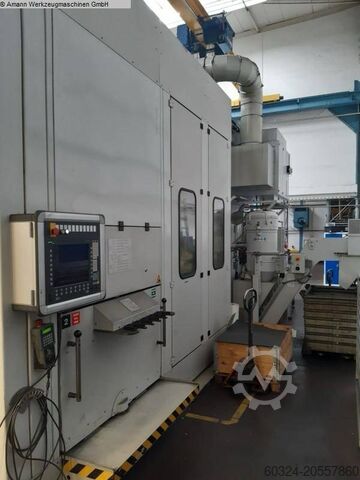

Condition: good (used), Year of construction: 2010, Ref. -No.: 10530 Manufacturer: DöRRIES - SCHARMANN Type: Alpha 1000 Year of construction: 2010 Type of control: CNC Control: Siemens SINUMERIK 840 D Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2000 mm Y-Travel: 2000 mm Z-Travel: 2000 mm A-Axis: 0 - 90 x 0,001 ° B-Axis: 360 x 0,001 ° Number of T-slots: 1 + 8 Max. Workpiece Weight: 5000 kg T - groove width: 22 mm T - slot spacing: 100 mm T-Slots: DIN 650 mm Tool Taper: HSK - A 100 Tool Piece Magazine With: 207 + 10 Pcs./pcs. Max. Torque: 1250 Nm Feed Speeds X/Y/Z Axis: 1 - 30000 mm / min Rapid Travel X/Y/Z: 30,00 mm / min Drive Capacity - Spindle Motor: 45 kW Total Power Requirement: 100 kW Dimensions Of The Machine Ca.: 13 x 8 x 4,5 m Size Of Pallet: 2 x 1000 x 1000 mm Spindle speed gear stage 1: 1 - 1096 1 / min Spindle speed gear stage 2: 1096 - 6000 1 / min Further information: - Measuring probe - Chip conveyor Iisdoxxpbfjpfx Ac Esi - Coolant system - Coolant through the spindle - Pallets with 5-way media connection and clamping hydraulics - Extraction system - Swivel spindle A-axis 0 - 90 - NC rotary table B-axis

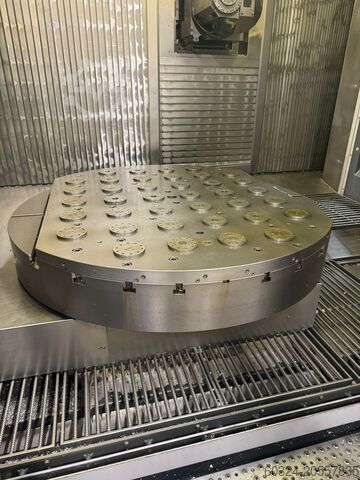

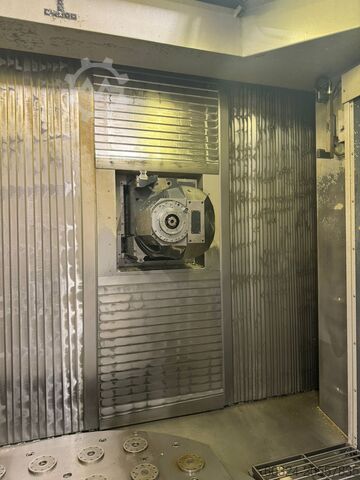

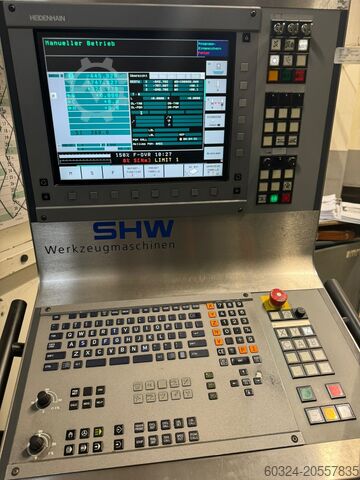

Condition: good (used), Year of construction: 2013, Ref. -No.: 10450 Manufacturer: SHW Type: UNISPEED 5 Year of construction: 2013 Type of control: CNC Control: HEIDENHAIN iTNC 530 Storage location: Halberstadt Country of origin: Germany Machine-No.: 32XX X-Travel: 2000 mm Y-Travel: 2300 mm Z-Travel: 1300 mm B-Axis: 360 ° C-Axis: 360 ° W-Axis: 1500 mm Table Load: 15000 kg Max. Tool Weight: 25 kg Max. Tool Length: 500 mm Max. rotary table diameter: 1600 O Table speed range: 5 min/-1 Tool Taper: HSK 100 Tool Piece Magazine With: 150 Pcs./pcs. Turning Speed Range - Stepless: 22 - 8000 RPM Max. Torque: 40 Nm Feed Speeds X/Y/Z Axis: 2 - 30.000 mm / min axes: 5 Rapid Travel X/Y/Z: 30.000 mm / min acceleration: 2 m/s² Dimensions Of The Machine Ca.: 8,4 x 7,1 x 5,3 m Operating hours: 42.499 H Tool change time: 10 s Further information: automatic universal milling head, 360 x 1°; 180 x1° compact coolant system, make Knoll, type KF150/950 high pressure pump belt filter coolant temperature control Iisdpfx Acsxxpane Eei Blum laser measuring system Renishaw RMP 60M infrared measuring system 140 tool holders HSK 100 included Machine can be inspected under power by appointment.

Condition: good (used), Year of construction: 2010, Ref. -No.: 10287 Manufacturer: DMG Type: DMC 210 FD Year of construction: 2010 Type of control: CNC Control: Heidenhain Mill Plus Storage location: Halberstadt Country of origin: Deutschland X-Travel: 2100 mm Y-Travel: 2100 mm Z-Travel: 1250 mm Machine length: 11.000 mm Machine width: 5.000 mm Machine Height: 3.500 mm Max. Workpiece diameter: 2500 mm Max. Workpiece Weight: 6.000 kg Max. rotary table diameter: 1.850 O Table speed range: 250 min/-1 Tool Taper: HSK-A100 Tool Piece Magazine With: 600 Pcs./pcs. Spindle Speed: 20.000 RPM Max. Torque: 8.600 Nm Feed Speeds X/Y/Z Axis: 60.000 mm / min Max. Workpiece height: 1.460 mm axes: 5 Further information: Turning and milling center incl. pallet changing system Gear spindle Coolant treatment system, with belt filter, 710 x 50mm 1 Knoll 600S2 chip conveyor 2 Losma oil mist extraction units Ijdpoxxn Ukofx Ac Ejii 1 steel platform (storage space for clamping device): 5,300 x 2,900 mm - Axes renewed 11.2024 - New encoder, electrical components renewed - Geometry protocols available Machine is still in production and under power. The machine can be viewed at any time by appointment.

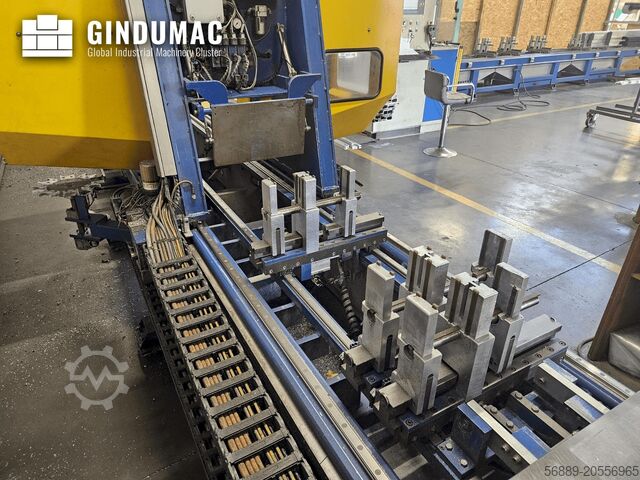

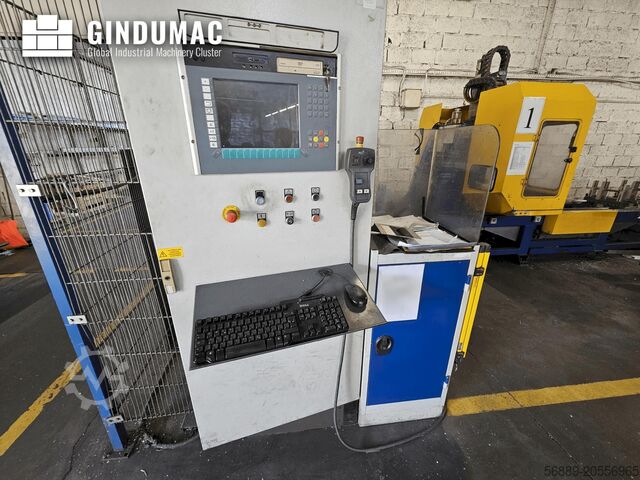

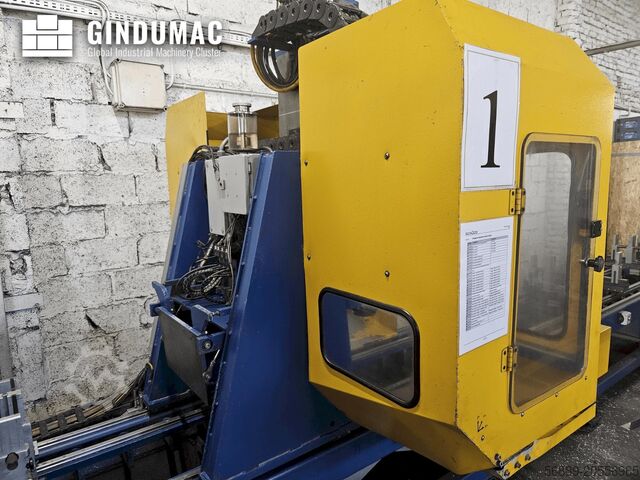

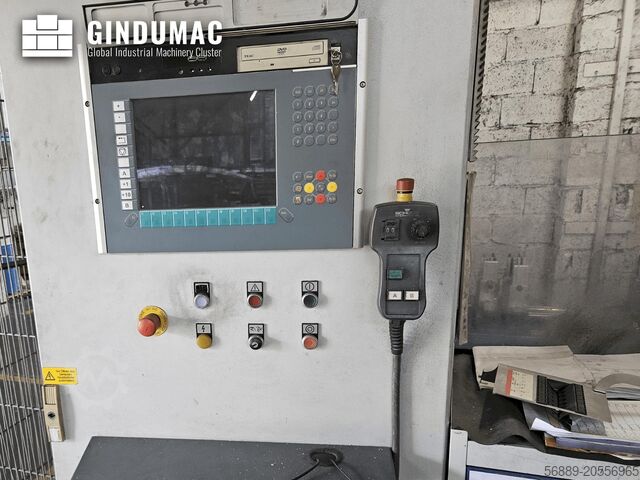

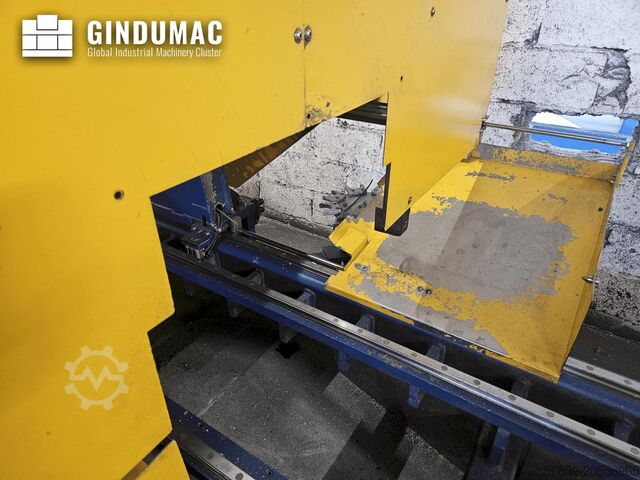

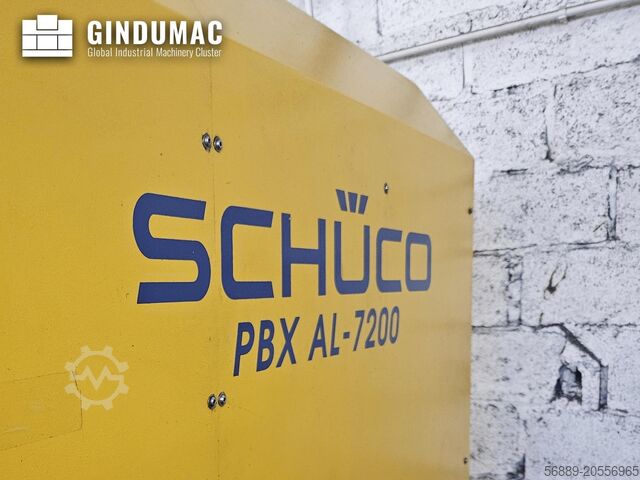

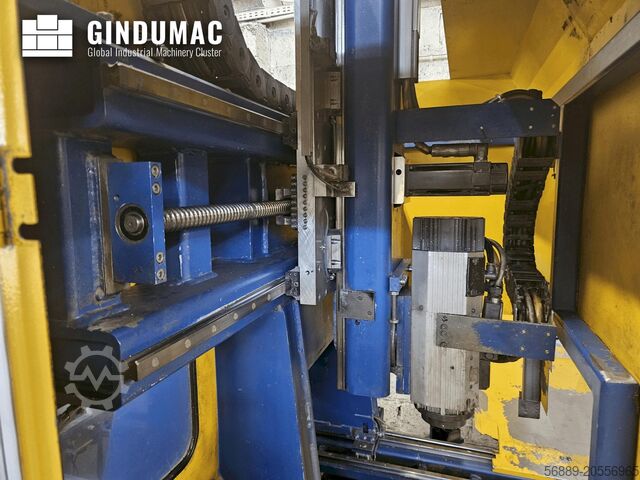

Condition: ready for operation (used), Year of construction: 2008, General Data Machine weight 3450 kg Control Unit Brand Schüco Main Drive Spindle speed range up to 18000 rpm Number of axis 4 Movement Iisdpfx Aoxxnggoc Eei X-Axis Movement 7530 mm Y-Axis Movement 1180 mm Z-Axis Movement 660 mm Additional Equipment Number of clamps: 8 This 4-axis SCHÜCO PBX AL-7200 was manufactured in 2008. It features a large X-axis travel of 7,530 mm, a Z-axis of 660 mm, and a maximum spindle speed of 18,000 rpm. The machine includes an 8-position tool magazine and is capable of machining from three sides, suitable for both aluminium and steel profiles. It comes with a SCHÜCO CNC control system and weighs approximately 3450 kg. Contact us for more information about this machine. Application Types Milling

Condition: good (used), Year of construction: 2000, travel distance X-axis: 1,200 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 500 mm, Equipment: chip conveyor, Excellent overall condition. Used by a plastic mold maker, primarily for engraving work. Low cutting forces, low machine load... Travel ranges x=1200 y=800 z=500 Spindle speed 0-8000 rpm / Main spindle drive power 11 kW / Feed rate 0-30 m/min / Table dimensions 1320 x 800 mm Max. table load 2,000 kg / 20-station tool changer / Max. tool diameter 63 mm / Tool length 200 mm / Tool holder SK 40 / 3D measuring probe, Heidenhain, type TS 220 / Coolant system / Chip conveyor / Extractor (optional) / Complete enclosure Heidenhain control type TNC 426 PB digital / Electronic handwheel Heidenhain HR 410 ENGLISH: Excellent overall condition. Used by a plastic mold maker, primarily for engraving work. Low cutting forces, low machine load... Travel paths x=1200 y=800 z=500 Spindle speed 0-8000 rpm / Main spindle drive power 11 kW / Feed rate 0-30 m/min / Table dimensions 1320 x 800 mm Max. table load 2,000 kg / 20-station tool changer / Max. tool diameter 63 mm / Tool length 200 mm / Tool holder SK 40 / 3D measuring probe, Heidenhain, type TS 220 / Coolant system / Chip conveyor / Extractor (optional) / Complete enclosure Heidenhain control type TNC 426 PB digital / Electronic handwheel Heidenhain HR 410 Iiedpfx Acjxxkllj Esi

Condition: ready for operation (used), Year of construction: 2017, Main Drive Spindle Speed 15000 RPM Spindle motor power 46 kW Tool taper SK 40 Number of axis 5 Movement X-Axis Movement 2600 mm Z-Axis Movement 900 mm Y-Axis Movement 1100 mm Iisdpfexxdtvox Ac Esi This 5-axis DMG DECKEL MAHO DMF 260-11 was manufactured in 2017. A universal machining centre featuring a travelling column, X-axis linear drive at 80 m/min, and a motor spindle speed up to 15,000 min-1. It includes a swivel head, a 30-tool magazine, and a rigid table measuring 3,200 x 1,100 mm. Consider the opportunity to buy this DMG DECKEL MAHO DMF 260-11 universal machining centre. Contact us for more information about this machine. Application Types Milling

Condition: ready for operation (used), Year of construction: 2006, operating hours: 16,421 h, Control Unit Brand HEIDENHAIN Model iTNC530 Main Drive Spindle speed range 18000 Tool taper BT40 Number of axis 5 Isdpfx Aoxxdw Ujc Ejii Movement X-Axis Movement 2500 mm Y-Axis Movement 920 mm Z-Axis Movement 820 mm This 5-axis DECKEL MAHO DMF 250 linear was manufactured in 2006. It features a Heidenhain iTNC530 control, extensive travel capabilities with X2,500mm, Y920mm, Z820mm, and a high-speed spindle at 18,000rpm. The machine includes a BT40 spindle taper, ATC 30 magazine, and full NC rotary capabilities on A, B, and C axes. Consider the opportunity to buy this DECKEL MAHO DMF 250 linear universal machining centre. Contact us for more information about this machine. Application Types Milling

Condition: repair required (used), Year of construction: 2002, operating hours: 54,981 h, functionality: not functional, machine/vehicle number: 1114 000273 3, travel distance X-axis: 1,080 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, controller manufacturer: Haidenhain, controller model: HEIDENHAIN TNC 530, total height: 2,500 mm, total length: 6,200 mm, total width: 3,802 mm, table width: 795 mm, table length: 1,500 mm, table load: 900 kg, overall weight: 9,500 kg, operating hours of spindle: 14,170 h, spindle nose: SK40, number of slots in tool magazine: 32, tool weight: 8,000 g, Equipment: chip conveyor, documentation/manual, Technical Details Machine: DMG DMU 100T Year of manufacture: 2002 Control system: HEIDENHAIN TNC 530 Spindle mount: SK40 Operating hours: 54,981 h Travel distances: X-axis: 1,080 mm Y-axis: 710 mm Z-axis: 710 mm Weight: approx. 9,500 kg Additional equipment: Iedpfx Acexxamxe Esii NC rotary table (Nikken) Large NC rotary table Tailstock Handwheel Inspection An inspection under power is possible at any time by appointment. Condition: Used condition appropriate to age and previous use Known defects: Ball screw of X-axis worn out / overhaul required Y-axis presumably with cable or motor damage Further defects cannot be excluded Important note / Disclaimer The machine is explicitly sold as defective, without warranty, without guarantee, and with the exclusion of any liability for material defects. All technical details have been provided to the best of our knowledge but are non-binding. No liability is assumed for completeness, accuracy, or timeliness of the information. The sale is made as inspected and with exclusion of any subsequent claims or renegotiation.

Condition: good (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: SX44T-1620237CFECH, travel distance X-axis: 1,525 mm, travel distance Y-axis: 660 mm, travel distance Z-axis: 610 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 20 m/min, controller manufacturer: HURCO, controller model: WINMAX, total height: 3,300 mm, total length: 4,500 mm, total width: 3,500 mm, table width: 660 mm, table length: 1,675 mm, table load: 1,360 kg, rotary table diameter: 600 mm, overall weight: 12,000 kg, spindle speed (max.): 12,000 rpm, distance table center to spindle nose: 622 mm, number of slots in tool magazine: 40, mount diameter: 40 mm, tool length: 250 mm, tool diameter: 75 mm, tool weight: 7,000 g, input voltage: 400 V, input frequency: 50 Hz, positioning accuracy: 0.01 mm, repeat accuracy: 0.005 mm, HURCO VMX 60 SRTI CNC Universal Machining Center - Rated current: 65 A - Power connection: 93 kW - C-axis travel: 360° - B-axis travel: ±90° - Number of T-slots: 6 - T-slot width: 18 mm - Slot spacing: 100 mm - Maximum uniform rotary table load: 500 kg Iedpoxw T Hcjfx Ac Esii - Rapid traverse B-axis: 50 rpm - Rapid traverse C-axis: 100 rpm - Tool diameter with full magazine: 75 mm - Max. total tool weight: 280 kg - B-axis positioning accuracy: ±7 arcsec - C-axis positioning accuracy: ±7 arcsec - B-axis repeatability: ±7 arcsec - C-axis repeatability: ±7 arcsec - Incl. mounted zero point clamping plate, plate dimensions: 400 x 400 mm The machine is equipped with a RENISHAW 3D probe and a chip conveyor. Note: The spindle inverter has been completely overhauled. TRANSPORT INFORMATION The machine can be transported on a truck with a width of 3000 mm. Important: The item must be collected by appointment between 19th and 23rd January 2026. FCA D-76571 Gaggenau – loaded onto truck.

Condition: good (used), Year of construction: 2017, operating hours: 13,864 h, functionality: fully functional, machine/vehicle number: S844W-16201A7DFECH, travel distance X-axis: 2,134 mm, travel distance Y-axis: 865 mm, travel distance Z-axis: 762 mm, rapid traverse X-axis: 18 m/min, rapid traverse Y-axis: 18 m/min, controller manufacturer: HURCO, total height: 3,500 mm, total length: 6,000 mm, total width: 5,000 mm, table width: 865 mm, table length: 2,184 mm, table load: 2,268 kg, spindle speed (max.): 12,000 rpm, operating hours of spindle: 4,381 h, number of slots in tool magazine: 40, mount diameter: 40 mm, tool length: 300 mm, tool weight: 7,000 g, input voltage: 400 V, positioning accuracy: 0.001 mm, repeat accuracy: 0.005 mm, Equipment: chip conveyor, HURCO VMX 84 Swi CNC Universal Machining Center - Operating voltage: 400 V - Frequency: 50 Hz - Connection: 50 kVA - Rated current: 72 A - Travel range A-axis: ±90° - Spindle nose to table dimensions: 147 - 909 mm - Positioning accuracy B: ±10 seconds - Repeatability B: 10 seconds - Feed rate X and Y axes: 15,200 mm/min - Feed rate Z axis: 13,500 mm/min - Rapid traverse X and Y axes: 18 m/min Iiedpexw R Tmsfx Ac Eei - Rapid traverse Z axis: 13.5 m/min - Rapid traverse B axis: 33.3 m/min - Max. tool diameter with adjacent pockets empty, tool cover removed: 75/120 mm - Tool change time: 2.5 sec - Chip-to-chip time: 21.6 sec The machine is equipped with a 3D probe, coolant system, and chip conveyor. Transport note: Note: The machine can be transported on a low-loader with a transport width of 3,000 mm. Attention: The item must be collected on a binding appointment to be scheduled between 19 and 23.01.2026. FCA D-76571 Gaggenau – loaded onto truck.

Condition: good (used), Year of construction: 1998, AXA VHC-3-M/K 5-Axis Universal Machining Center Iisdpfx Aoxw R Nzoc Esi Year of manufacture: 1998 Control: SIEMENS 840C Machine number: 85667 Travels: Longitudinal X-axis: 1,200 mm Transverse Y-axis: 700 mm Vertical Z-axis: 800 mm B-axis: -90° to +90° C-axis: 360,000° Spindle overhaul due: 08/2025 Equipment: Swivel head -90 degrees to +90 degrees, indexed at 2.5-degree increments NC rotary table, brand SEMPUCO, 400 mm Spindle speed: 40 – 6,000 rpm / 17.2 kW 22-position tool changer Internal coolant through spindle External coolant Paper band filter Chip conveyor Scope of delivery includes: Documentation / machine parameters on data carrier Equipment, technical data, and transport details – see PDF. Illustration, content, and information provided without guarantee and therefore non-binding. All other accessories visible in the photos and videos are not included in the scope of delivery and are thus not part of this sale. The scope of delivery only includes the accessories explicitly specified here, in the order confirmation, and on the invoice. FCA (Free Carrier – loaded on truck) D-92729 Weiherhammer Packaging only Delivery time: December 2025 Subject to prior sale / Payment due immediately upon completion of purchase

Condition: good (used), Year of construction: 2012, EiMa ALPHA T CONTURA Isdpexw R I Defx Ac Esii 5-Axis Universal Machining Center Year of manufacture: 10/2012 Control system: SIEMENS 840D sI 720 NCU Machine number: 11744 Travel axes: X – 5,029 mm / Y – 1,202 mm / Z – 772 mm B-axis travel: ±121° C-axis travel: ±211° Feed rates (X/Y/Z): 60/60/40 m/min New milling spindle installed on 19.05.2025 Equipment: - 5-axis fork-type head - Milling spindle 15 kW / 12 Nm / 24,000 rpm - For milling, drilling, sawing - Disc-type tool changer, 12 tools, HSK-63 F - Pick-up station for saw blade - Spindle cooling unit - Fluidtech minimum quantity lubrication system - Partition wall for pendulum machining - Vacuum clamping plate by WITTE, 2,100 mm x 1,200 x 42 mm - Chip conveyor - Extraction unit by LOSMA NEWTON N6 Scope of delivery includes: approx. 35 tool holders / operating manual / documentation For equipment, technical data, and transport drawings – see PDF. Images, content, and specifications are provided without guarantee and are non-binding. All additional accessories visible in the photos and video are not included in the scope of delivery and are therefore not part of this sale. The delivery includes only those accessories expressly listed here, in the order confirmation, and on the invoice. FCA (Free Carrier, loaded truck) D-97944 Boxberg Packaging only Delivery: immediately Subject to prior sale / Payment due immediately upon conclusion of sale

Condition: good (used), Year of construction: 2007, functionality: fully functional, Technical details Ijdpfxsxwutds Ac Eeii x-travel 1150 mm y-travel 710 mm z-travel 710 mm table surface area 1500 x 800 mm table load 800 kg tool taper SK 40 spindle turning speed - stepless 20 - 12000 U/min feeds -stepless- 0 - 30000 mm/min main drive motor 15 / 10 kW weight of the machine ca. 10,5 t Additional information 5-Axis Universal Machining Center Equipment: CNC-control HEIDENHAIN iTNC 530 (5-axis simultaneous) NC rotary table (4th-axis), diameter 800 mm, integrated into the fixed table Controlled milling head (B-axis), swivel range -120/+30 deg. ATC 32-positions (2 x 16) Chip conveyor Coolant system for external cooling, no internal cooling

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 710 mm, travel distance Z-axis: 710 mm, controller model: MILLPLUS iT HEIDENHAIN, table load: 800 kg, 5-axis simultaneous machining center! TECHNICAL DETAILS X travel: 1,250 mm Y travel: 710 mm Z travel: 710 mm Table size: 1,500 x 800 mm Table load capacity: 800 kg Spindle speed: 12,000 rpm Spindle motor: 15 / 10 kW Spindle taper: SK 40 Tool changer: 60 positions MACHINE DETAILS Iiodpfx Aexwlgzjc Eji CNC control: MILLPLUS iT HEIDENHAIN Total power consumption: 44 kVA Dimensions & Weight Footprint: approx. 3.5 x 2.65 x 2.65 m Machine weight: approx. 10.5 t EQUIPMENT B-axis (-120 / +30) NC rotary table integrated into fixed table Direct measuring system 3D probe infrared HEIDENHAIN TS 640 Coolant system 40 bar, 600 l Rinsing gun Chip conveyor 3D Quickset software Note: The machine is fully functional. The rotary table and X-axis produce noise.

Condition: good (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, For sale: CU 1000 machining center PILOTE TECHNOLOGIES (1998) 1000x500y500z, Fanuc OM CNC, 3 axes plus 4th axis rotary table, year 1998 Isdpfxoxv Ah To Ac Ejii

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Universal machining center 5 axes simultaneously Iijdpfxsxvrk Rj Ac Esi Original purchase price: EUR 1.295.000,- First machine installation in September 2011. CNC control: Siemens 840D Solution Line Working range: X-axis: 1.600 mm Y-axis: 1.250 mm Z-axis: 1.600 mm B-axis: 360.000 x 0.001 deg. HV-axis 360.000 deg. Feed range: X/Y/Z: 30 m/min Feed force: 20 kN Rotary table torque: 25.000 N Pallet size: 1.000 x 800 mm Pallet load capacity: 3.000 kg Spindle speed: up to 8.000 rpm Tool holder SK 50-B Spindle motor power 37 kW Equipment: 2-station pallet changer 330-position tool changer (max. tool length 600 mm) Tool taper cleaning system Special cabin Coolant tank 3.300 liters, pump pressure 4 bar/50 bar (Q1/Q2) Chip conveyor Workpiece measuring probe Manual books

Condition: like new (used), Year of construction: 2000, operating hours: 33,831 h, travel distance X-axis: 1,250 mm, travel distance Y-axis: 880 mm, travel distance Z-axis: 800 mm, controller model: '3D contouring control Millplus, workpiece weight (max.): 1,000 kg, total length: 7,000 mm, total width: 3,500 mm, overall weight: 3,902 kg, spindle speed (min.): 18,000 rpm, spindle motor power: 15,000 W, Year of construction: 2000 CNC controller: '3D contouring control Millplus Axes X-axis travel mm: 1250 Y-axis travel mm: 880 Z-axis travel mm: 800 C-axis degrees: 360º (0,001) Feed rates m/min: 40 Rapid traverse m/min: 40 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø1000 Max. workpiece weight kg: 1000 max. torque Nm: 7900 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 15/10 (40%ED/cont) Cooling Tank capacity: 600 Tool system Tool holder: CAT 40 Tool magazine slots: 60 Tool changer: Doeble gripper Equipment Electronic Handwheel Chip conveyor Internal cooling lubricant supply Rotating inspection windows Rinsing gun Preapared for RENISHAW sonde Accuracy package Ready for internal cooling (40/80 bar) Paper band filter Machine running times Under power: 33831 Spindle Working: 6328 Rated power kVA: 55 Basic machine dimensions / weight Iedexvrbiopfx Ac Esii Length mm: 7000 Width mm: 3500 Height mm: 3902

Condition: reconditioned (used), Year of construction: 2014, Available immediately Moving column machine FS 480 - Total travel X=4800 mm, ideal for flexible machining of large parts - Travel X=4,800 mm, Y=1,500 mm; Z=3500 mm - iTNC 530 control with wireless HR 550 FS radio handwheel, operator's cabin on the traveling column - 2-axis NC universal drilling and milling head, fully simultaneous and positioning operation per traveling column - HSK-A 100 spindle, 10,000 rpm, 220 Nm spindle torque - IKZ air up to 6 bar - Dust protection packages to protect the guides and drives - BA 4 per traveling column - Radio measuring probe RMP 60 Renishaw - Work area monitoring with network camera and monitor at the rear of the system - Process monitoring ToolScope basic system - Additional control panel at the rear of the system - Partial enclosure consisting of work area and sheet metal door, rear with safety fence with unobstructed view into the work area - incl. fixators - Cooling units - incl. internal tool cooling (closed cooling circuit) with cooling unit Iodpfx Acexvlrbo Eoii - short delivery time, available immediately, subject to prior sale Inspection possible by arrangement Spindle hours: approx. 9079 SPECIAL PRICE!!!

Condition: reconditioned (used), Year of construction: 2010, • Traveling distances X=3100 mm, Y=1950 mm, Z=1390 mm • Heidenhain iTNC 530 with handwheel HR 410 • Machine table for multi side working 3000 mm x 1600 mm • 2-axis NC-universal milling head, for simultaneous and positioning working Iiedpoxvlqqjfx Ac Eji • Spindel 10.000 U/min HSK 100, 130 Nm Spindle torque • Tool change system HSK 100 / 40 places for 750 mm long tools • Chip conveyor (screw type) in X-axis, for transport into • Chip conveyor scraper belt type (traverse conveyor), Fabr. Knoll • Coolant container 900 l, Fabr. Knoll • Outside air at spindle • IKZ 60 bar for deep hole drilling function • Covering with safety glass pane, open at the top for loading by crane • 2 part sliding doors at the operator side • 2 part sliding doors at the front side, for easy loading • Radio-controlled measuring probe RMP 60 • incl. washing gun • incl. podiums at the front side and operator side • complete factory overhauled and painted new • short time delivery after arrangement • used machine • Y-axis ball screw in September 2021 incl. bearings renewed • X-axis new linear guiding system, July 2023 changed, renewed • Spindle overhauled at Mai 2023 (clamping system new, clamping cartridge new, rotation unit new, general tests) (at 23105 spindle hours)) • can be visited under power at 72793 Pfullingen • optional fixators • optional installation at customers plant • optional transport • 23122 spindle hours in total • 53991 machine hours in total • Year of construction 2010 Subject to prior sale

Condition: used, Year of construction: 2010, x-travel 2000 mm y-travel 2000 mm z-travel 2000 mm Control SIN840D B - axis 360 x 0,001 ° A - axis -90 - +90 x 0,001 ° feed X/Y/Z/-axis 1 - 30000 mm/min rapid traverse X/Y/Z 30,00 m/min feed B-axis ° / min feed A-axis ° / min spindle turning speed - gearbox stage 1 1 - 1096 1/min spindle turning speed - gearbox stage 2 1096 - 6000 1/min power capacity 45,00 kW tool taper HSK-A 100 max. torque on the spindle max.1250 Nm tool magazin: 207 + 10 tool length - max. 700 mm tool diameter 300 mm pallet size 2x 1000x1000 mm workpiece weight 5000 kg Iodpfxexvdq Aj Ac Eoii T-slots DIN650 T-slot - distance 100 mm T-slot - width 22 mm number of T-slots 1 + 8 total power requirement 100,00 kW dimensions of the machine ca. 13,00 x 8,00 x H4,50 m 5-axis simultaneous machining center with control SIEMENS SIN840D, measuring probe, chip conveyor, coolant system, coolant through the spindle, pallets with 5-fold media connection and clamping hydraulics, suction, swivel spindle A-axis 0-90 °, NC rotary table B-axis.

Condition: refurbished (used), Year of construction: 1986, Parts shown by hand not come. Ijdpjxvaz Refx Ac Eeii

Condition: used, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,180 mm, travel distance Z-axis: 1,400 mm, X-MM.1600 Y-MM.1180 Z-MM.1400 B-POSI.360000 H.WORKABLE MM.1500 DIM.TABLES MM.800x1000 TABLES CAPACITY KG.2500 ROTATION TABLES 360000 POS. SPEED TABLES ROTATION RPM 14 SPINDLE MOTOR POWER.KW.37 SPINDLE SPEED. RPM.30-6000 SPINDLE TAPER ISO 50 -DIN 69871 SPINDLE SHANK ISO 7388/2 RAPID & WORK FEEDS MM/MIN.28000 CNC SIEMENS 840D AUTOM TOOL CHANGER 60 POS N.2 ROTARY TABLES N.1 HEAD OVER (VERT-HORIZZ) CHIP CONVEYOR HYDRAULIC CONTROL UNIT WITH FRIDGE UNIT INT AND EXT COOLANT SYSTEM LOGIC FOR HELICAL INTERPOLATION DISP. PALLET ACCESS DOOR SECURITY DOUBLE NUT PRELOADED ON LINEAR AXES LINEAR AXIS OPTICAL LINES AND CIRCULAR AXES ENCODER Iijdpfoxuvv Iox Ac Eei X-Y-Z AXES TELESCOPIC PROTECTIONS ELECTRIC CABINET WITH AIR CONDITIONER

Condition: like new (used), Year of construction: 2005, operating hours: 48,898 h, functionality: fully functional, travel distance X-axis: 1,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: Heidenhain iTNC 530, workpiece weight (max.): 2,000 kg, total height: 3,400 mm, total length: 6,000 mm, total width: 4,500 mm, rotational speed (min.): 30 rpm, overall weight: 15,800 kg, spindle speed (min.): 18,000 rpm, number of slots in tool magazine: 40, Year of construction: 2005 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 1000 Y-axis travel mm: 1000 Z-axis travel mm: 1000 C-axis degrees: 360º (0,001) A-axis degrees: 130º B-axis degrees: 0-190º Feed rates m/min: 60 Rapid traverse m/min: 60 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø1100x900 Max. workpiece weight kg: 2000 Table rotation speed rpm: 30 Spindle Spindle speed rpm: 18000 Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 980 High-pressure bar: 40-80 Tool system Tool holder: HSK-A 63 Tool magazine slots: 40 Tool changer: Double gripper Equipment Electronic Handwheel Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Laser tool measurement for measuring tool length and diameter 3D quickSET Ready for internal cooling (40/80 bar) Paper band filter Machine running times Under power: 144180 Spindle Working: 48898 Rated power kVA: 65 Basic machine dimensions / weight Ijdpfx Aexur Sxjc Eeii Length mm: 6000 Width mm: 4500 Height mm: 3400 Weight kg: 15800

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 2,600 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 700 mm, rapid traverse X-axis: 40,000 m/min, rapid traverse Y-axis: 40,000 m/min, rapid traverse Z-axis: 40,000 m/min, table width: 750 mm, table length: 2,900 mm, table load: 2,150 kg, X - Travel: 2600mm Y - Travel: 700mm Z - Travel: 700mm A - Axis: 360000° B - Axis: - 110 to + 110° Table Length: 2900mm Table Width: 750mm Table load: 2150 Table Ø: 750mm Feed rate X-Axis: 40000mm/min. Feed rate Y-Axis: 40000mm/min. Feed rate Z-Axis: 40000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 35kW Speeds / ranges: 18000Rpm ATC / revolver: 30 Coolant through spindle / Bar:20 Number of controlled axis: 5 Chip conveyor: Yes Coolantsystem: Yes Length: 8400mm Width: 3423mm Height: 2620mm Iisdpexuqv Ajfx Ac Eoi Weight: 16000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!
