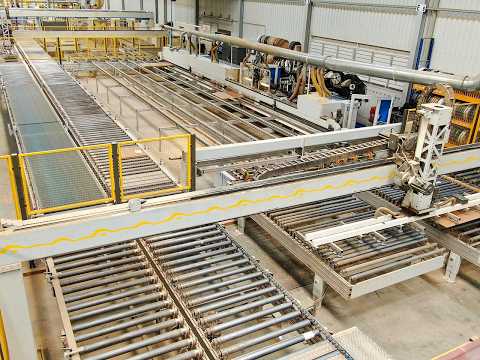

Loading and feeding machine

BARGSTEDT TBP 420/130/56/12/S

Condition: used, Year of construction: 2007, workpiece height (max.): 60 mm, edge thickness (max.): 35 mm, feed rate X-axis: 40 m/min, controller model: POWER CONTROL PC22", The machine comes from a company closure. Inspections under power are possible! TECHNICAL DETAILS Number of working units: 11 Maximum feed speed: 40 m/min Maximum panel thickness: 60 mm Minimum panel height: 16 mm Minimum panel width: 85 mm Minimum edge thickness: 0.3 mm Maximum edge thickness: 35 mm Pressure system: Rubber belt Workpiece support guides NC-controlled positioning Panel infeed alignment system The machine is configured as follows: PRE-MILLING / MILLING UNITS Number of pre-milling / milling units: 2 Unit 1: Pre-milling unit Motor power: 4.5 kW Speed: 5,860 rpm Automatic, time-controlled engagement Unit 2: End trimming unit Motor power: 1.8 kW Automatic tool change GLUING AND EDGE FEEDING Number of edge rollers: 68 Number of pressure rollers: 14 (1 x 7 + 1 x 7) Lamps for pre-heating the panel edge Pre-melter for PUR adhesive Gluing system Adhesive pot for PUR glue NC-controlled positioning EDGE PROCESSING UNITS Number of edge processing units: 8 Unit 1: End trimming unit Number of motors: 2 Motor power: 0.22 kW Speed: 10,350 rpm NC-controlled positioning Unit 2: Top and bottom flush trimming unit Number of motors: 2 Motor power: 0.55 kW Speed: 11,400 rpm Unit 3: Corner rounding unit Number of motors: 2 Gbjdpfoy R R T Njx Amyel Motor power: 0.4 kW Speed: 10,980 rpm Automatic tool change NC-controlled positioning Automatic, time-controlled engagement Unit 4: Scraper unit NC-controlled positioning Unit 5: Glue joint scraper unit Unit 6: Buffing unit Number of motors: 4 Motor power: 0.25 kW Speed: 1,390 rpm Automatic, time-controlled engagement Unit 7: Buffing unit Number of motors: 1 Motor power: 0.30 kW Speed: 3,000 rpm Unit 8: Buffing unit Number of motors: 2 Motor power: 0.18 kW Speed: 1,370 rpm MACHINE DETAILS Control system: WINDOWS XP Machine programming software: POWER CONTROL PC22 The machine is sold and delivered in its actual and legal condition (“as seen and agreed”) based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and is responsible for the installation, securing, and use of the machine at the destination. External reference: 8453

Year of construction: 2007, condition: used, controller model: POWER CONTROL PC21, workpiece weight (max.): 100 kg, feed rate X-axis: 50 m/min, plate length: 1,200 mm, plate width: 5,600 mm, The machine comes from a business closure. Inspections under power are possible! TECHNICAL SPECIFICATIONS Gbsdpfsy R R Tpex Amyol Max. panel width: 1,200 mm Max. panel length: 5,600 mm Min. panel length: 500 mm Min. panel width: 250 mm Max. travel speed: 50 m/min Working capacity: 5 / 7 cycles/min Max. lifting capacity: 100 kg Individual output: 90 m³/h MACHINE DETAILS Control system: WINDOWS Machine programming software: POWER CONTROL PC21 Motion system: Suction cups Total connected load: 28 kW Storage length: 12,000 mm Storage width: 7,000 mm EQUIPMENT Automatic panel rotation system Vacuum pump The machine is sold and delivered in its actual and legal condition (“as seen and approved”), based on photographic documentation and technical/commercial information of a descriptive nature. The buyer has the right to inspect the goods prior to collection and is responsible for installation, securing, and utilization of the machine at the destination. External reference: 8456

Year of construction: 2007, condition: used, power: 20 kW (27.19 HP), feed rate X-axis: 30 m/min, plate length: 5,600 mm, plate width: 1,200 mm, The machine comes from a business liquidation. Inspections under power are possible! TECHNICAL DETAILS Maximum panel width: 1,200 mm Maximum panel length: 5,600 mm Gbsdpfx Amoy R Szzeysl Minimum panel width: 250 mm Minimum panel length: 500 mm Maximum feed speed: 30 m/min MACHINE DETAILS Total connected load: 20 kW The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photo documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and use of the machine at the destination site. External reference: 8449

Condition: used, Year of construction: 2007, power: 43 kW (58.46 HP), cutting height (max.): 90 mm, cutting width (max.): 1,200 mm, cutting length (max.): 5,600 mm, feed rate X-axis: 40 m/min, The machine comes from a business liquidation. Inspection under power is possible! TECHNICAL DETAILS Maximum panel width: 1,200 mm Maximum panel length: 5,600 mm Minimum panel width: 150 mm Minimum panel length: 250 mm Minimum panel height: 8 mm Maximum panel height: 90 mm Maximum feed speed: 40 m/min The machine is configured as follows: Number of processing units: 4 Unit 1: Double cutter, top and bottom Motor power: 11 kW Speed: 7,090 rpm Unit 2: Scoring unit Motor power: 2.2 kW Gbedpfx Aey R S I Ujmyol Speed: 6,920 rpm Unit 3: Milling unit Motor power: 8 kW Speed: 7,090 rpm Unit 4: Milling unit Design type: on rear table Motor power: 2.2 kW Speed: 6,920 rpm MACHINE DETAILS Control system: WINDOWS Machine programming software: POWER CONTROL PC22 Total connected load: 43 kW EQUIPMENT Top pressure unit Additional guide for workpieces Rubber conveyor belt NC positioning system The machine is sold and delivered in its actual and legal condition ("as seen and approved") based on photographic documentation and technical/commercial documents of a descriptive nature. The buyer has the right to inspect the goods prior to collection and assumes responsibility for installation, securing, and operation of the machine at the destination. External reference: 8448
