Press brake

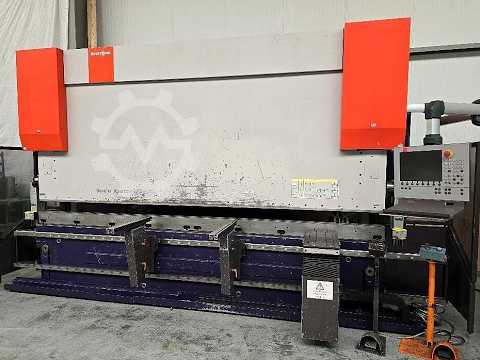

Bystronic Xpert 250 4100

Condition: used, Bystronic Xpert 250x4100 - CNC Press Brake Bending length: 4100 mm Capacity: 250 t Nledpjzizybefx Afusg - Bystronic 2D and 3D graphics control, ergonomic operating terminal with 15-inch color monitor - 8 axes (Y1, Y2, X, R, Z1, Z2, A1, A2) - AKAS laser safety device, manually adjustable in height - Hydraulic crowning - Air bending - Radius bending - Without tooling - Includes operating manual - Year of manufacture: 2007 Technical data - Press force: 2500 kN - Bending length: 4100 mm - Standard stroke: 265 mm - Installed height (clearance between lower and upper beam): 550 mm - Distance between side supports: 3750 mm - Overhang: 400 mm - Back gauge area: 1050 mm - X-axis travel: 590 mm - X-axis speed: 500 mm/s - R-axis travel: 250 mm - R-axis speed: 150 mm/s - Z-axis speed: 1000 mm/s - Z-axis speed (6 axes): 500 mm/s - Y-rapid traverse: 190 mm/s - Y-working speed: 1 - 10 mm/s - Y-working speed for robot operation: 1 - 12 mm/s - Y-return speed: 150 mm/s - Crowning: hydraulic - Adjustable support arms: 750 mm - Maximum surface pressure without wear strip: 100 N/mm2 - Maximum surface pressure with wear strip: 120 N/mm2 - Oil capacity (tank volume): 610 l - Noise emissions: 74 dB(A) - Main motor power: 22 kW - Voltage: 3x 400 V / 50/60 Hz - Transport dimensions WxHxD: 5200 x 3200 x 2100 mm - Weight: 19200 kg

Condition: reconditioned (used), Year of construction: 2008, functionality: fully functional, travel distance X-axis: 1,600 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,000 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 60 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 15 m/min, controller model: HEIDENHAIN TNC 530, workpiece weight (max.): 4,000 kg, overall weight: 35,000 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 12,000 rpm, spindle nose: SK 40 (DIN 69871), number of slots in tool magazine: 60, CNC Machining centre DECKEL MAHO DMU 160 P TECHNICAL CHARACTERISTICS: Nedpfszggmbox Afuelg Year of manufacturing: 2008 CNC control: HEIDENHAIN TNC 530 Number of simultaneous axes: 5 Stroke X axis: 1600 [mm] Stroke Y axis: 1250 [mm] Stroke Z axis: 1000 [mm] Feed rate on X, Y and Z axes: 15000 [mm/min] Traversing feeds X, Y and Z axes: 60000 [mm/min] Table dimensions: Ø1500 x 1250 [mm] Max. load on table: 4000 [Kg] Spindle type: SK 40 (DIN 69871) Min. spindle speed: 20 [rpm] Max. spindle speed 12000: [rpm] Tool changer magazin number of stations: 60 Machine weight: 35000 [Kg] INCLUDED EQUIPMENT: 1 × HEIDENHAIN part probe 1 × laser measuring system for tool setting and tool monitoring 3 × HEIDENHAIN linear glas scales on the X, Y and Z axes 1 × through-spindle coolant system 1 × chip conveyor 1 × paper-band filtration unit (paper filter system) More information upon request.

Condition: ready for operation (used), Year of construction: 1998, pressure 85.0 t chamfer lenght 2050 mm distance between columns 1750 mm column arm 410 mm stroke 365 mm dayligth 535 mm ajustment speed 200 mm/sec working feed 1.0 - 10.0 mm/sec return speed 135 mm/sec back stop - adjustable max. 600 mm table width 120 mm work height max. 1050 mm Number of working hours 28.500 h oil volume 200 l operating pressure 340 bar total power requirement 14.0 kVA weight of the machine ca. 9050 kg range L-W-H 2680 x 2100 x 2885 mm with increased installation height / piston stroke very well maintained condition (!!) with only approx. 28.500 operating hours - in checked condition - machine video - ?v=ZuwyPKJSYLw Equipment: - CNC electro-hydraulic press brake - including DELEM CNC control * swiveling control panel at the front left - CNC controlled axes: Y1 - Y2 - X - R - Z1 - Z2 - I + CNC crowning - CNC electro-motorized back stop (X axis) - CNC electro-motorized height adjustment of the back stop (R axis) - CNC electro-motorized adjustment of the stop fingers (Z axes) - CNC pneumatic die displacement (I axis) - CNC motorized table crowning - WILA electro-hydraulic upper tool clamping - WILA electro-hydraulic Lower tool clamp - 1x freely movable 2-hand / foot control - 2x front, stable support arms including "sliding system" - side protective device (swinging doors) - rear protective device (swinging doors) - bending tool storage cabinet (right front, side) - original operating instructions + circuit diagram etc. Nledoxaa Uropfx Afujg further technical data: - feed speed X axis .. 500 mm/sec. - feed speed R axis .. 300 mm/sec. - feed speed Z axis .. 1000 mm/sec. - travel range X axis .. max. 600 mm - travel range R axis .. max. 250 mm

Condition: excellent (used), Year of construction: 2004, winch inkl. lifting capacity max. 2t. auf 2,7 Meter lifting capacity max. 1 Tonne auf 5,3 Mete Number of working hours 270 h Nedpfx Aeq N E U Ajfuelg electrical ja

Year of construction: 1992, condition: good (used), machine/vehicle number: 03.323.36002, Item No. 22621 Technical Data: - Max. working length 3500 mm - Distance between columns 3050 mm - Max. pressing force 2000 kN - Distance table / ram max. 480 mm - Column overhang 260 mm - Ram stroke approx. 300 mm - Stroke speeds - Downward speed, no load max. 100 mm/sec - Upward speed 80 mm/sec - Downward pressing speed max. 10 mm/sec - Total drive power 25 kW - Space requirement approx. W 4500 x H 3150 x D 2100 mm - Weight approx. 16000 kg - including: - CNC control CYBELEC, renewed in 2008 - Controlled crowning device - Controlled rear backstop with height adjustment 5 - 1000 mm - Hydraulic tool clamping - Upper tool + universal die set Nodsip Nikepfx Afuslg - Material supports - Two-hand control panel

Year of construction: 2015, condition: new, Vertical furnace Nlsdpscdi D Dofx Afujg height: 1100mm useable diameter: 790mm outside diameter: 1560 mm outer height (without lid): 1480mm outer height (with lid): 2300mm electrically heated: 40 kW circulating fan: 2,2 kW three-phase supply: 400 V, 50 Hz temperature: max. 750°C

Condition: used, Year of construction: 1982, Technical details: faceplate diameter: 2600 mm turning diameter over support: 2500 mm turning length: - mm centre distance: 1600 mm turning diameter over bed: 2900 mm Nedjwtctyspfx Afujlg spindle bore: 100 mm revolution per minute: gear steps U/min feed range: Überdrehen 0,12-31,5 Plandrehen 0,12-45 mm/min bed guideways length: 2900 mm max. workpiece weight between centres: 400.000 kgs total power requirement: 45 kW weight of the machine ca.: alle Komponenten zusammen: ca. 29,0 t machine dimensions LxWxH: 5.2 x 5,0 x 3,1 m 3-way measuring system with digital display RSF electronics Control panel Cooling unit for Rittal electric cabinet *

Condition: used, Year of construction: 2014, total length: 1,500 mm, total width: 1,150 mm, total height: 2,400 mm, Weight: 3.600 kg - Year: 2014 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Serial number: 441 - Power [kW]: 3.0 - Press force [ton]: 28 - Max. working width [mm]: 1000 - Column gap [mm]: 950 - Throat depth [mm]: 220 - Backgauge depth [mm]: 415 - Transport dimensions: 1500mm x 1150mm x 2400mm (l x w x h) - Transport weight [kg]: 3600kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Nlsdpfx Aexapftjfujg Lukas van Rossum

Condition: good (used), Year of construction: 1992, machine/vehicle number: 19703, Offer 22584 Technical data: - Welding current 320 A 60% ED - 270 A 100% ED Nodpfx Aop H Tu Eofuolg - Welding current adjustable in 42 steps 40 A - 320 A - Digital volt + ampere display - Separate wire feed case with hose package approx. 1 lfm - intermediate package machine - wire feed case approx. 1,5 m - 4 roller wire feed steplessly adjustable - 2 stroke - 4 stroke - regulation - Spot welding - welding length / welding time adjustment - wire back firing adjustment - ground cable - pressure reducer - connection 400 V / 32 A / 18 kVA - Space requirement approx. W 550 x H 1200 x D 1100 mm - Weight approx. 300 kg

Condition: new, Year of construction: 2026, -Tfon Leveltech® S-3513 Leveling Machine. Nlodpfxokyrzlj Afueg -The Tfon Leveltech® S-3513 is a precision leveling machine optimized for ultra-thin materials, combining advanced electromechanical controls with easy operation for consistent, high-quality flattening results. -Key Specifications: Material Thickness: 0 – 0.3 mm. -Maximum Material Width: 1.300 mm Minimum Material Length: 70 mm Quick Change System for Straightening Rollers: Standard. Flattening Gap Adjustment: Electromechanical / PC Controlled. Machine Dimensions (L × W × H): 2,685 × 1,585 × 1,820 mm. Total Weight: 5.000 kg.
