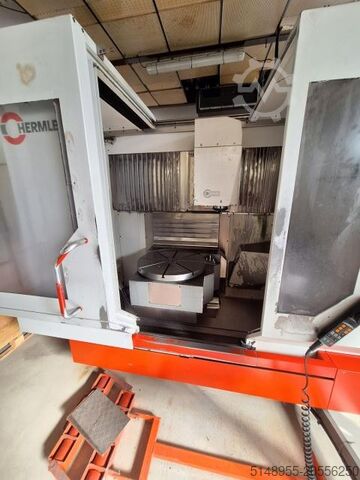

Vertical machining center

HERMLE U_740

Condition: good (used), Year of construction: 2005, functionality: fully functional, The machine is in good technical condition; inspection under power is possible by arrangement. Video available. Technical specifications: Working table length: 900 mm Working table width: 500 mm Maximum table load: 500 kg Iedexxmr Iepfx Aaaotp Spindle drive power: 32 kW Number of tools in magazine: 28 pcs Maximum spindle speed: 12,000 rpm X-axis travel: 740 mm Y-axis travel: 500 mm Z-axis travel: 500 mm Machine height: 2,400 mm Machine width: 2,500 mm Weight: 7.3 t

Condition: excellent (used), Year of construction: 1997, High-Performance 3-Bed CNC Lathe Manufacturer: Gurutzpe – Spain Model: B 1400/3 x 8000 Year of manufacture: 1997 Control: NUM Max. swing diameter over bed: 1,420 mm Center height: 710 mm Max. turning diameter over cross slide: 1,150 mm Max. turning length: 8,000 mm Chuck spindle power: 75 HP Chuck speed: up to 600 rpm (4-speed gearbox) Chuck torque: 16,000 Nm Rapid traverse X/Z: 5,000 mm/min X-axis travel: 850 mm Z-axis travel: 8,000 mm Turret with automatic 4-position changer Max. workpiece weight without steady rests: 14,000 kg with 1 steady rest: 17,000 kg, with 2 steady rests: 19,000 kg Machine equipment: – 1 x travelling steady rest – 2 x fixed steady rests – 1 x chip conveyor Ijdpfx Ajw Snu Eeaaotp

Condition: ready for operation (used), Year of construction: 2007, functionality: fully functional, controller manufacturer: Heidenhain, table width: 480 mm, table length: 900 mm, overall weight: 7,300 kg, Equipment: documentation/manual, TECHNICAL DETAILS Fixed table: 900 x 480 mm MACHINE DETAILS Itedpfexl Sunjx Aaaop Control: HEIDENHAIN Electrical Data Net weight: 7,300 kg Operating voltage: 400 V / 3~ Mains frequency: 50 Hz Control voltage: 24 V Total power: 26 kVA Total rated current: 37 A Weight: 6,300 kg EQUIPMENT Tool changer

Condition: used, TECHNICAL DETAILS - Number of axes : 5 MILLING SPINDLE Ijdpsup Hw Eofx Aaajtp - Tool holder type : HSK63 - Spindle power : 17.5 [kW] - Spindle speeds : 18.000 [rpm] LINEAR AXES - Travels on X/Y/Z axes : 915 / 500 / 500 [mm] - Rapid traverses rates (X/Y/Z) : 30 / 30 / 20 [m/min] TOOL CHANGER - Tool magazine capacity : 28 TABLE - Table dimensions : Ø 630 [mm] - Maximum weight upon table : 500 [kg] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 26 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 3620 x 3160 [mm] - Machine height : 3000 [mm] - Machine weight : 7300 [kg] MACHINE HOURS - Number of working hours : 48894 [h] EQUIPMENT - CNC : Heidenhain iTNC 530 - Coolant tank - Chips conveyor - Oil mist extractor : ELBARON - Cooling unit : HYDRAC COOLING FLKS 170S/2.3W/TP/400-50/1/14 - Workpiece probe : Renishaw - Tool breakage detection : BLUM

Year of construction: 2009, condition: ready for operation (used), Turning diameter: 200mm, passage diameter: 330mm, passage diameter over cross slide: 260mm, travel X/Z: 160mm/460mm, feed X/Z: 24m/min, speed: 5000rpm, spindle clearance: 51mm, spindle power: 16.5kW/11kW, torque: 1665.5Nm/112Nm, tailstock: 400mm, tool positions: 12. Machine dimensions X/Y/Z: approx. 4200mm/1700mm/2300mm, weight: approx. 3500kg, control: Siemens Sinumerik 810D. Including chip conveyor. Documentation available. On-site inspection is possible. Iodpfx Aajv Dkb Isajtp

Year of construction: 2004, condition: excellent (used), used machining center Brand: Hermle Model: U740 Year: 2004 Serial No.: 16716 Weight: 7300kg Power: 26KVA CNC: Heidenhain iTNC 530 Type: 4 + 1 axis (Spirsin model 8117CF/225) 16 tool charger. General technical data: Fast forwards: - X axis: 30m/min. - Y axis: 30m/min. - Z axis: 20m/min. - Axis B: 15 rpm. Tours: Itjdpfxoktkdbj Aaajp - X axis: 915mm / 895 to 915mm (Tool holder head -5º to 90º / Tool holder head > 50º to 95º) - Y axis: 500mm (In all positions of the tool holder head) - Z axis: 500mm / 470mm (Tool holder head 90º-95º) Positioning precision in the 3 axes 0.010mm (Temperature at 20º) Maximum load on table: 700kg Table measures: 900x500mm Spindle rpm: 12,000rpm Hollow Shaft Water Cooled Spindle Motor Milling head with automatic degree rotation from -5º to +95º sk 40 tool clamping system 16 tool magazine - Maximum tool diameter: 80mm - In case of adjacent free posts maximum tool diameter 100mm - Maximum tool length: 250mm - Maximum tool weight 6kg Cooling system by coolant with a 210L tank and a flow rate of 30Ltrs./min. It has an electronic control for manual handling of the machine. Chip collector: - Brand: BMF - Model: SPE 63/12-300 Z600 - Year: 2004

Condition: not inspected (used), Face plate diameter: 3000 mm Turning diameter without side support: 3500 mm Itjdpfx Aevyy Txoaaop Turning diameter with side support: 3300 mm Turning height under tool: 2560 mm Max. workpiece height: 2750 mm Ram stroke vertical: 1500 mm Ram stroke horizontal: 1800 mm Travel distance of side support: 2320 mm Traverse travel: 2100 mm Max. workpiece weight: 20 tons Total weight: approx. 75 tons

Condition: used, Year of construction: 1995, turning diameter 300 mm turning length 710 mm control SIEMENS SINUMERIC 840 total power requirement 40 kW weight of the machine ca. 6000 kg dimensions of the machine ca. m Isdpfet Hw Sujx Aaaotp I N D E X (Germany) CNC Controlled Slant-Bed Chuck Lathe with Turret and Tailstock and INDEX CNC Control C 200 – 4 (SIEMENS) Model G 300 Year 1995 S/N 5000 65 _____ Turning - Ø, with chuck, max. 300 mm Spindle bore 90 mm Max. Workpiece Swing dia. 400 / 590 mm Turning length / travel of turning slide, (X-Achse) max. 710 mm Turret head slide cross movement (Z-Axis) max. 140 mm Turret with 12 tool holder positions DIN 30 mm Feed range of turret slide / Quickfeed 0,1 - 20 m/Min. Feed Force of X/Z-Axis 8 – 13 kN Steplessly adjustable Spindle speeds up to 5.000 rpm Torque Forceon main spindle approx. 275 Nm Spindle drive 28 kW Total electrical load appr. 40 kW - 400 V - 50 Hz Weight 6,000 kg Accessories / Special Features: * INDEX CNC Control Model C 200-4 resp. SIEMENS 840 C for 3 Axes X/Z Axis and Main spindle as C-Axis (Spindle Orientation) Control Panel mounted swivable on front left side of machine. * Spindle orientation in 2,5° degree steps and Spindle indexing device * Mounted hydraulic 3 Jaws Chuck make FORKHARDT Model HS 250 with many Sets of jaws. Speed up to 5.000 rpm * INDEX- Turret with 12 positions for DIN 30 tool holders, prepared for driven tools and motorized by the indexing motor, Choice of approx. 40 pieces toolholders * Hydraulic Tailstock with stroke of 50 mm and with concentricity correction device * KNOLL – Swarf Conveyor with Coolant Device and High Pressure Pump, Sliding door, Oilskimmer, etc. Condition : Good to very good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract.

Condition: good (used), Year of construction: 2002, Hurco VMX 30, Itedetud Ncepfx Aaajp year of construction 2002, Ultimax 4 control unit, Travel X/Y/Z 760/510/610 mm, table size 1020 x 510 mm, 24-position tool changer, spindle speed up to 10,000 rpm, coolant system, electric handwheel, Pocket milling with islands, synchronous thread cutting, 3D contour software, DXF capable, chip conveyor,

Condition: reconditioned (used), travel distance X-axis: 310 mm, travel distance Y-axis: 294 mm, travel distance Z-axis: 210 mm, overall weight: 3,000 kg, spindle speed (max.): 50,000 rpm, used HSC machine RXP800DS - overhauled - Workspace: - X axis: 200 mm Iodpfx Aelzhhkoaaetp - Y-axis: 294 mm - Z axis: 200 mm - Drives of the linear axes: Linear motors in all axes. - Drives of the rotary axes: Highly dynamic direct drives with integrated cooling. - Feeds 0 - 40,000 mm / min in all linear axes. - Network connection: - Tool measurement laser: Diameter and contour measurement, wear monitoring and breakage control of the milling tools. - Chuck control, 1 chuck - Emusion cooling with Oil-mist-suction - RMS Main Job manager - Spindle max. 60,000 rpm HSK 25 - Tool changer: 24 chain changer, able to operate while machining - High precision option - Remote maintenance via Teamviewer - Transport dimensions machine: W 2,425 x L 1,925 x H 2,700 mm - Weight: approx.3,000 kg The machine is completely checked, measured and overhauled in-house. Please arrange a viewing appointment with us.
