Tool room milling-univ.conv. 0-399mm x-tr. for sale
Identified location: Ashburn (US) (Edit)
x-travel 290/300 mm
y-travel 160 mm
z-travel 330/340 mm
engine output 1,5/1,9 kW
weight of the machine ca. 0,7 t
Optical condition: very good
Mechanic: very good
The machine can be viewed under current.
Heidenhain digital readout, axes: 3 Aktiv
N23tr
vertical milling head Sk 40 Sk 40 x M 16
operating instruction
operating key
2102 6095
new in 1991/1992
380 V, 50 Hz, with CEE plug and cable
Color green
"Compliance with the Machinery Directive" on request at an additional cost !!
... more
x-travel:300 mm
y-travel:300 mm
z-travel:400 (340 with Apron) mm
surface area:390 x 620 / Chip tray mm
turning speeds:40- 2500 U/min
feed range:02 - 3600 mm/min
rapid feed:4,0 m/min
control:Contour 3 - 3D path Control System
spindle taper:SK40
Czri2se8
quill stroke:60 mm
milling-head swivable +/-:90*
spindle drive motor:2,0 kW
total power requirement:1,6 / 2,0 kW
weight of the machine ca.:1,3 t
dimensions of the machine ca.:1,8 x 1,8 x 1,8 m
Deckel FP2A Universal Milling Machine
- Spilnd... more
serial number 52854/08
milling head ja
slotting head ja
table: und senkrecht Futter
chuck senkrecht
Bjdmg802kb
weight of the machine ca. 1,4 t
lot of equipment more
Hello,
For sale is a used Universal Tool Milling Machine from Thiel, model Duplex 158 incl. Heidenhain Digital Position Indicator.
The axes have complete traverse paths:
X-axis: 320mm
Y-axis: 200mm
Z-axis: 350mm
All 3 axes are driven and can be moved by feed. In addition, all 3 axles are equipped with glass measuring rods, so the exact position of the tool can be read directly on the digital display.
Speed:
Vertical: 50-1800 rpm adjustable in 12 steps
Horizontal: 60-1200 rpm adjustable in 12 ste... more
x-travel 560 mm
y-travel 500 mm
z-travel 450 mm
turning speed range - stepless 31 - 5000 U/min
taper ISO 40 / 69871 A
quill stroke 80 mm
feed speeds infinitely variable 2 - 6000 mm/min
rapid traverse 6000 mm/min
table surface area 900 x 530 mm
power capacity 7,5 kW
total power requirement 15 KVA
weight of the machine ca. ca.2,6 t
Optical condition: good
Mechanic: good
380 V, 50 Hz

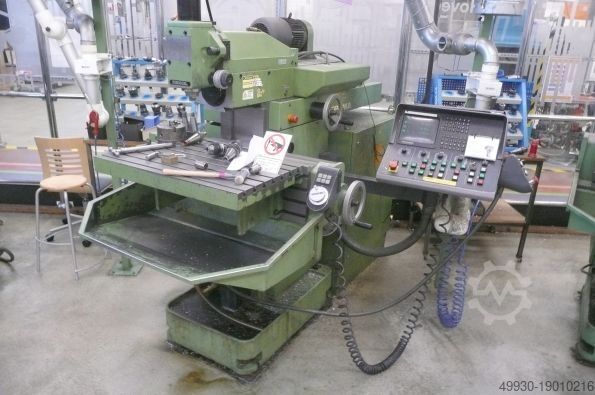

* CNC control Deckel Dialog 11, 3D path control with screen graphics
* Hydraulic tool clamping
* Vertical h... more
x-travel 900 mm
Nnnhd
y-travel 630 mm
z-travel 500 mm
table-size 1200 x 600 mm
spindle taper ISO 40
turning speed range 20 - 6300 U/min
feeds longditudinal/cross/vertical 2 - 4000 mm/min
rapid motion -longitudinal/cross/vertical 10/10/8 m/min
numbers of positions in the tool changer 22
quill stroke 100 mm
total power requirement 20 kW
weight of the machine ca. 5,7 t
dimensions of the machine ca. 4 x 3 x 2,4 m
electronic hand wheel
cooling equipment
33.01 392
with CEE plug and cable
3-D ... more
x-travel:290 mm
y-travel:120 mm
z-travel:350 mm
table surface area:690 x 175 mm
spindle taper:SK40
turning speeds steps:17
feed range:42 - 680 mm/min
feed steps:14
turning speed range:50 - 2240 U/min
weight of the machine ca.:0,6 t
Y7kgvpdxp
with swivelling vertical head +/- 90°, double-pole switchable, reversing spindle drive, vernier hand wheels on all 3 axes plus fast-adjustment on x-axis with capstan, x-axis with electric feed, feed steps adjustment via change gear, upper rail for horiz... more
x-travel 300 mm
y-travel 150 mm
z-travel 340 mm
table-size 600 x 195 mm
spindle head adjustment 150 mm
turning speed range 40 - 2000 U/min
total power requirement 1,0/1,4 kW
weight of the machine ca. 0,6 t
Cu3keymk
dimensions of the machine ca. 1,20 x 0,9 x 1,90 m more
1995
good condition (used)
Prvomajska-MACMON M100E
Accessories:
Bjbbrwyl2q
digital display, speed vertical milling head, dividing head and scraper
The feed spindle air is minimal - at turning L/R 0,15mm
Table size 600 x 235 mm
Working range - longitudinal 290 / 310 mm
- transverse 170 - vertical 310 / 340 mm
vertical speed 50 - 2600 rpm -16 steps
horizontal speed 40 - 2000 rpm-16 steps
feed - longitudinal/cross 9-450 mm/min- 16 steps
Engine power 1.3 / 1.8 kW
Engine speed 700 / 1400 rpm
Tool holder ISO 40 more
1980
ready for operation (used)
Cover FP3A with Heidenhain TNC 124 control. Control was retrofitted. SK 40 spindle holder, tilt-turn-swivel table. Machine also suitable for manual operation, hand wheels in each axis. Ready for use condition.
Chdhyr8c more
tool holder: SK 40
Travel X/Y/Z: 400 / 320 / 440 mm
Speed range: (18) 20 -3150 rpm
spindle stroke: 60 mm
Feeds, infinitely variable: 0 - 1000 mm/rev
table size: 800 x 320 mm
Rapid traverse in all axes: 2 m/min
head swivels: +/- 90°
Engine power: 5,85 kW
Connection: 400 V
Lgqqy8g9
Weight, approx.: 2.2 t
Dimensions LxWxH, approx.: 1540 x 1350 x 1900 mm
Equipment:
-3-axis digital display
- Control Heidenhain TNC 124
- Digital servo drives Bosch Rexroth Indramat
- Hydr. tool clamping horizontal and ... more
x-travel 560 mm
y-travel 500 mm
z-travel 450 mm
turning speed range - stepless 31 - 5000 U/min
taper ISO 40 / 69871 A
quill stroke 80 mm
feed speeds infinitely variable 2 - 6000 mm/min
rapid traverse 6000 mm/min
table surface area 900 x 530 mm
power capacity 7,5 kW
total power requirement 15 KVA
weight of the machine ca. ca.2,6 t
Optical condition: good
Mechanic: good
The machine can be viewed under current.
2838 0471 Ü 2003
380 V, 50 Hz
!! a new screen will be installed !!
* CNC cont... more
x-travel:ca. 400 mm
y-travel:150 mm
z-travel:340 mm
surface area:600 x 210 mm
T-slots:4
T - slots - width:12 mm
spindle speeds::20 - 2000 U/min
turning speed range - vertical:60 - 1200 U/min
turning speed range - horizontal:95 - 1900 U/min
speed steps work spindle:12
feed range:10 - 500 mm/min
feed steps:10
spindle taper:MK 4
quill stroke vertical:60 mm
total power requirement:1,7 kW
weight of the machine ca.:0,8 t
dimensions of the machine ca.:0,9 x 1,05 x 1,55 m
This Deckel FP1 Universal ... more
- Table size 600 x 250 mm
- Table load 100 kgs
- X travel 300 mm
- Y travel 200 mm
- Z travel 250 mm
- Spindle speed 90 - 900 rpm (stepless)
- Spindle taper ISO40
- Spindle power 2,2 kW
- Power required 3,2 kVA
- Weight ca. 1150 kg
- Machine size LxWxH ca. 1000 x 1200 x 1800 mm
Accessories
- SONY 3 axis D.R.O system
Hsnth97
- Horizontal spindle
- Vertical milling head can be swiveled (+/-30 degree)
- Automatic (stepless) feedrate on all axes
- Rapid on all axes
- Chip pan
- Coolant unit
- Man... more
Nr. 4251:
1 gebr. Universal Werkzeugfraesmaschine
Fabr. DECKEL MAHO
Typ FP 1 - 2104
Bauj. 2006
Heidenhain TNC 123
Arb.-Ber.: 300 x 160 x 340 mm
Antriebsleistung: 1,5/1,9 kW
Zubehoer:
Winkeltisch / Starrtisch Typ 2110, 600 x 210 mm
Schwenkbarer Winkeltisch Typ 2114, 600 x 250 mm
Teilkopf Typ 2212, mit 3-Backenfutter, Reitstock
und Gegenlager mit Reitstock
Gegenhalter mit Gegenlager zum Horizontalfraesen
Maschinenfuesse
Div. Fraesdorne und Spannmittel
Dokumentation
Sonstiges:
Spindel SK 40 ... more
1995
good condition (used)
Macmon M 100 RE tool milling machine with 3-axis Axesta-Heidenhain digital readout, rigid table, SK 40 spindle mount. Accessories : various collets and cutter arbors. In good working condition, can be demonstrated under power by arrangement.
Bivrvgjorc more
Toolroom milling machine Deckel FP1 07-07-157
Delivery time: immediately
Number: 07-07-157
Machine data
Year of construction: approx. 1965
L x W x H: approx. 1600 x 1200 x 1700 mm
Weight: approx. 650 kg
Good general condition
Technical specifications
Digital display: 3-axis digital display * optional *
Travels:
X axis: approx. 300 mm
Y axis: approx. 150 mm
Z axis: approx. 340 mm
Table surface area: approx. 600 x 250 mm
Spindle:
Speed range: approx. 40 - 2000 rpm
Tool holder: ISO 4... more
x-travel 290/300 mm
y-travel 160 mm
z-travel 330/340 mm
engine output 1,5/1,9 kW
weight of the machine ca. 0,7 t
Optical condition: very good
Mechanic: very good
The machine can be viewed under current.
Heidenhain digital readout, axes: 3 Aktiv
Bilpcirv8u
vertical milling head Sk 40 Sk 40 x M 16
operating instruction
operating key
2102 6321
380 V, 50 Hz, with CEE plug and cable
Color green
"Compliance with the Machinery Directive" on request at an additional cost !!
(see the fo... more
x-travel:300 mm
y-travel:150 mm
Gxipyrqf8
z-travel:340 mm
surface area:600 x 210 mm
T-slots:5
T - slots - width:12 mm
turning speed range - vertical:250 - 2000 U/min
turning speed range - horizontal:40 - 315 U/min
speed steps work spindle:8
feed range:10 - 500 mm/min
feed steps:8
quill stroke:60 mm
spindle taper:SK 40
total power requirement:1,7 kW
weight of the machine ca.:0,8 t
dimensions of the machine ca.:0,90 x 1,10 x 1,55 m
This Deckel FP1 Universal Milling Machine
- The Vertical Spi... more
1970
good (used)
machine no. 60343
Univ.swivel-tilting table
with digital display
div.tool holders
Strhg0 more
Schaublin 13
Universal freesbank
Specificatie
Schaublin factory
Type 13
year 1978
Besturing conv.
As-verplaatsing
X-as 320 mm
Y-as 150 mm
Z-as 375 mm
Bg8kyhgoik
Variations in X, Z-as
Hoofdspil
Toerental 58 - 2000 Omw/min
Opname ISO 30
extras
Heidenhain DRO
Koelolie inrichting
Enkele gereedschaphouders
central smering more
Deckel FP1 year 1965 with 2 axis Heidenhain digital display, rigid table, table has flaws and breakouts. MK4 spindle holder. Under power ready for demonstration
D8ko30hei more
Toolroom milling machine Deckel FP1 Aktiv 07-07-094
Delivery time: immediately
Number: 07-07-094
Machine data
Year of construction: approx. 1987
L x W x H: approx. 1600 x 1200 x 1700 mm
Weight: approx. 650 kg
Very good general condition
Technical specifications
Nwnbx
Digital display: 3-axis digital display (Heidenhain TNC 113)
Travels:
X axis: approx. 300 mm
Y axis: approx. 150 mm
Z axis: approx. 340 mm
Table surface area: approx. 600 x 250 mm
Spindle:
Speed range: approx. 40 - 200... more
table mounting size: 560 x 240 mm
x-axis: 300 mm
y-axis: 275 mm
Jsxqspoh
z-axis: 200 mm
spindle retainer: ISO 40
spindle rotations: 40 - 2000 rpm
operating voltage: 380 V
total energy requirement: 1,5 kW
space needed: 1200 x 1100 x 1700 mm
weight: ca. 750 kg more
x-travel:250 mm
y-travel:150 mm
z-travel:305 mm
Lrnfq9cr
table surface area:600 x 210 mm
spindle speeds:40 - 2000 U/min
spindle turning speed range:16
spindle taper:SK 40
feed:10 - 500 mm/min
feed steps:16
vertical head swivelling:+/- 90 Grad
total power requirement:1,0 / 1,4 kW
weight of the machine ca.:0,8 t
dimensions of the machine ca.:1,0 x 1,25 x 0,85 m
This Deckel FP1 Universal Milling Machine
- The Vertical Spindle Swivelable left or right (90*)
- With 600 mm Broad Table ( Tilt and... more
Tool recording: SK 40
Trades X/Y/Z: 360/210/340 mm
Speed range: (16) 56-1800 mm
Spindle hub: 50 mm
Preferal: (16) 11.2-355 mm/U
Table size: 250 x 690 mm
Exoffload: 330-530 mm
Head swivel: +/-45 °
Connection: 400 V
Dimensions LxBxH, approx: 1250 x 1250 x 1820 mm
Facilities:
-Coolant device in stand with pump
-Not-off batting button
-Albrecht drilling feed
-Machine light
Machine workshop tested.
Article 0320209
Cjhyzioy more
1980
good (used)
Deckel FP1 2-axis active milling machine with Heidenhain digital display, swivelling angle table. SK 40 spindle holder. Good working condition, from training department. Machine has already been overhauled by Harich. Machine ready for demonstration under power after arrangement.
Bfykf73g more
Toolroom milling machine Deckel FP1 07-07-096
Delivery time: immediately
Number: 07-07-096
machine data
Year of construction: approx. 1978
L x W x H: approx. 1600 x 1200 x 1700 mm
Weight: approx. 650 kg
Very good general condition
Technical specifications
Digital display: 3-axis digital display
Travel:
X axis: approx. 300 mm
Y axis: approx. 150 mm
Z axis: approx. 340 mm
Table surface area: approx. 600 x 210 mm
Spindle:
Bhsodl8ldb
Speed range: approx. 40 - 2000 rpm
Tool holder: ISO ... more
Universal tool milling machine
Make: DECKEL
Model: FP 1 Active
Year of construction: 1987 - overhauled, newly painted,
RAL7035 light grey / RAL7012 basalt grey
RAL5008 grey blue
Machine no.: 2102-3356
Warranty:
12 months single shift from delivery, on the mechanics overhauled by us. The electrics and electronics are excluded from this, as they have only been subjected to a functional test. Accordingly, it also corresponds to the status that applied at the time of the respective year of construct... more
Active digital read-out HEIDENHAIN
Working travels 300x160x340mm
Table size 600x210mm
Spindle taper 40
Spindle speeds 40-2000 rpm
2qooay
MARCELS MASCHINEN CH more
excellent (used)
Milling machine Aciera F2 with a lot of accessories. Spindle retainer W20
Ixusrjsyo more
ready for operation (used)
Milling machine Schaublin 13
Travels XYZ: 320-175-375mm
Spindeltaper: Iso30
Spindelspeeds: 58-2000
Tablesize: 600x260mm
With tilting table
2 Axes powerfeeds and rapids
Angle head Iso 30
Bhwdaowj9k
With some Iso 30 tooling
Vice
Coolantsystem more
Werkzeugfräsmaschine Deckel FP1 07-07-101
Lieferzeit: sofort
Nummer:07-07-101
Maschinendaten
Baujahr: ca. 1962
L x B x H: ca. 1600 x 1200 x 1700 mm
Gewicht: ca. 650 kg
Gvyoos
Sehr Guter Allgemeinzustand
Technische Daten
Digitalanzeige: 3 – Achsen – Digitalanzeige *optional*
Verfahrwege:
X – Achse: ca. 300 mm
Y – Achse: ca. 150 mm
Z – Achse: ca. 340 mm
Tischaufspannfläche: ca. 600 x 250 mm
Spindel:
Drehzahlbereich: ca. 40 – 2000 U/min
Werkzeugaufnahme: ISO 40
Antriebsleistung: ca... more
Universal tool milling machine
Besponst9u
Make: Lid
Model: FP 1
Year of construction: 1976 - part overhaul, newly painted,
RAL 7035 light-grey / basalt grey RAL7012 /.
RAL5012 Lambert
. No.: 57346/08
Warranty:
Available 6 months after delivery, on the mechanics of us partially reconditioned single-layered. The electrical and electronics is excluded, because it has undergone only a functional test. It is consequently State, which applied at the time of the respective year of manufacture.
Machin... more
Active digital read-out HEIDENHAIN
Working travels 300x160x340mm
Table size 600x210mm
Spindle taper 40
Hdax780go
Spindle speeds 40-2000 rpm
Misc.accessories
MARCELS MASCHINEN CH more
Tool recording: SK 40
Trades X/Y/Z: 290/200/350 mm
Speed range: (18) 50-2500 U/min
Spindle hub: 75mm
Icpyexhl
Preferal: (18) 8-400 mm/U
Table size: 240 x 595 mm
Exoffload: 160-360 mm
Connection: 400 V
Dimensions: 1300 x 950 x 1840 mm
Head swivel: +/-120 °
Facilities:
-3-axis digital display Fagor
-Coolant device in stand with pump
-Not-off batting button
-Machine screwstick
-Light
Article 0320208 more
Travel X: 400 mm
Travel Y: 200 mm
Travel Z: 400 mm
Speed: 25 - 2500 rpm
Drive power: 2,2 KW
tool holder: SK 40 with S 20 x 2 tightening quill
Table type: Fixed angle table
Bh7js7nb7a
Table Clamping surface: 700 x 330 mm
Weight: 1500 Kg
Dimensions: 1600 x 1800 x 1900 mm
Painting: New paint! RAL 7035 (light grey) / RAL 7012 (basalt grey)
Digital readout: 3-axis HEIDENHAIN active feed rate
Accessories: KSS-tub, further accessories on request more
WERKZEUGFRÄSMASCHINE DECKEL FP 1
AKTIV - 07-07-160
Lieferzeit: sofort
Nummer: 07-07-160
Hersteller: Deckel
Typ: FP 1 Aktiv
MASCHINENDATEN
Baujahr: ca. 1987
L x B x H: ca. 1600 x 1200 x 1700 mm
Gewicht: ca. 650 kg
Guter Allgemeinzustand
TECHNISCHE DATEN
Digitalanzeige: 3 - Achsen - Digitalanzeige (Heidenhain TNC 113)
Verfahrwege:
X - Achse: ca. 300 mm
Y - Achse: ca. 150 mm
Z - Achse: ca. 340 mm
Tischaufspannfläche: ca. 600 x 250 mm
Spindel:
Drehzahlbereich: ca. 40 - 2000 U/min
Werkzeugau... more
Universal tool milling machine
Make: harich (cover)
Model: A (FP 1)
overtaken with CE
geometrical acceptance test protocol
Warranty:
12 months from delivery, single-layered
Accessories:
-Fixed table
-Vertical milling head SK 40 with thread S 20 x 2
-Coolant system
Gnounhfk0
-Manual
CE and safety equipment:
-LED machine luminaires model 35
-new control cabinet according to current safety regulations
-Cap on the vertical milling head with electrical circuit protection
-Chuck guard with ... more
1989
good (used)
Toolroom milling machine Deckel FP1 2102 Active
Travels XYZ: 300-160-340mm
Bg8ksio7xw
Spindeltaper: Iso 40 Din 2080
Spindelspeeds: 40-2000
Tablesize: 600x260mm
With tilting swiveling table
Quil
Aktive digital readout Heidenhain TNC 113 on all 3 axes
Powerfeeds and rapids on all 3 axes
YOM 1992 more
Universal tool milling machine Fabr. COVER type FP 1
38jlvudh7
Masch. # 54833/08
Technical data:
Longitudinal movement of table X 250 / 245 mm
Transverse movement of the spindle stick Y 150 mm
Vertical movement of the table Z 340 / 335 mm
Spindle mount MT 4
12. Hor-speed 60-1200 RPM
12. Vert-speed 95 x 1900 rpm
vertical table sled 550 x 195 mm
Quill stroke of vert.-milling head 60 mm
12 feeds longitudinal and perpendicular, 9.5 x 475 mm/min
1.2 kW
Dimensions 700 x 1000 x 1600 mm
Weight approx. ... more
Technical data:
Fixed angular table:
Fixed angular table clamping area: 800 x 400 mm
Max table load: 200 kg
Working spindle:
Tool holder horizontally and vertically: ISO 40
Power of the main drive motor / 100% ED: 2.2 kW
Vertical milling head:
Speed range, tiered: (12) 50 - 2000 rpm
Drill pinole, stroke: 100 mm
Swivel range: +/- 90°
Travel:
X-axis automatic/man.: 385/400 mm
Y-axis automatic/man.: 185/200 mm
Z-axis automatic/man.: 365/380 mm
Feeds:
2jrgxkxd
Feed range: 0-650 mm/min
Number... more
1976
ready for operation (used)
Cover FP3, SK 40 S 20 x2 Spindle holder, rigid table. Good working condition.
Inh2hxx more
Werkzeugfräsmaschine Deckel FP1 07-07-102
Lieferzeit: sofort
Nummer: 07-07-102
Maschinendaten
Baujahr: ca. 1970
L x B x H: ca. 1600 x 1200 x 1700 mm
Gewicht: ca. 650 kg
Sehr Guter Allgemeinzustand
Technische Daten
Digitalanzeige: 3 – Achsen – Digitalanzeige *optional*
Verfahrwege:
X – Achse: ca. 300 mm
Y – Achse: ca. 150 mm
Z – Achse: ca. 340 mm
Tischaufspannfläche: ca. 600 x 250 mm
Spindel:
Bfxgqkd9cp
Drehzahlbereich: ca. 40 – 2000 U/min
Werkzeugaufnahme: ISO 40
Antriebsleistun... more
Universal tool milling machine
Make: Lid
Model: FP 1
with continuous feed
Year of construction: approx. 1975 - part overhaul, newly painted,
RAL 7035 light-grey / basalt grey RAL7012 /.
RAL5012 Lambert
Warranty:
Available 6 months after delivery, on the mechanics of us partially reconditioned single-layered. The electrical and electronics is excluded, because it has undergone only a functional test. It is consequently State, which applied at the time of the respective year of manufacture.
Mach... more
Machine base made of high-quality grey cast iron ensures maximum dynamic rigidity and lasting precision
all guides are hardened and precision ground
precise ball screws in all axes
the X and Y axis are driven by precise recirculating ball screws - for the Z axis this can be offered as an option
clearly arranged switching elements as well as the swivelling control panel and the standard equipment with digital position display ensure comfortable operation
for horizontal milling, both machines have... more
