Milling machineMAHO
500 C
Machine data
- Machine type:
- Milling machine
- Manufacturer:
- MAHO
- Model:
- 500 C
- Condition:
- good (used)
- Functionality:
- fully functional
Price & Location
- Location:
- Ansbacher Str. 19, 91595 Burgoberbach, Deutschland
Technical details
- Travel distance X-axis:
- 500 mm
- Travel distance Y-axis:
- 400 mm
- Travel distance Z-axis:
- 300 mm
- Quill travel distance:
- 80 mm
- Rapid traverse X-axis:
- 4 m/min
- Rapid traverse Y-axis:
- 4 m/min
- Rapid traverse Z-axis:
- 4 m/min
- Total height:
- 1,900 mm
- Total width:
- 2,200 mm
- Total length:
- 2,600 mm
- Table width:
- 320 mm
- Table length:
- 650 mm
- Rotational speed (max.):
- 4,000 rpm
- Rotational speed (min.):
- 20 rpm
- Overall weight:
- 2,000 kg
- Equipment:
- rotational speed infinitely variable
Details about the offer
- Listing ID:
- A22337917
- Update:
- 15.07.2026
Description
1. Working Area & Travel Ranges
X-axis: 500 mm
Y-axis: 400 mm
Z-axis: 300 mm
Quill stroke: 80 mm / 100 mm (manual/hydraulic)
2. Spindle
Tool holder: SK 40 / ISO 40
Tool clamping: Hydraulic (quick-change system)
Speed range: continuously variable from 20 to 4,000 rpm
Milling head swivel range: ± 90°
3. Feeds & Drive
Feed range: continuously adjustable from 1 to 3,000 mm/min
Rapid traverse speed: approx. 4 to 6 m/min
Spindle drive power: approx. 5 kW
Total connected load: 12 kW to 24 kVA
4. Control & Electrical System

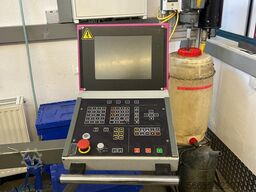

Standard CNC control: Philips CNC 432 3D path control with graphics display, very popular for workshop programming with standard cycles such as circular pockets, groove milling, and drilling cycles
Measuring system: Direct optoelectronic length measuring system, Heidenhain scales in all three axes
5. Table Options
NC rotary table: approx. 650 x 320 mm
6. Dimensions & Weight
Machine weight: 2,000 kg
Footprint (L x W x H): approx. 2.6 m x 2.2 m x 1.9 m
Transportation and loading can be arranged upon request for an additional charge, throughout Europe.
Gjdpfx Anszl An Ssysud
Prices plus VAT
Inspection possible by appointment. Contact us, our team will be happy to assist you further.
Trade-in or exchange possible!
