Used Heavy Duty Lathe for sale (9,808)

Condition: excellent (used), Broadbent Heavy Duty Lathe 1041mm x 10,000mm Year approx. 1973. Swing over bed 1041mm (41”) Swing bin gap1575mm (62”) Distance between centres 9300mm (30’ 6”) Spindle bore 115m (4 ½”) Spindle speeds (18) 3.3 – 360 rpm Spindle motor 30 HP or 40 HP (To be confirmed) Tailstock 6 MT Lredpfxswhylve Agzju Imperial & Metric screw-cutting with change gears. 36” Faceplate with 4 adjustable jaws, 54” Faceplate, Taper turning attachment, Power feed to top slide, 2 x 18” 3 point steadies, 24”/28” Steady.

Condition: used, turning diameter over bed 2400 mm turning diameter over slide rest 2200 mm turning length 10000 mm power capacity 185 kW faceplate diameter 1650 mm turning speeds 1,5 -150 U/min max. workpiece weight 70000 kg clamping diameter 1400 mm Technical data Working range Maximum turning diameter over support: 2200 mm Maximum swing diameter over bed: 2400 mm Maximum turning length: 10,000 mm Clamping diameter in the headstock faceplate: 300 - 1,600 mm with special jaws up to 2,050 mm Clamping diameter in the tailstock faceplate: 300 - 1,400 mm Maximum workpiece weight: 70000 kg Main drive, faceplate Faceplate diameter: 2000 mm Faceplate speeds, continuously adjustable in 4 stages: 1.5 - 150 rpm Maximum torque at rated speed: 220,000 Nm Drive power of main motor: 185 kW Flange centre point angle: 70° Supports Travel of the plunge slide: 500 mm Travel of the face slide: 1400 mm Quick adjustment, longitudinal: 2000 mm/min Quick adjustment, face: 800 mm/min Infinitely variable feed, longitudinal: 0.6 - 300 mm/min Infinitely variable feed, face: 0.3 - 120 mm/min Max. cutting force at support: 20,000 kg Tailstock Faceplate diameter (removable): 1650 mm Faceplate clamping diameter: 1400 mm Flange centre point angle: 70° Quick adjustment: 1250 mm/min Special equipment Lrsdpoxddvnsfx Agzeu Copying device for first support Copying length 8500 mm Max. copying depth in one pass 500 mm Boring device: Boring bar 460 x 390 mm Drilling diameter 600 - 1000 mm Maximum drilling depth in one pass 2700 mm At Ks of 200 kp/mm² - s max. = 1.5 mm/rev a = max. chip cross-section 30 mm² at a projection of 1000 mm Reduced chip cross-section with increasing drilling depth A guide ruler for cone turning, adjustment angle up to 8° and a maximum cone length (in one pass) of 2000 mm, adjustment accuracy ± 5 minutes. A guide ruler for cone turning, adjustment angle up to 15° and a maximum cone length (in one pass) of 1000 mm, adjustment accuracy ± 5 minutes. 125 kg auxiliary crane on spindle box.

Condition: good (used), Year of construction: 2000, Heavy-duty lathe ERNAULT SOMUA P72 with 3 guideways diameter over bed 2200mm Lrsdpjxq D Tysfx Agzou diameter over carriage 2000mm speed 1.5 to 3000rpm - 75 HP machine weight 39t admitted weight 16t machine visible in operation

Year of construction: 1971, condition: ready for operation (used), A heavy face lathe Ravensburg is available. Center height: 600mm, faceplate diameter: 800mm, turning diameter over bed/cross slide: 900mm/1200mm, max. turning length: 600mm, max. workpiece weight: 350kg, weight: approx. 6100kg. An on-site inspection is possible. Ljdpfx Aexq Eynjgzjru

Condition: good (used), Year of construction: 2006, Puma 700M 2006 Ljdpfjxpdrtsx Agzeru Doosan Puma 700M CNC Lathe (2006) Controlled axes: 3, X: 470 (450+20)mm, Z: 1650mm, C: 360(0.001)gr Tools in revolver: 12 (BMT85) Spindle RPM: 3-1500, Rotating tools RPM: 30-3000 Automatic door Weight: 16,100 kg Note that this lot is located at Braås, Sweden

Condition: ready for operation (used), Year of construction: 1961, Manufacturer: WMW NILES lathe DLZ 630 Condition: used Turning diameter over bed: 630 mm Feed: quer: 0,018-1,25 mm/U Hollow: 70 mm Centre height: 290 mm Spindle speed: 22,5 – 1120 / 18 step U/min Lododwfdfjpfx Agzeru Turning length: 2000 mm Total power requirement: 15,0 kW Turning diameter over bed: 630 mm Weight of the machine ca.: 4,2 t Transport dimensions lxwxh: 4,5×1,35×1,5 m Turning diameter over slide: 340 mm If you need more information. We are here to help! Please contact us via the contact form or call us Your ad has been automatically translated. Translation errors are possible.

Condition: used, turning diameter 3.200 mm turning diameter modified: 2.400 mm turning diameter over slide 3.000 mm turning length max. 15.000 mm control Sinumerik 840 D Siemens workpiece weight max. 80.000 kg work accuracy (up to) 0,01 mm Lrjdpfxswtrz Hs Agzju turning speed range - main spindle max. 50 min/-1 weight of the machine ca. 154,4 t dimensions of the machine ca. 20,7 x 6,0 m Heavy Duty Lathe ZERBST - DXP 5 / W15x15000 - measurement precision: < 0,01 mm Retrofit 2009 / 2012: - 2009: Control system upgrade to Sinumerik 840D - 2012: - New main gearbox, incl. main spindle drive - Installation of holding brake, incl. electrical integration - Modification and optimization of cylindrical roller bearings/bearings - Modernization: Control and safety technology

Condition: used, Year of construction: 1988, turning diameter over bed 2000 mm turning diameter over slide rest / mm turning length / mm - Type 1 K 671 320 F3 - Year of manufacture 1988 (first commissioned in 1998) - Turning length 10,000 mm - Turning diameter over bed 2,000 mm (modified) - Faceplate diameter 1,950 mm - Faceplate clamping range 400 - 1,350 mm - Speeds 1.00 - 140 rpm - Torque 125,000 Nm - Main cutting force 130 kN max. - Automatic swiveling tailstock - Max. workpiece weight 70 tonnes - Max. workpiece weight with steady rest 100 tonnes - Drive power 100 kW Lodpfx Agjxn Tz Ijzsru - Number of bed ways 4 - Dimensions 22,000 x 6,200 x 2,900 mm - CNC control SIEMENS 840D (2010 for €220,000.00) - Support feed X-Z 0.3 - 4,000 mm/min. - Support rapid traverse X-Z 4,000 mm/min. - Inner cone dimensions 140 x 1:7 - The machine complies with CE guidelines - Includes 2 steady rests, 1 roller block, 4 jaws, boring device - Condition: very good condition

Condition: refurbished (used), Centre height 1000 mm Swing over bed 2000 mm Turning diameter 1600 mm Turning length 10 000 mm Spindle bore  105 mm Main power motor 71 kW Maximum torque of the spindle 40 000 Nm Chuck plate dia.  1600 mm Tooling system : tool turret or double-shelf toolholder - to be agreed Control system : Sinumerik 840 D sl Number of spindle speeds 3 Spindle speed ranges 250 rpm ( for the chuck dia. 1600) Longitundial / cross rapid traverse 4000 mm Tailstock quill dia.  280 mm Tailstock quill travel 200 mm Load carrying capacity : max. weight of workpiece in centers: 30,000 kg max. weight of workpiece in centers with one steady rest 35,000 kg two steady rests 40, 000 kg Lathe dimensions and weight : height 2400 mm width 3000 mm length 15700 mm ( turning lengh + 5700 mm) weight of the lathe TCF200 x 10 m : 46,000 kg Scope of overahul : The lathe TCF 200 x 10m totally disassembled for the overhaul. Bed and carriage guideways are ground and matching surfaces lined with antifriction material. Headstock and tailstock – replacement of all used parts ( all new bearings ). Lrsdpon Up R Ssfx Agzju Carriage – replacement of all used parts and installation a new ball screw for X axis drive Drive system for Z axis - REDEX /brand new/; Installation of the new CNC system Sinumerik 840 D sl with PLC program; Installation of the new feed drives from Siemns with power 50 Nm Installation of the new control cabinet and control panels; New wiring/ cables and all electrical equipment; New painting and new geometry as per ISO 1708

Condition: used, Technical details: turning diameter over bed: 1040 mm turning diameter over support: 720 mm centre distance: 5400 mm center height over bed: 540 mm control: Siemens 828D CNC mit shop turn turning dia. in gap: 1300 mm length of gap: 640 mm spindle bore: 152 mm revolution per minute: 3,5...1000/ 4 steps U/min feed:: x-Achse: 37,24 (m/min) m/min feed:: z-Achse: 21,91 (m/min) m/min Ledpfeu Ix Rpjx Agzoru force of feed longitudinal: x-Achse: 6,44 (KN) N feed force Z - max.: 17,2 (KN) N tailstock taper MT: MK 6 tailstock quill stroke: 300 mm total power requirement: ca. 30 kW weight of the machine ca.: 14,1 t space requirement approx.:: L:7,7xB:1,7xH:2,0 m CNC Lathe with shop turn Geometric overhaul is in procedure. Equipment: - headstock Morse 6, travel of spindle sleeve 300mm - thread cutting possible (metric thread, inch threads, module threads) - multi quick steel holder swiveable 360° - 3-jaw lathe chuck Ø=630mm - chuck protection - 2 steady rests (Lynettes) (1x fixed + 1x fixed open) - 4 pcs tips for tailstocks - 5 x multi quick change steel holder for chisel - 1 x drill chuck 16mm + 2x drills with MK-cone sleeves 68,5mm & 24,75mm - 1 lot self constructed clamping means Accessories: - face chuck Ø=800mm (adaptation necessary) - CNC turning with shop turn - your benefits at first glance: - flexible programing via graphic interactive (without DIN/ISO knowledge) or text programming with contour definition and cycle support - user friendly operation through practical set up -and measuring operations, clearly arranged tool managment and 3D-Simulation - increase of productivity via supporting PC-Software for work preparation without machine assignment *

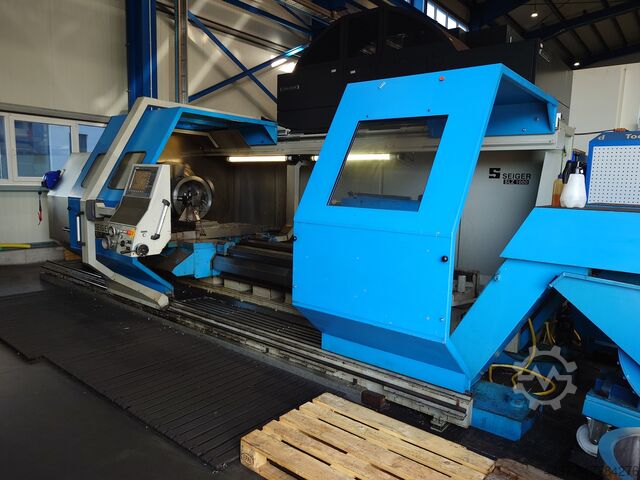

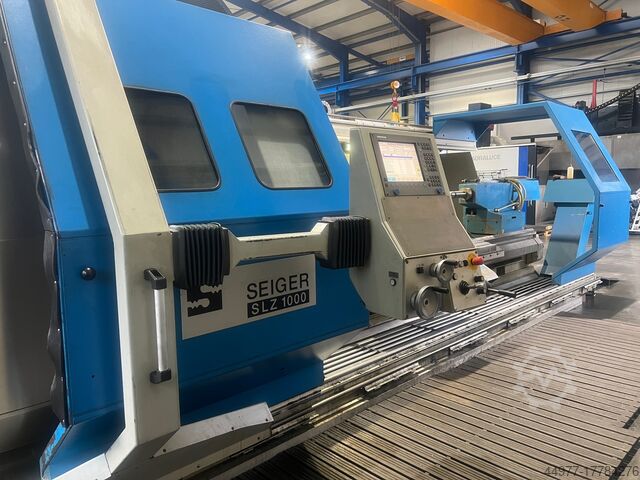

Condition: ready for operation (used), Year of construction: 2009, Seiger SLZ 1000 cycle lathe year of construction 2009 center distance 3000mm Circulation over bed 1010 Lredpfxsu T Dryj Agzou Circulation over facing slide 650 Drive at 100% ED 37KW at 60/ ED 52KW max. torque approx. 9000NM Speed 5-900rpm X Feed force max 240000N Z feed force max 16000N Control Heidenhain Manual Turn with faceplate and steady rest The offer is aimed exclusively at traders within the meaning of §14 BGB

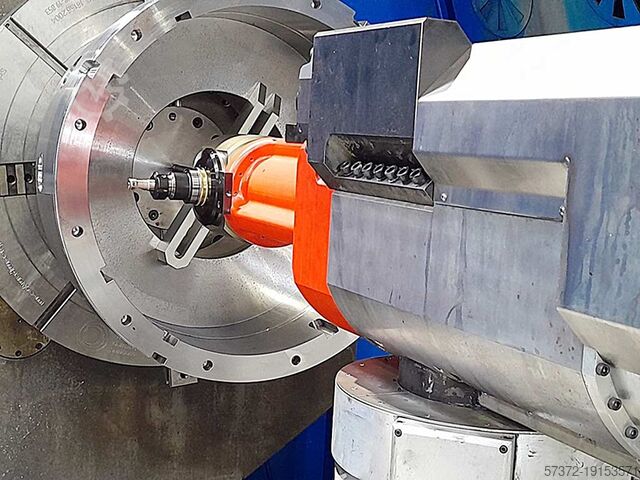

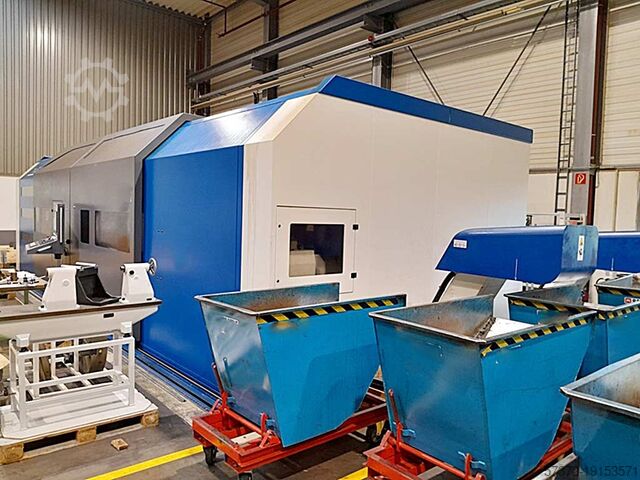

Year of construction: 2019, condition: ready for operation (used), A Klaaßen CNC heavy machining center is available. Turning diameter: 1500mm, center distance: 4500mm, chuck diameter: 1000mm, through-hole: 190mm, travel Y: 340mm. Machine dimensions X/Y/Z: approx. 7800mm/2900mm/2200mm, total machine weight: approx. 40000kg, control: Siemens Sinumerik 840D sl with ShopTurn, operating hours: 3092h. Including extensive accessories. Documentation available. On-site inspection is possible. Lodpfewkuzdex Agzsru

Condition: used, Year of construction: 2005, turning diameter over bed 935 mm turning dia. over face-slide 600 mm greates pass round over bed 1.600 mm turning length 2.000 / 3.000 mm control 810D / Manual Turn Siemens centre height 475 mm max. workpiece weight between centers 6.000 kg turning speed range - main spindle 10 - 1.100 min/-1 transmission ratio 4 power capacity - main spindel 37 kW max. Torque 8.000 Nm spindle diameter in front bearing 190 mm spindle bore 155 mm type Parat 4 pos. RD 4 number of cross-slides 1 x-axis 850 mm z-axis ca. 2.100 mm quill stroke 300 mm diameter of quill 140 mm capture MK 6 rapid speed X: 8 m/min rapid speed Z: 6 m/min weight of the machine ca. 10,5 t dimensions of the machine ca. 8,00 x 2,30 x 4,00 m Semi-frontal Lathe KREWEMA - HFDM 45 475 x 2000/3000 Lodpfx Aow Spbmogzjru

Condition: used, turning diameter over bed 2400 mm turning diameter over slide rest 2270 mm turning length 12000 mm control SIEMENS 820T power capacity 185 kW faceplate diameter 1850 mm turning speeds 1,6 - 175 U/min max. workpiece weight 70000 kg Technical data Working range Maximum turning diameter over support: 2270 mm Maximum swing diameter over bed: 2400 mm Maximum turning length with 30 mm slide: 12000 mm with 80 mm slide: 11,500 mm Clamping diameter in the headstock faceplate: 300 - 2,040 mm Clamping diameter in the tailstock faceplate: 300 - 1,300 mm Mounting in roller blocks: 1000 - 1750 mm Load capacity: 35 t Mounting in roller steady rests: 800 - 1100 mm Load capacity: 30 t Mounting in roller steady rests of M0911: 300 - 1100 mm Maximum workpiece weight: 70,000 kg Main drive, faceplate Faceplate diameter: 2,200 mm Faceplate speeds, infinitely variable in 4 stages: 1.6 - 175 rpm Maximum torque at rated speed: 220,000 N·m Drive power of main motor: 185 kW Flange centre point angle: 70° Supports Travel of upper support: 735 mm Travel of plunge slide, 35 mm wide: 720 mm Travel of the face slide, 80 mm wide: 720 mm The slides can be adjusted continuously Rapid traverse, longitudinal: mm/min Rapid traverse, face: mm/min Feed rates, continuous, longitudinal: 0.05 - mm/min Stepless feed, face: 0.05 - mm/min Max. cutting force at support: 200000 N Face slide: Heavy-duty machining and BTS system Lredpfxjxc Ny Aj Agzsu Tailstock Diameter of faceplate (removable): 1850 mm Clamping diameter of faceplate: 1300 mm Flange centre point angle: 70° Quick adjustment: 2000 mm/min Special equipment CONTROL SIEMENS Slider measuring system Boring holder with boring bar holder ø 300 mm

Condition: like new (used), MACHINE DATA TORNI TACCHI FTC model 51 OVERALL DIMENSIONS Center distance 4000 m/m Height 1550 m/m Width 1400 m/m Length 6200 m/m Weight 10.000 Kg Swing over bed 1120 m/m Swing over carriage 810 m/m Swing over gap 1350 m/m Hole through spindle 123 m/m Number of speeds 18 Range of speeds 7-550 / 1’ Horsepower of motor 25HP Morse taper № 6 Metric threads – inch – module – pitch 3 jaw chuck 450 m/m Face plate 850 m/m Extra face plate 1420 m/m Ljdpfsd Tm D Eox Agzoru Good condition

Condition: used, Technical details: turning diameter over bed: 800 mm turning diameter over support: 530 mm Lredev Uzn Tjpfx Agzeu centre distance: 1250 mm turning diameter in the gap: 900 mm center height over support: 530 mm turning length: 1800 mm center height over bed: 395 mm spindle bore: 82 mm revolution per minute: max.900 U/min force of feed longitudinal: 25000 N bed width: 710 mm weight of the machine ca.: 6,5 t dimensions L x W x H: 4,01 x1,9 x 1,52 m Lathe chuck with 500mm 3-jaws/soft jaws Longitudinal feed in steps of 60 Thread feed metric/inch/pitch thread Tool holder MK6 Accessories: Steady rest diameter 500mmm closed Steady rest diameter 300mmm closed without attachment Multifix mountings *

Condition: excellent (used), Year of construction: 1989, Weisser Heilbronn GIGANT CNC Lathe 1989 Control: Heidenhain Turning diameter over bed: 1400 mm Turning diameter at faceplate: 1200 mm Turning diameter over cross slide: 1080 mm Max. turning length: 1300 mm Spindle motor: 45 kW Lodewmnqwspfx Agzjru Accessories: Faceplate, jaws, tool holder, chip conveyor, documentation

Condition: ready for operation (used), Broadbent Heavy Duty Lathe 1041mm x 10,000mm Year approx. 1973. Swing over bed 1041mm (41”) Swing bin gap1575mm (62”) Distance between centres 9300mm (30’ 6”) Spindle bore 115m (4 ½”) Spindle speeds (18) 3.3 – 360 rpm Spindle motor 30 HP or 40 HP (To be confirmed) Lrodpfx Agov I T Ewezou Tailstock 6 MT Imperial Metric screw-cutting with change gears. 36” Faceplate with 4 adjustable jaws, 54” Faceplate, Taper turning attachment, Power feed to top slide, 2 x 18” 3 point steadies, 24”/28” Steady.

Condition: new, Year of construction: 2025, CNC control Fagor or Siemens delivery time approx 4-5 month Including normal equipment: Lsdpfsdag Svjx Agzoru - electrical equipment 24/230/400V german fabrication (CE-Norm) - machine lamp 24Volt - cooling unit - steel holder, 4-fold, incl. upper support - 4-chuck faceplate 1000mm - Savety housing - central lubrication SKF/Vogel -1 set technical documentation, including: -- Operating manual -- circuit diagramm -- programming manual -- decleration of conformity (CE) - machine painting combination RAL 7035 and RAL 5015 Technical specifications Workpiece diameter over bed: 1000mm Working diameter over bed:1000 mm Working diameter over support: 650mm length between centers: 5000mm Max. weight of workpiece, withoit steady rest: 8000 kg Spindle head DIN 55026: Gr.15 spindle bore: 128mm Spindle inside cone(metrisch): 140 Performance of main drive: 22/30* kW spindle speed: 5-500U/min Turning speed steps (manual / stepless within steps): 24 max. spindle torque:9500Nm Machine dimensions: Length: 8200mm Width: 2400mm Height: 2000mm Weight: 15750kg * option

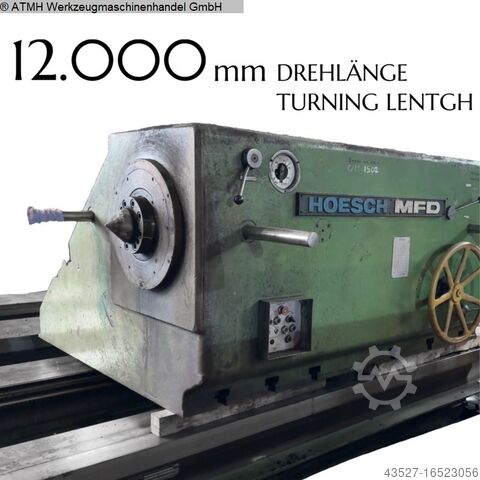

Condition: used, Year of construction: 1973, turning diameter over bed 2235 mm turning diameter over slide rest 2997 mm turning length 12200 mm Control SIEMENS faceplate diameter 2000 mm required space ca. 7 x 22 m weight of the machine ca. 220 t HOESCH MFD CNC HEAVY DUTY LATHE WITH SIEMENS CONTROL Type: D2000 SGK-1 Technical documentation is included Technical Specifications Space requirement: 7 x 22 metres + control cabinet 4.7 x 0.5 x 2 metres Faceplate 2006mm Centre Height 1,499mm Swing Over Saddle 2235mm Swing Over Bed 2997mm Turning Length 12192mm Min/Max Workpiece Held In Chuck Ø457/1600mm Maximum Workpiece Weight 110 Ton Ledot Ei Huopfx Agzjru Speed Range 0.5- 140rpm (300hp Motor) Feed Range 0.0118-7.08''/Rev. Steady Capacity Ø356-902mm Copying Depth 508mm lnductive Maximum Cutting Force 30,000Nm Twin Barrel Steady Capacity Ø356- 902mm, 50 Ton Capacity, Roller Type. Machine Data 1.1 Total Machine Max. Swing over bed slide 2,000 mm Center height over bed 1,500 mm Distance between centers 12,000 mm max. weight of workpiece 100,000 kp height measured from shop floor level up to machine axis 2,200 mm 1.2 Headstock Diameter of main spindle 670 mm Diameter of faceplate 2,000 mm Max. chucking diameter 1,600 mm Min. chucking diameter 455 mm Dead Center Angle 80 ° Faceplate Speed: Constant torque 1st range 0,5 – 2,6 2nd range 1,25 – 7,2 3rd range 3,1 - 18 4th range 7,8 - 45 Constant capacity 1st range 9,0 2nd range 22,6 3rd range 56 4th range 140 Capacity of Main Drive 220 HP Max. Torque faceplate 30,000 kpm Key Speed 5,7 rev/min 1.3 Saddle Max. admissible main cutting force 30,000 kp Feed Speed longitudinal 0,3 – 120 mm / min Feed Speed transverse 0,3 – 120 mm / min Rapid Traverse Speed longitudinal 2,000 mm/ min Rapid Traverse Speed transverse 1,000 mm/ min Max. copying depth 500 mm Max. length of tool carrier measured from front edge cross slide to front edge tool carrier 700mm Tool carrier – width 60mm 35 mm Cutting Edge height of tool units 60 mm Cutting edge height of shank-type tools beeing located on the clamping table 100 mm Travel of upper tool post 820 mm 1.4 Tailstock Tailstock barrel diameter 580 mm Adjustment of the barrel 150 mm Dead Center angle 80 ° Speed of rapid traverse 2,000 mm / min Positioning speed 500 mm / min 1.5 Steady Clamping range 350 – 900 mm ...

Condition: good (used), Year of construction: 2003, Daewoo Heavy Puma 600 CNC Turning Centre with Fanuc Series 18i-T CNC Control, Chuck size 610mm, X axis 900mm, Z axis 1575mm, Spindle speed 1400rpm, 12 Station Turret and programmable Tailstock, Mills Swarf and Coolant Conveyor System, Machine weight 16100 kgs, fitted with Tool Presetter. S/No. PM600042 (2003) Lsdpfx Ajwvbubjgzsru

Condition: excellent (used), Technical Data H.PUNCHES MM.482 D.PUNCHES MM. 14000 DIAM.TORN. GUIDES MM.965 CARRIAGE TURNING DIAMETER MM.685 RPM 375 MAND. DIAM.MM.155 Lodpfeg Anh Ujx Agzoru BENCH WIDTH MM.1065 ENGINE POWER KW.44,72 APP. KG.33.300 Non-binding data to be verified / Data must be verified Standard equipment PLATEAU 4 JAWS IND.DIAM. MM.905 COUNTER-POINT TOOL TURRET N.2 BEZELS DIAM.MM. 975 CAD N.1 BEZEL COPYRIGHT

Condition: new, Year of construction: 2024, turning diameter over cross slide: 690 mm, spindle bore: 155 mm, turning diameter: 1,090 mm, turning diameter over bed slide: 1,000 mm, center height: 500 mm, center width: 700 mm, turning length: 6,000 mm, bed width: 700 mm, rotational speed (max.): 1,000 rpm, Equipment: rotational speed infinitely variable, Heavy-duty lathe with infinitely variable speed control in 4 ranges. Digital position indicator / digital measuring device with constant cutting speed control - High motor power of the main drive 30 kW in standard version (applicable in the range from 5 - 1000 rpm) Ljdpsugwrgofx Agzoru - Rigid main spindle with 132 mm bore - Bed width 700 mm - Prismatic guide, rigid cross slide Accuracy according to DIN 8607 - Rigid main spindle: TUS 800 /100/1250 with 155 mm spindle bore, mounted in precision bearings Manufacture: FAG or SKF Spindle holder according to DIN 55027/15 - Hardened guideways 48 +/-2 HRC - Locked chuck guard (max. TUS 800 = 760 mm, TUS 1000 = 960 mm, TUS 1250 = 960 mm) Rear, continuous chip splash guard - Moving front chip guard - Jogging gear for main spindle - Closed feed box of rigid design with sliding wheel blocks on splined shafts - Central lubrication for bed slide and facing slide - Central lubrication for headstock and feed box - Feed rates, metric and inch threads without wheel change - Rapid traverse lengthwise, crosswise and in top support - Safety shutdown of the handwheel on the bed slide or the hand crank on the cross slide during rapid traverse movement - Feed direction change on the bed slide and also on the headstock - Quick-change tool holder model D1 Scale ring on the bed slide and tailstock handwheel - Scaling on the tailstock quill 2-stage tailstock quill/ with gear ratio 1:1 and 1:4 - Electrically adjustable tailstock Support for lead and feed spindles from 2000 mm SW - CE and declaration of conformity

Condition: new, Year of construction: 2025, pipe diameter (max.): 12,000 mm, travel distance X-axis: 12,000 mm, Equipment: cooling unit, safety light barrier, Three-chuck Heavy-duty Fiber Laser Tube Cutting Machine NS-12052HG 12000mm, 500 Chuck Servo drive is used for auxiliary feeding High-quality chuck Adaptive to different sizes of tubes Servo control, excellent performance Give the equipment ultra-high dynamic performance Lodjv D Uhfjpfx Agzjru Auxiliary feeding system Reduce work intensity and improve efficiency More types of processed tubes Support flying cutting High-precision Z-axis control Bevel cutting Highly automated ≤2m workpieces are unloaded through servo flaps

Condition: used, axle configuration: 3 axles, first registration: 01/2009, color: other, Year of construction: 2009, Empty weight: 9.040 kg Ljdpsw Rfb Hsfx Agzjru Axle 1: left 8 mm right 8 mm Axle 2: left 10 mm right 10mm Axle 3: left 10 mm right 10 mm
