Used Internal Grinding Device for sale (22,874)

Condition: used, functionality: fully functional, Year of construction: 2013, load capacity: 45,000 kg, empty load weight: 3,800 kg, total length: 8,000 mm, construction width: 2,500 mm, Special equipment Condition: Ready for use and fully operational Technical condition: Very good Multi-purpose spreader for reachstacker with 27 lifting eyes and 2 support stands Hfsdpeygn I Iefx Abroc

Condition: used, Technical details: Hfodpfxjyg Npaj Abrsc weight of the machine ca.: 7,5 t Out of valve slide production: Lidköping centerless grinding machine Lidköping CL-4-B *

Condition: used, Technical details: weight of the machine ca.: 7,5 t Out of Valve slide production line: Hjdpfx Absw Sw Rcsrjfc Lidköping centerless grinding machine: Type CL-46 *

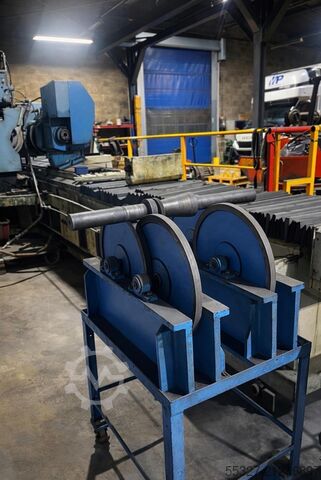

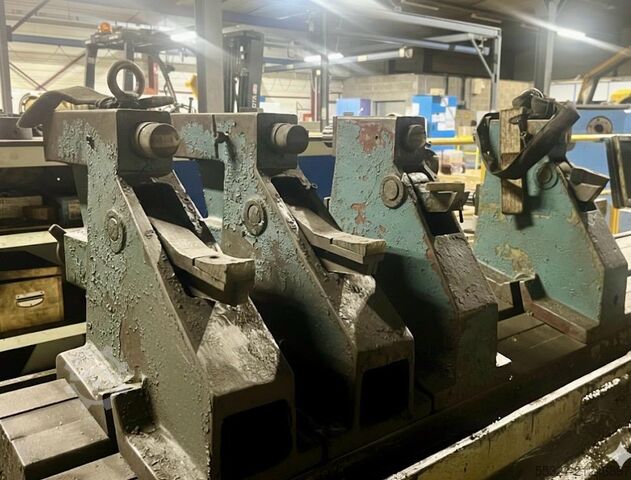

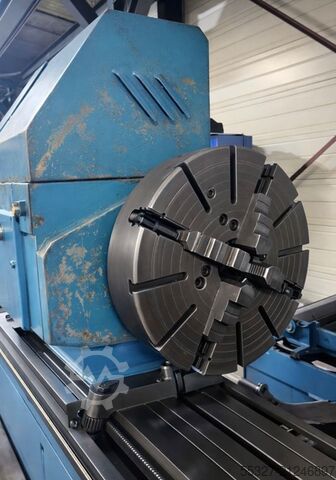

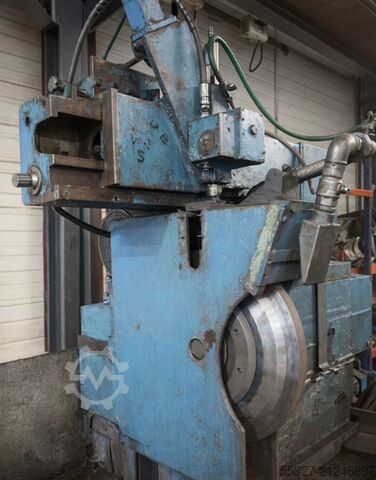

Condition: ready for operation (used), Year of construction: 1979, center height: 300 mm, center width: 4,000 mm, total length: 4,000 mm, overall weight: 10,500 kg, capacity 4000x600MM 4 steady rests Hedpfoykp Svox Abrofc wheel holder flanges weight 10,500 kg

Condition: used, d: 50 mm Hedpfx Abslf I E Asrofc Overall length: 435 mm Available: 3 pcs Tool holder length: 340 mm

Condition: used, Largest tool diameter: 300 mm Smallest tool diameter: 80 mm Grinding wheel diameter max.: 225 mm Tool width max.: 230 mm Knife grinding machine Weinig Rondamat 929 for the production of profile knives. Manufacturing from a straight blank or regrinding of used knives using a template. Hfedpfolf H Tgox Abrjc - Includes new coolant pump.

Condition: excellent (used), honing diameter 1,5 - 165 mm stroke 80 - 160 mm spindle turning speed range 200 - 2500 U/min stroke speed - under load 80 - 310 Hub/min Hfodpewva Rnefx Abrjc total power requirement 0,9 kW weight of the machine ca. 0,6 t dimensions of the machine ca. 1,2 x 1,0 x 1,6 m

Condition: used, Tool Presetter, Measuring Device, DMG Microset VIO Linear 35/70, Used Machine Manufacturer: DMG Microset Type: VIO Linear 35/70 Year of manufacture: 2012 Electrical data: 230V Overall dimensions: Width: 1700 mm Depth: 1300 mm Height: 2060 mm Weight: 420 kg Maximum tool diameter: Ø 700 mm Hfjdpfx Abjyi Dq Rjrjc Maximum tool length on Z-axis: 700 mm Maximum tool weight: 160 kg Measuring range X-axis: 350 mm Measuring range Z-axis: 700 mm Repeatability: ±2 µm Drive system: Linear motor system on X/Z axes Measuring system: Microvision VIO optical (camera-based) system Machine frame: Stable cast iron construction Data interface: Compatible interface for CNC control systems Digital display

Condition: used, Technical details: Hodpfx Abeu N Aw Nsrsfc checking height: ca. 600 mm voltage: 220V / 80VA machine weight approx.: auf Anfrage kg dimension machine xH: Messständer: 0,75x0,45x1,04 m dimensions L x W x H: Messwertaufnehmer: 0,32x0,51x0,23 m Control unit module TPX Base plate/granite plate with T-slot: Size=L:650 x W:450 x H: 80mm Travelling beam travel Z = 600mm, by hand knob, and swivel 45° Measuring device, type perthometer PRK, size L:330 x W:150 x H:105mm; measuring head insert type Perthon RFHTB-250, Y-travel=60mm automatic/manual, as well as Z-travel=40mm via knurled wheel Measuring sensor, type Perthometer, digital display with printer Equipped with accessory box with various measuring head inserts (photo comparable) *

Condition: used, Technical details: machine weight approx.: auf Anfrage kg dimension machine xH: auf Anfrage m Surface measuring and recording device SP6 2x feeding device PRK 6720702 1x measuring stand PST-Ue ( transverse = 165mm and vertical adjustment = 440mm) table size 650 x 450mm 1x measuring stand PST-Ve (vertical adjustment 450mm, motorized) + manual control unit; table size 650 x 178mm Perthometer S6P Without base cabinet, without the granite plate shown in the picture. Can be offered separately. Hedju N Awvepfx Abrsfc i.D. *

Condition: used, Year of construction: 2001, Technical details: grinding length: 2500 mm grinding width: 800 mm workpiece height: 800 mm Table movement horizontal: Längshub: 2700 mm Table movement horizontal: Querhub: 800 mm table speed: längs: 1 - 35 / quer: 0 - 3 m/min feed: vertical: 0,001 / quer: 0,0025 mm/Hub magnetic plate size: 2500 x 800 mm Automatic grinding wheel feed: 0,001 mm distance table - spindle center: 900 mm grinding spindle speed: k.A. U/min dimensions of grinding wheel: 400 x 76 x 127 mm total power requirement: 36 kW weight of the machine ca.: 13,5 t dimension machine xH: 7,5 x 2,8 x 2,7 m dimension coolant device LxWxH: 1,8 x 1,0 x 0,92 m dimensions of hydaulic: 1900 x 800 x 1500 mm transport measurements machine: L: 8,0 x B: 2,4 x H: 2,85 m The machine is currently in the technical department. technical features: -Hydraulic unit -dressing device * Hsdpfx Aovbgr Robrjfc

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Hfedpfxevc Apbe Abrjc Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: used, Year of construction: 1971, Technical details: grinding length: 700 mm workpiece height: 80 mm Table dimensions: 105 x 725 mm feed range: mechanisch total power requirement: 0,8 kW Hfodpfxsu Ngk Tj Abrjc dimension machine xH: 0,7 x 1,3 x 1,4 m Application: Grinding of linear surfaces for shearing knives and div. tools. Grinding support: -Vertical adjustment travel 45mm hand crank. -speed 2840 rpm -rotate 20° right/left -swivel 40° back and forth table: -with stop bar 730mm -equipped with 2x clamps / 2x fences -grinding depth by manual adjustment 80mm -mechanical feed, adjustment travel approx. 0.3 mm/double stroke -swivel 5° - 25° via hand toggle -1x chucking groove centered accessories: Box with div. grinding wheels *

Condition: used, Year of construction: 1964, Technical details: shaft diameter: max. 120 mm work piece - max.: 800 mm height of profile: Tiefe: max. 90 mm grinding spindle speed: nicht bekannt U/min Table dimensions: Ø 150 mm voltage: 380 V total power requirement: 1,1 kW Hjdpfx Absu Ngr Djrefc weight of the machine ca.: 0,675 t dimension machine xH: 0,75 x 0,70 x 2,0 m Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder. Spindle head technical details: -equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head. -travel=vertical 950mm by handwheel and transversal 80mm by crank handle -abrasive device with diamond, adjustment crosswise= 80mm. Table other specifications: -with fixed tip holder 60°. -speed 63 / 125 rpm. -adjustment vertical 600mm, in height 1.100mm, operation manual. centering block: -prismatic guide accessories: -fixed tip L=180mm -fixed tip L=300mm -div. shank grinder -div. clamping and auxiliary tools *

Condition: used, Technical details: grinding length: 1000 mm grinding width: 315 mm workpiece height: 390 mm table speed: 2,5-25 m/min table surface area: 250 x 1000 mm distance table - spindle center: 550 mm dimensions of grinding wheel: Ø max. 315 x 13-63 x Bohrung Ø 75 mm control voltage: 220 / 50Hz V/Hz total power requirement: 10,5 kW Hodpfx Aou Ngn Sjbrofc weight of the machine ca.: 5,0 t dimension machine xH: 3,35 x 1,5 x 2,10 m Die Maschine befindet sich derzeit in der technischen Abteilung. *

Condition: used, Technical details: grinding length: 1000 mm grinding width: 500 mm workpiece height: 500 mm table surface area: 1000 x 450 mm magnetic plate size: 1005 x 500 x 84 mm table speed: k.A. m/min table adjustment: längs: 1100 mm table adjustment: quer: 500 mm grinding spindle speed: 1420 - 2840 U/min grinding head vertical adjustable: 700 mm dimensions of grinding wheel: Ø 280 x 50 mm weight of the machine ca.: 2,7 t dimension machine xH: 3,1 x 2,0 x 2,4 m dimension coolant device LxWxH: 3,0 x 1,1 x 0,85 m dimensions of hydaulic: 750 x 600 x 850 mm dimension control panel: 0,65 x 0,85 x 1,3 m Equipment: Dressing device Holder for dial gauge Hfedpfx Abjvc Aw Esrec Coolant filter system Hydraulic unit Manual control unit *

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t machine dimensions LxWxH: 1,8 x 1,9 x 2,5 m dimensions electric cabinet LxWxH: Nr. 1: 1,95 x 0,4 x 1,95 m dimensions electric cabinet LxWxH: Nr. 2: 0,8 x 0,23 x 1,95 m Hfsdpfx Abovc An Doroc dimensions:: Abluftanlage: 1,4 x 0,7 x 0,55 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 69x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: used, Year of construction: 1976, Technical details: grinding length: 600 mm grinding width: 200 mm workpiece height: 400 mm table speed: 2 - 18 m/min magnetic plate size: 600 x 200 mm Max. Table-movement horizontal: 700 mm Max. Table-movement across: 230 mm table adjustment: Quervorschub: 0,1 - 2 mm/Hub ° table speed: 2 - 18 m/min dimensions of grinding wheel: max. Ø 200 x 20 x Ø 51 mm grinding spindle speed: 2800 U/min feed of spindle: vertical 0,01 total power requirement: 3,0 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,8 x 1,2 x 1,9 m dimension coolant device LxWxH: 0,8 x 0,4 x 0,2 m Currently there is a grinding wheel size Ø 160 x 18mm on the machine. There is a dressing device (without diamond) on the spindle. Magnetic clamping plate progress type FE 200/600; 220V / 110V coolant tank div. foot blocks Toothed rail 1000mm * Hfodpfxju Ngl De Abrjc

Condition: used, Year of construction: 1974, Technical details: Hedpou Ngmbefx Abrjfc grinding length: 600 mm grinding width: 200 mm workpiece height: 400 mm magnetic plate size: 630 x 200 mm Max. Table-movement horizontal: X-Richtung max. 710 mm Max. Table-movement across: Y-Richtung max, 250 mm table load capacity: 110 /1100N) kp table speed: 1,5 - 18 m/min dimensions of grinding wheel: max. 200 x 20 x Ø 51 mm grinding wheel dimensions:: gespannt: Ø 142 x 20mm grinding spindle speed: 2800 U/min feed of spindle: 0,01 mm total power requirement: 5,0 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,8 x 1,2 x 1,9 m dimensions: Behälter Absaugung: 420 x Ø 350 x 680 mm The machine was used for dry grinding. -very good condition -without dressing device -dust extraction -machine lamp *

Condition: used, Year of construction: 1998, Technical details: height of profile: 180 mm max. dia. of grinding wheel: 200 / Topfscheibe mm grinding wheel hole diameter: k.A. grinding spindle speed: 2800 U/min Table dimensions: LxB: 500 x 160mm mm voltage: 220 / 380 V total power requirement: 3,0 kW weight of the machine ca.: 0,57 t dimension machine xH: 1,1 x 1,0 x 1,7 m Application for face grinding Magnet mount: LxW = 680 x 200mm; tilt approx. 15°; swivel 360° via radial scale magnet: Type S2D; permanent magnet, clamping surface 300 x 150mm. Grinding wheel support: -adjustment vertical = length 180mm manual; swivel = approx. 45° right/left manual. Operation via control panel on machine. Coolant tank with pump and feed Hedpfeu Ngrqjx Abrsfc *

Condition: used, Year of construction: 1984, Technical details: grinding diameter min/max: 8 / 40 mm number of spindle speeds: 3000 U/min total power requirement: ca. 1,2 kW weight of the machine ca.: 0,24 t dimension machine xH: 0,7 x 0,9 x 1,3 m The grinding spindle is equipped with two hand levers: Working range left = manual grinding device for small shank drills. working range right = swiveling device of conical shank drills cutting angle max 180 Drill swivel arm small: clearance angle 5° - 9°; drill Ø 8 - 15mm manually adjustable; grinding wheel cup wheel Ø 200 x 40mm with holder Ø 32mm Drill swivel arm large: clearance angle 5° - 9°; drill Ø max 400mm; pitch 6x with index grid manual; grinding wheel currently clamped Ø 180 x 31mm with receptacle Ø 32mm Grinding modes: Normal grinding, DK grinding, center grinding, spiral countersink, multiple step drill. * Hfodpfxsu Ng Iro Abrjc

Condition: used, Technical details: grinding length: 300 mm centre height: 175 mm swing diameter: 315 mm table clamping surface LxW: 1.800 x 200 mm control: Heidenhain Longitudinal adjustment of grinding unit on table max.: 1100 mm work piece spindle speed: 3steps/1500-2200 U/min feed continuous: 0,001-1 mm Max. travel x-axis: 300 weight of the machine ca.: 3,1 t dimension machine xH: 2,9 x 1,6 x 1,4 mm Hfjdpfevc Aw Sox Abrec Swivel for right and left machining Automatic table reversal Tailstock: MK3 holder Operation: Manual control unit/foot switch Coolant: System with feed Heidenhain measuring device *

Condition: used, Year of construction: 1982, Technical details: dimensions of grinding wheel: Ø 150 x 20 mm grinding spindle speed: 3600 U/min height over floor: 900 mm Hsdpfxju Ngxdj Abrofc current type: 220 V machine weight approx.: 27 kg dimensions L x W x H: 0,37 x 0,35 x 1,4 m Double sanding bench sitting on foot stand (foot Ø 353mm) Left side with drill grinding device (angle 90° - 180°), longitudinal adjustment 25mm incl. accessories *

Condition: used, Cup Surface Grinding Machine / Cylinder Head Grinding Machine Max. grinding area approx. 550 x 250 mm Hjdpfx Aswlbz Tsbrofc Electromagnetic clamping plate 500 x 200 mm Machine dimensions (L x W x H): 2070 x 900 x 1600 mm Machine weight: 1000 kg Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 2007, functionality: fully functional, ZAFFERANI FLAT 5 FPE – Year 2007 Straight Line Edging Machine 5 Wheels Min. Glass Size h 5 cm Thickness 3–22 mm Speed 0.4 – 3.2 m/min Power 7.4 kW Hfsdoyim Auopfx Abrsc
