Used Maestro for sale (53)

Condition: used, Year of construction: 2015, functionality: fully functional, input voltage: 400 V, input current: 59 A, input frequency: 50 Hz, type of input current: three-phase, travel distance X-axis: 3,300 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 170 mm, workpiece length (max.): 3,050 mm, workpiece width (max.): 1,380 mm, workpiece height (max.): 170 mm, number of axes: 5, number of slots in tool magazine: 26, total height: 2,300 mm, total length: 6,000 mm, total width: 2,100 mm, overall weight: 3,840 kg, table length: 3,300 mm, table width: 1,400 mm, Equipment: CE marking, documentation/manual, AUTHOR M200 CNC MACHINING CENTRE GENERAL FEATURES Panel passage: 180 mm on H50 devices AXES SPEED: X = 90 m/min (with Pro-Speed safety device) X = 25 m/min (with Pro-Space safety device) Y = 90 m/min Z = 30 m/min MOTORIZED CHIP CONVEYOR PROGRAMMING SOFTWARE XILOG MAESTRO 3D – the new powerful software developed by SCM Group – is the software for programming MORBIDELLI’s machining centres. • Visualization in 3D graphic mode of the workpiece, geometries, machining operations, and worktable; • Available: shading mode with different shading levels, wireframe mode, rendering visualization, geometry visualization, and toolpath visualization (CAM); • Zoom function, general functions, and visual aid for the workpiece; • Sketching function for inputting geometries, thus creating drawings (CAD) with a preview. Fgjdpfx Aljz Eakbo Ujh Serie 200 working area: 3050 X 1380, N. 1 LASER FOR EASY CUP POSITIONING, N. 1 GROUP 600 - PRISMA KT (11 KW - 18,000 RPM), N. 1 The machining head with 5 interpolating axes, fixed directly to the mobile gantry, guarantees maximum strength during routing operations and provides top finishing quality, even with high material removal rates. Characterized by a specific configuration with axes rotating at 50°, the Prisma machining head offers several advantages over traditional 5-axis machining units, such as: • Full use of machining areas, both with 5 axes and with a vertical spindle. • Spindle overall dimensions are kept outside the working area. • Very streamlined spindle design in the case of horizontal machining. The machining head is equipped with an 11 KW “High Speed” electrospindle and has a centralized exhaust system with automatic activation/deactivation of airflow on the working units. Technical specifications: Routing unit with 5 interpolating axes Electro-spindle with HSK 63F quick-release tool holder Rotation speed: 600-18,000 rpm Right and left rotation Power: 11 KW at 16,000 rpm (on S1 duty) 15 KW inverter C-axis rotation = 640° B-axis rotation = 270° C-axis equipped with a TTS locking system (Total Torque System – patented by SCM) “For life” grease lubrication Liquid cooling with a heat exchanger PRESET FOR ANGULAR HEADS on PRISMA KT SPINDLE, N. 1 52.22.71 DRILLING UNIT F26L2 (14V-40X-40Y-L0/90), N. 1 Drilling unit equipped with vertical displacement on an independent Z axis. Technical features: • No. 14 independent VERTICAL spindles • No. 6 horizontal spindles in the X direction • No. 4 horizontal spindles in the Y direction • On/off pneumatic vertical stroke of any spindle: 60 mm • Bit attachment: 10 H7 • Max. bit length: 70 mm • Adjustable rotation speed from 2,000 to 8,000 rpm, controlled by an inverter • Motor power: 3 kW • Integrated blade with independent vertical displacement and 0-90° rotation • Blade diameter: 160 mm (max) Features: Number of tools on board: 16 (max) Max. tool diameter on board: 300 mm (3 axes) Max. tool diameter on board: 350 mm (5 axes) Centre-to-centre distance between positions: 85 mm Single tool weight on board: 8 kg (max) Total weight of tools installed: 48 kg (max) TOOL ROOM, 10 positions, on the right side, N. 1 52.21.97 250(108) M3/H 50(60) HZ - VACUUM PUMP, N. 1

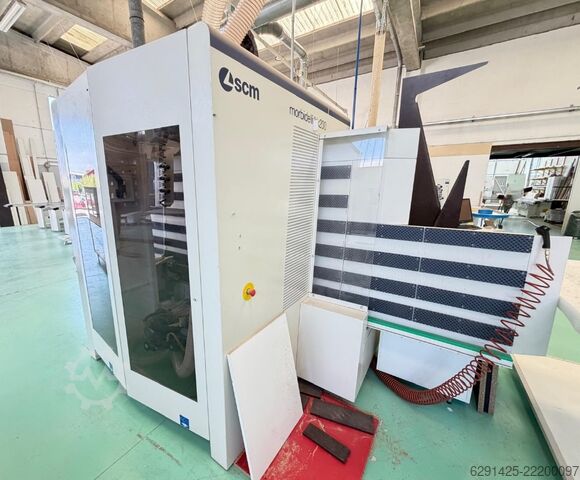

Condition: excellent (used), Year of construction: 2021, machine/vehicle number: AB00019454, functionality: fully functional, input voltage: 400 V, input current: 30 A, input frequency: 50 Hz, overall weight: 2,500 kg, Equipment: CE marking, documentation/manual, For sale, a fully functional CNC drilling machine, model SCM Morbidelli CX210, with high axis travel speeds, a very large drilling head, and a drilling head for Blum fitting spacing, as well as a saw for creating grooves. Very fast drilling, without an electro-spindle. Specifications: Min./Max. element length mm 200/3,050 Min./Max. element width mm 50/1,300 Min./Max. element thickness mm 8/95 Max. element weight kg 70 Fjdpfxszz Syvs Al Uegh Max. feed rate in X-Y-Z axes m/min 70-40-30 DRILLING HEAD F31LTC Vertical spindles pcs. 21 Horizontal spindles in X axis pcs. 6 Horizontal spindles in X axis pcs. 4 Spindle speed rpm 4,500 Fixed saw in X axis, diameter mm, rpm 125 5500 Max. saw thickness mm 6 Motor power kW 2.2 ADDITIONAL OPTIONS Inverter for the drilling head to adjust the drilling head speed in the range of 3000-8000 rpm Drilling head for fittings with 45/9.5 spacing "eye-M PRO" console integrated with PC Device allowing CNC operation via provided programs. Supplied with: - system for monitoring machine status via an LED light bar - industrial PC: Fanless design, IP 53 protection - Intel I7 processor – 2.80/3.80 GHz - 8 GB RAM – DDR4 - 256 GB SSD hard drive - Windows 10 IOT – 64 bit program - QWERTY keyboard, English version - 3-function wired mouse - Ethernet RJ45 port - USB port: 1 available - nominal operating temperature +5°C / +35°C - color LCD monitor, 21 inches, full HD, 16/9 format, LED backlight, multi-touch system, 10-point Remote control Additional USB hardware key for the Maestro CNC program.

Condition: used, TECHNICAL DETAILS - Bar diameter : 10 - 80 [mm] - Bar length : 3700 [mm] - Adjustable bar feed speed : 980 [mm/sec] - Max. scrap length : 110 [mm] - Loading time : 32 [sec] - Max. bar weight : 180 [kg] - Oil filling : 115 [l] POWER SUPPLY - Supply voltage : 230 / 400 [V] - Total installed power : 3 [kW] WEIGHT & DIMENSIONS - Machine floor space : 4792 x 1570 [mm] - Machine height : 2000 [mm] - Machine weight : 1880 [kg] Fgsdpfx Alewa D Ske Uoh EQUIPMENT - UP Magazine

Condition: like new (used), Year of construction: 2021, operating hours: 30 h, functionality: fully functional, machine/vehicle number: AE00002612, grinding width: 1,350 mm, overall weight: 6,250 kg, grinding height: 170 mm, working height: 170 mm, table height: 900 mm, workpiece height (max.): 170 mm, The machine has only been in use for a few hours and is practically brand new. It is in perfect working order. See below for the full specifications: DMC system T5C 1350 PF170-4M Lifting unit for a fixed work table, 900 mm from the ground * Working thickness: 3 to 170 mm BL 16 Infeed panel with reading bar for 'epics' sectioned pads, pitch 16 mm, or with PWM3 POSITION 01 TIE-5000 Working unit for an extractable internal cross pad PE 16T 'EPICS' sectioned electronic sanding pad, pitch 16 mm Working pressure control of the sectioned pad via the Pro-Sand control system Motor driven by an inverter, power up to 15 kW POSITION 02 DO 19 Oscillating unit fitted with 19 rotating 125 mm disc brushes 1.1 kW main motor driven by an inverter Independent motor for controlling the oscillating movement Electronic auto-set for the unit Sliding movement with motor driven by an inverter POSITION 03 BF 300 Working unit for a brush roller, diameter 300 mm 4 kW main motor driven by an inverter Double rotating direction of the brushing roller Electronic auto-set for the brush roller Side oscillation of the brush roller POSITION 04 BF 300 Working unit for a brush roller, diameter 300 mm Fedpfozcmcvex Al Uogh 4 kW main motor driven by an inverter Double rotating direction of the brushing roller Electronic auto-set for the brush roller Side oscillation of the brush roller POSITION 05 SC-2620 Operating unit for a superfinishing pad Sanding belt rotation against the conveyor feed direction Electronic sanding belt swing control Disc brake ◦ Chevron belt dimensions: 1370 x 2186 mm ◦ Sanding belt dimensions: 1370 x 2620 mm PE 16/C 'EPICS' sectioned electronic sanding pad, pitch 16 mm 16 mm center-to-center distance of sectors Double-action pneumatic cylinders with adjustable push/counter-push Graphite cloth with quick extraction device Total management of its functionality by the "Pro-Sand" electronic control Working pressure management of sectioned pad via the Pro-Sand control system Timed oscillating clearing blowers 15 kW motor driven by an inverter OUTSIDE THE MACHINE SB/U 200 Outfeed working unit for abrasive cloth-coated rollers, diameter 200 mm Roller rotation against the conveyor feed direction / Manual adjustment of the roller working position / Abrasive cloth-coated roller, diameter 200 mm, 'Ultra Fine' type with silicon carbide fibers / 2.2 kW motor / Side oscillation of the brush roller OTHER DEVICES Perforated worktop and conveyor belt with a vacuum motor powered by an inverter up to 7.5 kW, integrated into the machine frame Front supporting worktop equipped with five idler rollers Rear supporting worktop equipped with five idler rollers 4 kW feed belt motor driven by an inverter Console with integrated PC "eye-M" and "Maestro Pro-Sand" electronic control with Tele Service system 1999 working programs / Virtual keyboard for fast settings of the machine / Production report / Interactive trouble-shooting program and self-diagnosis of the electronic cards / Display of electric and pneumatic diagrams / Display of the user manual, spare parts catalog, electric and pneumatic diagrams Vision panel door positioned on the service side Internal LED lighting for the machine

Condition: excellent (used), Year of construction: 2017, functionality: fully functional, edge thickness (max.): 25 mm, height adjustment type: pneumatic, actuation type: electric, total height: 1,950 mm, total length: 8,000 mm, total width: 1,300 mm, overall weight: 7,500 kg, This high-performance SCM Stefani Solution XD is engineered for high-volume multi-shift industrial manufacturing, delivering continuous accuracy and a flawless edge finish even on the most sensitive high-gloss or thin-film materials. Equipped with a solid monolithic structure and advanced NC electronic touch controls, this specific 4-cabinet configuration maximizes stability and houses a comprehensive setup of high-end processing aggregates. Manufacturer: SCM Group (Italy) Model: Stefani Solution XD Configuration: Right-Hand Feeding Condition: Excellent, Fully Operational Location: Plovdiv, Bulgaria Availability: Immediate Estimated Footprint & Shipping Dimensions Total Machine Length: Approx 8,000 mm Total Transport Length: Approx. 8,300 mm (including extended infeed guides) Machine Width: Approx. 1,300 mm (transport width with side panel supports retracted) Machine Height: Approx. 1,950 mm (with safety hoods closed) Estimated Operating Weight: 7,500 kg Technical Specifications Feed Speed: Up to 25 – 30 m/min (NC-controlled variable track speed) Panel Thickness Capacity: 8 mm to 60 mm Edgeband Thickness Capacity: 0.3 mm to 22 mm Max Coiled Edge Capacity: 3 mm Actuation Type: Pneumatic & Multi-Axis Electronic Servo Motors Fgedpfx Aszcccrol Ujh Height Adjustment: NC-Motorized Automatic Top Belt Pressure Beam Pneumatic Requirement: 6 bar Control System Software: Maestro Pro-Edge / Active Edge Interface Premium Installed Working Units (Aggregates) This machine features a robust multi-station arrangement with a multi-hose high-efficiency central dust extraction layout: Pre-Milling Unit: High-capacity dual cutter block layout utilizing Hydro-Lock tool connections to guarantee zero vibration during panel edge squaring. Advanced Gluing Station (VC-600): Plasma-treated glue pot capable of rapid EVA and PUR hot-melt changes, backed by rapid pre-melting technology. End-Trimming & Fine Trimming Units: Rigid, low-inertia dynamic structures built to ensure zero scoring on fragile surfaces. Round 4 Corner-Rounding Unit: Multi-axis 4-motor high-speed profile rounding unit processing at up to 30 m/min. Finishing Stations: Multi-edge profiling scrapers, glue scrapers, and motorized buffing units for an out-of-the-box clean edge. Automated Axis Positioning: Complete machine changeovers happen in minutes directly from the touchscreen console, maximizing uptime. Top Track Pressure Belt System: Secures fragile components far better than traditional small-wheel setups to keep protective films pristine. Energy Management Built-In: Programmed with the SAVENERGY system to reduce plant power consumption during cycle idle times.

Condition: ready for operation (used), Year of construction: 2019, number of axes: 3, spindle speed (max.): 24,000 rpm, This 3-axis SCM Morbidelli M220 CNC machining centre was manufactured in 2019. It features a working area of 5,510 x 1,620 x 180 mm and a powerful 15 kW liquid-cooled HSK 63F electrospindle with speeds up to 24,000 rpm. The machine includes a F29LTC drilling head with 17 vertical and 6 horizontal drilling units, as well as a high-performance vacuum clamping system. If you are looking to get high-quality machining capabilities, consider the SCM Morbidelli M220 machine we have for sale. Contact us for further details. Fgedpfxjz Hy U Aj Al Ueh • Working area: 5,510 x 1,620 x 180 mm • Electrospindle: 15 kW liquid-cooled, HSK 63F • Drilling head: F29LTC with 17 vertical spindles + 6 horizontal units with double outlet (3 in X, 2 in Y) • Integrated saw blade: X direction • Tool magazines: TRB14 with 11 positions; FAST14 with 14 positions • Clamping: High-performance vacuum system • Work table: TV FLEX • Software: Xilog Maestro CAD/CAM • Positioning accuracy: up to ±0.03 mm • Travelling speed: up to 78 m/min

Condition: used, Year of construction: 2015, machine/vehicle number: AA1/018167, functionality: fully functional, operating hours: 18,050 h, input voltage: 400 V, input current: 59 A, workpiece length (max.): 3,300 mm, workpiece width (max.): 1,400 mm, workpiece height (max.): 180 mm, number of axes: 5, number of slots in tool magazine: 26, total height: 3,500 mm, total length: 6,000 mm, total width: 3,500 mm, year of last overhaul: 2025, Equipment: documentation/manual, We are offering this used SCM Tech Z5 machining center for sale. Built in 2015, it is a 5-axis CNC machine, currently connected and ready for demonstration. Technical data and features: • Model: SCM Tech Z5 • Type: AA1/018167 • Year of manufacture: 2015 • Machining area: 3,300 × 1,400 × 180 mm • Axes: 5-axis design • Control / Software: Maestro Version 1.00.022.1034 (3D drawing and milling) • Includes Clemex system • Additional licenses: 1 x 3D dongle, 2 x 2D dongle • Connection: 400 V / 59 A Fgedpfx Aljynwu Te Ueh • Vacuum pump: Type Q2EFA132M6C-34 • Tool package with approximately 20 cutters (including DIA cutters, indexable insert cutters, roughing cutters, cove cutters, and rounding cutters). If you have any questions or require further information, please feel free to send us a message or call us.

Condition: excellent (used), Year of construction: 2012, - 3-axis CNC center SCM Pratix S - model PRATIX 12B from 2012. - Range X, Y, Z axes: 2500x1250x150+ mm - Number of tool spaces in the magazine: 8 - Machine table: Raster aluminum table, 2 sections. - Control: PC control - Software: SCM NESTING, SCM XILOG MAESTRO - Serial no.: AH/115920 Number of milling axes: 1 Drilling unit: 1 - practically unused Maximum spindle speed: 24,000 rpm Tool holder: HSK-F63 Main engine: 6.6 kW Table measurements: 130 cm x 260 cm Fgsdpfx Aljuu Ntgo Ueh Portal construction: Machine with movable portal Vacuum pumps: 2 pcs. BECKER from 2012 - one placed outside, the other installed in the machine. Vacuum pump capacity m³/h: 240/280 m³/h. Interface for reading CAD format (.dxf) Security: Rejects Weight approx. 2,500 kg Length: 5,900 mm Width: 2,790 mm Height: 2,190 mm Automatic tool length measurement Location - Poland

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, workpiece width (max.): 1,200 mm, number of slots in tool magazine: 6, overall weight: 2,500 kg, Vertical drilling, routing and grooving CNC machine ideall for furniture production. Model: Morbidelli CX210 Manufacturer: SCM Group Production year: 2021 State: very good Weight: 2.560 kg Panel´s working dimensions: Fodpfx Alszutgws Ujgh - min. dimensions: 200 x 50 x 8 mm - max. dimensions: 3.050 x 1.300 x 95 mm 3 axis electrospindle + 6 pos. toolchanger - tool attachement: HSK 63F - RPM: 1.500 - 24.000 /min. - power: 6,6 kW Drilling head F31LTC (RO.AX) - vertical spindles: 21 pcs - horizontal spindles: 3+3 in X, 2+2 in Y - 1x saw blade in X - 1x drilling head for hinges 45/9,5mm (can be changed for different type) Other equipment: - control panel Eye-M with touchschreen (21"), Windows 10 - 2 independent clamps - 3D probe for detection of precize panel´s dimensions (length, width, thickness) - control PC - Maestro Active + Maestro CNC - remote controller - automatic lubrication Machine availability: September 2026 It is possible to see the machine in run.

Condition: ready for operation (used), Year of construction: 2019, machine/vehicle number: AA10001621, functionality: fully functional, input voltage: 400 V, type of input current: three-phase, travel distance X-axis: 3,086 mm, travel distance Y-axis: 2,185 mm, travel distance Z-axis: 150 mm, workpiece height (max.): 150 mm, number of slots in tool magazine: 20, controller manufacturer: SCM, overall weight: 2,550 kg, feed length X-axis: 3,770 mm, feed length Y-axis: 2,585 mm, feed length Z-axis: 250 mm, feed rate X-axis: 35 m/min, feed rate Y-axis: 35 m/min, feed rate Z-axis: 6 m/min, spindle motor power: 9,500 W, nominal power (apparent): 29 kVA, number of spindles: 1, rapid traverse Z-axis: 15 m/min, rapid traverse X-axis: 35 m/min, rapid traverse Y-axis: 35 m/min, rotational speed (max.): 24,000 rpm, rotational speed (min.): 1,500 rpm, spindle speed (max.): 24,000 rpm, spindle speed (min.): 1,500 rpm, tool diameter: 160 mm, tool length: 160 mm, distance between spindles: 32 mm, Equipment: chip conveyor, documentation/manual, SCM MORBIDELLI N100 22-31 C – CNC Milling and Drilling Machining Center Brand and Model: SCM MORBIDELLI N100 22-31 C Serial Number: AA10001621 Year of Production: 2019 Condition: Excellent Location: Croatia Technical Specifications: Working Area (X x Y x Z): 3086 x 2185 x 150 mm Vacuum Table: High Efficiency Multipurpose Aluminum Table (HE) Vertical Drilling Head: 12 Spindles (7X / 5Y), 8000 rpm Horizontal Drilling: 3 Units (2X + 1Y), 8000 rpm Integrated Saw (X-Axis): Ø125 mm, 10000 rpm Main Milling Spindle: 9.5 kW (13 HP), HSK 63F, 24000 rpm Tool changer: 20 positions (19 at the rear + 1 in the cabin for quick change) Vacuum pumps: 2 x 250/300 m³/h Dust extraction: 5300 m³/h + 3400 m³/h for unloading pusher, Ø250 mm Machine weight: approx. 2550 kg Total installed power: 23–28.5 kW Control and software: Control via Xilog Maestro system + Eye-M PRO console Industrial computer with Windows Embedded 7 operating system 21.5" touch screen Included nesting optimization module and additional software licenses Built-in accessories: 1. Automatic tool length measuring device 2. TECPAD remote control with 7” touch screen 3. Lateral pick-up for additional tools 4. F18L doweling machine with RO-AX system 5. Two-field positioning for work in two working zones (A + D) 6. Automatic central lubrication 7. Air blowing and micro-lubrication system for processing demanding materials (e.g. aluminum panels) 8. Vacuum cup set 9. Automated unloading system: pusher + conveyor belt Fgsdpfx Alowtdt Us Ujh 10. Predisposition for automatic loading device 11. Interpolating vector axis with digital control for the 4th axis The machine has been used exclusively in professional conditions, regularly maintained and fully functional. Ready for immediate use in industrial production.

Condition: used, Year of construction: 2019, CNC machining center Manufacturer: SCM Type: Morbidelli M220 Year of manufacture: 2019 Technical data: Working area: 5,510 x 1,620 x 180 mm 15 kW liquid-cooled HSK-63F electric spindle Speed up to 24,000 rpm Fgsdpsz Hwkzefx Al Ueh Drilling head F29LTC: 17 vertical drilling spindles + 6 horizontal drilling units with dual output (3 in the X-direction, 2 in the Y-direction) Integrated saw blade in the X-direction TRB14 tool magazine with 11 positions FAST14 tool magazine with 14 positions Powerful vacuum clamping system TV FLEX work table Xilog Maestro CAD/CAM software Positioning accuracy up to 0.03 mm Travel speed up to 78 m/min Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: used, Year of construction: 2017, ++ without ST package ++ can be purchased separately CNC-CONTROLLED MACHINING CENTER KEY FEATURES "PRO-SPACE" SAFETY DEVICES: SAFE AND COMPACT "HE" TABLE - FOCUS: EFFICIENCY AND SAVINGS TECHNICAL DATA Fodpfx Asz Ebzhol Ujgh AXES Pratix S22 Working area in X-Y-Z axis * mm 22-43 = 4286-2155-150 Travel X-Y-Z axes mm 22-43 = 4970-2585-250 Travel speed of X-Y axes m/min 35 WORK TABLE Type Multifunction table made of aluminum Stops for "A" working area pcs 4 Vacuum pump (Opt.) m³/h 90/108 - 250/300 DRILLING UNIT Vertical spindles No. – rpm 7 (5X-3Y) 6,000 – 12 (8X-5Y) 6000 Horizontal spindles (Opt.) No. – rpm 4 (2X-2Y) 6,000 – 6 (4X-2Y) 6000 Integrated saw blade in X (Opt.) Ø mm – rpm 120 – 7500 Motor power kW (HP) 2.2 (3) ELECTROSPINDLE Motor power Std. (S6) kW (HP) 6.6 (9) – 9.5 (13) Max. speed rpm 24000 Side tool changer 13 positions INSTALLATION Installed power kVA 23÷28,5 Compressed air requirement l/min 400 Extraction air requirement m³/h 5300 Extraction air speed m/sec 30 Extraction nozzle diameter (electrospindle + drilling unit + kit) mm 250 Machine weight kg 22-43 = 3200 * X Distance between stops - Y Max. panel width - Z Workpiece passage Only electrospindle or electrospindle + drilling unit: diameter 200 mm; extraction air requirement 3400 m³/h In conjunction with the slider for panel output, the extraction nozzle diameter is always = 250 mm GENERAL FEATURES CNC-controlled machining center for processing panel materials. Self-supporting structure and work table Box structure made of cold-rolled steel, consisting of rectangular sections that are welded together; multifunction work table made of aluminum with a single working area. Holes in a 120 mm grid for vacuum connection, can be easily removed using a magnetic device (patented system). The entire surface is grooved at a distance of 20 mm so that the workpieces can be clamped using rubber seals, MODULSET or suction cups. Automatically retractable reference stops that ensure accurate positioning of the workpieces to be processed. Moving gantry This is a gantry structure made of cold-rolled steel in a box design, consisting of right-angled sections. The working units are installed on the gantry. Working unit consisting of a drilling head with vertical spindles, horizontal spindles, an integrated grooving and sawing unit and an SCM electrospindle with a tool quick-change system type HSK63F. Travel paths of the gantry and the unit carrier The movement in the X, Y and Z axis takes place on linear prismatic recirculating ball guides with the help of pre-tensioned Movement transmission of the X and Y axes (moving column and carriage) takes place via a reduction gearbox with rack and pinion drive and oblique The movement of the unit carrier in the Z direction takes place via pre-tensioned Positioning of the working units and control of the machine functions takes place via "Brushless" three-phase servomotors and digital CONTROL The control unit consists of a numerical control for milling and drilling machines and a user interface with remote control with a 7" touchscreen color screen. The Xilog Maestro machine operating interface offers optimal communication between operator and the machine for all programming functions.

Condition: used, Year of construction: 2020, max. workpiece length 6360 mm profile spindle 1 Stück main drive 13 kW Control Maestro SCM CNC Machining Center ACCORD 40 FX for windows and doors ----- Available as an OPTION at an additonal cost of 20.000 Euro: extensive window and door tooling among others (window cutting available upon request!): Wooden windows IV 68, 78, 92 Wooden "style" windows Wood-aluminum windows Front doors Lift-and-slide doors Box windows Machine still in operation, available for viewing! Technical Summary (detailed description available upon request!): ----- - ??Working area X-Y = 6360 x 1905 Z = 350 - Automatic table with 8 support rails MATIC - L1825 - 5-axis spindle MAXI - Prisma T, HSK 63 E, 13 kW - RTCP Setting - Self-calibration system for Prisma work unit - Adjustable chip removal device on the electric spindle - Preparation for "Prisma T-S" angle gearbox - BRC - Working unit: Saw blade for face machining, 1 vertical milling cutter connection 3 vertical, independent drill heads, center distance 32 mm 3 vertical drill heads (not independent), center distance 21.5 mm, for mortise drilling 4 horizontal drill heads (2 per side, not independent), center distance 21.5 mm 2 horizontal milling heads (1 per (Page) - TRC 48 - Rear Tool Magazine 48 tool positions (excluding tool holders) Center-to-center distance between positions: 104 mm Max. tool diameter: 350 mm Max. tool length: 320 mm Max. weight per tool: 10 kg (15 kg with HSK 63 E spindle) Max. total weight on the magazine: 250 kg - MACH 5 - Quick-change system: Allows tool changes on the electric spindle in just a few seconds. Fgedpfxjy Hl Iyo Al Ujh - Pendulum operation - Automatic lubrication of the axes - eye-M operating console with integrated PC - Additional fixed control panel - TECPAD - Remote control of machine functions - Clamping jaw preparation H145 for worktable with 8 support rails - Front stop row H110 for worktable with 8 support rails - Rear stop row H110 for worktable with 8 support rails - Suction cup H110 145x145 mm - Swivel suction cup H110 145x55 mm - Swivel suction cup H110 180x65 mm - First side stop row H145 for worktable with 8 support rails Second side stop row H145 for worktable with 8 support rails Clamp H145 with round base Clamp H145 with square base N.6 Lifting devices with double stroke H145 Laser and reference stop H145 for sheet (left) - PRO-SPEED safety system - Maestro CNC - Machine operator interface and programming - Maestro ProView - Simulation software Tools are sold in the condition, scope, and with accessories as they are currently in stock. Note regarding window cutouts, tool drawings, and tool system listings: Engelfried GmbH does not guarantee that the tools actually available correspond to the systems listed and drawn. (Technical specifications according to the manufacturer - without guarantee!)

Condition: ready for operation (used), Year of construction: 2018, travel distance X-axis: 3,110 mm, travel distance Y-axis: 1,620 mm, number of axes: 4, number of slots in tool magazine: 11, spindle motor power: 10,000 W, spindle speed (max.): 24,000 rpm, This 4-axis SCM Morbidelli Author M100 CNC Wood Machining Centre was manufactured in 2018. It features a working area along the X-axis of 3110 mm and a maximum panel height of 180 mm. The machine is equipped with 21 vertical spindles and 10 horizontal spindles, providing versatile machining capabilities. If you are looking to get high-quality wood machining capabilities, consider the SCM Morbidelli Author M100 machine we have for sale. Contact us for further details. • Working area / axes: • Panel length (Y): 1900 mm (2210 mm) • Panel height (Z): 180 mm • Panel length for through machining: 1400 mm • Vector speed X‑Y: Pro‑Space 56 m/min; Pro‑Speed 78 m/min • Worktable: 6–12 beams (TV Flex), 12 vacuum pods (145 × 145 × H75 mm); 2 stops per beam; movable beam length 1600 mm. • Drilling unit (general spec): • 21 vertical spindles, 8,000 rpm • 10 horizontal spindles, 8,000 rpm • Integrated saw Ø125 mm (X), 10,000 rpm • Motor power 2.2 kW • Electrospindle: 10 kW (S6), max 24,000 rpm. • Installation requirements: installed power 23–28.5 kVA; compressed air 450 NL/min; dust extraction 4500 m³/h, 25 m/s, outlet Ø250 mm. • Structure and motion: • Heavy, stress‑relieved, electro‑welded steel frame; all machining in single setup on CNC metalworking machines. • High‑speed four‑row linear guides; three‑circuit recirculating ball systems; X‑axis helical rack‑and‑pinion. • Brushless motors, inverters; machining units mounted on mobile gantry for rigidity. • Transparent polycarbonate safety enclosure. Fedpsz A Ahqefx Al Usgh • CNC control and software: • PC‑Office: Windows 7, 17" color LCD, QWERTY keyboard, mobile control panel, Xilog Maestro. • Xilog Maestro features: parametric/graphical/ISO programming; DXF/ASCII import (2D); 3D linear/circular interpolation; spatial linear interpolation; helical interpolation; guided editor; automatic drilling optimization and tool libraries; panel origin offset; simulation; barcode management (software); self‑diagnostics; step‑by‑step manual intervention; graphical unit configuration; machining speed selection; SCM CNC Jerk function. • Safety: CE; PRO‑SPACE system with safety bumpers (automatic stop on potential collision). • Table equipment included/mentioned: rear aluminum reference stops H75 per beam; second central reference stops per beam; front reference stops H75 per beam. • Vacuum system: integrated vacuum pump 90/108 m³/h, 50 Hz. • F23 L drilling unit (listed configuration): • Independent Z‑axis • 13 independent vertical spindles (8 X / 5 Y) • 6 independent horizontal spindles (quick‑release), incl. 4 in Y • 32 mm pitch • Speed 4,500–8,000 rpm (inverter) • Rear‑panel groove/saw unit Ø125 mm, 5,500–10,000 rpm (inverter) • Motor 2.2 kW • Increased Z‑pressure • RO AX advantages: high productivity, precision, finish quality, processing speed; up to 90% reduction in maintenance (approx. 1,000‑hour interval). Additional equipment • TRB14 side‑mounted tool magazine (optional), right side: • Capacity up to 11 tools; max Ø350 mm • Center distance 130 mm • Max tool weight 8 kg; total 48 kg • 4 workpiece lifting supports H75, two lifting levels (above clamps and working level), 20 kg per support • Additional hardware key with USB port

Condition: like new (used), Year of construction: 2023, SCM Accord 40 fx CNC machining center with the following equipment: Working area X-Y = 6360 x 1905 mm, Z = 350 mm OF0158 Usable Z clearance height = 350 mm with H50 suction cups OF0165 Axis travel speed of Accord 40 fx Version PRO-SPEED OF0168 Pendulum (dual-zone) operation OF0169 Automatic axis lubrication OF0299 TELESOLVE remote maintenance via Internet 450328 eye-M PRO control console with integrated PC 450291 Additional fixed control panel 870068 TECPAD – remote control of machine functions 560058 No. 10 carrier rails MATIC – L1825 230429 MAXI working unit – Prisma KT 1 870046 Prepared for angle gearbox "Prisma KT-KS" 470014 Air nozzle for tool 870119 Device for tool length measurement 870120 Device for panel thickness measurement 870009 Drilling unit F16 OF0176 Front stop row H50 for worktable with 10 carrier rails 510205 Preparation for clamps for worktable with 10 carrier rails 480178 Front stop row H110 for worktable with 10 carrier rails 480105 Rear stop row H110 for worktable with 10 carrier rails 480137 First lateral stop row H110 for worktable with 10 carrier rails 480005 Suction cups H110, 145x145 mm, 36 pcs 480006 Suction cups H110, 145x55 mm, rotatable, 10 pcs 480007 Suction cups H110, 180x65 mm, rotatable, 10 pcs 480018 Suction cups H110, 145x30 mm, rotatable, 5 pcs 480410 Lifting devices H110, 8 pcs 350016 Vacuum pump 250 (300) m³/h 560538 Additional automatically adjustable base for MATIC 10 carrier rail 190046 PRO-SPEED safety system 524800 "SAV€NERGY" 2.0 energy saving system 210837 TR12 – lateral tool magazine 210056 Rapid 24 – rear tool magazine OF0182 Air conditioning for control cabinet OF0438 Human-machine interface software (HMI) MAESTRO ACTIVE OF0543 Operating system Windows 10 embedded 64 bit OF0422 Machine operating interface software Maestro cnc OF0435 Hardware dongle for Maestro cnc 524309 Maestro 3D-Advanced module 109993 MACHINE LANGUAGE: German SPECIAL FEATURES INCLUDED IN MACHINE CONFIGURATION: - Extension of maximum panel width to 2,120 mm for full processing; traverse length remains unchanged at 1900 mm. - 10 support suction cups for remnants Fgodpfx Aeyfgzdsl Ujh MACHINE ALREADY DISMANTLED AND STORED. LIST PRICE 2023 EUR 399,890.--

Condition: used, Year of construction: 2018, Delivery time approx. 5 months. Machine from educational use – TOP condition, low hours (edging unit unused). No tools included. Dismantling, delivery, assembly, commissioning, and training not included in the price. Includes Maestro 3D and Pro View. MORBIDELLI P200 Working area X-Y: 3,110 x 1,620 mm, workpiece height Z180 mm Edge banding made for you: The CNC machining center is equipped with a comprehensive selection of edge banding tools to meet any woodworking requirement. Fjdpfx Alozvhlke Uegh MAIN ADVANTAGES · High performance with the advanced H80C edge banding unit, 8,000 rpm drilling spindles. The most robust spindle technology on the market, offering over 1,000 maintenance-free operating hours. · Better equipped: Suction cups can be disabled and configured via the FLEX worktable to optimally adapt the machine to requirements. · Easier, more intuitive programming thanks to the integrated CAD-CAM module for edge banding technologies “MAESTRO EDGE”. · Easier operation: The lowered frame ensures the worktable is always accessible. The control cabinet and vacuum pump are integrated, and in the PRO SPACE configuration, no safety barriers are needed. Base structure: The base frame is a monolithic construction made from thick-walled steel, reinforced across the entire machine bed with welded square plates for exceptional rigidity. The bed’s shape, with a wide base, is the secret to lasting precision and stability. The load-bearing structure consists of a particularly robust, monolithic steel base, heavily ribbed and highly stiffened; the extra-wide support was specially designed to give the machine maximum stability, ensuring lasting precision regardless of operating conditions—with no need for floor anchoring. The base provides a large, solid support for the moving gantry: the working unit is thus equipped with a balanced, stable, and resilient support capable of handling the highest loads, ensuring top-quality performance and greater accuracy. The moving gantry is made from a robust single piece anchored to the base, sliding along top-quality prismatic guides with recirculating ball carriages. The working unit is attached and moves along the Y and Z axes on prismatic guides with recirculating ball carriages. Movement of the lower carriage (X-axis) and the working unit along the moving carriage (Y-axis) is enabled by rack-and-pinion transmission with helical teeth. This design results in greater tooth-on-tooth engagement, delivering higher acceleration and greater speed along the X and Y axes. The specially designed helical gearing ensures reduced wear on mechanical components and quieter operation. The vertical Z-axis is driven by a ball screw, ensuring perfect balance with dynamic loads and smooth acceleration and deceleration. The main milling unit is directly coupled to the Z-axis carriage for maximum finishing quality.

Condition: used, Year of construction: 2012, operating hours: 9,974 h, total height: 2,700 mm, total length: 7,700 mm, total width: 2,420 mm, Empty weight: 7.390 kg CNC machining centre SCM Morbidelli M-600 5-axis machine Year of construction 2012 Machine no. AA2/002032 Working distance X-axis 5020 mm Working distance Y-axis 1680 mm Working distance Z-axis 250 mm Tool positions 36 Vertical drilling spindles 24  Software SCM XILOG MAESTRO SCM PRISMA K SCM TTS system Milling spindle liquid-cooled SCM TecPad MORBIDELLI TV Matic SCM PRO-SPACE SCM RAPID 12 SCM RAPID 24 Including vacuum pump Capacity 250 m3/h Disassembled for transport Weight 7450kg - Details: - └ Description: Machine gives malfunction spindle - Year: 2012 - Documentation available: No - CE marking present: Yes Fgsdpfx Alownhcco Ush - CE certificate present: No - Serial number: AA2/002032 - Operating hours: 9974 - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Drilling unit present: Yes - └ Horizontal drill spindles [pcs.]: 6 - └ Vertical drilling spindles [pcs.]: 24 - Saw unit present: Yes - Tool changer positions [pcs.]: 36 - System/software: SCM Maestro - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Capacity [m³/h]: 250 - CNC options: Offcut conveyor - Working range X [mm]: 5020 - Working range Y [mm]: 1680 - Z-axis working range [mm]: 250 - Transport dimensions: 7700mm x 2420mm x 2700mm (l x w x h) - Transport weight [kg]: 7390kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Year of construction: 2021, Sale on behalf of customer. SCM Gabbiani P80 Panel Saw – Year 2021 – 4300 x 4300 mm For sale is a state-of-the-art SCM Gabbiani P80 panel saw, manufactured in 2021 and in excellent condition. The machine was used in an active carpentry workshop and impresses with its precision, speed, and high reliability in daily operations. Technical Specifications: Cutting length: 4300 mm Cutting width: 4300 mm (large version) Cutting height / blade protrusion: 80 mm Main saw blade diameter: Ø 340 – 370 mm Scoring saw blade diameter: Ø 200 mm Fodjylp S Eepfx Al Usgh Main saw blade speed: approx. 4,650 rpm Scoring blade speed: approx. 5,850 rpm Drive & Power: Main motor: approx. 7.5 – 15 kW (depending on configuration) Scoring unit: approx. 1.3 – 1.5 kW Total connected load: approx. 12 – 15 kW Voltage: 400 V / 50 Hz Speeds: Saw carriage: 6 – 60 m/min (stepless) Pusher speed: up to 60 m/min Pneumatics & Extraction: Compressed air requirement: approx. 300 NL/min / 7 bar Extraction capacity: approx. 2,200 – 2,400 m³/h Extraction ports: 4 x 120 mm Features & Equipment: Air flotation tables for easy handling of large panels Floating clamps for precise cutting Scoring unit for chip-free cuts PC/PLC control (Maestro system possible) Robust industrial design for high workload High repeatability and cutting quality Material suitability: Suitable for: Chipboard MDF / HDF Multiplex / plywood Coated panel materials The machine is fully operational and ready for use. Viewing possible anytime by appointment. Location: Germany If you are interested, please get in touch – further photos, videos, or detailed information are available upon request. Dismantling and delivery can be arranged at additional cost.

Condition: ready for operation (used), Year of construction: 2022, functionality: fully functional, SCM GABBIANI P80 – Automatic CNC Beam Saw Brand / Model: SCM Gabbiani P80 Fgodpfxjwtgdio Al Uoh Year of manufacture: 2022 Location: Croatia Condition: Excellent working condition, currently in production Technical specifications: * Panel dimensions: 3300 × 3200 mm * Main saw motor: 11 kW (15 HP), blade Ø 340 mm * Scoring unit: 1.3 kW, blade Ø 200 mm * Maximum cutting height: 80 mm * Saw carriage speed: 6–60 m/min * Pusher speed: up to 60 m/min * Installed power: 12–15 kW * Compressed air consumption: 300 NL/min * Dust extraction: 4 × Ø120 mm connections, total 2,190 m³/h Equipment: * Maestro Active Cut control system (PC/PLC) * eye-M operator console * Maestro Ottimo Cut optimization software * Label printer * Teleservice module The machine is in excellent condition and can be inspected under power. Available due to production reorganization and installation of a new automated SCM Flexstore system. Additional photos, videos and technical information available upon request.

Condition: used, Year of construction: 2014, Colour: White Empty weight: 4.500 kg - Machine available from: 2026-03-30 - Year: 2014 - Documentation available: Yes - CE certificate present: Yes - Serial number: AA1/017825 Fedpfx Ajx Hwhxjl Ujgh - Number of milling spindles [pcs.]: 1 - └ Milling spindle 1: - - Number of controlled axes [pcs.]: 5 - Type milling table: Beam table - Tool holder: HSK-F63 - Drilling unit present: Yes - Tool changer positions [pcs.]: 12 - System/software: SCM Maestro - Safety feature: Enclosed fence, Safety light curtain - Vacuum pump present: Yes - └ Number [pcs.]: 1 - └ Brand: Becker - └ Type: VTLF 2.250/0-791 - └ Year of manufacture: 2014 - └ Main motor power [kW]: 5.5 - └ Capacity [m³/h]: 244 - └ Vacuum pressure [bar]: 200 - CNC options: Manual control - CNC documentation available: USB stick - Working range X [mm]: 5200 - Working range Y [mm]: 1550 - Z-axis working range [mm]: 160 - Installed length [mm]: 9000 - Installed width [mm]: 5000 - Installed height [mm]: 3100 - Transport weight [kg]: 4500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Yorick Diebels

Condition: excellent (used), Technical specifications: Fedpfx Alszl Taxe Ujgh • Working area: 3660 × 1550 × 150 mm • Part passage: 150 mm • Electrospindle 13 kW, HSK 63F • Speed range: 1,500–24,000 rpm • Drilling head: 7 vertical spindles • Tool magazine: 10 positions • Multi-functional aluminum table with 8 vacuum zones • 2 vacuum pumps 250 m³/h (total 500 m³/h) • SCM Xilog Maestro control system • Centralized automatic lubrication • Electrical cabinet air conditioning

Condition: used, Year of construction: 2021, - Working width 1,350 mm - Belt feed speed 2 to 16 m/min - PRO SAND electronic control Automatically Calibrating Sanding Machine Manufacturer: SCM Type: DMC system Year of manufacture: 2021 Technical data - Working width 1,350 mm - Belt feed speed 2 to 16 m/min - PRO SAND electronic control - PLC terminal with 10.4" LCD color display Unit 1 TIE 5000 working unit for additional table, internal cross-padding - Sequencing system of the unit for belt change by only one machine operator - Automatic brake - Linear blower with timed activation for belt cleaning - Belt dimensions: 150 x 5,000 mm - Chevron belt dimensions: 140 x 4,710 mm PE16T EPICS electronic sector sanding, pitch 16 mm - 16 mm distance between sectors from center to center - Double-acting pneumatic cylinders with adjustable feed/counter feed - Graphite cloth with quick extraction device - Complete management of functions via the electronic Pro Sand control - Motor with inverter power up to 15 kW Unit 2 DO19 orbital unit for 19 rotating disc brushes - Manual adjustment of the unit's working position - 1.1 kW main motor with inverter drive - Independent motor for controlling the orbital movement - Diameter of the rotating disc: 125 mm FT/19/125 Set with 19 rotating discs, diameter 125 mm Unit 3 BF300 working unit for brush roller, diameter 300 mm - Manual adjustment of the roller's working position - 4 kW main motor with inverter drive FT 300 brush roller, diameter 300 mm Unit 4 BF300 working unit for brush roller, diameter 300 mm - Manual adjustment of the roller's working position - 4 kW main motor with inverter drive FT 300 brush roller, diameter 300 mm Unit 5 SC 2620 working unit for super finish pad - Rotation of the belt in the opposite direction of the conveyor belt - Electronic belt swiveling control - Disc brake - Chevron belt dimensions: 1,370 x 2,186 mm - Belt dimensions: 1,370 x 2,620 mm PE16/C EPICS electronic sanding block with sector pitch 16 mm - 16 mm distance between sectors from center to center - Double-acting pneumatic cylinders with adjustable feed/counter feed - Graphite cloth with quick extraction device - Complete management of functions via the electronic Pro Sand control - Inverter motor with a power of up to 15 kW Inverter-controlled vacuum motor integrated into the machine frame, up to 7.5 kW - Rubber-coated conveyor belt, 50 Shore Fgsdpszuzbcefx Al Ueh - 4 kW conveyor belt motor with inverter drive Console with integrated PC eye-M and electronic Maestro Pro Sand control with tele service system Device connected to the machine that enables the use of the Maestro Pro Sand software. The integrated LED light strip enables the operator to monitor the machine's status in real time (emergency, operation, etc.) without having to be near the machine itself. It is equipped with a fanless industrial PC with protection class IP53 (IP65 on the front). This robust solution guarantees the highest level of resistance even under the most adverse environmental conditions that an industrial site can offer. The 21.5" LCD color display with a large 16/9 touchscreen enables particularly easy and efficient control of the machine's most important functions: - Full HD display resolution 1920x1080 - LED backlight - Capacitive

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: AE00003735, overall weight: 4,300 kg, input frequency: 50 Hz, input current: 126 A, input voltage: 400 V, warranty duration: 12 months, Basic information Manufacturer: SCM Group / DMC Model: DMC Eurosystem M4 1350 Year of manufacture: 2023. Condition: unused, new Operating hours: 0 h Working width: 1.350 mm Working thickness: 3-200 mm Feed speed: 2-16 m/min Power supply: 400 V, three-phase, 50 Hz Rated current: 126 A Weight: approximately 4,300 kg Serial number: AE00003735 Location: Tenja, Croatia Availability: immediately Description; For sale is an unused SCM DMC Eurosystem M4 1350 automatic wide-belt sanding and calibrating machine, manufactured in 2023. The machine has never been used in production and has 0 operating hours. It is installed at our production facility and is available for inspection by prior appointment.   Working unit configuration 1st working position - sanding roller • R 320-2620 sanding unit • Roller diameter: 320 mm • R45 rubber-coated roller, 45 Shore hardness • 15 kW motor with frequency inverter • Oscillating abrasive-belt blowing and cleaning system 2nd working position - brush unit • BF 300 brush unit • SI 300-E helicoidal brush roller • 3 kW motor with frequency inverter • Abrasive inserts, grit 180 and 240 • Automatic electronic brush position setting • Side oscillation and reversible brush-roller rotation 3rd working position - brush unit • BF 300 brush unit • SI 300-E helicoidal brush roller • 3 kW motor with frequency inverter • Abrasive inserts, grit 180 and 240 • Automatic electronic brush position setting • Side oscillation and reversible brush-roller rotation 4th working position - superfinishing sanding pad • S-2620 unit with superfinishing sanding pad • PE 32/L EPICS electronic sectional sanding pad • Segment pitch: 32 mm • 11 kW motor with frequency inverter • Electronic working-pressure control • Oscillating abrasive-belt blowing and cleaning system   Outfeed finishing unit • SB/U oscillating finishing unit • SB 200 UFC Ultra Fine brush roller • Silicon-carbide fibres • Rotating blowers for final workpiece cleaning Additional equipment • Fixed working height of 900 mm • BL 32 electronic infeed panel-reading bar • EPICS electronic sectional-pad system • Vacuum conveyor system with motor up to 7.5 kW Fodpfx Aszyghlsl Uogh • Perforated vacuum conveyor belt • Rubber-coated conveyor belt, 50 Shore hardness • 2.2 kW conveyor-belt drive motor • Front and rear roller support tables • Eye-M industrial PC • 21.5-inch Full HD touchscreen • Maestro Pro-Sand control software • Remote service capability • Operator interface in English and Croatian • CE-compliant version Inspection and terms of sale; The machine is available immediately and can be inspected by appointment at our production facility in Antunovac, Croatia. The machine is offered ex location. Dismantling, loading, transport and installation at the buyer's site will be agreed separately. All technical information is based on the original SCM quotation and the machine identification plate. The buyer may verify the specifications and condition during inspection. Additional photographs, videos, the original technical specification and the relevant SCM documentation are available to serious prospective buyers. Price; EUR 125,000 net, plus VAT - negotiable

Condition: refurbished (used), Year of construction: 2012, machine/vehicle number: AA1/016854, functionality: fully functional, 3-AXIS DRILLING & MILLING CENTER Make: SCM Model: TECH Z2 Comp R0410.01 Serial No.: AA1/016854 Year: 2012 Fedpfjv Tzrvjx Al Uogh (Photos taken before overhaul, functional testing, and cleaning) MAKING CAPACITIES: - Max. workpiece height (thickness): 160 mm - Max. workpiece length: 2700 mm Dual station: 1210 mm - Max. workpiece width: 1300 mm Movements: - X-axis travel: 3060, Y-axis: 1735, Z-axis: 250 mm - Max. travel speed (vector: 60 m/min) MACHINE COMPOSITION: - 6 Pneumatically clamped beams for suction cups, e.g., 120x120 or 55x120 mm - Unit Automatic lubrication - Mounted unit on the neck of the sign composed as follows: (X movements by rack and pinion, Y movements by screws and bushings; high-quality precision linear guides with automatic lubrication) • 11 kW (15 HP) milling/routing unit: - Rotation 1500 - 24000 rpm, variable speed, right/left direction - Tool holder connection type HSK63F, ER32 collet - Onboard magazine for 8 tools - Perimeter extraction hood • 18-chuck drilling unit: - 12 independent vertical chucks (8 in the X direction, 5 in the Y direction) - 6 horizontal chucks (4 in the X direction, 2 in the Y direction) - Center distance between chucks 32 mm for M10 / Ø11 mm drill bits - Rotation speed 4000 rpm - Pneumatic vertical stroke 60mm - Perimeter extraction hood • Integrated unit for groove sawing and milling - Ø120mm blade, 6mm thick - 6000 rpm speed - 60mm pneumatic vertical stroke • Mobile console on a jib with a control PC: – Windows XP operating system – 17" LCD screen – Ethernet connection – Xilog and Maestro machine interface software OTHER FEATURES: - 400V overall power supply. Three-phase + N+T 50Hz IN37A - 12 kW electro-spindle motor - 2.2 kW drilling/grooving motor - 1 x 2.4 kW vacuum pump: 90-108 m3/h - Pneumatic supply >=7 Bar - Suction: Suction inlets: 2 x Ø 150 mm (1 x Ø 200 mm inlet using the installed bypass) Recommended speed: 30 m/s - 3400 m3/h - CE-compliant machine with safety zone and light barrier Operating dimensions with safety zone: see documentation excerpts Shipping dimensions: to be specified when preparing the equipment Estimated total weight: 2200 kg Machine supplied with instruction manual and software, spare parts list, electrical and pneumatic diagrams. Please contact us for the supply of consumables, accessories, and/or vacuum systems. Machine serviced and brought into compliance, with quality control and dynamic functional testing. 3-month warranty and compliance certificate. Available from stock, subject to prior sale. Prices excluding VAT. Delivery and additional services upon request.

Condition: used, Year of construction: 2013, .30 Base machine ACCORD 30 FX N. 1 CONCEPTCNC machining center with a moving gantry and a fixed worktable for processing various sheet-like materials: chipboard, MDF, laminated solid wood, plastic materials, and light alloys. STRUCTUREThe machine is developed using the best three-dimensional CAD systems for solid modeling. The machine bed and moving crossbeam represent the two main elements of the machine structure and are manufactured in the company's own foundry. All mechanical machining operations are carried out on special production equipment in a single setup to ensure optimal precision and to minimize tolerances during machining. The control cabinet is mounted directly on the machine bed, allowing for a very compact design and easy access. CONTROL UNITThe control unit consists of an industrial NC control system with an integrated office PC (desktop computer). The CNC solution with an office PC combines all the features of numerical control with the typical user-friendliness of an office PC, which greatly simplifies the control of the machine by enabling the use of the XILOG MAESTRO user interface, i.e., the software developed by SCM for simple and fast programming, even for non-experts. GENERAL FEATURESPassage height: - 250 mm with H50 accessories- 190 mm with H110 accessoriesPendulum machiningAutomatic lubrication of the axesAir conditioning system to maintain the correct internal temperature in the control cabinet. Software for remote customer serviceOperator interface Xilog MAESTRO with integrated CAD/CAM, which allows for the extremely simple execution of products even with special shapes.A number of advanced functions allow for: - programming via macros- creating and managing subprograms- optimizing machining- managing all machine functions- creating and managing a database of tools93.07.31 Voltage 400 EU 93.12.01 Frequency 50 Hz R0.00.03 LINGUA P.C. GERMAN 02.12.57 ACCORD 30 FX - Worktable X-Y = 3680x1380 56.05.25 No. 6 Support rail MATIC - L1300 The worktable is equipped with: - no. 2 lateral fixed supports- no. 6 aluminum supports, motor-driven and movable along the X-axis- motorized conveyor belt for unloading chipsEach movable support has: - no. 3 motor-driven support rails for clamping cylinders and vacuum suction cups- air blower for cleaning on each movable support- pneumatic locking/release for quick replacement of the clamping cylinders and vacuum suction cups- preparation for lifting devices- preparation for reference stopsThe workpiece vacuum clamping system is divided into 2 independent worktables.23.02.19 DUO Prisma K working unitThe working unit with 5 interpolating axes is located on the moving crossbeam, which provides maximum stability during milling and thus also ensures optimal machining quality of the workpieces, even with high material removal rates. It allows for rotation around the axes arranged at 50° to each other and has many advantages over traditional 5-axis working units, such as: - the full use of the work areas both with 5 axes and with a vertical spindle- spindle external dimensions outside the working area- a particularly light design for horizontal machiningThe unit has a central chip extraction system. Fodpozl Ap Nsfx Al Ujgh
