Used Planer Knife Grinding Machine for sale (64,506)

Condition: used, Technical details: weight of the machine ca.: 7,5 t Out of Valve slide production line: Lidköping centerless grinding machine: Type CL-46 Ihsdpfx Abew Sw Rcsrju *

Condition: used, machine/vehicle number: 008403, Max. machinable height: 160 mm Maximum machinable width: 250 mm Max. forward feed speed: 24 m/min Iedpfxsykivho Abrjhu Operator shafts number: 5

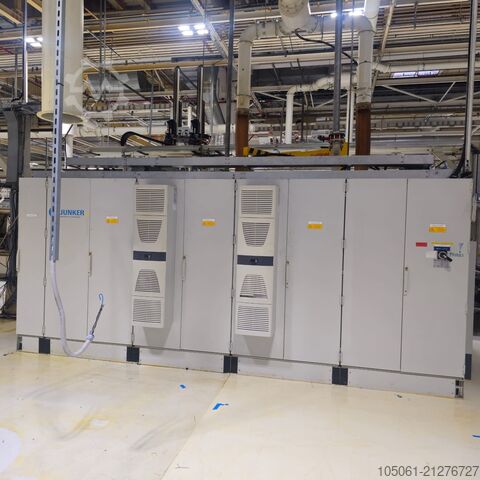

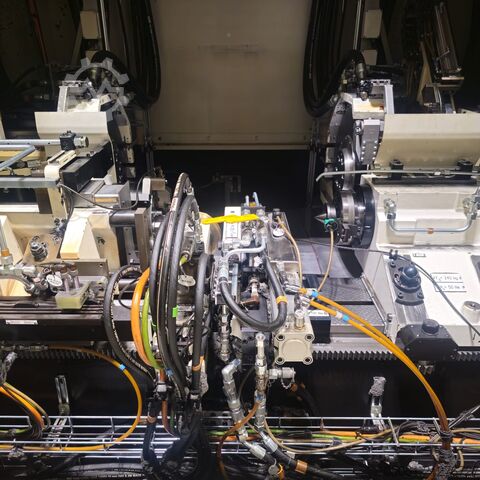

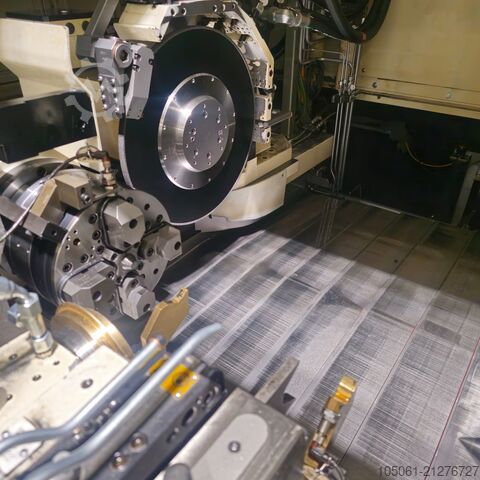

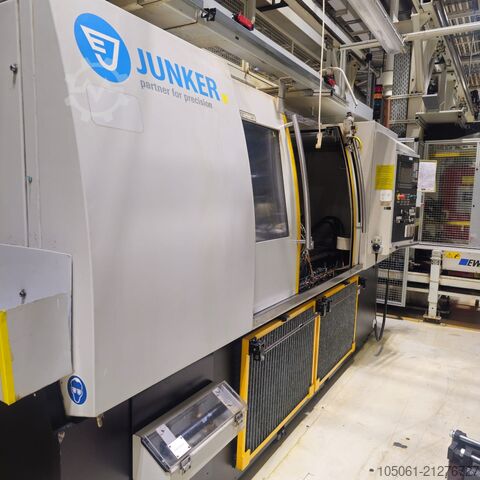

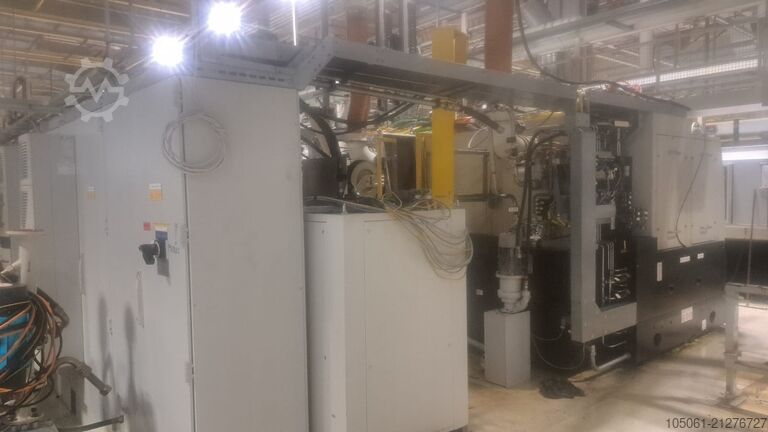

Condition: excellent (used), Year of construction: 2013, There are two machines of this type, which are part of a production line that is completely for sale. Ihedpfxsylmb De Abreu

Condition: ready for operation (used), Year of construction: 1979, center height: 300 mm, center width: 4,000 mm, total length: 4,000 mm, overall weight: 14,000 kg, capacity 4000x600 mm 4 steadies Isdpsykp Svofx Abrehu grinding wheel flanges weight 14,000 kg

Condition: new, Year of construction: 2026, grinding length: 560 mm, grinding width: 240 mm, total height: 2,150 mm, total length: 2,250 mm, total width: 1,720 mm, workpiece weight (max.): 180 kg, feed rate X-axis: 25 m/min, grinding wheel diameter: 220 mm, distance table to spindle center: 450 mm, table length: 508 mm, type of input current: three-phase, table width: 200 mm, grinding wheel width: 20 mm, overall weight: 1,800 kg, rotational speed (max.): 2,850 rpm, power: 5 kW (6.80 HP), input voltage: 400 V, Equipment: documentation/manual, Siemens PLC control Touchscreen Electronic handwheel Digitally controlled automatic vertical feed with servomotor SINO 2-axis digital readout Electromagnetic clamping plate Iodpsykvkxsfx Abrohu Cooling system LED lighting Grinding wheel Flange Central oil lubrication Table size ----- 200 x 508 mm T-slot width / quantity ----- 14 / 1 mm Electromagnetic clamping plate ----- 200 x 460 mm Max. longitudinal travel of table ----- 560 mm Max. cross travel of table ----- 240 mm Table speed, hydraulic ----- 5~25 m/min Max. distance spindle - table ----- 450 mm Max. permissible workpiece weight ----- 180 kg Grinding wheel ----- 220 × 20 × 31.75 mm Cross travel Automatic feed, cross ----- 0.2~8 mm / stroke Rapid traverse, cross ----- 990 mm/min Feed per handwheel revolution, cross ----- 4 mm/rev Handwheel graduation ----- 0.02 mm Vertical travel Automatic feed, vertical ----- 0.005 / 0.01 / 0.02 / 0.03 / 0.04 / 0.05 mm Rapid traverse, vertical ----- 480 mm/min Feed per handwheel revolution, vertical ----- 1 mm/rev Handwheel graduation ----- 0.005 mm Main motor ----- 2.2 kW Hydraulic pump motor ----- 0.75 kW Vertical feed motor ----- 0.5 kW Weight ----- 1800 kg Machine dimensions ----- 2250 x 1720 mm

Condition: used, Cup Surface Grinding Machine / Cylinder Head Grinding Machine Max. grinding area approx. 550 x 250 mm Electromagnetic clamping plate 500 x 200 mm Machine dimensions (L x W x H): 2070 x 900 x 1600 mm Machine weight: 1000 kg Siegfried Volz Werkzeugmaschinen Iedpfowlbz Tsx Abrshu Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel

Condition: used, Year of construction: 2001, Technical details: grinding length: 2500 mm grinding width: 800 mm workpiece height: 800 mm Table movement horizontal: Längshub: 2700 mm Table movement horizontal: Querhub: 800 mm table speed: längs: 1 - 35 / quer: 0 - 3 m/min feed: vertical: 0,001 / quer: 0,0025 mm/Hub magnetic plate size: 2500 x 800 mm Automatic grinding wheel feed: 0,001 mm distance table - spindle center: 900 mm grinding spindle speed: k.A. U/min dimensions of grinding wheel: 400 x 76 x 127 mm total power requirement: 36 kW weight of the machine ca.: 13,5 t dimension machine xH: 7,5 x 2,8 x 2,7 m Iedjvbgr Rjpfx Abrehu dimension coolant device LxWxH: 1,8 x 1,0 x 0,92 m dimensions of hydaulic: 1900 x 800 x 1500 mm transport measurements machine: L: 8,0 x B: 2,4 x H: 2,85 m The machine is currently in the technical department. technical features: -Hydraulic unit -dressing device *

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t dimensions of machine: 1800x1850x2500 mm dimensions electric cabinet: Nr. 1: 1930x400x1920 mm dimensions electric cabinet: Nr. 2: 800x230x1950 mm dimensions:: Abluftanlage: 1400x700x560 mm dimension cooling device LxWxH: 1,2 x 1,0 x 0,45 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm max./min. Number of teeth: 130 / 12 Ihjdpfovc Apbox Abrju max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 77x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: used, Year of construction: 1971, Technical details: grinding length: 700 mm workpiece height: 80 mm Table dimensions: 105 x 725 mm feed range: mechanisch total power requirement: 0,8 kW dimension machine xH: 0,7 x 1,3 x 1,4 m Application: Grinding of linear surfaces for shearing knives and div. tools. Grinding support: -Vertical adjustment travel 45mm hand crank. -speed 2840 rpm -rotate 20° right/left -swivel 40° back and forth table: -with stop bar 730mm -equipped with 2x clamps / 2x fences Iedpfju Ngk Tox Abrehu -grinding depth by manual adjustment 80mm -mechanical feed, adjustment travel approx. 0.3 mm/double stroke -swivel 5° - 25° via hand toggle -1x chucking groove centered accessories: Box with div. grinding wheels *

Condition: used, Year of construction: 1964, Technical details: shaft diameter: max. 120 mm work piece - max.: 800 mm height of profile: Tiefe: max. 90 mm grinding spindle speed: nicht bekannt U/min Table dimensions: Ø 150 mm voltage: 380 V total power requirement: 1,1 kW weight of the machine ca.: 0,675 t dimension machine xH: 0,75 x 0,70 x 2,0 m Application: vertical internal cylindrical grinding of shafts face, and center grinding with shaft grinder. Spindle head technical details: -equipment shank grinder Ø 13mm 60°; clamping element Ø 6mm shank clamping head. -travel=vertical 950mm by handwheel and transversal 80mm by crank handle -abrasive device with diamond, adjustment crosswise= 80mm. Table other specifications: -with fixed tip holder 60°. -speed 63 / 125 rpm. -adjustment vertical 600mm, in height 1.100mm, operation manual. centering block: -prismatic guide Ihsdju Ngr Dspfx Abrsu accessories: -fixed tip L=180mm -fixed tip L=300mm -div. shank grinder -div. clamping and auxiliary tools *

Condition: used, Technical details: grinding length: 1000 mm grinding width: 500 mm workpiece height: 500 mm table surface area: 1000 x 450 mm magnetic plate size: 1005 x 500 x 84 mm table speed: k.A. m/min Ihsdpfjvc Aw Eex Abrou table adjustment: längs: 1100 mm table adjustment: quer: 500 mm grinding spindle speed: 1420 - 2840 U/min grinding head vertical adjustable: 700 mm dimensions of grinding wheel: Ø 280 x 50 mm weight of the machine ca.: 2,7 t dimension machine xH: 3,1 x 2,0 x 2,4 m dimension coolant device LxWxH: 3,0 x 1,1 x 0,85 m dimensions of hydaulic: 750 x 600 x 850 mm dimension control panel: 0,65 x 0,85 x 1,3 m Equipment: Dressing device Holder for dial gauge Coolant filter system Hydraulic unit Manual control unit *

Condition: used, Technical details: grinding length: 1000 mm grinding width: 315 mm workpiece height: 390 mm table speed: 2,5-25 m/min table surface area: 250 x 1000 mm distance table - spindle center: 550 mm dimensions of grinding wheel: Ø max. 315 x 13-63 x Bohrung Ø 75 mm control voltage: 220 / 50Hz V/Hz total power requirement: 10,5 kW weight of the machine ca.: 5,0 t dimension machine xH: 3,35 x 1,5 x 2,10 m Die Maschine befindet sich derzeit in der technischen Abteilung. Ijdpfsu Ngn Ssx Abrehu *

Year of construction: 1971, condition: used, Technical details: max. wheel diameter: 300 mm max. module: 5 module min. : 0,5 max. workpiece weight: 60 kg weight of the machine ca.: 4,0 t machine dimensions LxWxH: 1,8 x 1,9 x 2,5 m dimensions electric cabinet LxWxH: Nr. 1: 1,95 x 0,4 x 1,95 m dimensions electric cabinet LxWxH: Nr. 2: 0,8 x 0,23 x 1,95 m dimensions:: Abluftanlage: 1,4 x 0,7 x 0,55 m Electronically controlled tooth flank grinding machine up to module 5 and a Ø of 240 - 300 mm feed speed per workpiece revolution infinitely variable 0.4 - 3.2 mm Iodpfx Ajvc An Debrehu max./min. Number of teeth: 130 / 12 max./min. Pressure angle: 30° / 14°30` max./min. Spiral pitch with 24 teeth: 6000 / 200 mm max. tooth helix angle, both sides: 45° Speed of the grinding worm: 1900 rpm without dressing device Equipment: approx. 69x change transmission wheels, pipe extensions and various tools Two of these machines are for sale. Both machines are supplied via two common control cabinets and an exhaust air system. *

Condition: used, Year of construction: 1976, Technical details: grinding length: 600 mm grinding width: 200 mm workpiece height: 400 mm table speed: 2 - 18 m/min magnetic plate size: 600 x 200 mm Max. Table-movement horizontal: 700 mm Max. Table-movement across: 230 mm table adjustment: Quervorschub: 0,1 - 2 mm/Hub ° table speed: 2 - 18 m/min dimensions of grinding wheel: max. Ø 200 x 20 x Ø 51 mm grinding spindle speed: 2800 U/min feed of spindle: vertical 0,01 total power requirement: 3,0 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,8 x 1,2 x 1,9 m dimension coolant device LxWxH: 0,8 x 0,4 x 0,2 m Currently there is a grinding wheel size Ø 160 x 18mm on the machine. There is a dressing device (without diamond) on the spindle. Magnetic clamping plate progress type FE 200/600; 220V / 110V coolant tank Iedpsu Ngl Dsfx Abrehu div. foot blocks Toothed rail 1000mm *

Condition: used, Year of construction: 1974, Technical details: grinding length: 600 mm grinding width: 200 mm workpiece height: 400 mm magnetic plate size: 630 x 200 mm Max. Table-movement horizontal: X-Richtung max. 710 mm Max. Table-movement across: Y-Richtung max, 250 mm table load capacity: 110 /1100N) kp table speed: 1,5 - 18 m/min dimensions of grinding wheel: max. 200 x 20 x Ø 51 mm grinding wheel dimensions:: gespannt: Ø 142 x 20mm grinding spindle speed: 2800 U/min feed of spindle: 0,01 mm total power requirement: 5,0 kW weight of the machine ca.: 1,0 t Ihsdpfx Abeu Ngmbsreu dimension machine xH: 1,8 x 1,2 x 1,9 m dimensions: Behälter Absaugung: 420 x Ø 350 x 680 mm The machine was used for dry grinding. -very good condition -without dressing device -dust extraction -machine lamp *

Condition: used, Year of construction: 1998, Technical details: height of profile: 180 mm max. dia. of grinding wheel: 200 / Topfscheibe mm grinding wheel hole diameter: k.A. grinding spindle speed: 2800 U/min Table dimensions: LxB: 500 x 160mm mm voltage: 220 / 380 V total power requirement: 3,0 kW weight of the machine ca.: 0,57 t dimension machine xH: 1,1 x 1,0 x 1,7 m Application for face grinding Magnet mount: LxW = 680 x 200mm; tilt approx. 15°; swivel 360° via radial scale Ihsdpfx Abju Ngrqoreu magnet: Type S2D; permanent magnet, clamping surface 300 x 150mm. Grinding wheel support: -adjustment vertical = length 180mm manual; swivel = approx. 45° right/left manual. Operation via control panel on machine. Coolant tank with pump and feed *

Condition: used, Year of construction: 1984, Technical details: grinding diameter min/max: 8 / 40 mm number of spindle speeds: 3000 U/min total power requirement: ca. 1,2 kW weight of the machine ca.: 0,24 t dimension machine xH: 0,7 x 0,9 x 1,3 m The grinding spindle is equipped with two hand levers: Working range left = manual grinding device for small shank drills. working range right = swiveling device of conical shank drills cutting angle max 180 Drill swivel arm small: clearance angle 5° - 9°; drill Ø 8 - 15mm manually adjustable; grinding wheel cup wheel Ø 200 x 40mm with holder Ø 32mm Drill swivel arm large: clearance angle 5° - 9°; drill Ø max 400mm; pitch 6x with index grid manual; grinding wheel currently clamped Ø 180 x 31mm with receptacle Ø 32mm Grinding modes: Normal grinding, DK grinding, center grinding, spiral countersink, multiple step drill. * Ijdpfeu Ng Irex Abrshu

Condition: used, Year of construction: 1982, Technical details: dimensions of grinding wheel: Ø 150 x 20 mm grinding spindle speed: 3600 U/min height over floor: 900 mm current type: 220 V machine weight approx.: 27 kg dimensions L x W x H: 0,37 x 0,35 x 1,4 m Double sanding bench sitting on foot stand (foot Ø 353mm) Ihjdpsu Ngxdjfx Abrju Left side with drill grinding device (angle 90° - 180°), longitudinal adjustment 25mm incl. accessories *

Condition: used, Technical details: grinding length: 300 mm centre height: 175 mm swing diameter: 315 mm table clamping surface LxW: 1.800 x 200 mm control: Heidenhain Longitudinal adjustment of grinding unit on table max.: 1100 mm work piece spindle speed: 3steps/1500-2200 U/min feed continuous: 0,001-1 mm Max. travel x-axis: 300 weight of the machine ca.: 3,1 t Iedpfovc Aw Sex Abrshu dimension machine xH: 2,9 x 1,6 x 1,4 mm Swivel for right and left machining Automatic table reversal Tailstock: MK3 holder Operation: Manual control unit/foot switch Coolant: System with feed Heidenhain measuring device *

Year of construction: 1997, condition: ready for operation (used), Color: RAL 7035 light grey, RAL 7012 basalt grey, RAL 5012 blue grey, the machine’s inverter is defective. Accessories: electromagnetic clamping plate 400x250mm, with pole pitch 5mm and holding force control, automatic vertical infeed with infeed program and digital display for vertical and cross movement, automatic central lubrication system, wet grinding unit with paper belt filter system for filter paper 460x200mm with filter fineness 0.016–0.025mm, electric wheel dresser with dimensional compensation and operating manual. An on-site inspection is possible. Ihjdpfxjylbrwe Abrsu

Year of construction: 2016, condition: ready for operation (used), Offered is a high-precision worm and thread grinding machine MIKROMAT 20G, used as a test and trial machine, nearly all available options included, technically flawless condition. Capabilities: external thread grinding, internal thread grinding, whirling Whirling, grinding length max. 2000mm, workpiece diameter max. 320mm, distance between centers: 2250mm NC tailstock option: 2050mm, workpiece weight max. 200kg 350kg NC tailstock, pitch range: 0-400mm, 7-axis system, feed speed: up to 15000mm/min, setting angle: +/-40°, positioning accuracy: uncertainty 0.0024mm P, upgrade to 23.5kW continuous power/45kW maximum power, grinding wheel speed: up to 50m/s, special equipment internal grinding: internal thread diameter up to 100mm, length up to 50mm, coolant system: KNOLL compact unit vacuum rotary filter, 2500l tank volume and oil cooling, installation dimensions X/Y/Z: approx. 6500mm/4000mm/3000mm, total weight: approx. 13000kg, inspection possible by arrangement. Ihjdpfxoylbr Do Abreu

Condition: used, Year of construction: 2021, width of the strips 150 mm band length 2000 mm band speed 45 m/s total power requirement 4 kW weight of the machine ca. 275 kg dimensions of the machine ca. 1450 x 1260 x 900 mm The AL150HS is a 2-in-1 machine: Belt sander and pipe grinder at the same time. Ihodpfx Aboyfwznsrju Technical data: - Adjustable sanding angle: 20° - 90° - Grinding diameter: 20.0 / 114.3 mm

Condition: used, Year of construction: 2007, functionality: fully functional, ZAFFERANI FLAT 5 FPE – Year 2007 Straight Line Edging Machine Ihjdpfxeyim Auo Abreu 5 Wheels Min. Glass Size h 5 cm Thickness 3–22 mm Speed 0.4 – 3.2 m/min Power 7.4 kW

Condition: like new (used), Year of construction: 2019, functionality: fully functional, Horizontal surface grinder in almost new condition with few operating hours! Operating hours: see image PC control Okamoto Travel X-axis: 600 mm Travel Y-axis: 22.5 - 497 mm Travel Z-axis: 400 mm Speed range rpm: 1-2800 (stepless) Rapid traverse mm/min: 4000 Main drive kW: 7.5 Maximum table load in kg: 1000 Accessories: - Electro-permanent magnetic clamping plate: 400 x 600 P13 mm, height 80 mm (make Wagner) Ihedpjyhdquofx Abrou - 2 grinding wheel flanges - Table dresser - Automatic straight dresser, spindle box mounted - Automatic compensation of the wheel dressing amount - Automatic central lubrication - Ball screw in the Y and Z axes with AC servo motor and measuring system - Coolant system with belt filter system grinding length 600 mm grinding width 400 mm workpiece height 400 mm weight of the machine approx. 4,5 t dimensions of the machine approx. 3400 x 2647 x 2203 mm

Condition: used, Year of construction: 2008, Working width: 260 mm Working height: 130 mm Number of working spindles: 5 Spindle arrangement: bottom, right, left, top, bottom Grooved bed: yes Motor power bottom spindle: 5.5 kW Ijdpfeyhgkdex Abrjhu Motor power right spindle: 5.5 kW Motor power left spindle: 7.5 kW Motor power top spindle: 7.5 kW Motor power bottom spindle: 7.5 kW Bottom spindle adjustment: handwheel Right spindle adjustment: handwheel Left spindle adjustment: handwheel Top spindle adjustment: handwheel Cutterheads: Centrolock Feed speed: stepless Feed roller pressure: pneumatic Current consumption: 50 A Current consumption: 71.7 A Motor brake: automatic Extraction connection: Machine length: Machine width: Weight: 4500 kg
