Used Relieving Lathe for sale (5,602)

Condition: used, Year of construction: 2011, turning diameter 0700 mm turning length 800 mm Giodpfxox Sy U Ee Ag Tsl control 840D Siemens turret head 12 swing over bed 380 mm spindle turning speed - stepless 10- 5000 rpm spindle bore 67 mm feed - longitudinal/cross 20000 mm/min rapid travel - longitudinal/face 30 m/min dimensions 5000 x 2800 x 2000 mm total power requirement 65 KVA weight of the machine ca. 7,5 t Machine has 6 live tooling positions

Condition: new, Year of construction: 2025, CONDOR VC plus The new dimension in conventional precision lathes. A high-quality, powerful and energy-efficient precision lathe for the highly productive area of production and toolmaking, but also for training and further education High-quality, energy-efficient, precise and universally applicable in production, training and further education. It impresses with: future-oriented technology maximum accuracy durability user-friendly ergonomics minimum space requirement and a wide range of accessories. The consistent and innovative further development of the tried-and-tested Condor series is the economical and intelligent solution for your daily applications. Technical data: WORKING AREA Center height 180 mm Swing diameter over bed 360 mm Swing diameter over facing slide 190 mm Giedpfxjqwipnj Ag Tol Center width 800 mm TURNING SPINDLE Spindle head DIN 55027/DIN ISO 702-3 size 6 Spindle bore 57 mm Spindle diameter in front bearing 90 mm MAIN DRIVE Drive power 60 %/100 % ED - / 10.5 kW Speed range 25 - 4,000 min-1 Number of speeds infinitely variable FEED RANGE Number stepless Longitudinal 0.01 - 6 mm/rev Plan 0.003 - 2 mm/rev THREAD CUTTING RANGE Metric thread 0.1 - 20 mm REITSTOCK Quill diameter 50 mm Quill stroke 110 mm Internal taper DIN 228 MK 3 ACCEPTANCE ACCURACY DIN 8605 Equipped with WEILER WTS 15 VC plus screen display - Large, clearly arranged 15" touch screen, rotatable and tiltable, resolution 1366 x 768 - Change of operating screens via swipe movements - Operating functions can be called up via app manager - Control panels can be freely configured, placed and scaled as required - Drawings / sketches can be imported from PDF files Can be zoomed individually via USB interface - Video-supported maintenance of the machine - Context help menu (instead of screen display WEILER VC plus) The machine is located in our showroom in 71334 Waiblingen-Beinstein and is available immediately. Please contact us regarding equipment.

Condition: new, The Turnado 280/2000 is a remarkable example of the Conventional Horizontal Lathes category, showcasing the best features of the Engine Lathes group. This KNUTH machine combines a robust construction with a powerful motor to offer a high level of versatility designed to meet various production requirements. Proven over 20 years in the market, the Turnado series is adaptable due to its extensive standard equipment, including a quick-change toolholder system, three and four-jaw chucks, and a 3-axis position indicator that maximizes precision in machining tasks. With a heavy cast iron bed that supports large workpieces and a user-friendly control panel, operators can easily handle complex machining processes, ensuring efficiency and safety. You will appreciate the automatic feed shut-off for repetitive tasks, along with features like a coolant system and protective shield. For reliable performance and outstanding quality, particularly in demanding applications, you can request a quote for the Turnado 280/2000 today, and experience the excellence of KNUTH's Conventional Horizontal Lathes and Engine Lathes. Giodpfx Agsuzk S Eo Tjl

Condition: used, Year of construction: 1987, turning diameter max. 400 mm turning length 1.000 mm Gedpfxox Sy Ure Ag Tjil control EPL 2 greates pass round over bed 400 mm Swing dia. over traverse guideway 225 mm travel -x axis 260 mm travel -z axis 1.040 mm turning speed range - main spindle 20 - 4.000 min/-1 power capacity - main spindel 11 kW max. Torque 75 Nm spindle bore 72 mm chucking diameter 185 mm spindle head 140H5 spindle diameter in front bearing 100 mm number of toolpositions 12 pos. diameter of quill 80 mm quill stroke 100 mm taper of center MK 4 pressure max. 800 daN rapid power traverse in X-and Z direction 10 m/min Feed speed x: 5 m/min. Feed speed z: 5 m/min. Feed force x: 500 daN Feed force z: 800 daN total power requirement 29 kW weight of the machine ca. 4,0 t dimensions of the machine ca. 4,6 x 2,1 x 2,0 m CNC - Lathe GILDEMEISTER - NEF CT 40

Condition: used, Year of construction: 1999, Technical details: number of spindles: 6 spindle passage: 20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, Godox Sx Nhepfx Ag Teil workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader) *

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, travel distance X-axis: 352 mm, travel distance Z-axis: 250 mm, rotational speed (max.): 5,000 rpm, controller model: Fanuc Series 0i Mate-TD, Equipment: chip conveyor, TECHNICAL DETAILS Turning diameter over tool carrier: 70 mm Travel X-axis: 352 mm Travel Z-axis: 250 mm Tool stations: 8 Bar capacity: 42 mm Max. spindle speed: 5,000 rpm MACHINE DETAILS Gedpfxsx E Uzme Ag Teil Control: Fanuc Series 0i Mate-TD EQUIPMENT Machine documentation Power chuck D135 mm Collet chuck 173E Parts catcher Chip conveyor

Condition: used, Year of construction: 1998, turning diameter over bed 0400 mm turning diameter over slide rest 260 mm turning length 1000 mm centre height 200 mm centre distance 1000 mm spindle bore 50,8 mm speeds 20- 3150 U/min feeds longitudinal slide 0,01 - 3,24 mm/U feeds cross slide 0,005- 1,62 mm/U Gijdsxp Rzbopfx Ag Tol weight of the machine ca. 1,8 t dimensions of the machine ca. 2,85 x 1,4 x 1,9 m voltage 400 V connected load 7,7 kVA With chuck, Multifix toolholder and digital readout.

Condition: good (used), Used COLCHESTER MASTER 3250 center lathe and feed spindle lathe center height 170mm center distance: 650mm spindle bore: 42mm Infinitely variable speed from 15-3250 rpm 1 x SCHUNK wedge bar lathe chuck Ø160mm Godpfouqkf Nex Ag Toil 1 x MULTIFIX steel holder size B with 4 inserts Machine light, chuck protection electrically fused, machine shoes 1 x rotating center point, 1 x rotating center point with pressure indicator 1 x drill chuck with tapered arbor The machine is located at our premises in 71334 Waiblingen-Beinstein and is available immediately. An inspection of the machine is possible by arrangement.

Condition: new, The KNUTH Basic 180 Super is a powerful and robust conventional horizontal lathe, designed for metalworking and known as the largest in its category. With an impressive bed width of 206 mm (8 in) and a total weight significantly heavier than similar models, it assures high machining quality ideal for demanding industrial applications. This metal lathe features a cast-iron bed with induction-hardened box ways, a headstock with D1-4′ mount, and a powerful main drive of 2.4 kW, making it perfect for various turning tasks. The Basic 180 Super comes with extensive standard equipment, including a 3-axis position indicator, quick-change tool holder, and a robust coolant system, ensuring efficiency and precision. You can tackle a wide range of projects while benefiting from the rugged construction that minimizes vibrations during operation. For those looking to invest in top-quality equipment, the Basic 180 Super is a standout choice in the category of conventional horizontal lathes and metal lathes. Request a quote now to enhance your workshop's capabilities with this dependable machine. Gijdjuygz Tspfx Ag Tsl

Condition: excellent (used), CATALOG NUMBER 7753 TECHNICAL SPECIFICATIONS - max diameter of machined dowels: 130mm - installed bushing: 110mm Godpfx Aoxhddgog Teil - max diameter of input material: 160mm - min length of input material: 800mm - max machining allowance per side: 15mm - cutter head drive motor: 15kW - 3 feed speed options + forward/reverse - feed motor: 1.1kW Configuration: - 3 toothed feed rollers - 3-knife cutter head - 3 smooth discharge feed rollers - dimensions (L/W/H): 3100x1400x1500mm - weight: 2100kg ADVANTAGES – made in Poland – 3-knife cutter head – used rounding machine, very good condition Net price: PLN 36,900 Net price: EUR 8,780 based on an exchange rate of 4.2 PLN/EUR (Prices may vary with significant fluctuations)

Condition: used, Year of construction: 2008, Swing over bed 923,8 mm Godpfx Asu Sn Hzjg Teil Swing over cross slide 755 mm Max. turning diameter 356 mm Max. turning length 510 mm X/Z-axis movement 260/590 mm Turret w/12 stations Spindle speeds 5000 rpm Spindle bore 73 mm Control: MSX-850 III Equipped with: Collet chuck w/collets Chip conveyor 3 standard tool holders No Gantry loader incl.

Condition: excellent (used), Year of construction: 2006, turning length: 365 mm, spindle motor power: 10 W, travel distance X-axis: 160 mm, SCHUNCK 160 mm chuck with jaws Full C-Axis 360.000 Driven Live tooling Part catcher Tooling package with 12 Tooling holders 3 x Live tooling AXIAL 3 x Live tooling RADIAL Collet device with inserts Cutting Hours 14.462 H Max. turning Ø: 380mm X-Axis: 160mm Z-Axis: 365mm Spindle bore: 56/42mm Speedrange: 6000Rpm Spindle power: 10kW ATC / revolver: 12 Speed live tools:4000Rpm Power live tools:5kW Gjdpfx Agsx R Szhs Tjil Chip conveyor: Yes Pinole taper: 4Mk Stroke pinole: 100mm Quill Ø: 100mm Length: 3800mm Width: 1720mm Height: 1670mm Weight: 4000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: excellent (used), Year of construction: 1995, - machine in stock - after a technical review - very good condition - year of production 1995   TECHNICAL PARAMETERS: - turning length max 1300 mm - turning diameter 120 mm - three lower knives - five top knives - steady Gsdpfxsd Rkkze Ag Toil - hydraulic knife control - automatic control - magazine   Machine dimensions: - length 380 cm - width 210 cm - height 215 cm - weight ~ 3490 kg

Condition: new, Year of construction: 2025, GSD Intern One of the best-selling and most popular conventional precision lathes Impressive thanks to: Sophisticated technology Highest accuracy Durability Proven ergonomics Minimal footprint And extensive accessories. Proven for decades in single-part and small-batch production, in trade and industry, training and continuing education, and tool and fixture construction. Distance between centers 650 mm Center height 160 mm Automatic handwheel disengagement Leadscrew and feed screw covers Main spindle brake Toolmaking precision according to DIN 8605 Pole-changing brake motor Headstock gearbox 16 fixed speed levels Numerical position display (option) LED machine light TECHNICAL DATA: WORKING AREA Center height 160 mm Swing over bed 320 mm Swing over cross slide 190 mm Distance between centers 650 mm TURNING SPINDLE Spindle head DIN 55027/DIN ISO 702-3 Gr. 5 Spindle bore 43 mm Spindle diameter in front bearing 70 mm MAIN DRIVE Drive power 60%/100% duty cycle 2.6 / 3.1 kW Speed range 48 – 2,500 rpm Number of speeds 16 FEED RANGE Giodpfxswhzcps Ag Tsl Number 24 Longitudinal 0.02 – 0.63 mm/rev Cross 0.006 – 0.2 mm/rev THREADING RANGE Metric threads 0.25 – 8* mm TAILSTOCK Quill diameter 40 mm Quill stroke 85 mm Internal taper DIN 228 MK 3 ACCEPTANCE ACCURACY DIN 8605 * Inch threads and metric thread pitches 0.45; 0.75; 4.5 and 5.5 are only available with additional change gears. This machine is located in our showroom in 71334 Waiblingen-Beinstein and is available immediately. Please contact us regarding the available options.

Condition: new, The Turnado 230/2000 is a versatile and robust Conventional Horizontal Lathe from KNUTH, designed for various machining needs within the Engine Lathes product group. This modern version of the classic lathe features a heavily ribbed machine bed and a powerful main motor, providing high torque and a wide range of spindle speeds. It includes essential accessories such as a 3-jaw lathe chuck, a 4-jaw independent chuck, and an integrated coolant system, making it efficient for operational tasks. The user-friendly control panel ensures easy operation, while the high-quality spindle support delivers precision even under heavy loads. With a maximum workpiece length of 2,000 mm and a turning diameter of 460 mm, this machine is built to offer lasting high value and high productivity. You can request a quote to enhance your machining capabilities with the Turnado 230/2000, your ideal choice in the Conventional Horizontal Lathes category. Gisdpfxsp Ebgrs Ag Tol

Condition: used, Year of construction: 1998, turning diameter max. 250 mm turning length max. 900 mm control FANUC SERIE 0-T turning spindle Durchlass 75mm chuck diameter 250 mm Giedpfxeucgxuj Ag Tjl turning speeds 0-3700 U/min transmission ratio 2 tool numbers 12 feed speeds X/Z 15/20 mm/min quill stroke 100 mm diameter of quill 110 mm tool adaptor MK 4 coolant tank 130 l weight - pallet system 5500 kg

Condition: used, Year of construction: 2000, used CONDOR AC, partially overhauled Centre height: 165 mm Between centres: 750 mm Gjdpfx Agex E Um No Toil Spindle bore: 40 mm Spindle speeds: 22–2,800 rpm, infinitely variable - Quick-change tool post size B - WEILER DZ-V digital readout - Hollow spindle stop - Fixed steady rest - 7 Multifix tool holders - Flat splash guard - Electrically interlocked chuck guard - Change gears and various soft jaws The machine is partially overhauled: - Bed slide: guideways re-coated and hand-scraped, gibs and lower guide strips adjusted - Cross slide measured and aligned on bed slide; cross slide dovetail guide newly scraped, gibs adjusted and scraped - Top slide newly scraped and gib matched - All measuring scales overhauled and cables replaced The machine is located in our showroom at 71334 Waiblingen-Beinstein and is immediately available. For details on equipment, please contact us.

Condition: new, The Turnado 230/1000 PRO is a high-performance Conventional Horizontal Lathe from KNUTH, designed for precision and efficiency in your machining tasks. This Engine Lathe represents the modern evolution of classic lathes, boasting features developed over 20 years of successful performance. It offers an ergonomic design that enhances usability, while the sturdy machine bed, solid headstock, and robust cast-iron stand ensure stability and longevity. With infinitely variable speed ranges and a powerful main spindle drive, it guarantees consistent cutting speeds and excellent surface quality, including high-precision pre-loaded spindle bearings for superior concentricity. Equipped with a 3-axis position indicator, quick change tool holder, and a comprehensive standard equipment package, this machine simplifies maintenance and maximizes productivity. Experience the next generation of lathe technology; request a quote today for the Turnado 230/1000 PRO and elevate your workshop with this reliable Engine Lathe, a benchmark in the Conventional Horizontal Lathes category. Giodpfxjngzzko Ag Tol

Condition: new, Intern VC plus The new dimension in the field of conventional precision lathes. High-quality, energy-efficient, precise and universally applicable in production, training and further education. It convinces through: future-oriented technology highest accuracy durability user-friendly ergonomics smallest footprint and extensive accessories. The consistent and innovative further development of the practice-proven Praktikant series is the economical and intelligent solution for your daily applications. Technical data: WORKING RANGE Center height 160 mm Swing over bed 320 mm Swing over cross slide 190 mm Center width 650 mm ROTATING SPINDLE spindle head DIN 55027/DIN ISO 702-3 size 5 spindle bore 43 mm Spindle diameter in front bearing 70 mm MAIN DRIVE drive power 60 %/100 % ED - / 8 kW speed range 25 - 5.000 min-1 Number of speeds stepless FEED RANGE Number stepless longitudinal 0.01 - 6 mm/rev plane 0.003 - 2 mm/rev THREAD CUTTING RANGE Giodpehw N Ntjfx Ag Tel Metric thread 0.1 - 20 mm REITSTOCK quill diameter 40 mm quill stroke 85 mm Inner taper DIN 228 MK 3 ACCEPTANCE ACCURACY DIN 8605 Equipped with WEILER WTS 15 VC plus screen display - Large, clear 15" touch screen, rotatable and tiltable, resolution 1366 x 768 - Change of operating screens via swiping movements - Operating functions can be called up via App Manager - Control panels can be freely configured,

Condition: new, The Servoturn 500/2000, a remarkable addition to the category of Conventional Horizontal Lathes, excels within the Servo-conventional Lathes group. This KNUTH machine combines cutting-edge feed technology with robust mechanical engineering, featuring ball screw drives and electronic hand wheels on all axes, ensuring precision and efficiency typically found in modern CNC machines. Users will appreciate the ease of selecting feed and thread pitches electronically without the need for gear changes. The Servoturn boasts a heavy ribbed machine bed and high-quality servo drives, allowing for a stable and dynamic operation. With a turning diameter over the bed of 500 mm and a center width of 1,950 mm, it accommodates various machining tasks. Standard equipment includes a quick-change tool holder set, an electronic hand-wheel system, and a coolant system, further enhancing its versatility. If you’re ready to upgrade to a robust and precise machine, you can request a quote for the Servoturn 500/2000 in the Servo-conventional Lathes category today. Gisdpfxol Iy Sxo Ag Tol

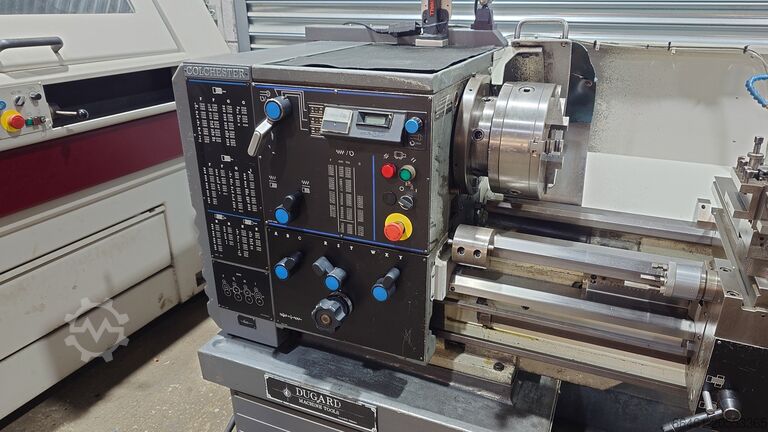

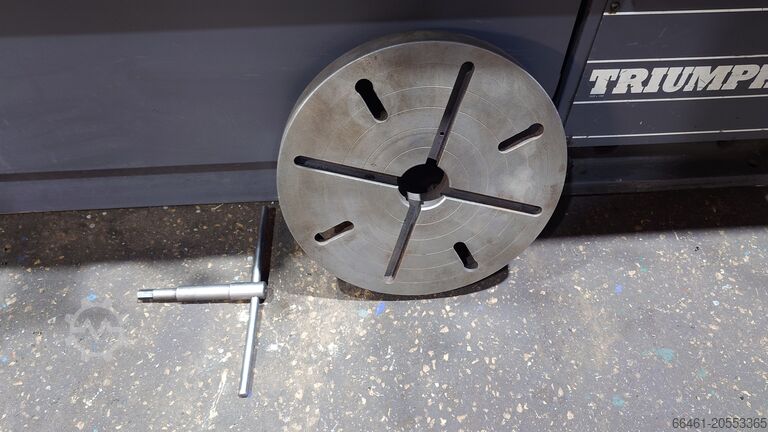

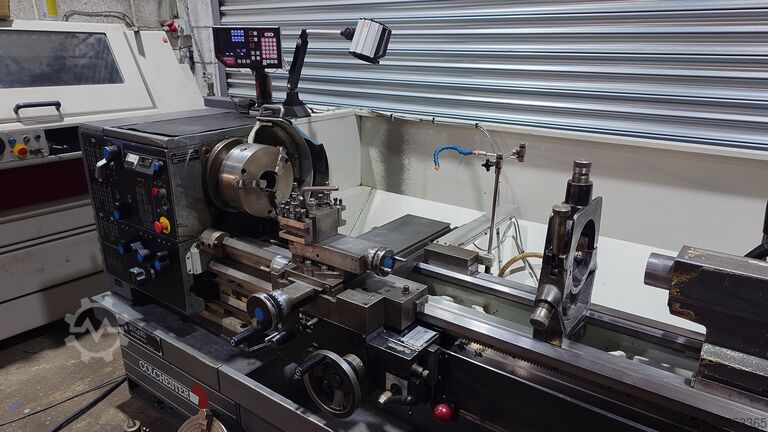

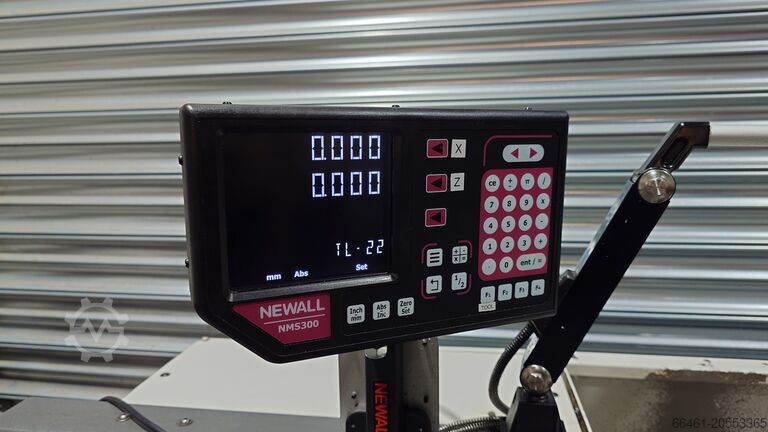

Condition: used, Year of construction: 2003, machine/vehicle number: 1527, Used lead and feed screw lathe COLCHESTER Triumph VS 2500 Centre height: 195mm Distance between centers: 650mm Spindle bore: 54mm Infinitely variable speed: 14–2500 rpm Tailstock quill: MT5, coolant system, quick thread cutting device Digital readout: FAGOR NUP 300 TS-RS 1 x RÖHM 3-jaw chuck, 5-position stop drum, spindle stop, machine lamp, 1 x PARAT 4-way turret, 4 x PARAT tool holders, live centre and quick-action drill chuck. Giedex Hrumjpfx Ag Tsl The machine is located at our premises in 71334 Waiblingen-Beinstein and is available immediately. Inspection of the machine is possible by appointment.

Condition: used, machine/vehicle number: 11756, second-hand WEILER LZ 280 sliding headstock and sliding headstock lathe center height 125mm center width: 800mm spindle speed approx. 26-2000 rpm 1 x three-jaw lathe chuck Ø 125mm with inner and outer jaws, brand new Multifix size A with 2 interchangeable holders Emergency stop/switch unit, rear chip guard, all change wheels present, drive disk, Gijdpovd Dbnofx Ag Tol storage tray, machine light, new socket, 15 collets from Ø 3.5 - 18.5 mm, collet clamping tube, fixed point and MK 2 sleeve for clamping tube, bed stop, chuck protection cover, various turning tools and operating instructions. The machine is located at our premises in 71334 Waiblingen-Beinstein and is available immediately. A viewing of the machine is possible by arrangement.

Condition: used, machine/vehicle number: 1717, Used lead and feed screw lathe WEILER PRAKTIKANT Centre height: 140 mm Gisdpfx Ageuqb Ems Tsl Distance between centres: 500 mm Spindle bore: 36 mm Spindle speeds: 42–2,000 rpm Equipped with RSF 3-axis digital readout, 1 pc 3-jaw chuck Ø160 mm, Chuck guard electrically interlocked, With Multifix toolpost size A with 3 holders Lever-operated collet device with 15 collets. The machine is located at our facility in 71334 Waiblingen-Beinstein and is immediately available. Viewing of the machine is possible by prior arrangement.

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, spindle bore: 40 mm, center height: 175 mm, turning length: 800 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 25 rpm, used L+Z lathe GDW type MS-175, center height 175mm, center width 800mm, spindle speeds 50-2500 rpm, spindle bore 40mm, 2-axis digital display ACU RITE, 1x three-jaw lathe chuck Ø 200mm, Multifix steel holder size B, chuck guard electrically secured, coolant pump. Gijdpfxjvvhfns Ag Tsl The machine is in stock at our warehouse in 71334 Waiblingen-Beinstein and is available immediately.

Condition: good (used), functionality: fully functional, spindle bore: 36 mm, center height: 155 mm, turning length: 800 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 25 rpm, Used Weiler Condor lathe, No. 7939, Center height 155mm, Center width 800mm, Spindle speeds 12-2800 rpm, spindle bore 36mm Accessories: 1x RÖHM three-jaw chuck Ø 160mm, Multifix base body size B with 2 inserts, keyless drill chuck, live center, and coolant system. The machine is in stock at our facility in 71334 Waiblingen-Beinstein and is available immediately. Gedsv R Tdxopfx Ag Toil
