Used Scm Edge Banding Machine for sale (603)

Condition: ready for operation (used), Year of construction: 2012, functionality: fully functional, Equipment: CE marking, Model Accord 30 FX Year November 2012 - First time installed in 2013 Dedpfezbz Htsx Al Ujkn Machine type 3-axis CNC machining center for solid wood, doors, windows, stairs, and joinery Working feld: X 3680 by Y 1680 mm. Z-axis travel 250 mm BRC multifunction unit for cutting, routing and boring both vertically DUO HT 12 Machining Head Syncron 8 Frontal and rear row of stops H50 for plates Prearrangement for clamps and for pneumatic clamps for plate Automatic positions system for placemant of the support beams and vacuum cups. 16 adjustable suction cup H50 145x145 mm. 8 adjustable suction cup H50 145x55 8 adjustable suction cup H50 180x65 Nr 8 Lifting supporters Motoriserd belt for wastes removal. Main electro spindle power 12 kW Maximum spindle speed 20,000 rpm Tool holder HSK-F63 Tool changer for 12 tools Vertical drilling spindles 10 X-Y rapid speed Up to 90 m/min Vacuum pump capacity 250 m³/h Maximum workpiece height 250 mm Supplementary base for bar Matic TecPad mobile console Pro-Speed Safety system XiLog Maestro soft wear Approximate machine weight 5 000 kg Volt 400 AC 50 Hz This machine still is in daily use to the end of week no. 24 Machine first time installed in 2013 and it is working on its orginal place. Come from Norway also low number of workin hours during the years. Rekman Maskin & Service - service of cnc woodworking machines since 1986

Condition: excellent (used), Catalogue number: 7863 TECHNICAL DATA - Track width: 300mm - Working shaft width: 300mm - Max. disc diameter: 350mm - Disc bore diameter: 70mm - Max. cutting height: 120mm - Table width with extension: 750mm - Table length: 1530mm - Top: - Kickback barriers (protection against material reversing) - Metal sliding roller - Kickback barriers - Metal sliding roller - Shaft with saw blades - 2 smooth metal sliding rollers - Bottom: Dodpezbavgsfx Al Uskn - Guide bar - Kickback barriers - Track - Laser - Centralised track lubrication - Infinitely variable feed speed via inverter - Feed motor: 1.5kW - Main motor: 26kW - Brake - Extraction port diameter: 200mm - Overall dimensions (L/W/H): 1700x1400x1600mm - Weight approx.: 1700kg ADVANTAGES - Italian manufacture - Equipped with laser - Very good condition - Used multi-blade saw Net price: 39,900 PLN Net price: 9,500 EUR (based on an exchange rate of 4.2 EUR) (Prices may vary subject to higher exchange rate fluctuations)

Condition: good (used), Code: 0399 Brand: TECNOMAX SCM Model: ST 4 ELITE - CE Standard Saw spindle moulder with tilting blade and scoring unit and tilting spindle moulder for carpentry, furniture, wooden window frames, doors, panels and various - CE Standard Technical data: Squaring carriage length 3200 mm Blade inclination 90-45 degrees Max saw blade diameter with scoring unit mounted 315 mm Max saw blade projection from the table at 90°/45° mm 100/70 Cutting width at parallel guide 1000 mm Scoring unit blade diameter 100 mm Workpiece clamping press Tilting Spindle moulder 90-45° Useful spindle length 125 mm Spindle rotation speed rpm 3500/6000/8000/10000 Max tool diameter 210 mm Tenoning table and head Dksdpozbmvaefx Al Usn Electrical connection and removable support for the feeding Three-phase motors 5,5 Hp Suction inlet diameter mm 120 Overall dimensions of assembled machine mm 3600 x 3000 x 1100 h Overall dimensions for transport mm 3600 X 1600 X 1100 h Weight kg 645

Condition: used, machine/vehicle number: 008381, X axis working area: 4250 mm Y axis working area: 2280 mm Dodpfxsx Swc Hs Al Ujkn Working Table: Flat table Main Electrospindle power: 12 KW Number of controlled axes: 5 axes Total number of drilling spindles: 11 Total number of tool changer positions: 24

Condition: used, Year of construction: 2011, AXES Working Range X-Y-Z Axes * mm 3050-1300-180 Workpiece length for pendulum operation mm 1390 Stroke X-Y-Z Axes mm 3460-1735-250 Max. traverse speed of X-Y axes m/min 60 WORK TABLE Number of workpiece supports and vacuum cups 6 / 2 standard type Standard end stops / position 1 / rear Vacuum pump m3/h 90/108 DRILLING UNIT Vertical spindles std/quantity/speed 1/min 12 (8X-5Y) / 4000 Horizontal spindles std/quantity/speed 1/min 6 (4X-2Y) / 4000 Integrated grooving / saw unit in X Ømm/1/min 120 / 6000 Motor power kW (HP) 2.2(3) ELECTROSPINDLE Motor power std./opt. (S6) kW (HP) 7.5(10) / 11(15) Max. speed 1/min 24000 Tool changer traveling with unit carrier in X 4 places, pneumatic INSTALLATION Installed power KVA 23÷28.5 Compressed air requirement Nl/min 450 Extraction air requirement m3/h 1900+1900 (3400) Required extraction air velocity m/sec 30 Extraction connection diameter mm 150+150 (200) Machine weight Kg 3000 * X: distance between stops; Y: milling center as reference point; Z: workpiece passage GENERAL FEATURES CNC-controlled drilling and milling center, C-frame design, and worktable with adjustable workpiece supports and vacuum suction cups, for: - Vertical drilling on the panel surface - Horizontal drilling on all four workpiece sides - Groove milling with disc cutter in the “X” direction - General milling work Self-supporting structure and work table Structure made from welded steel construction with control cabinet integrated into the machine frame. Available in two different lengths and with standard workpiece supports or TV carrier options. Box construction made from cold-rolled steel with internal stiffening ribs and protective devices comprising a drilling head with vertical spindles, horizontal spindles, an integrated grooving and saw unit, and an SCM electrospindle with HSK 63 F quick-change tool system. Movement paths of the portal and unit carrier Movement in the X, Y, and Z axes is via linear prismatic guideways with preloaded ball bearings. The X-axis movement (moving gantry) uses a preloaded, backlash-free rack-and-pinion drive with helical gearing. Movement of the unit carrier in Y and Z directions is also preloaded for precision. Positioning of the working units and machine function control is through "brushless" AC servo motors and digital drives. Dkedpfx Asyymz Usl Usn CNC CONTROL The control unit comprises a numerical control for the milling and drilling machines and a PC with a graphical user interface "XILOG PLUS". PC office operating system Windows XP - 17" LCD color screen - QWERTY keyboard - Swiveling control panel - Machine interface: Xilog Plus software Xilog Plus Features Programming - Parametric, graphical, and ISO programming - Import of DXF and ASCII files - Linear or circular interpolation on three axes, spatially linear, spirally on selected plane - Supported programming with graphical and syntax assistance for drilling and milling operations - Automatic optimization of drilling operations and tool change cycles - Possibility to shift panel zero point for drilling on slanted or curved panel sides - Full compatibility with CAD/CAM Routocam (SCM) – AlphaCam Integrated additional functions - Calculator for direct transfer of computed data - S

Condition: excellent (used), CATALOG NO. 7967 TECHNICAL DATA - Maximum working width: 1100 mm - Maximum working height: 170 mm 2 units: 1) Grooved metal roller for calibration 2) Grooved rubber roller + shoe + metal roller – Top side: - Rubber pressure roller - Unit (two units on one motor) 15 kW - Rubber pressure roller - Outfeed rubber roller - Belt cleaning by air blast – Bottom side: - 2 metal pressure rollers - Feed belt - 2 rubber pressure rollers - Pneumatic belt oscillation - Grinding thickness potentiometer - Electric and manual table lifting (for precise adjustment) - Pneumatic brake - 2 feed speed options - Working pressure: 6–8 bar - Extraction nozzle diameter: 2x140 mm - Overall dimensions (L/W/H): 1830x1670x1950 mm - Weight: 1160 kg Dksdpfsza Elwsx Al Usn ADVANTAGES – Italian manufacture – 2 sanding units – Not repainted – Used sander, perfect condition Net price: 77,900 PLN Net price: 18,550 EUR (based on 4.2 EUR exchange rate) (Prices may vary with larger exchange rate fluctuations)

Condition: used, Year of construction: 2011, Base Machine M800 X5 TV 1 WORKING RANGE X: 5,020 mm Y: 1,830 mm Z: 675 mm Clearance Height: 300 mm (from 50 mm suction cup height) MACHINE STRUCTURE The base structure is a monolithic construction made from thick-walled steel. It is reinforced across the entire machine bed with welded components, providing exceptional stability. The table design, with its large base, is the key to ensuring lasting precision and stability. The machine’s layout enables the operator to achieve optimal workflow with minimal space requirements. The mobile gantry is built as a solid monoblock. It is positioned in the X direction on prismatic, ground guides with recirculating ball carriages. The machining unit is mounted on this mobile support carriage, also on prismatic, ground guides and recirculating ball carriages. AXIS MOVEMENT All axes travel on prismatic linear guides with large cross-section and recirculating ball shoes with a wide contact surface, which ensures optimal sliding, even at high speeds and accelerations. The precise and fast positioning of the movable gantry (X-axis) is achieved via helical rack and pinion. Large cross-section recirculating ball screws ensure accurate positioning of the machining unit along the movable gantry (Y and Z axes). The perfect mechanical dynamics and maximum positioning accuracy are controlled by high-quality drives and brushless motors. Max. axis speeds: · X-axis = 90 m/min · Y-axis = 90 m/min · Z-axis = 30 m/min Safety device with bumper and light barrier 1 Bumpers with sensors are fitted to the movable upright, and a light barrier system is installed at the front of the machine. If the operator enters the active zone, the X-axis travel speed is reduced to a lower value of 25 m/min without stopping the machine. This system allows parts to be loaded during pendulum operation without the limitation of access areas, as seen with pressure mat systems. This prevents unwanted interruptions in the machining cycle and offers greater freedom of movement around the worktable. CE certification for the safety system 1 Safety protection fence 1 Side and rear protection fence Automatic central lubrication controlled via CNC 1 The lubrication of the X, Y, and Z axes is controlled by the CNC; intervals are regulated automatically, without manual intervention. Central extraction connector 1 All individual extraction connections of the machining units are collected into a central extraction port. Inside the port, there are various slider valves controlled by the NC. This reduces the required extraction air volume. Chip conveyor 1 Maxi – 5-axis electrospindle 11 kW HSK-63 “Prisma K 1 5-axis electrospindle, 11 kW at 20,000 rpm S1 (100% duty cycle) Speed: max. 20,000 rpm Rotation direction: left/right Liquid cooling Tool interface HSK 63F Inverter 18 kW, stepless, smooth power delivery Max. rotation B-axis = 200° (+-100°) C-axis = 650° Thanks to the non-orthogonal axes, it is possible to perform complex horizontal positioning in a small workspace. This enables the machining of complex geometries without the risk of collision. Dkjdpfexy Tmnox Al Uen

Condition: used, Wide Belt Sander SCM UNO RCS - used - Combination unit with contact roller and sanding pad, contact roller made of steel, rubber-coated contact roller, sanding belt oscillation, infeed and outfeed table extension. ----- Technical Specifications ----- Working width: 920 mm Number of belts: 2 units Sanding belt size: 930 x 1,525 mm Feed speed: 4.5 / 9 m/min Max. workpiece thickness: 160 mm Min. workpiece thickness: 3 mm Extraction port Ø: 2x160 mm Motor power: 11 kW Dimensions (LxWxH): 1,700 x 1,480 x 1,600 mm Weight: 1,175 kg Djdpsy Dhudofx Al Uokn

Condition: used, Thickness planer SCM S 63 - used - Segmented pressure beam, Dedpfx Aexm R Uvsl Uokn Under-table roller, Separate feed motor ----- Technical specifications ----- Planing width: 630 mm, Number of knives: 4 pcs., Passage height: 235 mm, Feed speed: 6 /9/12/18 m/min., Extraction nozzle Ø: 180 mm, Weight: 1035 kg

Condition: ready for operation (used), Year of construction: 2008, machine/vehicle number: A3347169, functionality: fully functional, number of axes: 3, CNC machine SCM, Record 100 AL action line, 3-axis woodworking line, 400V, year of manufacture 16/07/2008, electrical cabinet, control with safety mat, partition wall, working area 305 x 122 cm, total machine dimensions: approx. 565 x 250 x 260 cm, self-dismantling required 3 axes In perfect working condition 1 large vacuum with details of white panel and 1 small vacuum: Year 2019 / N°A3347169 Type VTLF2.250/0-79 Frequency 50/50Hz Speed 950/1150min-1 Power required 5.5/6.4kW Inlet capacity 244/286m³/h Max vacuum 200/200mbar Djdsxg El Aopfx Al Uskn Video available.

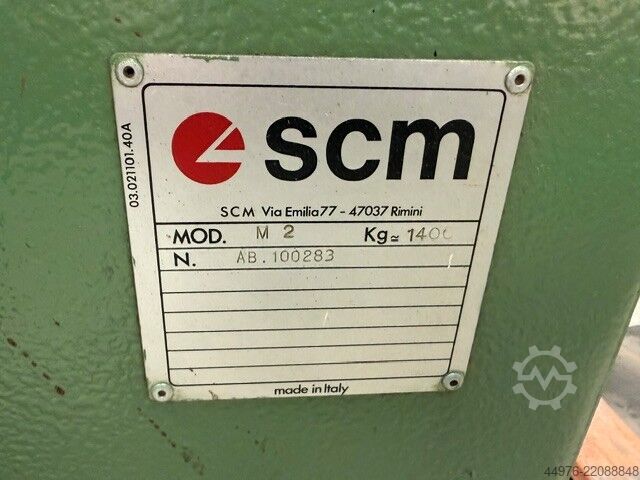

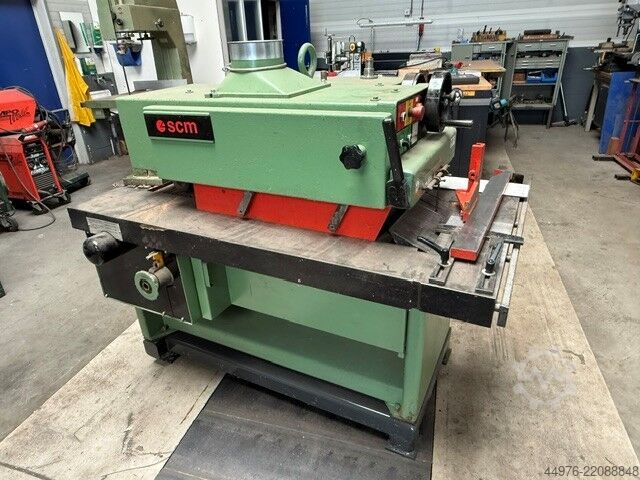

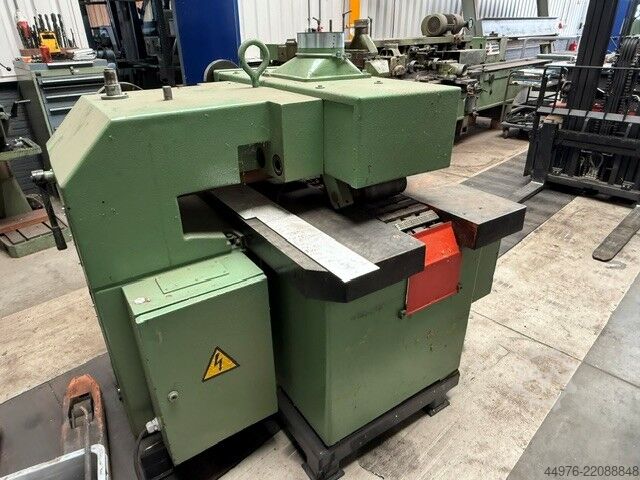

Condition: good (used), SCM M2 multi-blade saw Type: M2 Dsdpfx Aszcdfujl Uokn Blade width: 220 mm

Condition: good (used), SCM S63 Thicknessing Machine Type: S63 Working width: 630 mm 4 knives in the cutterhead 2 rollers in the table Electric height adjustment of the table Dedpszcc Ubjfx Al Uekn

Condition: good (used), For sale is a used SCM panel saw with a cutting length of 3000 mm. The machine has been inspected and refurbished by our service team and is in good condition. Technical data: - Cutting length 3000 mm - Cutting width 600 mm - Cutting height 135 mm - Max. saw blade diameter 400 mm - Dust extraction connection 120 mm - Motor power 5.5 kW / 7.5 hp The panel saw is located in A-5431 Kuchl and can be inspected at any time during our opening hours. Subject to prior sale! Related terms: Saw, circular saw, panel saw Reference: R-A0074 Dedpfoza Dqfsx Al Uokn

Condition: used, Year of construction: 2005, Working area: X=2970 mm / Y=1725 mm Axis travel speeds: X=60 Y=45 Z=25 m/min Weight: 3200 kg Storage location: Nattheim Dkodpew Dcccsfx Al Ujn

Condition: used, Year of construction: 2007, Travel range: X=4400 Y=2195 Z=440 mm Working area in X=3650 mm Y=1560 mm Clearance: 330 mm Electrospindle SCM Power 2000, high speed milling spindle with 13 kW power Rotary axis Vector (C-axis) Cleaning blower for tool on the milling unit Tool holder HSK 63 F Speed range 600 - 24,000 rpm, stepless via inverter Motor power 8.5 kW Tool holders: 6 pcs Tool changer: Rapid 12 (12 positions) Vacuum pump 250 m³/h / 5.5 kW Max. vacuum: 0.9 bar Reference stop at the sides of the table Drilling unit with 11 spindles (7 vertical / 4 horizontal) Control: NUM Series 1000 User interface: XILOG Plus PC Office hardware WINDOWS XP Professional Total connected load: max. 27.5 kW Weight: 5200 kg Storage location: Nattheim Dkodpfx Asw Dcb Ssl Uon

Condition: used, Year of construction: 2022, PANEL SAW WITH TILTING SAW BLADE Linvincibile SI 5 KEY FEATURES SLIDING TABLE: GUARANTEED SUPERIOR CUTTING QUALITY OVER THE LONG TERM TELESCOPIC ARM: AN “UNBEATABLE” SMOOTH MOVEMENT SAW UNIT: FOR A PERFECT CUT Technical Data SI 5 Main saw blade diameter (mm): 550 Cutting capacity with extendable fence - with table 3200 mm - with table 3800 mm 3200x3200 3800x3200 Saw blade tilt (degrees): 46 Max. cutting height at 90° (mm): 200 Max. cutting height at 45° (mm): 130 Saw blade speed (rpm): 2500-3500-5000 Scoring blade speed (rpm): 8500 - Extractor port diameter: - on frame - on blade guard 120 100 Main motor power [S6 -40%] Hz50 kW: 7 Scoring motor power [S6 -40%] Hz50 kW: 0.9 Cutting width at rip fence (mm): 1600 Standard equipment and accessories - Optimizer/Process control app for tablets: SCM Thundercut. The app can be downloaded from the App Store or Play Store for tablets compatible with iPadOS or Android. It can be activated via the QR code supplied with the machine. The app enables: * Management of machine fleet and material/panel storage * Creation and editing of projects, importing projects from main furniture design software (file format "cpout"), importing cutting lists * Optimization of cutting lists by selecting one or more proposals from the optimization software integrated into the app * Correct machine settings for each cut, thanks to the simple and intuitive graphics of the 3D sequencer, guiding the operator step by step * Printing barcode labels to identify the various parts, via Bluetooth connection with compatible label printers. - 10-year warranty on the sliding table guide system - Sliding carriage entirely made of aluminum structure with guidance on crimped, hardened and arc-ground steel rails with large contact area - Max. saw blade diameter* up to 450mm with scoring blade mounted* up to 550mm without scoring blade - eye-S 15" electronic control including: * 15" touchscreen monitor * Direct control of the following working axes with manual, semi-automatic, automatic, and incremental modes: - Height adjustment of the main saw blade - Tilt adjustment of the saw unit - Rip fence adjustment - Height and lateral adjustment of the scorer (the scorer is automatically raised to the set position on activation and lowered on deactivation) * Operator assistance functions for complex cuts * Ability to store up to 1000 programs with associated image * Ability to store up to 1000 different tools with associated image * Cutting process management of preloaded parametric machining programs * Environment for creating and storing new sequenced working programs * Automatic import of working dimensions from Thundercut app * USB port * Ready for network connection - Auxiliary function of the electronic control, including: * Determination of correct fence position on rip fence for format processing with tilted saw blade * Determination of correct fence position on rip fence for angle cuts with mitre fence on the work table with or without tilted saw blade - Pivoting control panel above the table - Scoring unit with independent Djdpfx Alexqtvqe Uekn

Condition: used, Year of construction: 2001, Min./Max. working width (finished size): 23 - 180 mm Min./Max. working height (finished size): 6 - 105 mm Min. workpiece length: 300 mm Feed speed: 6 - 12 rpm Spindle speed: 6000 rpm Spindle diameter: 35 mm Motor power, horizontal spindle: 10 kW Motor power, vertical spindle: 7.5 kW Feed motor power: 1 kW Diameter of feed rollers: 120 mm Extraction port diameter 1 pc: 150 mm Extraction port diameter 2 pcs: 120 mm Weight: approx. 950 kg Storage location: Supplier Dksdsym D Eiopfx Al Usn

Condition: excellent (used), Catalog number 7713 TECHNICAL DATA - max. width of workpiece 240mm - max. height of workpiece 130mm - 6 spindles: 1) horizontal lower 240mm, 7.5kW 2) vertical right 130mm, 5.5kW 3) vertical left 130mm, 5.5kW 4) horizontal upper 240mm, 7.5kW 5) horizontal upper 240mm, 5.5kW Spindles 4 and 5 are electrically adjustable up/down 6) horizontal lower 240mm, 5.5kW - all spindles adjustable up/down, left/right - spindle diameter 40mm *top: - 8 metal feed rollers, toothed, including 3 double rollers - 4 smooth rubber feed rollers, including 2 double rollers *bottom: - 3 smooth feed rollers - 3 side pressure rollers - stepless feed speed adjustment via inverter - rollers with pneumatic pressure - feed motor 7.5kW - feed via Cardan shafts - electric adjustment of planing thickness - body lifting motor 0.75kW - length of infeed table 2480mm - pneumatic opening/closing of the guard - pneumatic blowing of the table - central lubrication of the table - diameter of dust extraction nozzles 3x120mm, 3x150mm - dimensions L/W/H 5300x1700x1800mm - weight 5000kg ADVANTAGES - Made in Italy - With 6 heads - For both wet and dry wood - Pneumatic opening of the guard - Pneumatic blowing of the table - Spindles 4 and 5 are electrically adjustable Dkodpfx Aezab Eyjl Usn - Used planer, very good condition Net price: 116900 PLN Net price: 27850 EUR, depending on the exchange rate of 4.2 EUR (Prices may change due to significant fluctuations)

Condition: used, machine/vehicle number: 008047, Position 1: Brushing Machines SCM-BRAVOROBOT P1 Position 2: spraying machine SCM-BRAVOROBOT P1 Dedpow Idbyofx Al Ujkn Position 3: Roller Conveyors SCM-BRAVOROBOT P1 Position 4: Compressed Air Dryers SCM-BRAVOROBOT P1 Position 5: Ovens SCM-BRAVOROBOT P1

Condition: new, Year of construction: 2025, heavy-duty construction with cast iron table smooth movements using hand lever and handwheel eccentric clamping device dowel drilling unit with 16-22-25-32 mm grid 2 spindle speeds: 1500/3000 rpm WESCOTT drill chuck 1 - 16 mm CE compliant Work table dimensions: 287 x 550 mm Longitudinal travel: 200 mm Vertical travel: 160 mm Cross travel: 125 mm Dkjdpfjycg U Eox Al Ujn Three-phase motor power: 1.8 kW, 400 V, 50 Hz

Condition: like new (used), Year of construction: 2023, SCM Accord 40 fx CNC machining center with the following equipment: Working area X-Y = 6360 x 1905 mm, Z = 350 mm OF0158 Usable Z clearance height = 350 mm with H50 suction cups OF0165 Axis travel speed of Accord 40 fx Version PRO-SPEED OF0168 Pendulum (dual-zone) operation OF0169 Automatic axis lubrication OF0299 TELESOLVE remote maintenance via Internet 450328 eye-M PRO control console with integrated PC 450291 Additional fixed control panel 870068 TECPAD – remote control of machine functions 560058 No. 10 carrier rails MATIC – L1825 230429 MAXI working unit – Prisma KT 1 870046 Prepared for angle gearbox "Prisma KT-KS" 470014 Air nozzle for tool 870119 Device for tool length measurement 870120 Device for panel thickness measurement 870009 Drilling unit F16 OF0176 Front stop row H50 for worktable with 10 carrier rails 510205 Preparation for clamps for worktable with 10 carrier rails 480178 Front stop row H110 for worktable with 10 carrier rails 480105 Rear stop row H110 for worktable with 10 carrier rails 480137 First lateral stop row H110 for worktable with 10 carrier rails 480005 Suction cups H110, 145x145 mm, 36 pcs 480006 Suction cups H110, 145x55 mm, rotatable, 10 pcs 480007 Suction cups H110, 180x65 mm, rotatable, 10 pcs 480018 Suction cups H110, 145x30 mm, rotatable, 5 pcs 480410 Lifting devices H110, 8 pcs 350016 Vacuum pump 250 (300) m³/h 560538 Additional automatically adjustable base for MATIC 10 carrier rail 190046 PRO-SPEED safety system 524800 "SAV€NERGY" 2.0 energy saving system 210837 TR12 – lateral tool magazine 210056 Rapid 24 – rear tool magazine OF0182 Air conditioning for control cabinet OF0438 Human-machine interface software (HMI) MAESTRO ACTIVE OF0543 Operating system Windows 10 embedded 64 bit OF0422 Machine operating interface software Maestro cnc OF0435 Hardware dongle for Maestro cnc 524309 Maestro 3D-Advanced module 109993 MACHINE LANGUAGE: German SPECIAL FEATURES INCLUDED IN MACHINE CONFIGURATION: - Extension of maximum panel width to 2,120 mm for full processing; traverse length remains unchanged at 1900 mm. - 10 support suction cups for remnants MACHINE ALREADY DISMANTLED AND STORED. LIST PRICE 2023 EUR 399,890.-- Dkjdpsyfgzdefx Al Uon

Condition: excellent (used), Surface Planer / Jointer, used Working width: 520 mm Total table length: 3000 mm Infeed table length: 1780 mm Outfeed table length: 1180 mm Adjustable fence with angle, size 1500 x 175 mm Motor power: 4.0 kW, 400 V, 50 Hz Cutterhead speed: 5000 rpm 4-knife cutterhead, diameter 120 mm Max. cutting depth: 8 mm Extraction connection: Ø 120 mm Table height: 860 mm Hydraulic table height adjustment with foot pedal Numerical cutting depth display Noise reduction combs on the cutterhead Star-delta starter Emergency stop button CE marked Including all documentation Knife setting gauge NEW drive belts NEW cutterhead bearings NEW planer knives Dimensions (L x W x H): 3000 x 950 x 1100 mm Weight approx. 900 kg Note on used machines: • Errors in technical data and prior sale reserved. Dkedpoy Emf Rofx Al Uon • Quoted prices are ex-location, loaded free on truck. • The machine has been cleaned and function-tested. • All machines are sold as inspected, without any guarantee or warranty. Buyers are welcome to inspect the machine at its location. • Special agreements are only valid in written form. (We will only respond to inquiries with your address and telephone number!)

Condition: excellent (used), Planing width 520 mm Min./Max. working height 3 – 240 mm Djdey Egmuepfx Al Uokn Motor power 5.5 kW, 400 V, 50 Hz Speed of planing shaft 4500 rpm Diameter of planing shaft 120 mm Planing knives 4 pcs Dimensions of thickness table 520 x 850 mm Feed rate 6.5 / 10 / 13 / 17 m/min Dust extraction diameter 150 mm Electric height adjustment Handwheel for fine adjustment of thickness table height Spiral-toothed steel feed roller Segmented pressure bar 2 steel extraction rollers Table roller Low voltage release Emergency stop switch Knife setting gauge Test report for conformity with Section 4 of the AM-VO NEW V-belts NEW BALL BEARINGS NEW PLANING KNIVES Dimensions approx. L x W x H = 1120 x 990 x 1000 mm Weight approx. 600 kg Note on used machines: • Subject to errors in technical specifications and prior sale. • Prices quoted are ex-works, pick-up only – free loading! • The machine has been cleaned and function-tested. • All machines are sold as seen, without any warranty claims. The buyer is free to inspect the machines at our location. • Special agreements are only possible in written form. (We will only answer inquiries if you provide your address and telephone number!)

Condition: new, Multipurpose combination machine with aluminum sliding table for sawing, milling, surface and thickness planing, and optional long-hole boring Torsion-resistant steel and cast iron construction Machine table made of cast iron, hardened and ground Smooth-running anodized aluminum sliding table, 10-year SCM warranty on slideway wear Large crosscut frame with extendable aluminum telescopic fence and flip stops Combination saw and mitre fence with 45° quick adjustment Max. saw blade diameter 315 mm with optional scoring unit, tiltable from 90° to 45° Helical steel feed roller for consistent timber feed during thickness planing Four spindle speeds, manually selectable Standard with forward/reverse spindle rotation Three independent motors for each working unit Sliding table with ball contact system Fitted with the proven million-fold SCM ball contact system Consistently smooth operation due to hardened and ground guides Not susceptible to dust and dirt thanks to minimal contact point between ball and trapezoidal rail The extraction ports for surface and thickness planing are located on the same (right) side, so the same extraction hose can be used for both planing operations. Helical steel infeed rollers for constant and even workpiece feed Massive anti-kickback pawls for operator safety 3-knife cutterblock ensures optimum planing results Crosscut length: 1600 mm Max. saw blade diameter with scorer: 315 mm Max. cutting height at 90° / 45°: 100/79 mm Max. crosscut width left of blade: 1660 mm Cutting width at rip fence: 800 mm Dedpfjiiyppsx Al Uskn Saw shaft speed: 3500 rpm Saw blade tilt: 90° - 45° Working width: 300 mm Surface table length: 1260 mm Cutterblock diameter / number of knives: 72 mm / 3 pcs Table dimension: 300 x 450 mm Min. / Max. working height: 3 mm / 220 mm Max. stock removal: 4 mm Feed speed: 7 m/min Spindle diameter: 30 mm Usable spindle length: 100 mm Max. retractable tool diameter: 180 mm Spindle speed: 3500/6000/8000 rpm Motor power: 3 x 4 kW, 400 V, 50 Hz Extraction port diameter: 4 x 120 mm Saw blade guard extraction port Ø: 60 mm Weight: 430 kg OPTIONS: - Professional fences EUR 300.-- Saw fence with quick lock and micrometric adjustment Surface planer fence 90° ÷ 45° continuously adjustable - Scoring unit incl. blade EUR 292.-- - Handwheel with digital readout for thickness table positioning EUR 129.-- - Mobility kit EUR 119.-- - 2 additional handwheels for unit adjustment EUR 45.-- - TERSA cutterblock, diameter 72 mm EUR 212.-- - Xylent spiral cutterblock with 3 rows of knives EUR 717.-- - Aluminum long-hole boring device EUR 390.-- - 2 flip stops for crosscut fence EUR 150.--

Condition: new, Massive work table made of heavily ribbed cast iron Robust base frame constructed from welded steel Precision sliding table made of anodized aluminum Dksdpfxjit I Sbj Al Uen Carbide guideways – for long-term precision and minimal maintenance of the sliding carriage Tilting cast iron saw unit with double segment guide Heavy-duty parallel fence with round bar guidance Integrated mitre cutting device on the sliding table Scoring unit with its own powerful drive motor (optional) Equipped with a high-quality panel frame & telescopic stop, integrated roller, inclined scale, and practical eccentric clamp Saw blade speed adjustable in two steps (from above, table insert removable) Includes pendulum blade guard INCLUDES OPTIONAL DIGITAL DISPLAY FOR PARALLEL FENCE Max. cutting height at 90° (mm): 140 with 400 mm blade Max. cutting height at 45° (mm): 100 with 400 mm blade Saw blade tilting range (degrees): 90/46° Manual saw blade lifting and tilting Saw blade speed (rpm): 3,500 / 5,000 Main motor power (kW) 50 Hz: 7.5 Scoring unit motor power (kW) 50 Hz: 1.3 Scoring unit speed (rpm): 9,200 Panel cutting capacity (mm): 3,200 x 3,200 Cutting width for parallel cuts (mm): 1,270 Extraction port diameter (mm): 120, 60
