Used Table Type for sale (66,012)

Condition: used, Year of construction: 1990, x-travel 1600 mm y-travel 1250 mm z-axis 1475 mm Table dimensions 1250 x 1400 mm spindle diameter 102 mm total power requirement 23 kW weight of the machine ca. 9700 kg dimensions of the machine ca. ca.5,815 x 4,190 x 3,03 m m turning speeds 1440 U/min hydraulic 0,55 kW quill stroke 710 mm workpiece weight max. 2500 kg tool taper ISO 50 spindle diameter 102 mm Ibedjxwp Eujpfx Ad Ded Torque 1600 Nm

Condition: excellent (used), Year of construction: 2012, operating hours: 3,060 h, functionality: fully functional, Longitudinal travel: 2000 mm Cross travel: 520 mm Vertical travel: 540 mm Table: 2500x520 mm Table load: 2000 kg Spindle speed: 60-12000 rpm Operating hours: 3060 h Fixed table design Spindle taper: BBT40 ATC: 30 positions Power supply: 53 kVA Year of manufacture: 2012.09 Length: 4650 mm Iedpfx Adexwlu Es Dobd Width: 3235 mm Height: 2845 mm Weight: 13300 kg Fixed table design 2-zone machining (2x650 mm)

Condition: used, Year of construction: 1988, control Heidenhain 355 tool adaptor SK50 weight of the machine ca. 8 t Ibsdpfxsf Tdvbe Ad Dod +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, x-axis / mm y-axis / mm z-axis / mm The boring mill is sold without clamping plates – the price refers exclusively to the boring mill. Technical data Horizontal milling and drilling machine with support sleeve Working range Vertical adjustment of the headstock from the clamping surface: 0 - 3000 mm Horizontal adjustment of the column: 7000 mm Maximum drilling depth with drill spindle alone: 1200 mm Maximum drilling depth with drill spindle and support sleeve together: 1300 mm Drill spindle diameter: 150 mm Milling spindle diameter: 240 mm Support sleeve diameter: 390 mm Support sleeve extension: 700 mm Drill spindle tool holder: ISO 50 Maximum workpiece weight: 70,000 kg When placed in 4 prisms: 95,000 kg Main drive Total speed range, adjustable from 2 - 795 rpm Series 1 2 - 50.4 rpm Series 2 50.4 - 126 rpm Series 3 126 - 314 rpm Series 4 314 - 795 rpm Maximum drive power at rated speed 17.5 80 kW Quick adjustment speed of spindle box and column 1800 mm/min Rapid adjustment speed of drill spindle and support sleeve 1400 mm/min Fine adjustment speed of spindle box and column medium 75 mm/min Fine 3 mm/min Fine adjustment speed of drill spindle and support sleeve Medium 57.7 mm/min Fine 2.5 mm/min Feed of headstock and column for milling Row 1 3 - 75 mm/min Row 2 72 - 1800 mm/min Feed of drill spindle for drilling Row 1 0.19 - 4.7 mm/min Row 2 2.2 - 56 mm/min Row 3 56 - 1400 mm/min Special equipment Numerical length measuring device in horizontal and vertical directions Accuracy 0.01 mm Rotatable and movable clamping table, Collet & Engelhard, Offenbach Model Tdvmf 1.6 (for technical data, see ‘Clamping table’) Rotatable and movable clamping table from Scharmann, Rheydt Model DAV 1600 Rotatable and movable clamping table from Froriep, Rheydt Swivel crane for tool change, maximum load capacity 500 kg Special tools Carbide core drill bits for extracting core samples Universal facing and boring head from Wohlhaupter, Frickenhausen Ibedpfoxdnraox Ad Ded Model UPA7, with the following specifications: 1 division of the fine adjustment 0.01 mm in diameter 1 revolution of the fine adjustment 0.5 mm in diameter Facing and boring range 0 - 1250 mm Maximum slide adjustment 210 mm Automatic slide feed in mm/rev during facing 0.05 - 0.10 - 0.15 - 0.20 - 0.25 - 0.30 - 0.35 - 0.40 - 0.45 - 0.50 - 0.55 - Quick adjustment per revolution of the quick adjustment spindle 6 mm in diameter Largest diameter of the slide at zero position corresponds to the smallest drilling diameter of 323 mm Head height without shaft 260 mm

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, I am selling this machine. It can be connected and tested under power. Very good condition. Ibjdpexwl Tbefx Ad Dsd X 11,500; Y 3,150; Z 2,000; clamping system M 100. Includes support column, 6 plates sized 6,500 x 1,850 x 400 mm. Rotary table E 20. Heads, etc. This is a complete workstation. Weight approx. 200,000 kg.

Condition: new, Year of construction: 2025, neu 2025 Ibjdpfxoxcbhre Ad Dsd 030138 ca. 2 - 4 Wochen ab Auftr Deutschland 3360.75 € 1 13 mm MK 2 220 mm 40 - 4000 U/min 0,54 (230 V, frequenzgere kW M 10 (steigungsabhängig) 520 mm 400 mm 850 mm 62 kg 60 mm 85 - 370 mm 420 mm 300 x 250 mm 70 mm Continuous/normal drilling performance 13/15 (in E335/ST60), 12 Nm Manual feed Digital speed and drilling depth display Thread cutting device Control panel with OLED display Robust, high-quality drill head cover with ergonomically inclined front LED lighting Quickly adjustable and ergonomic drilling depth stop Continuous speed control via central rotary knob Emergency stop push button Thermal overload protection Spindle stop Drill protection with electrical protection Connection cable with Schuko plug OPTIONS: Machine cabinet with door and drawer Drill package 2 (vice & keyless chuck)

Condition: used, machine/vehicle number: 74144236, with NCT screen control, separate control cabinet, spindle diameter: 100 mm, table size: 1200x1000 mm, tool holders: SK50 Ijdpfx Aexpy E Nod Dobd

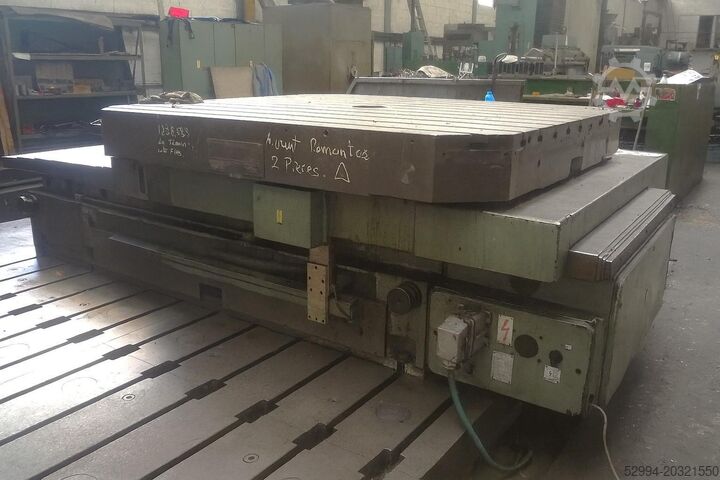

Condition: ready for operation (used), Type: Ti 1800 Turning table 1800 x 2000 mm Cap on Table: 15.000 kg 360° turnable cross displacement: 1250 mm Rotary table dimensions: 1800 x 2000 mm Max weight on table: 15 000 kg Ijdpfxsxpgkrs Ad Dsbd

Condition: used, Year of construction: 1974, spindle diameter 90 mm x-travel 1000 mm y-travel 1200 mm z-travel 1200 mm feed movement 710 mm spindle taper ISO 40 turning speed range 8 - 1600 U/min table-size 1120 x 1000 mm table rotating 360 ° table load 2,5 t total power requirement 11 kW Ibjdpfstv Ibdjx Ad Dsd weight of the machine ca. 10 t dimensions of the machine ca. 4,5 x 3,3 x 3 m separate switchboard, rapid traverse some tool holders, without facing plate, without steady rest,

Condition: ready for operation (used), Year of construction: 1992, functionality: fully functional, rotational speed (max.): 1,250 rpm, travel distance X-axis: 850 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, controller model: Heidenhain TNC 355, TECHNICAL DETAILS X-travel: 850 mm Y-travel: 1,000 mm Z-travel: 700 mm Tool holder: SK 40 Speed: 15 - 1,250 rpm Spindle quill: 75 mm MACHINE DETAILS Control: Heidenhain TNC 355 Ibodsxn I U Njpfx Ad Dsd

Condition: used, Technical details: spindle diameter: 120 mm x-travel: 1250 mm y-travel: 1250 mm z-travel: 800 mm W-axis (spindle longitudinal): 600 mm Speed of boring spindles: 1- 2000 U/min. spindle taper ISO: 50 Ijdext El Ajpfx Ad Djbd table surface area: 1000 x 1000 mm total power requirement: 55 kW weight of the machine ca.: 18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment *

Condition: excellent (used), functionality: fully functional, travel distance X-axis: 4,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,600 mm, table load: 10,000 kg, spindle diameter: 130 mm, spindle speed (max.): 2,500 rpm, table length: 1,500 mm, table width: 2,000 mm, travel distance W-axis: 700 mm, Lazzati HB130T boring machine featuring: - Table size: 1500 x 2000 mm - Maximum allowable load: 10 tons - X-axis travel: 4000 mm - Y-axis travel: 2000 mm - Z-axis travel: 1600 mm - W-axis travel (quill travel): 700 mm Iodpfx Aoxiv D Usd Debd - Spindle diameter: 130 mm - Spindle speed: 2500 rpm - Tool clamping system: Hydraulic - Tool holder: ISO 50 - CNC Control: Heidenhain 426 Interest-free payment terms available over 12 or 24 months.

Condition: used, Technical details: spindle diameter: 110 mm x-travel: 2000 mm Ibedpfx Aeu Idp Dod Ded y-travel: 1600 mm z-travel: 2000 mm control for program: TNC Heidenhain 360 B-axis (table): ja W-axis (spindle longitudinal): Planschieber mm tool taper: ISO 50 table-size: 1400 x 1250 mm machine dimensions LxWxH: 8,0 x 6,0 x 4,5 m weight of the machine ca.: 28 t with face slide 700mm , electronic hand control *

Condition: ready for operation (used), Year of construction: 1990, functionality: limited functionality, Machine with 30 nail feeders in three nail boxes. Freely programmable nail release and stop position, as well as nail release monitoring for 30 nail feeders. Quick hammer box adjustment with various hammer boxes. Usable template length max. 3200 mm. Includes nail filling platform, control cabinet, control console, and ifm SPS Ecomat 100. Ijdpfxsxl D D Ue Ad Dsbd

Condition: used, Year of construction: 1980, spindle diameter 105 mm cross travel of table 1600 mm vertical adjustment of drilling slide 1600 mm longitudinal movement of column 1000 mm spindle stroke - max. 600 mm spindle taper ISO SK 50 spindle turning speed range 6,3- 1600 U/min table surface area 1120 x 1120 mm spindle motor 45 kW voltage 400 V Ibjdpfju Rt Inox Ad Djd feeds x/y/z -stepless 0 - 5000 mm/min rapid travel x/y/z 10 m/min table load 6 t table rotation 360 ° total power requirement 82 kW weight of the machine ca. 18 t dimensions of the machine ca. 4,8 x 4,9 x 4,2 m Machine was complete reconditioned and retrofitted with Siemens 840 D control in 2008 for a price of 400.000,- Euro ! Machine has a 40 position ATC, 5 CNC axes with ball screw drives (X,Y,Z,W,B), housing around machine with safety doors, cooling arrangement built in 2020 and new spindle drive Siemens built in 2008.

Condition: used, Year of construction: 2009, spindle diameter 125 mm x-travel 1.500 mm y-travel 1.250 mm z-travel 1.000 mm w-travel 550 mm table surface area 1.000 x 1.250 mm workpiece weight 6.000 kg quill stroke 550 mm Ibjdpfewdta Eox Ad Ded tool taper ISO 50 number of spindle speeds 5-3.700 U/min. max. torque 2012 Nm feed speeds 1-6000 (x-Achse) mm/min feed speeds 1-6000 (y-Achse) mm/min feed speeds 1-6000 (z-Achse) mm/min rapid traverse x/y/z 15/ 15/ 15 m/min dimensions of the machine ca. 7,51 x 5,07 x 3,33 m 63 kVA Equipment/ Accessories: - CNC control Siemens 840 D - 60 ATC - Coolant system with high-pressure pump 30 l/min.- 20 bar - documentation

Condition: used, Year of construction: 1998, Technical details: spindle diameter: 130 mm x-travel: 2750 mm y-travel: 2530 mm z-axis: 2320 mm w-axis: 700 mm B-axis (table): 360.000 x 0,001 ° spindle motor: 50 kW spindle taper: ISO: 50 spindle turning speed range: 1,6 - 1600 U/min Ijdsvb Du Aopfx Ad Djbd Table dimensions: 1800 x 2000 mm max. workpiece weight: 8000 kg weight of the machine ca.: 37 t total power requirement: 50 kW dimensions of the machine ca.: 5,9 x 7,2 x 5,1 m Machine equiped with CNC HEIDENHAIN TNC 426 *

Condition: new, Panel saw ALTENDORF F 35 Type 3 - 1000 5.5 kW (7.5 hp), 3 speeds, Motorized height and tilt adjustment, Large protective hood, Double roller carriage 3,200 mm, Scoring unit with LED lighting, CNC parallel fence, cutting width 1,000 mm, Angle-mitre stop 3,450 mm, without length compensation, Table extension/table widening:, With high-quality CDF surface ----- Technical data ----- Swivel range: 0 - 46°, Carriage length: 3,200 mm, Cutting length: 3,100 mm, Cutting width: 1,000 mm, Cutting height: 154 mm, Ibjdpfxjwnr Ehs Ad Dsd max. saw blade Ø: 450 mm, Motor power: 7.5 kW, Screen size: 15 inches, Working table height: 910 mm, Suction connection Ø: 80 + 120 mm

Condition: used, Year of construction: 1992, Technical details: spindle diameter: 100 mm x-travel: 1500 mm y-travel: 1450 mm z-axis: 930 mm w-axis: 506 mm B-axis (table): 360 ° control for program: HdH TNC 407 tool taper: SK50 number of spindle speeds: 5 - 1.600 / stufenlos table load: 4,0 t table-size: 1100 x 1400 mm table rotating: 360 ° feed steps: X/Y/W/Z-Achse: 2 - 2000 mm/min Ibsdpfx Aju Idqbjd Dsd Rapid feed X axis: X/Y/W/Z-Achse 5000 mm/min. total power requirement: 40 kW dimensions electric cabinet: 2000 x 600 x 2000 mm machine dimensions LxWxH: 4,9 x 3,7 x 3,8 m weight of the machine ca.: 14 t CNC drilling-milling machine with hydraulic power unit. Working paths from the table: X-axis table transverse 1500mm W-axis table longitudinal 1000mm 9x T-slots according to DIN 650 Equipment: measuring probe electronic handwheel hydr. weight compensation Y-axis universal milling head And some accessories, ask for them! i.D. *

Condition: new, functionality: fully functional, Jainnher Machine Co., Ltd. was established in 1982 and is dedicated to developing grinding machine technology, diversity and automation equipment. Jainnher is constantly offering new and improved machinery. The new JAINNHER JHP-4015 CNC Plunge Type machine with FANUC CNC Control. Hydrostatic and Hydrodynamic bearings. Capacity Max ø work swing Ø400 mm Max grinding length 1500mm Max grinding dia. Ø380 mm Max workpiece weight 150 kgs Distance between centres 1500mm Centre height 200mm Grinding wheel Grinding wheel size Ø410 x 50-100 x 203.2mm Max peripheral 33 m/sec Wheel speed 1250rpm Wheel head Feed angle 90 Swivel angle ±0 Rapid traverse speed 6m/min Max. travel 280mm Min. setting unit 0.0001mm Grinding feed rate 0.001~6000m/min Ibjdpfx Aonzib Eed Dod Oil Pressure Hydrostatic = 20kg Hydrodynamic = 3kg Tailstock Retraction of quill 30mm Quill diameter 70mm Centre taper MT.4 ( MT.5 option) Hydraulic cylinder pressure 20kg Work head Spindle speed (variable) 10~500rpm/min Centre taper MT.4 ( MT.5 option) Spindle type Telescopic (option Swivel angle 120 (90ºCCW;30ºCW) Work- table Min. setting unit 0.0001mm Swivel angle CCW/CW +7º/-4º Rapid traverse speed 10m/min Max. travel 1500mm Motor Grinding feed rate 0.001~6000mm/min Grinding wheel motor 7.5HP 4P(opt. 10.0HP) 4P Workhead motor 1.5KW Work table (Z axis) 1.8KW Work table (X axis) 1.8KW Hydraulic pump 1/4 HP 4P Wheel head pump Hydrostatic = 2.0HP Hydrodynamic = 1.0HP Coolant pump 1/8 HP 2P Magnetic coolant separator 1/25HP 2P Oil cooler ----- Oil tank Hyd. oil tank(slideways, screw ends & measurement) 60L Wheel head lubrication 50L Coolant tank 160L Machine N.W (Fully enclosed) 8080 kg G.W (Fully enclosed) 8480 kg Dimension (Fully enclosed) 4900 x 2100 x 2000mm Packing (Fully enclosed) 5090 x 2200 x 2200mm

Condition: used, Year of construction: 1978, spindle diameter 105 mm x-travel 1250 mm y-travel 1000 mm z-travel 600 mm table length 1100 mm Ibedpfjt Hwtxox Ad Dod table width 900 mm tool adaptor 50 ISO / MK total power requirement kW weight of the machine ca. t CNC Table Borer, Reconditioned 2002, BOSCH CC 300

Condition: used, Year of construction: 1999, Technical details: spindle diameter: 125 mm x-travel: 3000 mm y-travel: 1600 mm z-axis: 1500 mm w-axis: 600 mm table surface area: 1200 x 1500 mm table load: 6 t spindle taper ISO: 50 spindle turning speed range: 5 - 2500 U/min spindle drive motor: 22 kW total power requirement: 60 kVA weight of the machine ca.: 28 t dimensions of the machine ca.: 7,0 x 5,4 x 4,4 m CNC HEIDENHAIN TNC 430 spindle support bearing automatic toolchanger 60-pockets chip conveyor and coolant attachment Ibodpfx Ajvm Aausd Djd measuring probe *

Condition: used, Year of construction: 1987, Technical details: spindle diameter: 120 mm x-travel: 2750 mm Iedpfx Aou Idrfsd Debd y-travel: 1500 mm z-travel: 1250 mm B-axis (table): 360 W-axis (spindle longitudinal): 900 mm control for program: TNC 155 Bahnsteuerung / contouring control tool taper: SK50 table load: 6,3 t table-size: 1600 x 1400 mm table rotating: 360 ° range drill spindle revolution per minute: 3 - 1000 U/min total power requirement: 100 kW dimensions electric cabinet: L: 650 x B: 2800 x H: 2100 mm machine dimensions LxWxH: siehe Liste m weight of the machine ca.: ca. 15,0 t Contouring control Facing slide feed 210mm (U-axis) hydraulic unit Boom with control panel Measuring system Heidenhain *

Condition: used, Technical details: spindle diameter: 130 mm x-travel: 2190 mm y-travel: 1520 mm z-axis: 1520 mm w-axis: 1000 mm table surface area: 2000 x 1800 mm workpiece weight: 8 t spindle motor: 18 kW spindle taper ISO: 50 spindle turning speed range: 4,5 - 900 U/min faceplate diameter: 785 mm rapid traverse: 5 m/min total power requirement: 40 kW dimensions of the machine ca.: 5,5 x 6,9 x 5,2 m weight of the machine ca.: 35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster Ibsdpfxjvclrxj Ad Djd *

Condition: used, Year of construction: 1987, Technical details: spindle diameter: 110 mm x-travel: 1985 mm y-travel: Spindelstock vert. 1270 mm z-travel: Tisch längs: 1260 m. Setzstock/1490 m. Setzstock mm table adjustment: nein ° B-axis (table): 360 W-axis (spindle longitudinal): axial: 710 mm U-axis: Planschieber radial: 250 mm control for program: Heidenhain 320 tool taper: ISO 50 table-size: 1600 x 1400 mm table rotating: 360 ° Ibodpeu Utwbjfx Ad Ded table load: 6,3 t range drill spindle revolution per minute: 6,3 ... 1250 / 4 step U/min revolution per minute: Plansupport: 6,3 ... 315 / 2 step U/min feed steps: Tisch: 5...2500 und Spindelstock vert. 5...2500 mm/min total power requirement: ca. 90 kW weight of the machine ca.: 30 t Tailstock Facing slide 700 Electronic handwheel max. turning Ø for drilling: 630mm max. turning Ø for facing: 1250mm At the moment the Horizontal Boring and Milling Machine has an electrical fault in the control (unknown). Our offer/sale is as described and as is! *
