Portal - Machining Center

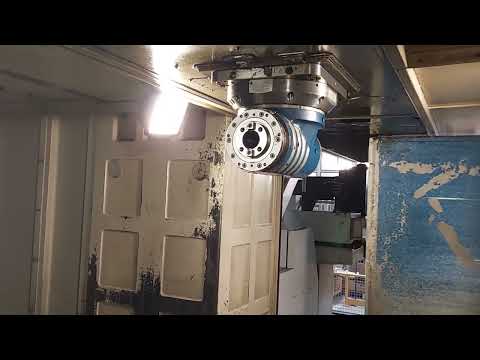

Soraluce PM 6000 HSC

Condition: good (used), Year of construction: 2015, functionality: fully functional, workpiece weight (max.): 100,000 kg, turning diameter: 6,000 mm, rotational speed (max.): 25 rpm, spindle speed (min.): 25 rpm, travel distance Z-axis: 1,500 mm, Main Technical Features • Manufacturer: SCHIESS Model: 18’ VBM Chuck Diameter: 5,500 mm Maximum Turning Diameter: 6,000 mm (distance between columns) Maximum Workpiece Height: 4,400 mm Movable Crossrail: 3,000 mm travel RAM (Z-axis): 1,500 mm travel Maximum Weight on Chuck: 100 tons Rotation Speeds: Range I: 1-8 rpm; Range II: 5-25 rpm Bwodpfxjxnyh Us Ab Uok • CNC Control: FAGOR 8055 (2015) Machine Condition: In operation and dismantled SCHIESS 18’ VBM vertical lathe—a robust machine featuring the oversized capacities typical of its era. Manufactured in Germany and retrofitted in 2015, this lathe is ideal for machining large, heavy workpieces. It is suitable for a wide range of industries, including metallurgy, general machining workshops, mechanical component production, heavy structural fabrication, and energy generation. PRICE AND FURTHER INFORMATION ON REQUEST (CNC, SIEMENS, HAAS, LAGUN, FAGOR, CINCINNATI, HEIDENHAIN, MACHINING, PINACHO, MORI SEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

Condition: excellent (used), Year of construction: 2006, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,300 mm, travel distance Z-axis: 1,500 mm, Manufacturer: SORALUCE Type: FS 8000 Control: HeidenHain iTNC 530 Year of manufacture: 2006 ATC Chain 40 positions Max. tool size Ø 125 x 400 mm Machine prepared for rotary table Chip conveyor Central lubrication Stroke with vertical head rotated 3300 mm Specifications Metric US Standard X-Axis 8000 mm Y-Axis 2800 mm Z-Axis 1500 mm Spindle power 30 kW Spindle speed 5000 Rpm Tool holder 50 ISO/Bt/Mk X - Axis feed 15000 mm/min. Y - Axis feed 15000 mm/min. Z - Axis feed 15000 mm/min. Milling head auto-index 2.5 x 2.5 ° Dimensions (approximate) Length 17500 mm Width 4050 mm Height 5020 mm Weight Bedpfx Ajxc Emxob Uewk 38400 kg Please note: The information on this page was provided to the best of our knowledge and, where possible, obtained from the manufacturer. The information is given in good faith, but accuracy cannot be guaranteed. Accordingly, they do not constitute representation or contractual terms. We recommend that you check all important details.

Condition: excellent (used), Year of construction: 2019, operating hours: 29,081 h, functionality: fully functional, FPT Industrie S.p.A. – Travelling Column / Gantry Milling Machine Model: DINOSPIN Year of manufacture: 2019 Serial number: DP0419015 Origin: Italy (FPT Industrie S.p.A., Made in Italy) Machine weight: 44,280 kg Control: Heidenhain TNC640 (15") RAM: 4 GB Hard drive: 32 GB (min. 21 GB program storage) Resolution: Linear axes up to 0.1 µm / Rotary axes up to 0.0001° Interfaces: 2x Ethernet 1000BaseT, 1x USB 2.0 (front), 4x USB 3.0 (rear) Block processing time: 0.5 ms Handwheel: Heidenhain HR510 (remote handwheel) Universal milling head (5-axis machining, continuous movement on 2 axes) Max. spindle speed: 18,000 rpm Swivel range C: ±270° Swivel range A: ±185° Max. rotation speed A/C: 30 rpm Working torque A/C: 450 Nm Clamping torque axes: 1,400 Nm Positioning uncertainty: 8 arcsec / scatter: 4 arcsec (VDI/DGQ 3441) Spindle power (S1/S6): 22/33 kW Spindle torque (S1/S6): 84/128 Nm Continuous operation, constant power: 2,500–18,000 rpm Continuous operation, constant torque: 10–2,500 rpm Tool holder: HSK-A63 DIN 69893 Rigid tapping: yes Dynamic RTCP: yes AUTOCAL (automatic calibration): yes Tool changer (overlapped-wheel system with tool-change arm) Magazine capacity: 80 tools Bwsdpeyrndmefx Ab Uok Max. tool diameter: 75 mm Max. tool diameter with adjacent pocket free: 125 mm Max. tool weight: 10 kg Max. tool length: 600 mm (for 40 tools) Max. tool length: 250 mm (for 40 tools) Tool type: HSK-A63 DIN 69893 Measuring systems Laser tool setter: tool length/radius + tool breakage control (software included) Probe for workpiece measurement/alignment: wireless transmission, probing cycles included in CNC Monitoring Sensor for vibration/collision detection: response time approx. 1 ms Coolant system external/internal (LEU/LEIUHP) Tank capacity: 3,500 l Filtration: Filter A 60 µm / Filter B 40 µm External cooling: max. 30 l/min, max. 10 bar Through-spindle coolant (IKZ): max. 30 l/min, max. 70 bar Additional options/functions External tool spray mist Compressed air through spindle (high speed) up to 24,000 rpm

Condition: used, Year of construction: 2010, operating hours: 8,256 h, Equipment: all wheel drive, Road-rail vehicle JCB 1600 tons towing capacity Wagon brake system Radio remote control (option) BOA preparation Bwodji R Aigepfx Ab Ujk

Condition: new, diameter 200 mm height 105/265 mm centre height 105 mm weight of the machine ca. 41 kg Bedpfx Aeupxd Rjb Uswk dimensions of the machine ca. 400 x 330 x 310 m

Condition: used, Year of construction: 1998, turning length 4.500 mm greates pass round over bed 810 - 760 mm swing diameter over slide rest 740 mm control SIEMENS - 840 C max. turning diameter 800 mm turning diameter over slide 740 mm travel -x2 axis 875 mm travel -z2 axis 5.200 mm CNC Turning- and Milling Center | NILES-SIMMONS - N40 MCT 4500 equipped with a turret for driven tools as well as NC steady rest and tailstock. Additional equipment: - Centering points, - Jaw sets, - Clamping jaws, Bodpfox Emviox Ab Uswk The machine is in a well-maintained condition. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: N-40 | N 40 | N40MCT4500 | N40MCT

Condition: used, Craven 2000mm x 8000mm Heavy Duty Lathe 2000mm swing over bed 1500mm swing over saddle 8,000mm between centres Main drive 60kW, 40 ton load capacity Bwedpfx Ajx Hp Iwsb Ujk Spindle speeds 2 – 152 rpm Steadies 2000mm Bed extension

Condition: used, MAKE – TUSCAN MODEL – TL29 YEAR – 2002 CONTROL – FANUC OT Bjdpfxowmlcdj Ab Uewk TURRET – 8 POSITION WITH LOADS OF HOLDERS SWING OVER BED – 740 mm SWING OVER CROSS SLIDE – 420 mm CENTRE DISTANCE – 4000 mm SPINDLE BORE – 250 mm TRAVERSES – X-AXIS 500 mm/Z-AXIS 3700 mm SPEED – 15-700 RPM MOTOR – 3 SPEED GEARBOX MOTOR 30KW SWARF CONVEYOR 4 JAW CHUCK SWARF CONVEYOR

Condition: like new (used), Year of construction: 2014, Siemens 840 D Swivelling control panel including SIEMENS 840 D Solution Line control system. Travel X axis: 8000 mm Travel Y axis: 1300 mm Travel Z axis: 2200 mm Tool system: SK 50; Capto C8 Main spindle: 20–4000 RPM 3D volume model of the machine HEIDENHAIN measurement system on all axes. Automatic central lubrication with pressure and time monitoring for all axes and moving components. Measuring probe system RENISHAW RMP60 M Tool breakage detection via probe BRANKAMP CMS collision monitoring with two measuring channels: Center height, Fibro rotary clamp: 1100 mm Center width, Fibro rotary clamp: 900–3000 mm Max. swing diameter, Fibro rotary clamp: 2200 mm Fibro rotary table D=1600; 250 RPM Carousel rotary table FIBRODYN 1600 mm: Table surface 6000x2000 mm Bwodpfxow Syv Ue Ab Usk d’Andrea facing slide Universal milling head Automatic tool changer ATC, 80 tool magazine slots in M version: 3 milling head slots High-pressure pump 30 bar Operating hours: 4261 h

Condition: good (used), power: 0.018 kW (0.02 HP), travel distance X-axis: 2,200 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, overall weight: 15,000 kg, table length: 2,600 mm, table width: 850 mm, spindle speed (max.): 8,000 rpm, Equipment: chip conveyor, CHARACTERISTICS Table; 2600 x 850 mm X-axis travel; 2200 mm Y-axis travel; 800 mm Z-axis travel; 800 mm Boder I Aumopfx Ab Ujwk Spindle RPM; 8,000 Control; Fagor 8055 - MC Motor power; 15/18,5 Kw Magazine tool capacity; 40 Tool; BT 40 Fourth spindle (IRTS splitter); 350 ⌀ mm Electronic handwheel Cooling through the tool Chip extractor Air cooling Dimensions with extractor (width x length x height); 4029 x 7050 x 3100 Weight; 15,000 kg
