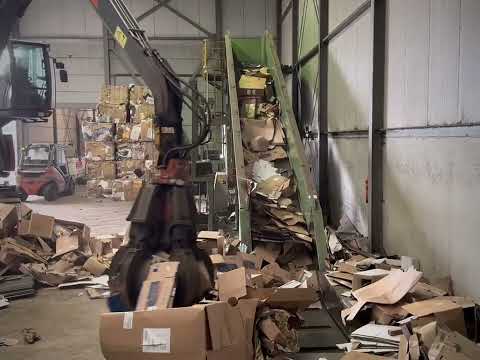

Bollegraaf baler including conveyor

Bollegraaf HBC 50A

Year of construction: 2026, condition: new, -Drum diameter 1600mm -Drum length 2880-3880-4880mm -Working length 2000-3000-4000mm -Grid holes according to your specifications -The screen consists of a closed profile Pgedpfeq T Sp Hjx Amiek -A cleaning brush with a diameter of 300 mm is mounted on the screen and along the entire length of the working part -Flat bar blades installed in the center of the drum allow the material to be poured -Drum rotation speed approx. 11.5 rpm - Sieve feed sieve via gearmotor- Drum transmission via gearmotor + 2 rubber drive wheels diameter 230 mm - Sieve equipped with electrical panel - Gravity feed hopper, dimensions Width 1600 mm, Length 1400 mm, Height 1200 mm - 12 months warranty - Made in Europe - CE compliant

Condition: good (used), Machinery from honey processing factory. DC Norris hotrooms, DC Norris settling tanks, DC Norris holding tanks, crystallised tanks, super seed tanks, pump, filter sets, various filling lines to fill squeezy bottles, glass jars and plastic buckets. Pgsdpfxspcibms Amijk

Condition: good (used), Manufacturer: MBT Pgodpfx Ashzr U Iemiok Tip: MV-250 S Motor: 5,5 kW hopper size: 780 x 600 mm Housing size: 3500 x 1000 x 2200 mm

Year of construction: 2001, condition: ready for operation (used), A paving stone production line Omag, which has been continuously optimized and upgraded to the latest technical standards, is available. Overhauls: 1) Conversion for an additional hydraulic unit for additional load in 2020. 2) Conversion to servo-vibration with Siemens S7 control in 2016. 3) Conversion to digital path measurement of mould and ram in 2017. 4) New core filling carriages in 2017. Plant components: 1) Board destacker and board stacker including roller conveyor. 2) Board feeder (advance) and board conveyor (scraper) to the lifting frame. 3) Board turner. 4) Horizontal and vertical bundling units Ridder & Signode, years of manufacture: 1994 and 1983. 5) Trafo lifting platform including motors and without control, year of manufacture: 1983. 6) Doppler including hydraulic unit, year of manufacture: 2004. 7) Stone packer Omag K1400 including hydraulic unit, year of manufacture: 1997. The line has no base boards. 8) Stone finisher Omag S22 140-90, year of manufacture: 2001. Documentation available. An on-site inspection is possible. Pgodpfx Amow R Uzijiok

Condition: reconditioned (used), Year of construction: 2007, operating hours: 22,605 h, functionality: fully functional, pressing force: 100 t, filling opening width: 1,100 mm, filling opening length: 1,600 mm, bale width: 1,100 mm, bale height: 1,100 mm, bale weight: 1,400 kg, overall weight: 36,000 kg, oil tank capacity: 1,300 l, For sale is a overhauled baler, with 100 tonnes pressing force, large format 1100 x 1100 mm, 75 kW drive power and 10-fold cross binding Technical data baler: Manufacturer Bollegraaf Typ HBC 110 K / 75 kW Year of construction 2007 Press power main press 100 tons Press power of pre-press 50 tons Operating hours 22,605 hours Feed channel 1,600 x 1,100 mm Capacity per cycle time 3,15 m³ Theoretic cycle time 19 sec. Bale size 1,100 x 1,100 mm Driving motor 75 kW Connected load 126 kW Full load current 238 A Tying system 5-fold vertical, 5-fold horizontal, fully automated Throughput rate at a bulk weight of 30 kg/cbm approx.16 tons/h bulk weight of 50 kg/cbm approx. 25 tons/h Pgsdpfx Amsvf E Aveijk bulk weight of 100 kg/cbm approx. 47 tons/h Bale weight up to 1400 kg, depends on material and bale lenght Volume oil tank approx. 1,300 l SPS controller Telemecanique TSX Micro Operating panel Schneider MAGELIS Touch Baler dimensions built up with hopper 11,750 x 5,000 x 7,105 mm (l x w x h) Transport dimensions only baler 11.750 x 2.500 x 3.450 mm (l x w x h) Machine weight baler approx. 36 tons Comments: The press was partially overhauled and serviced in our workshop and tested and stored after completion of the work. The machine is available at short notice and can be inspected in our warehouse by appointment. The following overhaul work was carried out: Rust removal and partial painting of the press. Remaining hydraulic oil tank drained, oil filter and air filter replaced. New hydraulic oil topped up. All hydraulic hoses replaced. Main hydraulic cylinder, two cylinders of the prepress flap and the cylinder of the press channel dismantled, disassembled, checked, cylinder tubes honed, all seal sets replaced and a final pressure test carried out. Disassembly of the prepress flap with bearings and bearing blocks. 1st and 3rd circular arc segmet cut out and a new one welded in again. Both bearings of the shaft of the prepress flap replaced. Upper material deflector on the frame of the prepress flap replaced. Press ram dismantled, checked and both front rollers replaced. Material deflectors and wear profiles on the sides and base of the press ram cut off and new ones welded in. Horizontal and vertical needle and tying unit dismantled, disassembled, checked, plastic sliding plates, bearings of the drill shafts and wire deflection rollers with bearings in the needle heads replaced. Both bronze slide rails on the left and right in the frame cover to the press ram replaced. Both wire deflection units on the left and right, with bale retaining clamps, completely renewed. Wire insertion unit including hydraulic cylinder under the needle feedthroughs completely renewed. Wire entry marks in the floor and side walls of the bale chamber welded shut and smoothed. General maintenance and service work carried out in accordance with the manufacturer's specifications. Press was tested in manual and automatic mode, accepted and stored after completion of overhaul work. We accept no liability for the technical specifications or any errors.

Year of construction: 1990, condition: ready for operation (used), A complete and automated OMAG paving block production line is available. Components: 1) Drawing plate for Colormix in the hopper. 2) InLine washing system. 3) Drying side Rekers. 4) Handling Rekers. 5) Rekers control system. 6) Rekers fork carriage. 7) Part of the drying chamber racks, as they are load carriers for the building. 8) Board crane as buffer placer and empty boards. 9) Cyklop horizontal strapping. Without strapping and boards. Concrete feed: 2-axis bucket, output with 90x90 paving blocks: 1000-1100/shift, board size: 1000mm/1400mm, max. format size: 1000mm/1400mm. Completely new OMAG control system in 2017. Conversion to proportional valves in 2014. Documentation available. On-site inspection is possible. Podpfx Ajv Nn Hxjmiogk

Condition: excellent (used), functionality: limited functionality, Year of construction: 2000, For sale: High-quality Liebherr concrete mixing plant in excellent condition – including BIBKO wastewater treatment system Pgjdpfx Amjwlwrusiok A used, excellently maintained concrete mixing plant from the renowned manufacturer Liebherr is for sale. The plant impresses with its low operating hours, complete technical documentation, and original delivery condition – all components come from the manufacturer itself. Important addition Also included in the offer is a wastewater treatment system from BIBKO Umwelttechnik & Beratung GmbH. This allows for environmentally friendly and economical reuse of residual and wash water, which not only reduces operating costs but also meets the ecological requirements of modern production processes. Main technical data Type: Ringtellermischer R 1.0 Practical mixing capacity: 1.0 m³ solid concrete per batch Efficient filling: A 6m³ truck mixer is filled in only 6 batches Theoretical mixing capacity: 50 m³/h Practical mixing capacity: 40 m³/h Aggregate storage Star storage: 1,200 m³ total capacity Active storage: 65 m³ Number of aggregate components: 5 Cement silos 2× cement silo at 40 t each with overfill protection 1× two-piece cement silo at 80 t with overfill protection Condition of the plant Commissioning: 2000 Out of operation: since 2006 Operating hours: approx. 3,500 (estimated) Condition: Very good – minimal use, excellently maintained Previous owner: First owner Originality: All components original from Liebherr Documentation: Fully available (electrical diagrams, foundation plans, structural analysis, etc.) The solid and well-thought-out construction of the plant enables easy disassembly and reassembly thanks to the predominantly bolted design. The control cabinets are connected to each other via plug connections – for details, please refer to the attached PDF documents. Additional service upon request: We are happy to support you in realizing your project with experienced partner companies for: Dismantling and reassembly Electrical commissioning (industrial electronics technician) Organization of transport with reliable forwarding agents This way, your new plant can be quickly and professionally put into operation at a new location. Interested? We look forward to your inquiry and are always available to answer any questions you may have!

Condition: reconditioned (used), Year of construction: 2001, functionality: fully functional, machine/vehicle number: HBC 140 2x75kW 2001 (210-008-01), pressing force: 155 t, bale weight: 1,500 kg, pressure: 250 bar, power: 150 kW (203.94 HP), year of last overhaul: 2024, Equipment: documentation/manual, Sold by Bollegraaf Recycling Solutions, the original manufacturer of this Bollegraaf baler and conveyor: Bollegraaf HBC140s Baler (2x75kW). Baler: Weight: 47.100 kg Construction year: 2008 Hardox bottom floor plate only Variable channel pressure control Plastic valve Hydraulic pump driven by frequency inverter Anti-rat cabling Oil in-depth filtration Modem Hours 40.000 This baler can also be sold fully refurbished according to the 'Bollegraaf OEM Certified Refurbishment standards'. This includes 2 year guarrantee. Contact us for more information or a quotation. General principles of refurbishment Cleaning & disassembly Before the actual refurbishment takes place the baler is completely cleaned and disassembled in our refurbishment workshop. Tolerances After the disassembly the tolerances of all steel components are measured and re-welded where necessary, this at least applies to the following components; • Ram, • Frame, • Channel, • Pre-press-flap After disassembly and inspection the ram is welded-up again and fitted with new ram wheels. The protective grids and the pre-press flap are made dent-free and repaired where necessary. Repainted After measuring the tolerances and any repair- and welding work, all components are being blasted and coated again. Hydraulics: The hydraulic tank is cleaned. The hydraulic lines & hoses are replaced. The hydraulic components are repackaged. The hydraulic oil is replaced. Cabling: All cabling is checked and replaced if necessary. All junction boxes are replaced and placed back in easily accessible positions. Wear parts: All wearing parts are replaced. Pjdpfx Amjtvau Ajijgk The pins and shafts of the cylinders and the channel are replaced with new ones. All wearing parts of (both) needle installations and knotters are replaced for new. Cylinders: The cylinders are repackaged and, if necessary, provided with a new chrome layer or a new cylinder rod. MCC Cabinet The switch box is checked and cleaned. If necessary, electronic components are replaced with new ones. The PLC and HMI (human interface) are replaced with the latest Schneider M340 version including the latest software.

Condition: used, Dreimesserautomat / Three Knife Trimmer Hörauf SN-140 Demand Baujahr / Year 2000 - Serial-No. 405060080 Formatbereich (unbeschnitten) / Paper size (before cutting) min. 80 x 60mm - max. 410 x 315mm Formatbereich (beschnitten) / Paper size (after cutting) min. 80 x 60mm - max. 380 x 300mm Stapelhöhe / Pile height max. 80mm Pgsdpfx Aownpm Nomiek Leistung bis zu 20 Takte/min. / Speed approx. 20 cycles per minute Online-Video-Inspection by WhatsApp - MS Zoom - Telegram On Stock Emskirchen/Nürnberg - Available Immediately - Can be test

Condition: excellent (used), Manufacturer: Strautmann Model: PP 1207 Plus Bale size (LxWxH): 1200 x 1100 x 730 mm Bale weight: approx. 400 - 500 kg External dimensions (LxWxH): 1850 x 1047 x 3079 mm Transport height: 2500 mm Filling opening: 1190 x 600 mm Pressing force: 59 tons / 580 kN Capacity: 1 - 2 bales/hour Number of bindings: 4 Pgodpfx Amev Aiymjiek Press weight: 2300 kg Power supply: 400 V / 50 Hz Power consumption: 4 kW Installation location: sheltered indoor/outdoor Noise level: less than 80 dB(A) Year of manufacture: 2003-2005 I also have Strautmann PP 1207 balers from 2009-2011 for 5500 EUR I also have Strautmann PP 1208 balers from 2014-2015 Strautmann AutoLoadBaler from 2018 for 7000 EUR
