Laser cutting machine

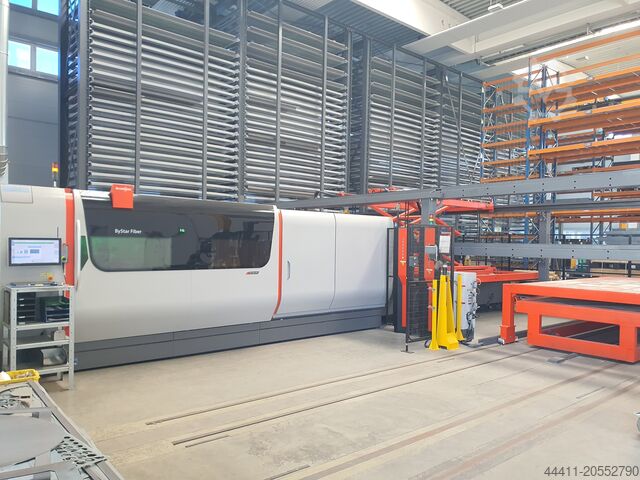

Bystronic ByStar Fiber 4020 + ByTrans + Antil

The machine is powered on and can be inspected at any time.

X working area max.: 4000 mm
Y working area max.: 2000 mm
Ibjdpfx Asxxic Aod Djd
Z working area max.: 100 mm

Control system: ByVision

Laser on-time: 17,372 hours
Laser beam on-time: 3,572 hours

1. Base machine

1.1 ByStar Fiber 4020 Dynamic Edition F6000
1.2 Scope of delivery
1.3 Safety and guidelines
1.4 Complete documentation
1.5 Spot Control
1.6 Collision detection
1.7 Automatic nozzle centering
1.8 ByPos Fiber
1.9 Cut Control Fiber
1.10 Nozzle cleaning
1.11 Laser diode pointer
1.12 Scanning

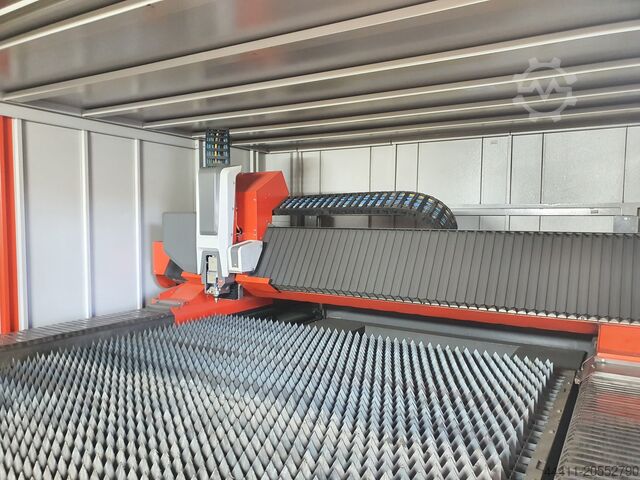

1.13 Cutting bridge
1.14 Shuttle table
1.15 Laser source
1.16 Chiller
1.17 Tank heating
1.18 Tropicalization
1.19 Machine control system and operator interface
1.20 Uninterruptible power supply (UPS)
1.21 Condition Messenger
1.22 Maintenance Messenger
1.23 Cutting plan editor
1.24 Restart manager
1.25 System manager
1.26 Cutting parameter assistant
1.27 OPC interface cutting
1.28 Handheld operator device
1.29 Electrical connection
1.30 Compressed air (machine, laser source, chiller, extraction system)
1.31 Material specification
1.32 Cutting gas
1.33 Ambient conditions
1.34 Structural requirements

2. Accessories for the machine

2.1 Detection Eye
2.2 Special position of the control cabinet

3. Additional options
3.1 Part marker (printer)

4. Automation

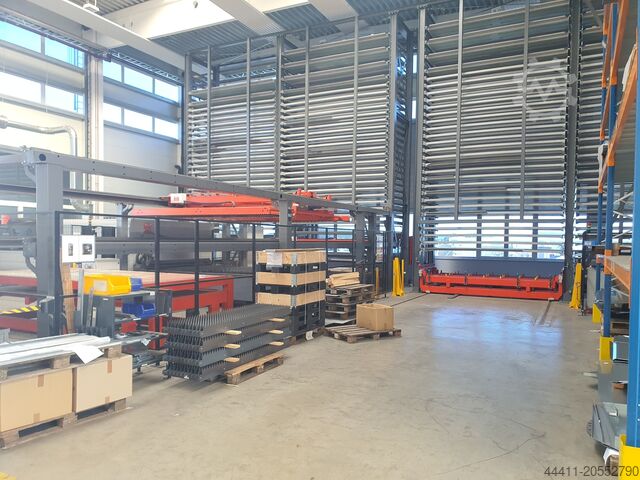

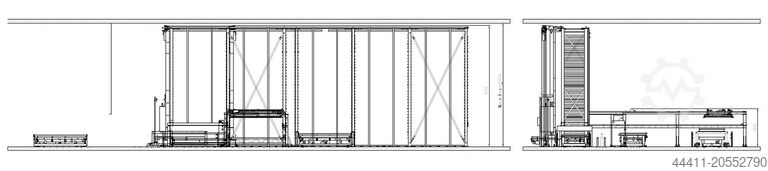

4.1 AWS16 4000x2000 h. 9800 mm, incl. 70 raw sheet cassettes and 20 return cassettes, 3-ton cassette, total number of storage locations 258
4.2 Handling device BYTRANS MODULAR 4020 Flex

5. Value Packages

5.1 Comfort
The Comfort Value Package includes:
- Automatic nozzle changer with 64 positions
- Parts and cross conveyor in the cutting area
- Scrap carriage under shuttle table (crosswise)
