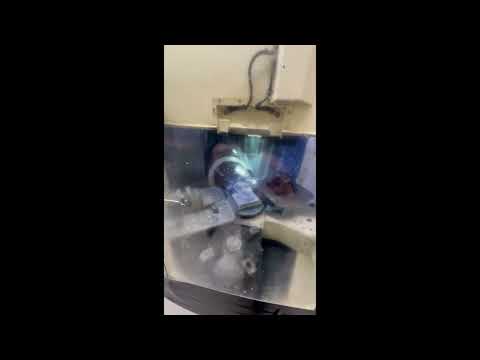

CNC 5 axis universal machining center

DECKEL MAHO DMU 60 evo

Condition: like new (used), Year of construction: 2005, functionality: fully functional, turning length: 450 mm, spindle speed (min.): 25 rpm, spindle speed (max.): 6,000 rpm, travel distance X-axis: 213 mm, travel distance Z-axis: 450 mm, rapid traverse X-axis: 24 m/min, rapid traverse Z-axis: 30 m/min, bar passage: 65 mm, Siemens 840 D CNC Working area Max. swing diameter on bed 505 mm Swing diameter on X-slide 375 mm Chuck diameter 210 mm Bar capacity 65 mm Transverse travel (X) 213 mm Longitudinal travel (Z) 450 mm Feed rates X/Z-axis rapid traverse 24/30 m/min Main spindle Spindle nose (flat flange) 140 h 5 mm Internal diameter of front bearing 100 mm Spindle motor power (40/100% DC) 16/12 kW Torque (40/100% DC) 153/115 Nm Spindle speed 25 - 6.000 rpm Tool turret Number of tool stations 12 Of which motorized 12 Shank diameter (according to DIN 69880) 30 mm Motor power (40% DC) 9 kW Maximum torque (40% DC) 20 Nm Maximum speed 4.500 min-1 Tailstock Tailstock stroke, automatic 450 mm Center point attachment 4 CM Iijdpsw Adhwjfx Abgea Tailstock thrust, max 400 daN Machine equipment: • Chip conveyor • Provision for fume extractor • 2 axial motorized modules • 4 radial motorized modules • Fixed tool holders

Condition: excellent (used), Year of construction: 2013, Available end of July. Technology Inline direct drive Speed 12,000 rpm Power 22 kW Iedpoyimncsfx Abgeia Tool holder SK40 Tool changer SMTC, 41 positions Technology 2 axes, with counter bearing B-axis -35° / +110° C-axis 360° Clamping surface ø630 x 500 mm Table load (max.) 300 kg Cooling Standard coolant including P-Cool and through-spindle cooling (TSC) Renishaw probe WIPS system with touch probe and tool measurement 8M functions Rotating and scaling 16MB memory storage HSM high speed milling Rigid tapping Machine cycle time: 5,446 h Machine power-on time: 21,246 h

Year of construction: 2000, condition: ready for operation (used), Travel X/Y/Z: 600mm/410mm/520mm, table dimensions X/Y: 840mm/420mm, spindle speed: 6000rpm, spindle power: 8.5kW, tool holder: SK40, tool positions: 22, rapid traverse X/Y/Z: 36m/36m/20m/min. Machine dimensions X/Y/Z: approx. 2200mm/2300mm/2300mm, weight: approx. 2500kg, control: Heidenhain TNC 426. An on-site inspection is possible. Ijdpfx Abev Uqb Negeia

Condition: used, Year of construction: 2020, Technical details: x-travel: 1530 mm y-travel: 530 mm z-travel: 465 mm side by side, right side fixed table X =: 925 mm side by side left side 2 axis table X =: 780 mm control: Heidenhain TNC 640 tool magazin:: 122 SK 40 spindle turning speed - stepless: 12.000 1/min Spindle Torque: 120 Nm power capacity: 22 kW Fixed Table Dimensions: 920 x 540 mm Table load fixed table: 2000 kg Max. parts size on fixed table: 900 x 500 x 400 mm Diameter of integrated 2-axis rotary table: 650 mm Table load rotary table: 500 kg B-axis swivel angle: -90°/+110° ° / deg Max. parts size on rotary table: 600 x 500 x 400 mm Max. Parts size over both tables: 1500 x 500 x 400 mm internal coolant system feed: 70 bar bar weight of the machine ca.: 10,5 t dimensions of the machine ca.: 3,65 x 2,53 x 2,81 m Accerories pendant hand wheel HR 510 FS Rotoclear window Automatic machine switch off after prog. cycle end Measuring probe for work piece Blum TC 52 Coolant gun The SpinnerU5 1530 5-axis machine with Heidenhain iTNC 640 control is as new, in excelllent condition. Isdpfxeyqyfgj Abgjia 122 tool holdersr SK 40 come with the machine. A special vice from Gressel for 5-axis machining for the rotary table also comes with the machine. *

Year of construction: 2002, condition: ready for operation (used), With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible. Iiedpfx Abowbuyzsgja

Condition: excellent (used), Year of construction: 1986, functionality: fully functional, equipped with: 1 slide feeding system right hand side 1 eccentricpress 250 kN Iedpfx Abotzlzaegjia 4 standard slide units 1 narrow slide units 1 cam shaft working range: wire diameter range: 0,5 - 5,0 mm stripmetal width: max. 40 mm feeding length: up to 320 mm outout: up to 135/min

Condition: new, table width 3000 mm table length 1500 mm burner heads 1 Control CNC feed 20.000 mm/min total power requirement 15 kVA dimensions of the machine ca. 4,5 x 2,5 m * Heavy machine bed with precision guides for quiet movement machine * A ball bearing cross carriage for height adjustment with 400mm vertical Hub Iedpfx Aopm U U Njbgjia * Thermal separation of the drive and cutting areas ensures the highest precision * Automatic height finding and torch height control during cutting * Torch holder with collision protection and automatic shutdown in the event of a collision * Installation or implementation of the machine using the plug & play method with a forklift, Ant or crane possible * 3-sided accessibility to cutting area through boom design SATOTEC suction table: The SATOTEC table system is characterized by a stable table construction max. cutting thickness of 150 mm. For cutting a workpiece thickness of 150 mm, oxyfuel cutting technology is required. The workpiece support frame has interchangeable ones placed at a 45° angle and 3 mm thick flat iron slats. The distance between the slats is 50 mm. Power source Kjellberg Q1500: * Precise plasma cutting of all electrically conductive materials from 0.5 to 60 mm both dry and under water * Recommended cutting range from 0.5 to 40 mm * Maximum piercing thickness 30 mm, increase possible with ProPierce Technology * Marking, notching and punching, including coated metallic materials * Inverter power source with digitally controlled, fully electronic process flow * Integrated cooling with partially automated filling and emptying Gas control: Fully automatically controlled, processor-controlled plasma all-gas console Q- Gas for cutting all metals Lantek Expert Cut Inside: CAD/CAM module integrated in the machine control Extraction TEKA EcoCube 5.5 kW Medium to be filtered: dry, fat-free or oil-free dust/smoke Filter area: 100 m² (4 cartridges of 25 m²) Filter cartridge: BIA M, Type Nano Degree of separation: 99% (according to BGIA test certificate) Filter control: automatic filter cleaning, PLC Fan performance: 4500 m³/h Motor power: 5.5 kW Connection voltage: 400V/50 Hz or 480V 60Hz. Current consumption: 11.5 A Current type: 3Ph+N+PE Fan structure: on the system, including silencer duct bend, right side Motor control: frequency converter Noise level: 75dB(A) + max 10 dB(A) with cleaning pulse Intake port: NW 250 mm via intake duct, left side Exhaust: via silencer duct bend Dimensions (W x D): approx. 800 x 800 mm System color: - Fan housing: Light gray - Cartridge housing: RAL 5007 brilliant blue Special equipment: - Locking hooks and toggle locks - Compressed air connection and condensate drain each mounted with one Bulkhead fitting - Compressed air connection with hose nozzle d=8mm - Provide the system with grounding bolts - Cable in UL version - EATON frequency converter on the left in the attached control cabinet

Condition: new, saw blade diameter 350 mm capacity 90 degrees: round 115 mm capacity 90 degrees: square 95 mm 180 x 95 mm Working height 925 mm saw blade turning speeds 15 - 90 U/min total power requirement 3,0 kW weight of the machine ca. 0,68 t dimensions of the machine ca. 0,8 x 1,0 x 1,85 m Electro-pneumatic, vertical, linear-guided automatic saw for use of HSS saw blades to make series cuts from 60° left to 45° right steel. The machine also works in semi-automatic cycle. CNC machine Iiedpfx Absfg Rlcegja with multiprocessor and two with MEP control, latest generation controlled axes that make it possible to achieve 1000 with the same material thickness different cutting programs, each with a different cutting length and number of pieces program.

Condition: excellent (used), Year of construction: 2007, Doosan Puma 300MC C-axis with driven tools, 360° (0.001°) Year: 2007 Fanuc 21iTB with Manual Guide Chuck: 12 inch (315mm) Samchully Spindle bore: 102mm Max turning diameter: 355mm Axis travels: X - 250mm Z - 680mm Turret: BMT 65 Tailstock Tool probe Chip conveyor, coolant tank with pump Tool holders Machine documentation Condition: very good Isdpfx Ajyrb Urjbgsia

Condition: used, Year of construction: 2007, reus 8000 min-1 U/min Weight 5500 kg Year 2007 Control Siemens 840D Dimensions (L/W/H) 3600 x 2800 x 2400 mm travel -x axis 1035 mm travel -y axis 560 mm Isdpswm Rqaofx Abgeia travel -z axis 510 mm
