Planer-type milling machine - double column

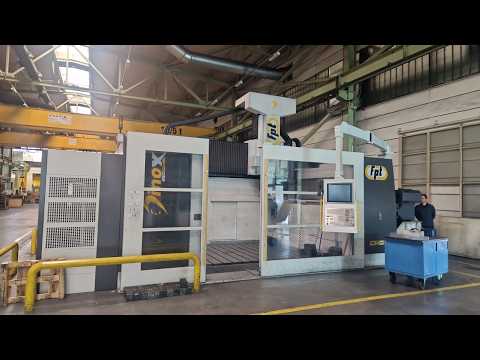

FPT Industrie Dinox 350

Year of construction: 2018, condition: ready for operation (used), - USED - 5-AXIS BRIDGE-TYPE CNC MILLING MACHINE LONGITUDINAL TRAVEL: 2500 mm TRANSVERSAL TRAVEL: 3500 mm VERTICAL TRAVEL: 1300 mm RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3500 x 2500 mm HEAD: A/B AXIS AUTOMATIC ; A-axis ±185° - B-axis ±270° ; HSK A100 ; 12000 rpm TOOL MAGAZINE: CHAIN-TYPE ; 64 POS CONTROL UNIT: HEIDENHAIN TNC640 Klsdpfx Amewla Hnszer WEIGHT: 51370 Kg ACCESSORIES: HIGH PRESSURE COOLANT ; SWARF CONVEYOR ; PAPER FILTER ; LASER TOOL SETTER ; TOUCH PROBE ; PORTABLE HANDWHEEL

Condition: used, 5,000 running meters of construction profiles, C-shape Used goods, good condition, see pictures Kjdpfx Amsulwmcjzslr Galvanized Length per piece approx. 467 cm Profile 7.5/8 cm Material thickness approx. 3 mm Weight per piece approx. 30 kg Negotiated price: € 3.90 net/rm ex stock Available individually or in a package One package consists of 40 pieces - approx. 186.8 running meters Goods are in stock. Transportation possible on request. Viewing possible at any time by appointment. Further information on request. Over 5000 running meters of pallet racking from numerous manufacturers in stock. (Subject to changes and errors in technical data, specifications and prices as well as prior sale! See our GTC, all prices excl. VAT ex stock).

Condition: excellent (used), Tacchi HD/1450 X 4M Large Spindle Bore (515mm) Year 2002 Klodpfoxg Ivdjx Amzjr Siemens CNC Control Swing over bed 1450mm Swing over saddle 1000mm Hollow spindle 515mm Chucks front and rear of Headstock Speed range 1.5 – 450 rpm 15,000kg weight between centres Baruffaldi 4 way Auto Toolpost 2 x 3 point steadies

Condition: good (used), Year of construction: 2015, functionality: fully functional, machine/vehicle number: 265864, turning diameter: 350 mm, spindle speed (max.): 5,000 rpm, spindle speed (min.): 35 rpm, travel distance X-axis: 195 mm, travel distance Z-axis: 560 mm, spindle motor power: 15 W, feed rate X-axis: 30 m/min, feed rate Z-axis: 33 m/min, torque: 233 Nm, distance table center to spindle nose: 687 mm, Equipment: documentation/manual, Mazatrol Smart Control. Kodpsvfm H Aofx Amzjlr Spindle speed 5000 rpm. X/Z travel 195mm/560mm. Fitted with 215mm diameter. 3 jaw-powered chuck 12-station turret. Tailstock. Tool setter. Part catcher.

Condition: excellent (used), Year of construction: 2018, laser wavelength: 1,030 nm, power: 5 kW (6.80 HP), Manufacturer: Trumpf Model: TruDisk 5001(6C) Year of manufacture: 2018 Laser power: 5 kW Wavelength: 1030 nm Beam quality: < 100 µm Central sensor interface: yes OEM laser: yes Output power 1: 100% Output power 2: 100% Output power 4: 100% Beam quality output 1: ≥ 4mm x mrad, ≥ 100µm NA01 Beam quality output 2: ≥ 4mm x mrad, ≥ 100µm NA01 Beam quality output 4: ≥ 4mm x mrad, ≥ 100µm NA01 Active laser power control: yes Live power display: yes Panel computer: yes Processing optics cooling: yes Water connection set: yes Ethernet in user area: multiple Number of occupied fiber links (LLK): 4 Number of intelligent optics: 4 Number of active couplings: 4 Number of couplings: 4 LLK coding (ILN): yes LLK type: LLK-D TLS number: 20-10-03-A105 Additional interfaces: no Kljdpfx Amer Izwmezsr Parallel interface: yes Interface output 1: Profinet Interface output 2: Profinet Interface output 3: Profinet OPC UA interface: yes VisionLine preparation: yes Number of VisionLine Basic: 2 Number of VisionLine Detect: 0 Number of VisionLine Interface: 1 Number of VisionLine Project: 0 I-PFO preparation: no PFO Smart Teach App: no TLS machine: no TruControl Module Cutassist: no CE/UKCA declaration: Installation declaration with annex

Condition: used, Year of construction: 2014, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,500 mm, spindle speed (max.): 6,000 rpm, spindle speed (min.): 20 rpm, RepairFIT by Dornhöfer The Difference. Installation & Commissioning Included! TECHNICAL MAIN DATA Year of manufacture: 2014 Travel/Capacity: Longitudinal (X): mm 3,000 Transverse (Y): mm 1,200 Vertical (Z): mm 1,500 Clamping table/Clamping surface: Length: mm 3,200 Width: mm 1,000 Number of T-slots on table surface: pcs. 7 T-slot size: mm 22H12 Reference slot: mm 22H7 Distance between slots: mm 140 Maximum transport load: kg 11,000 Paint: graphite grey RAL 7024 and agate grey RAL 7038 Tool holder: ISO 50, DIN 69871 AD Pull stud: DIN 69872 Form A Main drive: Maximum drive power, from 198 rpm: kW 30 Spindle speed range: Spindle speed: rpm 20-6,000 Maximum torque: Nm 935 Speed control: 3-stage (oil-cooled) with automatic changeover Feed rates: X, Y and Z axes mm/min: 2 – 15,000 Maximum rapid traverse speed: X, Y and Z axes mm/min: 25,000 Maximum feed force: X, Y and Z axes: N 22,000 Space requirements: Length approx. BT3200: mm 8,100 (without cross conveyor +1,280 mm) Height approx. (at Z = 1,500 mm): mm 3,800 Width approx. (at Y = 1,200 mm): mm 5,000 (with spacer 4,500 mm) Weight: approx. kg 20,200 Connected load: approx. KVA 52 HEIDENHAIN iTNC 530 HSCI Automatic MTE universal milling head Diagonal 2.5° x 2.5° Automatic tool changer with 40 positions 2 chip conveyors + cross conveyor Coolant system with 20 bar & through-spindle coolant RepairFIT is our proven offer for a profitable entry into our product lines. The machines available in this line are sourced through a strict selection process and undergo thorough inspection (Deep-Dive Check). After intensive cleaning, any identified obvious defects and faults are professionally repaired by our qualified service team. Ksdpfxsygipae Amzolr

Condition: good (used), Year of construction: 2003, functionality: fully functional, workpiece weight (max.): 12,000 kg, feed length Y-axis: 300 mm, feed length Z-axis: 1,080 mm, table diameter: 1,200 mm, feed rate X-axis: 3 m/min, feed rate Y-axis: 500 m/min, feed rate Z-axis: 3 m/min, input current: 195 A, workpiece diameter (max.): 1,600 mm, milling spindle length: 450 mm, table bore: 400 mm, spindle speed (min.): 250 rpm, overall weight: 51,000 kg, power: 115 kW (156.36 HP), Equipment: documentation/manual, Liebherr high-performance gear hobbing machine LC1502 in good condition Controller Liebherr LH90 V4, Bosch Rexroth drives Extensive accessories such as BHG, cooling unit for lubrication and coolant, extractor, cutter arbors, various software packages/limit value extensions, and complete documentation. We can also assist with setup and commissioning up to production, depending on effort! Kjdpfowqm A Tox Amzjlr

Year of construction: 2002, condition: ready for operation (used), With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible. Klsdpfx Amewbuyzezsr

Condition: good (used), Year of construction: 1998, Hermle C 600 U CNC Machining Center Manufacturer: Hermle Model: C 600 U Year of manufacture: 1998 Operating voltage: 400 V / 3~ Kedpeyrr Ucsfx Amzjlr Frequency: 50 Hz Control voltage: 24 V Total rated current: 31 A Control system: Heidenhain TNC 426 Machine weight: 6,400 kg X-axis travel: 600 mm Y-axis travel: 450 mm Z-axis travel: 450 mm Tool magazine: 30 positions Tool holder, type: SK-40 Accessories: included, as per photos (vice + probe) No guarantee is given for the correctness, completeness or up-to-dateness of the information provided.

Condition: like new (used), Year of construction: 2001, operating hours: 10,356 h, travel distance X-axis: 1,800 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,100 mm, nominal power (apparent): 44 kVA, controller manufacturer: Heidenhain TNC 430, workpiece weight (max.): 5,000 kg, total height: 4,200 mm, total length: 7,900 mm, total width: 8,800 mm, spindle speed (min.): 10,000 rpm, Year of construction: 2001 CNC controller: Heidenhain TNC 430 Axes X-axis travel mm: 1800 Y-axis travel mm: 2000 Z-axis travel mm: 1100 C-axis degrees: 360º (0,001) B-axis degrees: -7/+187º Feed rates m/min: 60/40/40 Rapid traverse m/min: 60/40/40 Milling/turning table nc: Table dimensions mm: Ø1700x1400 Max. workpiece weight kg: 5000 Table rotation speed rpm: 200 Spindle Spindle speed rpm: 10000 Spindle drive power kW: 44/32(40%ED/cont) Spindle torque Nm: 288/187 (40/100%ED) Cooling Cooling through the Spindle Center bar: 40 Tank capacity: 900 Tool system Tool holder: HSK-A 100 Tool magazine slots: 60 Tool changer: Double gripper Chip-to-chip time s: 13.5 Ksdpfxjyq Rpce Amzelr Equipment Electronic Handwheel Chip conveyor Infrared probe Internal cooling lubricant supply Rotating inspection windows Rinsing gun Operating mode 4 Tool breakage probe Machine running times Under power: 132612 Spindle Working: 68009 Basic machine dimensions / weight Length mm: 7900 Width mm: 8800 Height mm: 4200
