Hws formanlagenHeinrich Wagner Sinto
DAFM-3
Machine data
- Machine type:
- Hws formanlagen
- Manufacturer:
- Heinrich Wagner Sinto
- Model:
- DAFM-3
- Machine number:
- 10354
- Year of construction:
- 1988
- Condition:
- excellent (used)
- Functionality:
- fully functional
- Operating hours:
- 20,000 h
Price & Location
- Location:
- Zaandam, Netherlands
Technical details
- Type of input current:
- three-phase
- Total height:
- 4,000 mm
- Total width:
- 7,000 mm
- Total length:
- 23,000 mm
- Input voltage:
- 400 V
- Control voltage:
- 24 V
- Input frequency:
- 50 Hz
- Equipment:
- documentation/manual
Details about the offer
- Listing ID:
- A22158492
- Update:
- 19.06.2026
Description

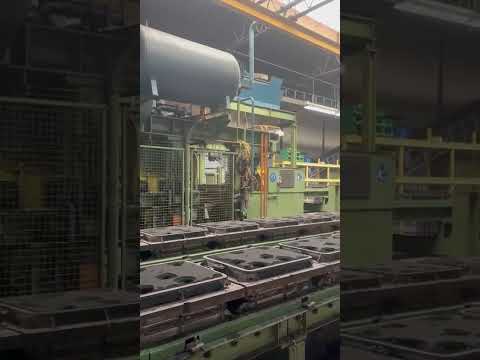

Heinrich Wagner fully automatic molding line, capacity 30 molding boxes/hour, internal dimensions 700 x 550 mm,
consisting of:
* 1 inclined trough belt conveyor, dimensions 20 x 0.40 m
* 1 mixing hopper on frame, capacity approx. 3 m³, with bottom discharge conveyor
* 2 silos, capacity 30 tons, with rotary disc discharge and upper distribution conveyor, installed in a pit by third parties
* 2 aluminum bucket elevators with casing, dimensions 27 x 22 cm, height 10 m
* 1 trough-shaped intermediate silo, dimensions 100 x 200 x 200 cm, with bottom discharge conveyor
* 1 batch weighing hopper, dimensions 40 x 50 cm, with flap loading
Iedpfx Abszfif Rsveth
* 1 mixer Eirich type R11, housing diameter 150 cm, including Gustav Eirich belt drive, type R11
* 1 inclined trough belt conveyor, dimensions 0.50 x 27 m
* 1 storage hopper, capacity 4 tons, with under-mount conveyor belt and discharge chute
* 1 hydraulic power unit (separate, located elsewhere in the facility)
* 1 Heinrich Wagner hydraulic squeeze table, type SK3 DAFM-3, 360° swiveling
* 1 flask rotator, 180°
* 1 molding box transfer conveyor system
* 1 Wagner SK4 molding box closing unit, in a 4-column pillar frame with double hydraulic cylinders
* 1 mobile cross-transfer conveyor
* 2 pouring lines, dimensions 18 x 0.75 m, with hydraulic push-out cylinders
* 42 sets of molding boxes, internal dimensions 700 x 550 mm
* 1 control cabinet
* 1 Siemens computer control system, type Simatic S5 395, including switchgear, power supply cabinets, and all other accessories
