Baler

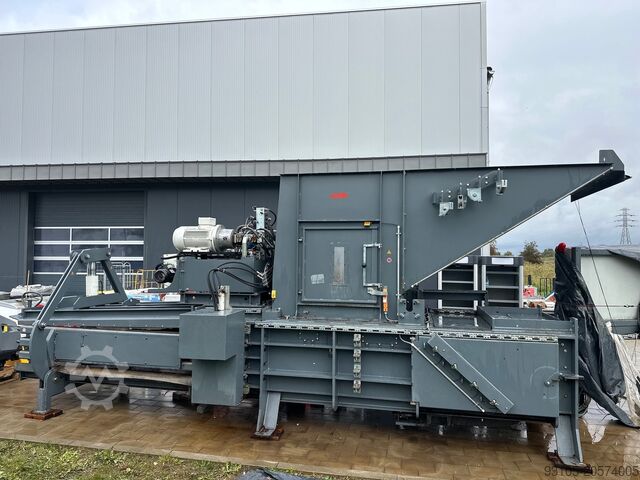

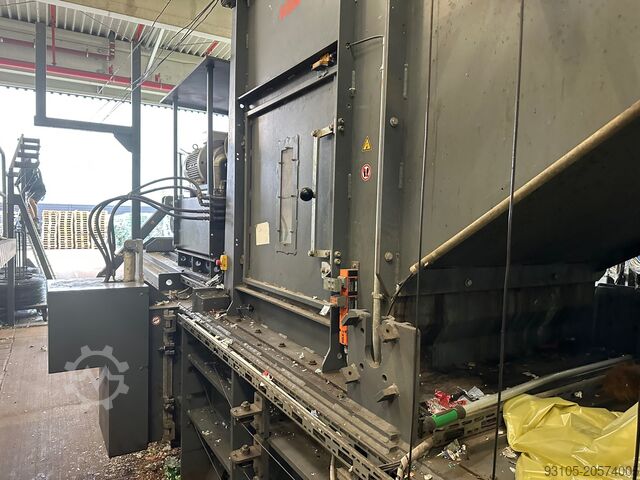

HSM VK 4812

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, pressing force: 48 t, bale length: 1,200 mm, bale width: 1,100 mm, bale height: 750 mm, bale weight: 550 kg, total width: 2,583 mm, total height: 3,994 mm, total length: 6,661 mm, Equipment: documentation/manual, HSM VK 4812 P Year of production: 2015 Fully automatic baler. The device has service and maintenance work by an authorized HSM service with a branch in Germany. The baler comes complete with a ramp for ejection of finished bales and stands for binding wires. Pressing force: 480 kN Drive power: 18 kW Voltage / frequency: 400 V / 50 Hz Capacity at 50 kg/m³: 10.2 t/h Bale width x height x length: 1100 x 750 x 600 - 1200 mm Total length x width x height: 6661 x 3994 x 2583 Machine weight: 10.2 t Compressed material: foil, mixed paper, cardboard, die-cutter waste Bale tying: 4-fold with wire We also have other presses in stock. Transport costs depend on weight, volume and, above all, distance, the following information is important for inquiries: Delivery address (postal code and city name), but further details require telephone contact, so please inquire about transport costs and other delivery methods to contact us contact us by phone. Our contact details can be found in the seller's legal information. We sell and export worldwide, and thanks to our very large storage capacity we can also deliver larger quantities flexibly and quickly. Itodpfoxx N Hzex Aaajp We issue intra-Community invoices - without VAT. opening hours Mon-Fri: 8:00-16:00 Sat: closed

Year of construction: 1994, condition: ready for operation (used), Motor power: 15.5kW/19.5kW, pressing force: 320kN, spec. pressure: 425kN/m², machine dimensions X/Y/Z: approx. 5700mm/1900mm/1800mm, weight: approx. 6000kg. The machine has a defect due to moisture and should be checked. Iedpfx Asip D Rpsaastp

Condition: reconditioned (used), Year of construction: 2014, operating hours: 5,612 h, functionality: fully functional, pressing force: 48 t, filling opening width: 1,020 mm, filling opening length: 1,250 mm, bale width: 1,100 mm, bale height: 750 mm, bale weight: 550 kg, total height: 2,800 mm, overall weight: 12,000 kg, transport height: 2,800 mm, oil tank capacity: 300 l, power: 30 kW (40.79 HP), empty load weight: 12,000 kg, volume flow: 332 m³/h, Technical information baler: Manufacturer HSM GmbH + Co. KG Typ VK 4812 Iedpfxsvtpq Hs Aaajtp Year of construction 2014 Hours of operation 5,612 hours, stand August 2025 Press power main press 48 tons Specific press capacity 58,2 N/cm² Feed channel 1,250 x 1,020 mm Theoretic cycle time 11.2 sec. Theoretic throughput rate 332 m³/hour Bale size 1,100 x 750 x 600 up to 1,200 mm Driving motor 30 kW Connected load 32 kW Rated current 59 A Tying system 4-fold horizontal, fully automatic Throughput rate at a bulk weight of 20 kg/cbm up to 6 tons/hour bulk weight of 50 kg/cbm up to 13 tons/hour Bale weight up to 550 kg, depends on material SPS controller Siemens SIMATIC S7-200 Operating panel Siemens HMI Touch Panel Filling quantity hydraulic oil tank 300 L Oil type HVI 46 Machine installation dimensions with bale chute 10,046 x 4,387 x 2,705 mm (l x w x h) Transport dimensions baler 8,500 x 2,500 x 2,750 mm (l x w x h) Machine weight press approx. 12 t Scope of delivery: Baler HSM VK 4812, without hydraulic oil, without conveyor system. Two wire reel boxes for 8 pieces 40 kg wire reels, without wire Bale chute Machine documentation in German Comments: The press is equipped with an oil cooler and potential-free contacts for external control. The control cabinet is operated from the left in the direction of pressing, the needle unit is located on the right-hand side and can be folded back for transport. The press was partially overhauled and tested in our workshop, see photos. The documentation (operating instructions, CE declaration, electrical/hydraulic circuit diagrams) is available in German. Viewing is possible by appointment. We accept no liability for the technical details or any errors.

Condition: new, Cutting mill / Granulator brand: NEUE HERBOLD manufacturing year: brand new machine drive: 75 kW Rotor-width: 600 mm Working-width: 1000 mm Rotor with 5 blade-rows 2 stator-blade rows Roller feed hopper size reduction of loose film, hollow containers, pipes, profiles, barrels,... Itsdpfsckg Nzox Aaajp

Condition: excellent (used), Year of construction: 2023, operating hours: 1,851 h, functionality: fully functional, pressing force: 70 t, filling opening width: 1,100 mm, filling opening length: 1,400 mm, bale width: 1,100 mm, bale height: 750 mm, bale weight: 500 kg, overall weight: 17,000 kg, oil tank capacity: 70 l, Technical data baler: Itsdpfx Aou Thbxeaajp Manufacturer Avermann Maschinenfabrik GmbH & Co. KG, Germany Type AVOS 1410 BS-22/50 Year of construction 2023 Pump operation hours 1,851 hours, as of July 24 Press power main press 70 t (a 70 tonne hydraulic cylinder is installed, special equipment) Specific press force 90,9 N/cm² (a 70 tonne hydraulic cylinder is installed, special equipment) Feed channel 1,400 x 1,000 mm Theoretic cycle time 13 sec Theoretic throughput capacity 266 m³/h Bale size 1,100 x 750 (w x h), the length is variable Drive power 22 kW Connected load 65 kW Tying system 4-fold, vertical, fully automatic Throughput capacity at a bulk weight of 30 kg/cbm approx. 5,5 t/h bulk weight of 50 kg/cbm approx. 7,5 t/h bulk weight of 100 kg/cbm approx. 9,7 t/h Bale weight with a bale length of approx. 1.2 m up to 500 kg, depends on material SPS controller Siemens S7-1500 Operating panel Schneider Harmony Baler dimensions built up 8,610 x 2,400 x 3,835 mm (l x w x h) Transport weight baler approx. 17 t Special equipment: Wear-resistant floor made of HARDOX steel Larger main hydraulic cylinder with 70 tonnes of pressing force Special press ram for pressing loose bulk materials with small grain sizes OptiCut XS system for lower cutting forces and higher throughput rates Special pressing piston for pressing "difficult" materials Technical data for the conveyor belt: Manufacturer Avermann Maschinenfabrik GmbH & Co. KG, Deutschland Type KGF GB 1500 Year of construction 2023 Drive power 4.0 kW Belt speed approx. 0.3 m/second Length feeding conveyor 2,679 mm Length elevating conveyor 6,866 mm Length goose neck 1,272 mm Grade 35° Effecting width 1,400 mm Side wall height 800 mm Carrier height 50 mm Carrier distance 750 mm Belt quality EP 400/3, 3:1 (DIN quality N) Overall height 4,515 mm Overall transport dimensions11,148 x 2,502 mm (l x w) Technical data on the non-contact personal protection system: Manufacturer BOREMA Umwelttechnik AG, Switzerland Type APSS iBOR 22 Year of construction 2023 Condition of the press system: The entire system is in very good condition due to the short operating time of only 1,851 pump hours and the processing of only paper, cardboard and film. Scope of delivery: Avermann baler, type AVOS 1410 BS-22/50, incl. wire drawing stations and bale chute Avermann conveyor belt, type KGF GB 1500 BOREMA personal protection system, type APSS iBOR 22 Comments: The documentation (Manual, CE-declaration, electr./hydr.-drawings), are completely available. Inspections are possible after agreement. We will not assume liability for the given technical data and possible errors.

Condition: good (used), Year of construction: 1975, Martin Miniline 616 - Vacuum feeders Ijdpfxeq Nf D Hj Aaastp - hhs-Gluesystem with Gluecontrollsystem - Max.Speed: 24,000 Sh/h - Max.Size: 600x1600 mm - Year 1975/1991 - 2 Color Flexo - Slotter - Rotary die cutting - Folding gluing - Counter Ejector, Year 1991

Condition: used, machine/vehicle number: 12599, Rotor diameter: 600 mm Itedpfek N Iy Nex Aaaep Rotor width: 1450 mm 12-knife rotor 3 rows stator knives Inlet cross section approx. 780 x 1490 mm Drive motor: 132 kW

Condition: used, Suspension crane runway Crane system DEMAG type KBK 1 Year of construction approx. 2000 Monorail overhead crane system with monorail crane bridge Light crane system made of KBK modular system sections load capacity: 125 kg Span width: 5 meters Distance between longitudinal rails: 4.1 meters Longitudinal girder length complete: 12 metres Beam profile crossbeam = KBK1 Beam profile longitudinal rails = KBK1 Consisting of: Itsdpfxshrkrto Aaaop 29 meters KBK-1 system profile (4x 6000 mm + 1x 5000 mm) 1 piece of trolleys for the crane suspension 2 pieces double carriage for the longitudinal rails 10 pieces screw claws for the crane suspension or ceiling attachment (without beam clamps) 6 pcs. end covers suitable for KBK1 runners

Year of construction: 2008, operating hours: 40,000 h, condition: good (used), machine/vehicle number: HBC 140 2x75kW 2008 (00191), Sold by Bollegraaf Recycling Solutions, the original manufacturer of this Bollegraaf baler and conveyor: Bollegraaf HBC140s Baler (2x75kW). Baler: Weight: 47.100 kg Construction year: 2008 Hardox bottom floor plate only Variable channel pressure control Plastic valve Hydraulic pump driven by frequency inverter Anti-rat cabling Oil in-depth filtration Modem Hours 40.000 This baler can also be sold fully refurbished according to the 'Bollegraaf OEM Certified Refurbishment standards'. This includes 2 year guarrantee. Contact us for more information or a quotation. General principles of refurbishment Cleaning & disassembly Before the actual refurbishment takes place the baler is completely cleaned and disassembled in our refurbishment workshop. Tolerances After the disassembly the tolerances of all steel components are measured and re-welded where necessary, this at least applies to the following components; • Ram, • Frame, • Channel, • Pre-press-flap Itsdpfx Aaekcgf Hjajp After disassembly and inspection the ram is welded-up again and fitted with new ram wheels. The protective grids and the pre-press flap are made dent-free and repaired where necessary. Repainted After measuring the tolerances and any repair- and welding work, all components are being blasted and coated again. Hydraulics: The hydraulic tank is cleaned. The hydraulic lines & hoses are replaced. The hydraulic components are repackaged. The hydraulic oil is replaced. Cabling: All cabling is checked and replaced if necessary. All junction boxes are replaced and placed back in easily accessible positions. Wear parts: All wearing parts are replaced. The pins and shafts of the cylinders and the channel are replaced with new ones. All wearing parts of (both) needle installations and knotters are replaced for new. Cylinders: The cylinders are repackaged and, if necessary, provided with a new chrome layer or a new cylinder rod. MCC Cabinet The switch box is checked and cleaned. If necessary, electronic components are replaced with new ones. The PLC and HMI (human interface) are replaced with the latest Schneider M340 version including the latest software.

Year of construction: 2016, condition: new, functionality: fully functional, HDPE Film washline construction year: 2016 0 working hours (was never in operation) brand: NEUE HERBOLD, D-74889 SINSHEIM consisting of: Wet-granulator type SM 450/600-S5-2 Friction washer type FW 560/3000 Ijdpfotuui Dox Aaastp Conveying screw Floating tank (Floating - sink separation) type TB 500 Mechanical Dryer type TM 1005 Suction Unit type MFT 55/500 Electric control
