Surface grinding machine

Jung JF-520

Condition: used, Year of construction: 1985, grinding length 600 mm grinding width 200 mm Knsdpfx Aswd Tx Ujk Aja total power requirement 7,5 kW weight of the machine ca. 2,3 t

Condition: used, Year of construction: 1995, grinding length 600 mm grinding width max. 320 mm Knedpfx Akezkv Ayo Aja workpiece height max. 500 mm magnetic clamping plate 300 x 605 mm horiz. table movement: longitudinal man. max. 750 mm horizontal table movement: cross max 340 mm sanding disc diameter 355 mm table load max. 420 kg grinding wheel width 50 mm bore 127 mm spindle turning speed range 1500 U/min rapid traverse vertical 400 mm/min weight of the machine ca. 2500 kg dimensions of the machine ca. ca. 2800x2000x1800 mm

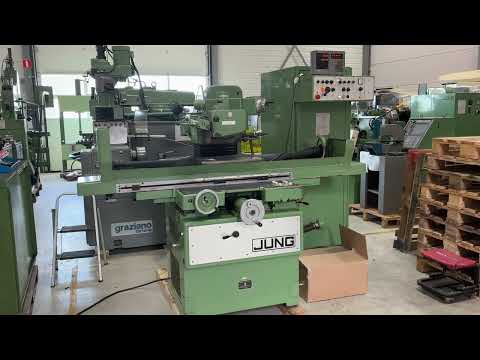

Condition: ready for operation (used), Year of construction: 1986, functionality: fully functional, The machine is in good working order. See the video. Kjdpfx Aszimhwok Aona

Condition: good (used), Year of construction: 1989, Surface grinding machine, manufacturer: JUNG, type: JF 520 MS, year of manufacture: 1989. Equipped with JUNG control system. Grinding surface: 600 mm, width: 200 mm. Magnetic chuck: 500 mm x 200 mm, coolant system installed. Machine documentation available. Further details can be found in the data sheet. Knjdpfozicm Aox Ak Aja

Condition: reconditioned (used), Year of construction: 2006, operating hours: 19,500 h, functionality: fully functional, workpiece weight (max.): 750 kg, travel distance X-axis: 350 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 220 mm, total height: 201 mm, total length: 205 mm, total width: 202 mm, wire diameter (max.): 0.3 mm, workpiece height (max.): 220 mm, workpiece width (max.): 550 mm, workpiece length (max.): 1,000 mm, type of input current: three-phase, overall weight: 2,450 kg, Charmilles FI240SL, year 2006. The machine can be inspected at our premises in Semsales during April. The machine will be fully cleaned and serviced. Viewing available on request. Knedpfx Aksylkr To Asa

Condition: excellent (used), Year of construction: 1988, functionality: fully functional, Jung JF 520 D year of manufacture 1988 magnet 500 x 175 mm max. grinding area 600 x 220 mm variable speed variable magnetic field strength automatic start diaform Kjdpfx Aszba Ngek Ajna coolant/filter tank 3 x flange 1 x clamp documentation machine is powered on for inspection

Condition: refurbished (used), grinding length: 600 mm, grinding width: 200 mm, grinding length 600 mm grinding width 200 mm Kodpfexal Hyox Ak Ajna electromagnetic chuck 450×175 mm X-travel 660 mm Z-travel 225 mm grinding wheel size 250x25x51 mm Control Jung TouchScreen weight approx. 3000 kg

Condition: ready for operation (used), Year of construction: 1990, functionality: fully functional, grinding length: 400 mm, grinding width: 150 mm, JUNG JF 415 Jung JF 415 Surface Grinding Machine with Flanges and Coolant Belt Filter * Table length: 400 mm * Table width: 150 mm Kedpfxjytfbfs Ak Asna * Maximum grinding length: 400 mm * Maximum grinding width: 150 mm * Maximum workpiece weight: 75 kg * Distance spindle to table: 400 mm * Table speed: 1–24 m/min * Grinding wheel diameter: 25 mm * Spindle speed: 900 – 4500 rpm * Heidenhain digital readout * Year of manufacture: 1990, machine no.: 1566

Condition: new, Grinding spindle for Jung grinding machines, type JF 520, JF 415, and HF 50, new or refurbished. Ksdezc Eukepfx Ak Aena

Condition: defective spare-parts repository (used), Year of construction: 1981, functionality: not functional, machine/vehicle number: 1661, The machine is defective. The machine body and some of the attached components are in good condition. The machine will be sold as is, from its current location. Price upon request. Knedpfxozcpx Ho Ak Aea

Condition: new, Year of construction: 2026, MYS820 200×480 Magnetic Surface Grinder is an advanced machine designed for precision grinding of small and medium-sized metal components. Its compact design and modern technologies ensure high machining accuracy and reliable operation in industrial environments. Main advantages of the MYS820 200×480 magnetic surface grinder Kedpfxoycr R Ss Ak Aena The MYS820 200×480 magnetic surface grinder is an ideal solution for industrial facilities requiring precise machining in a compact format. Designed for professional users, it combines advanced technologies such as automatic feed in two axes and precision guideways with a robust construction, ensuring reliability and efficiency. Its compact dimensions (1680 × 1140 × 1800 mm) and weight of 800 kg make it an excellent choice for smaller workshops and production facilities with limited space. Key benefits include: High grinding precision – precision guideways and automatic feeds enable machining accuracy of 0.01 mm in vertical movement, ensuring excellent surface finish quality. Compact working area – a 400 × 200 mm table is ideal for processing small and medium-sized components, increasing application versatility. Smooth automatic feed system – two-axis automatic feed provides precise movements with a maximum longitudinal travel of 530 mm and transverse travel of 220 mm, ensuring efficient machining. Stability and durability – the massive 800 kg construction minimizes vibrations, ensuring stable operation during intensive use. Easy maintenance – centralized lubrication of guideways reduces manual maintenance requirements and extends machine service life. Ready for operation – equipped with digital readout and fully prepared for immediate production, minimizing downtime. Machine design and technology Robust construction and precision components The MYS820 200×480 magnetic surface grinder features a heavy-duty 800 kg structure that provides excellent stability during machining. Hardened and ground linear guideways eliminate vibrations, ensuring smooth table movement and high-quality surface finishing. The spindle, driven by a 1.1 kW motor, operates with a grinding wheel measuring 200 × 19 × 32 mm, allowing efficient processing of various materials. Advanced feed system The machine is equipped with automatic feed in two axes, providing: maximum longitudinal travel: 530 mm maximum transverse travel: 220 mm The precise transverse feed per handwheel rotation is 2.5 mm, while the vertical feed is 1.25 mm, allowing accurate adjustment of machining parameters to specific requirements. Technical specifications Parameter Value Table dimensions 400 × 200 mm Maximum longitudinal travel 530 mm Maximum transverse travel 220 mm Spindle-to-table distance 490 mm Grinding wheel dimensions 200 × 19 × 32 mm Manual transverse feed 2.5 mm/rev Manual vertical feed 1.25 mm/rev Spindle speed 2850 rpm Motor power 1.1 kW Machine dimensions 1680 × 1140 × 1800 mm Weight 800 kg

Condition: like new (used), Year of construction: 2016, Jung Supromatic JF 520 Jung Supromatic JF 520 Surface Grinding Machine, year of manufacture 2016, very good general overhauled original condition. The machine comes from the technical center of a renowned German mechanical engineering company. Technical Data: Year of manufacture: 2000 Technical Data: Clamping area (L x W in mm): 600 x 200 Grindable area (L x W in mm): 600 x 250 Max. magnet size mm: 500 x 200 Max. grinding wheel dimensions mm: 225 (250) x 25 x 51 Distance table/spindle center mm: Max. 400 Table longitudinal feed traverse m/min: 1 – 20 Creep feed mm/min: 0 – 500 Grinding spindle drive speed RPM: 800 – 4200 Power kW (with creep feed): 1.6 – 2.2 Machine weight approx.: 2.0 t Accessories and Equipment: Magnet Coolant system Machine feet Grinding wheel About the machine: We are offering a Jung Supromatic JF 520 surface grinding machine, year of manufacture 2016, in very good condition. The machine is, of course, fully operational and has completed approx. 50 operating hours since overhaul. All slides move very smoothly and evenly. Even at high speeds, the Jung runs very quietly. This newer generation of surface grinding machines is very user-friendly and can achieve surfaces with a low Rz value. Take the opportunity to inspect this machine under power on site and see for yourself its condition. Scope of overhaul: Knjdpfsy Naw Iex Ak Asa Mechanical scope: Mechanical basic overhaul Hydraulics Feed Lubrication Cross and vertical adjustment Grinding spindle Dresser Painting to new-machinery quality Geometric scope: Guideway grinding at the manufacturer’s facility (optional) Scraping of the guideways Column pull, measurement, possible re-scraping/grinding, adjusting with pressure stones, check and pattern guideways Setting of cross-grinding on spindle head Aligning the dresser Regrinding the table and magnet Machine acceptance to manufacturer's inspection checklist Electrical scope: Renewal of complete electrics, all limit switches and buttons Conversion of X-axis from cam switch to contactless limit switches New control cabinet RSF position display (2- or 3-axis readout) Holding force regulation for 24V or EP-magnetic chuck Control system modernization New auxiliary control cabinet (control panel top right) Thyristor control for grinding spindle drive Manual cylindrical dressing with head or side dresser (for Diaform operation)

Condition: used, Year of construction: 1980, grinding length 500 mm grinding width 200 mm workpiece height 290 mm Machine from the German Federal Institute of Physics and Metrology - geometrically revised - electrics tested, fully functional, relevant parts replaced - all wear parts replaced Ksdpfowb Hygex Ak Aena - colour light grey, colour condition good Equipment: - electro magnet 500x200mm - grinding spindle overhauled 2-axis display for Y and Z axes Automatic delivery for Y and Z axes Y-axis with zero shutdown Manual hand dresser Stepless speed for grinding wheel V-constant via disc wear Paper band filter system, used Max. height with 250 disc diameter 290mm max. grinding area 600x250mm max. load incl. magnet 100kg Warranty: 1 year on geometry and electronics, Germany-wide Delivery: ex works Shipping time: immediately Payment: before pickup Acceptance at our premises Shipping according to your specifications

Condition: reconditioned (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 3806, grinding length: 600 mm, grinding width: 250 mm, grinding wheel diameter: 250 mm, grinding spindle speed: 3,000 rpm, power: 3.5 kW (4.76 HP), Equipment: rotational speed infinitely variable, JUNG JF520 SPM – workshop overhauled Mechanically / geometrically and electrically completely overhauled in 2007 Mechanically and geometrically partially overhauled in 2025 and fully functional Wear parts replaced Geometry overhauled according to JUNG new machine protocol - Grinding area: 600 x 250 mm - Stepper motor feed - 3-axis RSF digital readout - Dressing dimension compensation - Magnetic force control - Automatic central lubrication - Used magnetic chuck - Used paper band filter Knsdowz Hf Nspfx Ak Aea 6 weeks parts warranty Delivery time: short notice We are happy to take your used JUNG grinding machine in part exchange.
