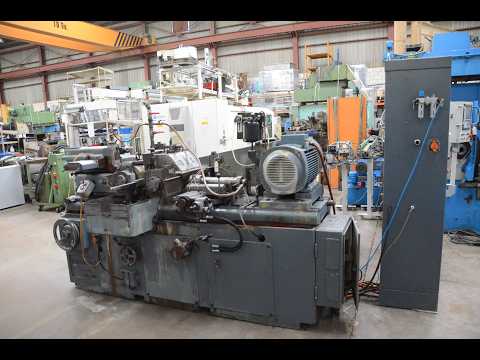

Centerless grinding machine

LIDKÖPING 3B

Condition: good (used), Grinding wheel dimensions (OD x ID x width): Ø406 x Ø229 x 254 mm Min./max. diameter to be ground: 125 mm Grinding wheel width: 254 mm Max. plunge grinding length: 254 mm Regulating wheel dimensions (OD x ID x width): Ø280 x Ø165 x 254 mm Grinding wheel motor power: 30 HP Lodow R Rrqopfx Aikehg Total power: 34 HP Approx. weight: 5,500 kg Dimensions: 2,600 mm length x 1,200 mm width x 1,200 mm height

Condition: used, Year of construction: 1994, Technical details: number of spindles: 8 spindle passage: 32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 Lhjdpjl Su Rxofx Aikjg electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 16 [mm] - Travel : 205 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Max. bar diameter : 16 [mm] - Spindle speeds : 10.000 [rpm] - C axis indexing precision : 1 [°] GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 4 - Live tools speed : 8.000 [rpm] SECONDARY OPERATION - Number of positions : 5 - Number of motorized positions : 3 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2.269 x 1.160 [mm] - Machine height : 1.693 [mm] - Machine weight : 1.800 [kg] Lsdeuwd Ryjpfx Aikjhg EQUIPMENT - CNC : Mitsubishi MELDAS - Rotating guide bush - Parts catcher - Ejection of workpiece - Coolant tank - Bar loader : LNS Hydrobar Express 332 - Fire extinguisher * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

Condition: good (used), Production capacity of up to 4000 b/h (depending on the format) For formats between 0,25lts up to 3lts Composed by: • Oven for heating the preforms composed of 6 heating modules with 8 infrared lamps each • Preform transfer Wheel • Two-stage compressed air blowing body, low pressure pre-blowing and subsequent high pressure blowing. • Bottle transfer Wheel • Delivered with pallet turner. Lsdpfx Ajwcggvsikjhg DOCUMENTATION AVAILABLE

Condition: good (used), Year of construction: 2015, C 22 U + IH 30 handling system + ZM 192 additional magazine Machine parameters: Travel in X, Y, Z axes: 450, 600, 330 mm Max. spindle speed: 18000 HSK-A63 rpm Description: Lhodpoy Rgfzefx Aiksg The machine is in good technical condition, test operation is possible by prior arrangement. Equipped with Hardware KinematicOpt, centre cooling 80 bar, BLUM LC 50 TL200, Renishaw TNC 640. Original price was approx. €570,000. Comprehensive specification of supplied components and options available – will be provided upon request.

Condition: good (used), centerless grinding machine Lhsdpfx Astrguvsikog

Condition: ready for operation (used), For sale is a Nikken CNC 400 rotary table in very good condition! It is configured for a Mazak M32 control but can be adapted as needed. Table diameter: 400 mm. Dimensions (L/W/H): 740/240/420 mm. If you have any further questions, feel free to contact me. Ljdpfx Aijya Dtmskehg

Condition: like new (used), Year of construction: 2008, YEAR : 2008 Year MAXIMUM PRESSURE OF THE RAM : Ton. 2.000 Ram capacity SLIDE STROKE : mm. 1500 Lodpfxsvm Eixs Aikohg Slide strok TABLE DIMENSIONS : mm. 5000 x 2380 Table size PRESSION OF THE BLANKHOLDER UPPER : Ton.300 Blankholder STROKE OF THE BLANKHOLDER SLIDE : mm. 200 Cushion stroke ram RAPID SPEED : mm/sec 220 Fast stroke PRESSION OF THE BLANKHOLDER CAPACITY : Ton. 600 Cushion capacity STROKE OF THE BLANKHOLDER SLIDE : mm. 400 Cushion stroke HEIGHT ABOVE GROUND : mm. 9,145 Ground up to floor FRONT LIGHT: 5000 mm Distance btw uprights TOTAL WEIGHT: KG. n.d

Condition: used, Year of construction: 1996, Technical details: grinding diameter: 1,5 - 75 mm grinding wheel diameter: 400 mm grinding wheel width: 160 mm work stroke: 0 - 1 mm working feed: stufenlos/ continous mm/min grinding wheel speeds: 1300 U/min control for program: Num 1020 GC total power requirement: 14 kW Lhedpfx Aisu Ngyzokeg weight of the machine ca.: 3,8 t dimensions of machine: 3,0x2,2x2,2 m dimensions electric cabinet LxWxH: 1,5x0,4x2,0 m CIRCULAR GRINDING MACHINE - alloyed round steels as well as (grooving process) throughfeed process. - In the plunge process, the plunge-cut length is max. 160mm. - Workpiece removal automatically via rail (its function or operation is not known to WMW AG) - grinding wheel with reshaping device, speed = 1300 rpm. - regulating grinding wheel with reshaping device, infeed angle right 0-6° and left 0-2°; wheel size 280x160mm - automatic grinding wheel balancing system accessories: various grinding and regulating wheels on request The machine is operating in manual mode! The control is in the Catalan language and none of our employees can control the machine or understand the language. *

Condition: good (used), GENERAL CHARACTERISTICS Max. Ø to be ground 120 mm Lhedpfx Aisrpnf Aokeg Grinding wheel width 250 mm Minimum Ø to be ground 1 mm Ø drive grinding wheel 304 mm Ø working wheel 508 mm DIMENSIONS AND WEIGHT Height 1,700 mm Width 1,500 mm Length 2,750 mm Weight 4,000kg ELECTRICAL CHARACTERISTICS Grinding head motor power 15 Kw Spindle head motor power 1,8kw Hydraulic motor power 1,1kw Total power 20 kW Voltage 220/380 V
