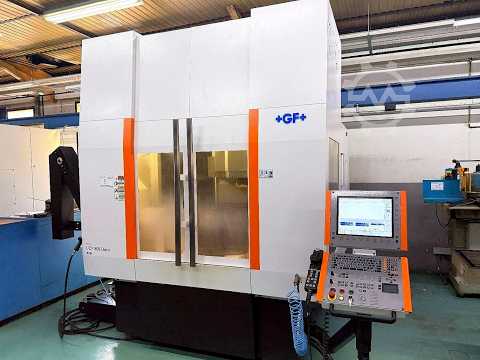

5-axis machining center

MIKRON UCP 800 Duro

Condition: good (used), Year of construction: 2006, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 500 mm, feed rate X-axis: 30,000 m/min, feed rate Y-axis: 30,000 m/min, feed rate Z-axis: 30,000 m/min, controller manufacturer: HeidenHain iTNC530, total height: 3,200 mm, total length: 3,200 mm, total width: 2,400 mm, table width: 600 mm, table length: 600 mm, table load: 500 kg, overall weight: 10,000 kg, spindle speed (max.): 20,000 rpm, spindle motor power: 18,000 W, 5-axis CNC machine (VMC) MIKRON - UCP 800 MACH-ID 9640 Make: MIKRON Type: UCP 800 Control: HeidenHain iTNC530 X - Travel: 800mm Y - Travel: 650mm Z - Travel: 500mm A - Axis: +120 to -100° B - Axis: 360.000° Table Length: 600mm Table Width: 600mm Table load: 500 Feed rate X-Axis: 30000mm/min. Ijlszkry Ishccqmoti Feed rate Y-Axis: 30000mm/min. Feed rate Z-Axis: 30000mm/min. Spindle Taper: HSK63ISO/Bt/Mk Power on spindle: 18kW Speeds / ranges: 20000Rpm ATC / revolver: 30 Coolant through spindle / Bar:20 Number of controlled axis: 5 Chip conveyor: yes Coolantsystem: yes Length: 3200mm Width: 2400mm Height: 3200mm Weight: 10000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: refurbished (used), grinding length: 600 mm, grinding width: 200 mm, grinding length 600 mm grinding width 200 mm electromagnetic chuck 450×175 mm X-travel 660 mm Z-travel 225 mm grinding wheel size 250x25x51 mm Islhcexal Hyocqmeti Control Jung TouchScreen weight approx. 3000 kg

Condition: good (used), Year of construction: 2004, operating hours: 90,000 h, functionality: fully functional, machine/vehicle number: 6010.0176, Technical Data Manufacturer: MIKRON Model: UCP 800 Duro Year of construction: 2004 Control system: Heidenhain iTNC 530 Travel in X-axis: 800 mm Travel in Y-axis: 650 mm Travel in Z-axis: 500 mm Rotary table 600 x 600 mm Max. table load: 500 kg Rotation range C-axis: 360° Tilting range A-axis: +120° / -100° Rapid traverse X/Y/Z: 30 m/min Spindle manufacturer: Step-Tec AG Spindle type: HVCS212-S-12-1.7/20-2F-HSK-A63 Max. spindle speed: 20,000 rpm Tool interface: HSK-A63 Spindle power: 12 kW (S1) Machine weight: approx. 9,900 kg Connection power: 18 kW Operating voltage: 3x 400V + PE / 50Hz Description For sale is a high-precision 5-axis vertical machining center from the Swiss quality manufacturer MIKRON, model UCP 800 Duro. The machine is in good, well-maintained condition and is equipped with a powerful Step-Tec motor spindle up to 20,000 rpm and a reliable Heidenhain iTNC 530 control system. An integrated BLUM LaserControl system ensures precise tool measurement and breakage monitoring. Special advantage for buyers: The machine is currently still installed and operational. An inspection and a function test can be carried out after prior appointment. Equipment / Highlights ( )5-axis simultaneous machining for complex components Ielhccqjzc Hqasmeti Heidenhain iTNC 530 CNC control system with hand-held device Step-Tec high-speed spindle (max. 20,000 rpm) BLUM LaserControl (laser tool monitoring) Chip conveyor including chip cart CE marking available Delivery conditions Condition: Used, fully functional, can be tested while powered on. Location: Sinn, Germany Availability: By arrangement. Dismantling & Transport: The buyer bears the costs for dismantling, loading and transport (ex works / EXW).

Condition: good (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 107.44.00.072, travel distance X-axis: 800 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, feed rate X-axis: 15 m/min, feed rate Y-axis: 15 m/min, feed rate Z-axis: 20 m/min, workpiece weight (max.): 500 kg, table width: 600 mm, table length: 600 mm, table load: 500 kg, overall weight: 9,900 kg, spindle speed (max.): 20,000 rpm, number of slots in tool magazine: 30, Equipment: chip conveyor, documentation/manual, Mikron UCP 800 Duro – 5-axis CNC machining centre Ijlhccswww Rhsqmsti We offer for sale a precise 5-axis CNC machining centre Mikron UCP 800 Duro from the renowned Swiss brand GF Machining Solutions. The machine is perfect for machining complex parts, moulds, dies, and components that require the highest precision and surface quality.

Condition: used, x-travel 500 mm y-travel 400 mm z-travel 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : DECKEL MAHO CNC Universal Milling Machine model DMU 50 M year 1998 Working range: Longitudinal stroke X Axis 500 mm Vertical stroke Z Axis 400 mm Cross stroke Y Axis 400 mm C-axis – table turning, manual 360 ° B-axis – table swivelling, manual ° Table area Ø 700 x 500 mm Inclination range of table (manually) + / - ° Rotation of table (manually) 360 ° Max. Table load approx. 200 kg Maximum distance table – spindle nose 550 mm horizontal distance machine – spindle nose 2 – 6 mm Tool holder Taper ISO 40 Spindle speeds 20 – 4,500 rpm Feed rate max. 5.000 mm/min AC main drive, 0% / 40% power-on time approx. 9 / 13 kW Total electrical load, approx. 15 kW - 400 V - 50 Hz Weight, approx. 3,000 kg Accessories / Special Features • 3 Axis HEIDENHAIN Point to Point Control Model TNC 124 with Monitor, direct programming and input of data and electronic handwheels. • All 3 axis are operated by the milling head, the table is stationary so also out of proportion workpieces can be machined. • Rotary Table can be manually rotated 360° and manually inclined + / -° (each with clamping). The digital read-out of the angles is integrated in the CNC control • Simple coolant unit with pump and tank, built-on switch cabinet (SIEMENS parts) • Pneumatic tool claomping, Some tool holders available, manuals, CE-Certificate, etc. Islhev Td Eljccqmeti Condition : very good condition ! Ideal for training center or single parts machining ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 0 % Net, after conclusion of contract, before loading We always have a large selection of milling machines - CNC or conventional - available. Please let us know your requirements.

Year of construction: 2018, condition: ready for operation (used), A DMT lathe is available. Center distance: 1000mm, swing diameter over bed/face slide: 420mm/210mm, bed height: 340mm, spindle bore: 64mm, spindle diameter: 115mm, speed: 4000rpm, quill diameter: 60mm, quill stroke: 140mm, face slide width: 210mm, face slide length: 640mm. Machine dimensions X/Y/Z: approx. 2150mm/1150mm/1700mm, weight: approx. 1800kg, control: Heidenhain, operating hours: approx. 300h. Documentation available. On-site inspection is possible. Ieljwtg H Rehccqmjti

Condition: used, Year of construction: 2003, centre height 255 mm centre distance 1.080 mm turning diameter over bed 500 mm turning diameter over slide 290 mm turning length 1.000 mm control EuroTurn spindle bore 70 mm spindle taper KK 8 DIN 55027 3-jaw-chuck diameter 250 mm bed width 360 mm turning speed range 2 - 2.800 U/min rapid travel - longitudinal/face 10 / 5 m/min quick change toolholder PARAT Gr. 2 drive capacity - spindle motor 11,0 kW taper in tailstock-quill MK 5 dia. of quill 80 mm Itolhcswizltocqmei quill stroke 160 mm voltage 400 V total power requirement 16,0 kVA weight of the machine ca. 3,0 t dimensions of the machine ca. 2,85 x 1,60 x 1,80 m - Serial-No.: 495 / 03 - control: EuroTurn - quick change tool holder PARAT - coolant equipment - machine lamp

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, 5-AXIS MACHINING CENTER MIKRON HPM 450U + WORKPARTNER SYSTEM 3R, 115 POSITIONS, MANUFACTURED IN 2014 EQUIPPED WITH HEIDENHAIN TNC 530 ELECTRONIC HANDWHEEL TRAVEL: X 600, Y 450, Z 450, B +45º/-120º, C, X 360º Itelhcoy Twa Uscqmji SPINDLE: 20,000 RPM, 36 KW, HSK-A63 LINEAR SCALES ON X, Y, Z 120-TOOL CHANGER ROBOT SYSTEM 3R WITH 115 PALLETS TOOL MEASURING PROBE WORKPIECE MEASURING PROBE PAPER FILTER SPINDLE COOLING UNIT

Condition: like new (used), functionality: fully functional, grinding length: 650 mm, grinding width: 300 mm, grinding wheel diameter: 160 mm, overall weight: 2,550 kg, power: 4 kW (5.44 HP), Brand: CCP - STANKOIMPORT Isljqy H Dpohccqmoti Model: 3E711B Dimensions to grind: 650x300mm (X, Y) - 320mm (Z) Magnet table surface: 630x200mm Permissible table weight: 150kg Distance spindle axis to table surface: 80 - 445mm Maximum stroke of the grinding head: 365mm Manual table travel: (700mm, 250mm) Table travel speed: 2 - 30 m/mm. Cross traverse speed: 0,01 - 1,5m/mm. Vertical feed rate graduation value: 0,002mm Vertical micro. graduation value: 0,0005mm Transversal feed graduation value: 0,5mm Micro. vertical feed graduation value: 0,001mm Transverse displacement one revolution of the nonius: 5mm Vertical displacement one turn of the vernier: 0.20mm Automatic table traverse feed longitudinal course: 0,2 - 30mm Automatic feed rate for grinding head: 0,002 - 0,08mm Grinding wheel dimensions: 250x76x40mm Minimum grinding wheel diameter: 160mm Spindle motor: 4kw Weight: 2550 kg.

Condition: good (used), Year of construction: 2016, spindle speed (max.): 3,500 rpm, overall weight: 6,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main parameters: Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore: 86mm With jacket tube.:78mm Turret head: 12 main positions 12 secondary positions, BMT65 connection, Itelswtg Inshccqmsi Programmable hydraulic tailstock: MT5 Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw S2max=5000 1/min X movement range: 260mm Z axis movement range: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Largest turning diameter: D=376mm Fast travel speed: 30m/min Automatic tool measurement with probe arm Weight: 6000 kg
