Used Angle Gear for sale (17,067)

Condition: used, functionality: unexamined, Ferwood Code: RU0009426 - Manufacturer Code: - Condition: Used - Functionality: Not tested - If interested we offer a revision service, contact us. Predsv Hzvujpfx Agzof

Year of construction: 2018, condition: used, Belt conveyor slider 1900-300-1050 Make: Transnorm like new, showroom machine Year 2018 Length:1900 mm Belt width: 300 mm Stand dimensions: 790x480 mm Current conveyor belt height: 1050 mm Adjustable foot height: 100 mm Maximum ejection width: 890 mm Belt conveyor speed: 0,03-1,487m/s Prodpfx Ask Abgyogzjf Electrical data Completely wired with sensors, direct wiring in the control box Belt conveyor motor data: V300-500, kw 0,75/S1 with frequency converter Ejection motor data: V300-500, kw 0,11-1,1/S1 with frequency converter and Brake Prices net plus VAT ex central warehouse Dr. Sonntag GmbH & Co KG, 97076 Würzburg, Germany For individual, professional advice, simply contact us. Simply contact us by phone or e-mail. We will be happy to help you with the planning and implementation of your projects. We look forward to hearing from you. With kind regards Your team at Dr. Sonntag GmbH & Co. KG Your specialist and contact for intralogistics

Condition: good (used), Year of construction: 1987, gear diameter 800 mm, module 16 Prsdpfx Agsx Ifkdozef

Condition: used, Year of construction: 1975, REISHAUER gear flank grinding machine AZO with balancing device AM10 Psdpox Eza Aofx Agzerf

Condition: excellent (used), Year of construction: 1999, operating hours: 67,760 h, functionality: fully functional, General Machine Information Manufacturer: Hurth / Modul Machine Type: CNC Gear Hobbing Machine (High-Precision) Control Unit (CNC): Siemens SINUMERIK 840C Year of Manufacture: 1999 Machine Weight (Approximate): 11 000 kg (11 tonnes) Total Connected Load (Approximate): 30 kVA Workpiece and Machining Capacity Podpfx Agox Ez Erszsrf Maximum Workpiece Diameter: 315 mm Maximum Module (Nominal for Steel): 6 mm Maximum Hobbing Length (Axial Travel, Z-Axis): 400 mm Maximum Workpiece Weight (Table Load): 500 kg Workpiece Table Diameter: 320 mm Table Speed (Max.): Up to 250 rpm Hobbing Tool Spindle Hob Spindle Taper: SK 40 or similar high-precision taper Maximum Hob Diameter: 130 mm Maximum Hob Length: 280 mm Maximum Hob Spindle Speed: 1500 rpm Hob Spindle Drive Power (S6): Up to 25 kW Hob Head Swivel Angle (B-Axis): ±45 degrees Axes Travel and Feed Rates Radial Travel (X-Axis / Cutter Infeed): 350 mm Axial Travel (Z-Axis / Hob Slide): 400 mm Maximum Shift Travel (V-Axis / Tangential): 240 mm Maximum Rapid Traverse Rate (X/Z): 15 000 mm/min Feed Rate (Axial/Radial): 0.1 to 10 000 mm/min

Condition: ready for operation (used), Year of construction: 1986, operating hours: 1,200 h, functionality: fully functional, wheel width: 250 mm, helix angle: 45 °, type of input current: AC, travel distance Y-axis: 250 mm, feed rate X-axis: 12 m/min, stroke length: 400 mm, rotational speed (min.): 1,500 rpm, rotational speed (max.): 2,600 rpm, grinding wheel speed: 2,100 rpm, grinding spindle motor power: 1,500 W, gear diameter: 250 mm, overall weight: 3,730 kg, rotary table diameter: 200 mm, stroke adjustment: 400 mm, tool length: 280 mm, wheel diameter: 250 mm, distance table center to spindle nose: 607 mm, Equipment: sliding door, Grinding Machine STANKO 3A662 The STANKO 3A662 is a semi-automatic tool grinding machine designed for precision sharpening of worm milling cutters and gear cutting tools. Manufactured in the former USSR, this machine is known for its robust mechanical design, reliability, and long service life in industrial environments. The machine is capable of sharpening cutters with a maximum diameter of up to 200 mm and a maximum cutter length of approximately 280 mm. Grinding is performed using abrasive or diamond grinding wheels with diameters from 200 to 250 mm, allowing flexibility for different sharpening operations. The grinding slide provides a maximum stroke of 400 mm, with adjustable feed speeds depending on the spiral pitch of the cutter. The grinding head can be swiveled up to ±45°, enabling the sharpening of cutters with different helix angles. The grinding spindle operates at discrete speeds of 1500, 1900, 2100, and 2600 rpm and is powered by a 1.5 kW motor. The machine operates on three-phase AC power (220/380 V, 50 Hz). With an overall machine weight of approximately 2600 kg (up to 3730 kg including accessories), the rigid cast-iron construction ensures excellent stability and vibration damping during operation. Key Features -Semi-automatic grinder for worm milling cutters Pedsx Nprbspfx Agzorf -Maximum cutter diameter: 200 mm -Grinding wheel diameter: 200–250 mm -Adjustable grinding slide stroke up to 400 mm -Swivel grinding head up to ±45° -Multiple spindle speeds: 1500 / 1900 / 2100 / 2600 rpm -Supports abrasive and diamond grinding wheels -Heavy-duty industrial construction Typical Applications -Sharpening of worm milling cutters -Maintenance and reconditioning of gear cutting tools -Tool rooms and gear manufacturing plants

Condition: used, functionality: unexamined, Ferwood Code: RU0009347 - Manufacturer Code: 31320008 - Condition: Used - Functionality: Untested - If interested we offer a revision service, contact us. Prodov Hrpfspfx Agzsf

Condition: repair required (used), Warehouse clearance Prsdpox E Uz Tjfx Agzof 2 gear hobbing machines for sale as parts donors. Price: 600.00 / for both

Condition: good (used), Year of construction: 1998, spindle diameter 90 mm control Siemens SINUMERIK 840 C voltage 400 V stroke position adjustment 100 mm table hole 150 mm no. of strokes 100-1200 Hub/min weight of the machine ca. 8,0 t Key data Normal module: 6 mm Max. workpiece pitch circle diameter: 250 mm Max. tooth width (straight teeth): 60 mm Helix angle adjustment: 45° to +0.5° Axis angle: 0° to 90° Center distance workpiece/jigging spindle: –80 mm to +320 mm Stroke position, stroke length Max. stroke position range (depending on stroke length): 0 mm to 80 mm Stroke position adjustment range: 0 mm to 80 mm Stroke drive Stroke rates infinitely variable Standard: 100 to 1200 DH/min Motor for stroke drive: 9 kW Maximum cutting speed: 150 m/min Feeds Rotation axes (tool C1, workpiece C2 axis): Feed stepless relative to 100 mm pitch circle diameter: 1.0 to 9420 mm/min Radial axis (column slide X1 axis): Feed continuously variable: 1.0 to 9420 mm/min, rapid traverse corresponds to maximum feed rates Connected load / weight Total connected load: 26 kVA Total weight (standard version): approx. 9,000 kg Podoxyadtopfx Agzerf

Condition: good (used), Year 2003 Processing machine for machining splines and sprockets on crankshafts or shaft-like components Liebherr PC-NC control system for disk cutting wheels in the range 180-300mm for hobbing Vertical machining with straight shaping head and synchronization Clamping in chuck in the machine bed and tailstock as counterholder Integrated ring loader between machining and loading position Automatic loading hatch from above with loader interface The machine is currently still in series production and can be inspected under power Front screen of the monitor defective, display undamaged after visual inspection Fuse for controls and drives included - free location Availability after consultation, warranty excluded Pjdot Utdpepfx Agzorf Year of Production:2003 Shaping machine for producing splines and sprockets onto crankshafts and Control Liebherr PC-NC For shaping tooling in range of 180-300mm for Hobbing Vertical machining with straight cutting head and Synchronization Clamping in Jaw on the machine bed and tailstock as counterpart integrated Ring-load between Machining and loading position automatic Gantry door for overhead loading and corresponding interface Machines are actually in serial production and can be inspected upon request front glass of Monitor damaged, screen itslef seems unharmed on first glance safeguarding of control and drives included - free location availability on agreement, no warranty possible

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, Reishauer RZ 362A with approx. 60 sets of diamond wheels Grinding worm dimensions: Min/Max. outside diameter: 280/350 mm Width: 84/104 mm Max. module with restrictions: MOD 8.0 (DP 3.2) Number of starts: with restrictions up to 3 Max. usable width (axial shift): 90 mm Prjdpfxsxb Ufuj Agzef For detailed technical information, please refer to the attached PDF file. Accessories: Dressing device Approx. 60 sets of diamond wheels Grinding stones Turbo separator

Condition: ready for operation (used), Year of construction: 1978, operating hours: 4,500 h, functionality: fully functional, workpiece weight (max.): 2,000 kg, rotary table diameter: 1,020 mm, table diameter: 1,020 mm, feed rate X-axis: 8 m/min, feed rate Y-axis: 4 m/min, feed rate Z-axis: 2 m/min, total length: 4,500 mm, gear diameter: 1,550 mm, total height: 3,300 mm, total width: 2,100 mm, input current: 50 A, input frequency: 50 Hz, workpiece diameter (max.): 1,580 mm, milling spindle length: 380 mm, type of input current: three-phase, milling length: 600 mm, spindle speed (max.): 200 rpm, spindle speed (min.): 28 rpm, grinding spindle motor power: 11,000 W, outer diameter: 1,580 mm, overall weight: 16,000 kg, rotational speed (max.): 200 rpm, rotational speed (min.): 28 rpm, table load: 2,000 kg, mount diameter: 235 mm, helix angle: 45 °, tool diameter: 235 mm, Gear Hobbing Machine MODUL ZFWZ 1250 The MODUL ZFWZ 1250 is a heavy-duty gear hobbing machine designed for high-precision cutting of large spur and helical gears. Manufactured by VEB Werkzeugmaschinenkombinat “7. Oktober” Berlin – Kombinatsbetrieb MODUL (Germany), this machine is renowned for its robust construction, long service life, and reliable performance in demanding industrial applications. The machine is upgrated for machining gears with a maximum workpiece diameter of 1550 mm. It features a gear hobber diameter of 235 mm, with a cutting width of 600 mm, and supports gear modules from 2 to 16, making it suitable for a wide range of gear sizes. The hobbing spindle operates with infinitely variable speed control between 28 and 200 rpm, allowing precise adjustment to different materials and cutting conditions. The machine is equipped with a tilting stand (left/right ±45°) for machining helical gears. The main drive motor is inverter-controlled with a power of 11,000 W (11 kW), supported by a 12.5 kW rapid traverse motor, ensuring both high cutting performance and efficient non-cutting movements. The large rotary table with a diameter of 1020 mm provides excellent stability for heavy workpieces. With a total machine weight of approximately 16,000 kg and rigid cast-iron construction, the ZFWZ 1250×14I delivers excellent vibration damping and machining accuracy. Power supply is 3-phase AC, 380 V, 50 Hz. Key Features -Gear hobbing for spur and helical gears -Maximum gear diameter: 1550 mm -Gear hobber diameter: 235 mm -Module range: 2–16 -Cutting width: 600 mm Prsdpfxsx I Ntpo Agzof -Infinitely variable spindle speed: 28–200 rpm -Tilting stand: ±45° -Heavy-duty industrial design -Extended driven shaft for large gears -Inverter-controlled main motor (11 kW) -Expanded set of change gears Applications: -Heavy gear manufacturing -Large transmission components -Industrial gear production and refurbishment

Condition: excellent (used), Year of construction: 2006, operating hours: 53,244 h, functionality: fully functional, Technical Data – Gleason Phoenix II 600HC (CNC Hypoid Gear Cutting Machine) Working Area Max. workpiece diameter: Ø 600 mm Max. tooth depth: 24.6 mm Prsdsxwzu Iepfx Agzsf Max. gear width: 110 mm Number of teeth: 1–300 Cutterhead size face milling (FM): 18" diameter Cutterhead size hobbing (FH): 210 mm radius Max. cutter spindle speed: 600 min⁻¹ Work Spindle Front taper diameter: Ø 203 mm Taper bore diameter: Ø 181 mm Bore depth: 884 mm Max. work spindle speed: 600 min⁻¹ Dimensions and Weight Footprint L × W × H: 4.4 × 3.5 × 3.5 m (incl. peripherals) Machine weight: 26,000 kg Connection Data Total connected load: 139 kVA Main fuse: 200 A Operating voltage: 400 V Mains frequency: 50 Hz Control voltage: 24 V DC

Condition: ready for operation (used), Year of construction: 1977, 2 x STANKO 5B150 Table diameter: 800mm Max. diameter: 1000mm Max. stroke: 200mm Prodpfox Iun Ejx Agzof Max. module: 12

Condition: used, Year of construction: 2001, max. wheel diameter 400/500 mm CNC-Control GE FANUC Series 160i-M pinion diameter - max. 400 mm crown gear diamter max. 500 mm x-axis +/- 70 mm y-axis 200 mm z-axis 200 mm axis angle 90 Grad Prsdpsvxwxcofx Agzef speeds: R T min rated current 30 kVA weight of the machine ca. 6,2 t dimensions of the machine ca. 3,2 x 2,5 x 2,3 m

Year of construction: 2015, condition: ready for operation (used), A high-performance planetary gear production line EMAG including automation and peripheral equipment is available. 1) Raw parts storage (stacker) EMAG. 2) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 3) Vertical single-spindle turning center EMAG VLC100, max. workpiece diameter: 100mm, max. workpiece height: 150mm, max. chuck diameter: 160mm, max. swing diameter: 210mm, travel X/Z: 650mm/375mm, speed: 6000rpm, rapid traverse X/Z: 60m/min/30m/min, tool stations: 12, tool holder: VDI30, control: Siemens 840D sl. 4) Vertical hobbing machine EMAG VLC200H, max. workpiece diameter: 200mm, max. module: 4, travel X/Y/Z: 790mm/120mm/400mm, swivel range: +/-35°, control: Siemens 840D sl. 5) Vertical chamfering/deburring machine EMAG VLC100C, max. workpiece diameter: 100mm, max. workpiece height: 150mm, travel X/Z: 900mm/375mm, control: Siemens 840D sl. 6) Internal automation EMAG TrackMotion with 2x TransLift carriages. Type: transfer automation, purpose: part feeding/intermediate station transport/part removal, control: HT8. 7) O-belt automation for each EMAG machining machine with pallet and belt buffer, max. pallets: 24pieces/machine. 8) Marking press Markator for part marking. 9) Part handling unit EKF Automation in gantry design. 10) Basket stacking cell EKF Automation for the finished parts storage, number of stacks: 3. Documentation available. An on-site inspection is possible. Psdpfx Agox Dm D Iszorf

Condition: used, Year of construction: 1954, total height: 2,000 mm, total width: 1,600 mm, total length: 2,400 mm, Empty weight: 1.000 kg Price: On request Chuck: 700mm  Prjdpfxexbq U Ss Agzof Workpiece maximum height: 550mm  X axis displacement: 450mm - Year: 1954 - Documentation available: No - CE certificate present: No - Transport dimensions: 2400mm x 1600mm x 2000mm (l x w x h) - Transport weight [kg]: 1000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: ready for operation (used), Year of construction: 1982, operating hours: 120 h, functionality: fully functional, machine/vehicle number: 572, wheel width: 32 mm, helix angle: 45 °, type of input current: three-phase, workpiece weight (max.): 200 kg, stroke length: 160 mm, rotational speed (min.): 50 rpm, rotational speed (max.): 280 rpm, grinding wheel speed: 1,920 rpm, grinding spindle motor power: 1,500 W, grinding wheel bore: 127 mm, grinding wheel diameter: 350 mm, overall weight: 8,000 kg, grinding wheel width: 32 mm, rotary table diameter: 280 mm, stroke adjustment: 160 mm, table diameter: 280 mm, table load: 200 kg, wheel diameter: 350 mm, Gear Grinding Machine Stanko 5M841 / 5A841 The Stanko 5M841 (5A841) is a heavy-duty gear grinding machine designed for precision finishing of cylindrical gears with straight and helical teeth. This machine is widely used in industrial gear production and is known for its robust construction, reliability, and long service life. The machine is capable of grinding gears with helix angles up to ±45° and supports workpieces weighing up to 200 kg. Grinding is performed using disc-type grinding wheels with a diameter of 260–350 mm and a width of 16–32 mm, ensuring high accuracy and consistent surface quality. The grinding wheel spindle operates at 1920 rpm and is driven by a 1.5 kW motor. The reciprocating stroke of the grinding slide is infinitely adjustable from 20 to 160 mm, with a variable stroke rate of 50 to 280 double strokes per minute, allowing precise adaptation to different gear sizes and grinding conditions. The machine is equipped with a rotary work table (Ø 280 mm) and is designed for continuous industrial operation. Power supply is 3-phase, 380 V, 50 Hz. With an overall machine weight of approximately 8000 kg, the 5M841 offers excellent stability during grinding operations. Key Advantages: -Suitable for straight and helical gears -Helix angle up to ±45° -Heavy, rigid cast-iron construction Pjdox I Ncdopfx Agzjrf -Infinitely adjustable grinding stroke -Reliable mechanical design, easy maintenance -Ideal for medium and heavy industrial applications Typical Applications: -Precision gear finishing -Gear manufacturing and refurbishment -Mechanical engineering and heavy industry

Condition: excellent (used), Gear motor, electric motor, electric gear motor, stainless steel motor, stainless steel gear motor, stainless steel bevel gear motor Gearmotor: SEW-Eurodrive type SA87R57DRN80M4 -Speed: 17 rpm -Power: 0.75 kW -Hollow shaft: Ø 60 x 250 mm -Protection class: IP54 Predpfjw A Abijx Agzjf -Dimensions: 840/310/H370 mm -Weight: 128 kg

Condition: ready for operation (used), Year of construction: 1963, functionality: fully functional, wheel diameter: 900 mm, workpiece diameter (max.): 150 mm, overall weight: 8,200 kg, rotational speed (max.): 80 rpm, workpiece length (max.): 750 mm, TECHNICAL DETAILS Max. wheel diameter: 900 mm Max. module: 10 Max. cutter diameter: 190 mm Max. cutter length: 320 mm Cutter speeds (stepless): 13–80 rpm Max. workpiece length: 750 mm Max. workpiece diameter: 150 mm MACHINE DETAILS Podpexvr Ensfx Agzjrf Machine weight approx.: 8,200 kg Note: The arbor for the counter-support is missing.

Year of construction: 2024, condition: used, functionality: fully functional, machine/vehicle number: 1731124010219J, Allpax Angle Sealing Device / Packaging Machine Manufacturer: Hualian Machinery Group Model: PTHW-WS-5045 Prsdpfjx Ak Nrsx Agzef Serial No.: 1731124010219J Year of Manufacture: 01/2024 Condition: used Color: light grey Internal Item Number: 2025120105 Pick-up Address: Industriestraße 5 (47918 Tönisvorst) The machine was in operation until dismantling. Tailor-made Solutions for Your Intralogistics For roller conveyors, belt conveyors, inclined conveyors, or telescopic conveyors for loading and unloading your goods, as well as packaging machines, we are your competent partner! We are happy to provide you with an individual offer or advise you on system design or installation queries. Simply let us know your requirements and site conditions. Benefit from our years of experience and excellent network of experts. We have already successfully completed projects for companies in a variety of sectors, such as logistics, the pharmaceutical industry, trades, or the electronics sector. Together, we will find ways to optimise your processes and material flow cost-effectively and sustainably. We can also offer fully automatic sorting systems or complementary components, such as picking racks or containers.

Condition: good (used), Year of construction: 1975, max. wheel diameter 630 mm gear width 425 mm table hole 125 mm clamping table 550 mm max. module 10 axial-feeds 0,40 - 6,80 mm/U radial feeds 0,10 - 1,76 mm/U dist. cutter spindle - workpiece spindle 50 - 425 mm no. of teeth min. 8 milling cutter dia. x width 192 / 215 mm shifting 200 mm main drive motor 7,5 kW total power requirement 22,5 kVa weight of the machine ca. 8,2 t Machine equipment: - Universal milling head with tangential displacement - Pressure reducing valve for counterholder - Magnetic chip transport --> Working range Largest module to be milled (in steel 600 N/mm²): 10 mm --> Straight gear teeth: --> Largest workpiece diameter: 630 mm --> Largest axial slide travel (Z-axis): 425 mm --> Smallest number of teeth to be milled: 8 --> Dimensions Diameter of workpiece table: 550 mm --> Diameter of table bore: 125 mm --> Diameter of workpiece mandrel: 36 mm --> Largest milling cutter that can be clamped: --> Diameter: 192 mm --> Width: 220 mm --> Diameter of milling cutter mandrels: 32 mm Pjdpfxjw A Am Sj Agzjrf --> Centre distance between milling cutter and workpiece: --> Maximum distance: 425 mm --> Minimum distance: 50 mm --> Drive taper for cutter mandrels: Morse taper 5 --> Maximum cutter displacement: 200 mm --> Speeds and feeds Cutter speeds: 45 - 280 rpm --> Axial feed (Z axis): 0.40 - 6.30 mm/rev --> Radial feed (X axis): 0.10 - 1.60 mm/rev --> Tangential feed (Y axis): 0.14 - 2.24 mm/rev Translated with (free version)

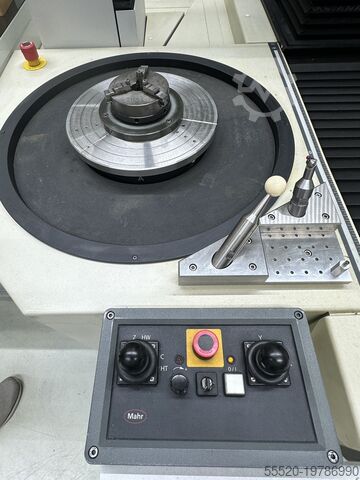

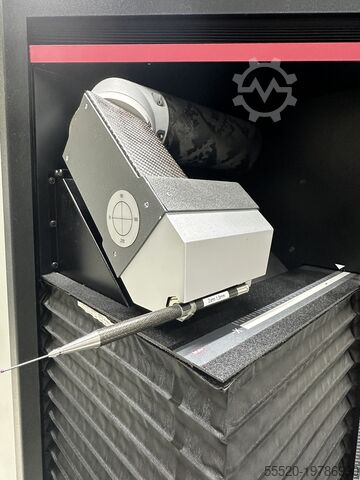

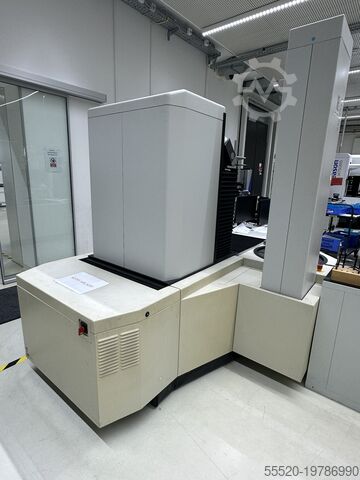

Condition: like new (used), functionality: fully functional, Module range 0.5 –15 Gear width, continuously measurable max. 400 mm Max. Outer diameter of gear 300 mm Lead angle 0° - 90° Distance between centers 0 – 900 mm Admissible loading weight max. 200 kg Prodpfx Asx N Itwegzof Fully automatic CNC-controlled gear measuring center for spur gears and other gears, depending on the software. Software: - Gears(internal/external), Shaper Cutter, Shaving Cutter

Condition: ready for operation (used), Year of construction: 1966, operating hours: 100,000 h, functionality: fully functional, workpiece weight (max.): 11,500 kg, feed length X-axis: 483 mm, feed length Y-axis: 381 mm, feed length Z-axis: 521 mm, rotary table diameter: 737 mm, table diameter: 737 mm, total length: 3,960 mm, gear diameter: 914 mm, total height: 2,300 mm, total width: 2,130 mm, input frequency: 50 Hz, workpiece diameter (max.): 914 mm, type of input current: three-phase, spindle speed (max.): 200 rpm, spindle speed (min.): 50 rpm, grinding spindle motor power: 7,500 W, overall weight: 8,000 kg, rotational speed (max.): 300 rpm, rotational speed (min.): 65 rpm, Machine Description — Churchill U/PH 3615 Gear Hobbing Machine The Churchill U/PH 3615 is a heavy-duty gear hobbing machine designed for the precise and efficient production of spur and helical gears. Built with a robust and rigid structure, this machine delivers excellent stability and high cutting performance, even under demanding industrial conditions. This machine features a vertical gear hob spindle with infinitely variable spindle speed, allowing operators to optimize cutting speed for various gear sizes and materials. The solid construction minimizes vibration and ensures consistent gear quality throughout extended production runs. The hobbing machine is capable of handling large workpieces up to 914 mm in diameter and supports a wide range of gear widths, making it suitable for both medium and heavy machining tasks. The machine’s substantial rotary table (762 mm diameter) and extended travel ranges offer flexibility for different gear configurations. Predpfx Agsx Itfiszjf Powered by a 10 HP (≈7.5 kW) main drive motor, this unit provides reliable power for stable cutting. The horizontal travel of the worktable is 483 mm, while the vertical travel of the tool slide is 381 mm, allowing precise movement control in X and Y axes. The hob slide offers 127 mm travel in the Z axis, enabling effective depth control during gear cutting. The hob spindle speed is continuously adjustable between 50 and 200 rpm, making it adaptable to different hobbing conditions. Vertical feed rates range from 0.38 to 5 mm per revolution, allowing smooth and controlled engagement of the hob with the workpiece. Constructed in 1966 and designed for durability, the Churchill U/PH 3615 remains a reliable and fully functional machine capable of handling large industrial gear production. Its sturdy frame, accurate drives, and flexible feed options make it a preferred choice for workshops seeking dependable gear manufacturing performance. Overall, the Churchill U/PH 3615 offers: -Heavy-duty, industrial-grade build quality -Large part capacity and flexible travel ranges -Adjustable spindle speeds and feed rates -Reliable operation for continuous gear production

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 73866, workpiece weight (max.): 60 kg, rotational speed (max.): 2,300 rpm, overall weight: 5,000 kg, TECHNICAL DETAILS Module, max.: 7 Grinding worm diameter: 280–350 mm Grinding worm width: 84–104 mm Grinding worm speed (grinding): 1,100–2,300 rpm Grinding worm speed (profiling): 50–95 rpm Number of teeth, min.: 6 Number of teeth, max.: 600 Maximum permissible outside diameter: 360 mm Maximum workpiece weight: 60 kg Maximum grinding stroke: 175 mm Workpiece speed (grinding): max. 250 rpm MACHINE DETAILS Machine weight approx.: 5 t Psdpfxsxvrzio Agzorf Electrical Data Mains connection: 3 × 400 V 50 Hz Machine voltage: 3 × 400 V 50 Hz Control voltage: 1 × 230 V 50 Hz / 1 × 24 V DC Contactor voltage: 1 × 24 V DC Solenoid valve voltage: 1 × 24 V DC
