Used Bending Rolls for sale (9,460)

Condition: excellent (used), functionality: fully functional, Year of construction: 2020, roller diameter: 60 mm, working width: 1,050 mm, sheet thickness (max.): 1 mm, roll metal bending machine Isitan 1050 X 1.2mm Manual 3 roll Bending Machine, excellent condition for sale manufacturer: Isitan 1050X1.2 Bjdswk Rlxepfx Ab Uolf max sheet width: 1050mm max sheet thickness: 1.2 mm Wire grooves at the ends of the rollers Conical bender roller diameter: 60mm Upper roller removable for easy workpiece removal machine dimensions: length: 130cm height: 100cm width: 65cm weight: 240kg

Year of construction: 1973, condition: like new (used), Used BRONX Heavy Duty Initial Pinch Pyramid bending rolls. Year of manufacture : 1973. MACHINE FORMERLY INSTALLED AT ROLLS ROYCE PLC IN DERBY UK. IMMEDIATELY FOR SALE AND NOW LOCATED IN BELGUIM WHERE IT CAN BE INSPECTED. SPECIFICATION CAPACITY Two sets of dimensions which are shown below as "Prebending & Rolling" and then "Rolling only". Material Mild Steel Mild Steel Tensile strength 28/32 tons/sq.in 28/32 tons/sq.in Bodpfx Absh U Rzgj Uolf Maximum width 11’(3350mm) 11’(3350mm) Maximum thickness at this width 2” (50mm) 2½” (63.5mm) Minimum inside diameter of rolled cylinder at maximum capacity 30’ (762mm) 37 ½’ (953mm) Maximum thickness of plate when hot rolling (finished rolling temperature 850° C.) 4” (102mm) 5” (127mm) Minimum inside diameter of rolled cylinder at maximum capacity hot rolling 40” (1016mm) 50” (1270mm) MAIN PARTICULARS Diameter of all rolls - 27” (686mm) Body length of rolls - 11’2”(3403mm) Rolling speed - 12 f.p.m. (3600mm/min) Main drive motor - 150 H.P. Slip Ring Type Two bottom roll adjusting motors, each - 50 H.P. Slip Ring Type Combined operation of swing down bearing and top roll counterbalance - Hydraulically applied Hydraulic power pack motor - 10 H.P. Electrical equipment to be suitable for operation on a supply of - 400/440 volts, 3 phase, 50 cycles CONE ROLLING ATTACHMENT: To facilitate the rolling of taper or conical forms, a skid plate is fitted to the inside of the non-drive end housing. ELECTRICAL EQUIPMENT Motors: Main Drive - 150 H.P. half hour rated – slip ring screen protected – foot mounted type. Bottom Roll Adjustments - 50 H.P. half hour rated – slip ring screen protected – foot mounted type. Hydraulic Power Pack Motor - 10 H.P. continuously rated – Squirrel cage – screen protected – foot mounted type. Control Gear: Main Drive - Drum type reversing control gear with 5 minute rated wire wound resistances, designed to pass 100% full load on the first notch or operating position in each direction. The controller will be fitted with off position interlock and limit switch rings where necessary. Bottom Roll Adjustments - Drum type reversing control gear with 5 minute rated wire wound resistances designed to pass 100% full load on the first notch or operating position in each direction. The controllers will be fitted with off position interlock and limit switch rings where necessary. Hydraulic Power Pack - Direct-on-line contactor type starter, operated from a maintaining type push button station. Solenoid valves for operating cylinders are push button operated. Note: Full protection to be provided for all the above control gear by a circuit breaker, incorporating overload and no-volt protection. FEATURES AND EQUIPMENT Spare Roll included with the machine. LENGTH TBA MM WIDTH TBA MM HEIGHT TBA MM WEIGHT 95 tonnes NOTE: The information contained herein is provided in good faith, but however due to unforeseen errors or omissions cannot be binding as to accuracy.

Condition: excellent (used), Three-roll bending machine, three-roll sheet metal bending machine, bending machine, sheet metal bending machine, 3-roll bending machine, profile bending machine, three-roll sheet metal rolling machine, manual bending machine -Roll bending machine: 3-roll roll bending machine, electrically driven -Bending adjustment: electric -Max. sheet width: 2040 mm -Max. sheet thickness: 4 mm -Roller diameter: 150 mm -Dimensions: 1080/2880/H1370 mm -Weight: 1770 kg Blsdpoywzlpsfx Ab Uef

Year of construction: 1996, condition: as good as new (ex-display), machine/vehicle number: 910/96/221, working width: 1030 mm metal sheet thickness: 1 mm Bljdpfx Abob N Eu Is Ujf upper roller-Ø: 60 mm below roller-Ø: 60 mm weight: 170 kg space needed: 560 x 1570 x 1080 mm

Year of construction: 1996, condition: as good as new (ex-display), machine/vehicle number: 910/96/221, working width: 1030 mm metal sheet thickness: 1 mm Bedpfebpytpox Ab Uslf upper roller-Ø: 60 mm below roller-Ø: 60 mm weight: 170 kg space needed: 560 x 1570 x 1080 mm

Condition: good (used), working width: 1040 mm metal sheet thickness: 1,25 mm Bljdsdt Dqwopfx Ab Uof upper roller-Ø: 56 mm below roller-Ø: 56 mm weight: 190 kg space needed: 1450 x 460 x 1030 mm

Condition: used, working width: 1020 mm metal sheet thickness: 1 mm upper roller-Ø: 55 mm below roller-Ø: 55 mm space needed: 1370 x 570 x 1100 mm Bjdsda I Itspfx Ab Ujlf

Condition: good (used), functionality: fully functional, Year of construction: 1978, machine/vehicle number: 4303, working width: 3000 mm metal sheet thickness: 15 mm metal sheet thickness when bending: 10 mm upper roller-Ø: 320 mm below roller-Ø: 310 mm working speed: ca. 5,5 m/min electrical connection: 380 V kW Bodpfx Ajd D Nxxsb Uslf weight: ca. 17000 kg space needed: 5450 x 2100 x 2450 mm

Year of construction: 1998, condition: as good as new (ex-display), machine/vehicle number: 3163, working width: 1050 mm Blodpobpythjfx Ab Usf metal sheet thickness: 1,5 mm upper roller-Ø: 70 mm below roller-Ø: 70 mm weight: 320 kg space needed: 700 x 1300 x 1100 mm

Condition: excellent (used), functionality: fully functional, Year of construction: 2016, machine/vehicle number: AR200 tube and profile roll, control type: NC control, degree of automation: semi-automatic, actuation type: hydraulic, controller manufacturer: Delsy, controller model: MG Touch Pro 15", pipe diameter (max.): 273 mm, tube wall thickness (max.): 20 mm, bending angle (max.): 200 °, number of axes: 9, working height: 2,200 mm, overall weight: 27,000 kg, total length: 2,850 mm, total width: 2,950 mm, total height: 2,930 mm, power: 29.42 kW (40.00 HP), input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, operating pressure: 240 bar, number of digital displays: 6, Equipment: documentation/manual, emergency stop, Profile bending machine model AR200 brand MG srl year 2016 Capacity chart of the machine in enclosed. Model AR200 Pipe bending roll NR. 2 set of rollers for pipe bending SIZE 159MM - SIZE 139,7 MM Configuration -pyramid dual pinch side rolls independent hydraulic -3 rolls driven hydraulic with gear unit each shaft -side arms left/right side hydraulic move in 3 direction keeping aligned the profile being formed. -Control panel console NC programmable with automatic rolling, touch screen 15” , display the 9 axis of the machine with readout for manual use and fully programmable automatic forming Blsdpoyx A Uusfx Ab Uof -Electric power supply 3phase 400/50 Vac -40HP -Service manuals and operation books original. Additional set of rollers and tooling available for bending section HEB - IPE -UNP - ANGLE – T -SECTION- TUBULAR- IRON BAR ON EDGE - see capacity chart in enclosed ..

Condition: good (used), Year of construction: 1962, Manufacturer: VEB Type: RV16 Machinable cross-section: 120 x 140 mm Weight: 2,7 t Bsdpfx Abeltiy Te Ujlf

Year of construction: 2024, condition: new, Control unit - with NC control Conical bending device Side roll positioning electronically synchronized via PLC Safety mechanism for welding (welding possibility) on the machine Machine body made of stress-relieved annealed steel 4 roll drive system - upper, and lower roller with hydraulic motor driven synchronized via planetary gear (ᐳ 430 mm) Electrical and hydraulic protection against overloads Hydraulically adjustable lower roller pressure Hydraulic roller brake, prevents the sheet from slipping back Hydraulic swinging out of the upper roller bearing, for easy removal of the formed sheet Safety wire Induction-hardened rollers (HRC 54), crowned ("crowning"). Variable speed Bending length: 2050 mm Bending capacity: 13 mm (d x 5) Bending capacity: 10 mm (d x 1.5) Top roll: 230 mm Bottom roll: 210 mm Maximum roll width: 30 mm Length: 3830 mm Width: 1160 mm Height: 1200 mm Motor power: 11 kW Weight: 4700 kg Bjdpfx Abjdzzyfe Ujlf

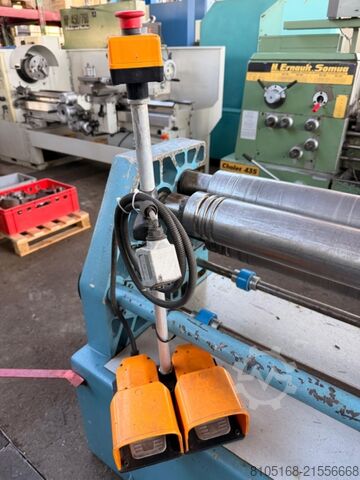

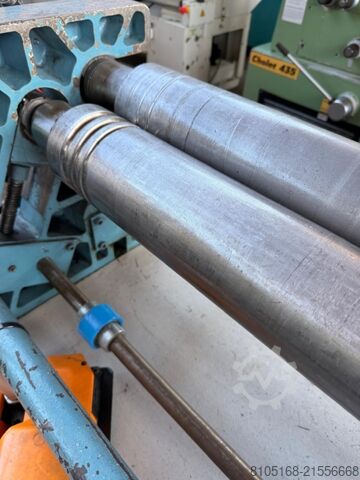

Condition: used, Year of construction: 2011, sheet width 1270 mm plate thickness max. 4,5 mm Bsdpfx Aboyv Nq Rs Uslf 4 mm roll diameter 120 mm roll speed 8 U/min min. bending diameter 180 mm total power requirement 2,2 kW weight of the machine ca. 1250 kg dimensions 2470 x 750 x 1000 mm

Condition: ready for operation (used), Year of construction: 1984, Available immediately from business closure: Powered four-roll plate bending machine Manufacturer: RAS Model: 44/10 Year of manufacture: 1984 Bending length: 1020 mm Material thickness: up to 4 mm Drive: 1.5 HP Weight: 800 kg Priced at EUR 1,750.-- plus VAT, ex location. Bedpfx Abjyykzrs Uelf

Year of construction: 1984, condition: ready for operation (used), Immediately available from business closure: Motorized four-roll plate bending machine Manufacturer: RAS Model: 44/10 Year of manufacture: 1984 Bending length: 1020 mm Material thickness up to 4 mm Drive power: 1.5 HP Weight: 800 kg Price: EUR 1,750 plus VAT, ex location. Bsdpfx Aeyyktbjb Uelf

Condition: new, sheet width 1550 mm plate thickness 4,5 mm Bedpfx Abjyvvrhj Ujlf pre-bending 4,0 mm roll length 1550 mm min. dia. 190 mm roll diam. toproll 130 mm weight 1265 kg dimensions 2670x1110x1050 mm Domestic equipments: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - induction hardened rolls - motorized rear roller adjustment - Digital display for back roller

Condition: new, sheet width 2050 mm plate thickness 4,5 mm pre-bending 4,0 mm min. dia. 210 mm roll diameter 140 mm weight of the machine ca. 1530 kg dimensions of the machine ca. 3220x1200x900 mm Standard features: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Bsdpfx Abeyvvrbo Uelf Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls

Condition: new, sheet width 1250 mm plate thickness 5,5 mm pre-bending 5,0 mm Bsdpfx Asyvvpyob Ujlf roll length 1280 mm min. dia. 210 mm roll diam. toproll 140 mm weight 1365 kg range L-W-H 2.020 x 900 x 1.200 mm Standard features: - Central rollers via electric motor, planetary reduction gear and Gear drive driven - Swivel top roller - Main engine with brake device - Conical bending device - Mobile controller and foot pedal - CE mark / Declaration of Conformity Additional equipment: - motorized rear roller adjustment - Digital display for back roller - induction hardened rolls

Condition: new, sheet width 1600 mm plate thickness 6 mm pre-bending 4 mm upper roll diameter 140 mm lower roll diameter 140 mm side roll diameter 120 mm min. bending diameter Oberwalzen-Ø x 3 total power requirement 3 kW weight of the machine ca. 2.000 kg Overall size 3700x1300x1280 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings Bsdpsyv N E Ujfx Ab Uolf - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration

Condition: new, working length 2050 mm 2.0 mm max. wire thickness 3.0 mm Underfloor 110 mm motor strength 165 mm motor strength 22 kW Blsdpfxoyv N Dwo Ab Uof bending speed 5.2 mm/min length 3150 mm height 1150 mm width 850 mm Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration

Condition: new, sheet width 2100 mm plate thickness 40 mm pre-bending 30 mm upper roll diameter 390 mm lower roll diameter 360 mm side roll diameter 300 mm total power requirement 22 kW Bljdoyv Nt Eepfx Ab Uef machine weight ab. 17200 kg Overall size 5060 x 2200 x 2180 mm

Condition: new, sheet width 3100 mm plate thickness 13 mm pre-bending 10 mm upper roll diameter 300 mm lower roll diameter 270 mm side roll diameter 210 mm total power requirement 11 kW Overall size 5600 x 1800 x 1500 mm Bsdsyv Nh Nspfx Ab Uolf weight of the machine ca. 8.800 kg Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration

Condition: new, sheet width 3100 mm plate thickness 10 mm pre-bending 8 mm upper roll diameter 270 mm lower roll diameter 250 mm side roll diameter 210 mm total power requirement 11 kW weight of the machine ca. 7750 kg Overall size 5600x1450x1600 mm Bedpfx Abjyv Nhcj Uelf

Condition: new, sheet width 2100 mm plate thickness 6 mm pre-bending 4 mm upper roll diameter 160 mm lower roll diameter 140 mm side roll diameter 120 mm total power requirement 2,2 kW Overall size 4140x1040x1140 mm weight of the machine ca. 2.350 kg Accessories / equipment: - Conical bending device - induction hardened rolls - digital display for side rollers - Machine made of steel construction - Separate control panel - two speeds Blodpsyv Nf Uofx Ab Uef - all rollers on ball bearings - Folding and support bearing from the top roller is actuated from the control panel. When the folding bearing is opened, the roller moves automatically upwards. - Conical adjustment of the rollers via control panel - Central rollers are via hydraulic motor and rotary reduction gear driven. (Top and bottom rollers) - Calibration

Condition: new, sheet width 3100 mm plate thickness 6 mm Bodpfxeyv Nf Io Ab Uslf pre-bending 5 mm upper roll diameter 200 mm min. bending diameter Ø 300 mm bending speed 5 m/min total power requirement 5,5 kW weight of the machine ca. 4.000 kg dimensions of the machine ca. 4800x1300x1270 mm
