Used Bending Segment for sale (3,830)

Condition: good (used), Bending tool, bending tool, die, upper blade, upper tool, straightening tool -Bending tool: Length 1760 mm -Tool angle: 83° -Dimensions: see drawing in the photos -Dimensions: 1760/28/H144 mm -Weight: 44.6 kg Kodpjxugm Rsfx Ab Uedw

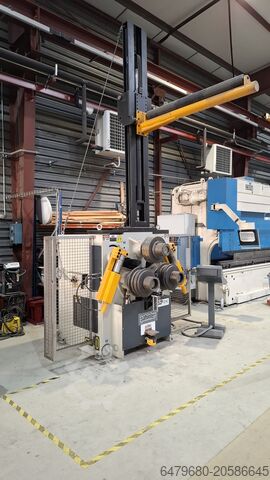

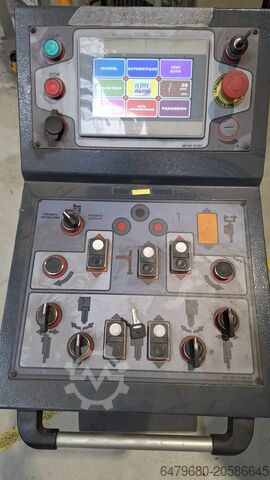

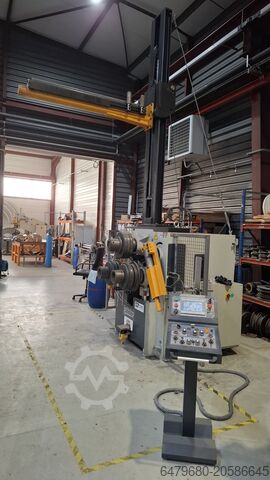

Condition: like new (used), functionality: fully functional, Year of construction: 2022, control type: CNC control, actuation type: hydraulic, Equipment: CE marking, documentation/manual, emergency stop, SAHINLER model HPK-120 3 powered rollers D390 mm – shafts D120 mm 2 feed speeds: 2–7.5 m/min, working position: horizontal or vertical Motor power: 15 kW – 3-phase 380 V, Standard equipment includes: - Standard roller set - Mobile control console with push buttons - Digital displays for upper & lower position of pinch rollers - Three-way adjustable lateral guides - Supplied with operation and maintenance manuals Dimensions: 2 x 1.70 x 1.90 m Weight: 4770 kg – RAL 7016 & 7032 NC CONTROL GRAPHIC NC CONTROL EASYVIEW TOUCH SCREEN for 11 axes: - 1 material feed axis - 2 up/down axes for forming rollers - 6 axes for managing 2 correction rollers - 2 axes for hydraulic gantry management Forming and bending tooling: 1/2 shell For stainless flat bar, thickness 2 mm, width 125 mm, height 30 mm Includes material guide at machine infeed, forming and bending with dedicated tooling kits. Gantry height: 3.5 m Hydraulic up/down (1/2 shell) Axial push (serpentine) Roller sets: - For tube Ø26.9 mm, min. Ø500 mm - For tube Ø42.4 mm, min. Ø500 mm - For tube Ø60.3 mm, min. Ø950 mm - For tube Ø76.1 mm, min. Ø950 mm - For tube Ø88.9 mm Kedpfx Ajxykfzsb Uodw Specifications: - Shaft diameter: 120 mm - Standard roller diameter: 390 mm - Roller rotation speed: 3/7.5 m/min - Motor power: 15 kW (A230 V, Y400 V) - Number of powered smooth rollers: 3 - Force generated per cylinder: 22,000 kg - Working position: H&V - Pinch roller position monitoring: included - Digital displays, mobile control console with push buttons - Machine frame dimensions: 2 x 1.65 x 1.9 m (L x W x H) - Approx. weight: 4770 kg

Condition: good (used), functionality: fully functional, Year of construction: 2004, Max. sheet width: 1,030 mm Max. sheet thickness: 3 mm Roll diameter: 90 mm Kdedpfxoxvpngo Ab Usw

Condition: used, Automatic Multi-purpose Iron Twister GLASER Type GDM 3 motor-driven rod twisting machine Kdsdpfx Abjw Dgi To Ujw equipped with ring bending attachment, profile bending machine Year of manufacture: 1977 Twisting length: 1200 mm Twisting speed (Level 1): approx. 10 rpm Twisting speed (Level 2): approx. 20 rpm - Spindle drive via large geared motor - Arch and ring bending machine, not complete - with HAWE hydraulic unit up to 600 bar for auxiliary functions - 4-square tool holder for twisting tools Motor power: 3.3 kW Power supply: 380 Volt, 50 Hz Space required (L x W x H): 2120 x 720 x 1100 mm Weight: approx. 600 kg Good condition

Condition: ready for operation (used), Year of construction: 2000, Immediately available from location: Pipe bending machine Tracto Technik Type Tubomat 642 Year of manufacture: 2000 Pipe diameter: max. 42 mm Pipe diameter: min. 6 mm Material thickness: 3 mm Minimum bending radius: 180 mm Maximum bending radius: 5 mm Kjdpexxuudefx Ab Ujdw Drive: 1.5 kW Weight: 1000 kg Pipe bending machine with electric control, 4-way preselection of bending angles with digital display Hydraulic bending drive, operated via manual lever valve Traveling pressure die (slide guide) Hydraulic mandrel retraction Pipe circular saw with coolant lubrication and automatic feed Pipe deburrer for internal and external deburring Machine is mobile and can be used flexibly Price: EUR 8,500.—plus VAT ex works

Condition: used, functionality: fully functional, Year of construction: 2001, pipe diameter (max.): 60 mm, power: 1.85 kW (2.52 HP), I-Beam steel, flat 100 x 15 (Ø 500) mm I-Beam steel, upright 50 x 10 (Ø 500) mm Angle steel 50 x 6.0 (Ø 600) mm Round material 35.0 (Ø 500) mm Max. tube diameter 60 x 2.0 (Ø 1200) mm Square material 50 x 50 x 3 (Ø 1000) mm Kedpfxswvrazj Ab Usdw Bending speed 10.0 rpm Top roller diameter 165 mm Bore 40.0 mm Dimensions (L-W-H) 560 x 1430 x 980 mm Adjustment range: upper roller 124 mm Total power requirement 1.85 kW Weight 275 kg Low usage (!!) Manufacturer's list price incl. accessories approx. €12,500 Special price on request Equipment: - electro-hydraulic ring/profile bending machine - heavy and robust machine body - 2x powered rollers (MR2 series) - segmented roller dies - digital position display for top roller (0.1 mm) - manual upper roller adjustment - forward / reverse operation of bending rollers - Bending speed approx. 20% higher than comparable machines in its class - shafts made of forged & ground chrome-nickel steel - machine base frame - suitable for horizontal and vertical operation - mobile control panel - CE marking

Condition: used, functionality: fully functional, Year of construction: 1997, Very nice hand-operated three-roll bending machine Manufacturer: Fasti Model: 103-20-1.25 Working area: 2040 x 1.25mm According to the nameplate, year of manufacture: 1997 VERY LITTLE USED! The roll surfaces are completely smooth, even if the picture may make it look as though there are "grooves" on the left side. Location: Bremen _____ Our general terms and conditions apply; the seller is not liable for typographical or data transmission errors. Kdedpfx Aowu Euvob Usw The information and images were provided by the owner and approved for publication. The visual condition of the offered items corresponds to their age and the pictures shown. The technical condition and wear of the items offered are age-appropriate. Used machines are sold exclusively to commercial customers and without warranty.

Condition: good (used), Year of construction: 2008, control type: CNC control, Stainless steel tube diameter: up to 42 x 2.0 mm Steel tube diameter: up to 42 x 3.0 mm Max. bending angle: +/- 180 + 10° Section modulus: 4.1 ccm Operating pressure: 6 bar Total power requirement: 5.5 kW Ksdpfxoxyizbe Ab Uodw Machine weight approx.: 3 t Space requirement approx.: 6100 x 2300 x 1300 mm

Condition: used, Year of construction: 2017, sheet width 2070 mm plate thickness 25 mm pre-bending 18 diameter of upper rolls 320 mm side roll diameter 260 mm diameter of lower rolls 320 mm 26 kW 8100 kg 4700 x 2000 x 2200 mm Kdedowc D Dxspfx Ab Ujw Features: - Hydraulic side roller adjustment - Conical bending device - 2 driven rollers - Hardened rollers - Hydraulic folding bearing - Mobile control panel - Foot switch - Safety device - CE mark

Condition: good (used), ZOPF ZB 70/2 H – Ring Bending Machine / Profile Bending Machine Manufacturer: ZOPF GmbH Model: ZB 70/2 H Serial number: 5710276 Year of manufacture: 2005 Category: Ring Bending Machine / Profile Bending Machine Location: Germany Technical Specifications Power supply: 400 V / 50 Hz Motor power: 2.2 kW Current: 6.5 A Number of driven rolls: 2 Top roll adjustment: Hydraulic (H version) Roll speed: 8.5 rpm (max.) Speed control: rotational speed adjustable via potentiometer Mechanical Specifications Shaft diameter of rolls: approx. 40 mm Roll/bending roll diameter: approx. 152 / 162 mm Hydraulic pressure force: approx. 80 kN Adjustment travel of top roll: approx. 120 mm Working position: suitable for both horizontal and vertical operation Construction: welded steel frame, conical roller bearings, interchangeable slideways Bending Capacity (indicative) Round tube: up to approx. Ø 70 × 2 mm Solid round: approx. Ø 35 mm Angle profile: approx. 50 × 50 × 6 mm Dimensions and Weight Machine weight: approx. 470 kg Kjdpoxw Np Tefx Ab Uedw Dimensions: 800 mm wide x 900 mm deep x 1200 mm high Please note: The information on this page has been obtained and compiled to the best of our knowledge, but accuracy cannot be guaranteed. Accordingly, it does not constitute a representation or contract and we recommend that you verify all relevant details independently. Financial Information VAT/margin: VAT/margin: VAT: The price shown is excluding VAT (VAT deductible for businesses).

Condition: used, total length: 1,000 mm, total width: 750 mm, total height: 1,400 mm, Empty weight: 400 kg - Documentation available: No - CE certificate present: No - Capacity: 50mm - Model: fielbuiger - Shaft diameter: 50mm - Transport dimensions: 1000mm x 750mm x 1400mm (l x w x h) Kdsdpfx Abewnia As Uow - Transport weight [kg]: 400kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 1990, machine/vehicle number: B 688, Offer 25399 Technical Data - Three driven rollers, lower rollers motorized and adjustable for pre-bending and cone rolling - Side arms or swing-out bearing supports - Hydraulic lifting and lowering of the upper roller - Operation from a separate control panel with digital actual value display - Max. working width: 3,100 mm - Max. sheet thickness at 240 N/mm²: 1.4 x roller diameter = 5 mm; 3.0 x roller diameter = 7 mm Kdsdsxxirqjpfx Ab Uow - Upper roller diameter: 220 mm - Lower roller diameter (each): 190 mm - Extended roller ends for fitting profile rollers - Drive: 400 V / 5.5 kW - Working speed: approx. 5.6 m/min - Working speed with pre-bending: approx. 0.5 m/min - Required space: approx. W 5,200 x H 4,800 x D 2,200 mm - Weight: approx. 5,000 kg

Condition: reconditioned (used), functionality: fully functional, Year of construction: 2017, operating hours: 400 h, machine/vehicle number: 268170408116, Maximum round tube bending capacity: diameter Ø 50.8 mm, thickness 2.0 mm. Bending direction: right and left during the process. Usable length from die center to mandrel extractor: 3,640 mm. Maximum installed power: 23 kW. Average power consumption: 2 kW. Noise level: 65 dB(A). Weight: 5,500 kg. Kdodpfx Abjxx Snnj Uow

Condition: good (used), Year of construction: 2005, control type: CNC control, - Max. bending angle: +/- 180 + 10° - Tube feed length: 4100 mm - Round steel tube up to 30 x 2.2 mm² - Round stainless steel tube up to 30 x 1.5 mm - Square tubes: 20 x 2.5 mm - Bending time for 90 degrees: 1.5 sec (advance) - Longitudinal feed speed: 450 mm/sec - Maximum bending radius: 125 mm Kjdjxyiy Dspfx Ab Usdw - Freestanding bending head, 850 mm long - Bending axis drive: electrohydraulic

Year of construction: 2018, condition: ready for operation (used), A hydraulic long folding machine/swivel bending machine Sperr & Lechner is available. Working width: 8000mm, max. sheet thickness steel/aluminium/stainless steel: 3mm/4mm/2mm, max. bending angle: 145°, throat depth: 1130mm, opening width: 180mm, back gauge: 1000mm. Machine dimensions X/Y/Z: approx. 10000mm/2100mm/2100mm, weight: approx. 7500kg. Documentation available. An inspection on site is possible. Kjdpfxexxa Tle Ab Uodw

Condition: new, round material 30 x 1 mm square material 30 x 30 x 1 mm 16 mm 30 x 10 mm speeds 9 U/min total power requirement 1,1 kW weight of the machine ca. 0,32 t dimensions of the machine ca. 0,82 x 0,60 x 1,26 m Electric roller profile with - 5 set of rollers 2x 20mm and 30mm for round material, 1x for flat material 1x for square material 1x for? - footswitch Kdsdpoh D Svnjfx Ab Usw

Condition: used, Year of construction: 2001, total length: 1,200 mm, total width: 800 mm, total height: 1,700 mm, Empty weight: 500 kg 3 mech. driven rolls (brake motor) hardened shafts top roll hydraulic adjustable Kdodpowu Tnkefx Ab Uew hardened universal rolls lateral rolls adjustable in 1 axis horizontal and vertical operation double foot pedal forfor- and backward drive - Year: 2001 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 371 - Control: Conventional - Motor power: 1.1kW - Model: fielbuiger - Shaft diameter: 50mm - Transport dimensions: 1200mm x 800mm x 1700mm (l x w x h) - Transport weight [kg]: 500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Year of construction: 2022, condition: ready for operation (used), General Data Machine weight 4500 Kg This MACRI PROVAR 6-45 U-D was manufactured in 2022. It features a maximum steel bending capacity of Ø 45x4 mm and stainless steel up to Ø 40x3 mm. With a bending angle of up to 190° and speeds reaching 450 mm/sec on the X axis, this roll bending machine ensures precision and efficiency. Consider the opportunity to buy this MACRI PROVAR 6-45 U-D roll bending machine. Contact us for more information about this machine. Application Types Bending Kodjxwqv Uspfx Ab Ujdw

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2005, control type: CNC control, Equipment: documentation/manual, type plate available, Wafios CNC bending and coiling center with loading magazine Type: BMZ 41 Kdsdoxwuuzopfx Ab Usw Machine No.: 2.7680.044 Working range: Wire diameter: at < 600 N/mm²: 3.0 - 8.0 mm at < 800 N/mm²: 3.0 - 6.0 mm at < 1200 N/mm²: 3.0 - 5.0 mm at < 2000 N/mm²: 3.0 - 4.0 mm Tube diameter: at 50 pieces Minimum leg length at the beginning: 2 x d Minimum leg length at the end: 60 mm Distance between 2 bends

Condition: good (used), Year of construction: 1994, control type: CNC control, controller manufacturer: Siemens, controller model: 840 D, pipe diameter (max.): 168 mm, bending angle (max.): 190 °, Tube diameter: 168.3 x 11 mm Tube insertion length: 6000 mm Max. bending radius: 700 mm Control system: Siemens 840 D Min. bending radius: 80 mm Max. bending angle +/-: 190° Dimensions (L/W/H): 11.9 x 2.7 x 2.45 m Machine weight approx.: 33 t - CNC control: CNC MMI Multicontrol 2000 - Control system: NCU - PLC: Siemens Simatic S7 - Electrical connection: 400V / 50 Hz / 85 A The machine is fully automatic and equipped with a tool changer. The following tools are available: Tube Ø 48.3 mm; radius 105 mm Tube Ø 60.3 mm; radius 120 mm Tube Ø 63.5 mm; radius 150 mm Tube Ø 76.1 mm; radius 190 mm Tube Ø 88.9 mm; radius 222 mm Tube Ø 114.3 mm; radius 285 mm Tube Ø 139.7 mm; radius 350 mm Tube Ø 141.3 mm; radius 700 mm Kdodpfxoxygbxj Ab Uew Tube Ø 168.3 mm; radius 420 mm There were a few mandrels with direct engravings indicating their specifications: 88.9 x 8 mm; 88.9 x 4.5 mm; 114.3 x 8.8 mm; 139.7 x 8.8 mm; 168.3 x 12.5 mm; 168.3 x 8.8 mm The following mandrel outer diameters were measured: 23.2 mm; 32.3 mm; 37.1 mm; 41.5 mm; 59.3 mm; 70.3 mm; 77.7 mm; 80.9 mm; 88.7 mm; 93.2 mm; 94.7 mm; 103.0 mm; 112.8 mm; 118.8 mm; 128.9 mm; 138.5 mm; 147.2 mm; 153.6 mm The accessory package has an estimated value of approx. €150,000.

Year of construction: 1989, condition: ready for operation (used), An old folding machine Schröder is available. Working width: 2500mm, max. material thickness: 2.5mm, upper beam stroke: 80mm, adjustment: 160mm, speed: 120°/s, working height: 850mm, weight: approx. 3500kg. A visit on site is possible. Kedpjxxa U Nsfx Ab Usdw

Condition: used, Year of construction: 1999, total length: 1,400 mm, total width: 1,100 mm, total height: 1,600 mm, Empty weight: 500 kg - Year: 1999 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: - Control: Conventional - Motor power: 4.0kW - Model: fielbuiger - Shaft diameter: 50mm - Transport dimensions: 1400mm x 1100mm x 1600mm (l x w x h) - Transport weight [kg]: 500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum Kdjdsw D D Hijpfx Ab Ujw

Condition: good (used), Year of construction: 2001, Tube diameter 76.1 mm Max. tube feed length 4500 mm Max. bending radius 200 mm Machine weight approx. 1.7 t Required space approx. 6000 x 1000 x 1300 mm - Max. tube diameter: 76.1 mm - Max. tube feed length: 4500 mm - Max. bending radius: 200 mm - Bending direction: right - Electronic 1-axis control - 2-axis measuring system - Electronic display of torsion - Electronic display of longitudinal position - Torsion angle unit with stops - Early mandrel retraction - Automatic mandrel lubrication with micro-oil dosing Kodpfx Asxygbfeb Usdw Accessories: - Incl. bending tools 21.3 / 26.9 / 33.7 / 42.4 / 48.3 / 60.3 / 76.1 mm x 2D - Incl. various mandrels

Condition: used, Year of construction: 2000, total length: 1,200 mm, total width: 1,200 mm, total height: 1,300 mm, Empty weight: 1.000 kg Incl. multiple rolls/tools Ksdpfx Abswra D Ts Uodw Digital readout - Year: 2000 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 60084 - Control: Conventional - Motor power: 2.2kW - Capacity: 40mm - Model: fielbuiger - Shaft diameter: 60mm - Transport dimensions: 1200mm x 1200mm x 1300mm (l x w x h) - Transport weight [kg]: 1000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 2000, Tube diameter: 76.1 mm Kdedpfjxyganox Ab Uew Tube insertion length: 4500 mm Max. bending radius: 200 mm Bending direction: right Machine weight approx.: 1.7 t Additional information Control: electronic 1-axis control
