Used Droop In Machine Tool for sale (9)

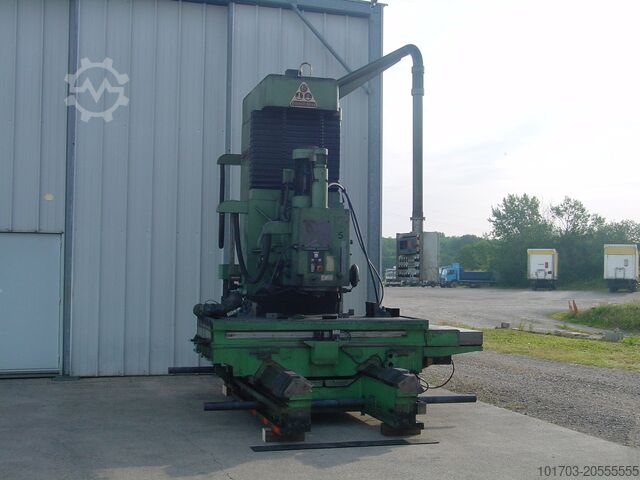

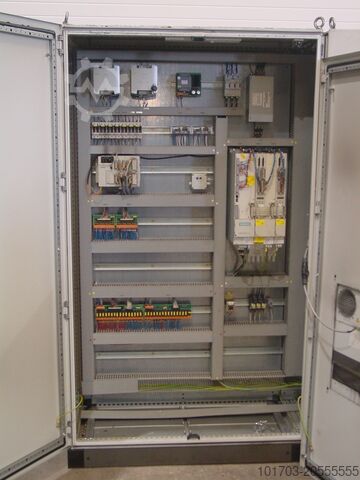

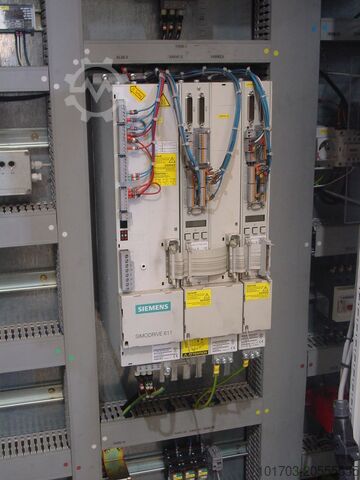

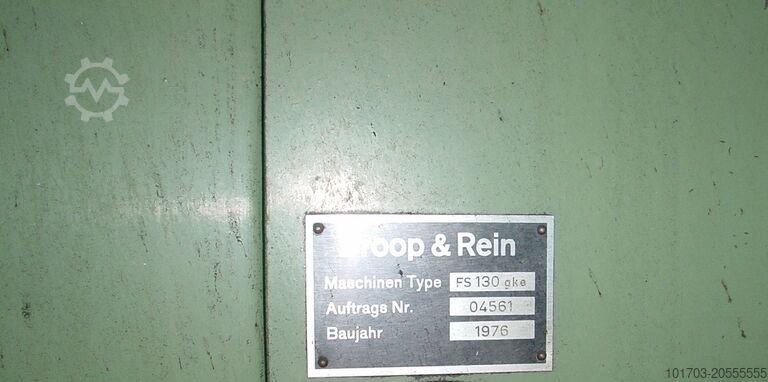

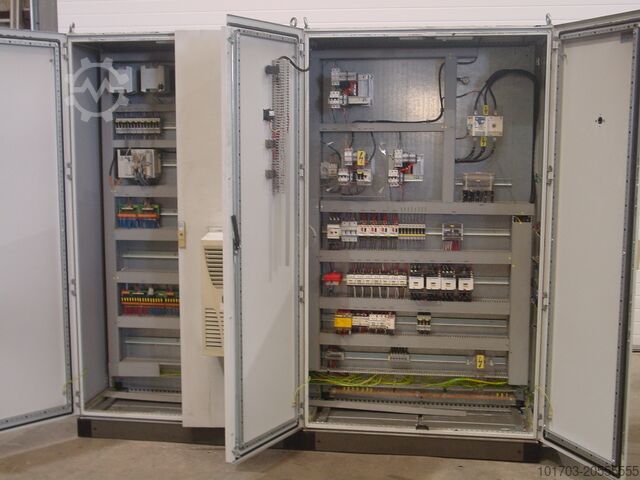

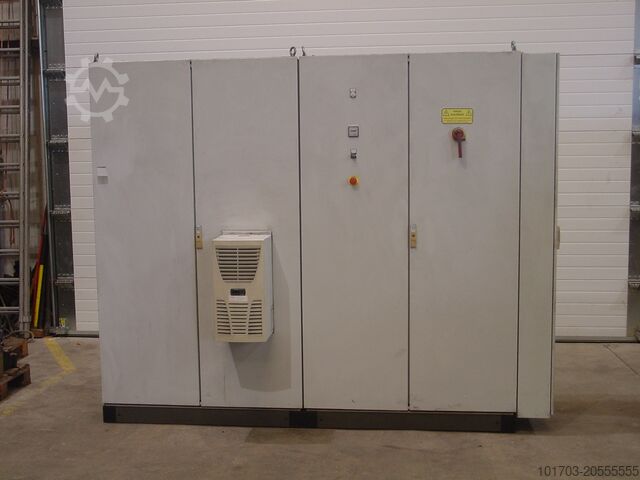

Condition: used, Vertical Milling Machine Droop & Rein type FS130 Travel X: 2000 mm Travel Y: 1000 mm Travel Z: 1000 mm Spindle SA 50 Sensitive spindle exit: 200 mm Rotation: from 31,5 to 1600 RPM Table size: 2400 x 1070 mm Throat depth: 950 mm Tilt head Spindle motor: 22 kW Scale HEIDENHAIN 3 axes Year of construction: 1976 New electrical panel in 2006 Voltage : 380 V Width : 3500 mm Depth : 4700 mm Ibjdpfx Asxxl Hdjd Dod Total height : 4500 mm Weight : 26 T

Condition: used, Year of construction: 1978, Table dimensions 2000 x 700 mm Weight 18 to Ibedpfx Adeuxf Aae Ded faceplate diameter s mm dayligth max. 1100 mm throat 800 mm spindle turning speed range 31,5 - 1600 U/min dimensions of the machine ca. 3600 x 3900 x 2950 m

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 4,500 mm, travel distance Y-axis: 2,500 mm, travel distance Z-axis: 1,500 mm, feed rate X-axis: 20 m/min, feed rate Y-axis: 20 m/min, feed rate Z-axis: 20 m/min, spindle speed (max.): 7,500 rpm, table width: 2,500 mm, table length: 5,000 mm, table load: 25,000 kg, Droop & Rein FOGS very good condition -Complete overhaul retrofit by manufacturer in 2014 -Continuous maintenance and renewal of components until today -Heidenhain ITNC 530 control system -Machine can be inspected under power Ijdpjuhqmyefx Ad Debd -Spindle Weiss GmbH 1 HSK 100 spindle hours 14267 -Spindle Weiss GnbH 2 HSK 100 spindle hours 10559 -Spindle 3 Weiss GmbH HSK 50 spindle hours 6788 -Chip conveyor 2x lengthwise -tool changer -Blum Laser -Camera 3-fold controllable -set-up BA4 -Radio handwheel -C-axis endless -A-axis +-115 degrees -Special housing

Condition: good (used), Year of construction: 1990, functionality: fully functional, Commissioning: 1992 Control system: Fidia CNC 11 Spindle Ø: 130 mm Spindle speed: 80 - 3150 rpm Max. Milling power: 30 kW Ibodpfx Aerrf Rxjd Djd Spindle bore: SK 50 Quill stroke: 200 mm Swivel capability: + / - 45° Travel: X-2400 mm Y: 1250 mm Z-1000 mm Feed range: 5 - 3000 mm/min Rapid traverse: 6 m/min Clamping surface: 3000 x 1250 mm Max. Table load: 10 to Total power requirement: 55 kW Space requirement: approx. 8500 x 5500 x 4500 mm Weight: approx. 47 tons Still under power.

Condition: used, Table unit from a DROOP & REIN portal milling machine Clamping plate with T-slots made of cast steel gray cast iron Table unit with clamping plate and very solid guideway Table clamping surface 5500 x 2000 mm Travel of the table clamping plate approx. 3100 mm Table height 1050 mm Table load: max. 20 tons Ball screw: Ø 100 mm Thread pitch: 20 mm (single-start) - Processing table guided very stably on the bed - Metal telescopic guideway cover - comes from a DROOP & REIN portal milling machine - Longitudinal table movement via ball screw and SIEMENS servo motor - Clamping surface with 11 T-slots 28 mm - Drive via SIEMENS 1FT6134-6AB71-1AG2 servo motor with IC200448S/R encoder (RN 000 B25) Total length 9500 mm Width 2000 mm Overall height 1050 mm Iedpfxjthuzpj Ad Dsbd dead weight 28 ton. good condition

Condition: good (used), DROOP & REIN - SZ 100 / Lubrication Groove Broaching Machine - Maximum machining diameter: 140 mm - Spindle bore: 40 mm - Groove length per pass: 100 mm - Distance between chuck / tailstock center: 350 mm - 3 working speeds - Electric chuck guard Ibedow R S Rhopfx Ad Dsd - Good overall condition Dimensions: LxWxH 0.9x0.6x1.5 meters / Weight: 300 kg Errors and omissions excepted.

Condition: used, Year of construction: 2007, x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm Control Sinumerik 840 D Siemens distance between columns max. 3.000 mm passage max. 1.950 mm distance spindle center to table max. 1.800 mm distance spindle nose and table 1.350 / 1.500 mm type P 8005020/00-4 turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 20 kW max. Torque 48 Nm tool taper HSK-A63 DIN 69063 Spindle Extension 450 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° type P 8002320/00-4 turning speed range - main spindle 20 - 5.000 min/-1 power capacity - main spindel 40 kW max. Torque 1.100 Nm tool taper HSK-A100 DIN 69063 Spindle Extension 300 mm swivellable B: +110° / -10 ° rotatable C: +/- 200 ° table surface area 4.000 x 2.200 (2x) mm max. table load 12 / 20 t height over floor 700 mm number of T-slots 11 + 19 Iodpfovy Ihdex Ad Djbd T-slot - width 28H7 mm T-slot - distance 200 mm number of toolpositions 327 pos. number of toolpositions HSK A63: 156 pos. number of toolpositions HSK A100: 171 pos. max. tool diameter HSK A63: 52 mm max. tool length HSK A63: 250 / 500 mm max. tool weight HSK A63: 5,0 kg max. tool diameter HSK A100: 315 mm max. tool length HSK A100: 500 / 800 mm max. tool weight HSK A100: 40,0 kg feed speeds X: max. 30.000 mm/min feed speeds Y/Z: max. 40.000 mm/min feed speeds B: 3.600 °/min feed speeds C: 2.160 °/min Accelaration X: max. 1,5 m/s² Accelaration Y/Z: max. 3,2 m/s² x-axis 10.100 (2x 5.000) mm y-axis 3.000 mm z-axis 1.500 mm b-axis +110° / -10 ° c-axis +/- 200 ° total power requirement 150 kVA dimensions of the machine ca. 25,0 x 12,0 x 7,0 m 5-Axis Gantry-Big-Machining-Center DROOP + REIN - TFS 22 40 DT D40 P - two Milling-Heads - ca. 4.000 Power On Hours - X-Achse 10.000mm (coupled) / 2x 5.000mm (single-table) - 3 axes simultaneously (X, Y, Z) - 2 positioning axes (B, C) - tools upon request

Condition: good (used), Year of construction: 1999, x-travel 2400 mm y-travel 2850 mm z-travel 1000 mm Ibodpovwgphefx Ad Dsd Control FIDIA C20 table dimension - longitudinal 2200 mm table dimension - cross 1800 mm table load 12 t workpiece tool changer 30-fach tool taper ISI SK-50 spindle turning speed range 5000 U/min power capacity - milling spindle 30 kW

Condition: ready for operation (used), Year of construction: 2001, functionality: fully functional, travel distance X-axis: 2,400 mm, travel distance Y-axis: 2,850 mm, travel distance Z-axis: 1,000 mm, feed length X-axis: 20,000 mm, feed length Y-axis: 30,000 mm, feed length Z-axis: 20,000 mm, Droop & Rein Modimill built in 2001 Fidia C20 Isdpfx Adevk Ubxs Dsbd
