Used Elumatec As 70 for sale (105)

Condition: good (used), functionality: fully functional, Elu AS 70 with roller conveyers. Lhsdpfxow Nxcue Agzsn

Condition: used, Copy milling machine, copy milling machine, hand lever milling machine, hand lever milling machine, single spindle copy milling machine Ljdpfx Agop Swvkjzjhn -Manufacturer: Elu, copy milling machine type AS 70 -Travel path: manual X//Y 230/80 mm -Stop depths: see photos -Workpiece clamping: pneumatic -Coolant device -Dimensions: 600/520/H1280 mm -Weight: 111 kg with pallet

Condition: excellent (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: 12200991016, rotational speed (min.): 24,000 rpm, overall weight: 1,635 kg, tool weight: 2,900 g, input voltage: 400 V, For economical and efficient machining of aluminium, plastic and thin-walled steel profiles All machining processes such as milling, drilling and thread cutting take place on a stationary profile, protecting the profile surface Improved work results thanks to the use of intelligent control technology Fast positioning of the machining unit at up to 60 m/min thanks to the use of dynamic servo drives Thread cutting without compensating chuck Automatic clamp recognition and positioning Automatic tool magazine with four tool shelves (without tools) Modern, 3-axis control Ergonomic work thanks to the use of a modern inclined bed No need for a reference movement of the axes thanks to the use of absolute encoder-based systems Collision avoidance thanks to automatic clamp recognition and positioning Power-Torque milling motor with closed speed control ensures short start-up and deceleration times spindle Certified, drive-integrated safety functions Low power consumption thanks to intelligent control technology Increased energy efficiency thanks to the connection of axis drives between circuits Uninterruptible power supply (UPS) Windows operating system 15.6" Panel PC, i3 processor, USB ports and network interface Lhjdewgmyqopfx Agzjn Easy and convenient program entry via eluCam on the operator panel, even during machining Remote online maintenance Machine equipment Air-cooled 8 kW milling spindle, S1 Cabin for operator protection Four horizontal pneumatic clamps for clamping the material Material stop, left side HSK-F63 tool holder Minimum quantity lubrication High-performance coolant Manual control panel Depth gauge Options Tools Tool holders Automatic tool magazine for up to four standard tools Automatic tool magazine for angle head Rotating head HSK-F63 angle for two tools Green-line cooling unit for control cabinet with reduced energy consumption Barcode scanner Protective cabin, optionally with all-round closure Four clamps as standard. Expandable to eight clamps Right reference material stop for placing workpieces with overlength processing Additional stop for overlength processing on the left Length measurement on both sides Double clamp and additional accessories upon request Panel PC 18.5", i5 processor Panel PC 21.6", i7 processor Note holder Sound-absorbing hood Chip disposal using chip trays

Condition: used, Year of construction: 1997, Copy milling machine, copy milling machine, hand lever milling machine, hand lever milling machine, single spindle copy milling machine -Manufacturer: elumatec, 1-SPINDLE COPY MILLING MACHINE Type AS 70/44 -Spindle speed: 12000 rpm Lodpfx Agotvhr Sozjhn -Stop depths: see photos -Workpiece clamping: pneumatic -Dimensions: Milling machine 580/500/H1510 mm roller blocks 1050/210/H900 mm -Weight: 149 kg with pallet

Year of construction: 1999, condition: used, Used machine Year of manufacture: 1999 Large milling area despite compact design Copy milling using lateral stops or templates at a 1:1 ratio Pneumatic copy pin, two-stage, for two different cutter diameters The patented suspension of the copying lever ensures precise milling with minimal effort Table height adjustment for extremely high profiles up to 400 mm Easy tool change via spindle lock Pneumatic material clamping device Metering spray unit Lsdoxqihispfx Agzehn Options: Copy templates milled for standard handle holes and PZ milling Copy pin Collet chuck Stop system Material clamping device with 2 clamping cylinders Milling cutter 8 mm Availability: short-term Location: Flörsheim

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 20496, Large cutting range despite compact design Copy routing using side stops or templates at a ratio of 1:1 Pneumatic tracer point with two levels for two different cutter diameters Our patented copy lever suspension ensures precision routing with a minimum of effort The table height is adjustable to accommodate very high profiles of up to 400 mm The “Spindle Lock” feature makes tool changing easy Pneumatic material clamping unit Pulsed coolant system Horizontal cutting range using a stop 300 x 120 mm Horizontal cutting range using a copy template 285 x 110 mm Spindle speed 12,000 rpm Clamping range for profiles 150 x 130 mm, adjustable up to 400 mm Travel 105 mm Power supply 230/400 V, 3~, 50 Hz Power output 0.74 kW Compressed air supply 7 bar Air consumption per working cycle 12 l without spraying, 24 l with spraying Length 780 mm, depth 790 mm, height 1,545 mm, weight 210 kg Lsdpfxoxmux Ee Agzjhn -New spindel bearings -Machine is operation ready -Shipping possible

Condition: used, Transport 300 Eur Lhodpfx Aewna Rxsgzon

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 1500050123, rotational speed (max.): 18,000 rpm, working length: 12,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. speed: 18,000 rpm Machining length: 12 m Pneumatic collets: 20 pcs MACHINE DETAILS Electrical data Voltage: 400 V Phases: 3 ~ Frequency: 50 Hz Current draw: 76 A Operating pressure: approx. 8 bar Lhedjxnz Ivopfx Agzsn EQUIPMENT Automatic tool changer Angle head

Condition: used, Year of construction: 1994, Cutting length scale up to 5000 mm, saw blade 420 mm, roller conveyor 1500 mm Storage location: customer Lhjdpew Sadrofx Agzon

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Bar Machining Centre | elumatec SBZ 130 - 8-position tool changer turret with driven tools - Material support with automatic clamping system - Operator console with touch panel - Separate Rittal control cabinet with cooling unit Lsdoxn Scwjpfx Agzohn - Safety enclosure with SICK light curtain system Inspection is possible at any time by appointment. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: elu | SBZ | Bar Machining Centre

Year of construction: 2010, condition: used, 3-axis machining center with automatic tool change for aluminum or PVC profiles Max. travel X-axis: 6,700 mm Max. travel Y-axis: 350 mm Max. travel Z-axis: 280 mm Control Windows 10 with a new computer in 2023 Speed continuously adjustable up to 24,000 rpm handheld control unit minimum quantity spraying Tool changer with 2 magazines (total 10 places plus angle head) tensioner detection and tensioner displacement 2 pneumatically folding material stops and 2 light barrier areas, thus pendulum operation possible A total of 8 material clamps Spindle in very good condition, spindle pull-in force: 12.5 kN Safety fence dismantled, a demonstration is still possible by arrangement Lhedpfjwwukxsx Agzon Weight: approx. 3,500 kg

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical information – Elumatec DG 244/2 year 2008 Control unit model: E355 Main electrical connection: 3/PEN/400V - 50 Hz Power consumption: 12.8 kW Additional information Advantages of the machine Technical advantages of the machine: - Saw blade diameter: 550 mm - Saw blade speed: 2,800 rpm - Compressed air supply: 7 bar - Weight: 1,850 kg Machine can be inspected in operation in department 76 Lhodpew A Iubefx Agzjn Available from week S38/S39 Price includes loading

Condition: refurbished (used), Year of construction: 2024, Overhauled: 2024 Control: SPS Siemens S7 Saw blade max: 500 mm motor power 4,0 KW Saw blade feed: 0-40 mm/ s continuously adjustable Saw height control electronic Working range square 90° max.: 130 x 130 mm Working range flat 90° max.: 190 x 130 mm Working range round 90° max.: 170 mm The machine has been completely overhauled in our company and is in mint condition. Among other things, the following points were renewed: Conversion to Siemens S7 PLC control Conversion to Siemens HMI user interface Conversion to pusher with servo control New electrical components New pneumatic lines New pneumatic components Conversion to valve terminal Optimization of the suction capacity New minimum lubrication system Replacement of general wear parts Overhaul of the cab The machine also has Lodpfx Ageuiy Ngjzehn Minimum quantity lubrication Splitting extension (for a high-quality cutting surface without return marks) Pre-loading magazine for gentle handling of painted/anodized surfaces Offcut ejector in the pusher Foldable offcut tray Optional: Magazine width 3000mm Pusher length 6000mm Pusher length 8000mm Reinforced motor 5.5 kW Mass clamping device for parallel sawing of several workpieces Online support connection Delivery and installation on your premises Training of your employees

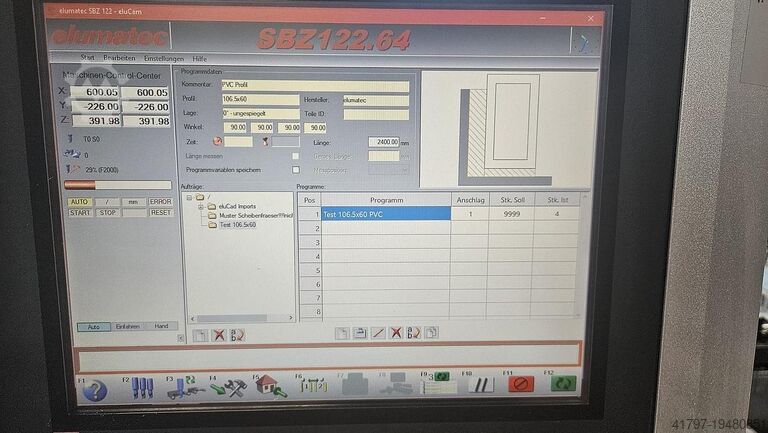

Year of construction: 2007, condition: used, functionality: fully functional, Equipment: CE marking, For Sale: Elumatec SBZ 122/10-30 CNC Profile Machining Centre (2007) The Elumatec SBZ 122/10-30 is a reliable and versatile CNC machining centre designed for processing aluminium, PVC, and thin-walled steel profiles. This 2007 model offers precise 3-axis CNC control combined with a rotating angle head, allowing machining on five sides of the profile without repositioning. With its robust construction, proven Elumatec technology, and automatic tool changer, the SBZ 122/10-30 remains a valuable machine for window, door, façade, and general profile machining applications. 🔧 Technical Specifications Year of manufacture: 2007 Axes: 3 CNC-controlled (X, Y, Z) Working range: X-axis: approx. 3,850 mm Y-axis: approx. 350 mm Z-axis: approx. 280 mm Max profile length: Without end machining: approx. 3,750 mm With end machining: approx. 3,650 mm Lhodpfew Syy Tex Agzjn Spindle power: ~6 kW (S6) Spindle speed: up to 21,000 rpm Tool system: HSK-F63 Tool changer: 4 positions + angle head (5 tools total) Accuracy: ±0.1 mm 📐 Dimensions & Weight Machine dimensions (L × W × H): approx. 4,600 × 3,230 × 2,420 mm Weight: approx. 1,690 kg 💻 Control PC-based CNC control (Windows environment) Programming via Elusoft Automatic clamping system for secure and flexible profile positioning ✅ Highlights: Five-sided machining without manual repositioning Automatic tool change for increased efficiency Suitable for aluminium, PVC, and light steel applications Trusted Elumatec design with long-lasting performance

Condition: used, Year of construction: 1999, x-axis 6450 mm y-axis 400 mm z-axis 380 mm working lenght 6500 mm Number of tools 8 St. tool taper BT30 tool changing time 1,2 sec diameter of tools max. 80 mm Lsdpfxjt H Sn Re Agzohn turning speeds 6000 U/min Feed speed X = 34 m/min. Feed speed Y+Z = 18 m/min. total power requirement 8,5 kW dimensions 9800 x 3000 x 2400/3300 mm weight 5400 kg *Bar machining center, 3-axis machining of aluminum, plastic, steel and stainless steel profiles*

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC profile machining centre | elumatec SBZ 131 - 8-position tool turret with driven tools - Material support with automatic clamping system - Operator panel with touchscreen - Separate Rittal control cabinet with cooling unit - Mesh enclosure, SICK light curtain system Ljdpfjxn Sbmex Agzehn An inspection is possible at any time by appointment. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: elu | SBZ | profile machining centre

Condition: good (used), Corner Crimping Press Elumatec, Type: EP 124 Lsdpfsxpkf Tjx Agzjhn Serial No.: 1240024560 Pressing height: 140 mm Pressing force: 70 kN (7t) Drive: pneumatic With support arms and pressing knives With accessories, tools Electrical connection: 230 V 50/60 Hz Compressed air connection: 7 bar Air consumption: 35 l per working cycle Dimensions (L x W x H): 1100 x 950 x 1230 mm Weight: 545 kg (Changes and errors in the technical specifications as well as prior sale reserved)

Year of construction: 2006, condition: good (used), functionality: fully functional, Technical Specifications - Elumatec SBZ 122/20 Year 2006 16KW General Data Measurement width: 4622.8 mm Measurement depth: 1828.8 mm Measurement height: 2489.2 mm Machine weight: 1814.9 kg Main Drive Spindle speed range: 21,000 rpm Spindle motor power: 8.5 HP Lhodpfjw A Ipfox Agzsn Axis Travel X-AXIS Travel: 3777 mm Y-AXIS Travel: 350.5 mm Z-AXIS Travel: 279.4 mm Machine can be seen in operation in department 76 Available from week S38/S39 Price includes loading

Condition: refurbished (used), Year of construction: 2024, Manufacturer: Elumatec Type SA/ SAS 142 Overhaul year: 2024 Saw blade max. carbide: 500 mm Drive power saw motor: 4 KW Saw motor speed: 2800 min-1 Cutting speed saw blade 500 mm: 4400 m/min Saw height control: infinitely variable, fully electronic Working range square 90° max.: 130 x 130 mm Working range flat: 90° max.: 190 x 130 mm Working range round: 90° max.:150 mm Pneumatic feed length: 5-560, 10-1120 mm Compressed air connection, on site 6 bar Weight(saw)approx.: 800 kg Dimensions LxWxH (saw)approx.:2900mm x 1400mm x 1500mm Installation area LxW: 2900mm x 1400mm Additional description Elumatec SA/ SAS 142 4KW Retrofit Elumatec SA 142 4KW Retrofit Fully automatic sawing machine for non-ferrous metal and plastic After completion of the retrofit, the machine is in mint condition, both technically and visually. The machine will be overhauled in our company at the customer's request. Among other things, the following points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - New electrical components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Maintenance of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Extension of the sawing area to flat 90° max.: 300 x 120 mm - Splitting extension (for a high-quality cut surface without return marks) - Servo-controlled material feed - Saw blade feed Servo-controlled - Mass clamping device Feed vice - Delivery and installation on your premises - Training of your employees Lhedpfx Agjuiy Nyjzen

Year of construction: 2016, operating hours: 10,900 h, condition: excellent (used), functionality: fully functional, The machine is in very good condition and fully operational. We don't need it anymore so it is for sale. It is regularly maintained. Dismantling and load on truck are included in price. Some other informations: 4-axis profile machining centre Designed for flexible and efficient machining of aluminium Autonomous clamp positioning Max. working lenght: 7.600 mm 8 pneumatic clamps Tool magazine with 8 tools capacity Spindle working hours 5100h Additional tehnical specifications available on request Lhedpfx Agowwtylszen

Year of construction: 2006, condition: ready for operation (used), Three smaller machines for window and profile processing purposes are available. 1) Profile gluing machine Ruchser RU-FE, year of manufacture: 2003, film width range: 30mm-250mm, film inner/outer diameter: 75mm/270mm, profile thickness range: 30mm-100mm. 2) Rubber inserting machine Ruchser RU-EV-HS, year of manufacture: 2006, profile width range: 20mm-100mm. 3) 2-head profile milling machine Elumatec KF 78/60, year of manufacture: 1993, vertical milling X/Y/Z: 290mm/100mm/120mm, horizontal milling X/Y/Z: 270mm/70mm/120mm, speed: 6000rpm/12000rpm. An on-site inspection is possible. Lhedpfsxn S S Eex Agzon

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, CNC Profile Machining Centre | elumatec SBZ 610 - Power: 30 kW - Control: Beckhoff CP7032 - with material feed, automatic end stop, downstream material buffer An inspection is possible at any time by appointment. Lhsdpsxn Nfcsfx Agzjn #Tags: elu | SBZ | Profile Machining Centre

Year of construction: 2009, condition: good (used), Mitre Saw Elumatec, Type: MGS 105, Year: 2009, with stop and measuring system Elumatec Type: AMS 200 Serial No.: 1050126568 Swivel range: Manual, 22.5° left and right, with digital display Tilt range: Pneumatic, from 90° to 45° Saw blade diameter: 420 mm Saw blade speed: 2,800 rpm Power output: 4 kW Electrical connection: 230/400 V, 3Ph, 50 Hz Compressed air connection: 7 bar Air consumption: 20 l without misting, 32 l with misting Dimensions (L x W x H): 1,400 x 1,500 x 1,880 mm Weight: 750 kg Stop and measuring system AMS 200 For precise cutting-to-length of aluminium profiles Serial No.: 1050126568 Length: 4,500 mm Positioning accuracy: +/-0.1 mm per meter Electrical connection: 230 V; 1 Ph, 50/60 Hz Lhjdpfx Agsxn Umlezon Pneumatic position locking Matrix display 5.7" with membrane keypad and navigation dial for operating menus Memory for 1,000 records The memory can store set number, length measurement, profile number, angle position, and quantity. USB interface (front) Roller conveyor (Changes and errors in technical data as well as prior sale reserved)

Condition: excellent (used), Year of construction: 2016, operating hours: 1,395 h, functionality: fully functional, machine/vehicle number: 1400040877,  4-axis (X, Y, Z, A) center,  For economical and efficient machining of aluminum profiles and thin-walled steel profiles,  Version with air-cooled milling spindle, Ljdpfxsuc U S Ns Agzehn  All machining processes such as milling, drilling and threading take place on a stationary profile,  Smooth machining using all tools,  Simultaneous tool magazine ensures short tool change times and, as a result, optimal machining cycles,  Magazine can be equipped with eight tools,  Windows operating system  Machine equipped with eluCam program  Max. length of machining fields with front machining: 4200 mm  Max. length of machining fields without front machining: 4320 mm  Automatic length measurement on both sides,  Barcode reader,  Stationary tool magazine (8 slots),

Year of construction: 2007, operating hours: 4,100 h, condition: good (used), functionality: fully functional, The machine is not more needed for our production and therefore its for sale. The machine is in our ownership from 2007 and it is regularly maintained. Everything works normal. Dismantling and load on truck are in price. Some more informations: 5-axis profile machining centre Designed for flexible and efficient machining of aluminium Autonomous clamp positioning Max. working lenght: 9.300 mm 12 pneumatic clamps Tool magazine with 20 tools capacity and saw blade 500mm Lhsdpfxewwtw Ds Agzen Spindle working hours 4100h Additional tehnical specifications available on request
