Used Ink Mill for sale (11,019)

Condition: ready for operation (used), Year of construction: 2002, functionality: fully functional, machine/vehicle number: 5220511, travel distance X-axis: 2,600 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 4,000 rpm, workpiece weight (max.): 8,000 kg, TECHNICAL DETAILS Travel X-axis: 2,600 mm Travel Y-axis: 1,000 mm Travel Z-axis: 1,000 mm Max. workpiece weight: 8,000 kg Table size: 3,600 x 900 mm Number of T-slots: 6 T-slot width: 22 mm T-slot spacing: 125 mm Spindle taper: ISO 50 DIN 69871 Spindle speed: 4,000 rpm (2 ranges: 0 - 1,000 rpm) Feed rate: 10 - 5,000 mm/min Rapid traverse: 10,000 / 10,000 / 10,000 mm/min Ijdpfx Aeygxgzebrohu MACHINE DETAILS Control: HEIDENHAIN TNC 426 Dimensions & Weight Space requirement: approx. 9.82 x 5.1 x 3.16 m Machine weight: approx. 21.5 t Motor Spindle drive motor: 29 kW Feed drive motor (Y-axis): 20 Nm Feed drive motor (X and Z-axis): 27 Nm Hydraulic motor: 2.2 kW Coolant pump motor: 0.50 kW Lubrication pump motor: 0.09 kW EQUIPMENT Tool changer Both head joints have 2.5°

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 460045, spindle speed (max.): 5,000 rpm, overall weight: 7,500 kg, controller model: SIEMENS SINUMERIK 840D, Equipment: chip conveyor, TECHNICAL DETAILS Iodpfsyhn Nzjx Abrehu Turret Number of spindles: 2 Number of turrets: 3 Number of positions turret 1: 10 Number of positions turret 2: 10 Tool holder: VDI 25 Lower turret head Number of positions: 10 Rotational speed: 6,000 rpm Power of driven tools: 8 kW Main spindle C-axis (resolution): 0.001° Max. spindle speed: 5,000 rpm Spindle power: 27 kW MACHINE DETAILS Control: SIEMENS SINUMERIK 840D Connection: 50 Hz 3x 400 V Total power requirement: 43 kW Dimensions & Weight Dimensions (L x W x H): 3,200 x 2,100 x 2,100 mm Machine weight: 7,500 kg EQUIPMENT Chip conveyor Foot pedal

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 370483, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, spindle speed (max.): 5,000 rpm, controller model: HEIDENHAIN TNC 124, TECHNICAL DETAILS Travel X-axis: 600 mm Travel Y-axis: 400 mm Travel Z-axis: 400 mm Table length: 800 mm Table width: 425 mm Max. workpiece weight on table: 250 kg Distance between vertical spindle and table: 560 mm Spindle taper: SK 40 Max. spindle speed: 5,000 rpm Swiveling range vertical milling head: ± 90° Feed rates: up to 2,000 mm/min Rapid traverse X-axis: 10 m/min Rapid traverse Y-axis: 10 m/min Rapid traverse Z-axis: 8 m/min Vertical quill stroke: 60 mm Ihodpfxsyhnmtj Abrsu MACHINE DETAILS Control: HEIDENHAIN TNC 124 Connection: 50 Hz 3x 400 Volt Milling spindle motor: 5.5 / 7 kW Total power consumption: 15 kVA Dimensions & Weight Machine weight: approx. 1,800 kg Dimensions (L x W x H): 2,100 x 1,800 x 2,050 mm EQUIPMENT Rigid angle table Electronic handwheel Heidenhain probe Vertical milling head Full splash guard cabin Coolant system Machine lamp

Condition: used, Year of construction: 2018, DMG Mori Sprint 32/8 CNC Swiss Lathe Mfd. 2018 Control: Fanuc 32-B Plus 8-Axis Power: 75 HP RPM 8,500 Diameter: 32mm With 12-ft Patriot 338 Bar Feed Equipped as pictured Machine concept Number of linear axes + C-axes 6 + 2 Number of spindles 2 Number of channels 2 Main spindle Maximum bar capacity mm | in 32 | 1.26 Speed rpm 8,500 Power (S2 30 min/S1) kW | hp 7.5/5.5 | 10.1/7.4 S2 15 min/S1 Torque (S2 30 min/S1) Nm | ft lbs 51.9/40.4 | 38.3/29.8 S2 15 min/S1 Counter spindle Maximum bar capacity mm | in 32 | 1.26 C-axis (0.001°) Speed rpm 8,500 Power (S2 30 min/S1) kW | hp 3.7/2.2 | 5.0/3.0 Torque (S2 30 min/S1) Nm | ft lbs 23.6/14 | 17.4/10.3 Working area/ travels Z1 travel (spindle travel) mm | in 100 | 3.94 Rapid traverse speed on linear axes X1, Z1, X2, Z2/Y1, Y2 m / min | in/ min 40/30 | 131/98 Ihodpfx Abjxxm A Tsreu Acceleration in linear axes m /s² | ft 5 | 0.02 Tool holder on slide 1 Fixed turning tools 6 Tools for front machining/back-working 4/4 Driven tools 2 + 2 Maximum speed rpm 6,000 Power (S3 40 % /S1) kW | hp 1.9/1 | 2.5/1.3 Maximum torque (S3 40 % /S1) Nm | ft lbs 3. The 2018 DMG Mori Sprint 32/8 is a high-performance CNC screw machine built for precision, speed, and versatility in complex small-part production. Featuring an 8-axis configuration with 6 linear axes and 2 C-axes, the machine is powered by the FANUC 32i-B Plus control system with a 10.4” color display. The Sprint 32/8 is designed with dual spindles capable of 8,500 RPM, with the main spindle delivering 7.4 hp and 29.8 ft-lbs of torque, and the counter spindle generating 3 hp and 10.3 ft-lbs. Both spindles handle bar stock up to 32mm (1.26"), making it ideal for precise machining in medical, aerospace, and automotive industries. The machine supports simultaneous machining with up to 2 tools and offers advanced back-working capabilities. The working area includes Z1, X1/Y1, and X2/Z2/Y2 travels, allowing for intricate multi-sided operations. Tooling includes 8 driven tool stations and multiple configurations for both front and back machining, with speeds up to 6,000 RPM and torque of 2.2 ft-lbs. The Tool Monitoring System offers graphical tool load display, aiding in predictive maintenance and minimizing downtime. Additional features include high-pressure coolant and an integrated air handler, contributing to stable thermal conditions and chip evacuation. Its compact footprint of 30.1 ft² and total weight of 7,826 lbs make the Sprint 32/8 a space-efficient and powerful addition to any high-volume CNC shop. This machine is engineered to streamline part production while ensuring repeatable accuracy, robust power, and operational efficiency.

Condition: excellent (used), Year of construction: 2019, Doosan Puma TT2100SYY Mfd. 2019 Tooled as pictured Specifications SWING OVER BED 9.05" MAX CUTTING DIAMETER 9.05" DISTANCE BETWEEN CENTERS 38.5" X-AXIS TRAVEL 6.5" Y-AXIS Yes Y-AXIS TRAVEL 3.93" Z-AXIS TRAVEL 27.5" C-AXIS INDEXING FULL CONTOURING C-AXIS CHUCK SIZE 8" BAR CAPACITY 2.625" SPINDLE NOSE A2-6 SPINDLE MOTOR 35 hp SPINDLE SPEED 5,000 RPM RAPID TRAVERSE RATE - X-AXIS 1,181 in/min. RAPID TRAVERSE RATE - Z-AXIS 1,575 in/min. SUB SPINDLE Yes SUB SPINDLE - CHUCK SIZE 8" SUB SPINDLE - BAR CAPACITY 2.56" SUB SPINDLE - SPINDLE NOSE A2-6 SUB SPINDLE - SPINDLE MOTOR 25 hp SUB SPINDLE - SPINDLE SPEED 5,000 RPM SUB SPINDLE / W-AXIS TRAVEL 28.7" TURRET CAPACITY 12 TURRET TYPE BMT55 LIVE MILLING Yes LIVE MILLING SPEED 5,000 RPM LIVE MILLING MOTOR 10 hp TURRET 2 CAPACITY 12 TURRET 2 - X-AXIS TRAVEL 6.5" TURRET 2 - Z-AXIS TRAVEL 27.56" Dimensions 93" X 153" (W/CONVEYOR - 186") X 88.6"H Weight 20,940 LBS Equipped With FANUC OiTF CNC CONTROL DOOSAN EZ GUIDE i PROGRAMMING TWIN 12 POSITION TURRETS UPPER AND LOWER, W/24 POSITION INDEXING ON EACH TURRET WITH BASE MOUNT TOOLING SYSTEM Ihodpjw Dvnxefx Abrju Y-AXIS ON BOTH TURRETS (2) INTEGRAL SPINDLES FULL CONTOURING C-AXES ON BOTH SPINDLE MILL/DRILL ON UPPER AND LOWER TURRETS PARTS CATCHER LEFT AND RIGHT PROGRAMMABLE PARTS UNLOADER PARTS CONVEYOR BAR FEED INTERFACE 8" 3-JAW KITAGAWA CHUCK FOR LEFT AND RIGHT SPINDLES (COLLET SYSTEMS IN ON MACHINE NOT INCLUDED IN SALE) (2) X-AXIS LIVE HOLDERS (2) Z-AXIS LIVE HOLDERS STANDARD FACTORY STATIC TOOLING DOOSAN TOOL LOAD MONITORING SYSTEM AIR BLAST SYSTEM FOR CHUCK CLEANING 2 machines available

Condition: used, Year of construction: 1988, x-travel 870 mm y-travel 370 mm z-travel 400 mm table-size 310 x 1370 mm distance vertical spindle / table 50 - 450 mm feed - longitudinal/cross 20 - 800 mm/min 9 - 355 mm/min rapid traverse longitudinal and cross 3000 / 1375 mm/min spindle taper SK 50 spindle turning speed range 40 - 1750 U/min spindle speed: 12 Stück total power requirement 5,5 kW weight of the machine ca. 2,4 t dimensions of the machine ca. 1,9 x 2,0 x 1,5 m - Powerful CNC universal milling machine - Includes Fanuc control system - Kneading milling head - Automatic feeds on X/Z/Y axes - Central lubrication system - Coolant system - Pivoting machine light - Splash guard tray Ihsdpoxlkw Uofx Abrsu - Separate transformer

Condition: used, Year of construction: 1971, hobbing length 1750 mm milling width 260 mm max. module 10 Ijdpfswhquuex Abrjhu table size incl. water gutter 460 x 2100 mm table clamping surface: 250 x 1850 mm cutter width - max. 100 mm feed of the milling slide, stepless 0 - 500 mm/min. rapid traverse feeds 3000 mm/min milling head -swivable +/- 30 ° Rotation speed range of milling head, in 9 steps 29 - 178 rpm Milling head swivable 2 sides helical gearcutting 30 ° total power requirement 4 kW weight of the machine ca. 4 t dimensions of the machine ca. 4 x 1,85 x 1,85 m Milling length 1750 mm Milling width 260 mm Module - max. 10 Table dimensions incl. water channel 460 x 2100 mm Table clamping surface: 250 x 1850 mm Milling cutter width - max. 100 mm Feed of the milling carriage, infinitely variable 0 - 500 mm/min. Rapid traverse 3000 mm/min Milling head - tiltable + / - 30 ° Speed range of the milling spindle, in 9 steps 29 - 178 rpm Bcfed2Md7M Milling head swivels on both sides for helical gearing 30 ° Machine weight approx. 4 t Space requirement approx. 4 x 1.85 x 1.85 m Equipment/accessories - 7 vices - change wheels - Clamping devices - documentation

Condition: excellent (used), Year of construction: 2018, swing over cross-slide 808mm, Maximum cutting diameter 430mm, Maximum cutting length 1260mm, Bar capacity 102mm, Spindle speed 3,000rpm, milling speed 10,000rpm, Main spindle power 25Kw, C axis 0.001 degrees, Y axis -/+ 60mm, Ihedpoyk Slrefx Abrsu 12 station turret. Celos-Fanuc control, equipped with Toolsetter, swarf conveyor, 3 jaw chuck, Parts catcher

Condition: ready for operation (used), total height: 3,580 mm, total width: 3,452 mm, total length: 10,345 mm, controller manufacturer: Heidenhain, empty load weight: 23,500 kg, 4 assen gelijktijdig hoge druk koeling door spindel (20 bar) Ihsdpewaiukefx Abrou 4e as op tafel (zowel horizontaal als verticaal) Renishaw meetsysteem centraal smeersysteem Gereedschapswisselaar met 24 posities T-sleuftafels Stolle inbegrepen 7000 x 1500 mm Spaantransportband Longitudinal travel X-axe: 6000 mm Crosstravel Y -axe: 1200 mm Travel Z-axe (Height): 1500 mm Dimensions clamping space - table: 7000 x 1500 mm Power on spindle: 30 kW Admission in millingheadspindle (ISO): ISO 50 Max speedrange: 40 > 3000 rpm

Condition: ready for operation (used), total height: 3,870 mm, total width: 3,417 mm, total length: 10,994 mm, controller manufacturer: Heidenhain TNC 530, empty load weight: 23,500 kg, FBF-S 6000 4-assige gelijktijdige X/Y/Z + draaitafel hoge druk koeling door spindel (20 bar) 4e as op tafel (zowel horizontaal als verticaal) dia 1000 mm CNC universele freeskop, indexering elke 2 x 2,5° Renishaw meetsysteem centraal smeersysteem Gereedschapswisselaar met 40 posities T-sleuftafels Stolle inbegrepen 7000 x 1500 mm Spaantransportband Alle documentatie, CE-certificaat, parameters etc. slechts +- 500 werkuren vanwege een faillissement vanwege een verloren contract van de Franse nationale spoorwegen Longitudinal travel X-axe: 6000 mm Crosstravel Y -axe: 1200 mm Travel Z-axe (Height): 1500 mm Ijdpfx Abjyldraerehu Power on spindle: 30 kW Admission in millingheadspindle (ISO): ISO 50 Max speedrange: 40 > 4000 rpm

Condition: refurbished (used), Year of construction: 2007, CNC MATRIX Machinable diameter 660 mm Machinable length 1045 mm Main spindle speed 5000 rpm Secondary spindle speed 5000 rpm Milling spindle speed 12000 rpm Tool magazine 40 tools CAPTO C 6 Cooling 70 bars C axis on secondary spindle ROBOT GL 100 F Chip conveyor CONCEPTS Iedpfxor Iyb Tj Abrohu

Condition: good (used), Year of construction: 2015, functionality: fully functional, turning diameter over cross slide: 580 mm, turning diameter: 845 mm, spindle motor power: 30 W, spindle speed (min.): 1 rpm, spindle speed (max.): 2,000 rpm, spindle bore: 165 mm, travel distance X-axis: 340 mm, travel distance Z-axis: 3,170 mm, mount diameter: 12 mm, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 24 m/min, rotational speed (max.): 4,000 rpm, spindle nose: A2 15 POUCES, CNC MATRIX 2, Machinable diameter 845 mm, diameter over carriage 580 mm, machinable length 3170 mm, 12-station turret, rotating tool speed 4000 rpm, spindle bore 165 mm, steady rest SMW K4 from 60 to 280 mm, Pack performance, packing sheet metal, ethernet card, chip conveyor. Ihsdpsq Nzq Asfx Abrsu

Condition: good (used), Year of construction: 2013, CNC MATRIX 2 , Maximum diameter 658 mm, travel X 615 mm, travel Z 1585 mm, travel Y 250 mm, bar passage 102 mm bore 112, spindle speed 35 to 2200 rpm, milling spindle 35 to 12000 rpm, 5 simultaneous axes, mm, 36 tool magazine Capto C6, RENISHAW preparation, steady rest support, chip conveyor. Iedpouqkttsfx Abrehu

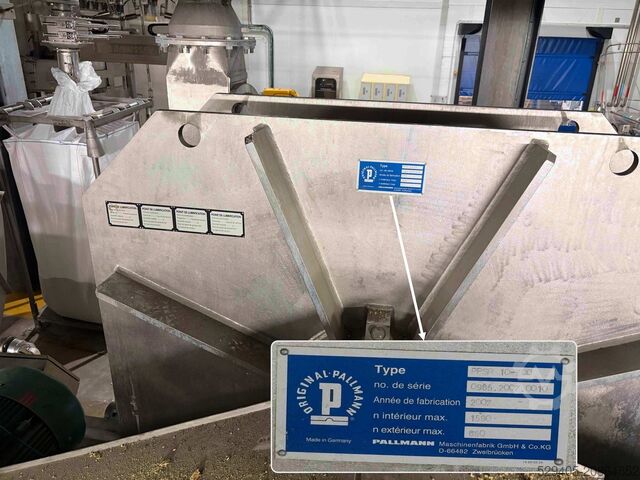

Year of construction: 2007, condition: used, Manufacturer: Pallmann Model: PPSR 10-300 Year: 2007 Type: Contra Selector mill / Fine Impact mill Gentle grinding of dry or wet materials, soft to medium hard. High-throughput cold grinding with fine particle size distribution. Weight : 7000 kg Rotor drive speed: 1590 rpm (110 kW, 380 V, 1500 rpm) Sieve basket speed: 660 rpm (55 kW, 380 volts, 1500 rpm) Impact rotor diameter: Ø 100 cm Screen width: 30 cm Number of hammers: 60 Ijdpfjx R D Iyox Abrehu Pneumatic transfer pickup at machine exit Material : 316L stainless steel Technical documentation available

Condition: good (used), Year of construction: 2010, Maximum turning diameter 406mm, Maximum turning length 520mm, bar capacity 65mm, Y axis -/+ 51mm, Spindle speed, 4,500 rpm, sub-spindle speed 4,500 rpm, Ihjdpoyizllofx Abrsu milling speed 5,000rpm, 12 station turret, 18.5 kw main motor, C axis 0.001degrees, Fanuc I series control, parts catcher, tool setter, swarf conveyor, 3 jaw chucks to main and sub spindles, magazine barfeed

Condition: used, Manufacturer: Frewitt Fribourg Iedpfx Abjx R D Dbsrshu Model : MGH-6-003 Type : Hammer mill Materials: Stainless steel Classification : Atex Motor Felten & Guilleaume : 4 KW Rotor milling tool : 260 mm Grinding chamber depth: 19 cm Product output : Ø 250 mm Product feed - >Rotary valve : Frewitt DR 0150 3 (0.12 KW) Various screens supplied with the equipment: 400 - 425 - 450 - 500 µm.

Condition: used, Year of construction: 2001, operating hours: 6,023 h, total height: 2,500 mm, total length: 3,500 mm, total width: 2,000 mm, Empty weight: 5.000 kg Price: On request - Year: 2001 - Documentation available: No - CE marking present: Yes - CE certificate present: No - Serial number: 00600169 - Operating hours: 6023 - Drive system: CNC - Horizontal/vertical: vertical Ihedpfsyk Hbnox Abrsu - Control system brand: Fanuc - Control system type: 18-M - Power [kW]: 15.0 - Number of axes [pcs]: 4 - X-axis travel [mm]: 1020 - Y-axis travel [mm]: 510 - Z-axis travel [mm]: 510 - Table length [mm]: 1150 - Table width [mm]: 500 - Tool holder: BT40 - Main spindle power [kW]: 11 - Max. spindle speed [rpm]: 8000 - Options: Chip conveyor, External cooling, Tool magazine - Transport dimensions: 3500mm x 2000mm x 2500mm (l x w x h) - Transport weight [kg]: 5000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1998, total height: 2,200 mm, total length: 3,340 mm, total width: 1,830 mm, Empty weight: 5.000 kg - Year: 1998 - Documentation available: Yes - CE marking present: Yes - CE certificate present: No - Drive system: CNC - Horizontal/vertical: Horizontal - Control system brand: Fanuc - Power [kW]: 11.0 - Number of axes [pcs]: 3 - X-axis travel [mm]: 1000 Ihjdpfxjyk Ez Ts Abrju - Y-axis travel [mm]: 505 - Z-axis travel [mm]: 520 - Table length [mm]: 1400 - Table width [mm]: 400 - Tool holder: ISO50 - Main spindle power [kW]: 11 - Min. spindle speed [rpm]: 35 - Max. spindle speed [rpm]: 2000 - Tools included: Yes - Transport dimensions: 3340mm x 1830mm x 2200mm (l x w x h) - Transport weight [kg]: 5000kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 2005, x-travel 620 mm y-travel 420 mm z-travel 400 mm Control Heidenhain TNC 124 turning speed range - spindle 50 - 4.000 U/min transmission ratio 2 drive capacity - spindle motor 6 kW tension force 10 kN swivellable manuell +/-45 ° max. tool diameter 125 mm max. tool weight 6 kg Ihjdpeylcpqjfx Abrsu table surface area 400 x 800 mm T-slots 5x14x80 max. table load 400 kg feed speeds X/Y: 0 - 6.000 mm/min feed speeds Z: 0 - 4.000 mm/min rapid traverse X/Y: 6 m/min rapid traverse Z: 4 m/min total power requirement 11 kW weight of the machine ca. 2 t dimensions of the machine ca. 2,9 x 3,5 x 2,0 m Includes: Heidenhain TNC124 point-to-point control Electrical documentation available Coolant system 2 work lights Machine vise Various tool holders Various SK40 tools Enclosure with 2 sliding doors available, pictures to follow

Condition: used, Lot consists of: (1) universal milling machine Ihjdpfsylacbjx Abrju

Condition: excellent (used), Year of construction: 2014, CNC Turning and Milling Center Okuma Multus U4000 1SC 1500 BigBore Control: OSP-P 300S Year of manufacture: 2014 X-axis: 695 mm Y-axis travel: +150/-150 = 300 mm Z-axis: 1,600 mm B-axis: 240°, positioning in 0.001° increments C-axis: 360°, positioning in 0.001° increments Turning diameter: 650 mm Turning length: 1,500 mm Spindle interface: Capto C6 Total tool stations: 80 Equipment: - NC tailstock - Travelling hydraulic steady rest AX 5 on NC axis - Coolant system with band filter - Kitagawa BB 212-11 hydraulic 3-jaw chuck - Automatic tool touch setter - High-pressure coolant system (IKZ) - Software option High Cut Pro (High-accuracy package with Super Nurbs) Isdpfx Aboyk Ddgjrehu - CAS collision avoidance system - Main spindle orientation, electric - Multitool with turning function for Y-axis - Helix function - Automatic main power shut-off - DNC-DT interface - Machining Navi M-i (milling), speed control to minimize vibration - One-Touch IGF - Chip conveyor

Condition: good (used), Year of construction: 2008, Maximum cutting diameter 820mm, maximum cutting length 3048mm, C axis 0.0001 degrees, B axis -30/+210 degrees, 40 ATC, spindle speed 1,600 rpm, Iodpfotmtktex Abrehu Milling speed 10,000rpm., main spindle 37Kw, spindle taper din50, Y axis -/+ 250mm, Mazatrol Matrix control, fixed steady, swarf conveyor

Condition: used, Year of construction: 2001, x-travel 400 mm y-travel 250 mm z-travel 400 mm tool taper ISO 40 spindle turning speed range 30-6300 / 20-4200 U/min feeds 0 - 10.000 mm/min quill stroke 90.0 mm table-size 600 x 320 mm T-slots 5 x 14 x 63 mm Control TNC 410 CA spindle ein ~ 126 Std. Iedpfxjxab T Ae Abrshu engine output 11.0 kW weight 1300 kg dimensions of the machine ca. 1600 x 1500 x 1900 mm Original price incl. special accessories ~ 72.000 euros Machine was very rarely used (!!) with only approx. 126 spindle hours (spindle on) Furnishing : - MACMOM / INAS CNC universal milling and drilling machine - HEIDENHAIN CNC path control TNC 410 CA * workshop-oriented path controls, with * Programming in easy-to-understand plain text dialog * HEIDENHAIN electr. Remote control with handwheel - Pivoting control panel, to the right of the machine - hydraulic tool clamping (tie bolt DIN69872-A) - Vertical milling head rotating on both sides - ISO 40 - Vertical speed range - infinitely variable .. 30-6300 rpm. - Horizontal speed range - stepless .. 20-4200 rpm. - robust, rigid angle table with 5x T-slots - Coolant device, with tub - Swarf spray protection cabin - Instruction manual for machine Special accessories included : - 1x pneumatic clamping plate, with aggregate - 1x WALTER TANIH125 NEGI-R dividing head - 1x machine vice - HILMA RÖMHELD type SM 100 - very many tool holders - Machine swing feet * Machine video : ?v=3dqLbTme81E

Condition: good (used), Year of construction: 1986, CNC Table-type Boring Mill Manufacturer: TOS VARNSDORF Model: WH 10 NC Year: 1986 with Heidenhain TNC 135 control. Spindle diameter: 100 mm Spindle taper: SK50 Spindle speeds: Motor 20 kW Spindle travel: 630 mm Ihodpfx Aboyk Tltereu Travel paths: X 1250 mm, Y 1100 mm, Z 950 mm Table size: 1000 x 1120 mm, load capacity 3000 kg Weight: 12,800 kg Equipped with coolant system, machine documentation available. Machine not under power.

Condition: ready for operation (used), controller manufacturer: Heidenhain TNC 530, empty load weight: 45,000 kg, total length: 11,055 mm, total width: 6,320 mm, total height: 4,140 mm, Type: DMC-4100LH 2800 mm tussen de kolommen!! Zonder freeskop kunt u klassieke verticale bewerkingen uitvoeren. Met de multihoekfrees (MA-25) kunt u veel verschillende vlakken bewerken. MA-25 2-assige freeskop - 30 kW - 2000 tpm - 1500 Nm koppel C-as bereik: 0-360° - 2,5° Bereik van de A-as: +/- 110° - 2,5° Koeling via spindel: 40 bar Totaal vermogen: 67 kW Geen foundation nodig! De Johnford DMC-serie brugfreesmachine met dubbele kolom en beweegbare tafel is vervaardigd uit een brug/kolomconstructie van gegoten Meehanite-ijzer, die naar verluidt 30 procent minder vloeroppervlak in beslag neemt dan vergelijkbare verticale bewerkingscentra met C-frame. De brugfreesmachines zijn verkrijgbaar in uitvoeringen met beweegbare tafel en met schuifkolom (vaste tafel), met afmetingen variërend van 91 x 91 x 76 cm tot 18 x 6 meter. De lange basisconstructie biedt volledige ondersteuning aan de tafel over de gehele Y-asbeweging van 130 cm, waardoor zeer zware werkstukken bewerkt kunnen worden. De Y- en Z-assen dragen te allen tijde een vaste belasting, terwijl de X-as de enige dynamische belasting draagt. Dit maakt nauwkeurige bewerkingen en strakke toleranties mogelijk tijdens bewerkingen met hoge snelheid. Doordat er geen tafeloverhang is, worden de helling en de draaiing van de X-as geëlimineerd. De afstand tussen de hartlijn van de spindel en de kolom is geminimaliseerd, wat de stijfheid verder verhoogt. De zwaar geribbelde gietijzeren constructie van de machine zorgt voor een lange levensduur van het gereedschap en een goede oppervlakteafwerking van het werkstuk. De combinatie van twee schroefbandtransporteurs en een rupsbandtransporteur garandeert een volledige spaanafvoer met minimale handmatige reiniging. Bovendien wordt eindige-elementenanalyse (FEA) gebruikt voor het ontwerp van elke brugfreesmachine, waarbij de effecten van realistische omstandigheden, zoals trillingen, warmte, vloeistofstroming en andere fysieke invloeden, worden gesimuleerd. Longitudinal travel X-axe: 4100 mm Cross travel Y-axe: 2800 mm Ihodpfxexp Sk Do Abrju Travel Z-axe: 800 mm Dimensions clamping space- table: 4200 x 2400 mm Power on spindle: 30 kW Admission in millinghead (ISO): BT 50 Max speedrange: 6000 rpm
