Used Paving Stone Shape for sale (2,749)

Condition: new, Year of construction: 2025, Introduction Of Jaw Crusher Plant The capacity vary according customer request. And in order to meet the different demands of customers, the production line can equip with cone crusher, dust removal equipment and other equipment. It is suitable for the materials like hard limestone, granite,basalt, pebble, metallurgy slag and artificial sand making work. It is widely used in the industries of hydroelectric, building materials, highway, and urban construction. And according to different technological requirement, various types of equipment can be combined to meet the demands of different customers. Product Advantages of Stone Crusher Machine Plant 1.High reliability, good stability Dodoq Nyy Eepfx Apwjkr 2.Convenient maintenance, easy operation 3.Low operation costs, wide application range 4.Laminating crushing makes good discharging grain shape We also provide other stone crushing solutions like 1. Vibrating feeder + Jaw crusher + Fine jaw crusher + Vibrating screen 2. Vibrating feeder + Jaw crusher + Impact crusher + Vibrating screen 3. Vibrating feeder + Heavy hammer crusher + Vibrating screen 4. Sand Production Line 5. Gravel / Aggregate production line A stone crushing plant for sand and aggregate production involves several stages and equipment. Here's an overview of the process and the main components involved: Process Overview 1. Primary Crushing: Large stones from the quarry are fed into a primary crusher, typically a jaw crusher, which reduces them to smaller, manageable sizes. 2. Secondary Crushing: The output from the primary crusher is further reduced in size by a secondary crusher, usually a cone crusher or impact crusher. 3. Screening: The crushed material is separated into different size fractions using vibrating screens. Oversized material is returned to the crushers for further reduction. 4. Sand Making: For producing sand, the material might be passed through a sand making machine, like a vertical shaft impact crusher, to achieve the desired shape and size. 5. Washing: The final product is often washed to remove impurities and improve the quality of the aggregate. 6. Stockpiling: The finished product is stored in stockpiles before being transported to customers. Main Components of stone crushing plant 1. Jaw Crusher: Used for primary crushing of large stones. 2. Cone Crusher or Impact Crusher: Used for secondary crushing to produce finer aggregates. 3. Vibrating Screen: Separates the crushed material into different size fractions. 4. Sand Making Machine: Special equipment for producing sand. 5. Belt Conveyors: Transport materials between different stages of the process. 6. Vibrating Feeder: Feeds raw material into the crushers evenly and continuously. 7. Sand Washer: Cleans the sand by removing impurities. 8. Control System: Manages the entire process, ensuring efficient and safe operation. Implementing a well-designed stone crushing plant can significantly increase production efficiency and produce high-quality sand and aggregate.

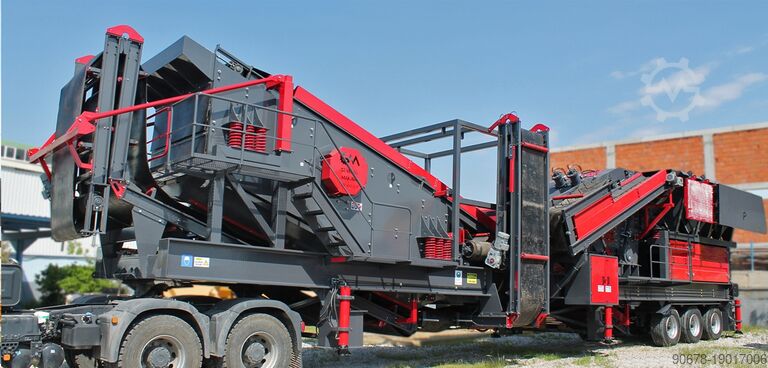

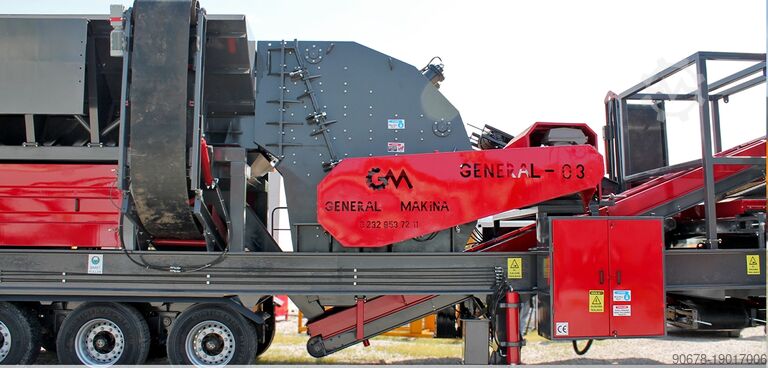

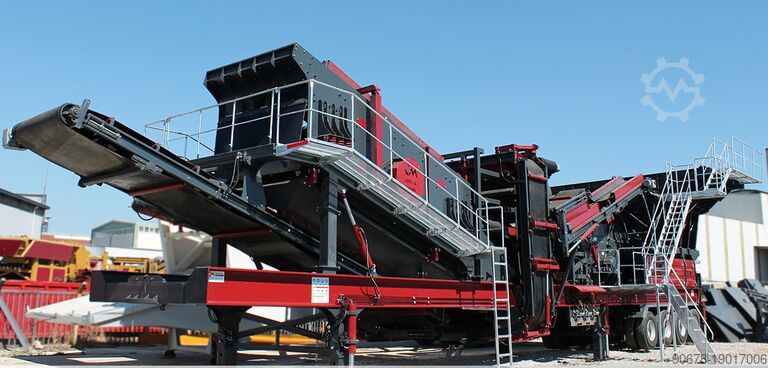

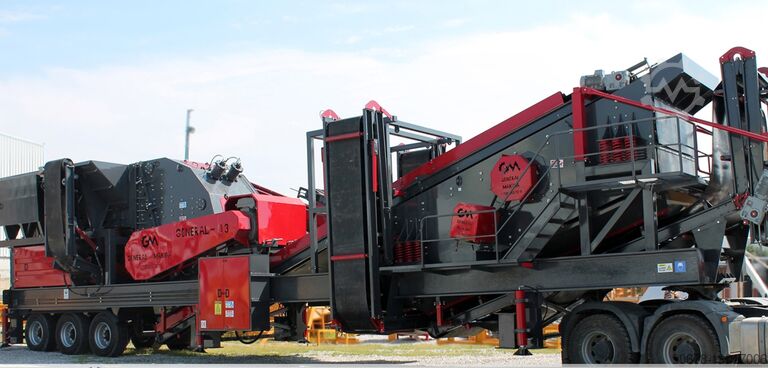

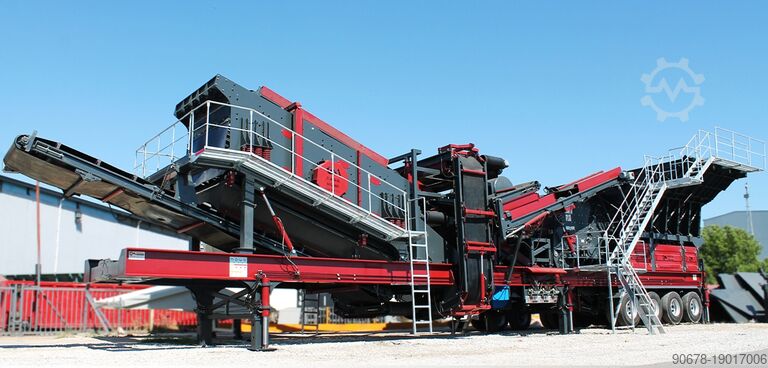

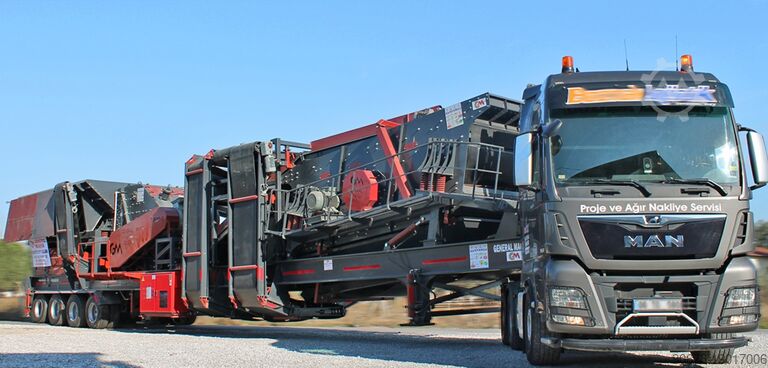

Condition: new, power: 75 kW (101.97 HP), Year of construction: 2025, A mobile jaw crusher is a type of crushing machine that is equipped with a jaw crusher and is mobile in nature. This crusher is designed to be moved around and taken to various locations, especially those where processing materials are needed on-site. Mobile jaw crushers are widely used in industries such as mining, construction, and recycling for processing a variety of materials. Here are the key features and components of a typical mobile jaw crusher: 1. Jaw Crusher: - The primary crushing unit of the mobile jaw crusher is the jaw crusher itself. It consists of a fixed jaw and a movable jaw, with the material being crushed between them. 2. Mobile Chassis: - The crusher is mounted on a mobile chassis, which may have tracks for mobility or be wheeled for easy transport. The mobility of the chassis allows the crusher to be easily moved between different work sites. 3. Feeder: - A vibrating feeder is typically included to feed the material into the jaw crusher. It ensures a consistent and controlled feed of the material to the crushing chamber. 4. Engine or Power Source: - Mobile jaw crushers are powered by diesel engines or electric motors. The choice of power source depends on factors such as the availability of electricity and the need for mobility. 5. Control Panel: - A control panel is provided for operators to manage and monitor the crusher's operation. It may include controls for starting and stopping the crusher, adjusting the discharge setting, and monitoring various parameters. 6. Hydraulic System: - Mobile jaw crushers often feature a hydraulic system to adjust the crusher's settings. This includes the adjustment of the jaw crusher's CSS (Closed Side Setting), which influences the product size. 7. Conveyor Systems: - Conveyors are used to transport crushed material from the jaw crusher to the next stages of the processing plant or for stockpiling. Some mobile jaw crushers have integrated conveyor systems. 8. Magnetic Separator (Optional): - Some mobile jaw crushers come equipped with a magnetic separator to remove metal contaminants from the crushed material, preventing damage to downstream equipment. 9. Dust Suppression System (Optional): - To control dust generated during the crushing process, some mobile jaw crushers may be equipped with dust suppression systems. 10. Remote Control (Optional): - Remote control capabilities allow operators to control the crusher from a distance, enhancing safety and convenience. 11. Application: - Mobile jaw crushers are used for primary crushing of various materials, including hard rock, construction and demolition waste, concrete, asphalt, and natural aggregates. Dkjdpfx Aoq I N Atopwor 12. Versatility: - Mobile jaw crushers are versatile and can be used in various applications. They are suitable for both recycling and quarrying operations, offering flexibility in processing different types of materials. Mobile jaw crushers are beneficial for operations that require frequent relocation or for processing materials in remote locations. They provide a cost-effective solution for on-site crushing and are widely used in the construction and mining industries. Operators should follow safety guidelines and manufacturer recommendations for proper operation and maintenance.

Condition: new, power: 110 kW (149.56 HP), Year of construction: 2025, Bauxite Crusher: Bauxite is an aluminum ore, and crushers or mills are used to break down the bauxite into smaller pieces for further processing. Jaw crushers, impact crushers, or cone crushers may be used for this purpose. Granite Crusher: Granite is a hard and durable natural stone. Crushers used for granite crushing typically include jaw crushers, impact crushers, and cone crushers. These crushers can handle the varying hardness of granite and produce different sizes of crushed products. Bentonite Crusher: Bentonite is a type of clay with excellent water-absorbing and plasticity properties. Crushers such as jaw crushers or cone crushers are used to break down the bentonite into a manageable size for further processing. Djdpfx Asq Nx Apspwjkr Barite Crusher: Barite, also known as baryte, is a mineral consisting of barium sulfate. Crushers like jaw crushers and cone crushers are commonly used in the crushing process of barite. Impact crushers may also be used for shaping and processing finer particles. For each of these minerals, the selection of the appropriate crusher depends on factors such as the hardness of the material, the required final product size, and the specific characteristics of the deposit. It's also important to consider whether a primary crusher, secondary crusher, or even tertiary crusher is needed in the processing flow. Additionally, for certain applications, grinding mills may be employed after the initial crushing stage to further reduce the size of the particles. Grinding mills suitable for these minerals might include ball mills, Raymond mills, or vertical roller mills, depending on the specific requirements of the process. Remember that the choice of crushers and mills is often part of a larger mineral processing plant design, and the selection process should take into account the overall production requirements, mineral characteristics, and economic considerations.

Condition: new, Year of construction: 2025, A sand aggregate production plant is a facility where various types of aggregates (such as sand, gravel, crushed stone, or recycled concrete) are produced for use in construction and other applications. These plants typically include various stages of processing, from raw material extraction to the final product. Here are the key components and processes typically involved in a sand aggregate production plant: 1. Raw Material Extraction: - Quarrying or Mining: Aggregates are often extracted from quarries, mines, or riverbeds. Depending on the type of aggregate, the extraction process may involve drilling, blasting, or dredging. 2. Primary Crushing: - Jaw Crusher or Gyratory Crusher: The extracted raw material is usually transported to the plant and fed into a primary crusher, where large rocks are broken down into smaller pieces. 3. Secondary Crushing: - Cone Crusher or Impact Crusher: The crushed material from the primary crusher may undergo further reduction in size through secondary crushing. 4. Screening: - Vibrating Screens: After crushing, the material is often screened to separate different sizes of aggregates. This process ensures that the final product meets the required specifications. 5. Washing: - Sand Washers: In some cases, especially for sand production, washing is done to remove impurities, clay, and fines from the aggregates, ensuring a cleaner and higher-quality product. 6. Grading and Sorting: - Classifiers or Graders: After washing and screening, the aggregates may go through additional processes to separate them based on size or quality. 7. Stockpiling: Djdpfjq Ngb Djx Apwokr - Stockpiles: The final aggregates are usually stockpiled for storage before being transported to construction sites or other end-users. 8. Aggregate Storage and Handling: - Storage Bins or Silos: Larger production plants may have storage facilities, such as bins or silos, to store different types and sizes of aggregates before distribution. 9. Quality Control: - Laboratory Testing: Regular quality control testing is performed on aggregates to ensure they meet specifications for strength, size, gradation, and other properties. 10. Environmental Considerations: - Water Management: Some plants incorporate water management systems to recycle and reuse water used in the washing process, minimizing environmental impact. 11. Transportation: - Conveyors or Trucks: Aggregates are typically transported from the production plant to construction sites by conveyors, trucks, or other means.

Condition: new, Year of construction: 2025, Gravel and aggregate production equipment is used to crush, screen, and process stones, rocks, and other materials for the construction industry. This equipment is essential in producing various types of aggregates, including crushed stone, gravel, sand, and recycled concrete, which are used in the construction of roads, buildings, bridges, and other infrastructure projects. Here are some common types of equipment used in gravel and aggregate production: 1. Jaw Crusher: - Jaw crushers are primary crushers used to break down large rocks into smaller, more manageable pieces. They are essential for the initial stage of aggregate production. 2. Impact Crusher: - Impact crushers are used to crush rocks and stones with the help of impact force. They are suitable for shaping and producing fine aggregates. 3. Cone Crusher: - Cone crushers are often used for secondary and tertiary crushing in aggregate production. They produce well-shaped and finely graded aggregates. Dkjdpfsq Nxz Djx Apwjr 4. Vertical Shaft Impact (VSI) Crusher: - VSI crushers are designed for shaping and producing high-quality artificial sand. They are suitable for processing materials with high abrasiveness. 5. Screens: - Vibrating screens are used to separate different sizes of aggregates. They classify the material based on particle size and ensure that the final products meet specified gradation requirements. 6. Scalping Screens: - Scalping screens are used to remove oversized materials before they reach the primary crusher. This helps to optimize the crushing process and prevent damage to the equipment. 7. Washing Equipment: - Washing equipment, such as sand screws or log washers, is used to remove impurities and fine particles from aggregates. This is particularly important for producing high-quality concrete sand. 8. Conveyors: - Conveyors are used to transport materials between different stages of the crushing and screening process. They play a crucial role in enhancing efficiency in material handling. 9. Stackers and Reclaimers: - Stackers are used to create stockpiles of processed aggregates, while reclaimers are used to retrieve the material from the stockpile. Both are essential for efficient material storage and handling. 10. Crushing Plants: - Complete crushing plants include various types of crushers, screens, and conveyors integrated into a single system. These plants are designed to handle large volumes of material efficiently.

Condition: good (used), Year of construction: 1973, FELLOWS 70-15 GEAR SHAPER - Model 70-15 Fellows heavy duty vertical gear shaping machine , suitable for the manufacture of external straight spur gears up to 70" pitch diameter, as well as internal spur gears and splines within a range of 0" to 88" pitch diameter, regardless of shaper-cutter radius. This unique feature, combined with the machines 15" face-width capacity and 1.7DP cutting capability in steel, provide a formidable platform for producing a wide range of larger geared part members. Equipped with: * Machine Main Base With Work-table, Upper Column, Cutter Ram and Slide of "Super Robust" Construction * Machine with "Saddle Backoff" Method of Cutter Relieving * Cutter Spindle 6.25" diameter w/Standard Straight Spur Guide * Cutter Positioning via Stroke Jog-Button * Rapid Rotation of Work Spindle for Trueing Work-Piece * Rapid Saddle Traverse for Traversing Saddle Relative to Work Dksdpfx Apsrtrxiowor * Automatic Depth Feed Mechanism for One to Four Cuts, With 4 Speed Motor Providing Speed Change on Finishing Cut * Assorted Work and Feed Change Gears * Assorted Stroke Change Gears * 2" Riser Plate * Main Drive Motor 15HP, 650/220 rpm, 240 Volt 60Hz w/Westinghouse Rectifier Unit for AC * Power Forced Lubrication to Working Elements with "Lubriquip Lub Controller" * Coolant Tank, Pump, and Piping, With Chip Pan * Full Complement of Electrics * Assorted Guards, Covers * 84" T-Slotted Table * Hydraulic System * Work Lamp * Work Platform * Cutter Adaptor * Manuals Specifications: Max. Diameter External Gear Cut (Nominal): 70" Max. Diameter Internal Gear Cut (Nominal): 88" Max. Diameter Workpiece Accommodated: 104" Worktable Diameter: 84" Max. Permissible Weight of Workpiece & Fixture: 36,000 Lbs. Max. Distance Workspindle Centerline to Centerline of Cutter Spindle: 35" Min. Distance Workspindle Centerline to Centerline of Cutter Spindle: 0" Max. Work & Fixture Clearance Height w/Cutter Spindle in Upper Position: 28" Max. Diametral Pitch (full length teeth): 2 DP Max. Diametral Pitch (stub teeth): .75 DP Max. Diameter Pitch (30P.A. splines): 2-5/5 DP Diameter of Cutter Spindle: 6.25" Max. Stroke Length: 19.118" Max. Face-Width (nominal): 15" Stroking Speeds (infinitely variable): 5 to 122 S.P.M. Max. Infeed of Cutter Ram: .0020 inch/min. Min. Infeed of Cutter Ram: .0005 inch/min. Max. Rotary Feed Per Stroke (per 1" of cutter diameter): .0068"/Min. Min. Rotary Feed Per Stroke (per 1" of cutter diameter): .0006"/Min. Approximate Machine Dimensions: 192"L x 144"W x 150"H Approximate Machine Weight: 95,000 Lbs.

Condition: excellent (used), Year of construction: 2019, machine/vehicle number: 32006, input voltage: 480 V, The Sprinter for Gears with Short Face Widths up to 100 mm The 100S Gear Shaping Machine is ideally suited for small face widths, for shaping spur and helical gears, internal and external, and for crowned and tapered gears. With only 6 m2 the 100S is one of the most compact machines of its class. Equipped with: Siemens Sinumerik 840D SL Control Hydraulic System 180 Degree Load System HSK-63 Spindle Auto Stroke Adjustment Chip Conveyor Chip Basket Flexlink Automation Festo Pneumatics Rittal Panel Conditioners Chiller 480/3/60, 35 KvA Motor & Controls Specifications: Workpiece With External Gear: -Largest Module (Steel W/Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Diameter: 100 mm Workpiece With Internal Gear: -Largest Module (Steel With Approximate 600 N/mm2): 3 mm -Maximum Width: 26 mm -Maximum Swing Diameter: 150 mm -Maximum Internal Diameter: 100 mm Tool: -Locating Cone In The Cutter Spindle: HSK-D63 -Diameter Shaping Spindle: 85 mm -Maximum Stroke Length: 30 mm Machine Travel Distances: -Radial (X-Axis): 180 mm Djdpfx Asrtrvyjpwjkr -Column Tilting (B-Axis): -1 - +11 Degrees Machine Workpiece Table: -External Diameter: 220 mm -Clamping Diameter: 160 mm -Bore: 63 mm Speeds: -Feed Rate X-Axis: 12,000 mm/min -Workpiece Table (C-Axis): 0-400 min-1 -Cutter (C2-Axis): 0-300 min-1 -Spindle Stroke (A-Axis): 500-3,000 min-1 Electrical Equipment: -Operating Voltage: 480V -Supply Voltage: 115V -Control Voltage: 24V -Frequency: 60 Hz -Connected Load of Machine: 35 kVA -Cable Cross-Sectional Area: 35 mm2 -Protection: 80 A Machine Overall Dimensions (L x W x H): 3,380 x 3,950 x 3,015 mm Weight of Machine: 7,800 kg

Condition: like new (used), Year of construction: 2017, max. wheel diameter 100 mm gear width 26 mm max. module 31 min. module 0,1 Control Siemens 840 D SL Number of working hours 9598 h total power requirement 45 kW weight of the machine ca. 7,8 t dimensions of the machine ca. 4,40x3,95x3,01 m Gleason 100S gear shaping machine for the production of internally and externally toothed cylindrical gears and other cylindrical workpiece circumference regularly occurring profiles and moulds as well as for the production of profiles using the single part process. Technical data: Nominal workpiece diameter 100 mm Largest circumferential diameter 150 mm Machine nominal module approx. 3 mm (Guide value depending on the respective machining task.) Shaping spindle stroke speed range 0 - 3,000 1/min Stroke position adjustment range (manual) 20 mm Largest toothing width 26 mm Smallest pitch height of the hydrostatic inclined guide 400 mm Smallest/largest distance between tool axis - 20/+ 180 mm and workpiece axis Stand inclination range (manual) - 1/+ 11° Tool holder (manual clamping) HSK-D63 (hollow shank taper according to DIN 69063) Dkjdpfx Aev Ehbbjpwsr Weight of the machine approx. 7,000 kg with robot cell

Condition: good (used), Year of construction: 1998, Max. Pitch circle diameter External gearing 300 mm Max. Pitch circle diameter internal gearing 300 mm Max. Outer diameter of workpiece (equipment) 450 mm max. module 6 gear hobbing width -max. 100 mm Max. Helix angle (with tool Ø 125 mm) +/- 45 ° strokes - infinitely variable 130 - 1300 Hub/min workpiece weight 1000 kg Minimum distance table top - tool spindle -55 / +300 mm Maximum distance table top - tool spindle 200 mm Maximum distance table top - tool spindle 350 mm Manual Upright side shift +/- 25 mm Manual swivelling angle of the tool spindle +/- 0,5 ° Max. Tool speed 15 UpM Max. Workpiece speed 27 UpM Max. Tool diameter 7 Zoll voltage 400 V frequency 50 Hz Max. Line power 70 A total power requirement 48 kW weight of the machine ca. 11 t dimensions of the machine ca. 4,27 x 3,11 x 2,87 m taper in main spindle SK 45 table hole 40 mm control Siemens Sinumerik 840 C Gleason PFAUTER gear shaping machine Mod. PSA 300 The CNC modular gear shaping machine with skiving cutter for the machining of external and internal cylindrical gears, with straight or helical involute with straight or helical involute toothing, as well as any other profile splitting process. The work cycle is controlled by a CNC unit, with specific software for machining the gears, machining. Field of application --> The PSA 300 has been designed for the production of: - Gears with straight external teeth Dsdpfevu E Nuex Apwokr - Gears with straight internal teeth - Gears with external helical teeth - Gears with internal helical teeth

Condition: excellent (used), max. wheel diameter 300 / 400 mm Dkjdpozq Hmcjfx Apwsr gear width 76 mm max. module 6 min. module 0,5 Control BWO CNC 921 adjustment of stroke position 94 mm/Hub stroke 82 mm no. of strokes 75 - 1000 Hub/min number of teeth 5 - 200 taper of shaper cutter SK 45 table diameter 400 mm total power requirement 50 kW weight of the machine ca. 7,5 t dimensions of the machine ca. 5,0 x 3,8 x 3,4 m Machine in top condition.

Condition: ready for operation (used), functionality: fully functional, Gear hobbing machine: Largest gear module: 8 mm Largest gear diameter: 500 mm Largest rim width: 100 mm Spindle stroke: 150 mm Largest spindle stroke: 125 mm Diameter of the product spindle flange or worktable: 560 mm Base hole in the table or product spindle flange: 110 mm Number of double strokes: 18 Range of double stroke changes: 55-560/min Peripheral feed rate range: 6-590 mm/min Radial feed rate range: 0.02–0.2 mm/s Distance between the lower plane, floor, and table work surface: 920 mm Djdjzhwa Uspfx Apwekr Largest distance between the table surface and the tool spindle surface: 270 mm Smallest distance between the table surface and the tool spindle surface: 120 mm Largest distance between the table axis and the tool axis: 355 mm Smallest distance between the table axis and the tool axis: 0 mm Limb and vernier value for setting the product and tool distance: 0.01 mm Automatic table retraction Table movement relative to the tool axis: 355 mm Rapid table movement speed: 1.5 m/min High-speed table rotation: 4.5 rpm Drilling depth: 25 mm Tool offset at idle speed: 0.5 mm Amount of static comparison for tool offset at an angle: ± 20 mm Number of motors: 6 Main drive motor power: 4/4.5/7.5 kW Hydraulic drive motor: 2.2 kW Table rotation acceleration motor power: 0.75 kW Coolant pump motor power: 0.6 kW Lubrication pump motor power: 0.25 kW Power supply for the peripheral motor: 2.4 kW Dimensions (L x W x H): 1975 x 1690 x 2510 mm Power supply: 3x 380 V; 50 Hz Machine weight: 7500 kg

Condition: like new (used), Year of construction: 2021, fuel type: gasoline, empty load weight: 68 kg, Several very neat joint filling machines for sale: Weight: 68 kg Honda engine, petrol Dodpfszc R Ucjx Apwjkr with water connection. 8 brushes. height adjustable. Price: € 1.250,- incl. VAT Several in stock!

Condition: used, Year of construction: 2002, max. wheel diameter 275 mm gear width 58 mm max. module 10 min. module 0,5 Control Siemens Sinumerik 840D weight of the machine ca. 9,5 t dimensions of the machine ca. 3800x2600x2550 mm Maximum wheel diameter: 275 mm Module +: 10Module -: 0.5 Djdoyan Nfjpfx Apwekr CNC control Max. spindle speeds: 1200 rpm Max. wheel width: 58 mm

Year of construction: 2022, condition: used, functionality: unexamined, For sale is a package of six Cavitec system modules for processing web-shaped materials: two identical laminating/pressing calenders, two stationary winding stations, and two mobile winding stations. The modules come from a coating or laminating environment for technical textiles, nonwovens, films, or membranes. Dodpfxjzr Hh Nj Apwskr Position 1: 1 × Cavitec laminating unit / laminating calender Position 2: 1 × Cavitec delaminating unit / identical pressing calender Position 3–4: 2 × stationary Cavitec winding stations; suitability for use as unwinder or rewinder for technical materials to be determined Position 5: 1 × mobile unwinder Position 6: 1 × mobile rewinder Proof of origin: Purchase contract from 2022 with historical photo documentation available. Preferably sold as a complete package; partial sale by agreement. Sale basis: Used, as inspected; dismantling, loading, and transport by agreement. The system is located in 06502 Thale.

Condition: used, Year of construction: 1963, total height: 1,850 mm, total width: 800 mm, total length: 3,900 mm, Empty weight: 3.000 kg Price: On request Stroke: 1500mm Capacity: 10t - Year: 1963 - Documentation available: Yes - CE certificate present: No - Drive system: Conventional - Power [kW]: 7.5 - Transport dimensions: 3900mm x 800mm x 1850mm (l x w x h) - Transport weight [kg]: 3000kg - Transport packages [pcs.]: 2 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Dkedoy Auy Ropfx Apwsr Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), HARTGESTEIN measuring and control plate DIN 876/1 with substructure Dodpfjzati Rex Apwokr Dimensions: Length: 800 mm Width: 600 mm Thickness: 120 mm Height with substructure: 890 mm Accuracy: DIN 876/1

Year of construction: 2013, condition: excellent (used), Robust and compact bridge saw with a fixed bridge for cutting stone tiles and slabs up to 800 mm in length: Special design of the support for maximum cutting precision; Water collection tray with built-in water circulation system for cooling the blade; Robust and compact construction. Roller conveyor at the front Djdpfx Aji Akvvjpwokr Roller conveyor at the rear Saw blade size: 350 mm Motor power: 2 kW Voltage: 230 volts Weight: 173 kg Mobile Location: in stock at warehouse 54634 Bitburg - immediately available -

Condition: new, Year of construction: 2026, functionality: fully functional, Technical Details of the VS BIG (Two-Deck): • Top deck: 130 x 130 mm screen mesh • Bottom deck: 90 x 90 mm screen mesh • Fixed metal brake (instead of rubber brake) • 400V power connection Conveyor Belt CB 3000: Dkodpsyirx Nofx Apwor • Without standard frame with wheels • Fixed frame at the bottom This setup allows for efficient and precise screening directly on-site!

Condition: good (used), DMG Mori Sauer Lasertec 65 Shape Year of manufacture: 2014 X-axis travel: 650 mm Y-axis travel: 650 mm Z-axis travel: 560 mm Control system: Siemens 840D sl Main spindle: Speed range – main spindle: 20 - 10,000 min/-1 Drive power – main spindle: 13 / 9 kW Max. torque: 83 / 57 Nm Tool interface: HSKA63 DIN 69893 NC rotary table: Table clamping surface: 800 x 650 mm Max. table load: Swiveling range: +/- 120° Rotary range: 360° T-slots: 600 Max. workpiece dimensions: 650 (840) x 500 mm Tool magazine: Dodpfozqddxjx Apwekr Number of tool positions: 30 Max. tool weight: 6 kg Max. tool diameter: 80 mm Max. tool diameter with free adjacent tool pocket: 160 mm Max. workpiece length: 315 mm Tool change time (tool to tool): 1.6 sec Chip-to-chip time: 8.0 sec Feed rates: Rapid traverse: 40 m/min Feed force: 7/13/10 kN Feed rate: 1 - 40,000 mm/min Total power consumption: 24 kVA Machine weight (approx.): 11.5 t Space requirement (approx.): 4.5 x 3.5 x 2.3 m Documentation Coolant system Electric handwheel Laser head: 100 watts Laser hour meter: 6177 h / 2802 h Machine hour meter: 18703 h / 4738 h

Condition: excellent (used), Year of construction: 2005, Leg length – long leg: 1000 mm Leg length – short leg: 660 mm Leg width: 120 mm Accuracy, accurate on all four sides: 0.001 mm Weight, approx.: 135 kg Djdpfxozki Rqo Apwjkr

Condition: as good as new (ex-display), Year of construction: 2024, warranty duration: 12 months,  Control panel  5 cutting heads  The angle of the 5th head can be adjusted within a range of 270 degrees  5 feed and pressure rollers  Adjustable feed speed: 3 – 15 m/min  4 dust extraction points  Height indicator allowing for precise adjustment of the table and machine height  Width indicator allowing for precise adjustment of the timber dimensions  Infeed table with a length of 1.9 m and outfeed table with a length of 1 m Technical data CAPACITY  Four-sided planing • Maximum width 350 mm • Height range 10 - 160 mm  Two-sided planing • Planing width 410 mm • Height range 10 - 230 mm  Single-sided planing • Maximum width 510 mm • Height 230 mm TOP HEAD • Diameter 88 mm • Width 510 mm • Motor power 5.5 kW (7.5 HP) • Rotational speed 6000 rpm • Max. planing depth 8 mm • Max. profiling depth 20 mm BOTTOM HEAD • Diameter 72 mm • Width 410 mm • Motor power 4 kW (5.5 HP) • Rotational speed 6000 rpm • Max. planing depth 8 mm • Max. profiling depth 10 mm (15 mm drill) SIDE HEADS Dedpfx Apezqzy Rowskr • Spindle diameter 30 mm • Max. Knife height 160 mm • Max. Diameter 160 mm • Motor power 3 kW (4 HP) • Rotational speed 6000 rpm • Max. planing depth 30 mm ADDITIONAL HEAD • Spindle diameter 30 mm • Max. Knife height 130 mm • Max. Diameter 200 mm • Motor power 3 kW (4 HP) • Rotational speed 3000, 6000, 9000 rpm • Tilt angle 270 degrees

Condition: used, Year of construction: 1974, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7 t L O R E N Z (Germany) High Performance Automatic Gear Shaper Model LS 400 Year 1975 Serial No. 12 592 _____ External gear, max. Ø 400 mm (possibly larger) Internal gear dia. 350 mm Gear width, max. 75 mm Module range 0.5 - 6 Length of stroke 82 mm Adjustment of stroke position 0 - 100 mm Distance between shaper spindle and machine body 250 mm Spindle taper MK 5 Dkodst Hww Depfx Apwer No. of strokes, roughing/finishing process 118 - 1,000 per min Table size 400 mm Table bore 125 mm Mounting height between table and shaper head 190 / 290 mm Axial travel of tool slide, approx. 295 mm No. of teeth, approx. 12-150 Feed range, tooth depth 0.01 - 0.063 mm/stroke Feed range, rotary feed by Tool-Ø 125 0.125 - 3.15 mm/stroke Spindle drive, approx. 19 kW Total electrical load, approx. 25 kW - 380 V - 50 Hz Weight 7,000 kg Accessories / Special Features * Hydrostatic straight guides with separate hydraulic aggregate. * Built-in raiser plate approx. 100 mm to increase height of shaper head. * Hydraulic universal workpiece clamping device built by RINGSPANN to clamp ring shaped workpieces on the inner diameter with various inserts to accommodate different workpiece diameters. * Stepless Regulation of number of strokes for improving roughing and finishing process * Automatic changeover of number of strokes, and automatic feed changeover for roughing and finishing work in up to 3 cuts. * Automatic and motor-driven fixing of shaping stroke in the upper position after work is finished. * Separate switch and control cabinet. Two-hand start. * Coolant equipment with magnetic chip conveyor and chip collection container. * Various change gears, shaping tool holders, etc. Condition : Satisfactory to Good. Machine can be inspected under power. Delivery : Ex stock, as inspected. Payment : Net, after conclusion of contract. Thank you for your interest. We always have a good selection of gear machines on stock. Please let us know what you need.

Condition: used, Year of construction: 1969, max. wheel diameter 265 mm gear width 45 mm max. module 4 min. module 0,3 max. workpiece diameter 300 mm stroke length max. 0-50 mm stroke position adjustment 25 mm distance work spindle /surface of the table 170/245 mm spindle taper innen MK 4 table-size 180 mm table hole 95/75 mm strokes per minute 450 - 840 total power requirement 10 kW weight of the machine ca. 5200 kg dimensions of the machine ca. m Max. gear Æ (external) approx. 265 mm Max. workpiece Æ for internal gears 300 mm Max. gear width 45 mm Module range 0.3 - 4 Length of stroke 0 - 50 mm Adjustment of length of stroke 25 mm Distance between table and spindle, min./max. 170/245 mm Spindle taper (external 90 / internal 50) MT 4 Table size 180 mm Table bore 95 / 75 mm Table travel, cross, approx. 175 mm Number of strokes, infinitely variable 450 - 840 /min Feed range 0.09 - 0.6 mm/stroke Rotary feed, strokes per cutter revolution 2,722 - 681 Total electrical load 10 kW - 380 V - 50 Hz Weight 5,200 kg Accessories / Special Features * Selection switch for various working programmes, and for manual control. * Multi-cut device for roughing, finishing and sparkout, via presettable micrometer screws. * Hydraulic workpiece external clamping device mounted on table, for internal gears (a sort of collet chuck). * Separate switch cabinet. * Separate hydraulic unit. * Hydrostatic straight guide, with cooling aggregate for the hydrostatic pressure oil, separate. * Lateral table adjustment ensures optimal ram lift from workpiece. * Infinitely variable number of strokes via DC motor. * Built-on coolant device. Dkjdpfjt Hwrusx Apwjr * Presettable impulse counter for switching off table after every cut. With digital display. * Various change gears.

Condition: used, Year of construction: 1973, max. wheel diameter 400 mm gear width 75 mm total power requirement 25 kW weight of the machine ca. 7000 kg Dkjdpfx Aet Hw Hljpwsr

Condition: used, Year of construction: 1979, max. wheel diameter 350 mm gear width 350 mm max. module 8 min. module total power requirement 7,5 - 22 kW weight of the machine ca. t dimensions of the machine ca. m Dsdpfet Hwxzjx Apwekr Gear hobber with gear shaping device, 2-cut cycle
