Used Vertical Sachet Machine for sale (65,180)

Condition: used, Year of construction: 1976, Technical details: table surface area: 1300 x 190 mm range of revolution per miute: 60 - 4000 Stufenlos U/min feed continuous: Pinole: 0,06 / 0,12 / 0,24 mm/U quill stroke vertical: 140 mm spindle taper: SK 40 spindle head swivable left - right: 90° und 45° ° total power requirement: 3,0 kW weight of the machine ca.: 1620 kg machine dimensions LxWxH: 2,7 x 2,3 x 2,4 m Hfedpfxeu Sq Emo Abrjc Milling machine with universal milling head Spindle run right/left Table specifications: X/Y/Z travel: 860/380/460mm. feed X/Y/Z: 40 - 400mm/min. continuous rapid traverse 400mm/min. max. workpiece weight 30kg Equipment 3-way measuring display Mitutoyo with beam machine lighting Coolant tank with pump X- and Y-axis feed adjustable incl. accessories comparable to the picture *

Condition: used, Year of construction: 2002, Technical details: x-travel: 1060 mm y-travel: 610 mm z-travel: 610 mm control: Ultimax 4 spindle speed:: 10 - 10.000 U/min tool taper: SK40 tool changer with: Trommelmagazin mit 24 Plätze places feed speed: XYZ: 3 - 7.000 mm/min rapid traverse:: XY: 30 m/min rapid traverse: Z: 20 m/min table-size: 1220 x 510 mm table load: 1,1 t air-pressure connection: für 6 bar bar Total power requirement: 30 kVA Weight approx.: 6,28 (ohne Anbauteile) t dimension machine xH: 2,82 x 3,2 x 2,7 m dimension swarf conveyor LxWxH: 3,0 x 0,65 x 1,5 The machine is currently in the technical department. delimited working area by chip splash guard cabin incl. cooling device with feeding (30bar internal coolant system) (size 1200x500x150mm) capacity for 340Liter spindle with internal coolant system Scraper belt chip conveyor control panel with two screens Attention! Tool gripper arm for tool change is missing on the machine! Is on sale with this limitation! i.D. Hfodpfeu Iddnex Abrsc *

Condition: used, Year of construction: 2006, Technical details: x-travel: 1000 / 600 mm y-travel: 570 mm z-travel: 570 mm control: Fagor 8055 MC tool changer with: 24 Plätze tool taper: SK 40 Revolution per minute: 10 000 U/min. spindle taper: SK40 feed speeds infinitely variable: X/Y/Z: 10 m/min. rapid traverse:: X/Y/Z: 24 m/min. operating hours - idle run: nicht einsehbar h table-size: 1200 x 500 mm table load capacity: 800 kg distance spindle nose and table: min./max. 100/670 mm interface: 232 total power requirement: 15 kW Weight approx.: 5,0 t dimension machine xH: 3,3 x 2,3 x 2,8 m Hfjdsu Idfrspfx Abrjc Equipment: -Cooling device with feed to the spindle (no CTS cooling through spindle)) -operating panel with manual control unit -chip conveyor -E-cabinet cooling Rittal SK 3305500 *

Condition: used, Year of construction: 1981, Technical details: x-travel: 400 mm y-travel: 420 mm z-travel: 380 mm table surface area: 710 x 400 mm max. table load: 120 kg range of revolution per miute: 45 - 2240 / 18 step U/min feed continuous: 6,3 - 600 / 2 steples mm/min quill stroke vertical: 100 mm quill stroke: horizontal: 100 mm Hfodsu Nc Hkepfx Abrjc spindle taper: vertical/horizontal: SK 40/SK40 spindle head swivable left - right: 90 ° distance table/horizontal spindle: min./max.: 200 / 325 mm distance table/vertical head: min./max.: 150 / 730 mm total power requirement: 5,5 kW weight of the machine ca.: 1,95 kg machine dimensions LxWxH: 1,7 x 1,4 x 1,9 m dimensions electric cabinet: 850x500x1500 mm The milling machine is equipped with a 3-measuring path display. incl. machine feet and operating instructions *

Condition: used, Year of construction: 2007, Technical details: x-travel: 1200 mm y-travel: 600 mm z-travel: 800 mm Hjdpfxjvithzo Abrofc distance spindle /table: 125 / 925 mm control: Heidenhain iTNC 530 number of spindle speeds: 9000 steples U/min. max. torque on the spindle: max.82 Nm switched on hours: 43363 h spindle hours: 16319 h tool changer with: 24 Plätze table-size: 1250 x 630 (Kreuzschiebetisch) mm max. table load: 1000 kg spindle taper MT: SK40 spindle drive: 13 kW feed range: X/Y/Z: 40/40/30 m/min rapid traverse:: X/Y/Z: 40/40/30 m/min feed power: X/Y/Z: 7/7/16 kN interface: ja total power requirement: 13 kW Weight approx.: 8,0 t dimension coolant device: ca. L:1,25 x B: 0,7 x H: 1,56 m dimension machine xH: 2,4 x 3,0 x 3,3 m Main spindle: Spindle head DIN 69871, SK 40/DIN 69 871-A40 and pull stud DIN 69872 Drive technology via ball screw drive Equipment: Compact filter/coolant high-pressure system Knoll Chip conveyor/scraper belt conveyor 300mm Tool changing unit with disk magazine for 24 tools Electronic handwheel Operation via Heidenhain control panel Accessories: AL plate 1200x600x45mm with holes Ø 15mm *

Condition: used, Year of construction: 1987, Technical details: x-travel: 760 mm y-travel: 450 mm z-travel: 500 mm Hfodpfx Asvc Avbebrjc control: Mazatrol CAM M-2 tool changer with: 30 tools (Kettenmagazin) Plätze spindle taper MT: ISO 40 Revolution per minute: 28 - 4500 U/min. feed speeds infinitely variable: X/Y/Z: max. 2.000 mm/min max. torque on the spindle: ca. 23 Nm rapid traverse:: X / Y: 24 m/min rapid traverse:: Z: 15 m/min. bore capacity in steel (diameter): Ø 40 mm table-size: 500 x 1150 mm table load capacity - central/maximum: 700 kp total power requirement: 11 kW (24,4 kVA) kW Weight approx.: 6,8 t dimension machine xH: 3,7 x 2,5 x 2,6 m chip conveyor: L: 3,7 x B: 0,75 x H: 1,35 m ATC tool magazine for 30 tools up to Ø 100mm x 330mm, SK40 Hinged belt chip conveyor Knoll-120S-1 with ejection height of 1130mm Coolant tank with pump, 200liter capacity, 30 l/min. Operation via control panel with boom 2000mm. accessories: cooling lubricant pump Base plates *

Condition: used, Year of construction: 1998, Technical details: x-travel: 760 mm y-travel: 550 mm z-travel: 300 mm control: Röders RMS 6 Vers. 2.70 spindle taper ISO: HSK E40 turning speed range: 42.000 stufenlos U/min spindle head swivable left - right: -52 ° / +5° (B-Achse) ° feed:: 0 - 30.000 mm/min Tool changer: 18-fach Werkzeuge + 2 places for Werkzeugvermessung Table dimensions: 860 x 550 mm table load capacity: 800 kp Number of working hours: siehe Foto h compressed air: 6,5 bar total power requirement: 20 kW weight approx.: 7000 kg dimension machine xH: 3,1 x 2,4 x 2,6 m dimension coolant device: ca. 0,6 x 0,8 x 0,7 m other features: Highspeed direct spindle digital axis drives AC servo motors ball screw spray cooling (microjet cooling jet and lubrication unit) working spindle Fischer MFW - 1230/42 up to 42.000 rpm tool measuring laser and probe system PS 25.00 Manual control unit Climatic cabinet Hodpfx Aeu Ndbpebrofc Cooling water recooler Hyfra The machine can be demonstrated under power. *

Condition: used, Technical details: x-travel: 880 mm y-travel: 300 mm z-travel: 900 mm w-axis: 60 mm Hodpfx Abeu Ndfhsrofc spindle head swivable left - right: 60 ° table surface area: 880 x 300 mm machine weight approx.: 1200 kg dimension machine xH: 1,3 x 1,4 x 1,9 m incl. accessories *

Condition: used, Year of construction: 1990, Technical details: x-travel: 185 mm y-travel: 95 mm z-travel: 200 mm control: emco tronic TM02 spindle taper: SK 30 range of revolution per miute: 10 - 4000 / steples U/min feed continuous: 1 - 2000 / steples mm/min. rapid traverse: ca. 3,0 m/min tool turret - number of stations: 10 interface: R 232 table surface area: ca. 420 x 125 mm total power requirement: 0,8 kW machine dimensions LxWxH: 2,1 x 0,9 x 2,0 m EMCOTRONIC TM 02 control panel Operating modes: Manual operation (manual) and/or automatic Coolant system (with feed to the milling spindle) Operation via control panel standing on 3 swivel wheels Pneumatic door protection Hjdpfx Aovc Awrsbrefc *

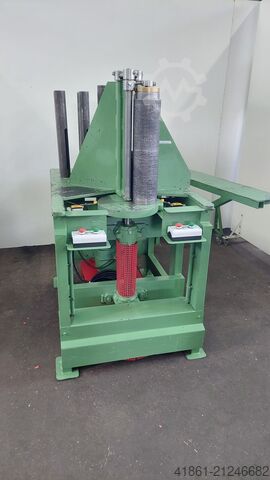

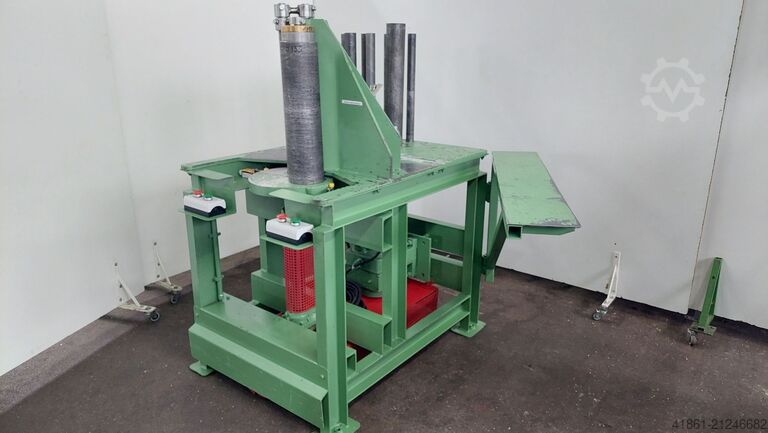

Condition: used, Year of construction: 2000, Offer 26018 Technical specifications: - Max. working length: 500 mm - Max. sheet thickness: 1.5 mm Hsdpfxoykp A Ij Abrefc - Various roller diameters - Drive – brake motor: 400 V / 4.0 kW - Required space (approx.): W 850 x D 1700 x H 1250 mm - Weight (approx.): 0.8 t - Roller attachments: 42; 45; 50; 55; 60; 65; 70; 90; 135 mm

Condition: used, Year of construction: 2001, turning diameter 220 mm Control Fanuc 18i Hjdpfjwth Szsx Abrofc x-travel 390 mm z-travel 435 mm tool taper VDI 40 number of tool places 12 Pos. spindle tunring speed 4.500 U/min In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 2001, x-travel 300 mm y-travel 250 mm z-travel 251 mm Control Fanuc 16iMB max. turning speeds 15.000 min/-1 tool taper HSK-A 32 number of tool places 12 Pos. In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale! Hfjdpfowth Sbex Abrsc

Condition: used, Year of construction: 2007, travel distance X-axis: 1,740 mm, travel distance Y-axis: 760 mm, travel distance Z-axis: 660 mm, controller manufacturer: Mazatrol, total height: 3,100 mm, total length: 5,200 mm, total width: 3,460 mm, overall weight: 12,000 kg, table width: 2,000 mm, controller model: PC Fusion 640 M, spindle speed (max.): 12,000 rpm, spindle speed (min.): 40 rpm, table height: 760 mm, table load: 1,400 kg, CNC Control Mazatrol PC Fusion 640 M Hfedsyddlwjpfx Abroc Table size 2000 x 760 mm Table load 1400 kg Number of pallets: 1 x Movement X-axis 1740 mm Movement Y-axis 760 mm Movement Z-axis 660 mm 4th Axis (Rotary table) Kitagawa MR 250 Spindle taper CAT 40 Spindle speed 12.000 1/min Spindle motor 11/7,5 kW Magazin capacity 48 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: excellent (used), Working travels 800 x 500 x 540 mm Table size 910 x 500 mm Hfodpfxjq Dlcis Abrec Spindle taper SK40 Spindle speeds -10000 rpm Tool changer 24 Pos. Control HEIDENHAIN iTNC-530 with dividing head Coolant through spindle MARCELS MASCHINEN CH

Condition: excellent (used), Working travels 1600 x 900 x 800 mm Table size 1700 x 850 mm Hfedpfsn Hqa Tex Abrec Spindle taper SK40 Spindle speeds -10'000 rpm Tool changer 30 Pos. Control: HEIDENHAIN iTNC530 3D Measuring taper Misc.accessories MARCELS MASCHINEN CH

Year of construction: 2017, condition: excellent (used), Control Siemens 828 D Travel X / Y / Z 850/550/550 mm Spindle speed 8000 rpm Tool magazine for 24 tools BT40 Hfsdjft U S Nopfx Abrec Table size 950x550 mm

Condition: defective spare-parts repository (used), Year of construction: 1991, functionality: not functional, travel distance X-axis: 700 mm, travel distance Y-axis: 350 mm, table width: 380 mm, table length: 925 mm, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS Travel X-axis: 700 mm Travel Y-axis: 350 mm Table size: 925 mm x 380 mm Spindle taper: SK 40 Spindle speed: up to 6,000 rpm Drive power: 11 kW Tool changer capacity: 20 Hfsdpoyf Ac Defx Abroc MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,600 x 2,100 x 3,000 mm Machine weight: approx. 3,600 kg Note: The machine no longer starts. It is being sold for spare parts.

Condition: new, Year of construction: 2019, functionality: fully functional, Stock machine, new Control: Fanuc 0i-M with Manual Guide Hyundai Wia Fanuc Series Main drive: 18.5/11 kW - 117.7 Nm Spindle speed range: 12,000 rpm Number of axes: 3 Travel distances X-axis: 1,060 mm Y-axis: 510 mm Hfedpfoyf Nkzex Abrec Z-axis: 635 mm Rapid traverse: X/Y 36 m/min, Z 30 m/min Table: 1200x500 mm Table load capacity: 800 kg Tool stations: 30 Tool holder: BBT40 Coolant through spindle: 20 bar Hinged belt chip conveyor / left side Further details can be found in the attached brochure. Machine is available immediately. We would be happy to arrange an inspection appointment in Idstein.

Condition: used, Year of construction: 2011, functionality: fully functional, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, FOR SALE Victor VCenter 102E Machining Center – 2011 General description: Brand: Victor Model: VCenter 102E Year: 2011 Type: Vertical Machining Center / CNC Control: FANUC Oi-Mate MD Technical specifications: X-axis travel: 1020 mm Y-axis travel: 510 mm Z-axis travel: 510 mm Table size: 1200 × 510 mm Table load capacity: approx. 800–1000 kg (to be confirmed depending on version) Spindle type: 8000 to 10000 rpm (depending on configuration) Tool magazine: 20 to 24 positions (depending on version) Equipment and features: CNC FANUC Oi-Mate MD – user-friendly interface for programming and automatic machining cycles Integrated lubrication and cooling system Chip extraction and filtration system Rigid cast iron structure for high precision Hedpfxsyc Sxcs Abrofc Option to add probes or measuring devices Dimensions and weight: Machine dimensions: approx. 3.0 × 2.2 × 2.5 m (L × W × H) Weight: approx. 4500–5000 kg

Condition: used, Year of construction: 2000, Technical details: pulling force - max.: 2,5 t max. ram stroke: 1000 mm max. workpiece diameter: 40 mm Broaching speed: 60 m/min. return speed: 20 m/min. total power requirement: 24 kW Hodpfxjw Dugaj Abrjfc weight of the machine ca.: 6 t dimensions of the machine ca.: 1,7 x 2,4 x 4,77 m clamping plate: 320 mm It is a hydraulic machine. *

Condition: used, Year of construction: 2000, Technical details: max. wheel diameter: 130 mm max. module: 3 total power requirement: 15 kW weight of the machine ca.: 6 t dimensions of the machine ca.: 2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range mm/min Table diameter 132 mm Hodpfjwv Uhbex Abrofc Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm * 2500 mm * 2170mm Accessories : Hydraulical workpiece clamping Automatic loading system Magnetic chip conveyor *

Condition: excellent (used), Year of construction: 2011, CNC Control: FANUC Series 31i-A5 X axis travel mm: 730 Y axis travel mm: 510 Z axis travel mm: 510 B axis (degrees): +160 / -180 C axis (degrees): 360 Number of pallets: 1 Table size mm: Ø500 Table load capacity kg: 300 Cutting feedrate mm/min (X, Y, Z): 50,000, 50,000, 40,000 Maximum rapid traverse m/min (X, Y, Z): 50, 50, 40 Spindle speed rpm: 12,000 Spindle power kW: 18.5 / 15 Taper type: BT-40 Torque Nm: - Tool changer type: Chain Tool magazine capacity: 61 Max. tool diameter mm: 90 Max. tool diameter with adjacent positions empty: 125 Max. tool length mm: 300 Max. tool weight kg: 8 Coolant tank capacity l: 750 Through-spindle coolant (bar): Yes Hfjdpoydh Hlefx Abrsc EQUIPMENT Rotary table with digital readouts: Included Work light: Included Through-spindle coolant Electronic handwheel integrated in CNC panel Coolant oil skimmer Tool life management 3D tool compensation Cylindrical interpolation MORI-APM programming software MACHINE DIMENSIONS Length mm: 2,771 Width mm: 3,948 Height mm: 3,264 Weight kg: 12,400

Condition: used, Year of construction: 2012, x-travel 800 + 50 mm Hsdpeyi Hvcjfx Abrjfc y-travel 650 mm z-travel 550 mm b-axis -5 / +110 ° c-axis NX 360 0 control Heidenhain

Condition: used, Year of construction: 2012, operating hours: 12,000 h, machine/vehicle number: 11080297, travel distance X-axis: 1,100 mm, travel distance Y-axis: 585 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, controller model: TNC530i, rotational speed (max.): 8,000 rpm, overall weight: 7,000 kg, spindle speed (max.): 8,000 rpm, number of slots in tool magazine: 30, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, We are offering this used Saeilo MMV 1100S universal machining center, year of manufacture 2012. Model: MMV 1100S Hjdpfx Abeyki Nzsrofc Machine no.: 11080297 First commissioning: 02/2012 - Chip conveyor - Electronic handwheel - Spare spindle can be purchased at an additional cost If you have any questions or need more information, please feel free to send us a message or give us a call.

Condition: used, Year of construction: 2017, machine/vehicle number: 172822005, travel distance X-axis: 600 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 500 mm, nominal power (apparent): 60 kVA, controller manufacturer: Heidenhain, controller model: TNC530i, rotary table diameter: 500 mm, overall weight: 9,000 kg, spindle speed (max.): 18,000 rpm, operating hours of spindle: 6,940 h, coolant supply: 20 bar, number of slots in tool magazine: 24, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, We are offering this used Microcut 5-axis MCU-5X vertical machining center, year of manufacture 2017. Model: MCU-5X Serial number: 172822005 Power: 60 kVA Frequency: 50 Hz Hodpfoykiwlsx Abrefc Weight: 9,000 kg Rated voltage: 400 V Number of phases: 3 + PE Rated current at full load: 100 A Short-circuit capacity: 25 kA Maximum load current: 200 A Fuse protection / rated current: 80 A Date of manufacture: May 2017 + Chip conveyor If you have any questions or require further information, feel free to send us a message or call us.
