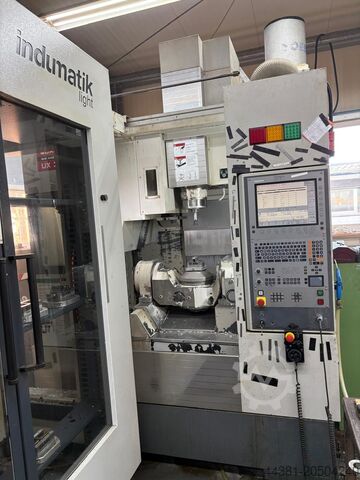

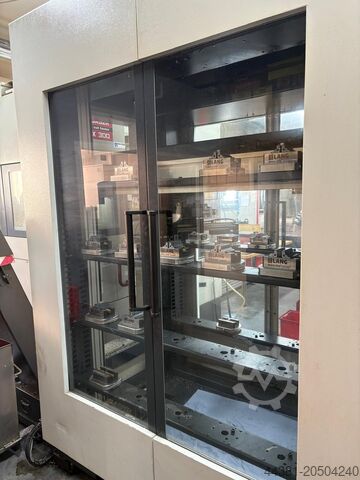

Universal machining center

Quaser UX 300 /15

Condition: used, Year of construction: 2011, Technical details: x-travel: 410 mm y-travel: 610 mm z-travel: 500 mm turning speeds: 15000 1/min tool adaptor: SK 40 control: iTNC 530 HEIDENHAIN smart NC table:: 320 x 320 mm table load: 100 kg tool change unit: 48 Pos. total power requirement: 35 kVA weight of the machine ca.: 7,4 t dimensions of the machine ca.: 4,15 x 3,8 x 3,28 m 5-axis simultaneously machining center, NC-round-swivelling table, C-axis 360°, B-axis +30/-120°, Fgodpfxewlhvwe Ah Usi chipconveyor, 3D touchprobe, internal coolant supply 20bar, el. handwheel, kinematicsopt, meter readings: approx. 9.600h "machine on", approx.3.500h "spindle on" *

Condition: used, Year of construction: 2014, Now here's a combo you don't come across every day...and we'll sell it as a full package, or split it into two lots: 2014 Quaser UX 300- 5-Axis VMC with a Halter 12 station stackable pallet pool system (this one is currently configured for Shunk Zero point pallets, but that can changed to suit) all served by a Fanuc M20i A Robot. Quasar machines (see also Hardinge Bridgeport XR series, bult by Quaser) feature a robust construction with a rigid cast iron bed and high-quality linear guides, ensuring exceptional stability and reduced vibrations during machining operations. This structural integrity is vital for maintaining tight tolerances and high surface finishes Note: Happy to separate the Halter Pallet Pool & Robot if required. Quaser Spec: Full 5-axis simultaneously machining centre with trunnion style table full C-axis 360°, B-axis +30/-120°, 15,000 RPM BBT 40 spindle, 60 tool ATC, Auto door, Blum Laser probing and touch probe system, through coolant, chilled spindle, swarf conveyor, fire suppression system, and robot integration (if required) Photographed as arrived today, more pictures to follow once set up. Specification: X-travel 410 mm Y-travel 610 mm Z-travel 500 mm 15,000 RPM face & taper mounted BBT 40 spindle with chiller and through coolant Fgedpfewzyxcsx Ah Uoi Heidenhain iTNC 530 HEIDENHAIN smart NC Table dia: 320 mm Table load: 100 kg tool change unit 60 Pos. total power requirement 35 kVA weight of the machine ca. 7,4 t dimensions of the machine ca. 4,15 x 3,8 x 3,28 m Halter LoadAssitant 12 (Offer with the Quaser UX 300 or sold separately if required.) Halter's "by Fastems" LoadAssitant-2 Mill Stacker, is a stand alone unit and is supplied with a 12 station rotary stacker table, a full enclosure, light curtains and a Fanuc M20i A robot. Currently configured for Shunk Zero Point Vices, but is easily changed to suit you. for This stand alone system is the perfect solution for batch type milling work and or lights out production and can be disconnected if not required. Speciation: Minimum workpiece (L x W) 40 mm x 40 mm Maximum square workpiece (L x W)145 mm x 145 mm Maximum rectangle workpiece (L x W)40 mm x 200 mm Height of workpiece (min - max)10 mm - 175 mm Maximum load capacity robot arm 20 kg Maximum total weight on rotating table 660 kg Maximum stacking height 375 mm Number of stacking stations (1 empty) 12 Maximum weight per station 60 kg Max. number of workpieces at workpiece height of 10 mm 407 Max. number of workpieces at workpiece height of 20 mm198 Max. number of workpieces at workpiece height of 50 mm 77 Max. number of workpieces at workpiece height of 70 mm 55 Max. number of workpieces at workpiece height of 85 mm 44 Max. number of workpieces at workpiece height of 110 mm 33 Max. number of workpieces at workpiece height of 150 mm22

Condition: ready for operation (used), Year of construction: 2011, operating hours: 3,500 h, functionality: fully functional, travel distance X-axis: 410 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 500 mm, workpiece weight (max.): 100 kg, spindle speed (max.): 1,500 rpm, number of slots in tool magazine: 48, Equipment: chip conveyor, TECHNICAL DETAILS Control: Heidenhain iTNC 530 Smart NC X-axis: 410 mm Y-axis: 610 mm Z-axis: 500 mm Table data Table size: 320 x 320 mm Maximum table load: 100 kg C-axis: 360° B-axis: +30° to -120° Fedpfxevzacps Ah Usgi Spindle & tool holder Speed: 15,000 rpm Tool holder: SK 40 Tool changer: 48 positions MACHINE DETAILS Total power requirement: 35 kVA Machine weight: approx. 7.4 t Space requirement: approx. 4.15 x 3.8 x 3.28 m Machine switched on: approx. 9,600 h Spindle running time: approx. 3,500 h EQUIPMENT - Chip conveyor - IKZ 20 bar (internal cooling through the spindle) - Electronic handwheel - 3D measuring probe and KinematicsOpt for optimal machine calibration
