Sliding table saw

Altendorf F45

Condition: excellent (used), Year of construction: 1990, ALTENDORF F45 tilting circular saw with scoring unit Scoring unit Double roller carriage, tilting, parallel fence Extension table, table extension, anodized aluminum, table widening, anodized aluminum, upper guard, narrow and wide ----- Technical data ----- Tilting range: 45°, carriage length: 3,200 mm, cutting width: 1,250 mm, Dujdpfx Aiozipw Isdow max. saw blade diameter: 450 mm, motor power: 5.5 kW, 3 speeds dust extraction port diameter: 80 / 120 mm Location: in stock at 54634 Bitburg - immediately available -

Condition: used, Year of construction: 2002, with CNC parallel fence Machine in working order, completely set up used good condition cleaned functionally tested partially refurbished top equipment Manufacturer: Altendorf Type: F45 Elmo CE Year of manufacture: 2002 Machine no.: GS tested CE type-tested GS dust-tested Motor kW: 5.5 Steel guides Adjustable parallelogram guard Control panel swivels upwards Parallel fence with automatic control Aluminum parts anodized Height adjustment, electric Swivel adjustment, electric Position control 3 axes Digital display for height Digital display for cutting angle Digital display for parallel fence Speed: x Laser cutting line indicator Table length mm approx.: 3000 mm Cutting width mm approx.: 1000 mm Cutting length mm approx.: 2905 mm Cutting height mm approx.: 150 Max. blade diameter mm: 450 Swivel up to °: 45.5 Table extension mm approx.: 840 mm Dust extraction connection mm: 120 / 80 Djdpjzkvy Ssfx Aidsuw Space required approx. L x W x H mm: 3000x4200x1800 Weight approx. kg: 1000 Total connection value approx. kW: 6.25 Kw Location: 97447 Gerolzhofen, free loading, unpacked Handover in the current condition as inspected, without warranty

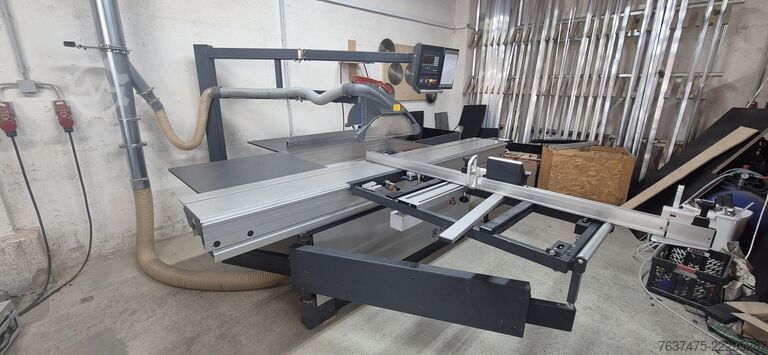

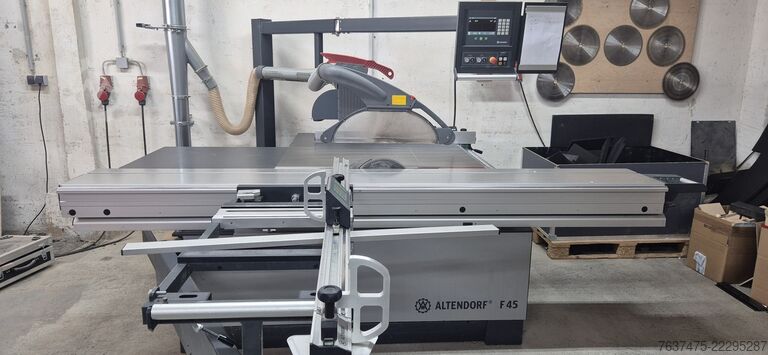

Condition: used, Year of construction: 2015, functionality: fully functional, operating hours: 240 h, power: 5.5 kW (7.48 HP), input voltage: 400 V, cutting width (max.): 1,300 mm, saw blade diameter: 450 mm, year of last overhaul: 2023, Equipment: scorer, We are offering this used Altendorf F45 EvoDrive panel saw, manufactured in 2015. Main motor: 5.5 kW Saw blade diameter: 250-450 mm Scoring saw motor: 0.75 kW Saw blade that can be swiveled to one side Digital stops Parallel fence with a cutting width of 1300 mm Control panel at eye level Touchscreen control and buttons for input Double roller carriage with a carriage length of 3200 mm Front support roller 240 operating hours Included are 8 saw blades for wood, aluminum, and plastics. Some of these may need sharpening. The saw received a major service last year. During this service, defective parts were replaced, the roller carriage was serviced, and all angles were readjusted. Dsdpezkp D Dofx Aidsuw Available from July 27, 2026. If you have any questions or require further information, please send us a message or call us.

Condition: excellent (used), CATALOGUE NUMBER 8006 TECHNICAL DATA - max. diameter of the main saw blade with scoring blade: 350mm - max. diameter of the main saw blade without scoring blade: 450mm - cutting height with installed 350mm blade: 100mm - electric adjustment of the main blade up/down + angle - electric angle display - electric adjustment of the scoring blade up/down, left/right - spindle diameter: 30mm - spindle locking - with a rip fence carriage - cutting length on the carriage: 3400mm - cutting width with the guide: 1300mm - with a side carriage - with a scoring blade - max. diameter of the scoring blade: 120mm - spindle diameter: 22mm - scoring blade motor: 0.75kW - main motor: 5.5kW - 4 types of blade speed - electronic speed display - dust extraction port diameter: 120mm, 80mm - table dimensions: 1220x730mm - table dimension with extension: 1440mm - table dimension with extension: 2060mm - blade guard - dimensions (L/W/H): 3550x3400x1500mm Duedpfx Aiszh Izpedew - weight: 1140kg ADVANTAGES – electric adjustment of the blade and scoring blade – with original angle guide – carriage length: 3400mm – made in Germany – unpainted – used saw, very good condition Net price: 38,900 PLN Net price: 9,260 EUR, depending on the exchange rate of 4.2 EUR (Prices may vary due to higher fluctuations)

Condition: used, Year of construction: 1994, Machine length: 2800 mm Length stop: Fixed, 90° Dodpfxjzh Hwcj Aidsuw Duplex cutting system Cutting width: 1300 mm with manual adjustment 7.5 kW No pre-scoring device Location: Nattheim

Condition: new, ALTENDORF Model F45 Pro Drive Offer type: New machine, FOR SALE ONLY IN AUSTRIA! Immediately available new machine with promotional price and full manufacturer's warranty. Pro Drive control: 3.5" color display with separate keyboard Automatic dimension correction on the parallel and miter fence when the saw head is swiveled Easy axis calibration Machine diagnostics, operating hour counter, USB interface Recall of the last dimension input (back function) 99 storable cutting programs Grooving: with automatic step-by-step positioning of the parallel fence 400V / 50Hz - Europe, scale: scale in mm Electromotive height and swivel adjustment 0 – 46° for the main saw blade with automatic correction of the cutting height when the saw head is swiveled Machine height 910 mm (standard equipment) The control panel of the F 45 is mounted at eye level. This allows all axes to be easily controlled, and all settings are within view. The one-hand operation of the outfeed device is easily accessible from the working position in front of the machine. Another advantage: nothing stands in your way on the smooth machine front. Dusdpjiz Aufefx Aidjw INCLUDES OPTIONS: M62003 Template holder M64080 Extended cutting height with saw blade projection of max. 204 mm. M51101 Single-sided swiveling saw head with 7.5 kW (10 HP) motor M24030 2-axis scoring unit with electromotive height and side adjustment M24037 LED lighting for the danger area of the scoring unit M41010 Table extension 840 mm M34204 Double roller carriage, carriage length 3200 mm M44404 Miter fence, cutting length up to 3500 m. M44443 CNC parallel fence, cutting width 1300 mm. M44450 Front support roller. M37003 On/off switch on the double roller carriage Note on used machines: • Subject to errors in technical data and prior sale. • Indicated prices are ex works, pickup only - free loading! • The machine has been cleaned and function-tested. • All machines are sold as is, as viewed, without any warranty claims. • The buyer is free to inspect the machines at the location. • Special agreements are only possible in written form. (We only answer inquiries if you provide your address + telephone number!)

Condition: reconditioned (used), Year of construction: 1994, functionality: fully functional, Motor power 50Hz 3~ 400V 5.5kW Sliding table 2800 mm without scoring saw Digital angle adjustment display Digital speed display Hydraulic lifting / lowering / tilting Cutting width 1005 mm Manual parallel fence LAP laser system Mitre fence (small) Dodjy Icbgepfx Aideuw Saw blade diameter 250 - 450 mm

Condition: ready for operation (used), Connection voltage 380V Main motor 7.5kW Scoring unit 0.75kW Variable drive Double roller carriage 3000mm Electric height and tilt adjustment Cutting width 1000mm, CNC controlled Clamping system AKE Saw blade diameter max. 500 mm Control panel at eye level Swiveling front table Dujdpfx Aey Hq N Aoidsw Template holder 2-axis scoring unit Table extension 840mm Angle fence PQS Standard PSV with narrow and wide hood

Condition: used, Panel saw ALTENDORF F45 - used - double roller carriage, tilting, parallel fence with fine adjustment, outrigger table, Djdpfx Aijw Nv I Uedjuw table extension, anodized aluminium, table width extension, anodized aluminium, mitre fence, overhead guard, narrow and wide ----- Technical specifications ----- Tilting range: 45°, Carriage length: 2,500 mm, Cutting width: 800 mm, Max. saw blade Ø: 450 mm, Motor power: 5.5 kW, Extraction nozzle Ø: 80 / 120 mm

Condition: used, Panel Saw ALTENDORF F45 -used- Double roller carriage, Scoring unit, Rip fence with fine adjustment, Support table, Hydraulic height adjustment, Hydraulic tilting adjustment, Digital tilt angle display, Speed display, Duodpfxow Nx A Is Aidow Table extension, aluminium anodized, Table width extension, aluminium anodized, Angle/miter fence, Overhead guard, narrow and wide, Automatic brake, Dust tested ----- Technical Data ----- Tilting range: 45°, Carriage length: 3,200 mm, Cutting width: 1,300 mm, Cutting height: 125 mm, Max. saw blade Ø: 400 mm, Speeds: 3,000/4,000/5,000/6,000 rpm, Motor power: 5.5 kW, Weight: 1,040 kg
