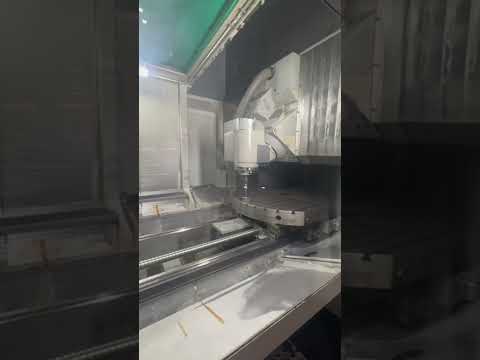

Universal machining center

DMG MORI DMU200P TNC7

Condition: used, Year of construction: 2007, x-travel 750 mm y-travel 600 mm z-travel 520 mm b-axis -10/+95 ° c-axis 360 ° control iTNC 530 HEIDENHAIN turning speed range - drive spindle 20 - 10.000 min/-1 drive capacity - spindle motor 9 / 13 kW feed speeds 10.000 mm/min rapid traverse X/Y/Z 24 / 24 / 24 m/min table surface area Ø 800 x 620 mm max. table load 350 kg T-slots 9x 14H7 mm table turning speeds 21,5 min/-1 tool taper SK 40 max. tool weight 6 kg tool change unit 30 Pos. voltage 400 V total power requirement 25 kVA weight of the machine ca. 7,4 t Bodpfx Agjx Dnfgszjct dimensions of the machine ca. 3,60 x 2,50 x 2,80 m coolant tank 1,90 x 0,70 x 0,25 m 3+2-axis CNC machining center DECKEL MAHO DMU 70 - Factory no.: 15435713144 - Machine ON: 44,228 h - Spindle ON: 18,742 h - Control: HEIDENHAIN iTNC 530 - Electric handwheel - Swivel range B-axis 180° - Swivel range C-axis 360°

Condition: excellent (used), Year of construction: 2012, travel distance X-axis: 8,000 mm, travel distance Y-axis: 3,100 mm, travel distance Z-axis: 1,600 mm, feed rate X-axis: 25,000 m/min, feed rate Y-axis: 25,000 m/min, feed rate Z-axis: 25,000 m/min, spindle speed (max.): 4,000 rpm, table length: 8,000 mm, table width: 2,500 mm, table load: 15,000 kg, Chain ATC Tool changer 80 positions Rotary table 1500 x 1500 with V-Axis 1500 mm Table load 15.000 Kg Optional Box table 3500 x 1000 x 1000 mm Under power X-Axis: 8000mm Y-Axis: 3100mm Z-Axis: 1600mm Table Length: 8000mm Table Width: 2500mm Table load: 15000 Power on spindle: 43kW Bsdpfoxm Sudox Agzect Spindle speeds: 4000Rpm Spindle Taper: 50ISO/Bt/Mk Feed rate X-Axis: 25000mm/min. Feed rate Y-Axis: 25000mm/min. Feed rate Z-Axis: 25000mm/min. Control: iTNC530 Millinghead auto-index:2.5 x 2.5° Length: 14000mm Width: 6000mm Height: 6000mm Weight: 68000kg

Condition: excellent (used), functionality: fully functional, Year of construction: 2012, operating hours: 45,208 h, laser hours: 32,072 h, laser power: 3,000 W, sheet thickness (max.): 20 mm, sheet thickness steel (max.): 20 mm, sheet thickness aluminum (max.): 8 mm, sheet thickness brass (max.): 6 mm, sheet thickness copper (max.): 6 mm, table length: 3,000 mm, table width: 1,500 mm, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 150 mm, feed rate X-axis: 240 m/min, feed rate Y-axis: 240 m/min, feed rate Z-axis: 240 m/min, positioning speed: 240 m/min, positioning accuracy: 0.02 mm, year of last overhaul: 2024, feed length X-axis: 3,000 mm, feed length Y-axis: 1,500 mm, feed length Z-axis: 115 mm, working range: 3,000 mm, Equipment: cooling unit, documentation/manual, safety light barrier, The laser is in operation, can be inspected and tested. Regularly serviced in good technical condition. The machine is also sold as a Liftmaster Compact. Bedev Im Iropfx Agzsct

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Controller FANUC Series 18i-MB Table size 1300 x 650 mm Table load 1500 kgs X travel 1100 mm Y travel 650 mm Z travel 600 mm Spindle speed 12000 rpm Tool holder type MAS BT40 ATC magazin 30-fold Weight 7200 kgs Dimensions LxWxH = 3100 x 2300 x 3100 mm Features, accessories - Chip conveyor - Coolant unit - Spindle cooler - CTS Bedpfx Aeuu Rzregzsct - Manuals Very good condition.It will be sold because of liquidation of production.

Year of construction: 1993, condition: ready for operation (used), Vertical lathe machining centre Dörries Scharmann type: VCE 2000/160 Pallet size: 1.600 mm Pallet load: max. 8.000 kg Number of pallets 13 pcs Table indexing C-Axis 0.001° Table cross travel (X) 2.300 mm Column longitudinal travel (Z) 1.500 mm Crossbeam positions: 9 steps off 100 mm Feed X/Y/Z 1 – 6.000 mm/min. Rapid X/Y/Z 8 m/min. Max rotary diameter 2.000 mm Max workpiece height 1.500 mm Main Spindle Spindle drive motor: 69KW Spindle speed: 2.8 – 315 rpm ATC for turning 59 pots - system 240.2 Live spindle – SK50 Spindle drive motor: 30KW Spindle speed: 10 – 1500 rpm ATC for SK50 61 pots CNC controller Siemens Sinumerik 880M Accessories FMS 13 pallets Rotary loading stations 2 pcs Coolant unit with filtration system Coolant through spindle Bodpjguk S Sefx Agzoct Machine weight Approx 40T. Build year 1993

Condition: new, Year of construction: 2025, Fast adjustment of mitre, stepless from 30°-150°. With indication to accuracy on scale. The swivel is directly above the intersection of the saw blade and the fixed vice jaw so that there is a datum measuring point which does no change with the mitre angle. Positive stops at 30° + 45° left and right hand Fast material clamping. Material is always clamped at 90° (parallel) regardless of angle to be cut. Bcjdjbi S Dijpfx Agzjt Stepless cutting pressure regulation through weight of the heavy and rigid saw frame and the fine tuning depending on cross-section by hydraulic damping cylinder Environmentally-friendly micro spray lubrication system Chip box inside Saw blade drive with end of cut stop Precise saw blade carbide-roller guidance Colour silver grey / blue grey (RAL 7001 / RAL 7031) 1 bandsaw blade 4/6 tpi Instruction manual and spare parts list on CD-ROM Additional standard equipment Hydraulic lift up of saw frame Model Manual Miter 30° left Ø 130mm; square 120x120mm 45° left Ø 200mm; square 180x180mm 90° Ø 260mm; square 300x260mm 45° right Ø 200mm; square 180x180mm 30° right Ø 130mm; square 120x120mm Motor:[kW] 1,8 Saw blade: [mm]3350x27x0,9 Speed: 35/75 m/min Working heigt:[mm] 900

Condition: used, Year of construction: 2007, functionality: fully functional, machine/vehicle number: 18780, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, rotary table diameter: 800 mm, spindle speed (min.): 18,000 rpm, Technical Details: Used Universal Machining Centre HERMLE C 40U DYNAMIC Control: HEIDENHAIN iTNC 530 X-travel: 850 mm Y-travel: 700 mm Z-travel: 500 mm Bcodpfxjx Ecmho Agzjt NC rotary swivel table: Ø800 mm 6-way rotary feedthrough Spindle speed: 18,000 rpm Air blast through spindle center Tool holder: HSK-A 63 Tool magazine: 38 positions Internal coolant supply: 80 bar Handwheel HR-410 Total power consumption: 41 kVA Machine weight: approx. 10.5 t Equipment/Features - Paper band filter - Coolant system - Chip conveyor - Sealed air for scales - Heidenhain infrared probe - Blum A2 laser tool measurement system - 3D Quick Set - Electronic handwheel

Condition: good (used), Year of construction: 2021, MAZAK Integrex i-250H ST SmoothAi, year of manufacture 2021, HALTER loading portal with robot, bar feeder BREUNING-IRCO ILS-MUK, main spindle 8" Bjdpfx Aexy T Dtogzect sub spindle 8", machining diameter 670 mm Bar diameter 65 mm Spindle speed: Turning: 5,000 rpm Milling: 12,000 rpm Chain magazine: 38 positions, Turret: 12 positions

Condition: like new (used), Year of construction: 2022, functionality: fully functional, travel distance X-axis: 610 mm, travel distance Y-axis: 406 mm, travel distance Z-axis: 406 mm, workpiece weight (max.): 200 kg, table width: 500 mm, spindle speed (min.): 10,000 rpm, Equipment: chip conveyor, For sale: HAAS UMC-500 5-Axis Universal Machining Center Condition: Absolutely brand new machine. Only one part was produced for test machining. The equipment has been unused and stored for 2 years. Main technical specifications Travel: X-axis: 610 mm Y-axis: 406 mm Z-axis: 406 mm Table: Diameter: 500 mm Maximum workpiece weight: 200 kg 5-axis rotary/trunnion table (trunnion type) Spindle: Inline direct-drive 10,000 rpm 30 HP (22.4 kW) CAT 40 taper (40T) Through-spindle coolant: 300 psi (21 bar) Tool changer: 30 tool positions Side-mount, high speed Precision and compensation: Temperature compensation DWO/TCPC – Dynamic Work Offset and Tool Center Point Control Rigid Tapping Equipment and features: Haas NGC CNC control (FANUC compatible) 1 GB memory Ethernet connection, WiFi connectivity USB port, color 15” LCD display Early power-failure detection module Bcjdpfjxg Nd Nsx Agzot Memory lock (keyswitch) Spindle coolant system Protective enclosure with doors Internal lighting Centralized lubrication system Top cover Measurement and calibration equipment: Renishaw WIPS wireless intuitive probing system (Haas Visual Programming System, macros, spindle orientation, coordinate rotation and scaling) Rotary-Axis calibration tool RJH remote jog handle with color display Chip and coolant systems: Coolant tank – 95 gallons (360 L) Initial fill with Blaser coolant emulsion Chip conveyor (belt type – CONVEYOR-H) High-pressure air system Documentation: Original machine documentation (in English) Application Haas UMC-500 is a compact yet powerful universal 5-axis machining center designed for the production of complex, multi-sided, and free-form surface parts. Suitable for simultaneous 5-axis machining as well as 3+2 machining, significantly reducing setup operations and ensuring high accuracy. If you have further questions, we are happy to assist.

Condition: used, Technical details: faceplate diameter: 5000 mm Bodpfx Aew Rz U Aogzsct swing diameter: 6100 mm turning height: 2400 mm ram stroke each side: 1490 mm ram head dimension: 340 x 340 mm max. workpiece weight: 100.000 kg total power requirement: 100 kW weight of the machine ca.: 155 t faceplate turning speed range: 0,4 - 50 U/min with 2 x 2 axes CNC SIEMENS 840 D *
