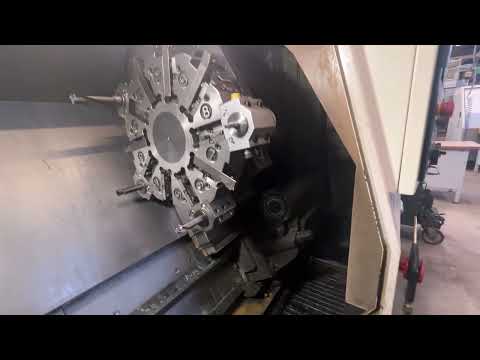

CNC lathe with C axis

HYUNDAI WIA L280

Condition: good (used), The powered tools listed here with VDI 50 interface are designed for a SAUTER tool changer and are in good condition as well as fully functional. They were previously used on a GILDEMEISTER CTX 600 CNC lathe. 6 x driven tools, straight version, brands NACKE and WTO, VDI 50 for SAUTER-brand tool turret: Item No.: XVI 24275 1 drilling/milling unit, straight version, manufacturer: NACKE, VDI 50 mm, similar to DIN 69880, no. 40.5040 / 80 96 / 027.1, collet Ø 25 mm, SAUTER drive B 20 x 17 DIN 5482 Price: €545.00 plus statutory VAT. Item No.: XVI 24277 1 drilling/milling unit, straight version, manufacturer: NACKE, VDI 50 mm, similar to DIN 69880, no. 40.5040 / 80 96 / 027.3, collet Ø 25 mm, SAUTER drive B 20 x 17 DIN 5482 Price: €400.00 plus statutory VAT. Item No.: XVI 2687 1 drilling/milling unit, straight version, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: €650.00 plus statutory VAT. Item No.: XVI 2687 Nodpfjbql S Hjx Aiksct 1 drilling/milling unit, straight version, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: €650.00 plus statutory VAT. Item No.: XVI 2687 1 drilling/milling unit, straight version, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: €650.00 plus statutory VAT. Item No.: XVI 2687 1 drilling/milling unit, straight version, manufacturer: WTO, VDI 50 mm, similar to DIN 69880, collet Ø 32 mm, SAUTER drive B 20 x 17 DIN 5482 Price: €650.00 plus statutory VAT. Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: excellent (used), Year of construction: 2011, CNC Lathe with y-axis MAZAK - QTN 250 MY MACH-ID 9483 Make: MAZAK Type: QTN 250 MY Control: Mazatrol Matrix Nexus Year: 2011 Ncedpfx Aioyyxzmskot Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Year of construction: 2003, turning diameter max. 420 mm turning length 1090 mm control FANUC Serie 18i-TB turning spindle Durchlass 108 mm 250 / 315 turning speed range 0-3750 U/min Feed speed 18/24 m/min. Ncodpfxjucgylj Aiket workpiece 12 quill stroke 100 mm diameter of quill 110 mm taper MK 4 number of driven tools 12 mm turning speeds 3000 U/min 22 nm coolant tank 140 l total power requirement 22/18,5 kW weight of the machine ca. 6500 KG

Condition: excellent (used), Year of construction: 2016, functionality: fully functional, travel distance X-axis: 800 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 510 mm, rapid traverse X-axis: 40 m/min, rapid traverse Y-axis: 40 m/min, rapid traverse Z-axis: 40 m/min, controller manufacturer: HEIDENHAIN, controller model: HEIDENHAIN TNC-620, total height: 2,500 mm, total length: 3,600 mm, total width: 2,500 mm, table width: 1,000 mm, table length: 450 mm, table load: 600 kg, overall weight: 5,000 kg, spindle speed (min.): 80 rpm, spindle speed (max.): 12,000 rpm, coolant supply: 20 bar, spindle nose: ISO 40, number of spindles: 1, number of slots in tool magazine: 30, tool length: 300 mm, tool diameter: 80 mm, tool weight: 8 g, input voltage: 380 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, USED "DOOSAN DNM 4500" vertical machining center with Heidenhain TNC-620 CNC Njdpfew D Dy Nox Aikoct

Condition: like new (used), Year of construction: 2024, operating hours: 40 h, functionality: fully functional, turning diameter over cross slide: 710 mm, turning length: 800 mm, turning diameter: 850 mm, spindle speed (max.): 1,760 rpm, spindle speed (min.): 20 rpm, travel distance X-axis: 465 mm, travel distance Z-axis: 800 mm, spindle motor power: 45 W, rapid traverse X-axis: 20 m/min, rapid traverse Z-axis: 20 m/min, total height: 3,845 mm, total length: 3,450 mm, total width: 2,000 mm, torque: 2,577 Nm, overall weight: 9,500 kg, chuck outer diameter: 610 mm, spindle nose: A2-15, Equipment: documentation/manual, rotational speed infinitely variable, HYUNDAI WIA LV8500R – Unused since commissioning! The machine was newly delivered and installed in October 2024. After installation, a geometry measurement cut was performed. The workpiece used for this still remains on the machine, which has otherwise not been used to this day! Machine equipment: - HYUNDAI WIA LV8500R – FANUC 0iPLUS with 15" touchscreen and FANUC SmartGuide i user interface including FANUC ManualGuide i - Tool breakage monitoring on all machine axes - Automatic work area door to allow for automation - Hinged belt chip conveyor - Reinforced drive power with 2-speed gearbox (45/37 kW – 2,577 Nm) - 24-inch (610 mm) 3-jaw power chuck with clamping jaws - RENISHAW automatic tool measurement - BMT-75 tool turret - 12 tool holders for fixed tools - LPS sensor for automatic adjustment of the clamping range - 20 bar coolant pressure - Coolant spray gun for the work area Ncodpfxeyw Sr Te Aikjt - Compressed air gun for part cleaning - Bed flushing to prevent chip nests - Air conditioning for the control cabinet

Condition: used, TECHNICAL DETAILS - Number of axes : 3 MAIN SPINDLE - Spindle nose : A2-8" - Spindle power : 26 [kW] - Spindle speeds : 3000 [rpm] - Max. bar diameter : 91 [mm] - Max. turning diameter : 430 [mm] - Max. diameter on bench : 650 [mm] - C axis indexing precision : 0.001 [°] TURRET - Number of positions : 12 - Number of motorized positions : 12 - X/Z stroke : 245/1040 [mm] - Tool type : BMT65 - Live tools speed : 5000 [rpm] - Live tools power : 5.5 [kW] TAILSTOCK - Tailstock type : Numérique - Type of cone : CM4 - Tailstock stroke : 966 [mm] Nsdpjwyx Rnefx Aiksct - Quill stroke : 100 [mm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 41 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3780 X 1610 [mm] - Machine height : 1937 [mm] - Machine weight : 6500 [kg] MACHINE HOURS - Number of working hours : 0 [h] EQUIPMENT - CNC : Siemens 828D - Interface : Ethernet / RS232 / USB / PCMCIA - Interactive programming : SHOPTURN - 3 colors status lamp - Coolant tank * with high-pressure pump : 10 [bars] * With washing gun - Chips conveyor - Tool probe - Parts catcher - Predisposition for barfeeder - Rest predisposition - Chuck 3 jaws : SAMCHULLY 305 (mm)

Condition: good (used), Year of construction: 2014, functionality: fully functional, turning length: 760 mm, turning diameter: 376 mm, spindle speed (max.): 3,500 rpm, quill diameter: 78 mm, overall weight: 6,000 kg, Equipment: documentation/manual, rotational speed infinitely variable, Main parameters: Controller: FANUC 0iD/31iA Chuck.: SAMCHULLY 10" Spindle bore: 86mm With jacket tube.:78mm Turret head: 12 main positions 12 secondary positions, BMT65 connection, Programmable hydraulic tailstock: MT5 Main spindle power: 22kW S1max=3500 1/min Living tool power: 5.5kw S2max=5000 1/min X movement range: 260mm Z axis movement range: 830mm Y axis movement range: + - 52mm (104mm) C axis Maximum turning length: L=760 Ncjdpsykikxofx Aikjt Largest turning diameter: D=376mm Fast travel speed: 30m/min Automatic tool measurement with probe arm Weight: 6000 kg

Condition: used, Year of construction: 2003, travel distance X-axis: 320 mm, travel distance Y-axis: 220 mm, travel distance Z-axis: 180 mm, CNC wire EDM machine Fanuc, type Robocut Alpha O I B, year of manufacture 2003. Travel of XY axes: 320 x 220 mm. Travel of UV axes: plus/minus 60 mm. Z-axis adjustment: 180 mm. Clamping area: 530 x 360 mm. Maximum workpiece height: 180 mm. Internal space: 70 x 430 mm. Maximum workpiece weight: 500 kg. Nodpjyankpjfx Aikoct

Condition: good (used), Year of construction: 2013, functionality: fully functional, Machine in good condition, hand-shown parts are not included in the set. X 1025 mm Ljbijwx N Nfsa A Hkmsad Y 560 mm Z 600 mm Heidenhain TNC 620, 16,000 rpm, HSK 63 Nodpfjw Dbt Tex Aiksct

Condition: good (used), Year of construction: 2009, Traverses XYZ 850 x 700 x 750 mm, Pallet size 500 x 500mm, pallet load 500 kgs, 60 ATC, BT40 spindle taper, Ncsdpfjwq Iwxjx Aikot Fanuc 31i- control. Spindle power 22Kw, B axis 0.001 Degrees, 14000 rpm spindle, swarf conveyor, Through Spindle Coolant.
